Page 2913 of 3171

NISSAN NAVARA 2005 Repair Workshop Manual SRS-4 PREPARATION PREPARATION PFP:00002 Special Service ToolsEHS001ZT Tool number Tool nameDescription KV99105300 Air bag module bracketAnchoring air bag module KV99106400 Deployment toolDisposing of

Page 2914 of 3171

NISSAN NAVARA 2005 Repair Workshop Manual PREPARATION SRS-5 C D E F G I J K L MA B SRS Commercial Service ToolsEHS001ZU Tool name Description Tamper resistant TORX bit Size: T30/T50 S-NT757

Page 2915 of 3171

NISSAN NAVARA 2005 Repair Workshop Manual SRS-6 SUPPLEMENTAL RESTRAINT SYSTEM (SRS) SUPPLEMENTAL RESTRAINT SYSTEM (SRS) PFP:28556 SRS ConfigurationEHS001XA The air bag deploys if the air bag diagnosis sensor unit is activated while the igniti

Page 2916 of 3171

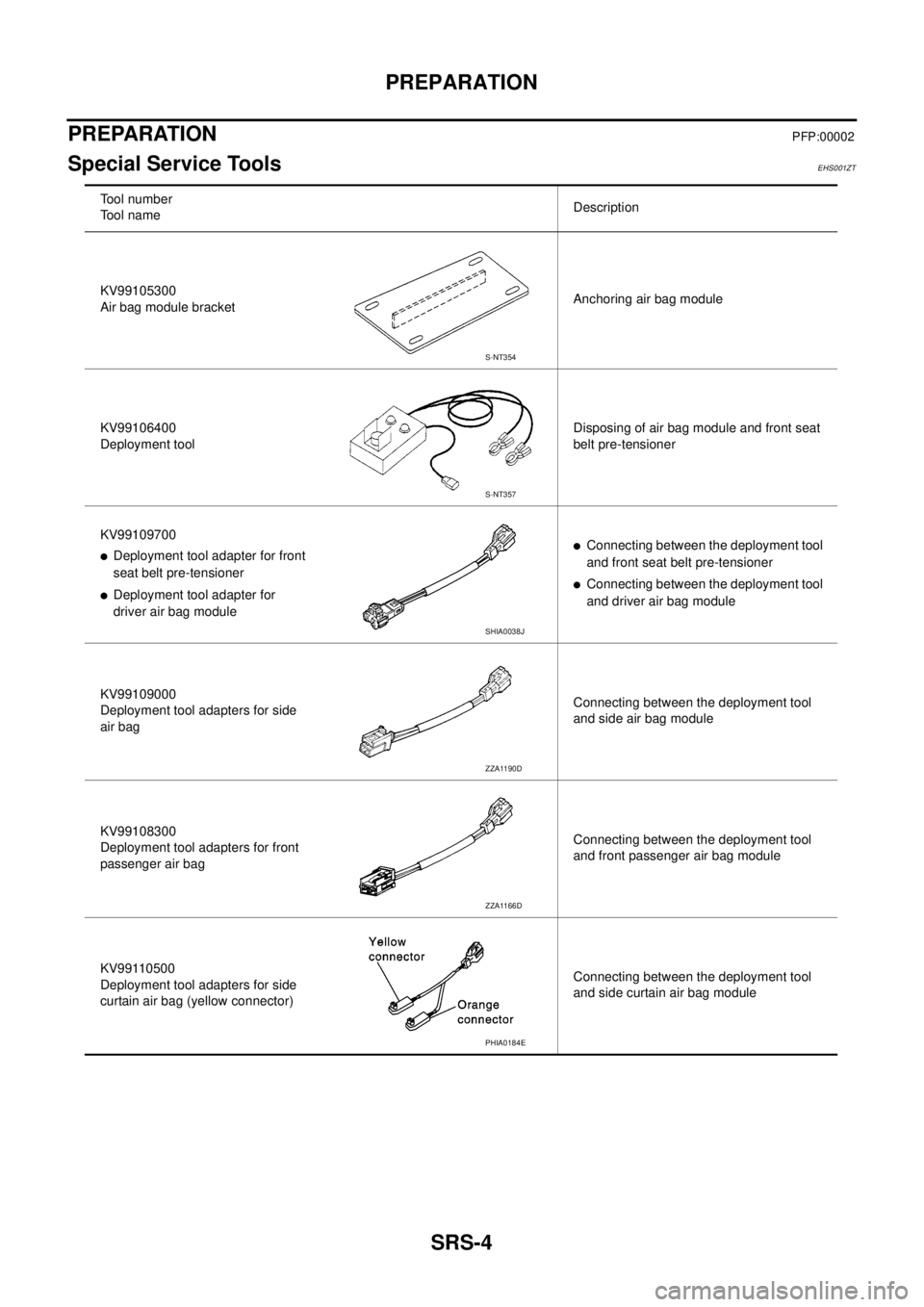

NISSAN NAVARA 2005 Repair Workshop Manual SUPPLEMENTAL RESTRAINT SYSTEM (SRS) SRS-7 C D E F G I J K L MA B SRS Front Seat Belt Pre-Tensioner with Load LimiterEHS001XB The seat belt pre-tensioner system with load limiter is installed for both

Page 2917 of 3171

NISSAN NAVARA 2005 Repair Workshop Manual SRS-8 SUPPLEMENTAL RESTRAINT SYSTEM (SRS) Direct-Connect SRS Component Connectors EHS001XF The following SRS components use direct-connect style harness connectors. lDriver air bag module lFront passe

Page 2918 of 3171

NISSAN NAVARA 2005 Repair Workshop Manual TROUBLE DIAGNOSIS SRS-9 C D E F G I J K L MA B SRS TROUBLE DIAGNOSISPFP:00004 Trouble Diagnosis IntroductionEHS001XG CAUTION: lDo not use electrical test equipment on any circuit related to the SRS un

Page 2919 of 3171

NISSAN NAVARA 2005 Repair Workshop Manual SRS-10 TROUBLE DIAGNOSIS WORK FLOW *1:SRS-9*2:SRS-18*3:SRS-26 *4:SRS-30 WHIA0098E

Page 2920 of 3171

NISSAN NAVARA 2005 Repair Workshop Manual TROUBLE DIAGNOSIS SRS-11 C D E F G I J K L MA B SRS SRS Components Parts LocationEHS001XH 1. Side curtain air bag module (LH/RH) 2. Front RH side air bag module 3. RH side air bag (satellite) sensor 4
