NISSAN NAVARA 2005 Repair Workshop Manual DTC P0102, P0103 MAF SENSOR
EC-93
C
D
E
F
G
H
I
J
K
L
MA
EC
On Board Diagnosis LogicEBS01KDY
The MI will not light up for these self-diagnoses.
DTC Confirmation ProcedureEBS01KDZ
NOTE:
If DTC Confirma

Page 1074 of 3171

NISSAN NAVARA 2005 Repair Workshop Manual EC-94
DTC P0102, P0103 MAF SENSOR
Wiring Diagram
EBS01KE0
MBWA1036E

Page 1075 of 3171

NISSAN NAVARA 2005 Repair Workshop Manual DTC P0102, P0103 MAF SENSOR
EC-95
C
D
E
F
G
H
I
J
K
L
MA
EC
Diagnostic ProcedureEBS01KE1
1.CHECK GROUND CONNECTIONS
1. Turn ignition switch OFF.
2. Loosen and retighten three ground screws on the body

Page 1076 of 3171

NISSAN NAVARA 2005 Repair Workshop Manual EC-96
DTC P0102, P0103 MAF SENSOR
3.DETECT MALFUNCTIONING PART
Check the following.
lHarness connectors E9, F4
lHarness for open or short between IPDM E/R and mass air flow sensor
lHarness for open or

Page 1077 of 3171

NISSAN NAVARA 2005 Repair Workshop Manual DTC P0102, P0103 MAF SENSOR
EC-97
C
D
E
F
G
H
I
J
K
L
MA
EC

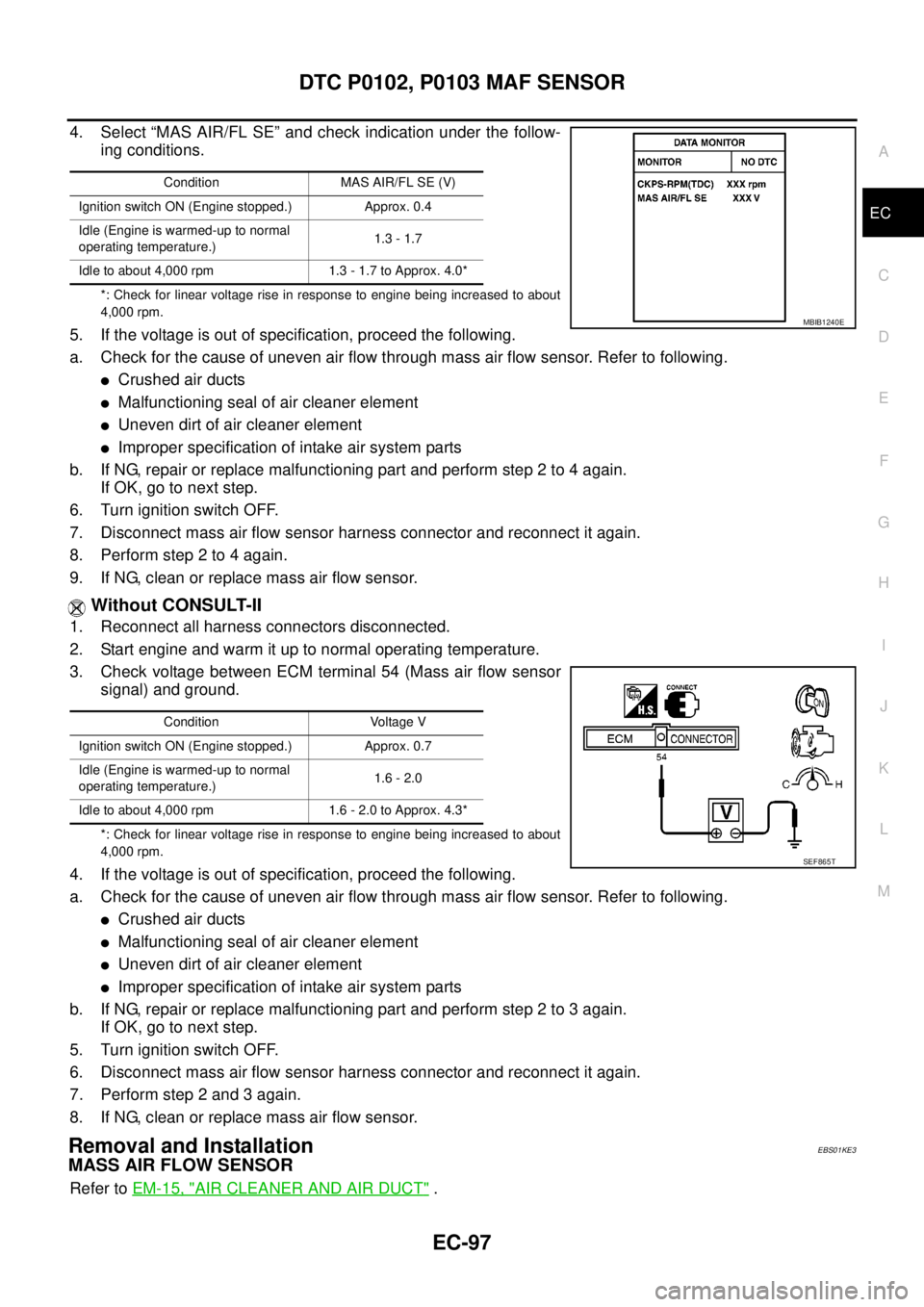

4. Select “MAS AIR/FL SE” and check indication under the follow-
ing conditions.
*: Check for linear voltage rise in response to engine

DTC P0102, P0103 MAF SENSOR
EC-97
C
D
E
F
G
H
I
J
K
L
MA
EC
4. Select “MAS AIR/FL SE” and check indication under the follow-
ing conditions.
*: Check for linear voltage rise in response to engine being increased to about
4,000 rpm.
5. If the voltage is out of specification, proceed the following.
a. Check for the cause of uneven air flow through mass air flow sensor. Refer to following.
lCrushed air ducts
lMalfunctioning seal of air cleaner element
lUneven dirt of air cleaner element
lImproper specification of intake air system parts
b. If NG, repair or replace malfunctioning part and perform step 2 to 4 again.
IfOK,gotonextstep.
6. Turn ignition switch OFF.
7. Disconnect mass air flow sensor harness connector and reconnect it again.
8. Performstep2to4again.
9. If NG, clean or replace mass air flow sensor.
Without CONSULT-II
1. Reconnect all harness connectors disconnected.
2. Start engine and warm it up to normal operating temperature.
3. Check voltage between ECM terminal 54 (Mass air flow sensor
signal) and ground.
*: Check for linear voltage rise in response to engine being increased to about
4,000 rpm.
4. If the voltage is out of specification, proceed the following.
a. Check for the cause of uneven air flow through mass air flow sensor. Refer to following.
lCrushed air ducts
lMalfunctioning seal of air cleaner element
lUneven dirt of air cleaner element
lImproper specification of intake air system parts
b. If NG, repair or replace malfunctioning part and perform step 2 to 3 again.
IfOK,gotonextstep.
5. Turn ignition switch OFF.
6. Disconnect mass air flow sensor harness connector and reconnect it again.
7. Perform step 2 and 3 again.
8. If NG, clean or replace mass air flow sensor.
Removal and InstallationEBS01KE3
MASS AIR FLOW SENSOR
Refer toEM-15, "AIR CLEANER AND AIR DUCT".
Condition MAS AIR/FL SE (V)
Ignition switch ON (Engine stopped.) Approx. 0.4
Idle (Engine is warmed-up to normal
operating temperature.)1.3 - 1.7
Idle to about 4,000 rpm 1.3 - 1.7 to Approx. 4.0*
MBIB1240E
Condition Voltage V
Ignition switch ON (Engine stopped.) Approx. 0.7
Idle (Engine is warmed-up to normal
operating temperature.)1.6 - 2.0
Idle to about 4,000 rpm 1.6 - 2.0 to Approx. 4.3*
SEF865T

Page 1078 of 3171

NISSAN NAVARA 2005 Repair Workshop Manual EC-98
DTC P0112, P0113 IAT SENSOR
DTC P0112, P0113 IAT SENSOR
PFP:22630

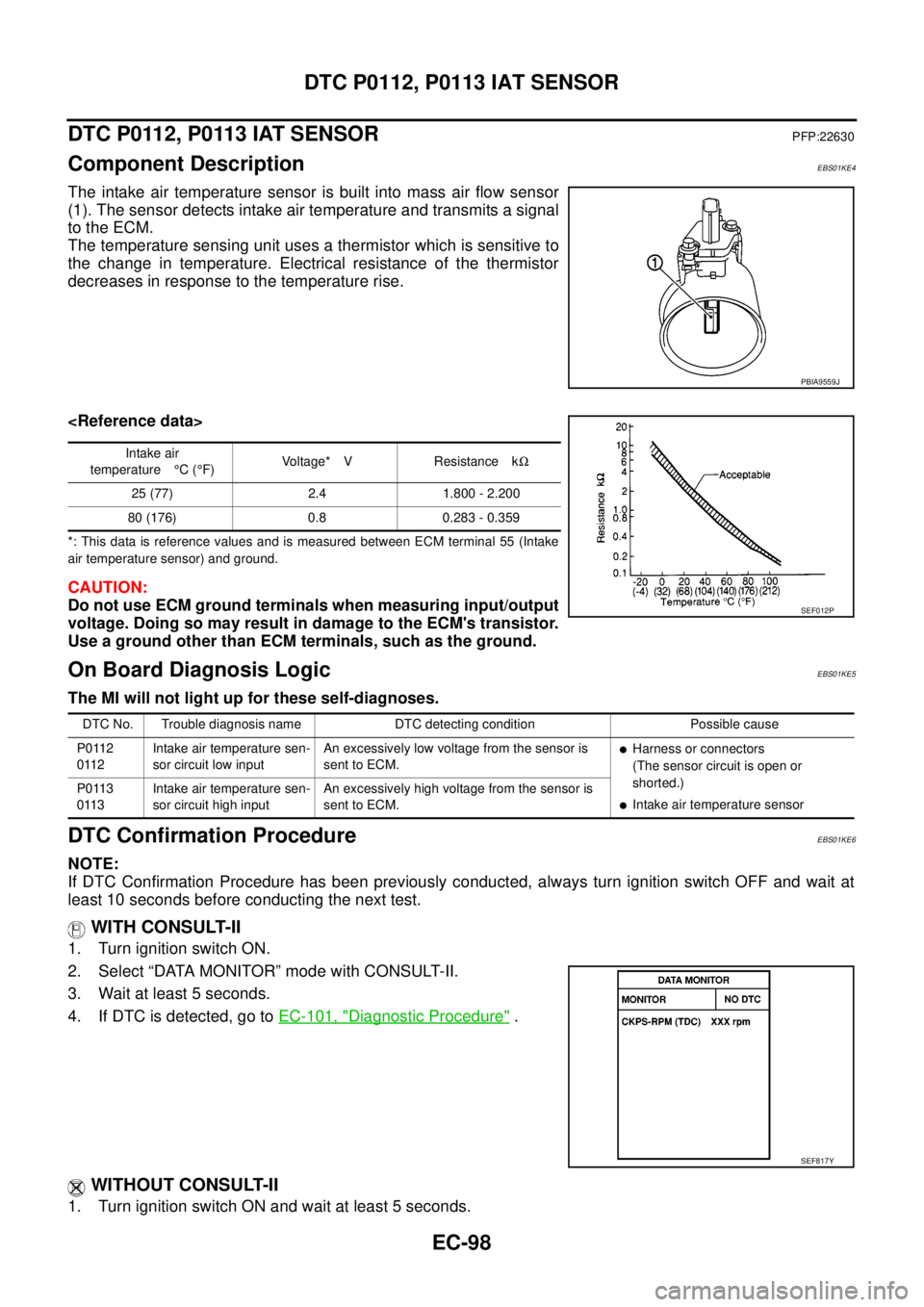

Component DescriptionEBS01KE4
The intake air temperature sensor is built into mass air flow sensor
(1). The sensor detects intak

Page 1079 of 3171

NISSAN NAVARA 2005 Repair Workshop Manual DTC P0112, P0113 IAT SENSOR
EC-99
C
D
E
F
G
H
I
J
K
L
MA
EC
2. Turn ignition switch OFF, wait at least 10 seconds and then turn ON.
3. Perform Diagnostic Test Mode II (Self-diagnostic results) with EC

Page 1080 of 3171

NISSAN NAVARA 2005 Repair Workshop Manual EC-100
DTC P0112, P0113 IAT SENSOR
Wiring Diagram
EBS01KE7
MBWA1037E
