Page 369 of 3171

NISSAN NAVARA 2005 Repair Workshop Manual TROUBLE DIAGNOSIS ATC-35 C D E F G H I K L MA B AT C How to Perform Trouble Diagnosis for Quick and Accurate RepairEJS006B9 WORK FLOW SYMPTOM TABLE *1AT C - 5 7 , "Operational Check". SHA900E Symptom

Page 370 of 3171

NISSAN NAVARA 2005 Repair Workshop Manual ATC-36 TROUBLE DIAGNOSIS Component Parts and Harness Connector Location EJS006BA ENGINE COMPARTMENT MJIB0155E

Page 371 of 3171

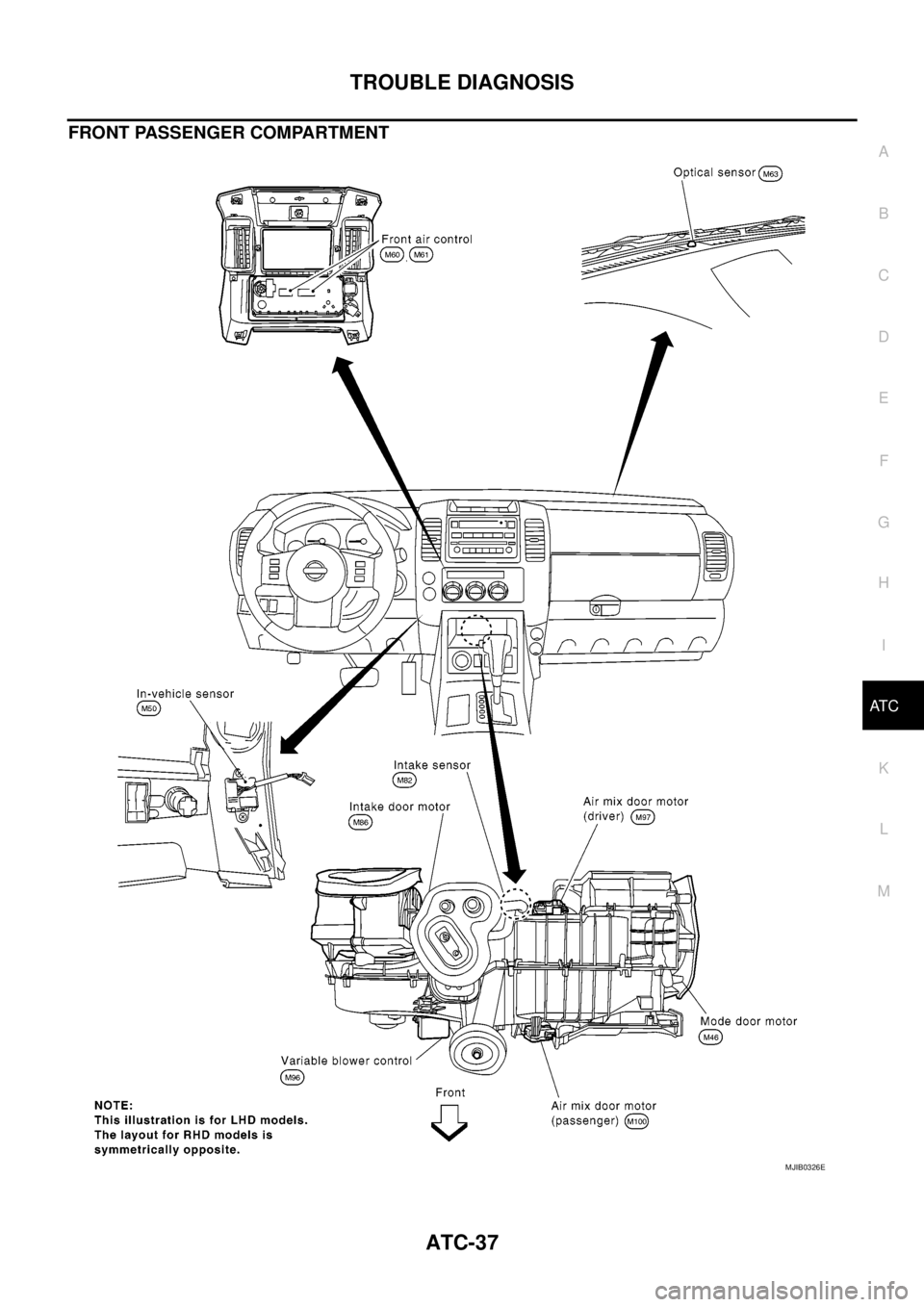

NISSAN NAVARA 2005 Repair Workshop Manual TROUBLE DIAGNOSIS ATC-37 C D E F G H I K L MA B AT C FRONT PASSENGER COMPARTMENT MJIB0326E

Page 372 of 3171

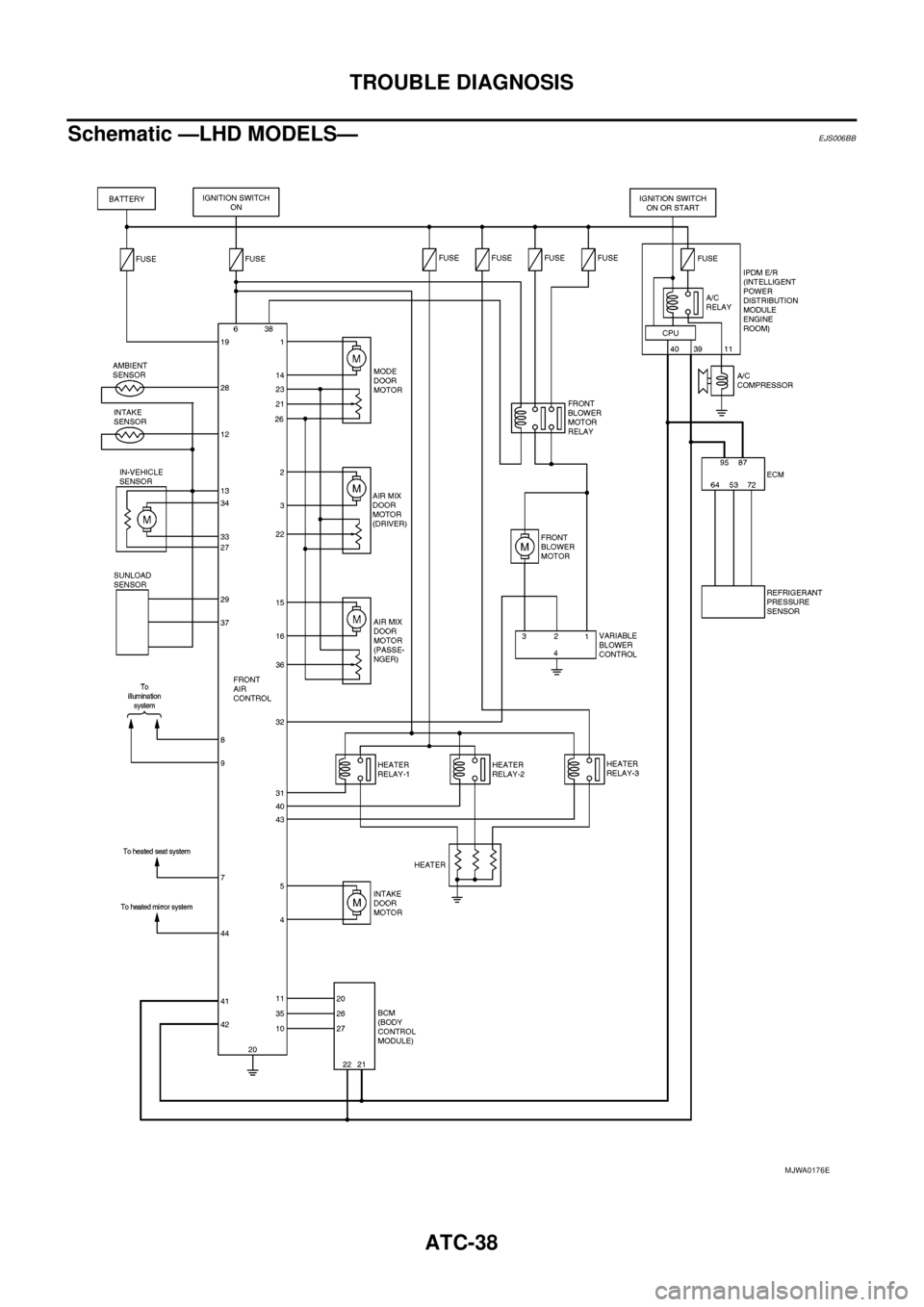

NISSAN NAVARA 2005 Repair Workshop Manual ATC-38 TROUBLE DIAGNOSIS Schematic —LHD MODELS— EJS006BB MJWA0176E

Page 373 of 3171

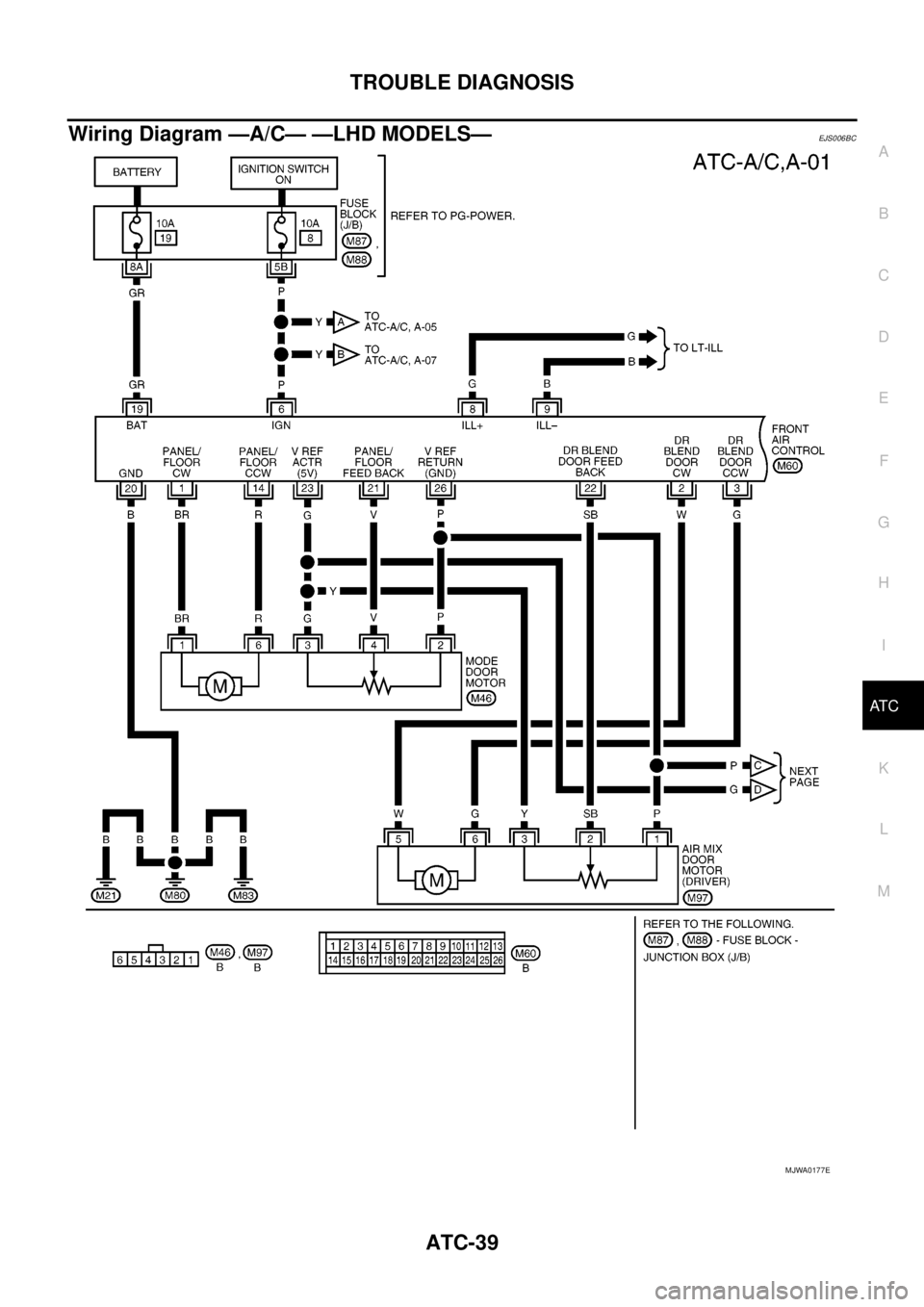

NISSAN NAVARA 2005 Repair Workshop Manual TROUBLE DIAGNOSIS ATC-39 C D E F G H I K L MA B AT C Wiring Diagram —A/C— —LHD MODELS—EJS006BC MJWA0177E

Page 374 of 3171

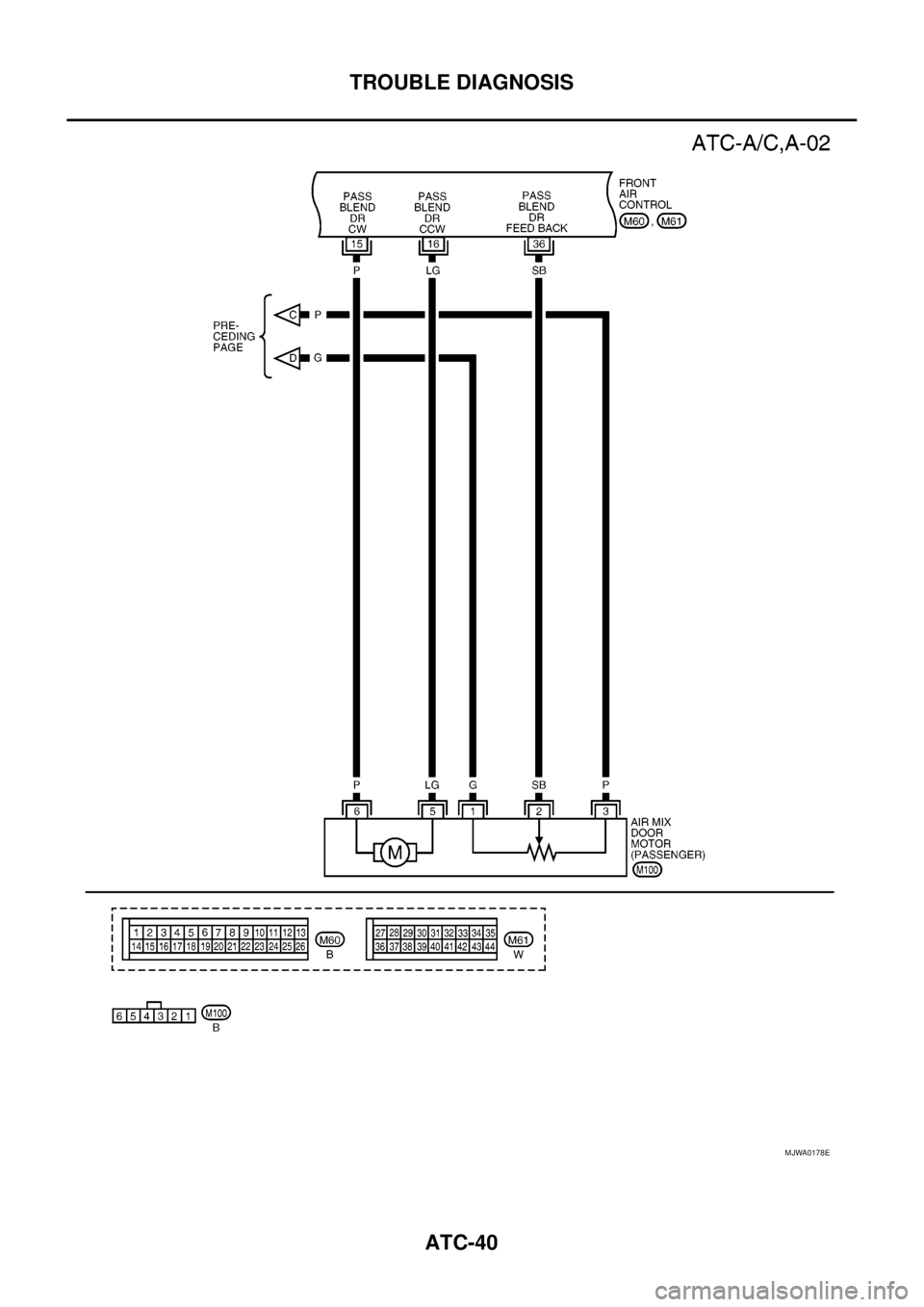

NISSAN NAVARA 2005 Repair Workshop Manual ATC-40 TROUBLE DIAGNOSIS MJWA0178E

Page 375 of 3171

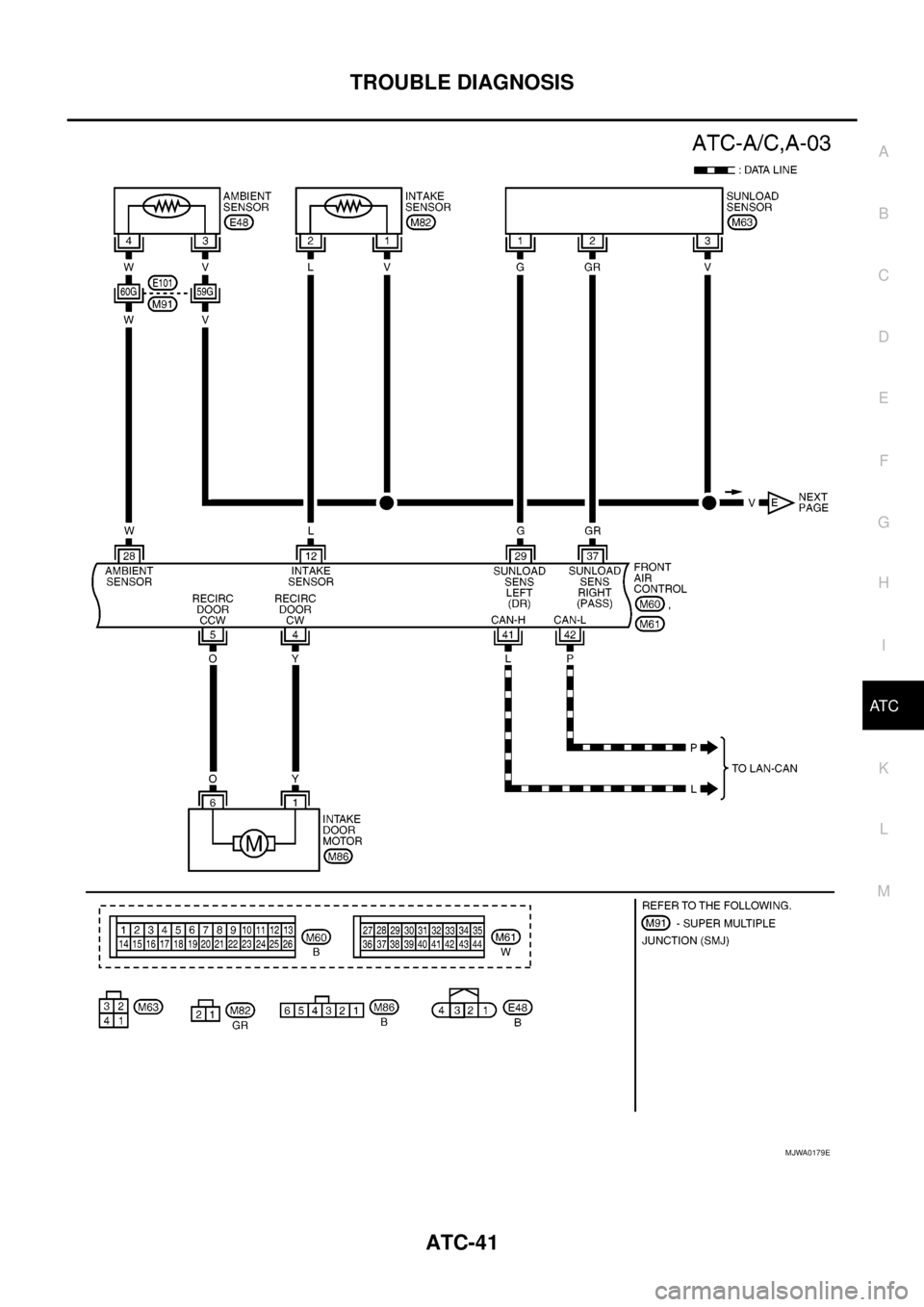

NISSAN NAVARA 2005 Repair Workshop Manual TROUBLE DIAGNOSIS ATC-41 C D E F G H I K L MA B AT C MJWA0179E

Page 376 of 3171

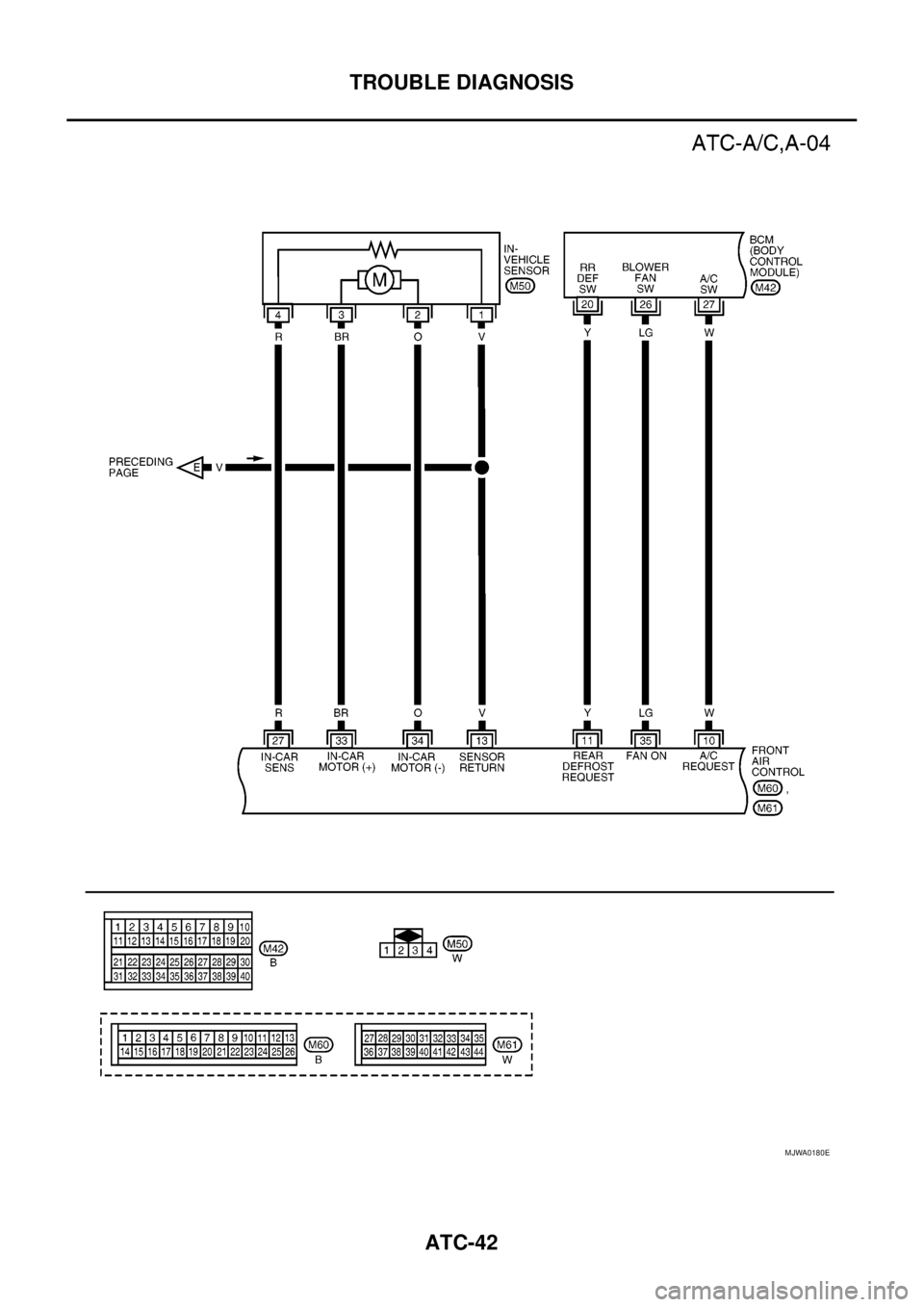

NISSAN NAVARA 2005 Repair Workshop Manual ATC-42 TROUBLE DIAGNOSIS MJWA0180E
