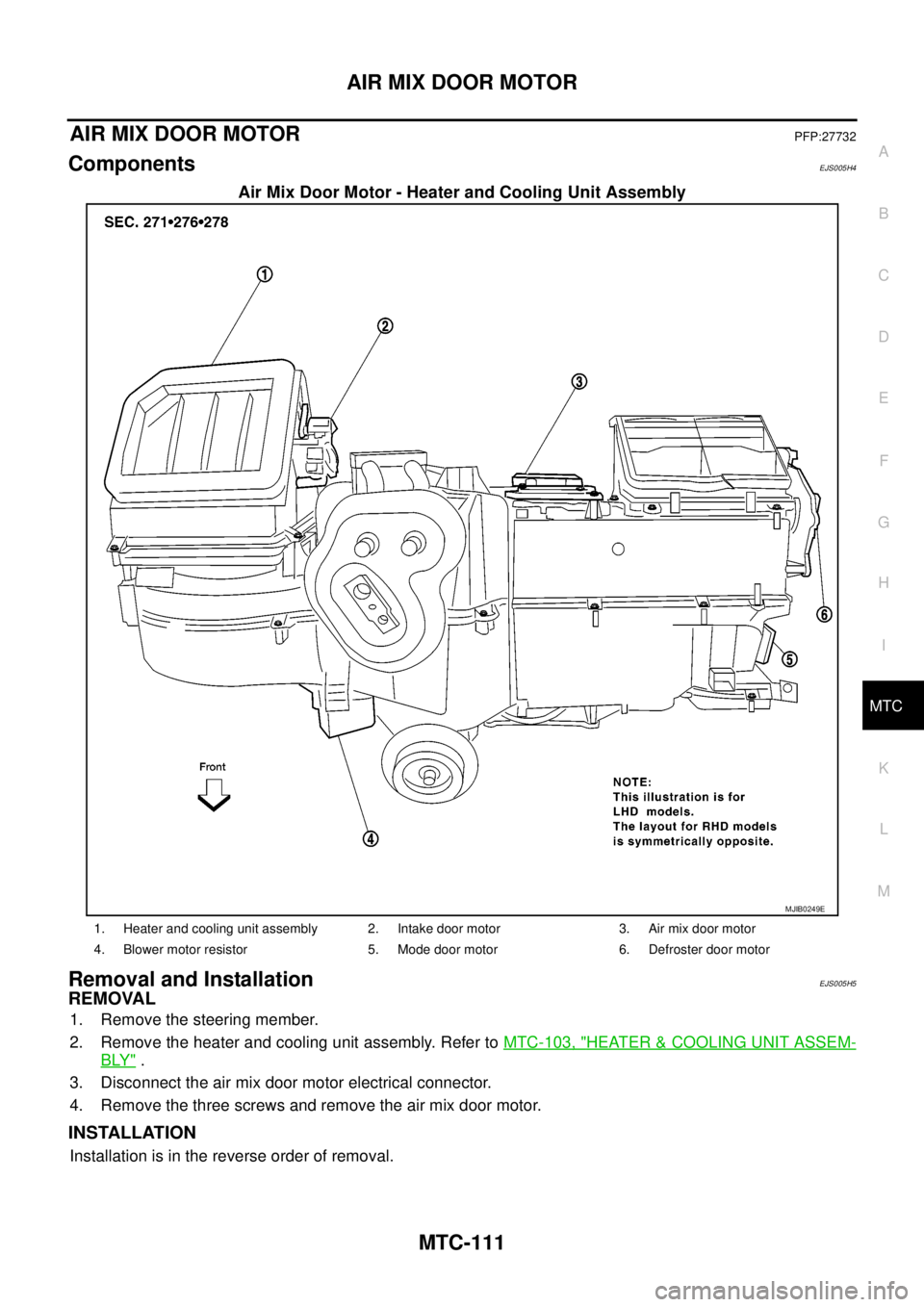

NISSAN NAVARA 2005 Repair Workshop Manual MTC-110 MODE DOOR MOTOR MODE DOOR MOTOR PFP:27731 ComponentsEJS005H3 Mode Door Motor - Heater and Cooling Unit Assembly Removal and InstallationEJS006DA REMOVAL 1. Remove the steering member. 2. Remov

Page 2498 of 3171

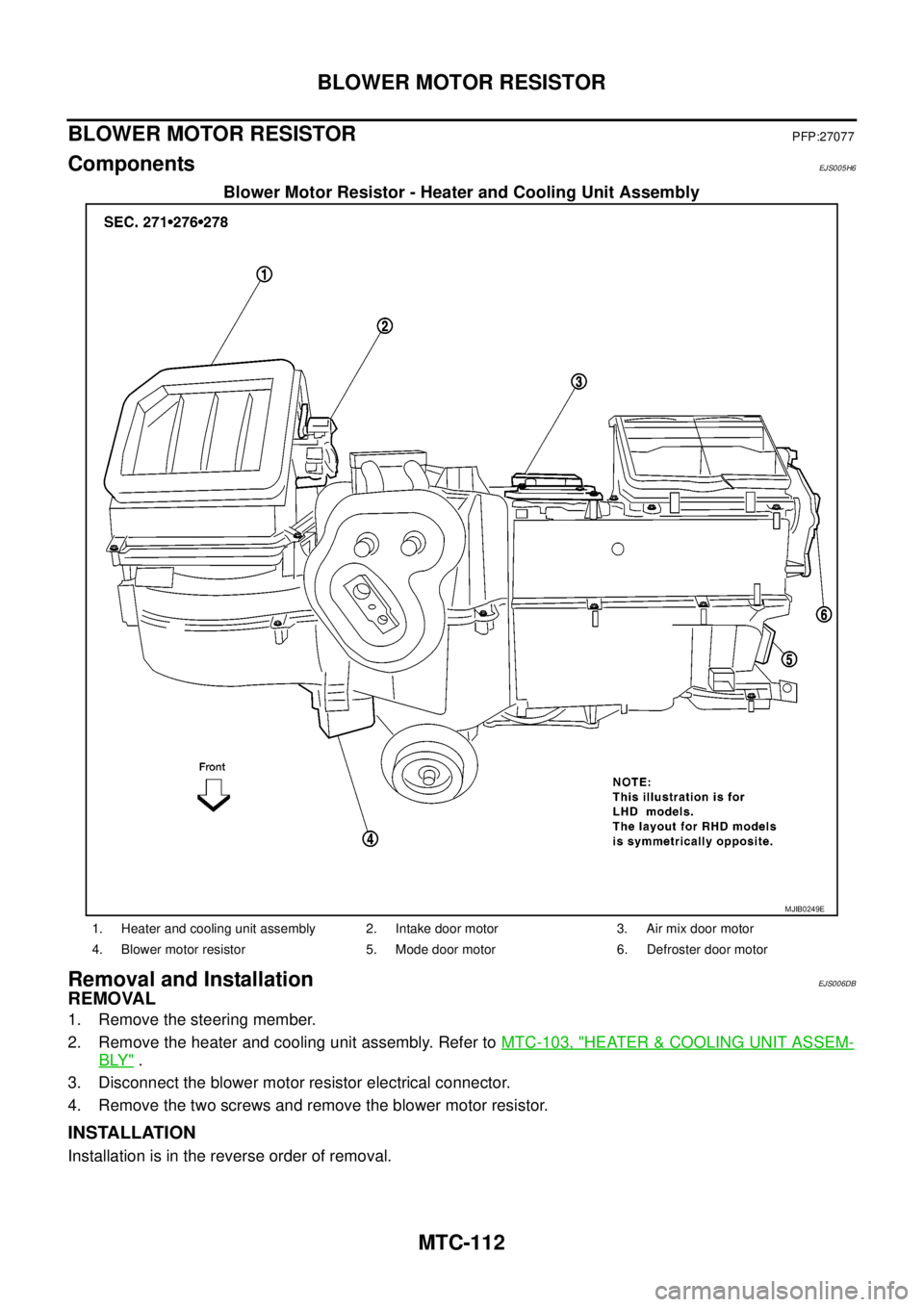

NISSAN NAVARA 2005 Repair Workshop Manual AIR MIX DOOR MOTOR MTC-111 C D E F G H I K L MA B MTC AIR MIX DOOR MOTORPFP:27732 ComponentsEJS005H4 Air Mix Door Motor - Heater and Cooling Unit Assembly Removal and InstallationEJS005H5 REMOVAL 1. R

Page 2499 of 3171

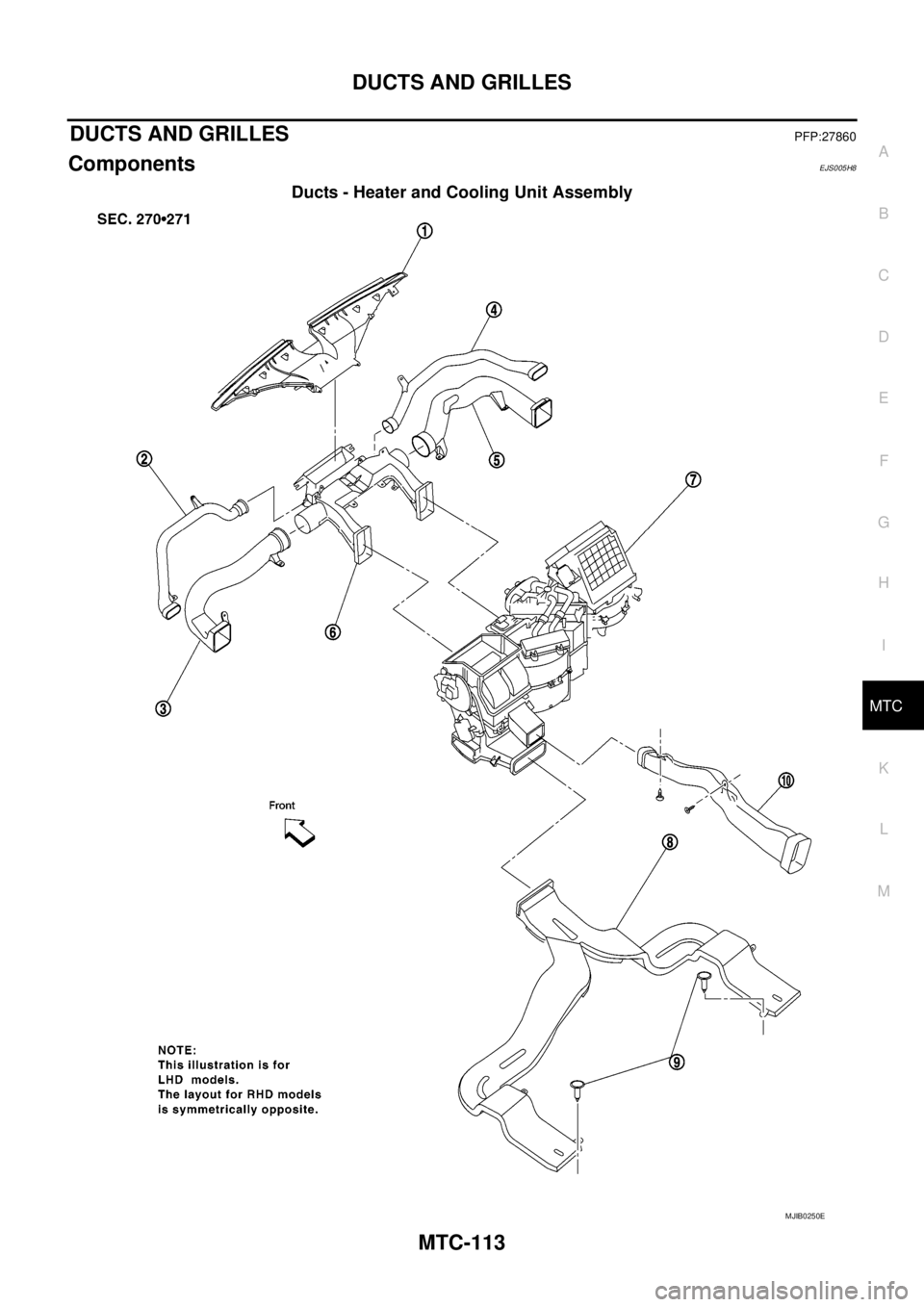

NISSAN NAVARA 2005 Repair Workshop Manual MTC-112 BLOWER MOTOR RESISTOR BLOWER MOTOR RESISTOR PFP:27077 ComponentsEJS005H6 Blower Motor Resistor - Heater and Cooling Unit Assembly Removal and InstallationEJS006DB REMOVAL 1. Remove the steerin

Page 2500 of 3171

NISSAN NAVARA 2005 Repair Workshop Manual DUCTS AND GRILLES MTC-113 C D E F G H I K L MA B MTC DUCTS AND GRILLESPFP:27860 ComponentsEJS005H8 Ducts - Heater and Cooling Unit Assembly MJIB0250E

Page 2501 of 3171

NISSAN NAVARA 2005 Repair Workshop Manual MTC-114 DUCTS AND GRILLES 1. Defroster nozzle 2. LH side demister duct 3. LH ventilator duct 4. RH side demister duct 5. RH ventilator duct 6. Center ventilator duct 7. Heater and cooling unit assembl

Page 2502 of 3171

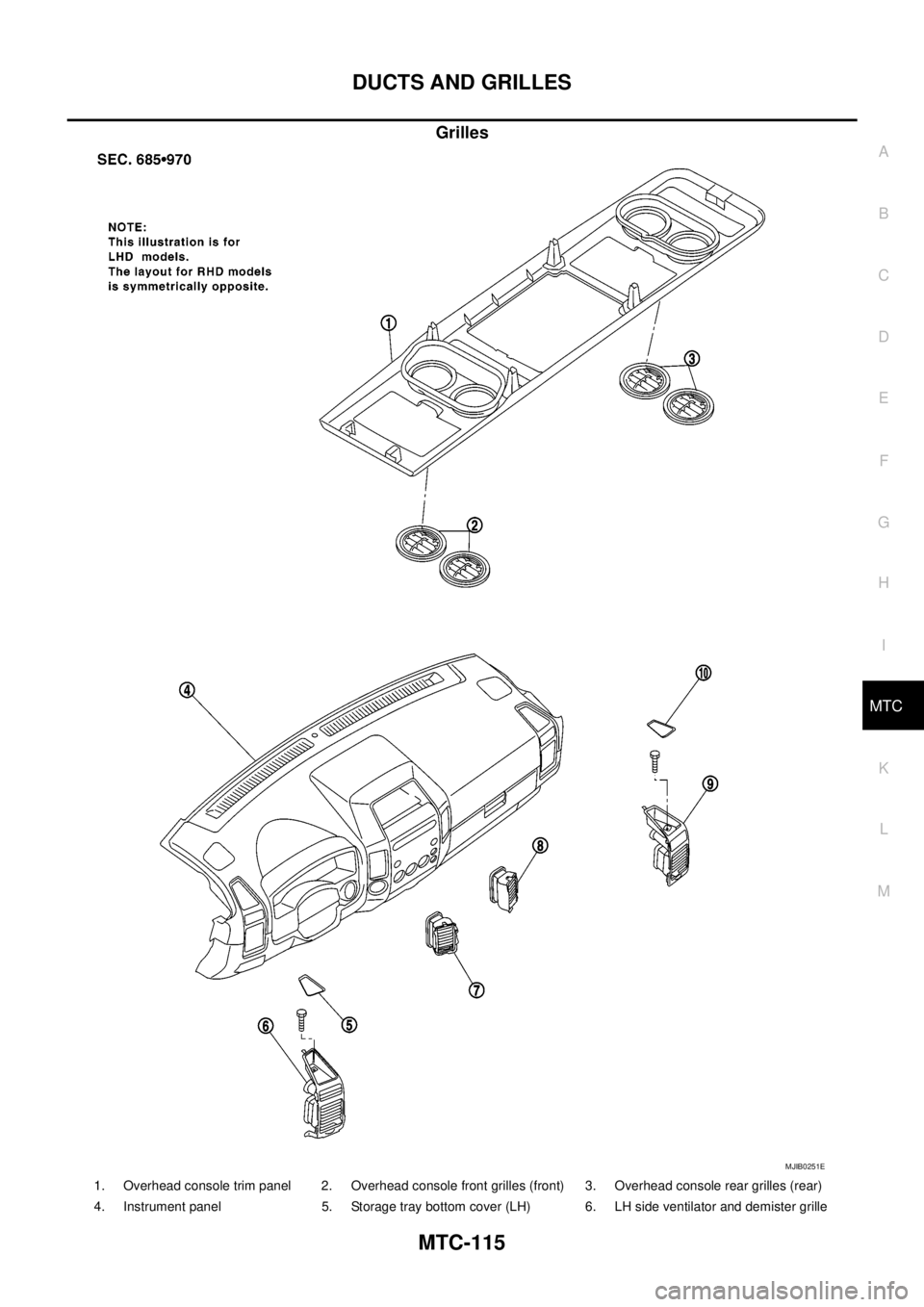

NISSAN NAVARA 2005 Repair Workshop Manual DUCTS AND GRILLES MTC-115 C D E F G H I K L MA B MTC Grilles MJIB0251E 1. Overhead console trim panel 2. Overhead console front grilles (front) 3. Overhead console rear grilles (rear) 4. Instrument pa

Page 2503 of 3171

NISSAN NAVARA 2005 Repair Workshop Manual MTC-116 DUCTS AND GRILLES Removal and Installation EJS005H9 CENTER CONSOLE HEAT DUCT AND REAR FINISHER ASSEMBLY GRILLE Removal The center console must be removed and disassembled to remove the heat du

Page 2504 of 3171

NISSAN NAVARA 2005 Repair Workshop Manual DUCTS AND GRILLES MTC-117 C D E F G H I K L MA B MTC NOTE: To remove the overhead console front and rear grilles, turn the grille counter-clockwise to release the grille from the overhead console trim
