REPAIR FOR COMPONENT PARTS
AT-289
D
E
F
G
H
I
J
K
L
MA
B
AT
CAUTION:
If necessary, replace input clutch assembly.
Front Carrier
lCheck for deformation, fatigue or damage.
CAUTION:
If necessary, replace front carrier assembly.
Rear Internal Gear
lCheck for deformation, fatigue or damage.
CAUTION:
If necessary, replace rear internal gear assembly.
ASSEMBLY
1. Install input clutch.
a. Install drive plates, driven plates and retaining plate in input
clutch drum.
lSnap ring (1)
lRetaining plate (2)
lDrive plate (3)
lDriven plate (4)
lDrive plate/Driven plate: 7/7
CAUTION:
Take care with order of plates.
b. Install snap ring in input clutch drum using a flat-bladed screw-
driver.
c. Install needle bearing in input clutch assembly.
SCIA7133E
SCIA2864E
SCIA2853E
Page 298 of 3171
AT-290
REPAIR FOR COMPONENT PARTS
d. Install O-ring and seal rings in input clutch assembly.
2. Install front carrier assembly.
a. Install snap ring to front carrier assembly.
CAUTION:
Do not expand snap ring excessively.
b. Install needle bearing in front carrier assembly.
CAUTION:
Take care with the direction of needle bearing. Refer toAT-
261, "Locations of Adjusting Shims, Needle Bearings,
Thrust Washers and Snap Rings".
c. Install bearing race in front carrier assembly.
d. Install front carrier assembly to input clutch assembly.
3. Compress snap ring using 2 flat-bladed screwdrivers.
4. Install front carrier assembly and input clutch assembly in rear
internal gear.
SCIA5235E
SCIA5234E
SCIA5233E
SCIA5232E
SCIA5339E
Page 299 of 3171
REPAIR FOR COMPONENT PARTS
AT-291
D
E
F
G
H
I
J
K
L
MA
B
AT
Mid Sun Gear, Rear Sun Gear, High and Low Reverse Clutch HubECS00G3I

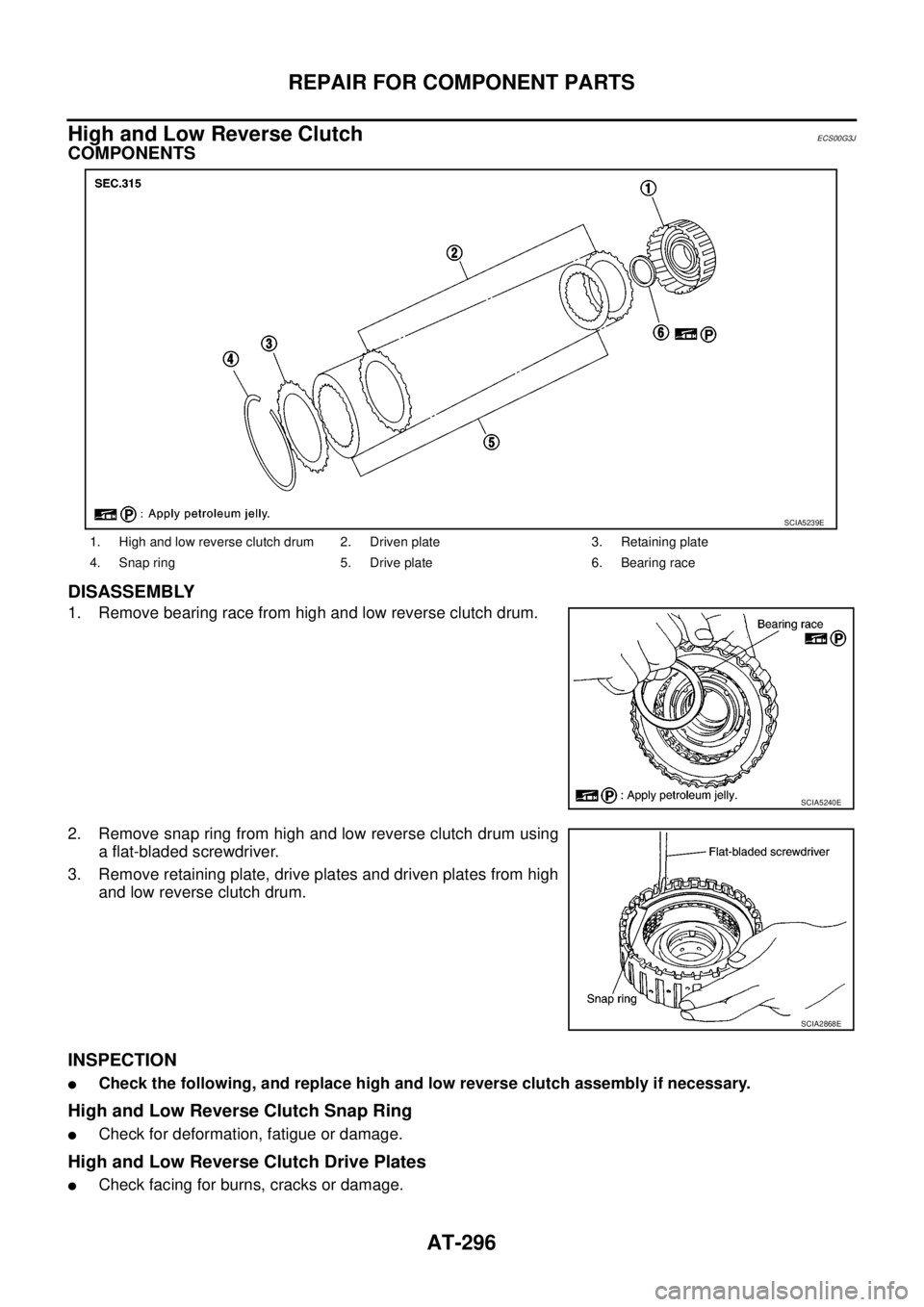

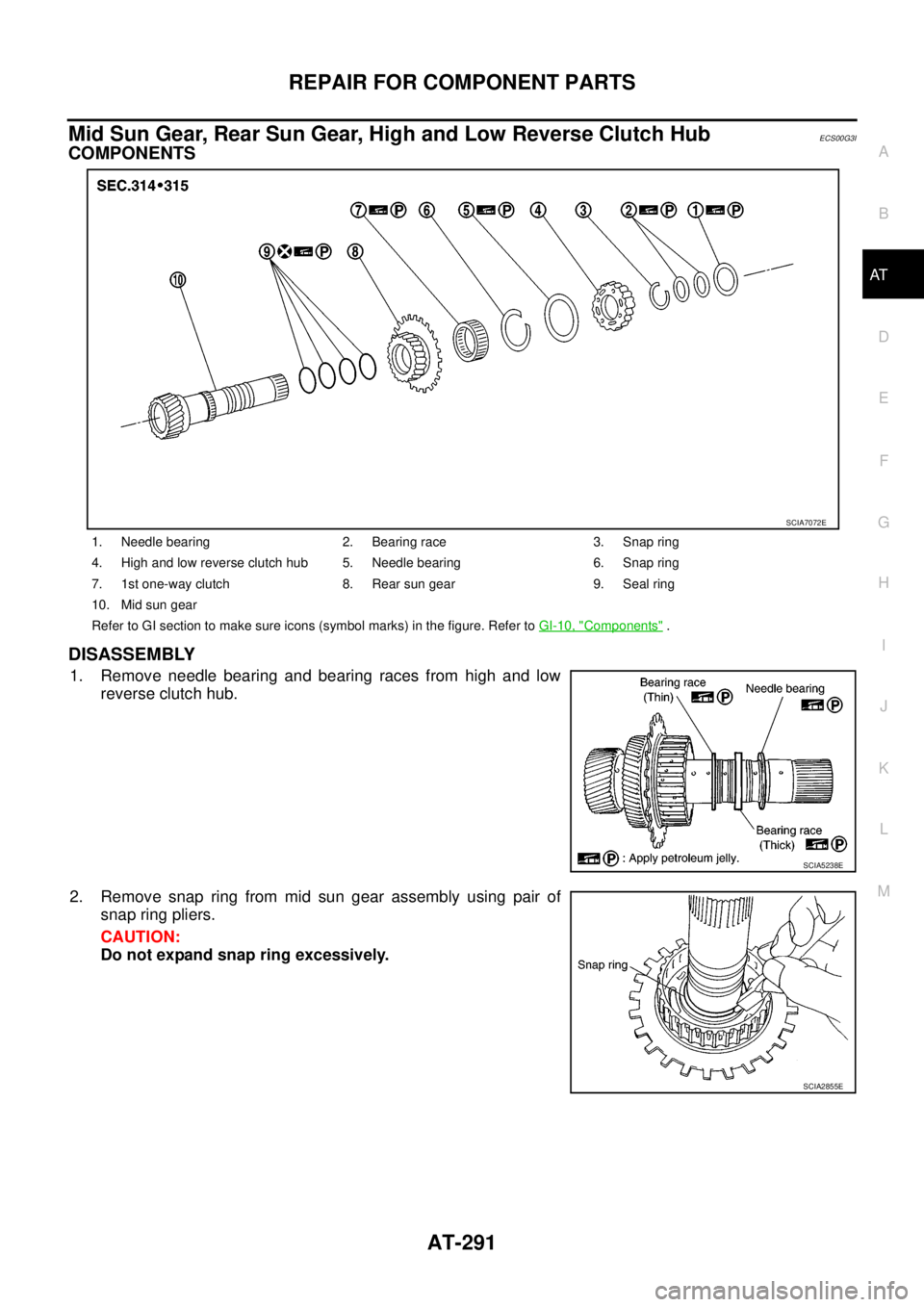

COMPONENTS
DISASSEMBLY
1. Remove needle bearing and bearing races from high and low
reverseclutchhub.
2. Remove snap ring from mid sun gear assembly using pair of
snap ring pliers.
CAUTION:
Do not expand snap ring excessively.
1. Needle bearing 2. Bearing race 3. Snap ring
4. High and low reverse clutch hub 5. Needle bearing 6. Snap ring
7. 1st one-way clutch 8. Rear sun gear 9. Seal ring
10. Mid sun gear
Refer to GI section to make sure icons (symbol marks) in the figure. Refer toGI-10, "
Components".
SCIA7072E
SCIA5238E
SCIA2855E
Page 300 of 3171
AT-292
REPAIR FOR COMPONENT PARTS
3. Remove high and low reverse clutch hub from mid sun gear
assembly.
a. Remove needle bearing from high and low reverse clutch hub.
4. Remove rear sun gear assembly from mid sun gear assembly.
a. Remove snap ring from rear sun gear using a flat-bladed screw-
driver.
SCIA2856E
SCIA2857E
SCIA2858E
SCIA2859E
Page 301 of 3171
REPAIR FOR COMPONENT PARTS
AT-293
D
E
F
G
H
I
J
K
L
MA
B
AT

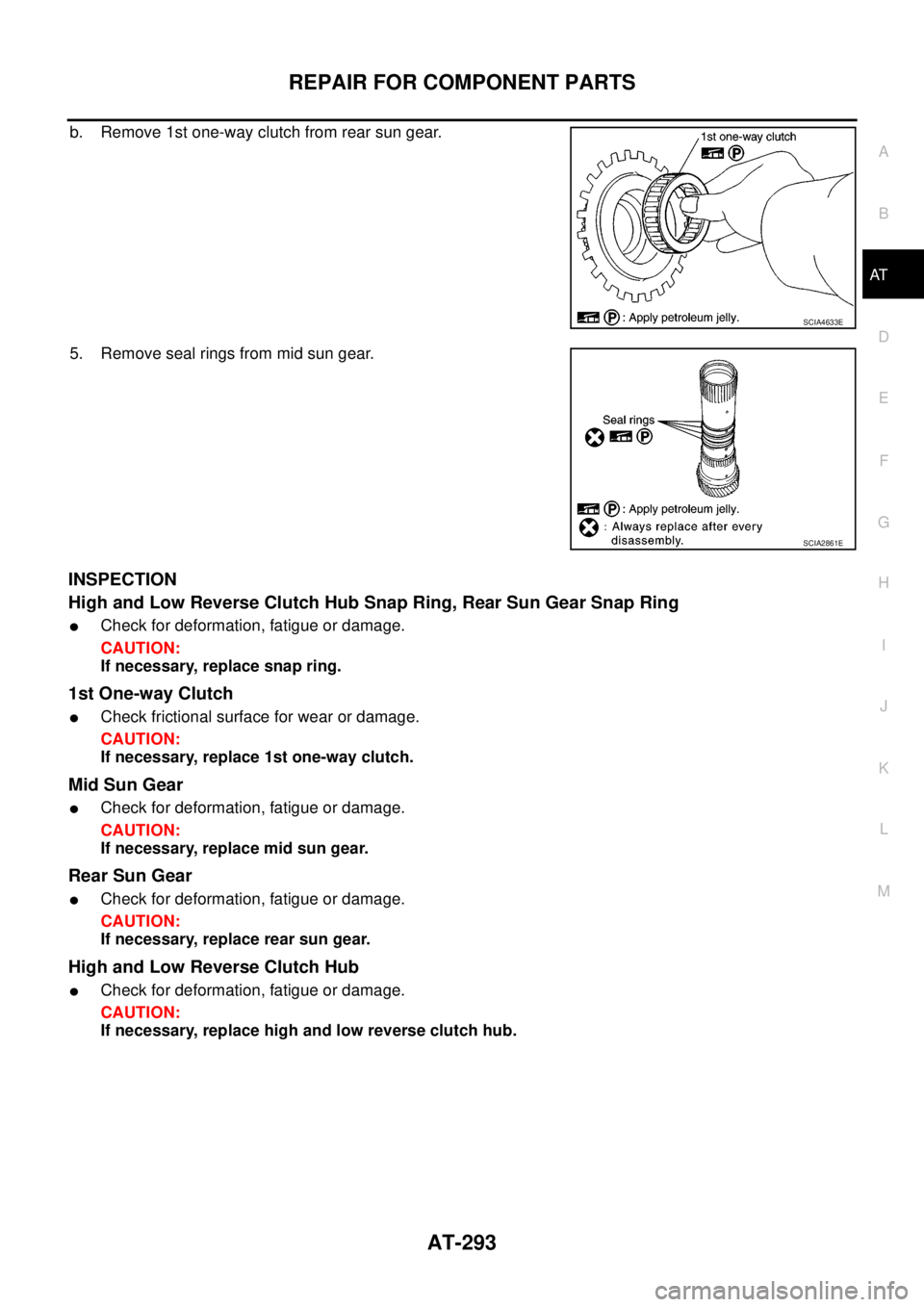

b. Remove 1st one-way clutch from rear sun gear.
5. Remove seal rings from mid sun gear.
INSPECTION
High and Low Reverse Clutch Hub Snap Ring, Rear Sun Gear Snap Ring
lCheck for deformation, fatigue or damage.
CAUTION:
If necessary, replace snap ring.
1st One-way Clutch
lCheck frictional surface for wear or damage.
CAUTION:
If necessary, replace 1st one-way clutch.
Mid Sun Gear
lCheck for deformation, fatigue or damage.
CAUTION:
If necessary, replace mid sun gear.
Rear Sun Gear
lCheck for deformation, fatigue or damage.
CAUTION:
If necessary, replace rear sun gear.
High and Low Reverse Clutch Hub
lCheck for deformation, fatigue or damage.
CAUTION:
If necessary, replace high and low reverse clutch hub.
SCIA4633E
SCIA2861E
Page 302 of 3171
AT-294
REPAIR FOR COMPONENT PARTS
ASSEMBLY

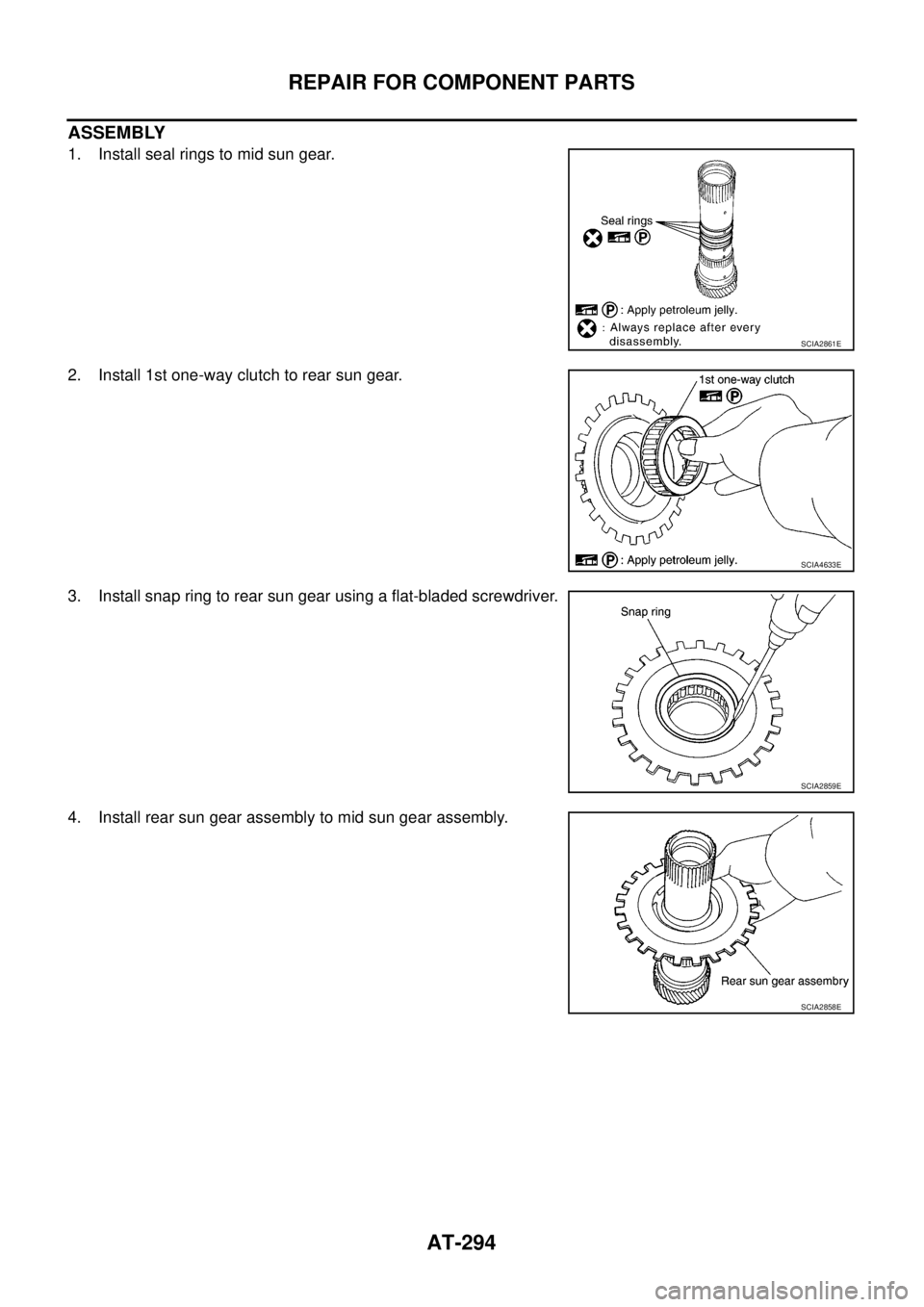

1. Install seal rings to mid sun gear.
