LAN-192
[CAN]
CAN SYSTEM (TYPE 11)
Case 8
Check BCM circuit. Refer toLAN-301, "BCM Circuit Inspection".
PKIC1904E
PKIC1519E
Page 1970 of 3171
CAN SYSTEM (TYPE 11)
LAN-193
[CAN]
C
D
E
F
G
H
I
J
L
MA
B
LAN
Case 9

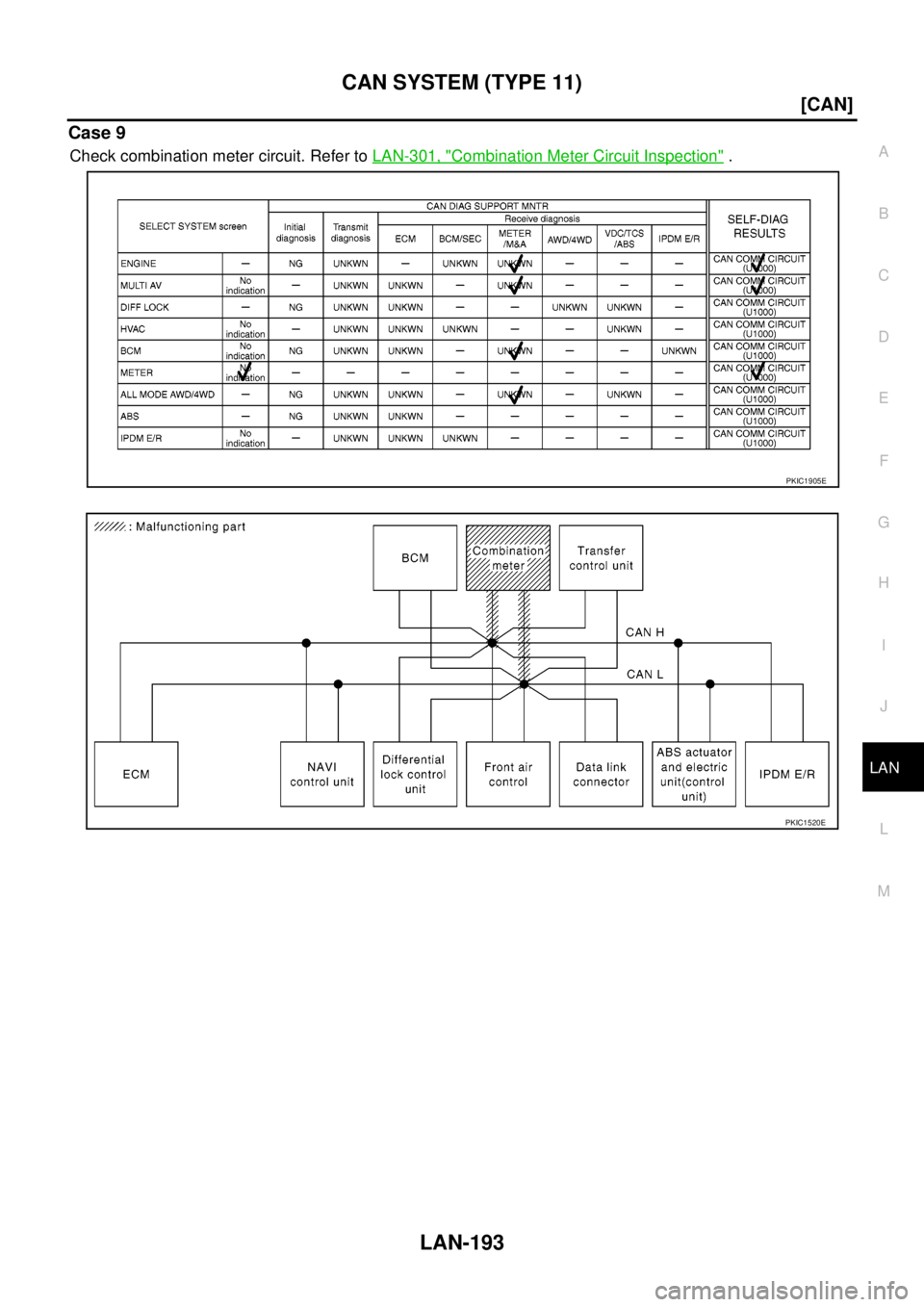

Check combination meter circuit. Refer toLAN-301, "Combination Meter Circuit Inspection".
PKIC1905E
PKIC1520E
Page 1971 of 3171
LAN-194
[CAN]
CAN SYSTEM (TYPE 11)
Case 10

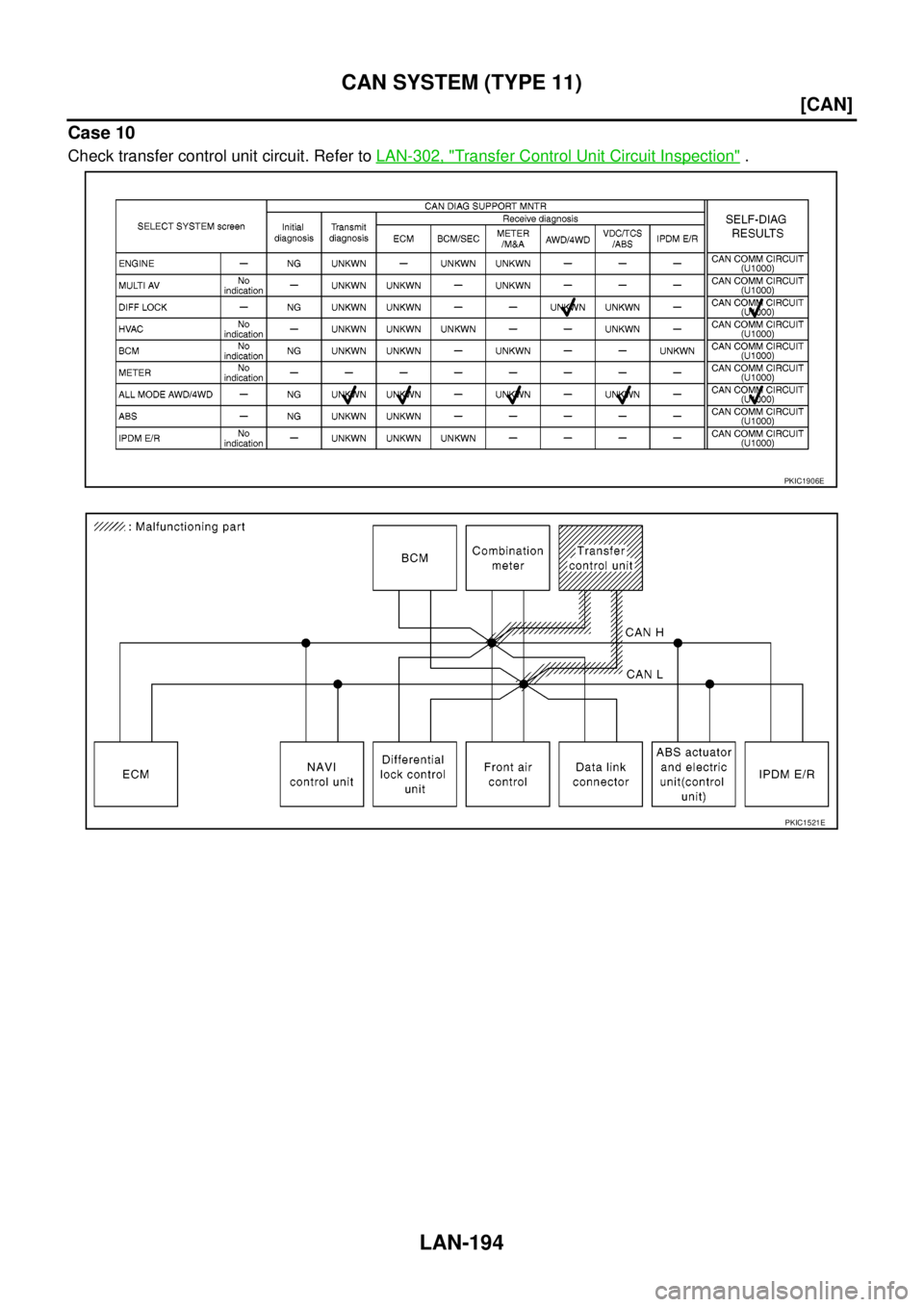

Check transfer control unit circuit. Refer toLAN-302, "Transfer Control Unit Circuit Inspection".
PKIC1906E
PKIC1521E
Page 1972 of 3171
CAN SYSTEM (TYPE 11)
LAN-195
[CAN]
C
D
E
F
G
H
I
J
L
MA
B
LAN
Case 11

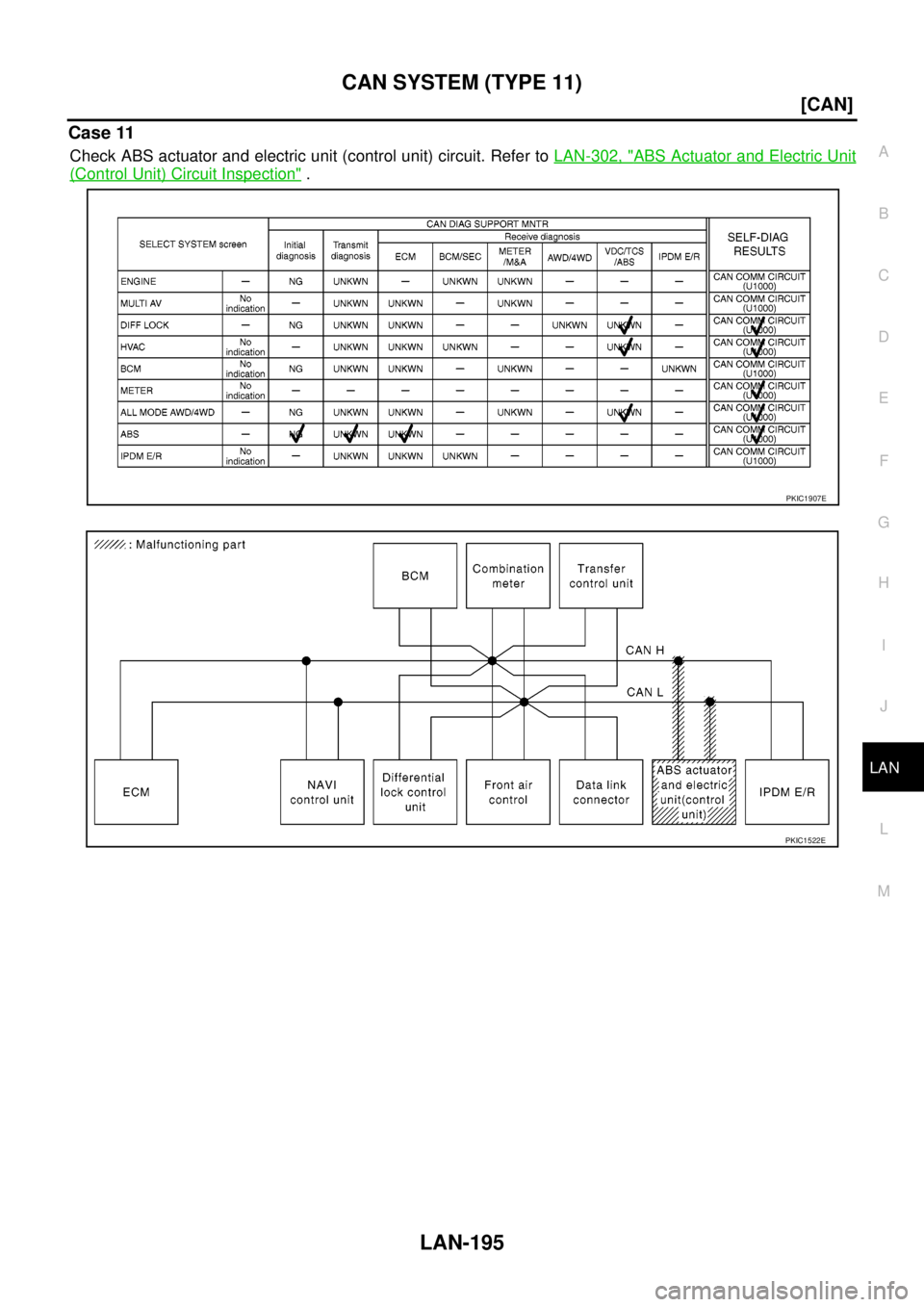

Check ABS actuator and electric unit (control unit) circuit. Refer toLAN-302, "ABS Actuator and Electric Unit
(Control Unit) Circuit Inspection".
PKIC1907E
PKIC1522E
Page 1973 of 3171
LAN-196
[CAN]
CAN SYSTEM (TYPE 11)
Case 12
Check IPDM E/R circuit. Refer toLAN-303, "IPDM E/R Circuit Inspection".
Case 13
Check CAN communication circuit. Refer toLAN-303, "CAN Communication Circuit Inspection".
PKIC1908E
PKIC1523E
PKIC1909E
Page 1974 of 3171
CAN SYSTEM (TYPE 11)
LAN-197
[CAN]
C
D
E
F
G
H
I
J
L
MA
B
LAN
Case 14

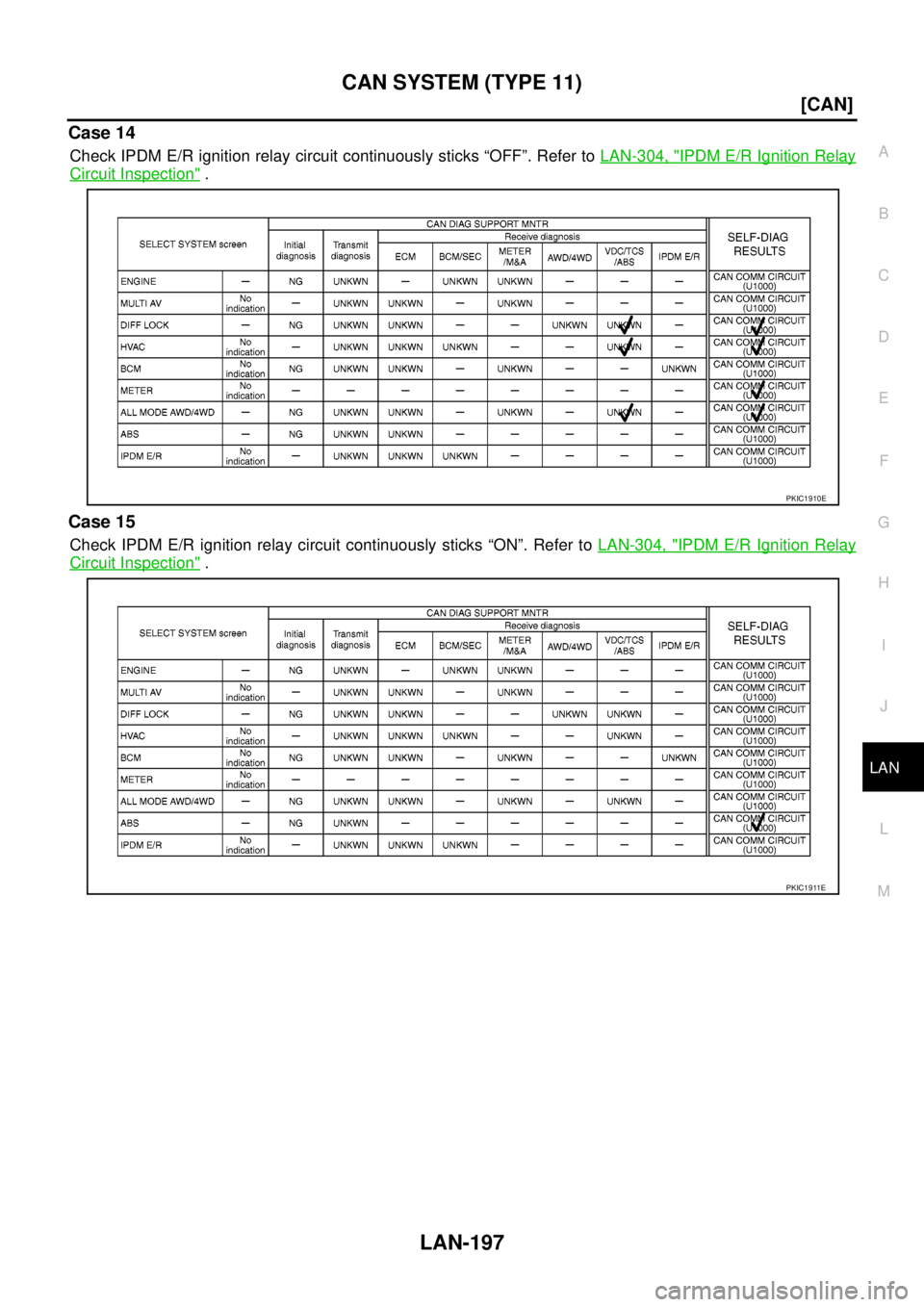

Check IPDM E/R ignition relay circuit continuously sticks “OFF”. Refer toLAN-304, "IPDM E/R Ignition Relay
Circuit Inspection".
Case 15
Check IPDM E/R ignition relay circuit continuously sticks “ON”. Refer toLAN-304, "IPDM E/R Ignition Relay
Circuit Inspection".
PKIC1910E
PKIC1911E
Page 1975 of 3171
LAN-198
[CAN]
CAN SYSTEM (TYPE 12)
CAN SYSTEM (TYPE 12)
PFP:23710
Component Parts and Harness Connector LocationEKS00OEZ
Refer toLAN-23, "Component Parts and Harness Connector Location".
SchematicEKS00OF0
Refer toLAN-25, "Schematic".
Wiring Diagram — CAN —EKS00OF1
Refer toLAN-26, "Wiring Diagram—CAN—".
Page 1976 of 3171
CAN SYSTEM (TYPE 12)
LAN-199
[CAN]
C
D
E
F
G
H
I
J
L
MA
B
LAN
Check SheetEKS00OF2
NOTE:
If a check mark is put on “NG” on “INITIAL DIAG (Initial diagnosis)”, replace the control unit.

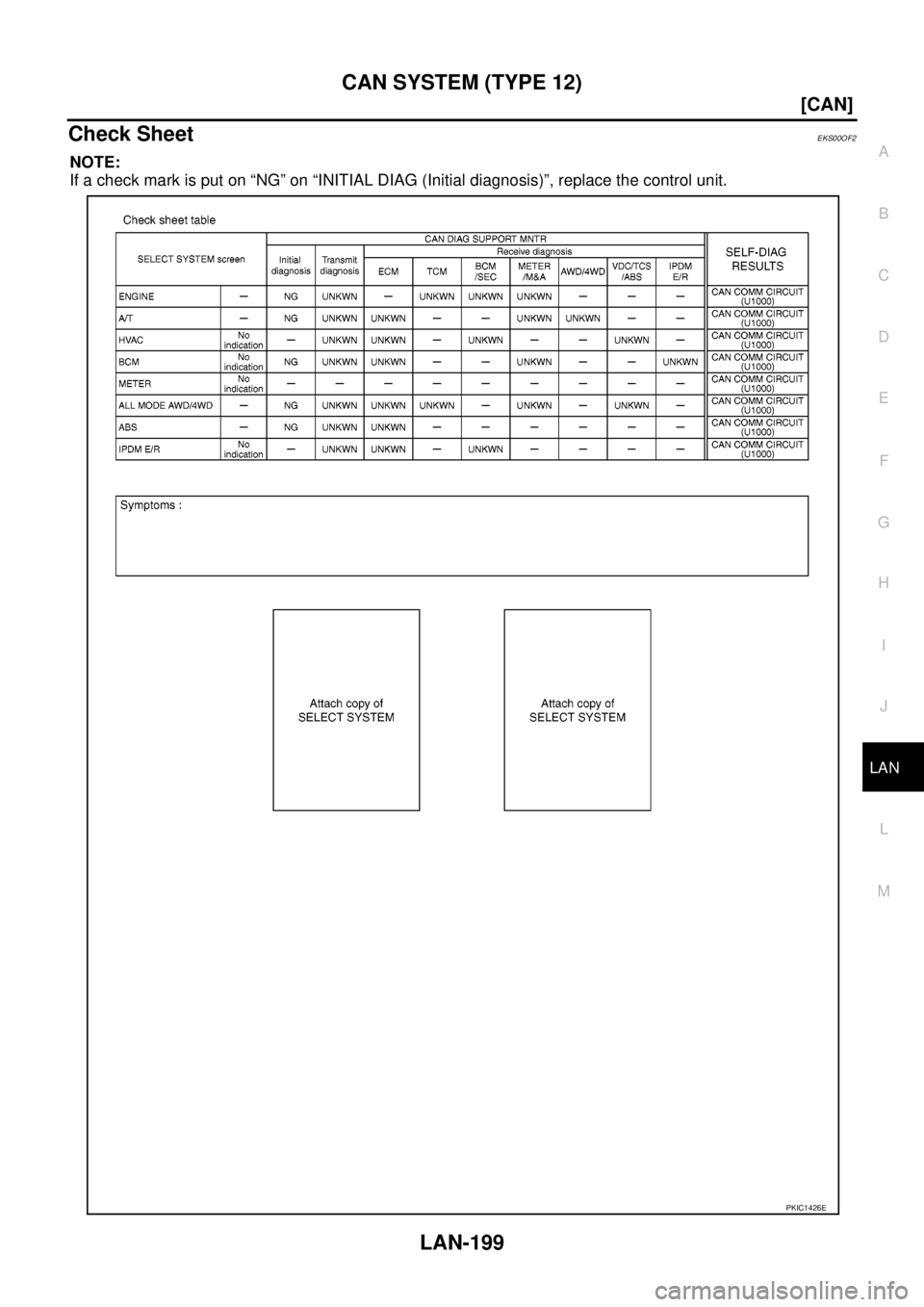

PKIC1426E
