Installation
Installation is in the reverse order of removal.
REAR DOOR - DOUBLE CAB
Removal
1. Remove ashtray, then remove screw fixing power window switch assembly.
2. Remove power window switch assembly.
lDisconnect harness connector.
3. Remove pull handle cover.
lRemove screw behind pull handle cover.
4. Remove pull handle escutcheon.
5. Lift upward to release clips and remove armrest.
lRemove screws behind armrest.
6. Release the clips and remove rear door finisher.
lDisconnect the rear door tweeter.
Installation
Installation is in the reverse order of removal.

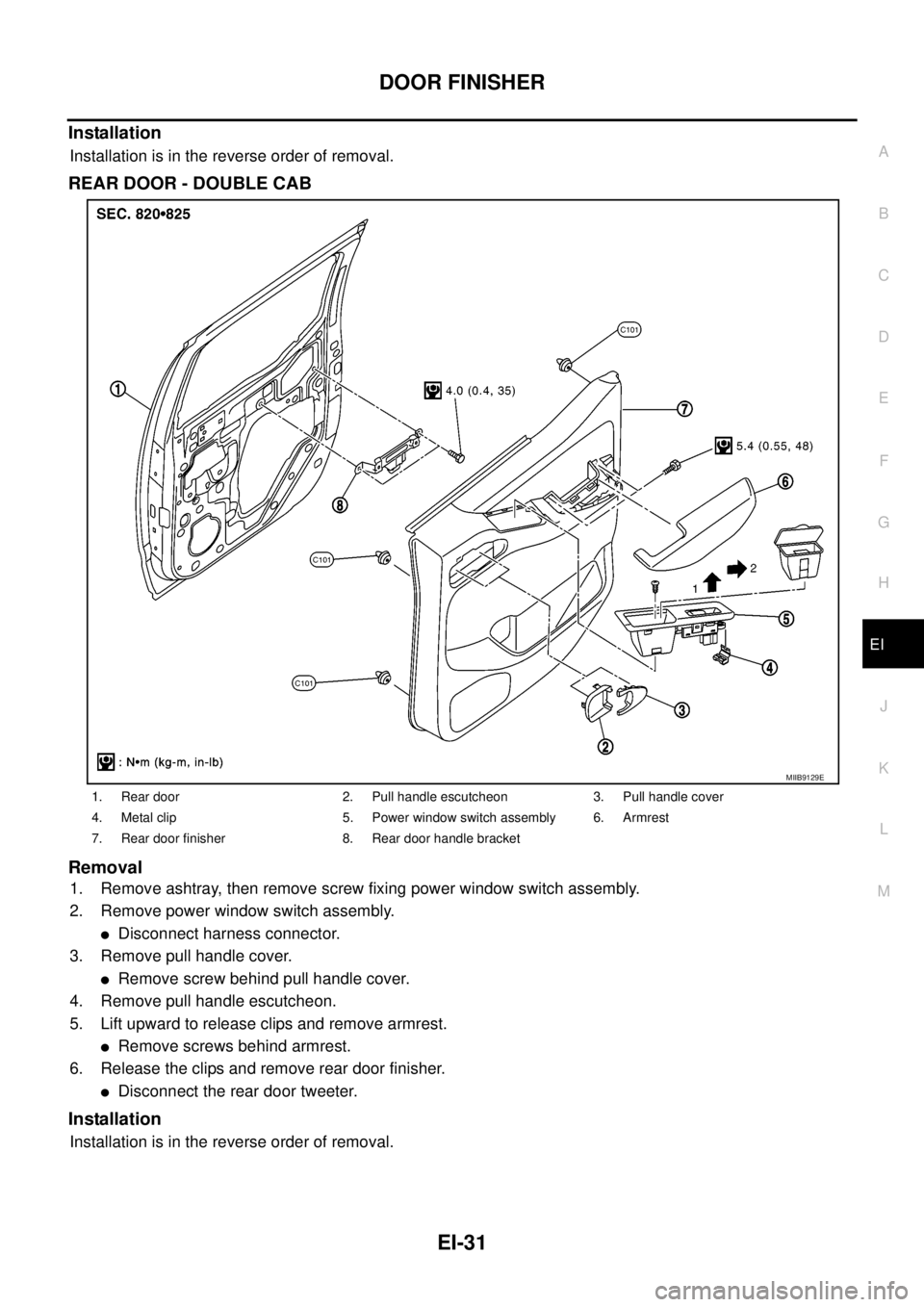

1. Rear door 2. Pull handle escutcheon 3. Pull handle cover
4. Metal clip 5. Power window switch assembly 6. Armrest
7. Rear door finisher 8. Rear door handle bracket
MIIB9129E
Page 1370 of 3171
EI-32
DOOR FINISHER
REAR DOOR - KING CAB
Removal
1. Remove lower seat belt anchor bolt. Refer toSB-7, "Removal and Installation of Rear Seat Belt - King
Cab".
lDisconnect harness connector for passenger side.
2. Remove upper seat belt anchor bolt. Refer toSB-7, "
Removal and Installation of Rear Seat Belt - King
Cab".
3. Release the clips and remove rear door finisher.
4. Remove lock lever assembly.
lDisconnect lock lever cable and lever assembly. Refer toBL-130, "Removal and Installation of Rear
Door Lock (King Cab)".
Installation
Installation is in the reverse order of removal.

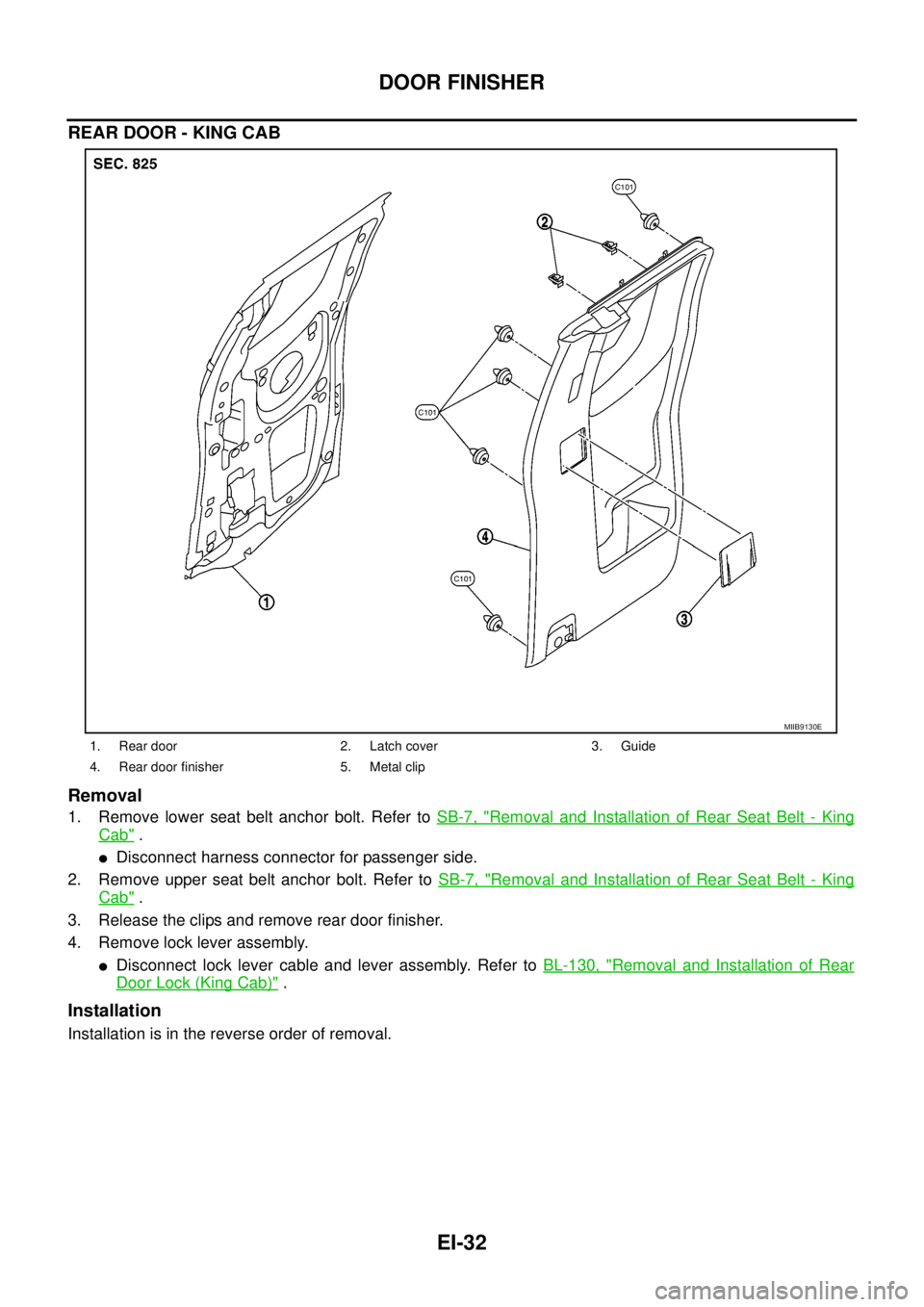

1. Rear door 2. Latch cover 3. Guide
4. Rear door finisher 5. Metal clip
MIIB9130E
Page 1371 of 3171
BODY SIDE TRIM
EI-33
C
D
E
F
G
H
J
K
L
MA
B
EI
BODY SIDE TRIMPFP:76913
ComponentsEIS00DYN
DOUBLE CAB
CAUTION:
lWrap the tip of flat-bladed screwdriver with a cloth when removing metal clips from finishers.
lWhen removing or installing body side welts, do not allow butyl seal to come in contact with pillar
finisher.

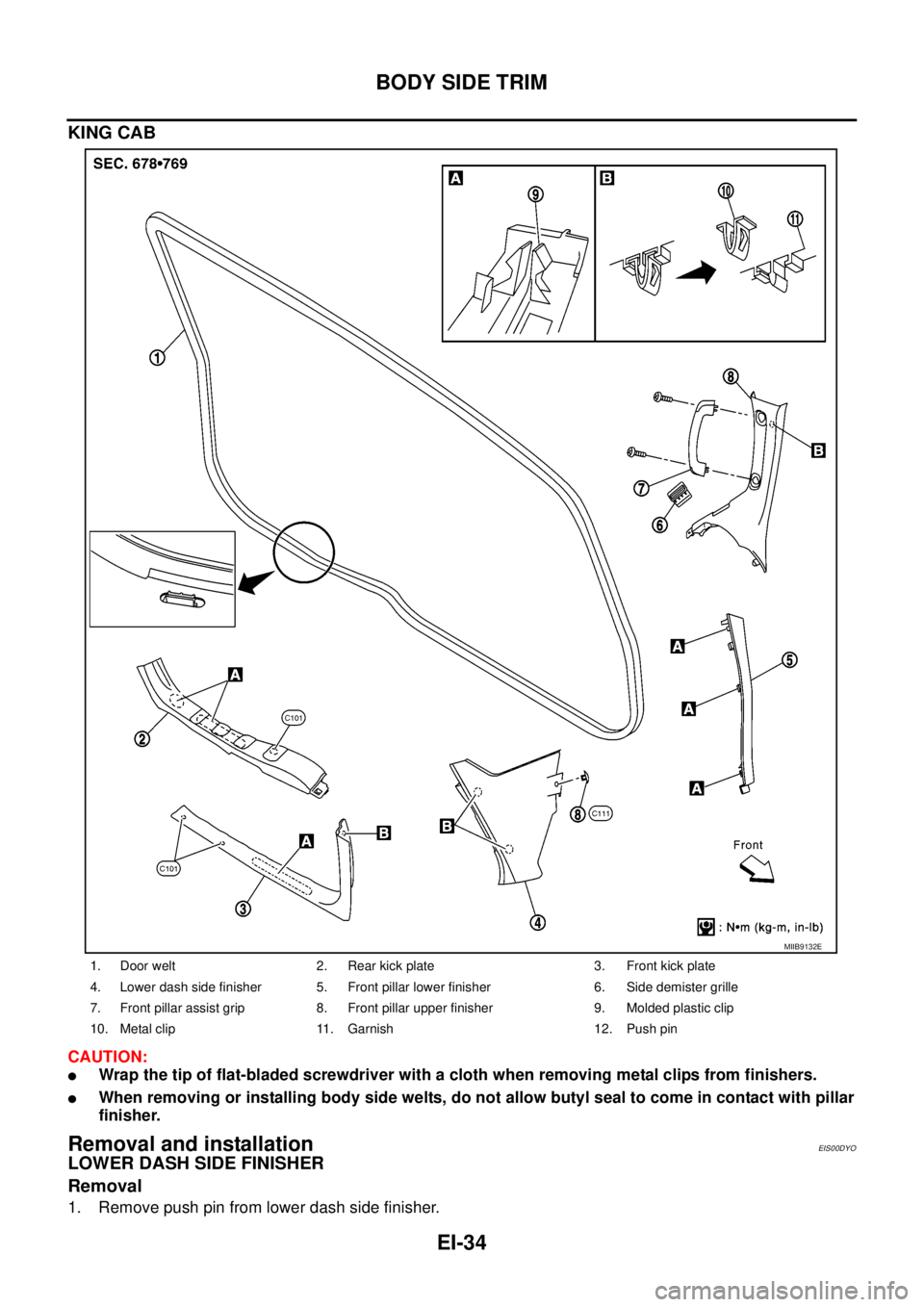

1. Center pillar upper finisher 2. Center pillar assist grip 3. Rear door welt
4. Rear kick plate 5. Access cover (passenger side only) 6. Center pillar lower finisher
7. Front kick plate 8. Lower dash side finisher 9. Clip
10. Front door welt 11. Front pillar lower finisher 12. Front pillar upper finisher
13. Front pillar assist grip 14. Side demister grille 15. Molded plastic clip
16. Metal clip 17. Garnish
MIIB9131E
Page 1372 of 3171
EI-34
BODY SIDE TRIM
KING CAB
CAUTION:
lWrap the tip of flat-bladed screwdriver with a cloth when removing metal clips from finishers.
lWhen removing or installing body side welts, do not allow butyl seal to come in contact with pillar
finisher.
Removal and installationEIS00DYO
LOWER DASH SIDE FINISHER
Removal
1. Remove push pin from lower dash side finisher.

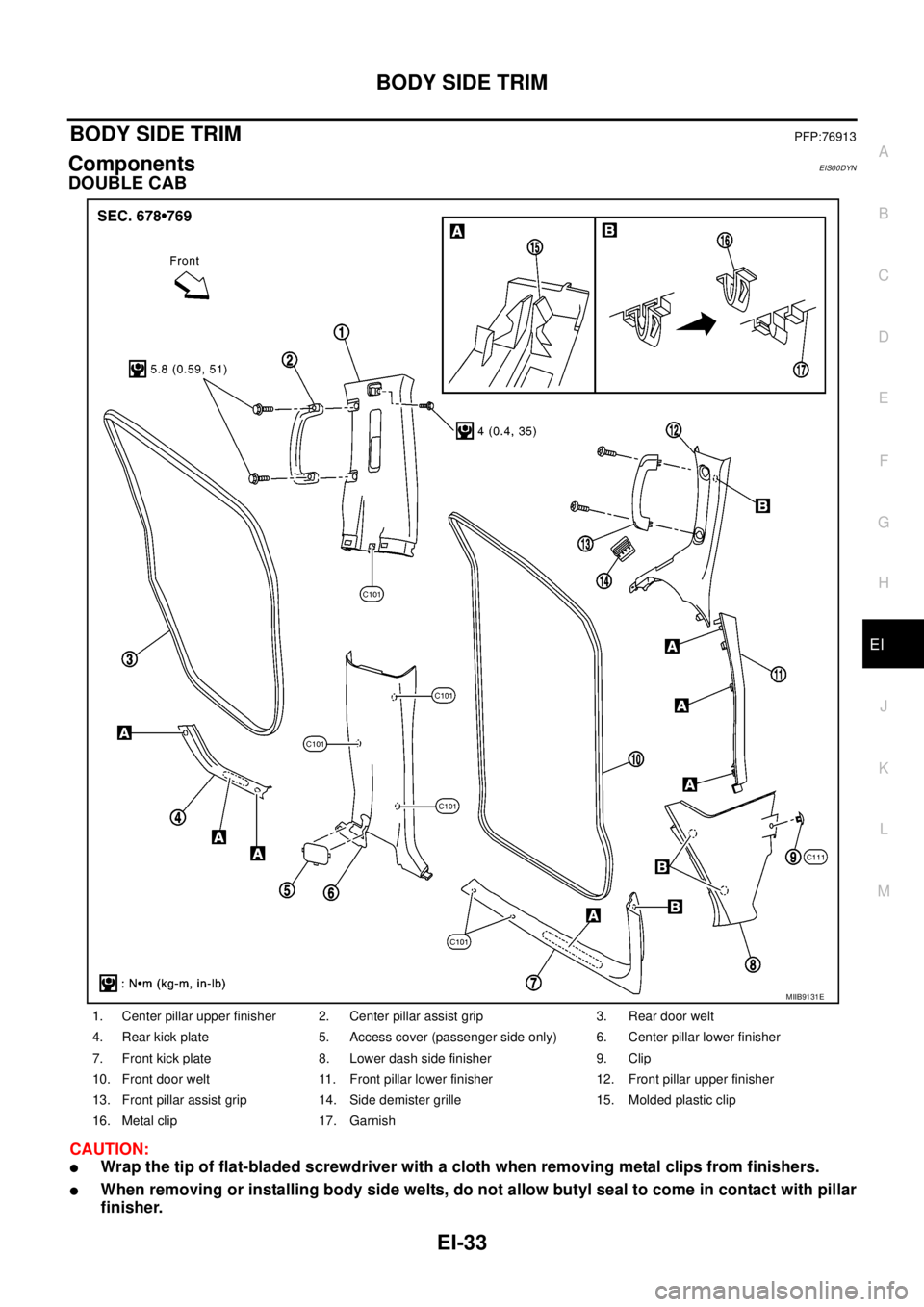

1. Door welt 2. Rear kick plate 3. Front kick plate
4. Lower dash side finisher 5. Front pillar lower finisher 6. Side demister grille
7. Front pillar assist grip 8. Front pillar upper finisher 9. Molded plastic clip
10. Metal clip 11. Garnish 12. Push pin
MIIB9132E
Page 1373 of 3171

BODY SIDE TRIM
EI-35
C
D
E
F
G
H
J
K
L
MA
B
EI
2. Remove front kick plate from center pillar lower finisher.
3. Remove front kick plate from dash side from lower dash side finisher.
4. Remove lower dash side finisher.
Installation
Installation is in the reverse order of removal.
CENTER PILLAR LOWER FINISHER
Removal
1. Remove front and rear door welts.
2. Remove seat belt anchor. Refer toSB-3, "
SEAT BELTS".
lOn RH side, remove the cover and disconnect seat belt tension sensor.
3. Remove front and rear kick plates. Refer toEI-35, "
KICK PLATES".
4. Remove center pillar lower finisher.
Installation
Installation is in the reverse order of removal.
CENTER PILLAR UPPER FINISHER
Removal
1. Remove front and rear door welts.
2. Remove seat belt shoulder anchor and D-ring. Refer toSB-3, "
SEAT BELTS".
3. Remove front and rear kick plates. Refer toEI-35, "
KICK PLATES".
4. Remove center pillar lower finisher.
5. Remove assist grip.
6. Remove center pillar upper finisher.
Installation
Installation is in the reverse order of removal.
FRONT PILLAR UPPER FINISHER
Removal
1. Remove front pillar lower finisher. Refer toEI-35, "FRONT PILLAR LOWER FINISHER".
2. Remove the front pillar assist grip.
3. Remove the front pillar upper finisher bolt.
4. Remove the front pillar upper finisher.
Installation
Installation is in the reverse order of removal.
FRONT PILLAR LOWER FINISHER
Removal
1. Remove front door welt and kick plate.
2. Remove the front pillar lower finisher.
Installation
Installation is in the reverse order of removal.
KICK PLATES
Removal
Release clips and remove front and/or rear kick plates.
Installation
Installation is in the reverse order of removal.
Page 1374 of 3171
EI-36
BODY SIDE TRIM
REAR
CAUTION:
Wrap the tip of flat-bladed screwdriver with a cloth when removing metal clips from finishers.
Removal
1. Remove rear seats. Refer toSE-29, "Removal and Installation".
2. Remove storage boxes (if equipped). Refer toEI-38, "
FLOOR TRIM".
3. Remove rear kick plates RH/LH and seat belt anchor bolts.
4. Remove seatback latch strikers (Double cab models).
5. Remove jack storage cover, then remove jack.
1. Rear upper finisher (King cab) 2. Rear lower finisher (King cab) 3. Rear upper finisher (Double cab)
4. Rear lower finisher (Double cab) 5. Pushpin 6. Rear panel lower (Double cab)
7. Rear panel upper (Double cab) 8. Drafter duct (Double cab) 9. Jack storage cover
10. Child seat anchor cover 11. Rear panel (King cab) 12. Drafter ducts (King cab)
MIIB9133E
Page 1375 of 3171
BODY SIDE TRIM
EI-37
C
D
E
F
G
H
J
K
L
MA
B
EI
6. Remove child seat anchor cover (if equipped) and rear panel(s).
7. Remove first rear lower, then rear upper finishers RH/LH.
8. Remove drafter duct(s).
Installation
Installation is in the reverse order of removal.
Page 1376 of 3171
EI-38
FLOOR TRIM
FLOOR TRIM
PFP:74902
Removal and InstallationEIS00DYP
Double Cab and King Cab Floor Carpet
MIIB9134E

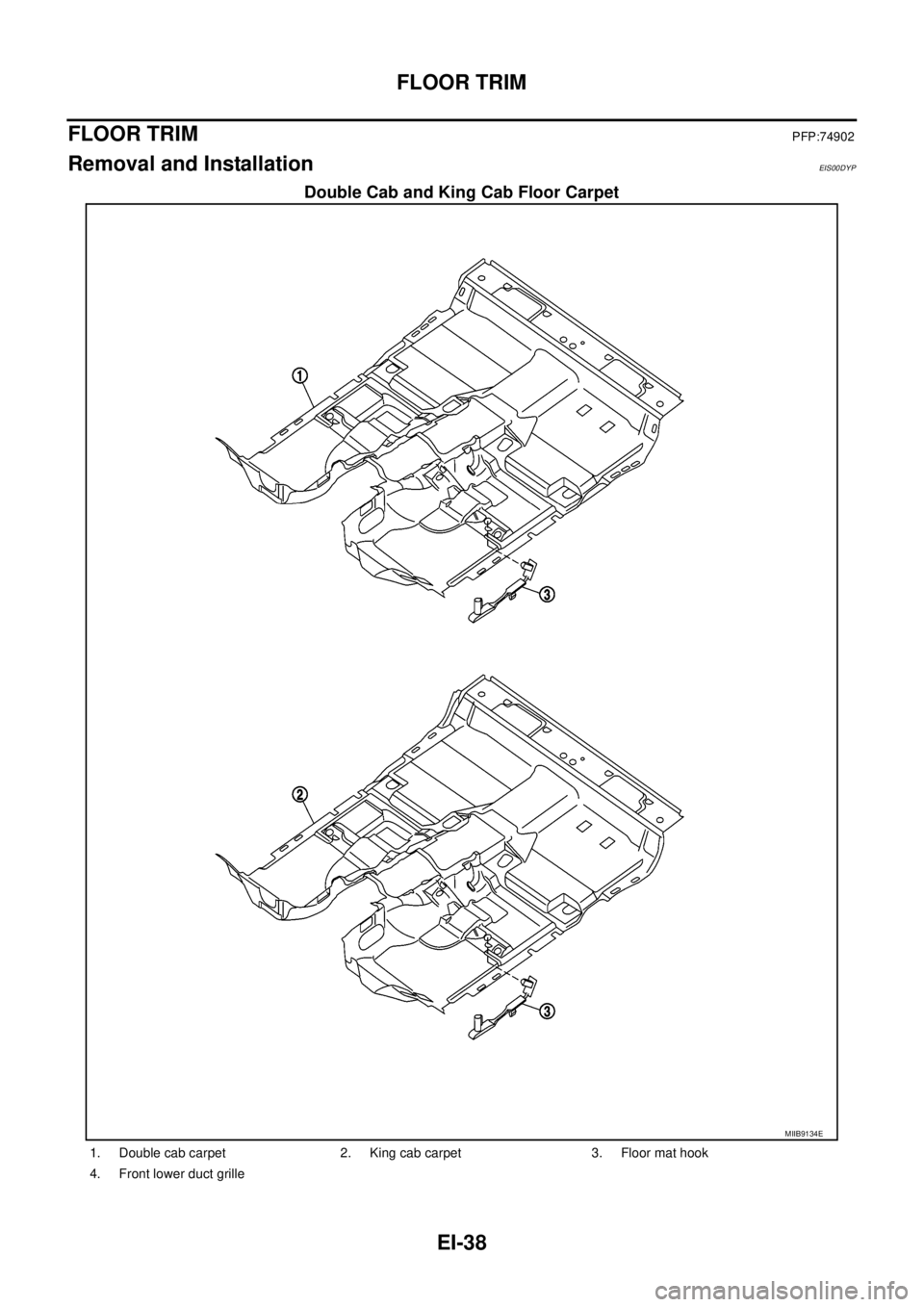

1. Double cab carpet 2. King cab carpet 3. Floor mat hook
4. Front lower duct grille
