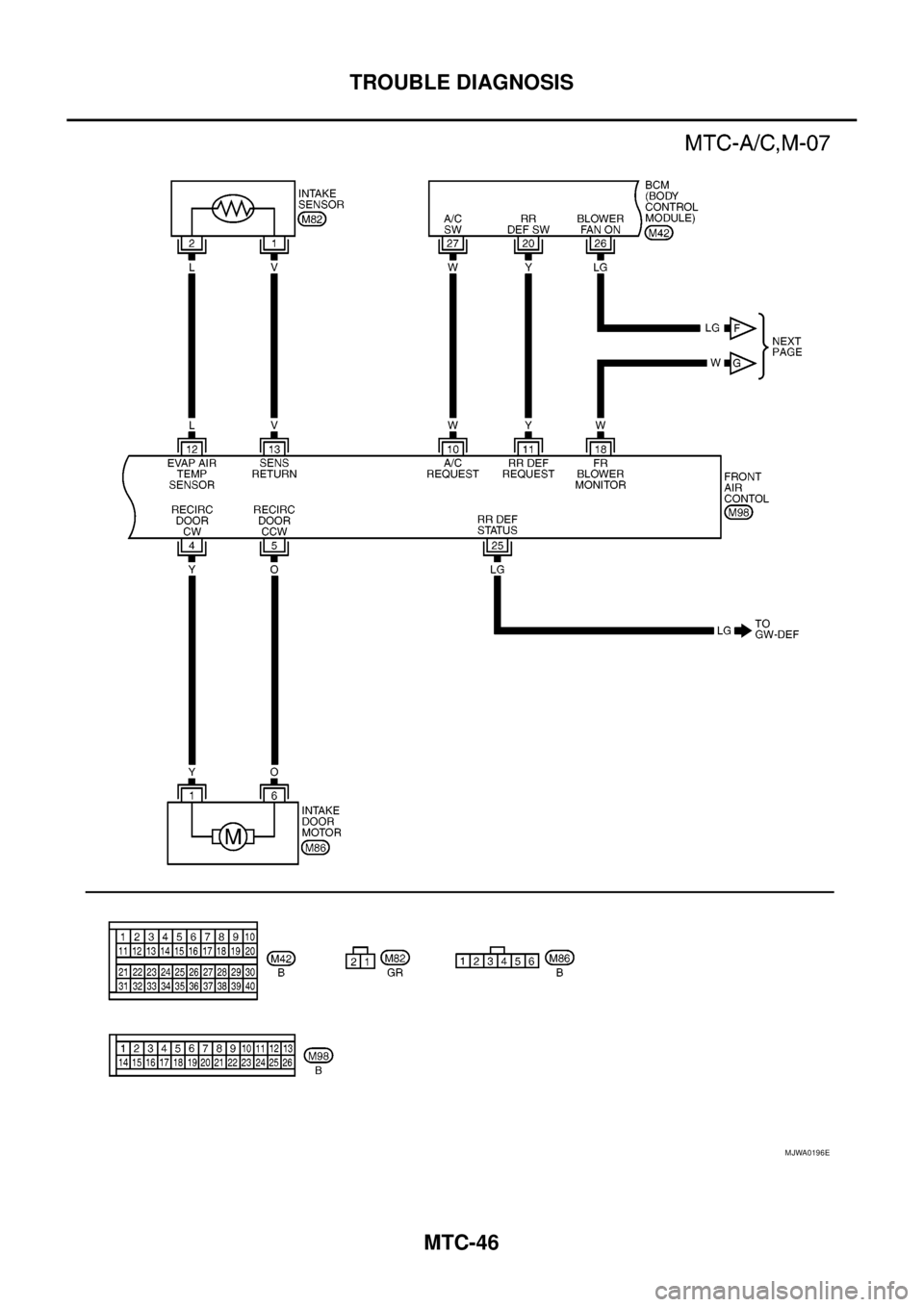

NISSAN NAVARA 2005 Repair Workshop Manual MTC-46 TROUBLE DIAGNOSIS MJWA0196E

Page 2434 of 3171

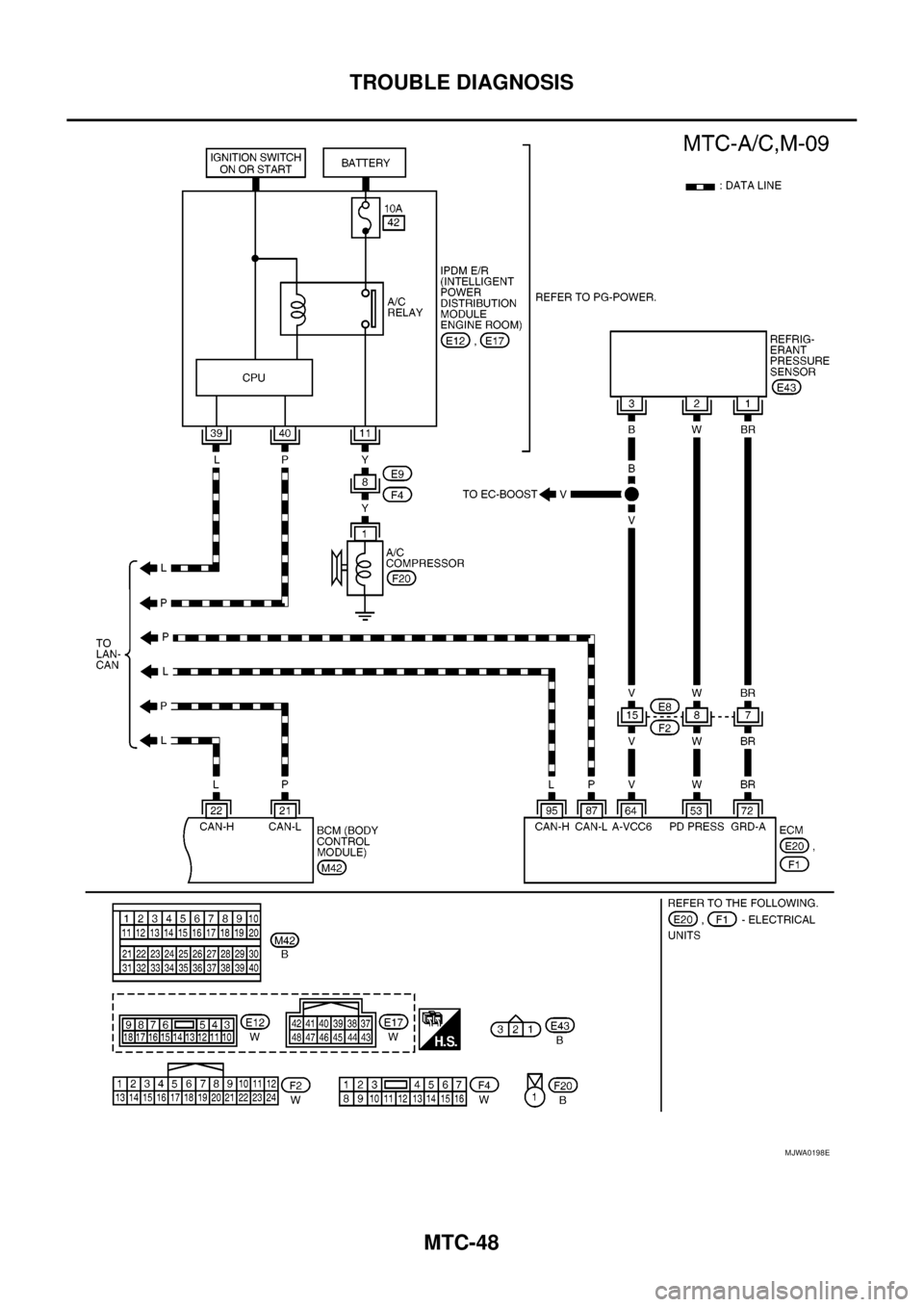

NISSAN NAVARA 2005 Repair Workshop Manual TROUBLE DIAGNOSIS MTC-47 C D E F G H I K L MA B MTC MJWA0197E

Page 2435 of 3171

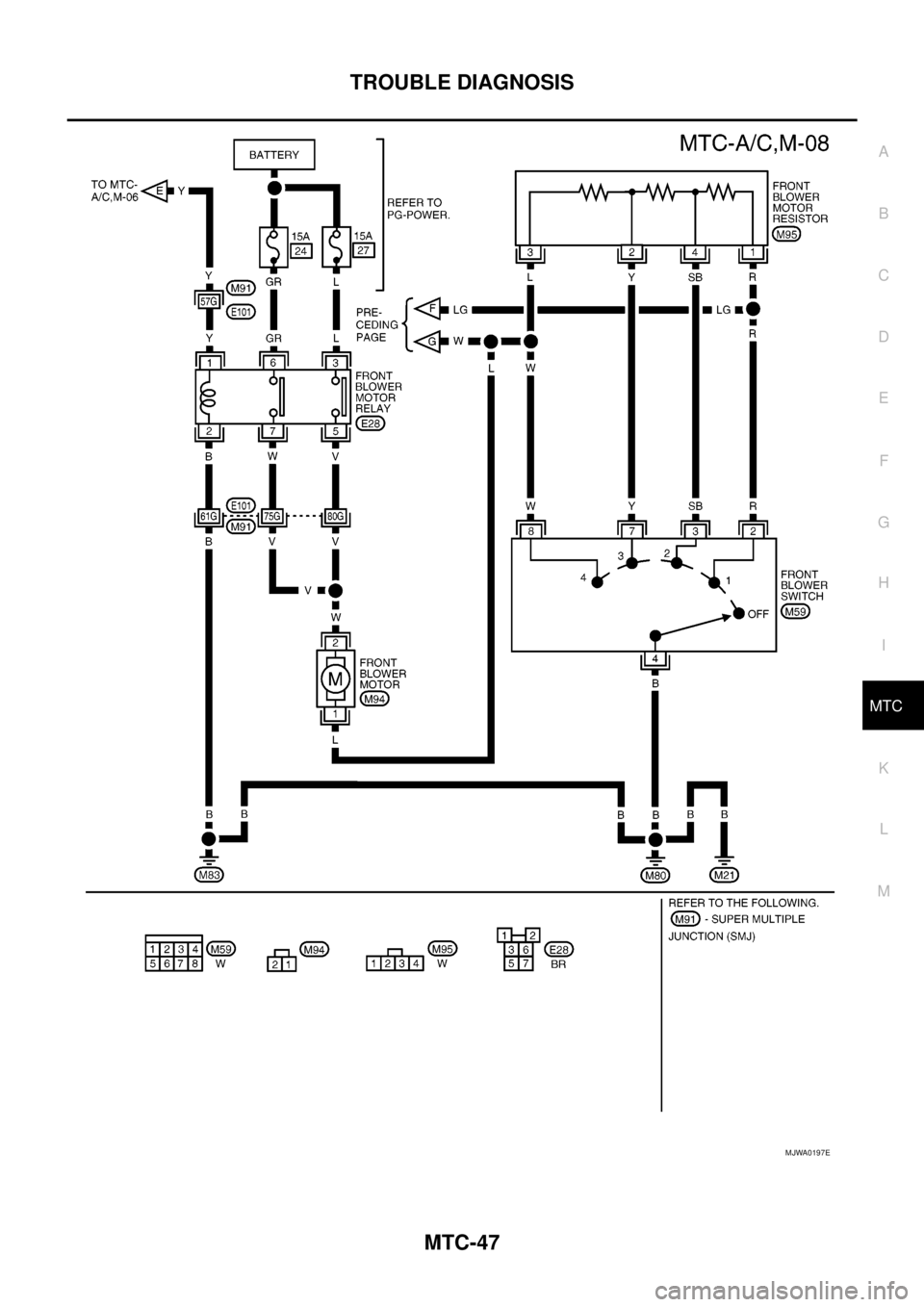

NISSAN NAVARA 2005 Repair Workshop Manual MTC-48 TROUBLE DIAGNOSIS MJWA0198E

Page 2436 of 3171

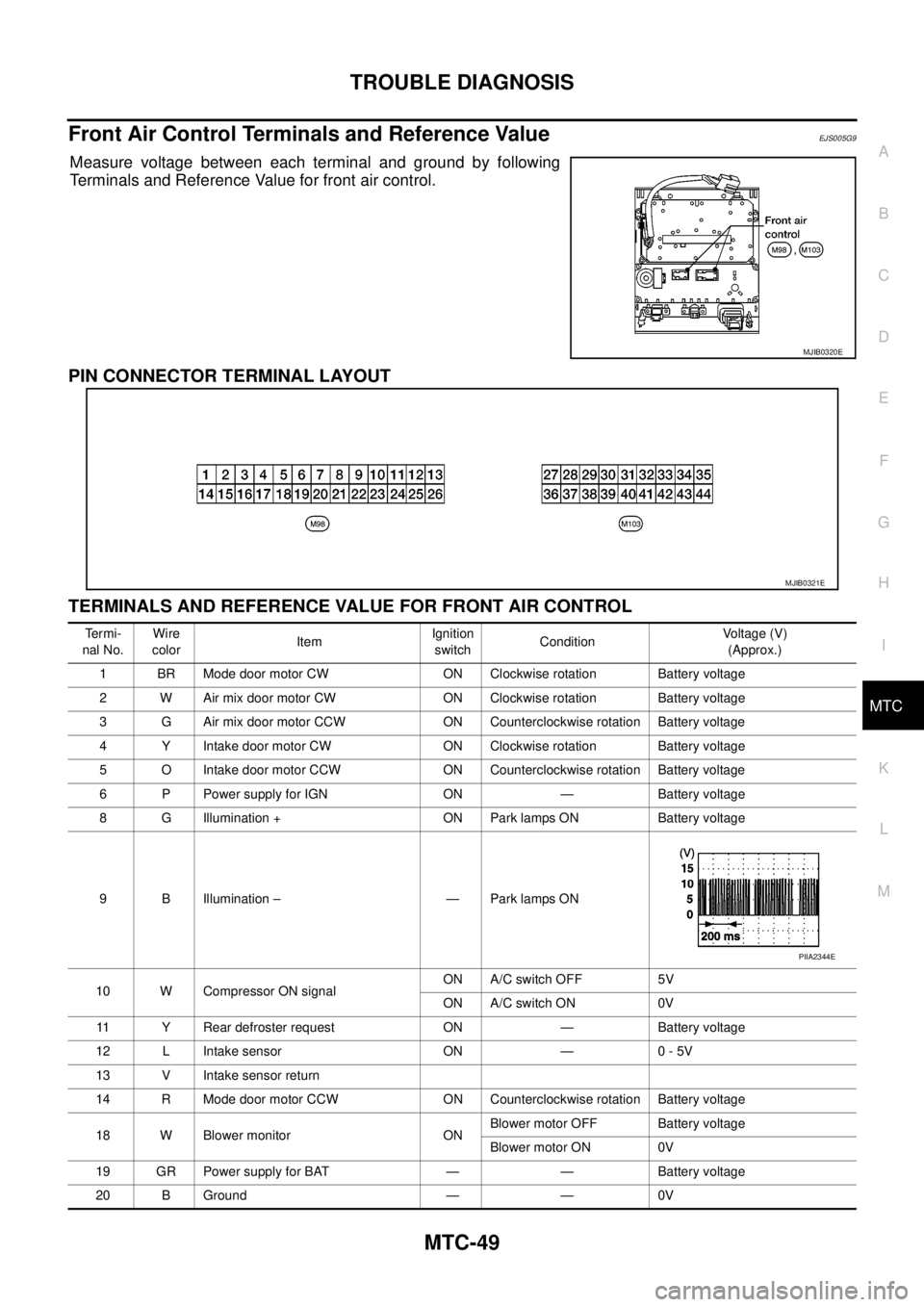

NISSAN NAVARA 2005 Repair Workshop Manual TROUBLE DIAGNOSIS MTC-49 C D E F G H I K L MA B MTC Front Air Control Terminals and Reference ValueEJS005G9 Measure voltage between each terminal and ground by following Terminals and Reference Value

Page 2437 of 3171

NISSAN NAVARA 2005 Repair Workshop Manual MTC-50 TROUBLE DIAGNOSIS 21 V Mode door motor feedback ON — 0 - 5V 22 SB Air mix door motor feedback ON — 0 - 5V 23 G Sensor power ON — 5V 25 LG Rear defroster status 26 P Sensor return ON — 0

Page 2438 of 3171

NISSAN NAVARA 2005 Repair Workshop Manual TROUBLE DIAGNOSIS MTC-51 C D E F G H I K L MA B MTC A/C System Self-diagnosis FunctionEJS005GA DESCRIPTION The self-diagnostic system diagnoses sensors, door motors, blower motor, etc. Refer to applic

Page 2439 of 3171

NISSAN NAVARA 2005 Repair Workshop Manual MTC-52 TROUBLE DIAGNOSIS SELF-DIAGNOSIS CODE CHART Code No. Reference page 02 EE changed by calibration 04 Mode switch circuit open or shortMTC-58, " Mode Door Motor Circuit" 05 Blower motor failureMT

Page 2440 of 3171

NISSAN NAVARA 2005 Repair Workshop Manual TROUBLE DIAGNOSIS MTC-53 C D E F G H I K L MA B MTC Operational CheckEJS005GB The purpose of the operational check is to confirm that the system operates properly. CHECKING BLOWER 1. Turn blower contr
