Page 2713 of 3171

NISSAN NAVARA 2005 Repair Workshop Manual RFD-10 [WITH LIMITED SLIP DIFFERENTIAL] FRONT OIL SEAL FRONT OIL SEAL PFP:38189 Removal and InstallationEDS00396 REMOVAL 1. Remove the rear propeller shaft. Refer toPR-8, "Removal and Installation". 2

Page 2714 of 3171

NISSAN NAVARA 2005 Repair Workshop Manual FRONT OIL SEAL RFD-11 [WITH LIMITED SLIP DIFFERENTIAL] C E F G H I J K L MA B RFD 8. Remove the front oil seal using Tool. CAUTION: Do not damage axle housing. INSTALLATION 1. Install the front oil se

Page 2715 of 3171

NISSAN NAVARA 2005 Repair Workshop Manual RFD-12 [WITH LIMITED SLIP DIFFERENTIAL] FRONT OIL SEAL 4. Rotate the drive pinion using Tool. Rotating torque should be equaltothereadingrecordedinstep4aboveduringremoval plus an additional 0.56 N·m

Page 2716 of 3171

NISSAN NAVARA 2005 Repair Workshop Manual CARRIER COVER RFD-13 [WITH LIMITED SLIP DIFFERENTIAL] C E F G H I J K L MA B RFD CARRIER COVERPFP:38351 Removal and InstallationEDS00397 REMOVAL 1. Remove the drain plug and drain the gear oil. Refer

Page 2717 of 3171

NISSAN NAVARA 2005 Repair Workshop Manual RFD-14 [WITH LIMITED SLIP DIFFERENTIAL] REAR FINAL DRIVE ASSEMBLY REAR FINAL DRIVE ASSEMBLY PFP:38300 Removal and InstallationEDS00398 REMOVAL 1. Remove the rear propeller shaft. Refer toPR-8, "Remova

Page 2718 of 3171

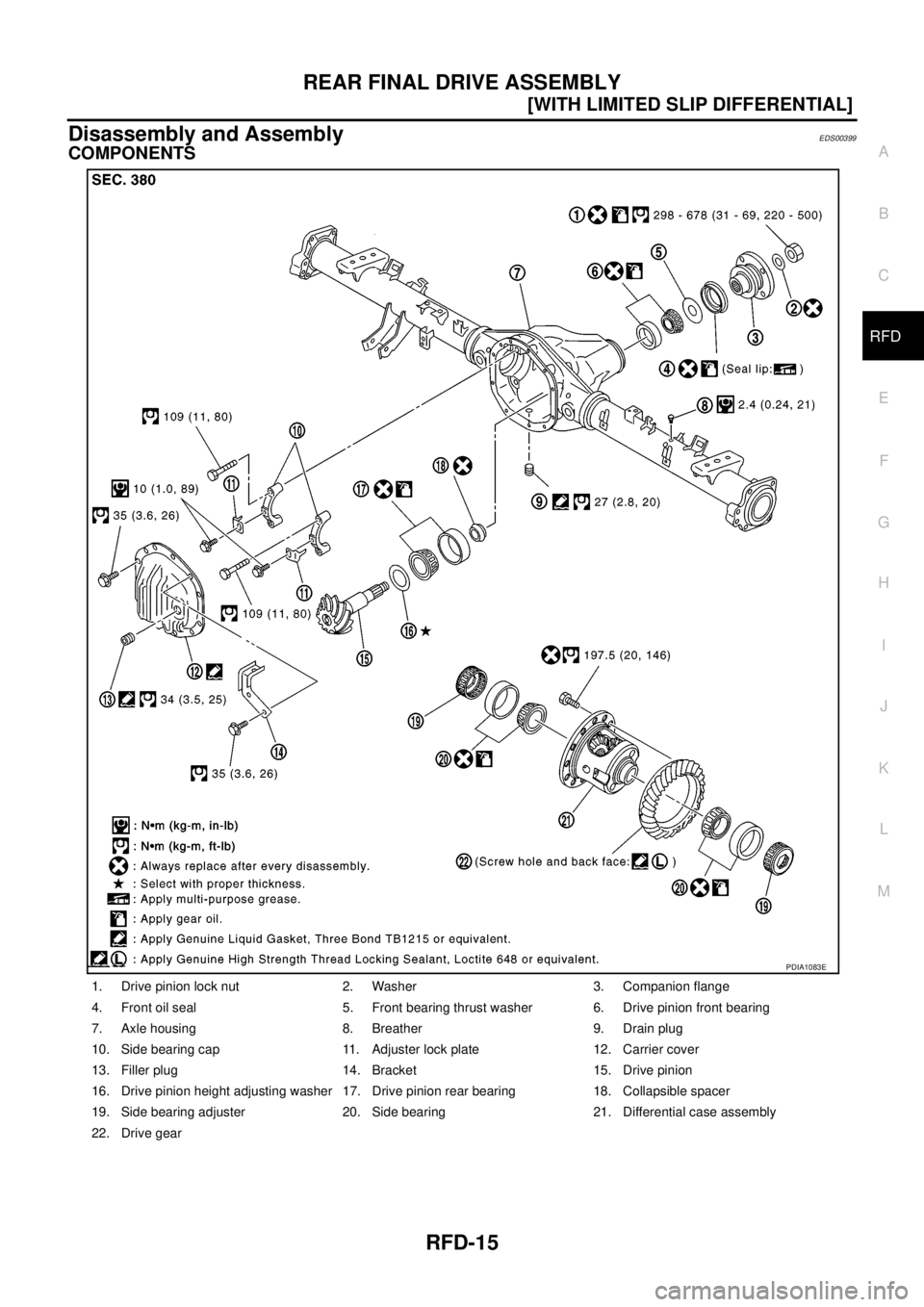

NISSAN NAVARA 2005 Repair Workshop Manual REAR FINAL DRIVE ASSEMBLY RFD-15 [WITH LIMITED SLIP DIFFERENTIAL] C E F G H I J K L MA B RFD Disassembly and AssemblyEDS00399 COMPONENTS 1. Drive pinion lock nut 2. Washer 3. Companion flange 4. Front

Page 2719 of 3171

NISSAN NAVARA 2005 Repair Workshop Manual RFD-16 [WITH LIMITED SLIP DIFFERENTIAL] REAR FINAL DRIVE ASSEMBLY ASSEMBLY INSPECTION AND ADJUSTMENT lBefore inspection and adjustment, drain gear oil. Total Preload Torque 1. Rotate drive pinion back

Page 2720 of 3171

NISSAN NAVARA 2005 Repair Workshop Manual REAR FINAL DRIVE ASSEMBLY RFD-17 [WITH LIMITED SLIP DIFFERENTIAL] C E F G H I J K L MA B RFD 4. Hold companion flange steady by hand and rotate drive gear in both directions. 5. If outside the standar
