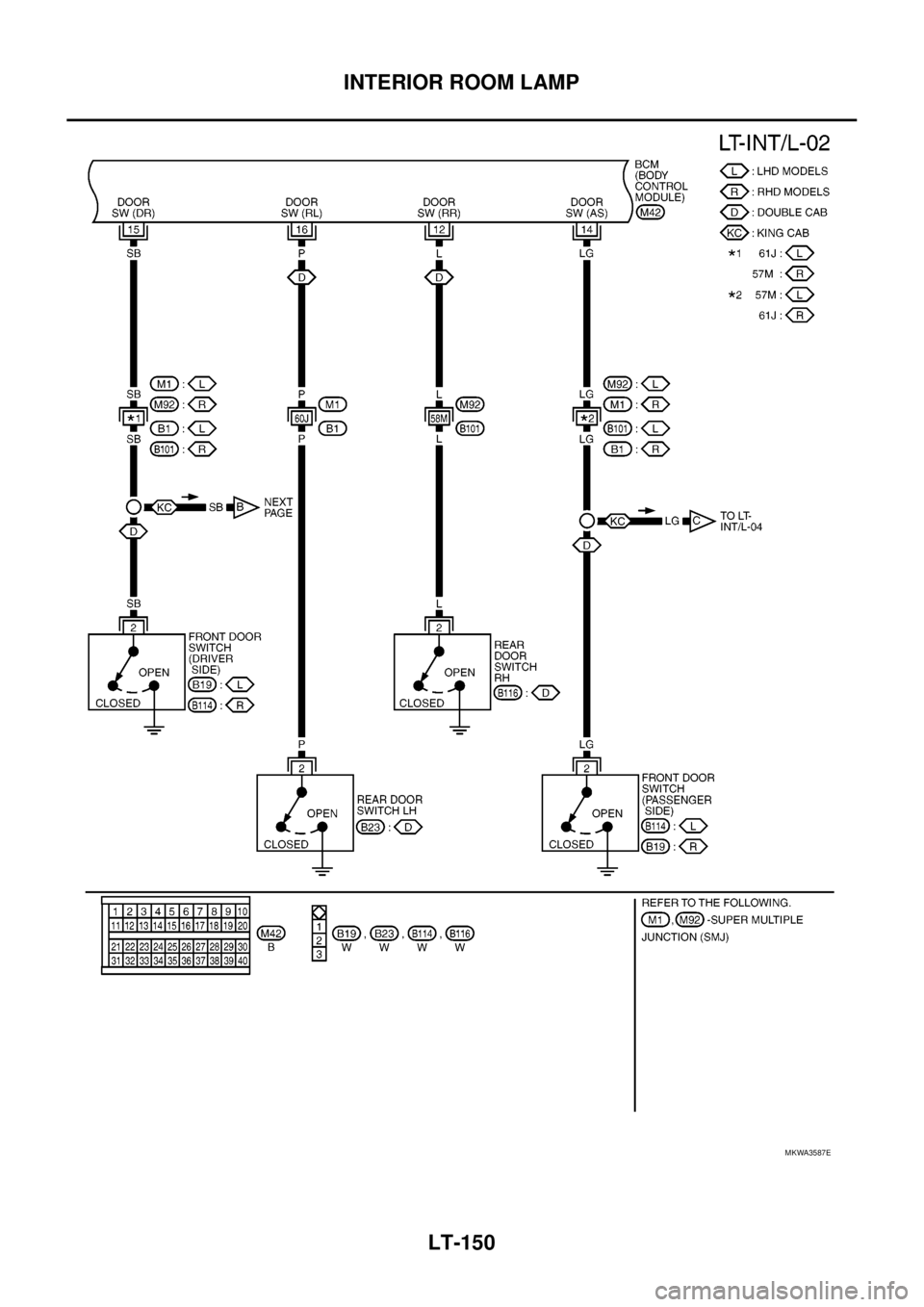

Page 2233 of 3171

NISSAN NAVARA 2005 Repair Workshop Manual LT-150
INTERIOR ROOM LAMP
MKWA3587E

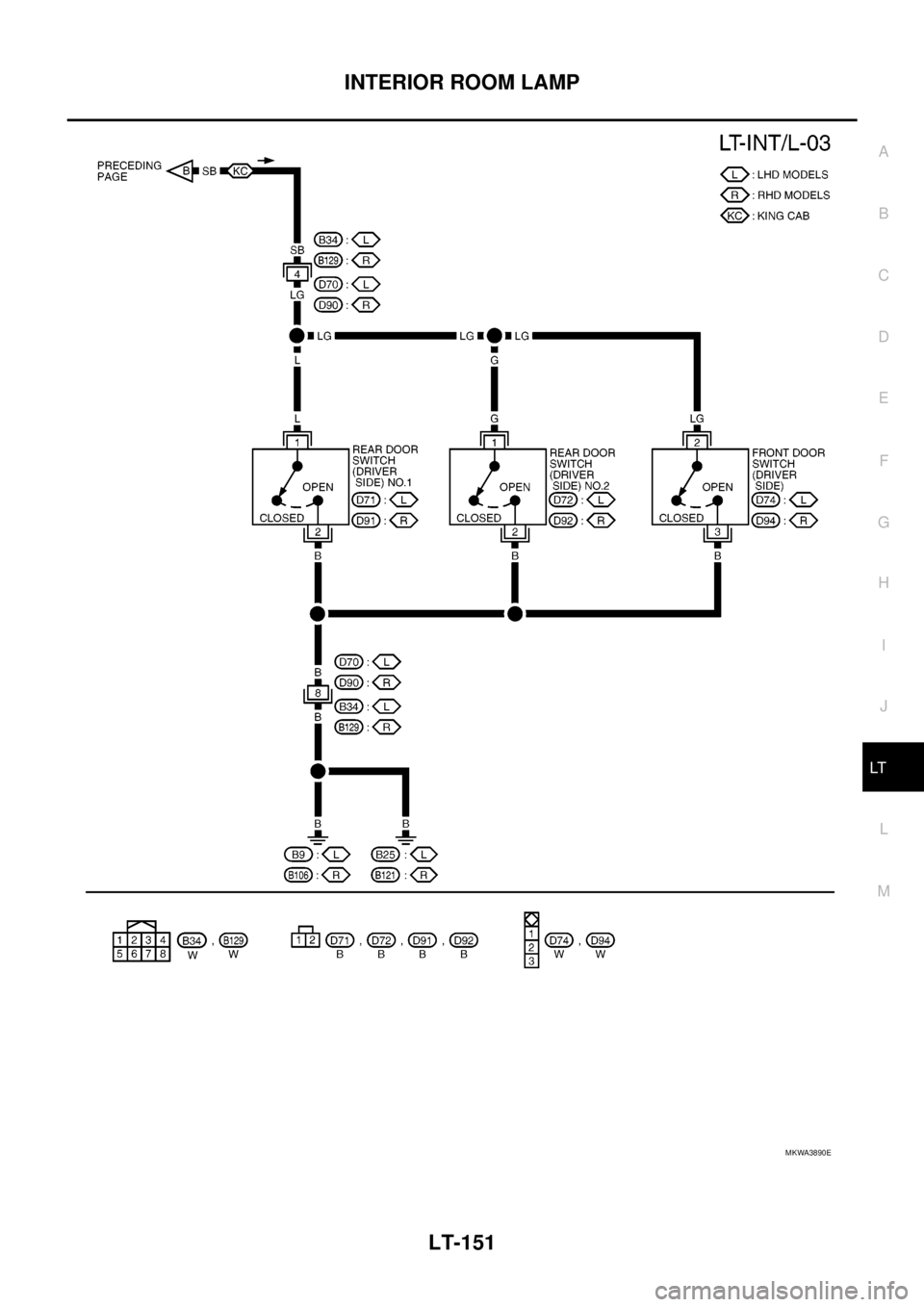

Page 2234 of 3171

NISSAN NAVARA 2005 Repair Workshop Manual INTERIOR ROOM LAMP
LT-151
C
D
E
F
G
H
I
J
L
MA
B
LT
MKWA3890E

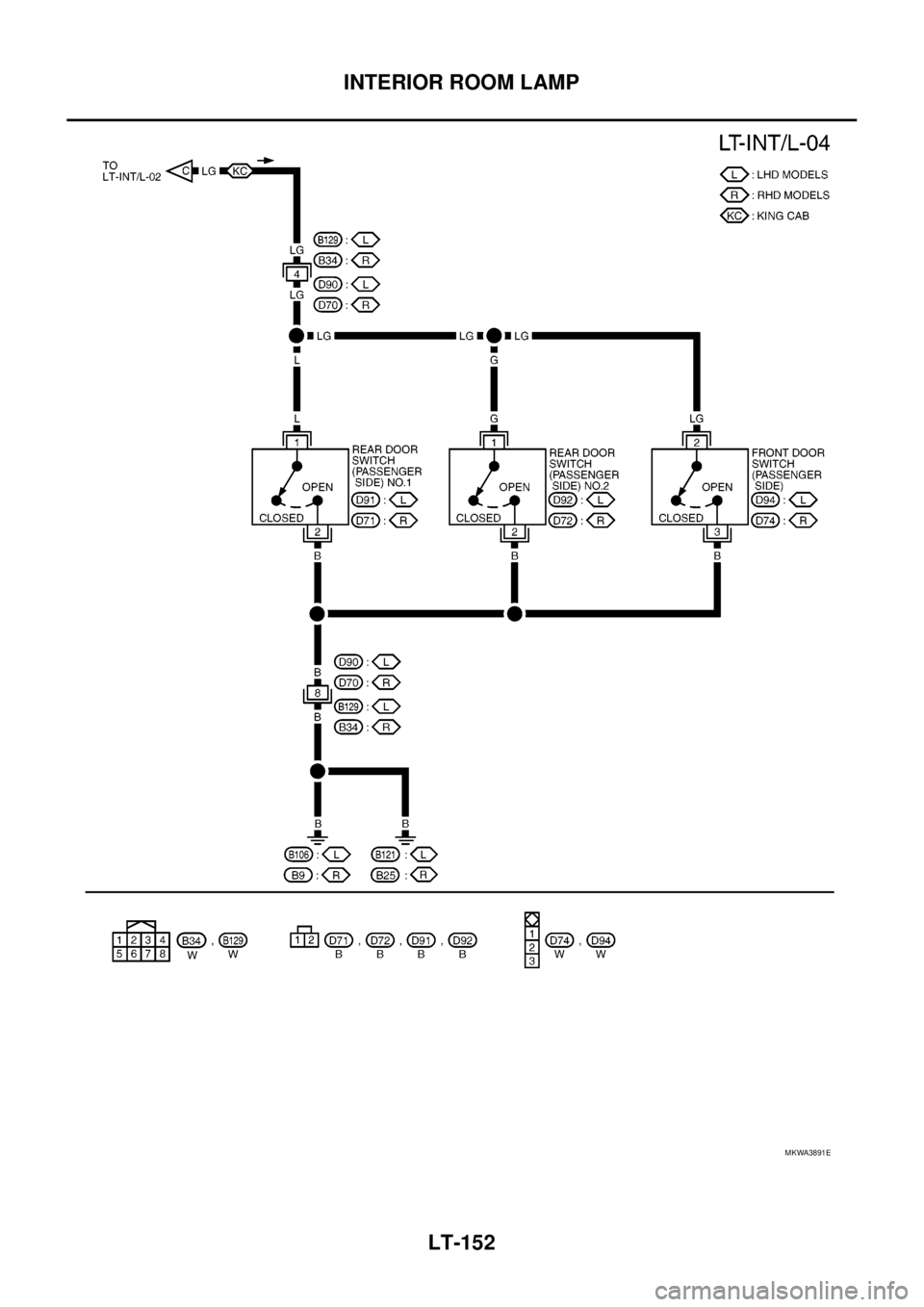

Page 2235 of 3171

NISSAN NAVARA 2005 Repair Workshop Manual LT-152
INTERIOR ROOM LAMP
MKWA3891E

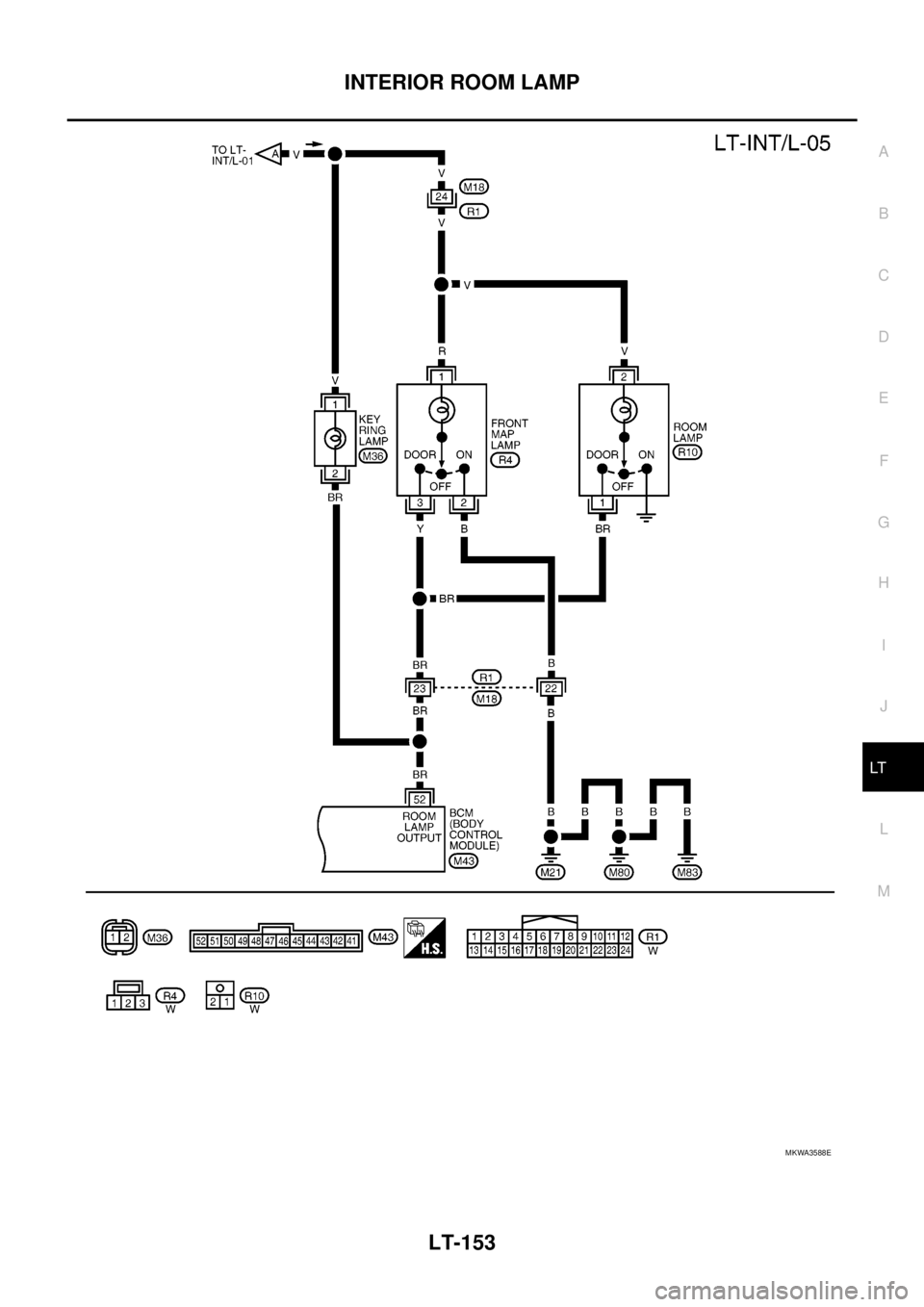

Page 2236 of 3171

NISSAN NAVARA 2005 Repair Workshop Manual INTERIOR ROOM LAMP
LT-153
C
D
E
F
G
H
I
J
L
MA
B
LT
MKWA3588E

Page 2237 of 3171

NISSAN NAVARA 2005 Repair Workshop Manual LT-154
INTERIOR ROOM LAMP
Terminals and Reference Values for BCM
EKS00P96
Te r m i -
nal No.Wire
colorSignal nameMeasuring condition
Reference value
Ignition
switchOperation or condition
3 Y Ignition

Page 2238 of 3171

NISSAN NAVARA 2005 Repair Workshop Manual INTERIOR ROOM LAMP
LT-155
C
D
E
F
G
H
I
J
L
MA
B
LT
*1: Double cab, *2: King cab
How to Proceed With Trouble DiagnosisEKS00P97
1. Confirm the symptom or customer complaint.
2. Understand operation des

Page 2239 of 3171

NISSAN NAVARA 2005 Repair Workshop Manual LT-156
INTERIOR ROOM LAMP
3.CHECK GROUND CIRCUIT
Check continuity between BCM harness connector and ground.
OK or NG
OK >> INSPECTION END
NG >> Repair harness or connector.
BCM connector Terminal
Grou

Page 2240 of 3171

NISSAN NAVARA 2005 Repair Workshop Manual INTERIOR ROOM LAMP
LT-157
C
D
E
F
G
H
I
J
L
MA
B
LT
CONSULT-II FunctionEKS00P99
CONSULT-II can display each diagnostic item using the diagnostic test mode shown following.
CONSULT-II OPERATION
