Page 1961 of 3171

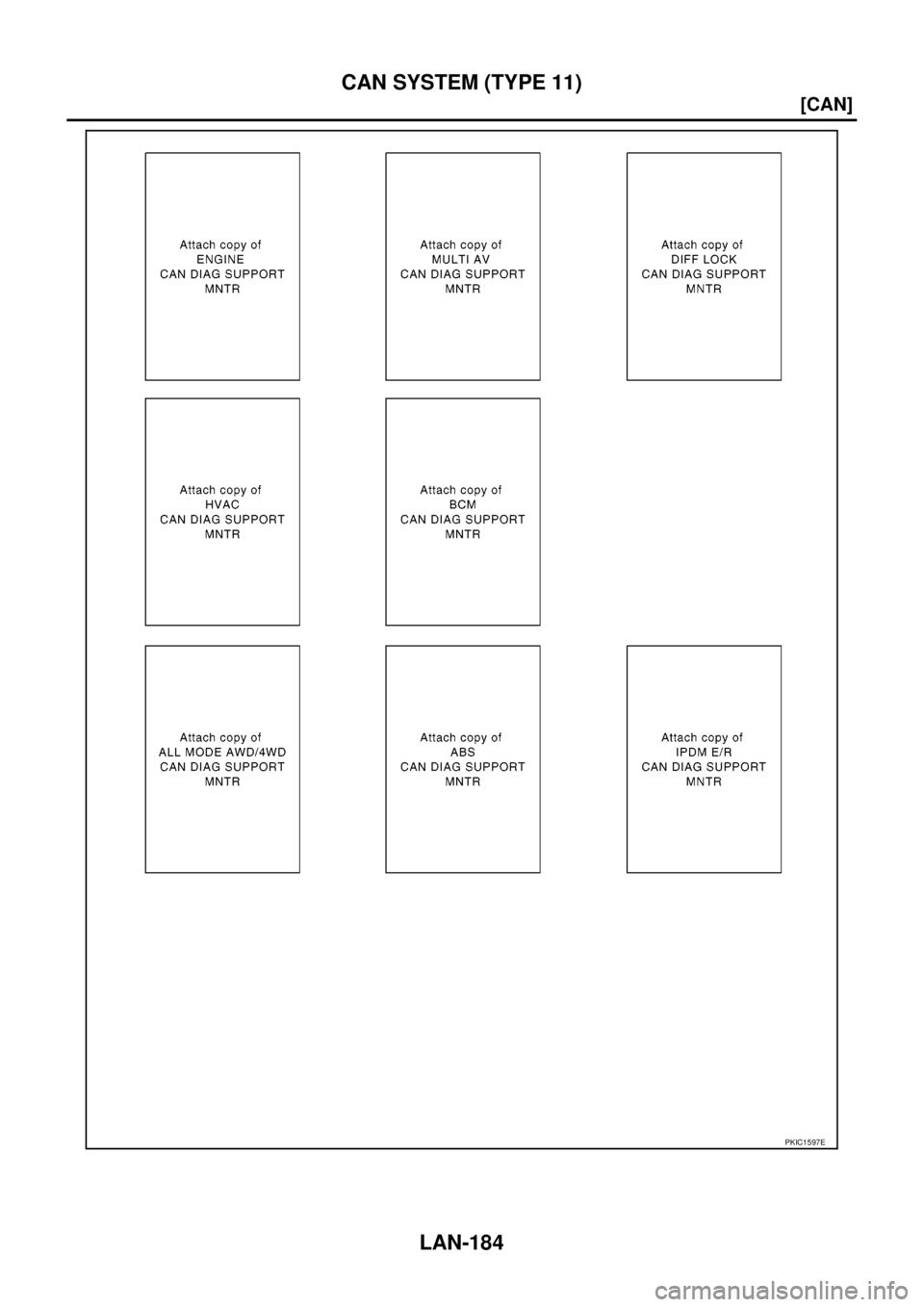

NISSAN NAVARA 2005 Repair Workshop Manual LAN-184 [CAN] CAN SYSTEM (TYPE 11) PKIC1597E

Page 1962 of 3171

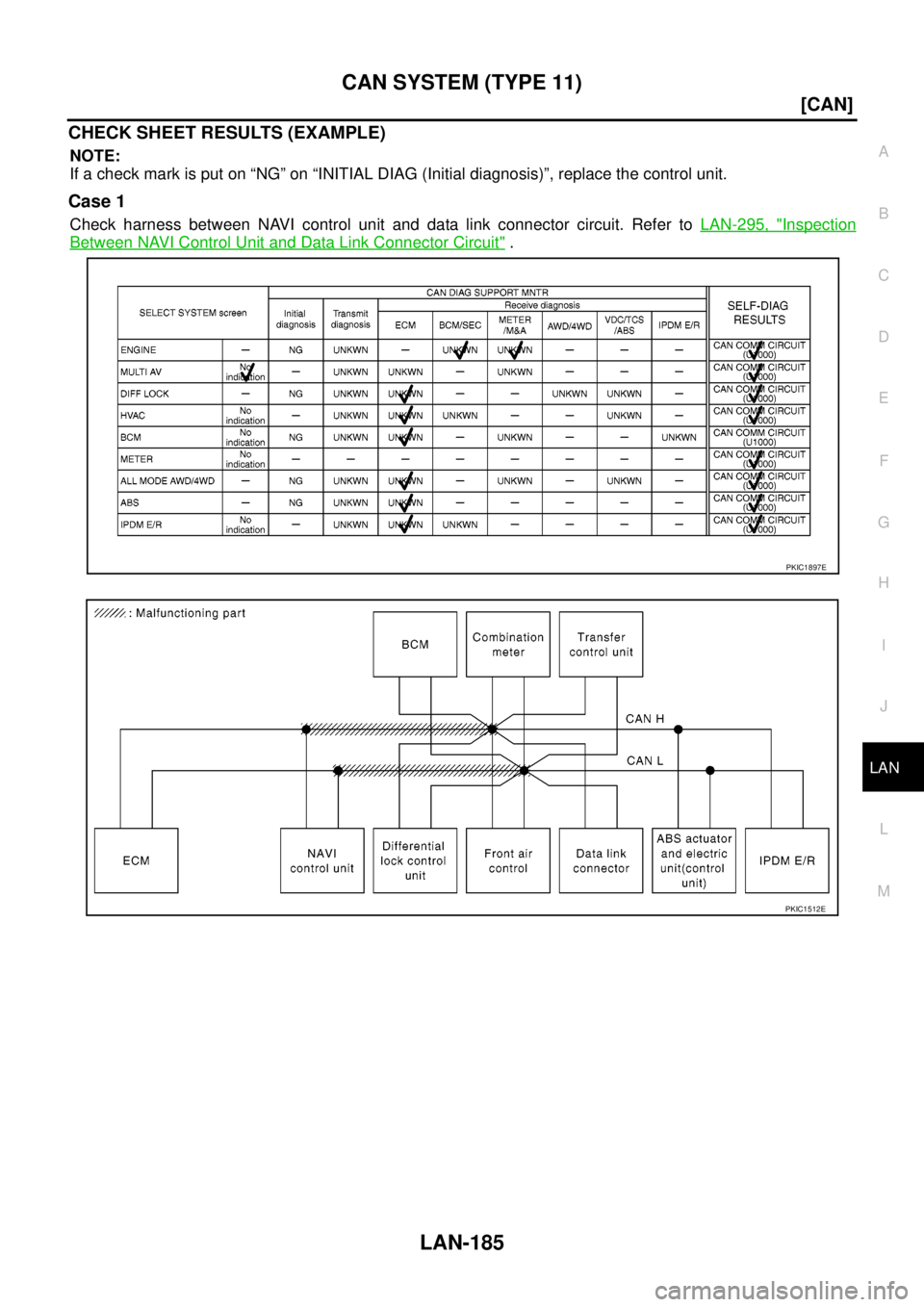

NISSAN NAVARA 2005 Repair Workshop Manual CAN SYSTEM (TYPE 11) LAN-185 [CAN] C D E F G H I J L MA B LAN CHECK SHEET RESULTS (EXAMPLE) NOTE: If a check mark is put on “NG” on “INITIAL DIAG (Initial diagnosis)”, replace the control unit

Page 1963 of 3171

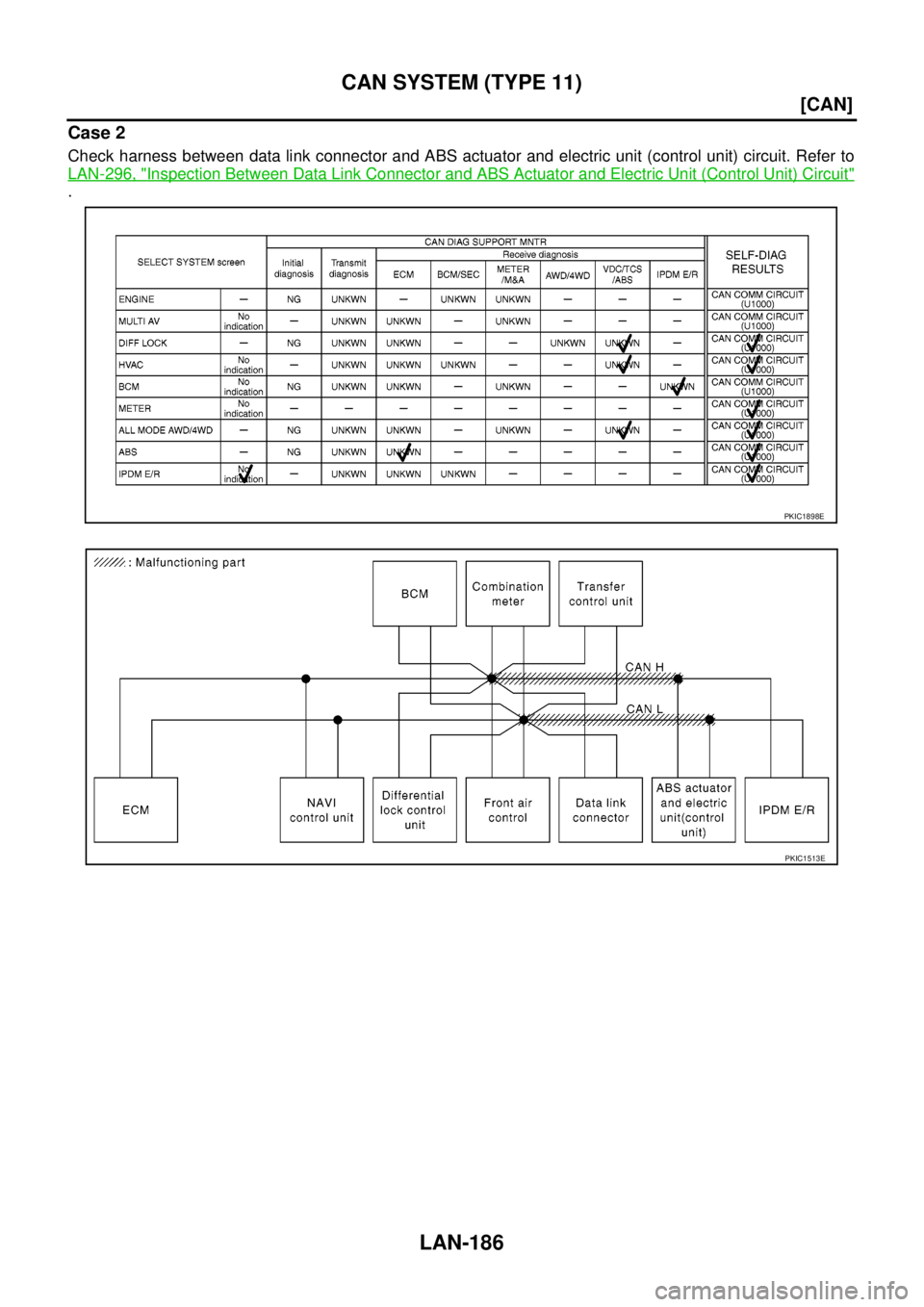

NISSAN NAVARA 2005 Repair Workshop Manual LAN-186 [CAN] CAN SYSTEM (TYPE 11) Case 2 Check harness between data link connector and ABS actuator and electric unit (control unit) circuit. Refer to LAN-296, " Inspection Between Data Link Connecto

Page 1964 of 3171

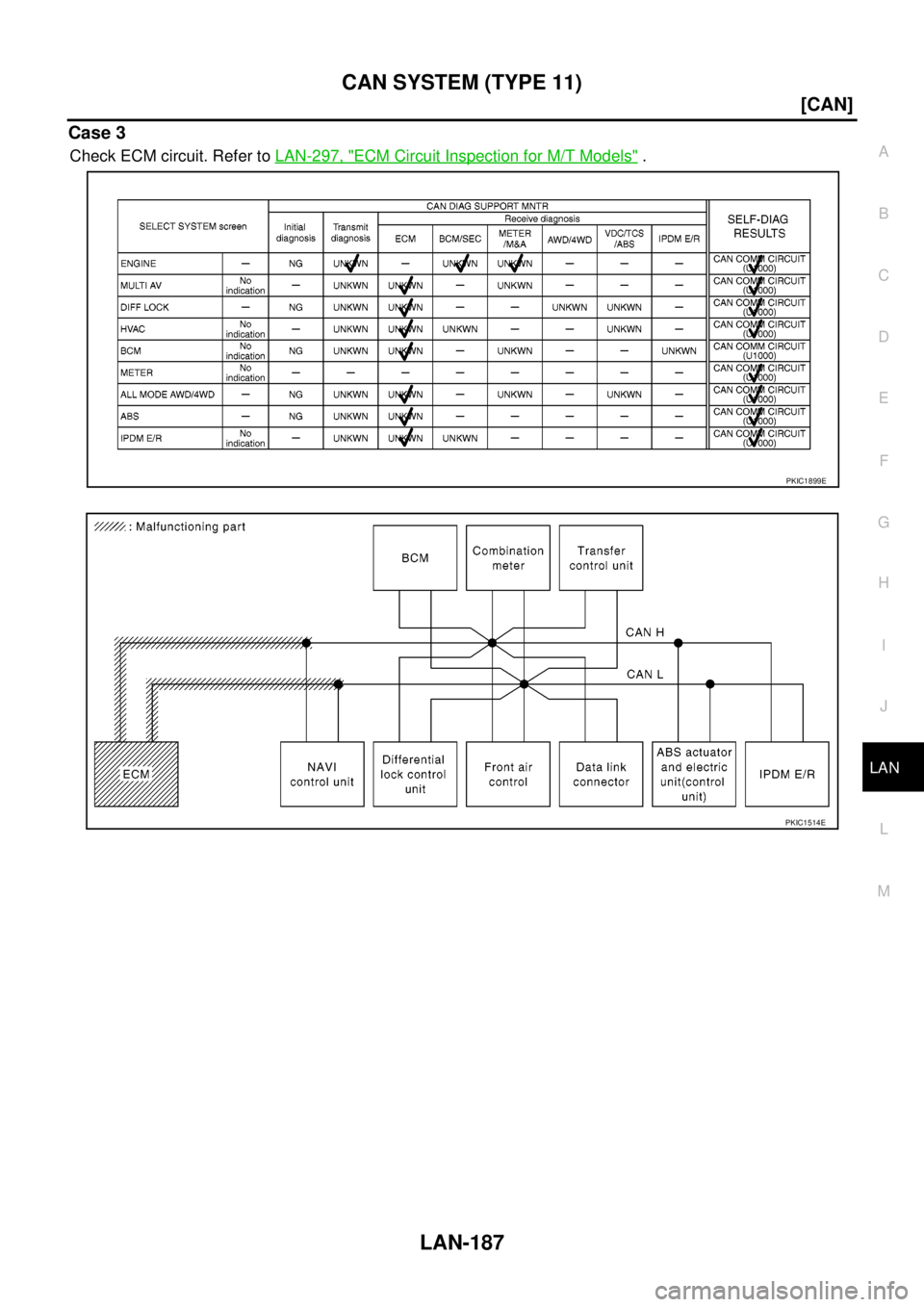

NISSAN NAVARA 2005 Repair Workshop Manual CAN SYSTEM (TYPE 11) LAN-187 [CAN] C D E F G H I J L MA B LAN Case 3 Check ECM circuit. Refer toLAN-297, "ECM Circuit Inspection for M/T Models". PKIC1899E PKIC1514E

Page 1965 of 3171

NISSAN NAVARA 2005 Repair Workshop Manual LAN-188 [CAN] CAN SYSTEM (TYPE 11) Case 4 Check NAVI control unit circuit. Refer toLAN-299, "NAVI Control Unit Circuit Inspection". PKIC1900E PKIC1515E

Page 1966 of 3171

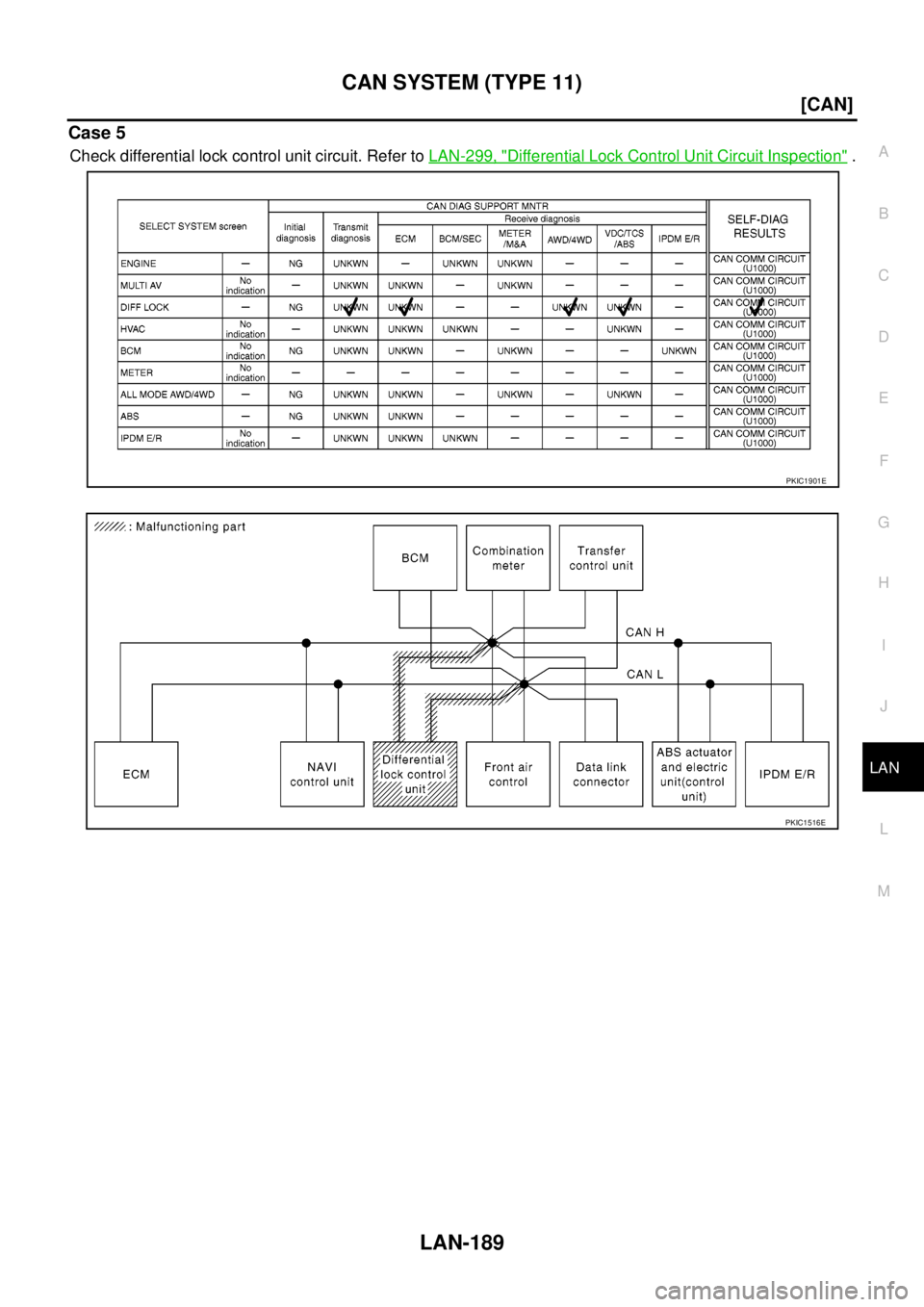

NISSAN NAVARA 2005 Repair Workshop Manual CAN SYSTEM (TYPE 11) LAN-189 [CAN] C D E F G H I J L MA B LAN Case 5 Check differential lock control unit circuit. Refer toLAN-299, "Differential Lock Control Unit Circuit Inspection". PKIC1901E PKIC1

Page 1967 of 3171

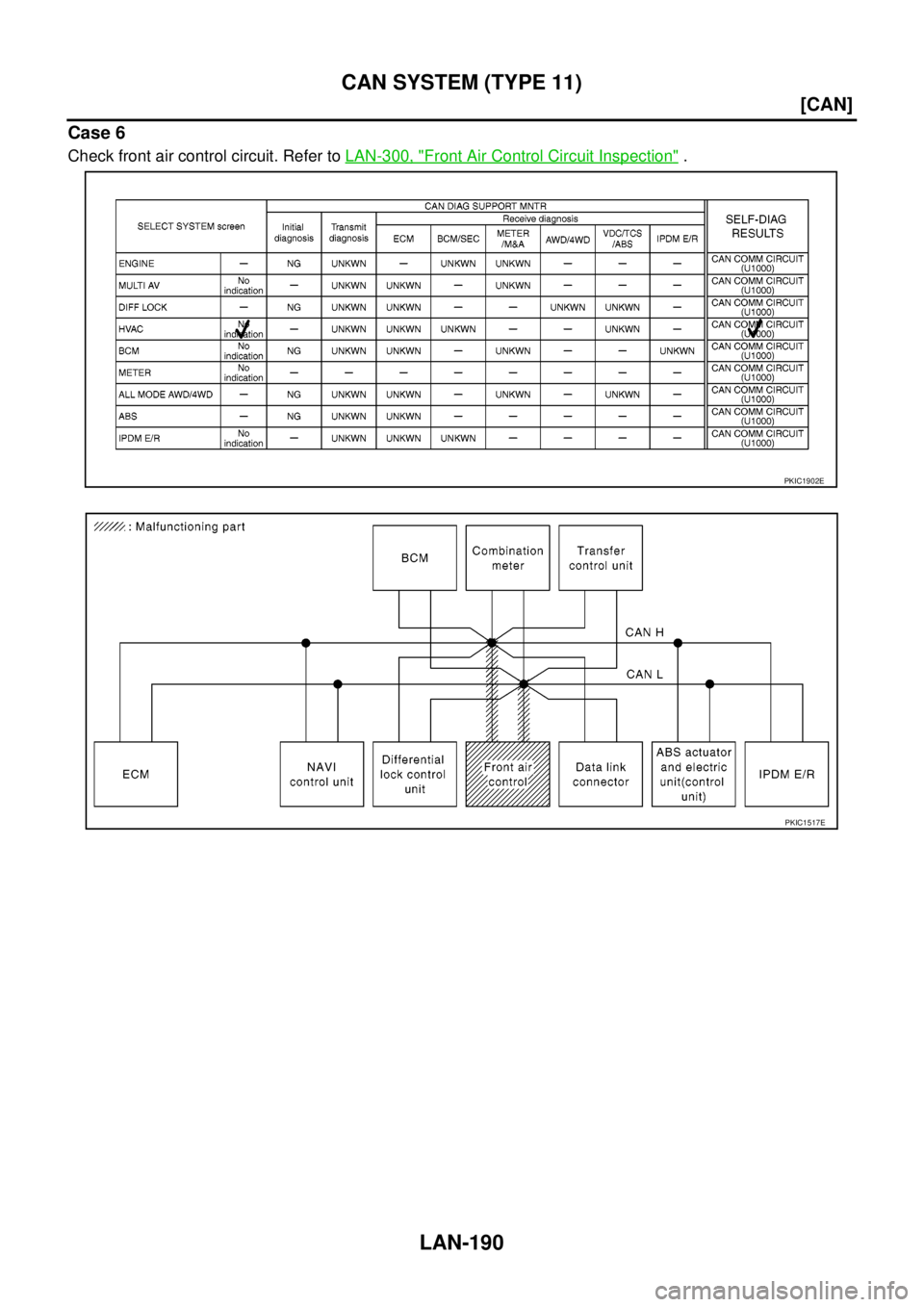

NISSAN NAVARA 2005 Repair Workshop Manual LAN-190 [CAN] CAN SYSTEM (TYPE 11) Case 6 Check front air control circuit. Refer toLAN-300, "Front Air Control Circuit Inspection". PKIC1902E PKIC1517E

Page 1968 of 3171

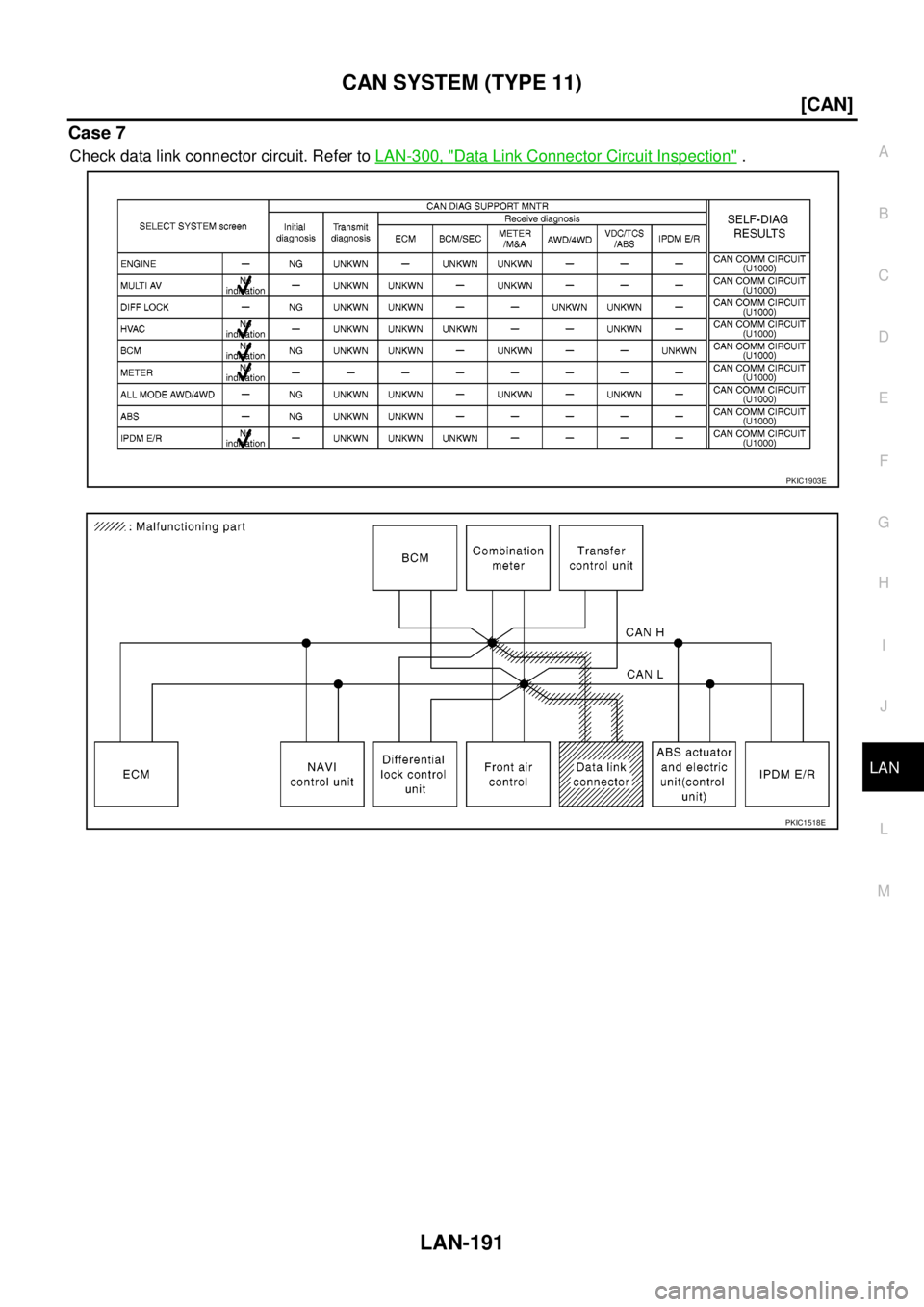

NISSAN NAVARA 2005 Repair Workshop Manual CAN SYSTEM (TYPE 11) LAN-191 [CAN] C D E F G H I J L MA B LAN Case 7 Check data link connector circuit. Refer toLAN-300, "Data Link Connector Circuit Inspection". PKIC1903E PKIC1518E
