NISSAN NAVARA 2005 Repair Workshop Manual MT-36 TRANSMISSION ASSEMBLY 12. Remove magnet from adapter plate. 13. Remove baffle plate mounting bolt, and then remove baffle plate from adapter plate. 14. Remove breather from adapter plate. 15. Re

Page 2354 of 3171

NISSAN NAVARA 2005 Repair Workshop Manual TRANSMISSION ASSEMBLY MT-37 D E F G H I J K L MA B MT b. Press out main drive gear bearing using a puller. 16. Before disassembling, measure the end play for mainshaft (Front side). If the end play is

Page 2355 of 3171

NISSAN NAVARA 2005 Repair Workshop Manual MT-38 TRANSMISSION ASSEMBLY a. Press out 1st gear bushing, 1st-2nd synchronizer hub assembly and 2nd main gear using a puller. CAUTION: Be aware that when using the press, if mainshaft gear positioner

Page 2356 of 3171

NISSAN NAVARA 2005 Repair Workshop Manual TRANSMISSION ASSEMBLY MT-39 D E F G H I J K L MA B MT 26. Press out 3rd gear bushing using a puller. SCIA1534E

Page 2357 of 3171

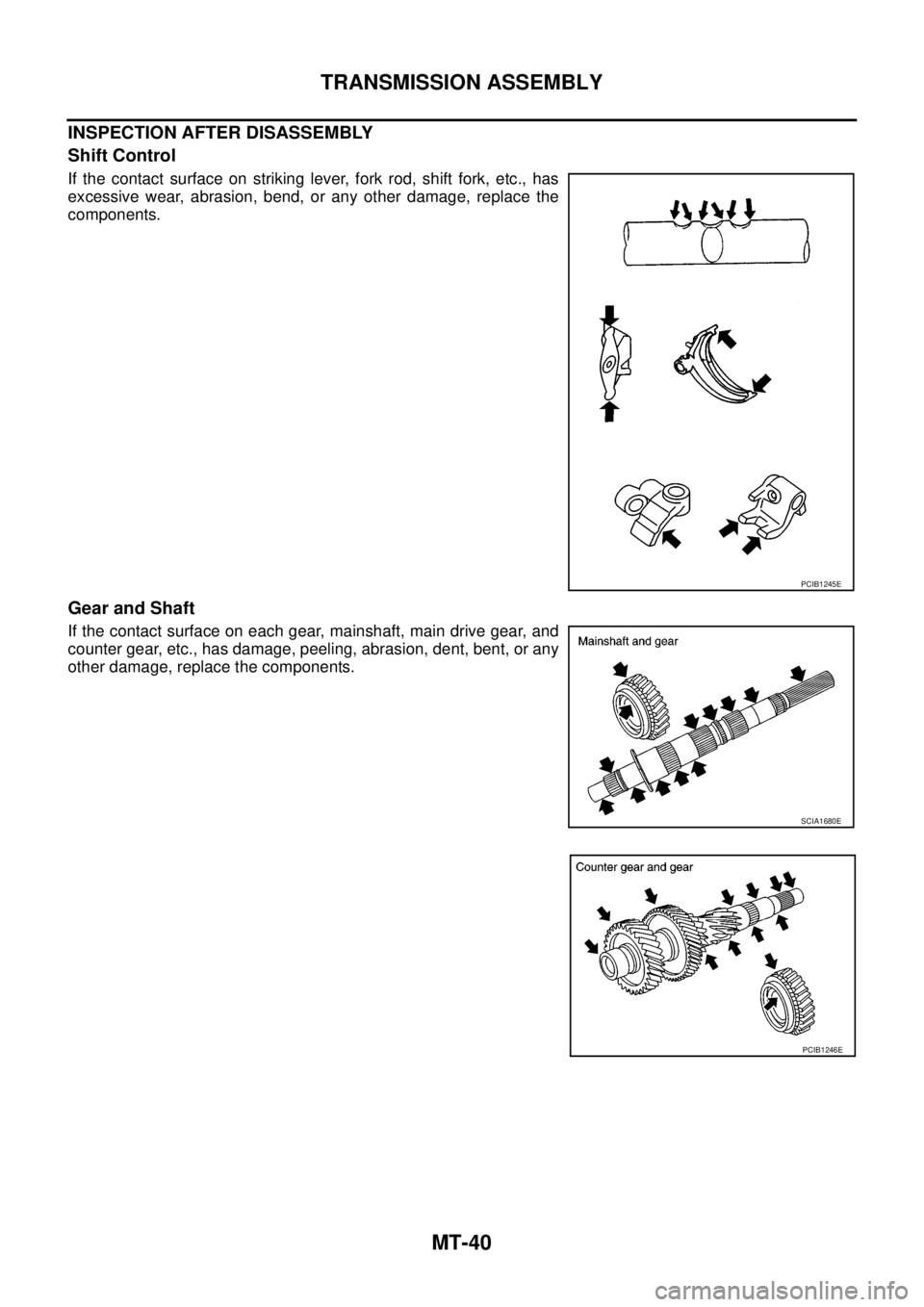

NISSAN NAVARA 2005 Repair Workshop Manual MT-40 TRANSMISSION ASSEMBLY INSPECTION AFTER DISASSEMBLY Shift Control If the contact surface on striking lever, fork rod, shift fork, etc., has excessive wear, abrasion, bend, or any other damage, re

Page 2358 of 3171

NISSAN NAVARA 2005 Repair Workshop Manual TRANSMISSION ASSEMBLY MT-41 D E F G H I J K L MA B MT Synchronizer lIf the contact surface on coupling sleeve, synchronizer hub, and shifting insert has damage or abrasion, replace the components. lCo

Page 2359 of 3171

NISSAN NAVARA 2005 Repair Workshop Manual MT-42 TRANSMISSION ASSEMBLY 1. Measure the clearance “A” at 2 points or more diagonally oppo- site using a dial indicator. And then calculate mean value. 2. Measure the clearance “B” at 2 poin

Page 2360 of 3171

NISSAN NAVARA 2005 Repair Workshop Manual TRANSMISSION ASSEMBLY MT-43 D E F G H I J K L MA B MT 3. Measure the clearance “C” at 2 points or more diagonally oppo- site using a feeler gauge when pressing baulk ring toward clutch gear taper
