lMeasure the valve clearance using the feeler gauge when
engine is cool (at normal temperature).
Valve clearance:
Unit: mm (in)
*: Reference data approximately 80°C(176°F)
6. Set the No. 4 cylinder at TDC by rotating the crankshaft clockwise once. (360 degrees)
7. While referring to the figure, measure the valve clearance
marked in the table below.
8. If the valve clearance is outside the specification, adjust as fol-
lows.
ADJUSTMENTS
lRemove adjusting shim for parts which are outside the specified valve clearance.
1. Extract engine oil on the upper side of the cylinder head (for the air blowing in step 6).
2. Rotate crankshaft to face the camshaft for adjusting shims that
are to be removed upward.
3. Grip camshaft with the camshaft pliers [SST], then using cam-
shaft as a support point, push adjusting shim downward to com-
press valve spring.
CAUTION:
Do not damage camshaft, cylinder head and the outer cir-
cumference of valve lifter.
SBIA0181E
Item Cold Hot* (Reference data)
Intake 0.24 - 0.32 (0.0094 - 0.0126) 0.274 - 0.386 (0.0108 - 0.0152)
Exhaust 0.26 - 0.34 (0.0102 - 0.0134) 0.308 - 0.432 (0.0121 - 0.0170)
Measuring pointNo. 1 No. 2 No. 3 No. 4
INT EXH INT EXH INT EXH INT EXH
When the No. 4
cylinder is in the
TDCXX XX
SBIA0182E
SBIA0183E
PBIC2321E
Page 1450 of 3171
![NISSAN NAVARA 2005 Repair Workshop Manual EM-68
CAMSHAFT
4. Withvalvespringinacompressedstate,removethecamshaft
pliers [SST] by securely setting the outer circumference of the
valve lifter with the end of the lifter stopper [SST].
lHold the l NISSAN NAVARA 2005 Repair Workshop Manual EM-68
CAMSHAFT
4. Withvalvespringinacompressedstate,removethecamshaft
pliers [SST] by securely setting the outer circumference of the
valve lifter with the end of the lifter stopper [SST].
lHold the l](/manual-img/5/57362/w960_57362-1449.png)
EM-68
CAMSHAFT
4. Withvalvespringinacompressedstate,removethecamshaft
pliers [SST] by securely setting the outer circumference of the
valve lifter with the end of the lifter stopper [SST].
lHold the lifter stopper by hand until the shim is removed.
CAUTION:
Do not retrieve the camshaft pliers forcefully, as cam-
shaft will be damaged.
5. Move the round hole of adjusting shim to the front with the very
thin screwdriver or like that.
lWhen adjusting shim on valve lifter will not rotate smoothly,
restart from step 3 to release the end of the lifter stopper
[SST] from touching adjusting shim.

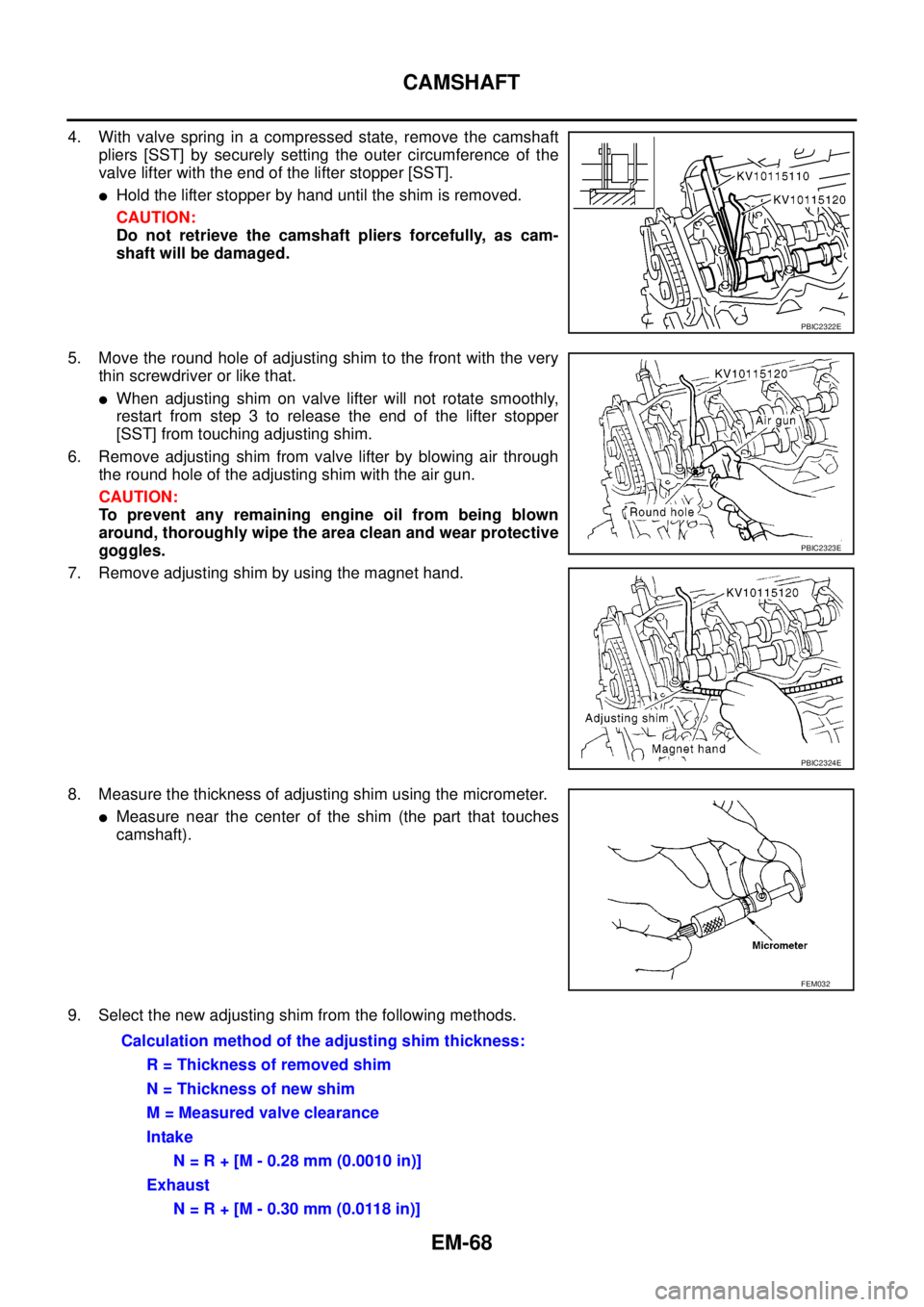

6. Remove adjusting shim from valve lifter by blowing air through
the round hole of the adjusting shim with the air gun.
CAUTION:
To prevent any remaining engine oil from being blown
around, thoroughly wipe the area clean and wear protective
goggles.
7. Remove adjusting shim by using the magnet hand.
8. Measure the thickness of adjusting shim using the micrometer.
lMeasure near the center of the shim (the part that touches
camshaft).
9. Select the new adjusting shim from the following methods.
PBIC2322E
PBIC2323E
PBIC2324E
FEM032
Calculation method of the adjusting shim thickness:
R = Thickness of removed shim
N = Thickness of new shim
M = Measured valve clearance
Intake
N=R+[M-0.28mm(0.0010in)]
Exhaust
N=R+[M-0.30mm(0.0118in)]
Page 1451 of 3171
CAMSHAFT
EM-69
C
D
E
F
G
H
I
J
K
L
MA
EM

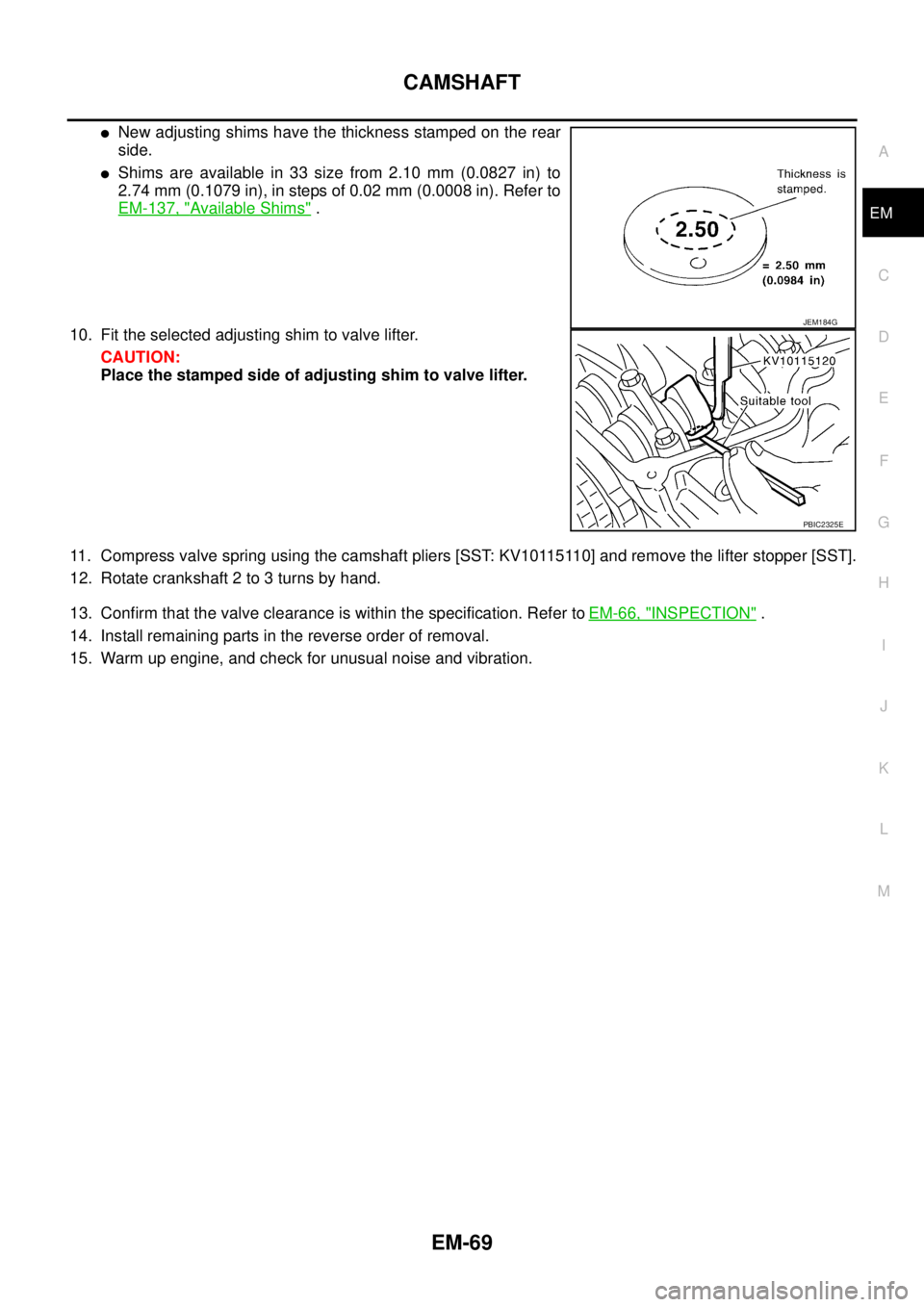

lNew adjusting shims have the thickness stamped on the rear
side.
lShims are available in 33 size from 2.10 mm (0.0827 in) to
2.74 mm (0.1079 in), in steps of 0.02 mm (0.0008 in). Refer to
EM-137, "
Available Shims".
10. Fit the selected adjusting shim to valve lifter.
CAUTION:
Place the stamped side of adjusting shim to valve lifter.
11. Compress valve spring using the camshaft pliers [SST: KV10115110] and remove the lifter stopper [SST].
12. Rotate crankshaft 2 to 3 turns by hand.
13. Confirm that the valve clearance is within the specification. Refer toEM-66, "
INSPECTION".
14. Install remaining parts in the reverse order of removal.
15. Warm up engine, and check for unusual noise and vibration.
JEM184G
PBIC2325E
Page 1452 of 3171

EM-70
OIL SEAL
OIL SEAL
PFP:12279
Removal and Installation of Valve Oil SealEBS01EK7
REMOVAL
1. Turn crankshaft until the cylinder requiring new valve oil seals is at TDC. This will prevent valve from drop-
ping into cylinder.
2. Remove camshafts. Refer toEM-59, "
CAMSHAFT".
3. Remove adjusting shims and valve lifters. Refer toEM-59, "
CAMSHAFT".
lCheck the installation positions, and keep them to avoid being confused.
4. Rotate crankshaft, and set piston whose valve oil seal is to be removed to TDC. This will prevent valve
from dropping into cylinder.
5. Remove valve collet.

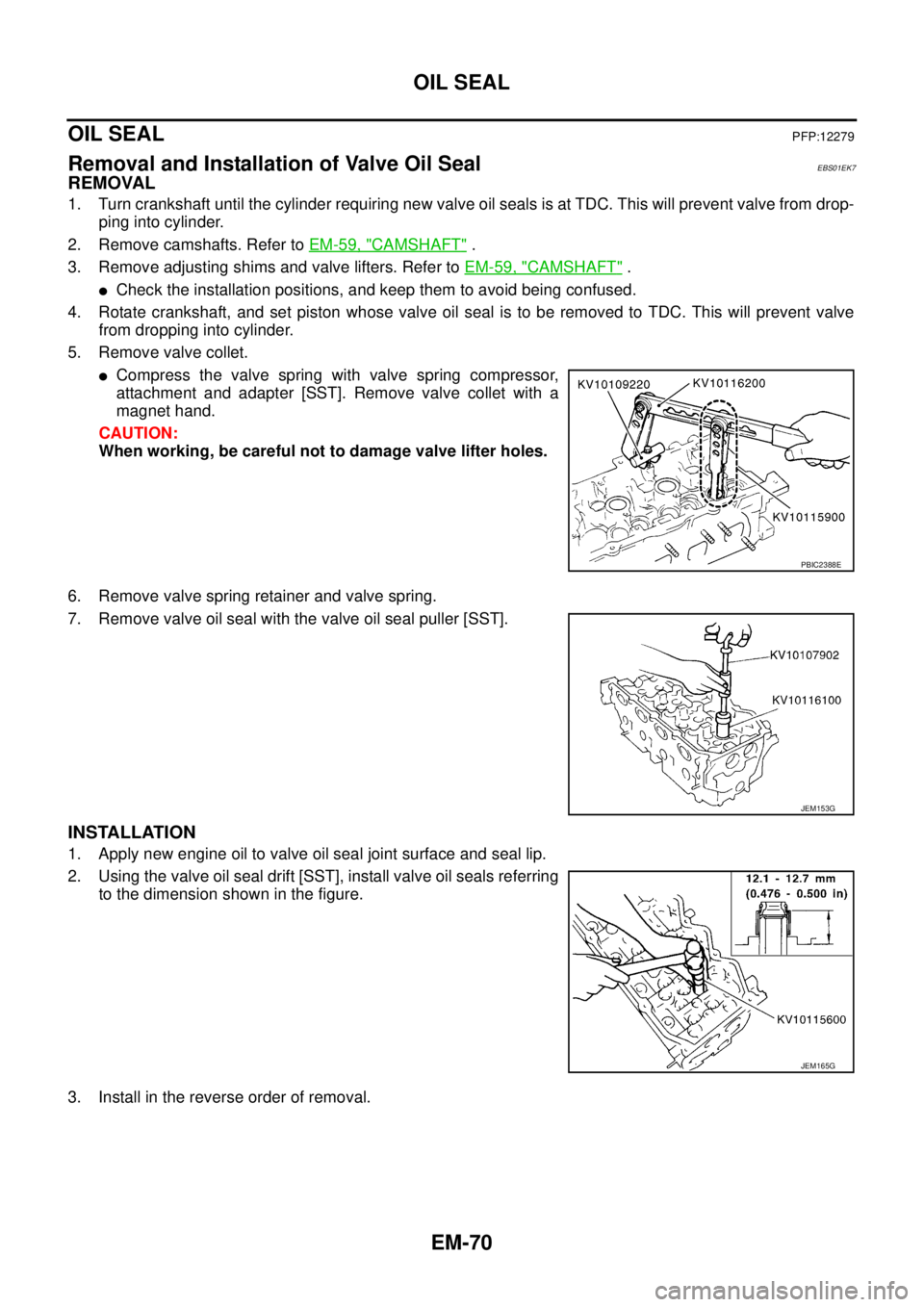

lCompress the valve spring with valve spring compressor,
attachment and adapter [SST]. Remove valve collet with a
magnet hand.
CAUTION:
When working, be careful not to damage valve lifter holes.
6. Remove valve spring retainer and valve spring.
7. Remove valve oil seal with the valve oil seal puller [SST].
INSTALLATION
1. Apply new engine oil to valve oil seal joint surface and seal lip.
2. Using the valve oil seal drift [SST], install valve oil seals referring
to the dimension shown in the figure.
3. Install in the reverse order of removal.
PBIC2388E
JEM153G
JEM165G
Page 1453 of 3171
OIL SEAL
EM-71
C
D
E
F
G
H
I
J
K
L
MA
EM
Removal and Installation of Front Oil SealEBS01EK8
REMOVAL
1. Remove the following parts.
lUndercover
lDrive belt; Refer toEM-12, "DRIVE BELTS".
lCrankshaft pulley; Refer toEM-79, "PRIMARY TIMING CHAIN".
2. Remove front oil seal with a suitable tool.
CAUTION:
Be careful not to damage oil pump housing and crankshaft.
INSTALLATION
1. Apply new engine oil to new front oil seal joint surface and seal lip.

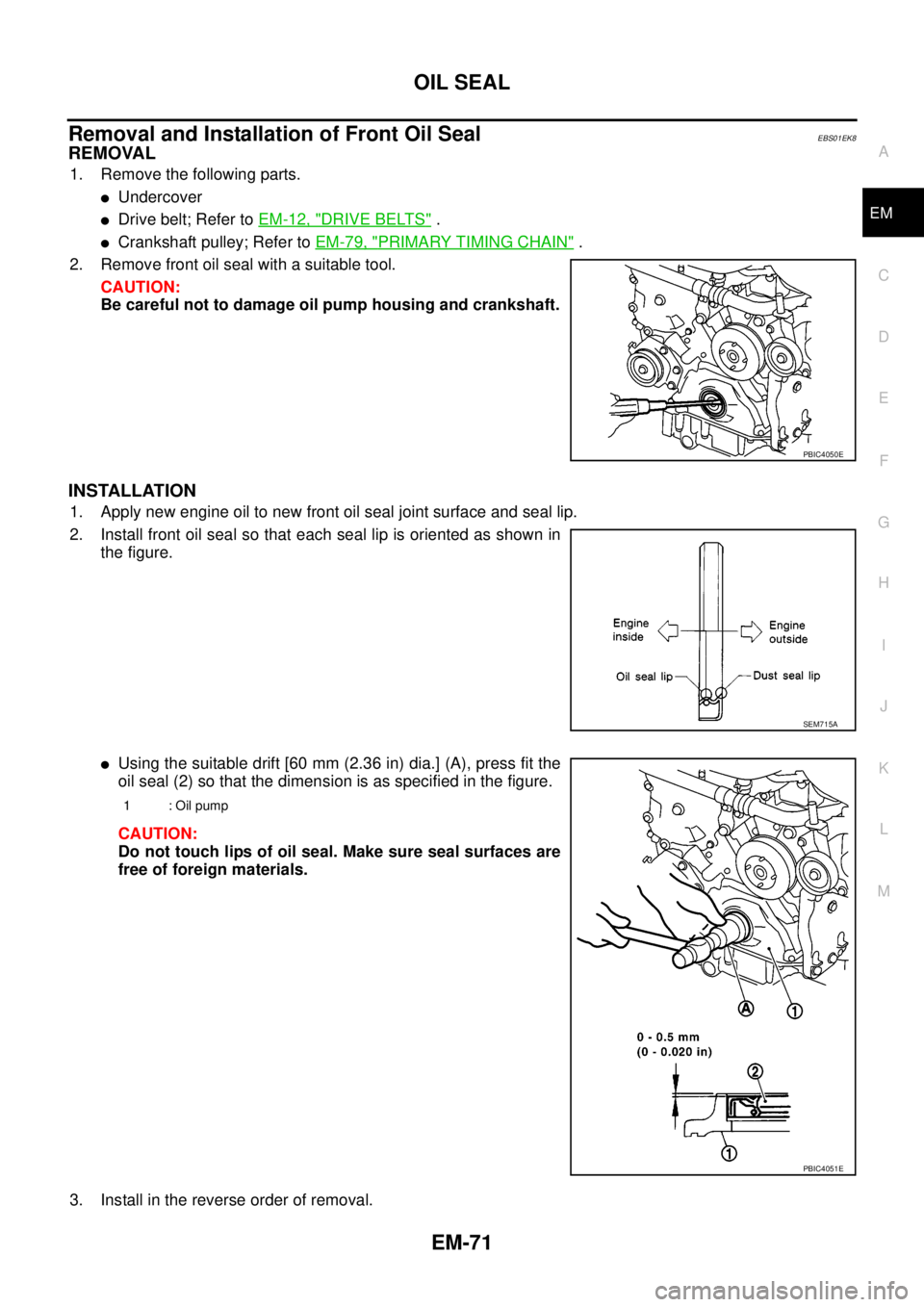

2. Install front oil seal so that each seal lip is oriented as shown in
the figure.
lUsing the suitable drift [60 mm (2.36 in) dia.] (A), press fit the
oil seal (2) so that the dimension is as specified in the figure.
CAUTION:
Do not touch lips of oil seal. Make sure seal surfaces are
free of foreign materials.
3. Install in the reverse order of removal.
PBIC4050E
SEM715A
1 : Oil pump
PBIC4051E
Page 1454 of 3171
EM-72
OIL SEAL
Removal and Installation of Rear Oil Seal
EBS01EK9
REMOVAL
1. Remove transmission and transfer assembly. Refer toMT-16, "TRANSMISSION ASSEMBLY"(M/T mod-
els) andAT- 2 4 7 , "
TRANSMISSION ASSEMBLY"(A/T models).
2. Remove flywheel (M/T models) or drive plate (A/T models). Refer toEM-110, "
CYLINDER BLOCK".
3. Remove rear oil seal with a suitable tool.
CAUTION:
Be careful not to damage crankshaft and cylinder block.
INSTALLATION
1. Apply new engine oil to new rear oil seal joint surface and seal lip.

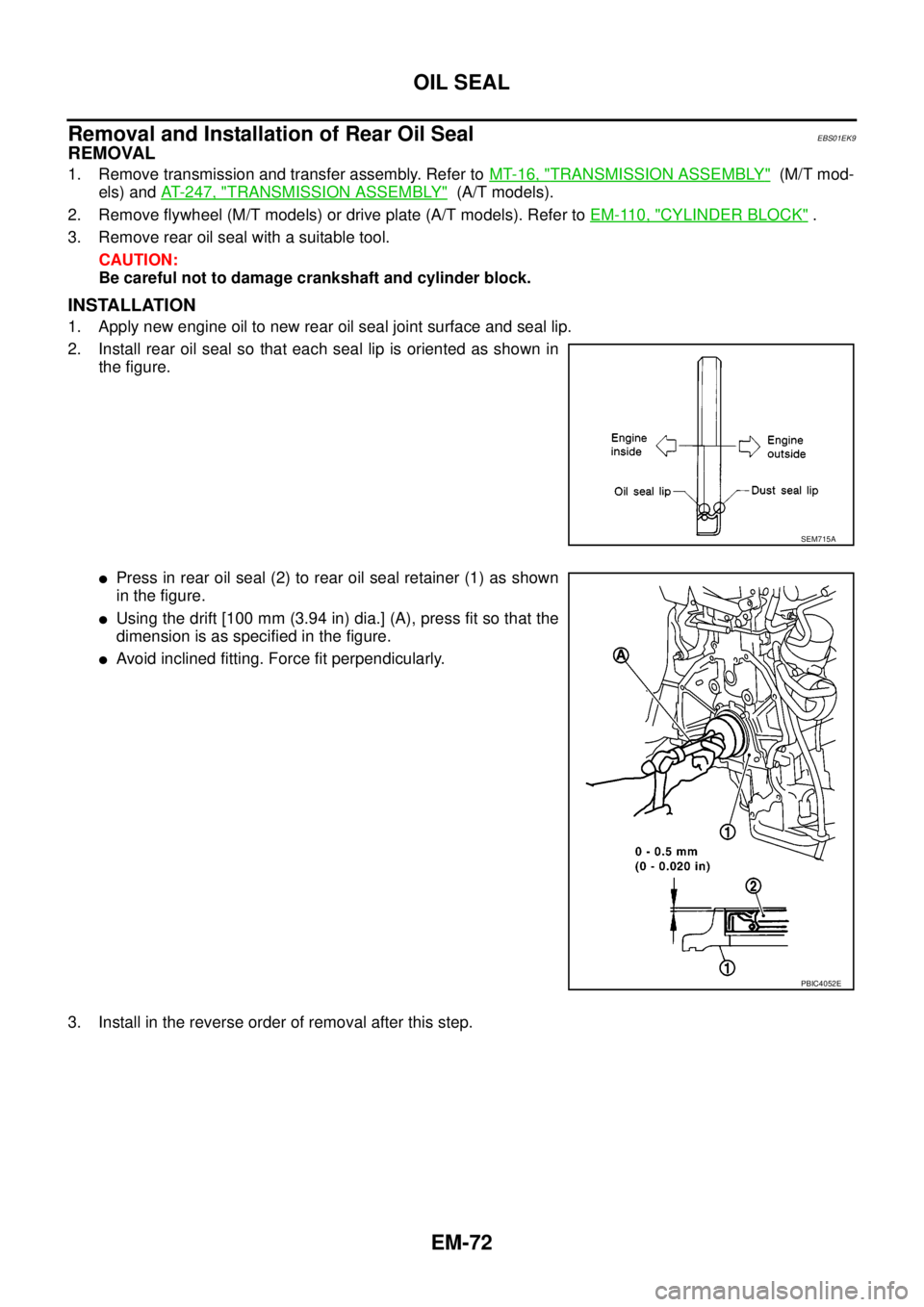

2. Install rear oil seal so that each seal lip is oriented as shown in
the figure.
lPress in rear oil seal (2) to rear oil seal retainer (1) as shown
in the figure.
lUsing the drift [100 mm (3.94 in) dia.] (A), press fit so that the
dimension is as specified in the figure.
lAvoid inclined fitting. Force fit perpendicularly.
3. Install in the reverse order of removal after this step.
SEM715A
PBIC4052E
Page 1455 of 3171

SECONDARY TIMING CHAIN
EM-73
C
D
E
F
G
H
I
J
K
L
MA
EM
SECONDARY TIMING CHAINPFP:13028
ComponentsEBS01EKA
Removal and InstallationEBS01E68
CAUTION:
lAfter removing timing chain, do not turn crankshaft and camshaft separately, or valves will strike
piston heads.
lWhen installing camshafts, chain tensioners, oil seals, or other sliding parts, lubricate contacting
surfaces with new engine oil.
REMOVAL
lFor preparative work for removing/installing secondary timing chain to remove/install fuel pump, refer to
EM-49, "
FUEL PUMP".
lTo prepare for removing/installing secondary timing chain to remove/install camshaft, refer toEM-59,
"Removal and Installation".
1. Remove radiator shroud (upper and lower) and cooling fan (crankshaft driven type). Refer toCO-11,
"RADIATOR"andCO-19, "COOLING FAN".
2. Remove EGR cooler (A/T models) and related water hoses, or EGR tube (M/T models).
CAUTION:
lPerform this step when engine is cold.
lDo not spill engine coolant on drive belts.
3. Remove front chain case.
1. Chain tensioner 2. Spring 3. Plunger
4. Slack guide 5. Front chain case 6. Rubber washer
7. Tension guide 8. Gasket 9. Secondary timing chain
PBIC2326E
Page 1456 of 3171
EM-74
SECONDARY TIMING CHAIN
lLoosen fixing bolts in reverse order of that shown in the figure
and remove them.
CAUTION:
lWhile front chain case is removed, cover openings to
prevent entry of foreign material into engine.
lDo not remove two mass dampers on the back of
cover.
4. Set the No. 1 piston to TDC on its compression stroke.
lTurn crankshaft pulley clockwise so that the alignment mark
(punched mark) on each camshaft sprocket is positioned as
showninthefigure.
lNo position indicator is provided on crankshaft pulley.
lWhen installing, color coded links on secondary timing
chain can be used as alignment marks. Marking may not
be necessary for removal; however, make alignment
marks as required because the alignment mark on fuel
pump sprocket may not be easy to see.
5. Remove chain tensioner.
a. Push the plunger of chain tensioner and keep it pressed with a
push pin.
JEM121G
SBIA0189E
SEM515G
JEM124G
