Page 2017 of 3171

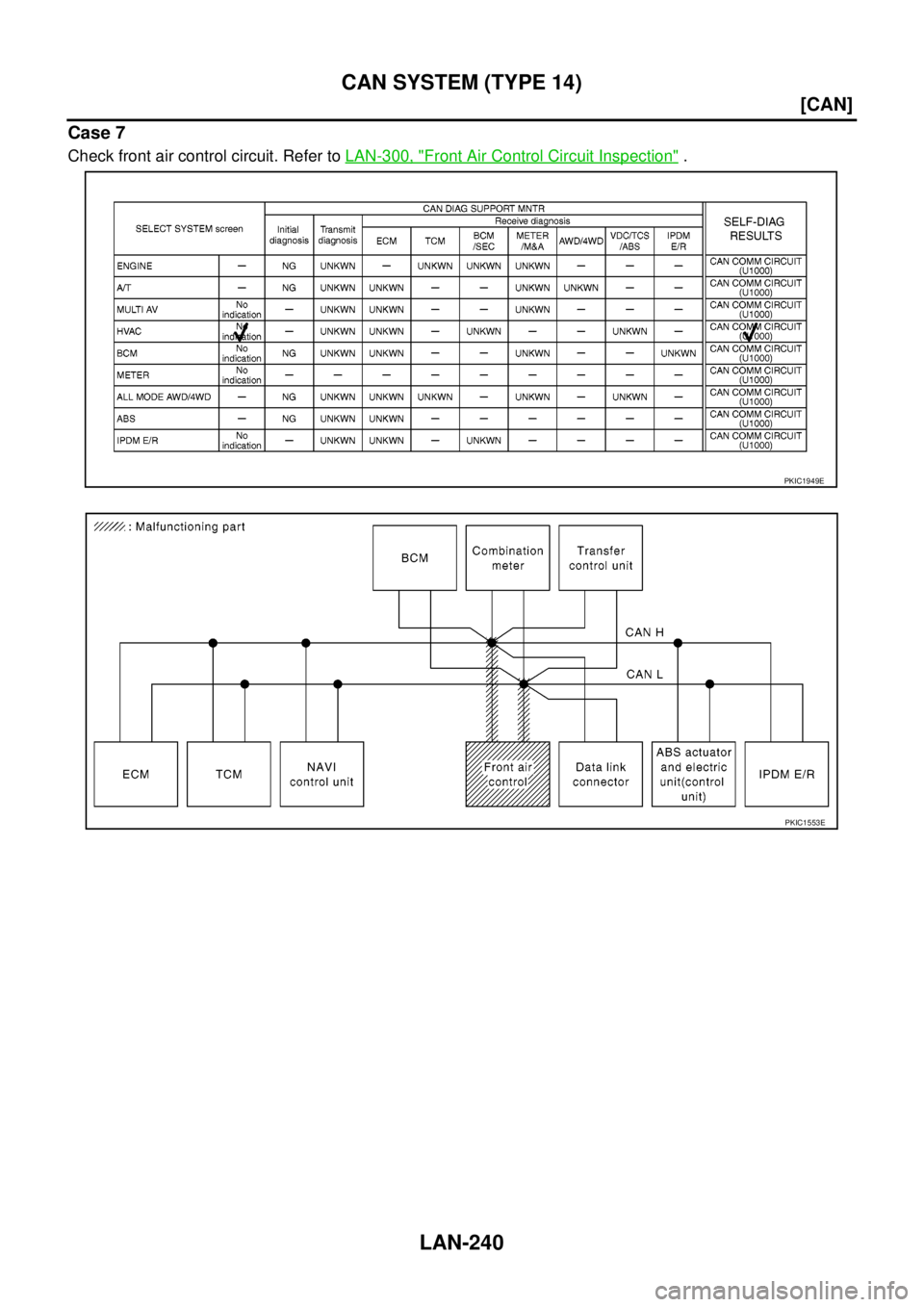

NISSAN NAVARA 2005 Repair Workshop Manual LAN-240 [CAN] CAN SYSTEM (TYPE 14) Case 7 Check front air control circuit. Refer toLAN-300, "Front Air Control Circuit Inspection". PKIC1949E PKIC1553E

Page 2018 of 3171

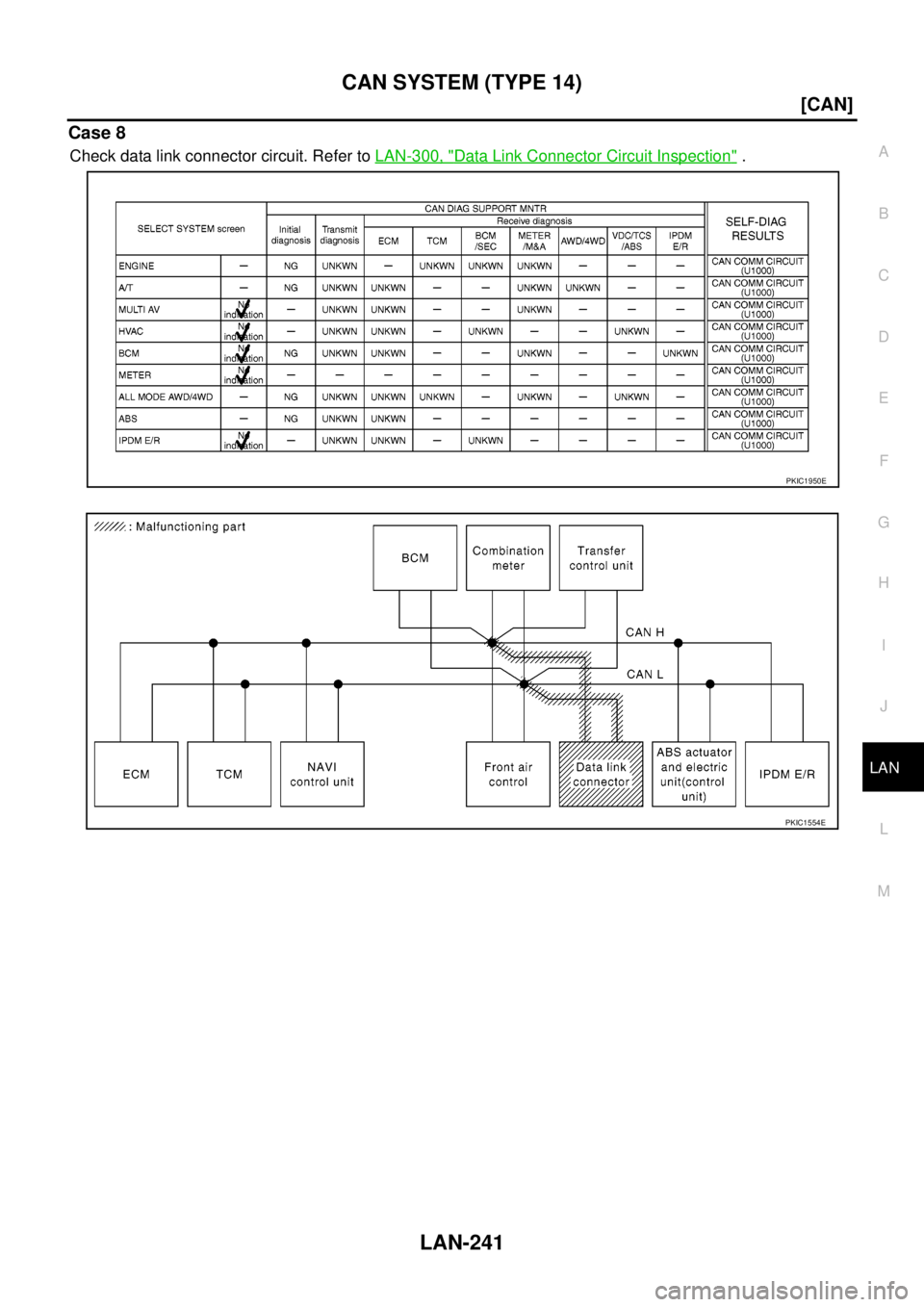

NISSAN NAVARA 2005 Repair Workshop Manual CAN SYSTEM (TYPE 14) LAN-241 [CAN] C D E F G H I J L MA B LAN Case 8 Check data link connector circuit. Refer toLAN-300, "Data Link Connector Circuit Inspection". PKIC1950E PKIC1554E

Page 2019 of 3171

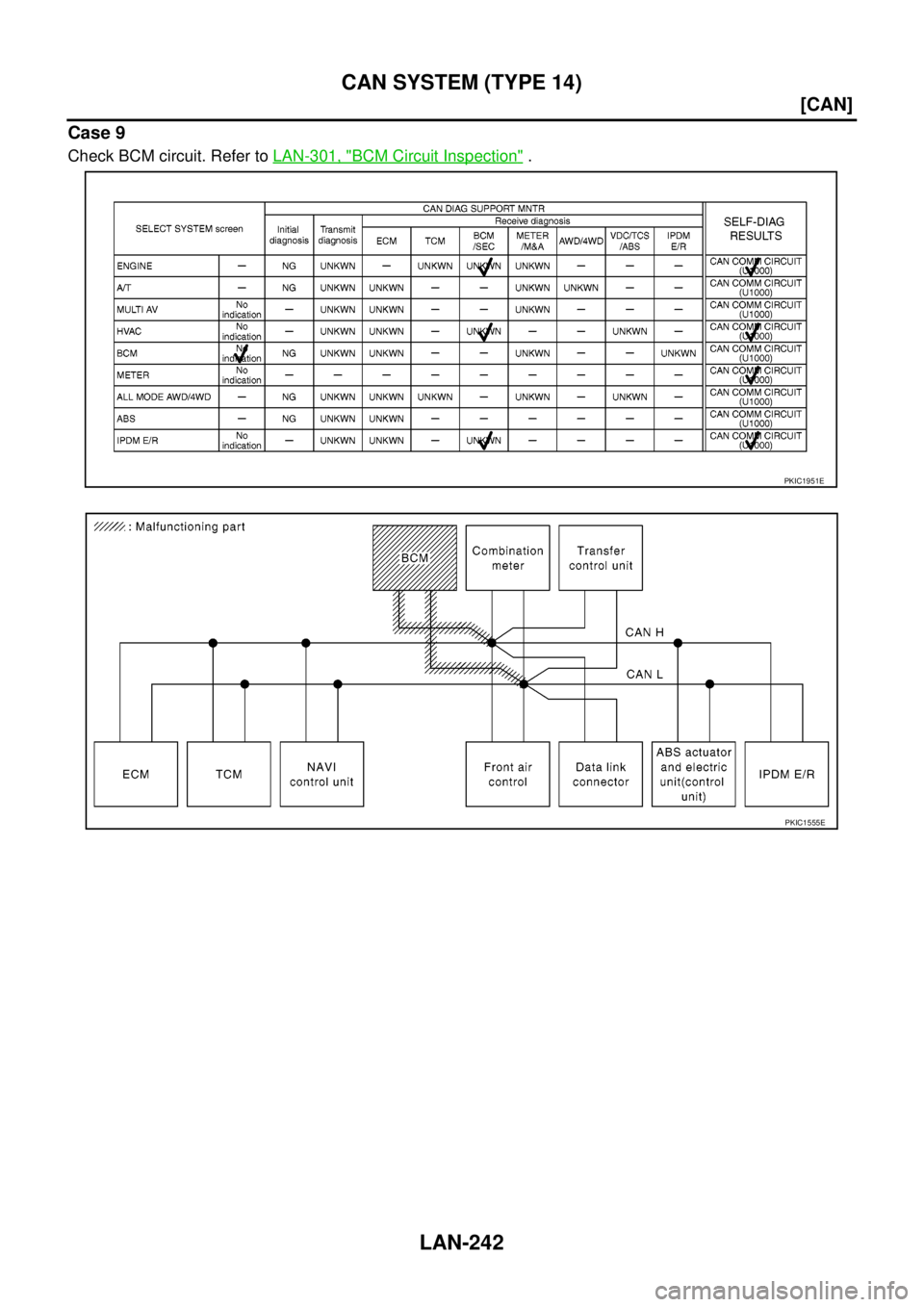

NISSAN NAVARA 2005 Repair Workshop Manual LAN-242 [CAN] CAN SYSTEM (TYPE 14) Case 9 Check BCM circuit. Refer toLAN-301, "BCM Circuit Inspection". PKIC1951E PKIC1555E

Page 2020 of 3171

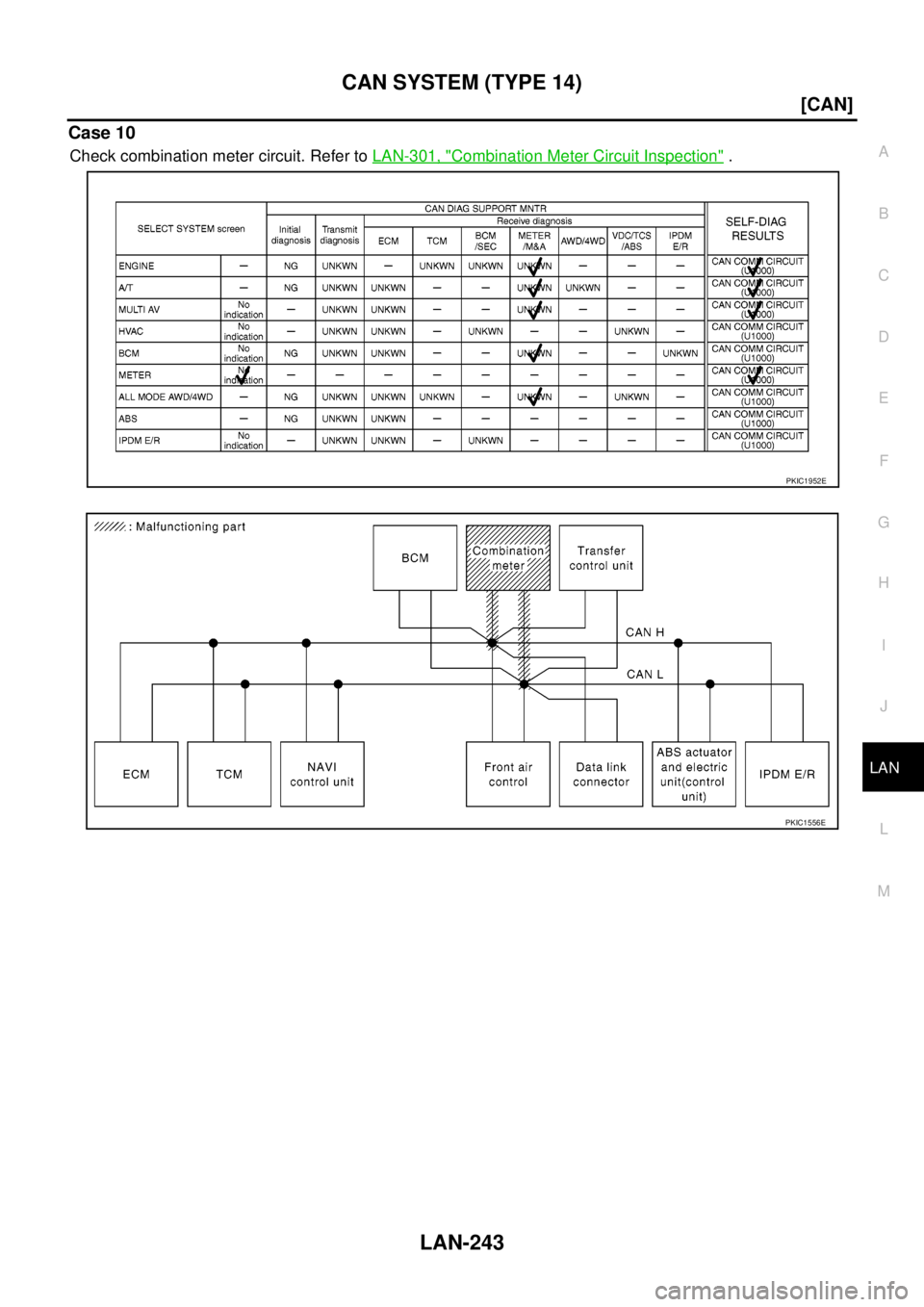

NISSAN NAVARA 2005 Repair Workshop Manual CAN SYSTEM (TYPE 14) LAN-243 [CAN] C D E F G H I J L MA B LAN Case 10 Check combination meter circuit. Refer toLAN-301, "Combination Meter Circuit Inspection". PKIC1952E PKIC1556E

Page 2021 of 3171

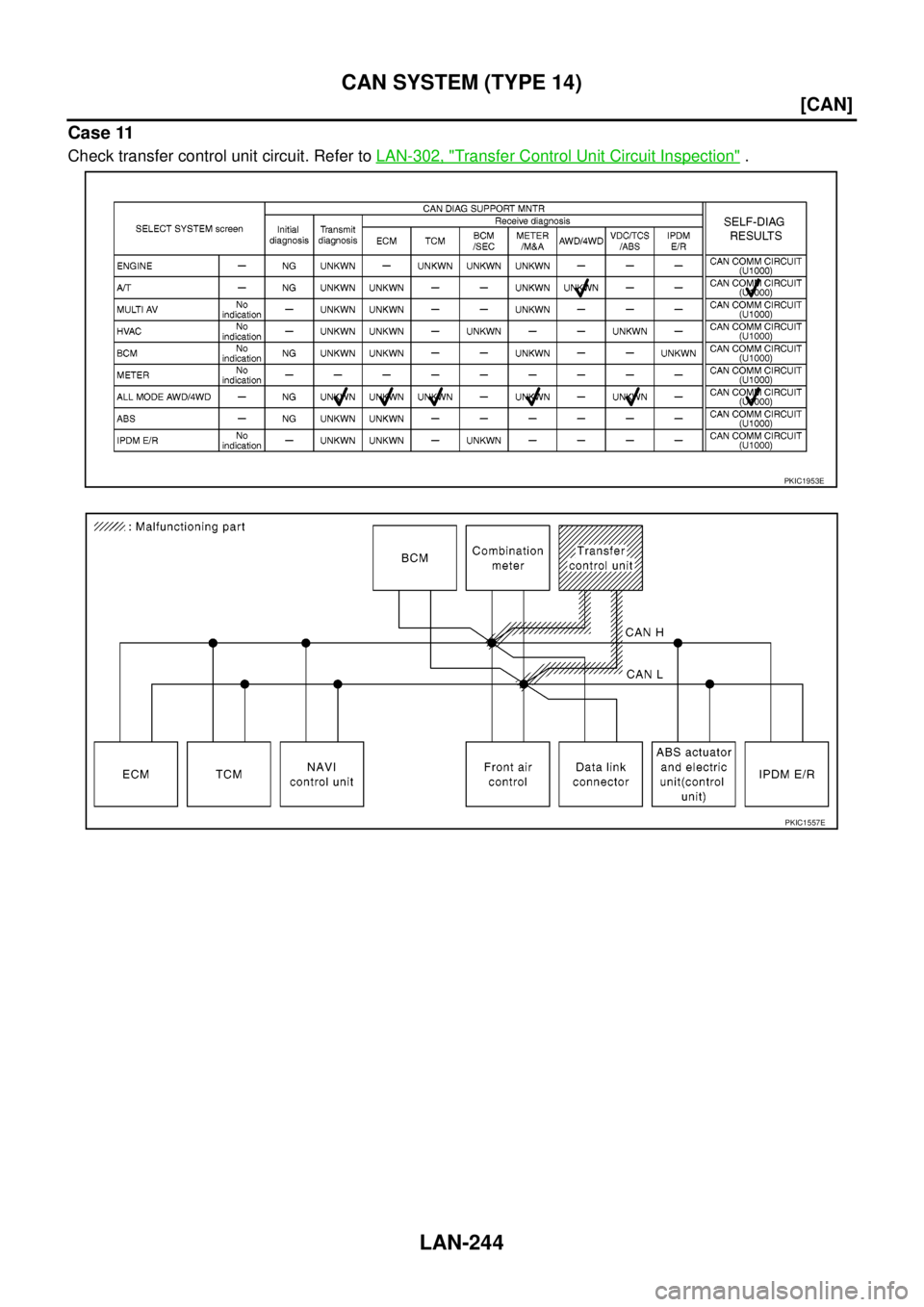

NISSAN NAVARA 2005 Repair Workshop Manual LAN-244 [CAN] CAN SYSTEM (TYPE 14) Case 11 Check transfer control unit circuit. Refer toLAN-302, "Transfer Control Unit Circuit Inspection". PKIC1953E PKIC1557E

Page 2022 of 3171

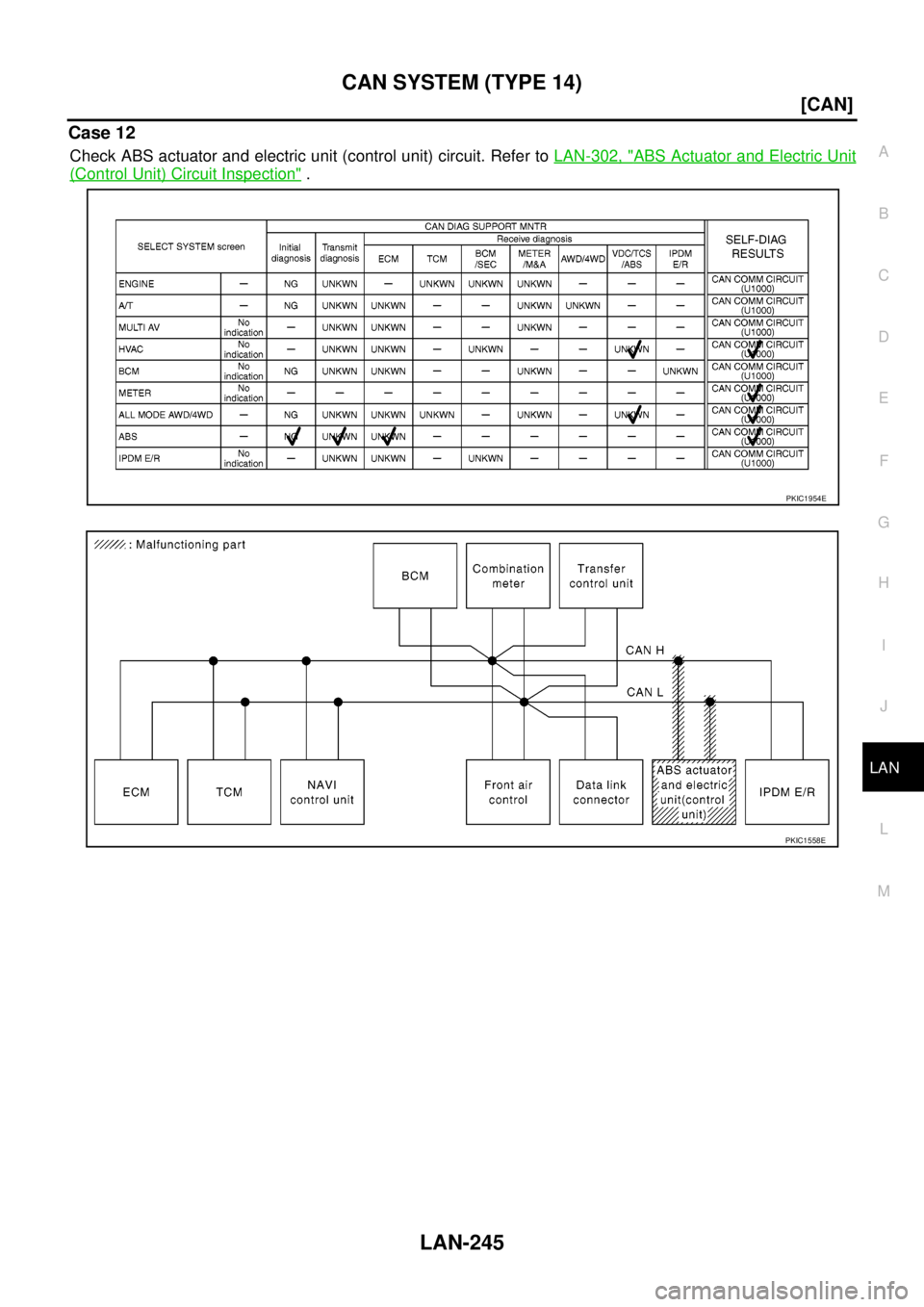

NISSAN NAVARA 2005 Repair Workshop Manual CAN SYSTEM (TYPE 14) LAN-245 [CAN] C D E F G H I J L MA B LAN Case 12 Check ABS actuator and electric unit (control unit) circuit. Refer toLAN-302, "ABS Actuator and Electric Unit (Control Unit) Circu

Page 2023 of 3171

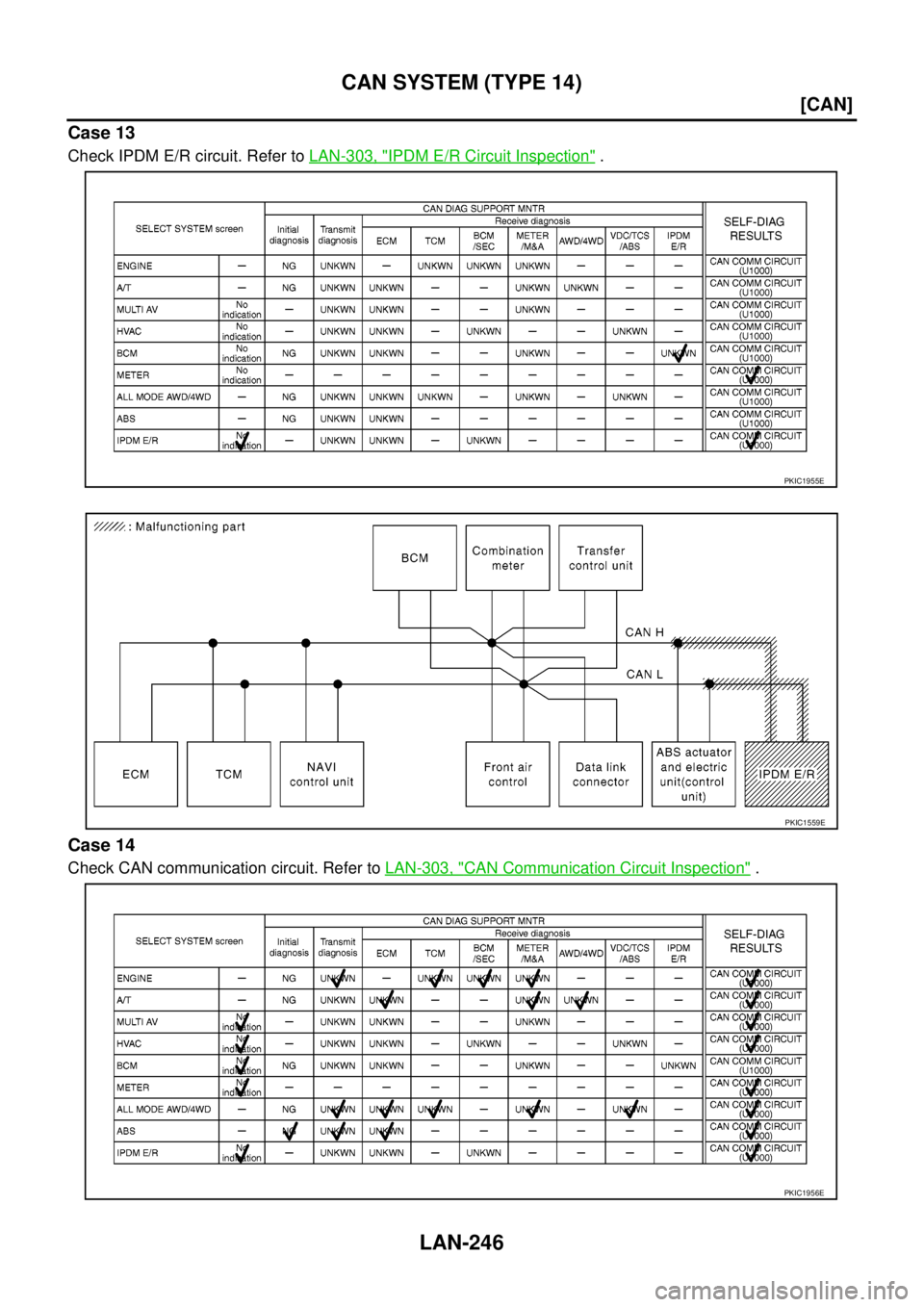

NISSAN NAVARA 2005 Repair Workshop Manual LAN-246 [CAN] CAN SYSTEM (TYPE 14) Case 13 Check IPDM E/R circuit. Refer toLAN-303, "IPDM E/R Circuit Inspection". Case 14 Check CAN communication circuit. Refer toLAN-303, "CAN Communication Circuit

Page 2024 of 3171

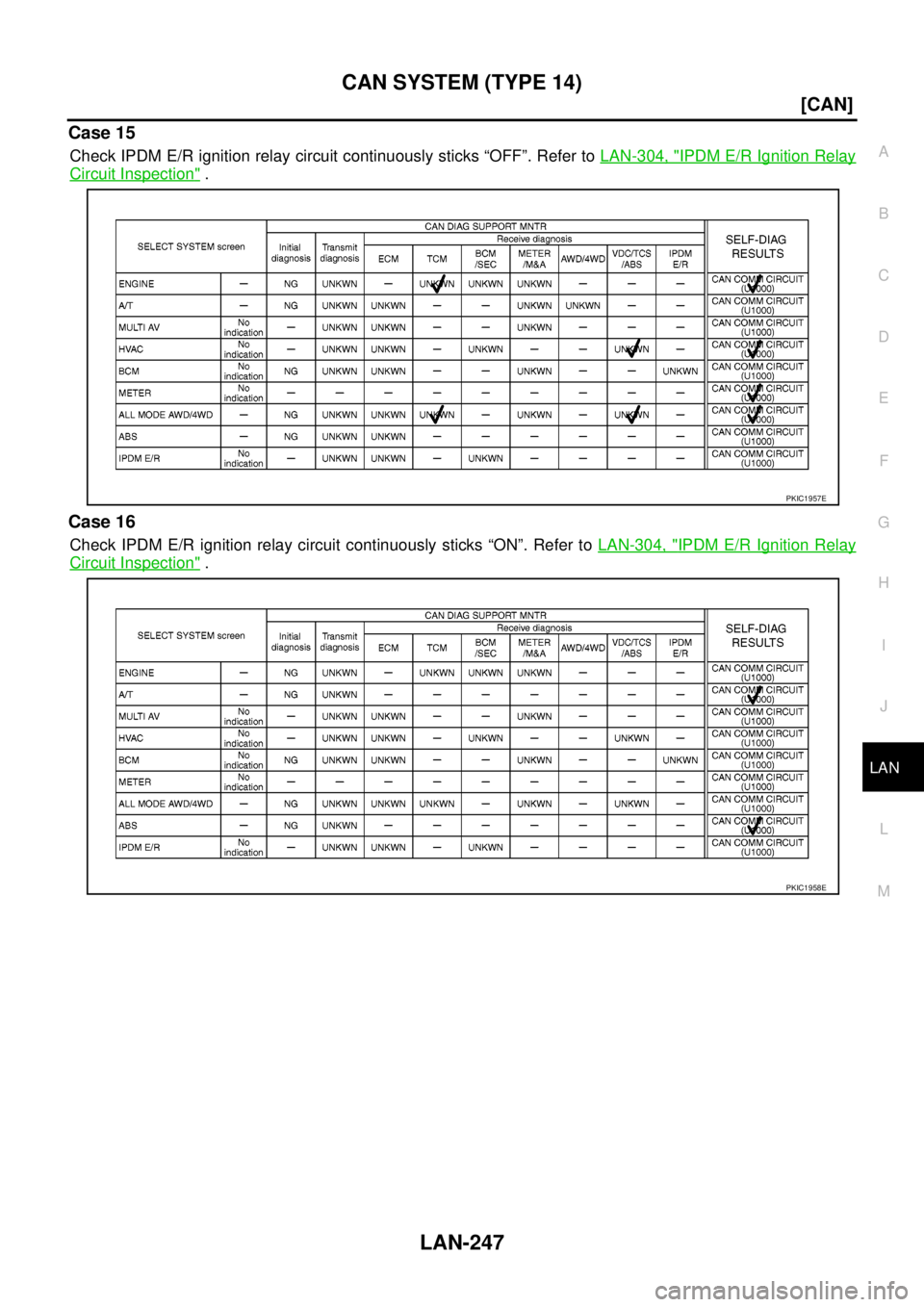

NISSAN NAVARA 2005 Repair Workshop Manual CAN SYSTEM (TYPE 14) LAN-247 [CAN] C D E F G H I J L MA B LAN Case 15 Check IPDM E/R ignition relay circuit continuously sticks “OFF”. Refer toLAN-304, "IPDM E/R Ignition Relay Circuit Inspection"
