Page 2209 of 3171

NISSAN NAVARA 2005 Repair Workshop Manual LT-126 PARKING, LICENSE PLATE AND TAIL LAMPS lthrough grounds E21, E41 and E61. OPERATION BY LIGHTING SWITCH With the lighting switch in the 1ST position, 2ND position or AUTO position (when the auto

Page 2210 of 3171

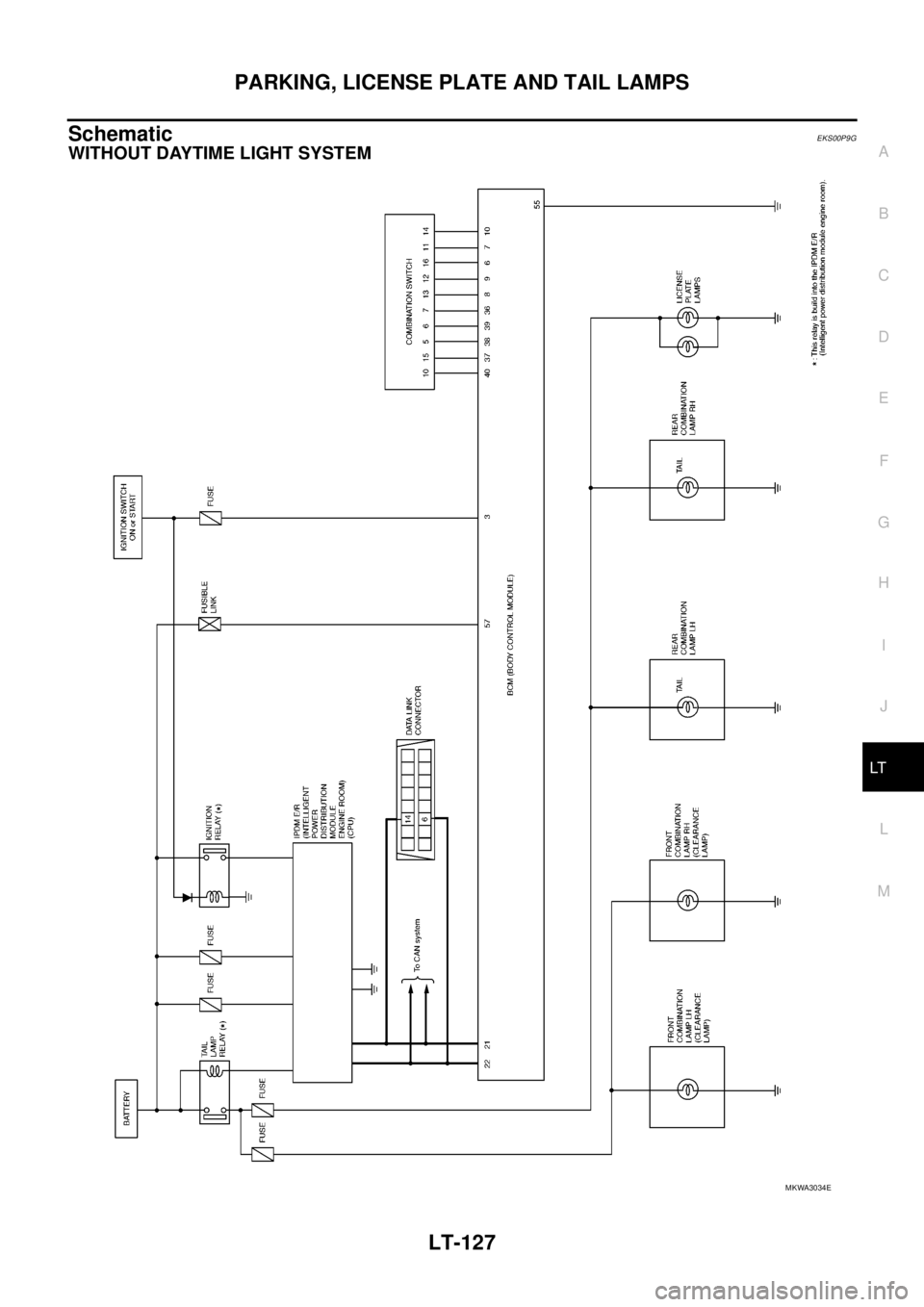

NISSAN NAVARA 2005 Repair Workshop Manual PARKING, LICENSE PLATE AND TAIL LAMPS LT-127 C D E F G H I J L MA B LT SchematicEKS00P9G WITHOUT DAYTIME LIGHT SYSTEM MKWA3034E

Page 2211 of 3171

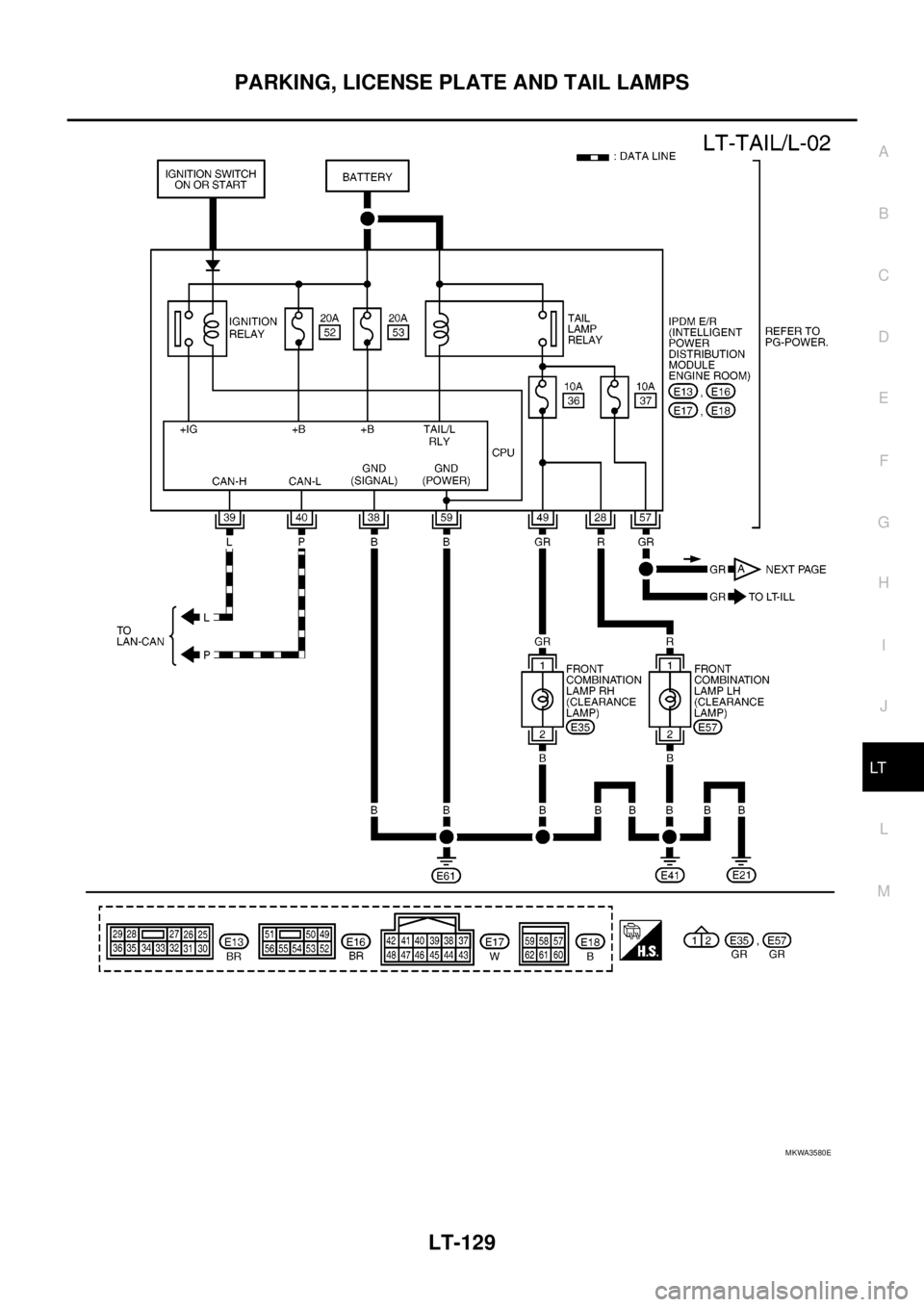

NISSAN NAVARA 2005 Repair Workshop Manual LT-128 PARKING, LICENSE PLATE AND TAIL LAMPS Wiring Diagram — TAIL/L — EKS00P9H WITHOUT DAYTIME LIGHT SYSTEM MKWA3579E

Page 2212 of 3171

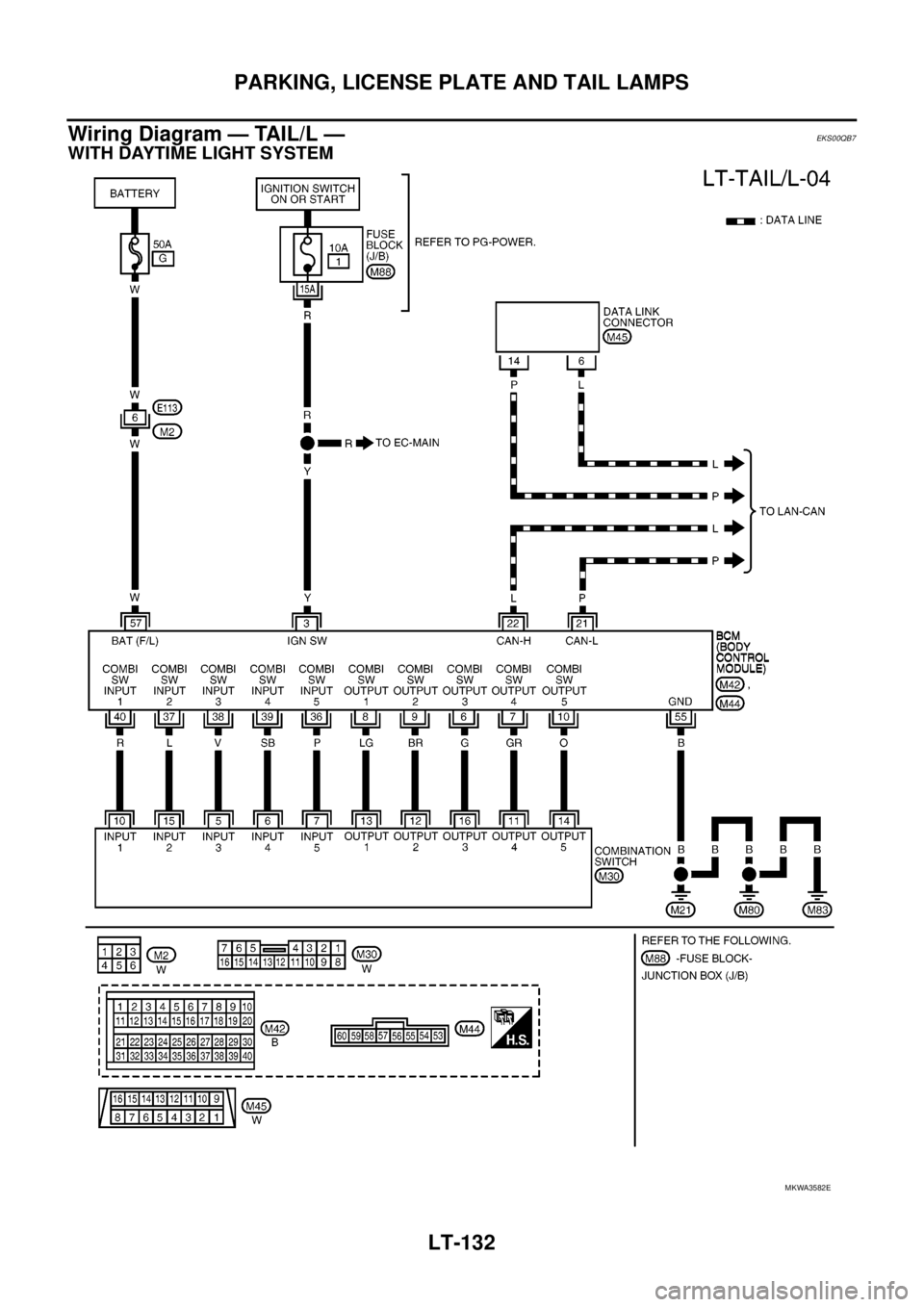

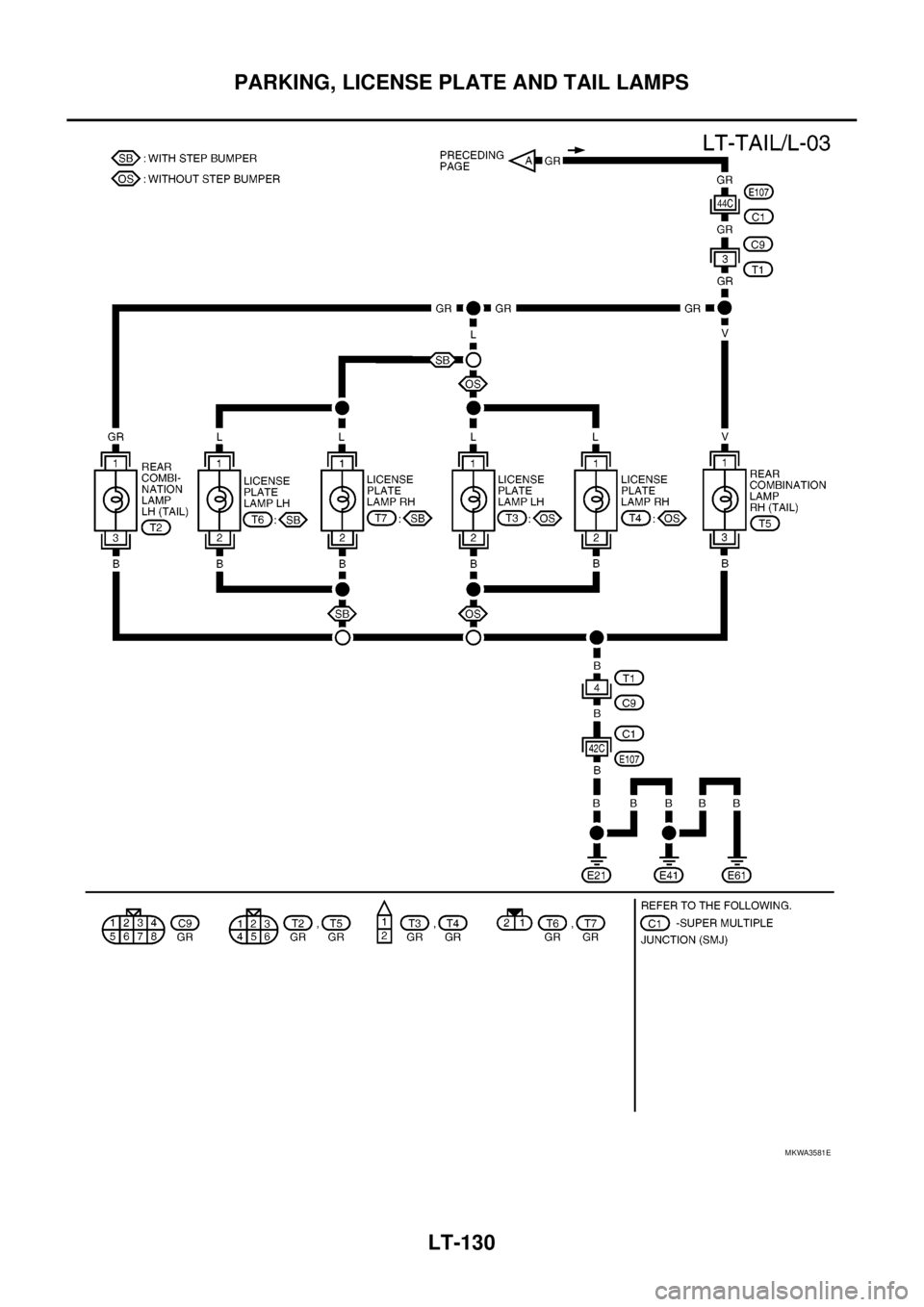

NISSAN NAVARA 2005 Repair Workshop Manual PARKING, LICENSE PLATE AND TAIL LAMPS LT-129 C D E F G H I J L MA B LT MKWA3580E

Page 2213 of 3171

NISSAN NAVARA 2005 Repair Workshop Manual LT-130 PARKING, LICENSE PLATE AND TAIL LAMPS MKWA3581E

Page 2214 of 3171

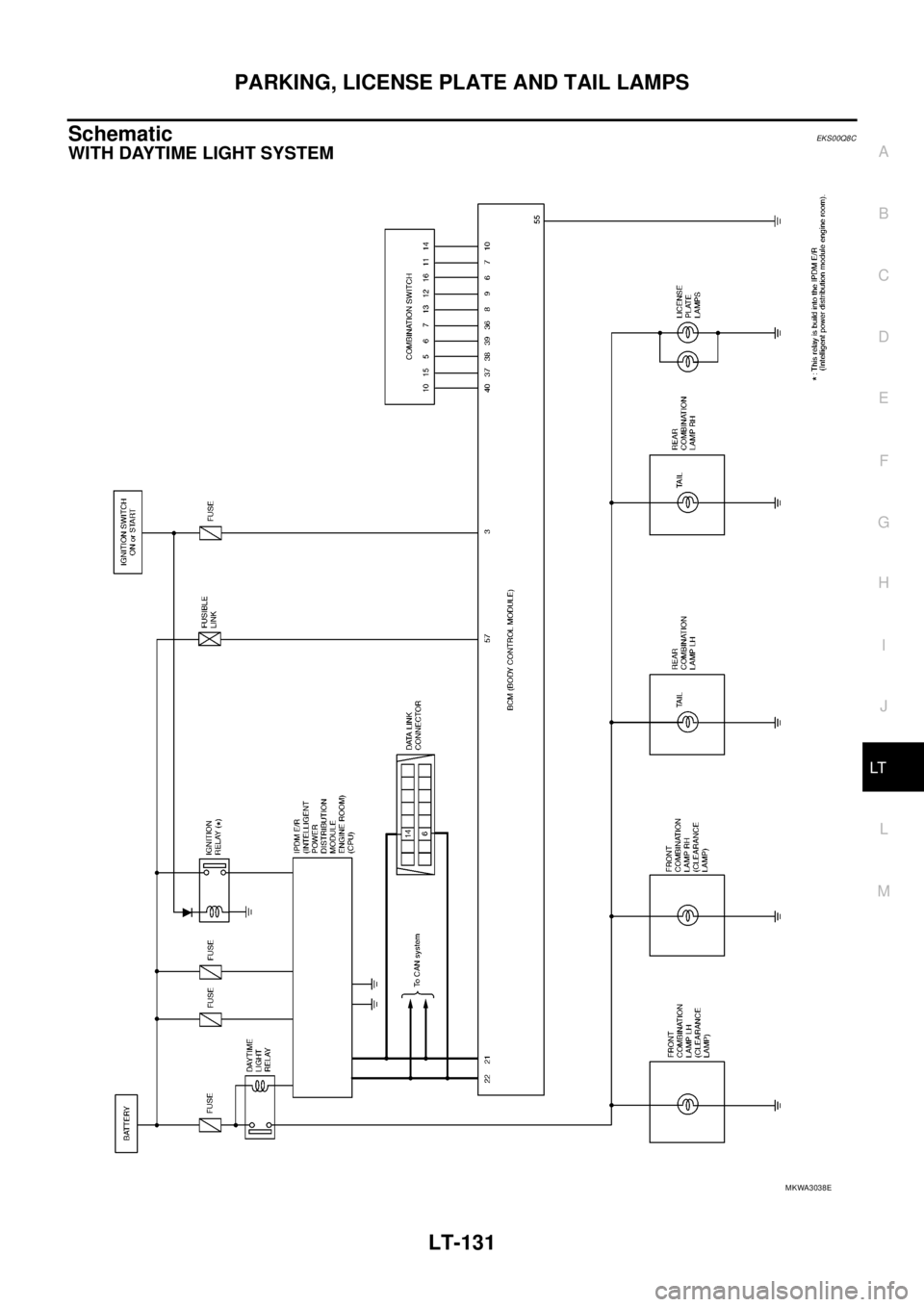

NISSAN NAVARA 2005 Repair Workshop Manual PARKING, LICENSE PLATE AND TAIL LAMPS LT-131 C D E F G H I J L MA B LT SchematicEKS00Q8C WITH DAYTIME LIGHT SYSTEM MKWA3038E

Page 2215 of 3171

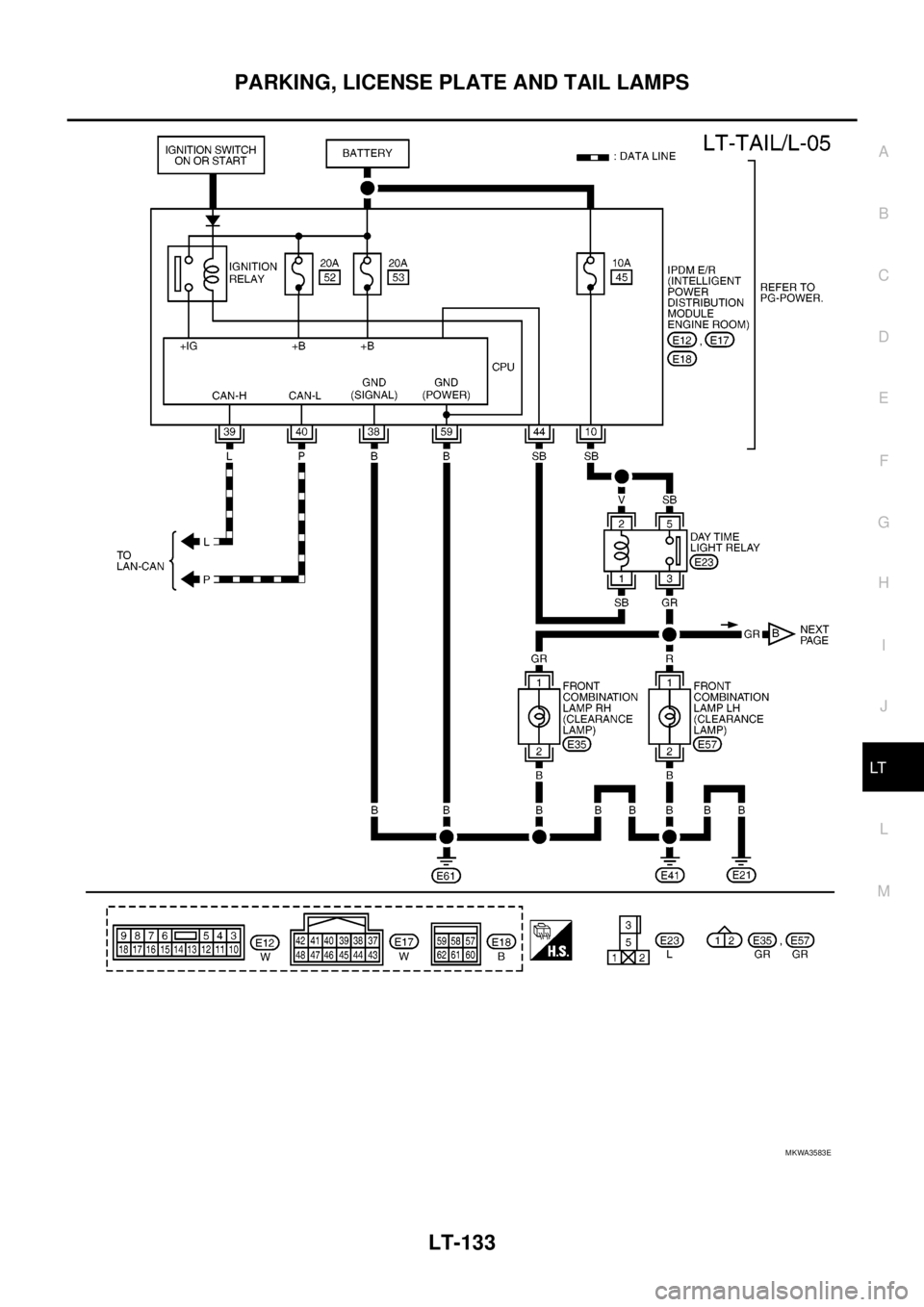

NISSAN NAVARA 2005 Repair Workshop Manual LT-132 PARKING, LICENSE PLATE AND TAIL LAMPS Wiring Diagram — TAIL/L — EKS00QB7 WITH DAYTIME LIGHT SYSTEM MKWA3582E

Page 2216 of 3171

NISSAN NAVARA 2005 Repair Workshop Manual PARKING, LICENSE PLATE AND TAIL LAMPS LT-133 C D E F G H I J L MA B LT MKWA3583E
