Page 1873 of 3171
LAN-96
[CAN]
CAN SYSTEM (TYPE 5)
CAN SYSTEM (TYPE 5)
PFP:23710
Component Parts and Harness Connector LocationEKS00OJV
Refer toLAN-23, "Component Parts and Harness Connector Location".
SchematicEKS00OJW
Refer toLAN-25, "Schematic".
Wiring Diagram — CAN —EKS00OJX
Refer toLAN-26, "Wiring Diagram—CAN—".
Page 1874 of 3171
CAN SYSTEM (TYPE 5)
LAN-97
[CAN]
C
D
E
F
G
H
I
J
L
MA
B
LAN

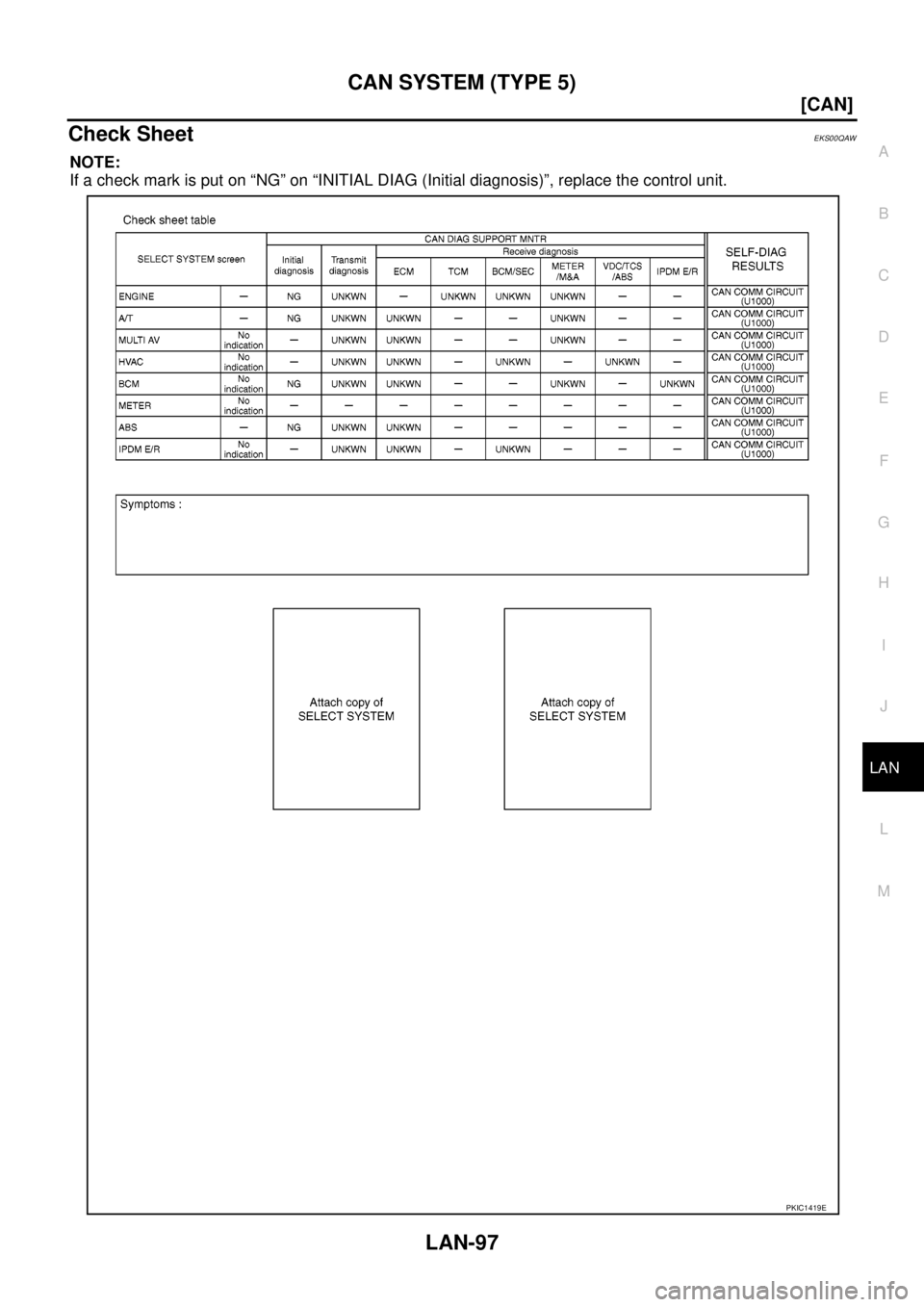

Check SheetEKS00QAW
NOTE:
If a check mark is put on “NG” on “INITIAL DIAG (Initial diagnosis)”, replace the control unit.
PKIC1419E
Page 1875 of 3171
LAN-98
[CAN]
CAN SYSTEM (TYPE 5)

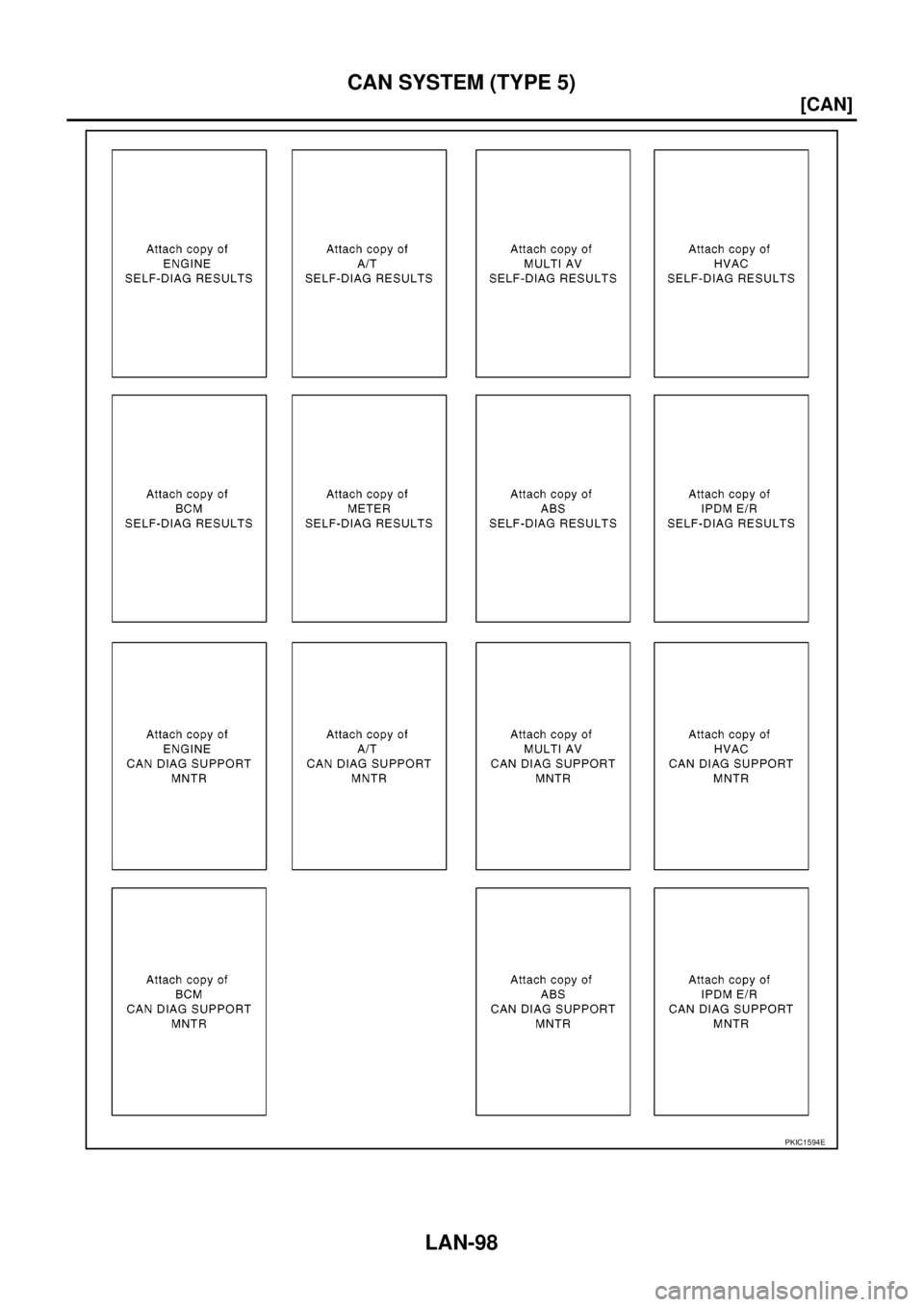

PKIC1594E
Page 1876 of 3171
CAN SYSTEM (TYPE 5)
LAN-99
[CAN]
C
D
E
F
G
H
I
J
L
MA
B
LAN
CHECK SHEET RESULTS (EXAMPLE)
NOTE:
If a check mark is put on “NG” on “INITIAL DIAG (Initial diagnosis)”, replace the control unit.

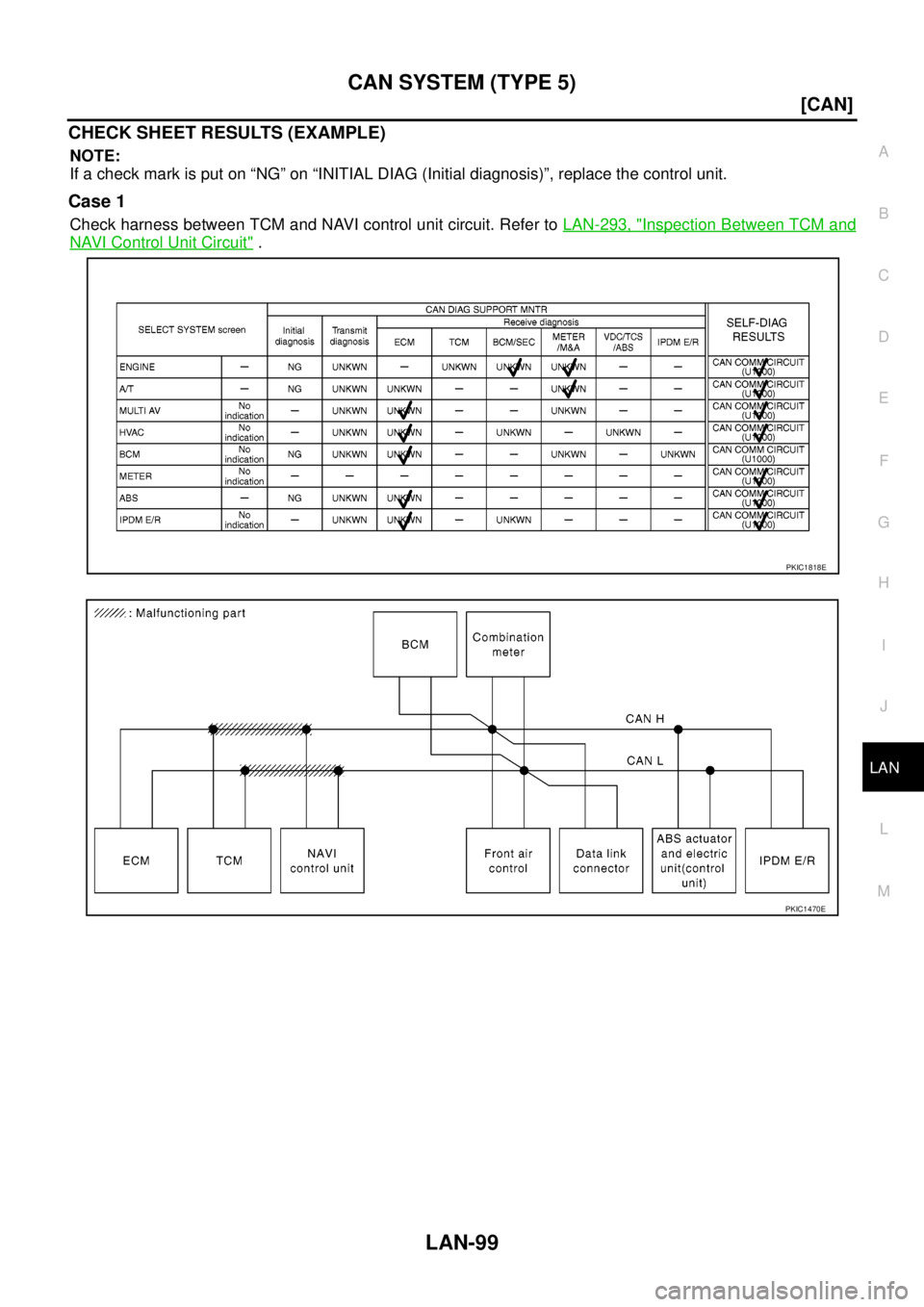

Case 1
Check harness between TCM and NAVI control unit circuit. Refer toLAN-293, "Inspection Between TCM and
NAVI Control Unit Circuit".
PKIC1818E
PKIC1470E
Page 1877 of 3171
LAN-100
[CAN]
CAN SYSTEM (TYPE 5)

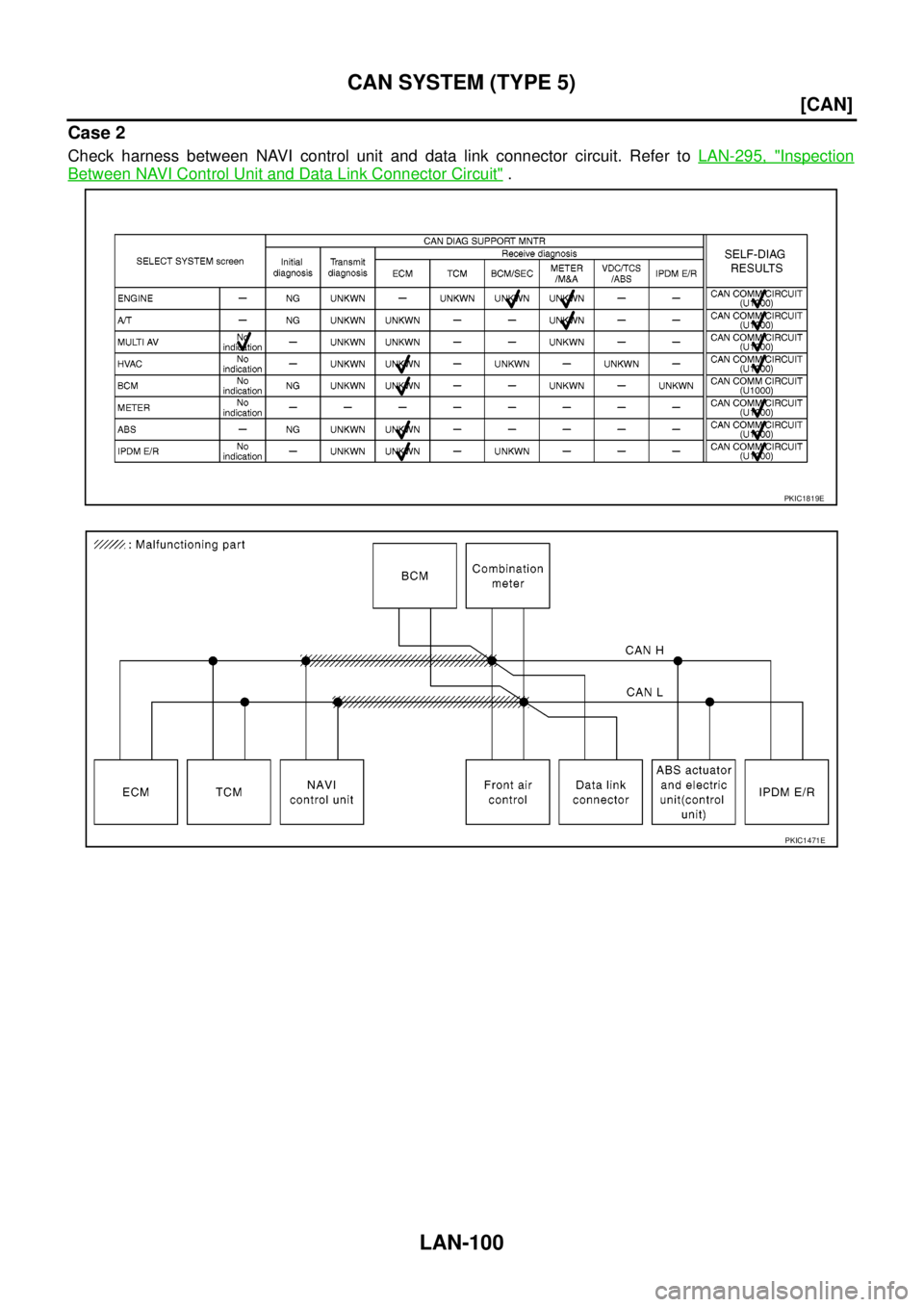

Case 2
Check harness between NAVI control unit and data link connector circuit. Refer toLAN-295, "Inspection
Between NAVI Control Unit and Data Link Connector Circuit".
PKIC1819E
PKIC1471E
Page 1878 of 3171
CAN SYSTEM (TYPE 5)
LAN-101
[CAN]
C
D
E
F
G
H
I
J
L
MA
B
LAN

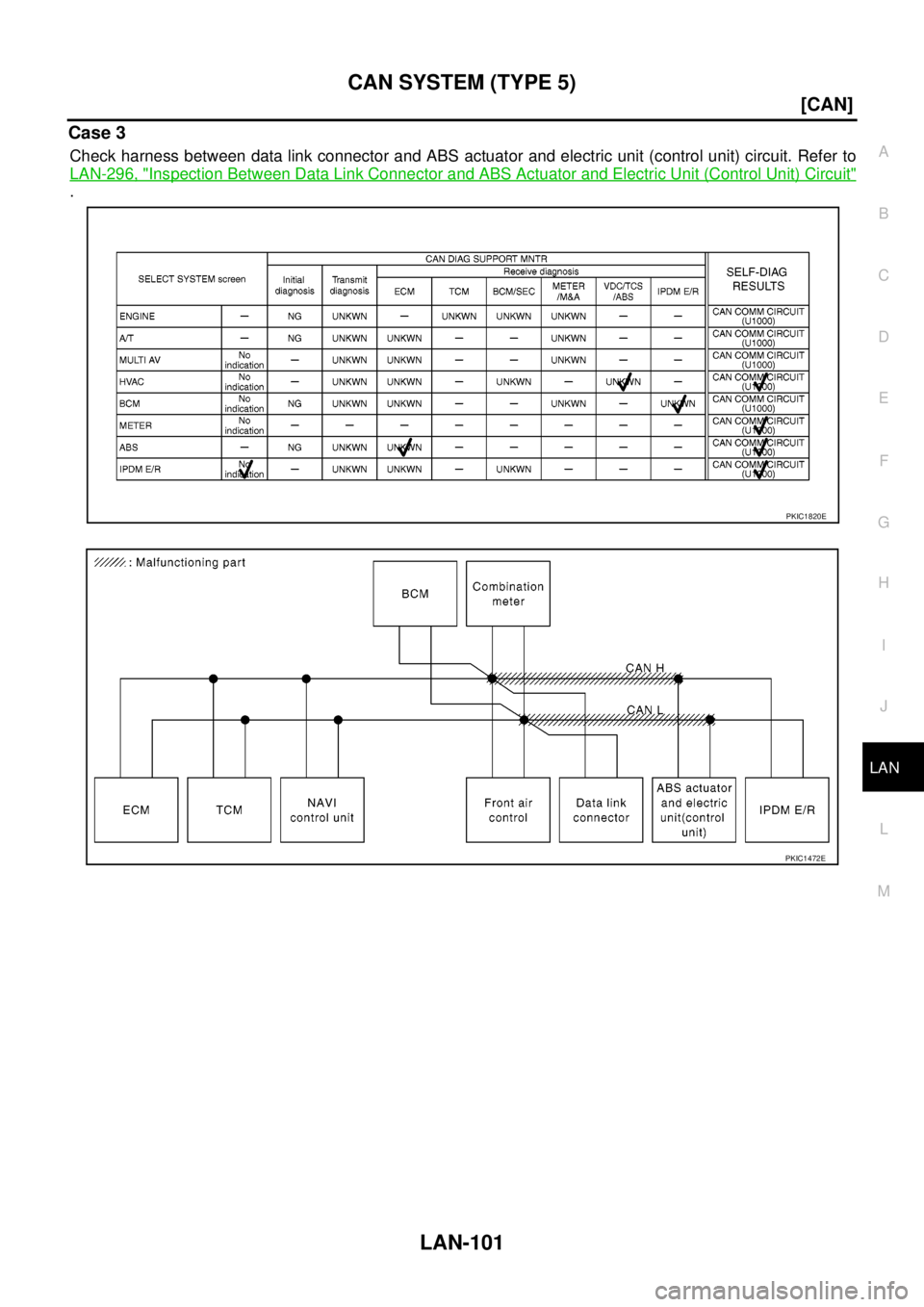

Case 3
Check harness between data link connector and ABS actuator and electric unit (control unit) circuit. Refer to
LAN-296, "
Inspection Between Data Link Connector and ABS Actuator and Electric Unit (Control Unit) Circuit"
.
PKIC1820E
PKIC1472E
Page 1879 of 3171
LAN-102
[CAN]
CAN SYSTEM (TYPE 5)

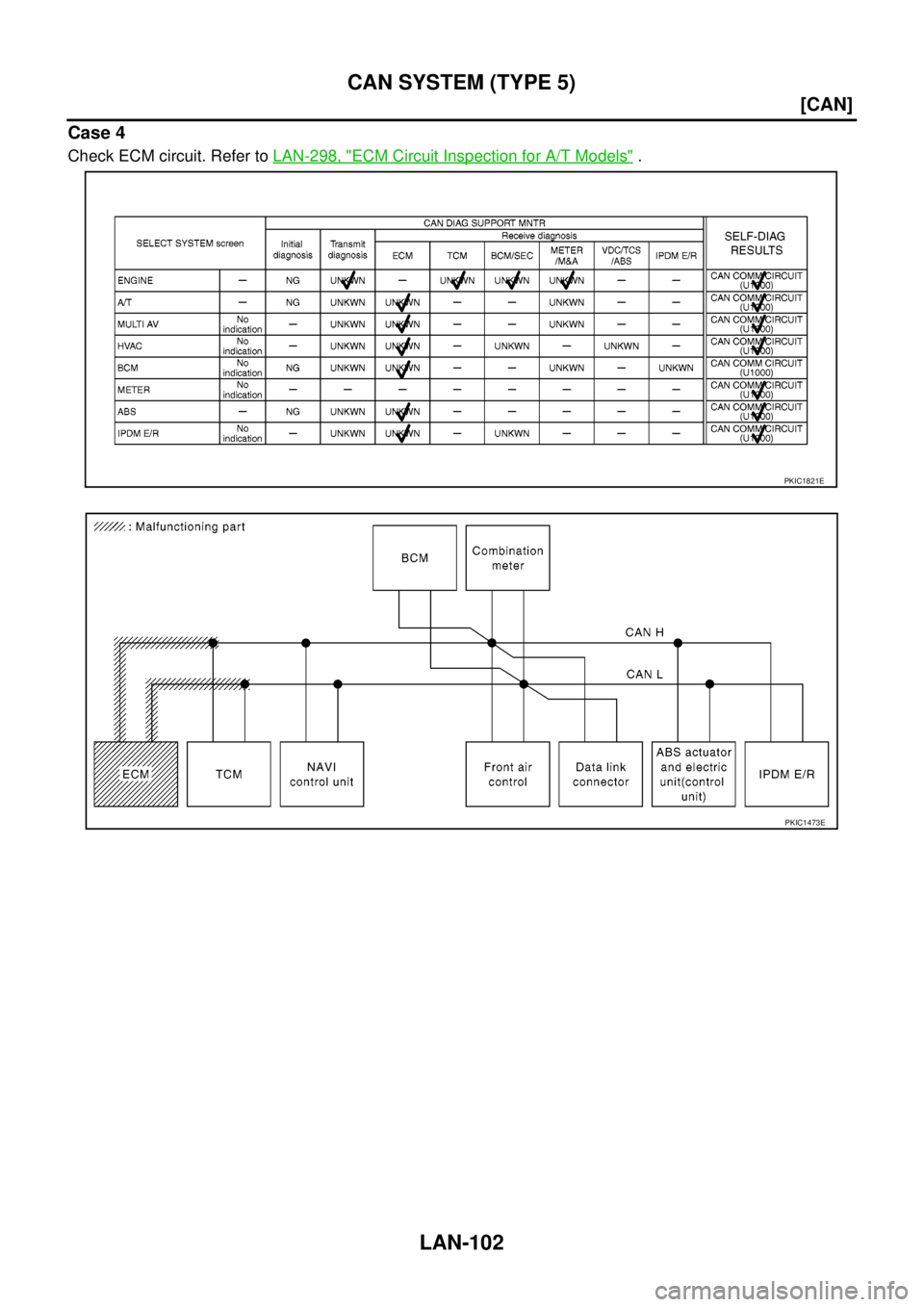

Case 4
Check ECM circuit. Refer toLAN-298, "ECM Circuit Inspection for A/T Models".
PKIC1821E
PKIC1473E
Page 1880 of 3171
CAN SYSTEM (TYPE 5)
LAN-103
[CAN]
C
D
E
F
G
H
I
J
L
MA
B
LAN

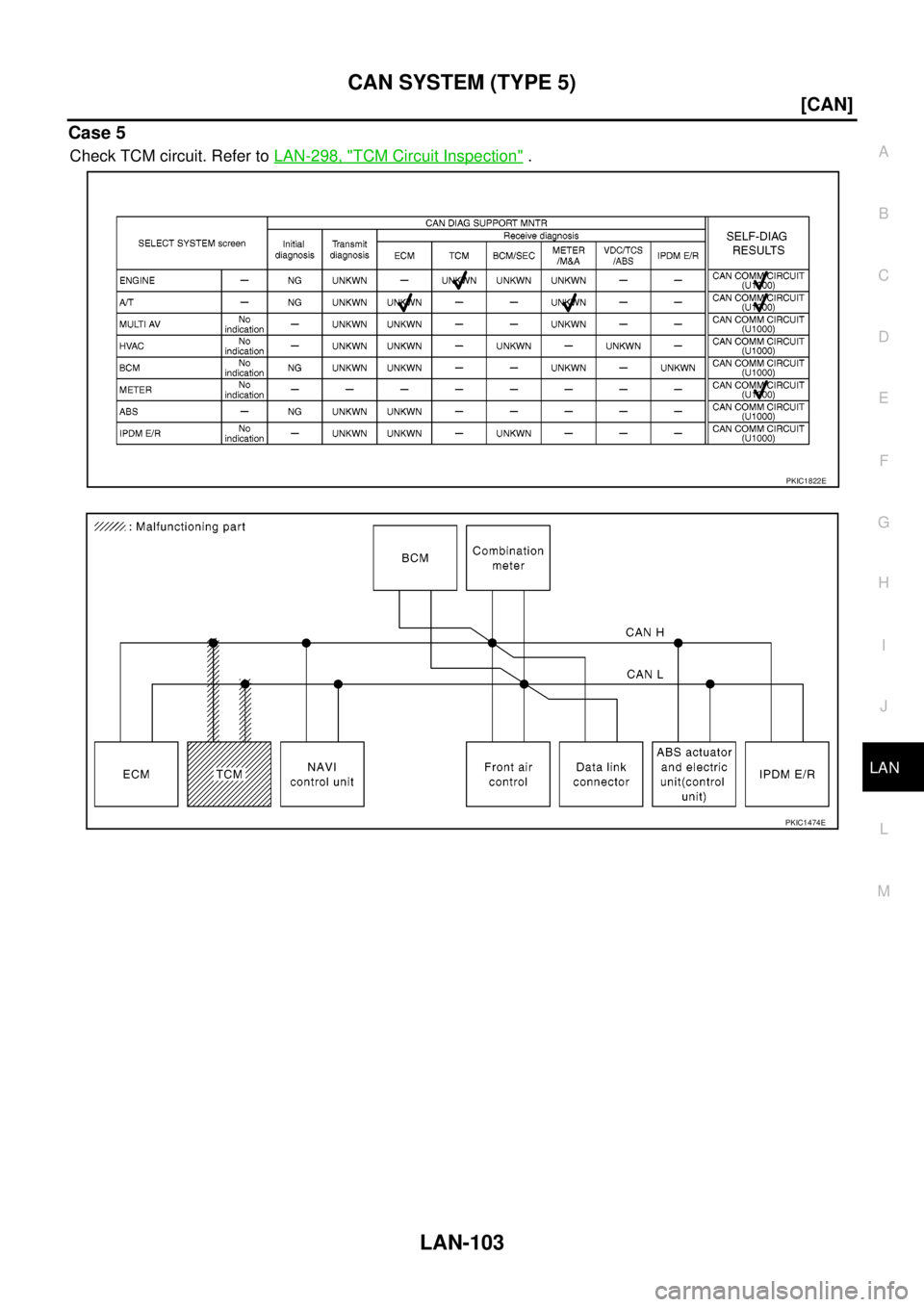

Case 5
Check TCM circuit. Refer toLAN-298, "TCM Circuit Inspection".
PKIC1822E
PKIC1474E
