NISSAN NAVARA 2005 Repair Workshop Manual LOAD SENSING VALVE BR-15 C D E G H I J K L MA B BR LOAD SENSING VALVEPFP:46400 Removal and InstallationEFS006A7 CAUTION: lAlways use a flare nut wrench to remove brake tube. Be careful not to damage f

Page 802 of 3171

NISSAN NAVARA 2005 Repair Workshop Manual BR-16 LOAD SENSING VALVE Inspection EFS006A8 INSPECTION 1. With the vehicle in unladen condition, a person should sit in drivers seat at the rear. Then he/she should get out of car gently. (This is t

Page 803 of 3171

NISSAN NAVARA 2005 Repair Workshop Manual BRAKE MASTER CYLINDER BR-17 C D E G H I J K L MA B BR BRAKE MASTER CYLINDERPFP:46010 On-Board InspectionEFS005SP LEAK INSPECTION lCheck for fluid leakage from master cylinder attachment portion such a

Page 804 of 3171

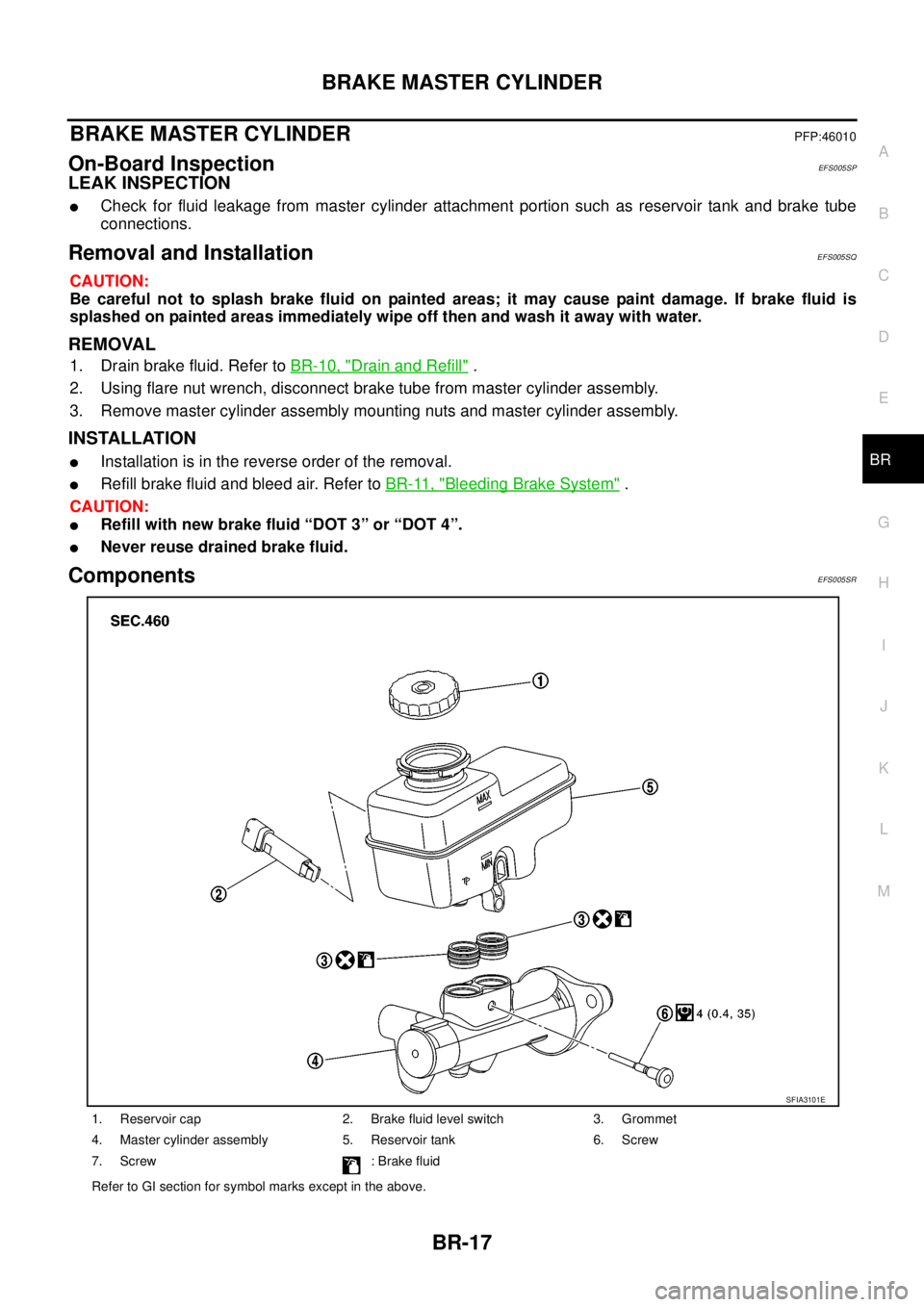

NISSAN NAVARA 2005 Repair Workshop Manual BR-18 BRAKE MASTER CYLINDER Disassembly and Assembly EFS005SS DISASSEMBLY CAUTION: lMaster cylinder assembly cannot be disassembled. lRemove reservoir tank only when absolutely necessary. Pull reservo

Page 805 of 3171

NISSAN NAVARA 2005 Repair Workshop Manual BRAKE BOOSTER BR-19 C D E G H I J K L MA B BR BRAKE BOOSTERPFP:47200 On-Vehicle ServiceEFS005ST OPERATING CHECK With engine stopped, change vacuum to atmospheric pressure by depressing brake pedal sev

Page 806 of 3171

NISSAN NAVARA 2005 Repair Workshop Manual BR-20 BRAKE BOOSTER Removal and Installation EFS005SU COMPONENTS REMOVAL CAUTION: lBe careful not to deform or bend brake tube while removing and installing the brake booster. lReplace clevis pin if i

Page 807 of 3171

NISSAN NAVARA 2005 Repair Workshop Manual BRAKE BOOSTER BR-21 C D E G H I J K L MA B BR INSTALLATION 1. Loosen the lock nut to adjust the input rod length so that the length B (in the figure) satisfies the specified value. 2. After adjusting

Page 808 of 3171

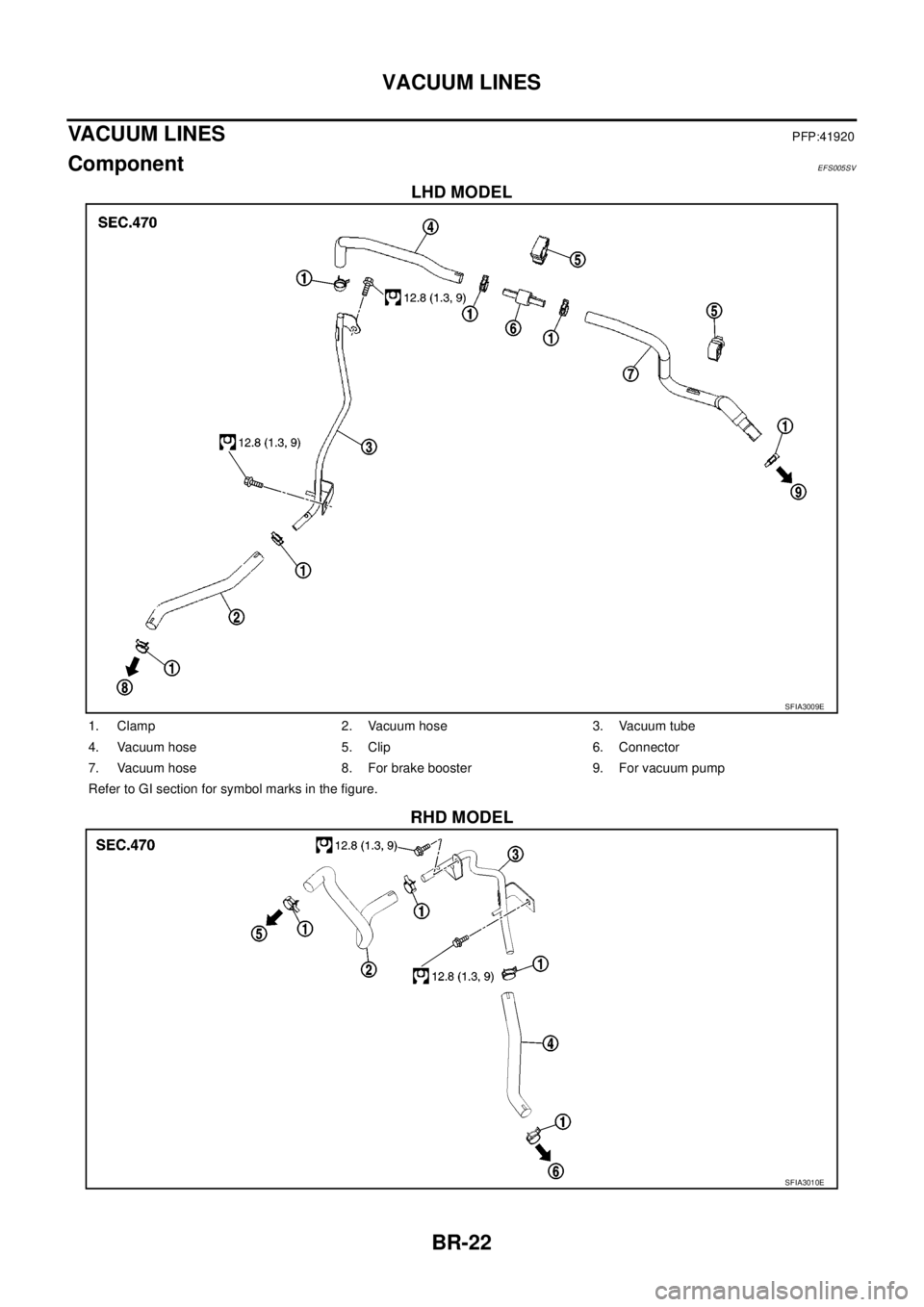

NISSAN NAVARA 2005 Repair Workshop Manual BR-22 VACUUM LINES VACUUM LINES PFP:41920 ComponentEFS005SV LHD MODEL RHD MODEL SFIA3009E 1. Clamp 2. Vacuum hose 3. Vacuum tube 4. Vacuum hose 5. Clip 6. Connector 7. Vacuum hose 8. For brake booster
