NISSAN NAVARA 2005 Repair Workshop Manual DTC P0615 START SIGNAL CIRCUIT
AT-97
D
E
F
G
H
I
J
K
L
MA
B
AT
3.CHECK TERMINAL CORD ASSEMBLY
1. Remove control valve with TCM. Refer toAT- 2 1 8 , "
Control Valve With TCM and A/T Fluid Temperature
S

Page 106 of 3171

NISSAN NAVARA 2005 Repair Workshop Manual AT-98
DTC P0700 TCM
DTC P0700 TCM
PFP:31036
DescriptionECS00FXP
TCM consists of a microcomputer and connectors for signal input and output and for power supply. TCM con-
trols A/T.
On Board Diagnosis

Page 107 of 3171

NISSAN NAVARA 2005 Repair Workshop Manual DTC P0705 PARK/NEUTRAL POSITION SWITCH
AT-99
D
E
F
G
H
I
J
K
L
MA
B
AT
DTC P0705 PARK/NEUTRAL POSITION SWITCHPFP:32006
DescriptionECS00FXU
lPNP switch includes a transmission range switch.
lThe transm

DTC P0705 PARK/NEUTRAL POSITION SWITCH
AT-99
D
E
F
G
H
I
J
K
L
MA
B
AT
DTC P0705 PARK/NEUTRAL POSITION SWITCHPFP:32006
DescriptionECS00FXU
lPNP switch includes a transmission range switch.
lThe transmission range switch detects the selector lever position and sends a signal to TCM.
CONSULT-II Reference ValueECS00FXV
On Board Diagnosis LogicECS00FXW
Diagnostic trouble code “P0705 PNP SW/CIRC” with CONSULT-II or 9th judgement flicker without CONSULT-
II is detected under the following conditions.
lWhen TCM does not receive the correct voltage signal from PNP switches 1, 2, 3 and 4 based on the gear
position.
lWhen no other positions but “P” position is detected from “N” position.
Possible CauseECS00FXX
lHarness or connectors
PNP switches 1, 2, 3 and 4 and TCM circuit is open or shorted.
lPNPswitches1,2,3and4
DTC Confirmation ProcedureECS00FXY
CAUTION:
Always drive vehicle at a safe speed.
NOTE:
If “DTC Confirmation Procedure” has been previously performed, always turn ignition switch OFF and
wait at least 10 seconds before performing the next test.
After the repair, perform the following procedure to confirm the malfunction is eliminated.
WITH CONSULT-II
1. Turn ignition switch ON. (Do not start engine.)
2. Select “ECU INPUT SIGNALS” or “MAIN SIGNALS” in “DATA
MONITOR” mode for “A/T” with CONSULT-II.
3. Touch “START”.
4. Start engine.
5. Drive vehicle and maintain the following conditions for at least 2
consecutive seconds.
ACCELE POSI: More than 1.0/8
6. If DTC is detected, go toAT- 1 0 1 , "
Diagnostic Procedure".
WITHOUT CONSULT-II
1. Start engine.
2. Drive vehicle and maintain the following conditions for at least 2 consecutive seconds.
Accelerator opening: More than 1.0/8
3. Perform self-diagnosis. Refer toAT-89, "
Diagnostic Procedure Without CONSULT-II".
4. If DTC is detected, go toAT- 1 0 1 , "
Diagnostic Procedure".
Item name Condition Display value
SLCTLVR POSISelector lever in “N” or “P” position. N/P
Selector lever in “R” position. R
Selector lever in “D” position. D
Selector lever in “3” position. 3
Selector lever in “2” position. 2
Selector lever in “1” position. 1
BCIA0031E

Page 108 of 3171

NISSAN NAVARA 2005 Repair Workshop Manual AT-100
DTC P0705 PARK/NEUTRAL POSITION SWITCH

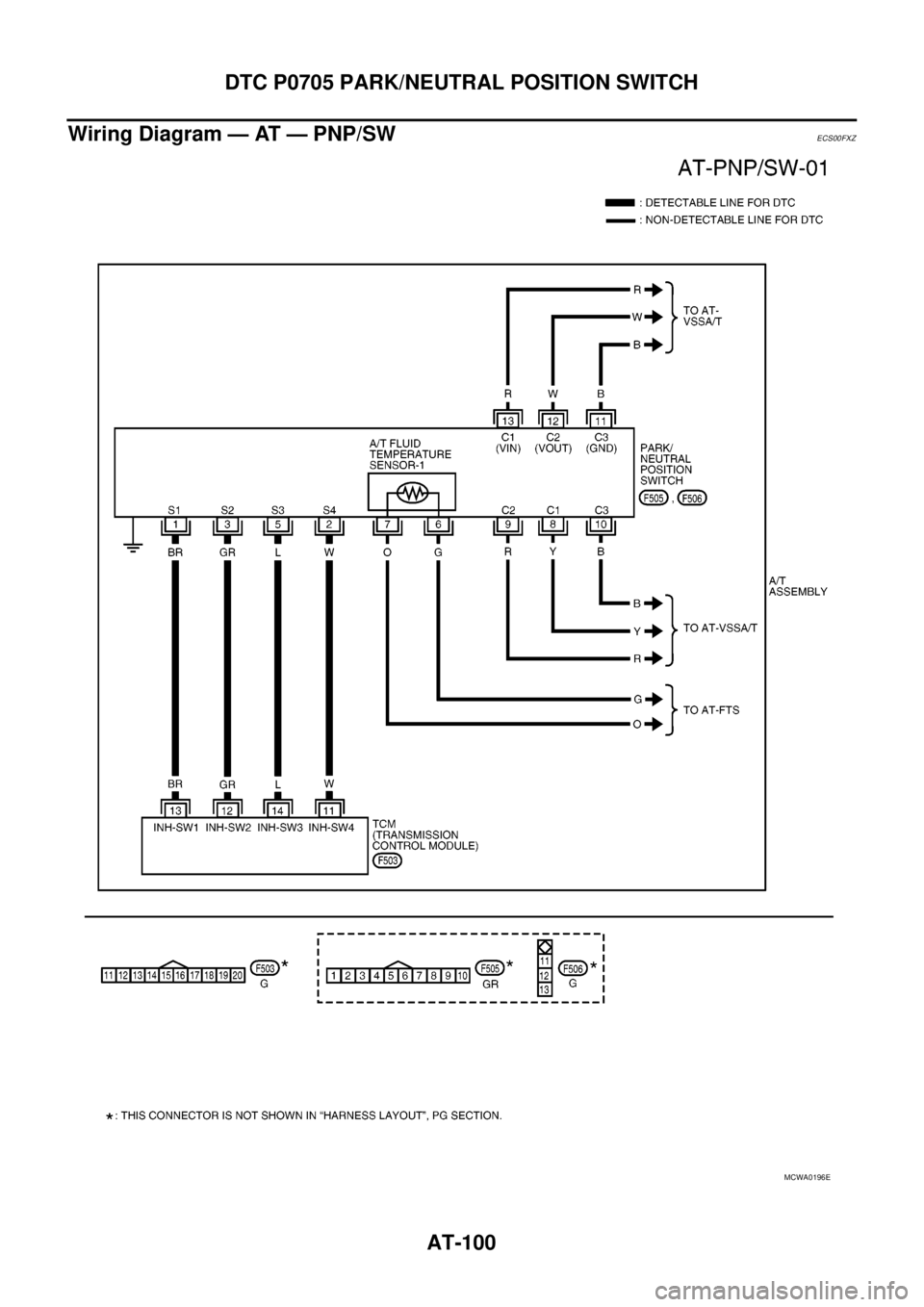

Wiring Diagram — AT — PNP/SW
ECS00FXZ
MCWA0196E

Page 109 of 3171

NISSAN NAVARA 2005 Repair Workshop Manual DTC P0705 PARK/NEUTRAL POSITION SWITCH
AT-101
D
E
F
G
H
I
J
K
L
MA
B
AT
Diagnostic ProcedureECS00FY0
1.CHECK PNP SW CIRCUIT
With CONSULT-II
1. Turn ignition switch ON. (Do not start engine.)
2. Select

Page 110 of 3171

NISSAN NAVARA 2005 Repair Workshop Manual AT-102
DTC P0705 PARK/NEUTRAL POSITION SWITCH
4.CHECK SUB-HARNESS
1. Remove control valve with TCM. Refer toAT- 2 1 8 , "
Control Valve With TCM and A/T Fluid Temperature
Sensor 2".
2. Disconnect park

Page 111 of 3171

NISSAN NAVARA 2005 Repair Workshop Manual DTC P0720 VEHICLE SPEED SENSOR A/T (REVOLUTION SENSOR)
AT-103
D
E
F
G
H
I
J
K
L
MA
B
AT
DTC P0720 VEHICLE SPEED SENSOR A/T (REVOLUTION SENSOR)PFP:32702
DescriptionECS00FY1
Revolution sensor detects th

DTC P0720 VEHICLE SPEED SENSOR A/T (REVOLUTION SENSOR)
AT-103
D
E
F
G
H
I
J
K
L
MA
B
AT
DTC P0720 VEHICLE SPEED SENSOR A/T (REVOLUTION SENSOR)PFP:32702
DescriptionECS00FY1
Revolution sensor detects the revolution of the idler gear parking pawl lock gear and emits a pulse signal. The
pulse signal is sent to TCM which converts it into vehicle speed.
CONSULT-II Reference ValueECS00FY2
On Board Diagnosis LogicECS00FY3
Diagnostic trouble code “P0720 VEH SPD SEN/CIR AT” with CONSULT-II or 1st judgement flicker without
CONSULT-II is detected under the following conditions.
lWhen TCM does not receive the proper voltage signal from the sensor.
lAfter ignition switch is turned ON, irregular signal input from vehicle speed sensor MTR before the vehicle
starts moving.
Possible CauseECS00FY4
lHarness or connectors
(The sensor circuit is open or shorted.)
lRevolution sensor
lVehicle speed sensor MTR
DTC Confirmation ProcedureECS00FY5
CAUTION:
lAlways drive vehicle at a safe speed.
lBe careful not to rev engine into the red zone on the tachometer.
NOTE:
If “DTC Confirmation Procedure” has been previously performed, always turn ignition switch OFF and
wait at least 10 seconds before performing the next test.
After the repair, perform the following procedure to confirm the malfunction is eliminated.
WITH CONSULT-II
1. Turn ignition switch ON. (Do not start engine.)
2. Select “ECU INPUT SIGNALS” in “DATA MONITOR” mode for
“A/T” with CONSULT-II.
3. Touch “START”.
4. Start engine.
5. Drive vehicle and check for an increase of “VHCL/S SE-A/T”
value in response to “VHCL/S SE-MTR” value.
If the check result is NG, go toAT- 1 0 6 , "
Diagnostic Procedure".
If the check result is OK, go to following step.
6. Select “DATA MONITOR” mode for “A/T” with CONSULT-II.
7. Drive vehicle and maintain the following conditions for at least 5
consecutive seconds.
VHCL/S SE-A/T: 30 km/h (19 MPH) or more
ACCELE POSI: More than 1.0/8
SLCT LVR POSI: “D” position
Driving location: Driving the vehicle uphill (increased engine load) will help maintain the driving
conditions required for this test.
If the check result is NG, go toAT- 1 0 6 , "
Diagnostic Procedure".
If the check result is OK, go to following step.
8. Maintain the following conditions for at least 5 consecutive seconds.
ENGINE SPEED: 3,500 rpm or more
ACCELE POSI: More than 1.0/8
SLCT LVR POSI: “D” position
Item name Condition Display value
VHCL/S SE-A/T During driving Approximately matches the speedometer reading.
BCIA0031E

Page 112 of 3171

NISSAN NAVARA 2005 Repair Workshop Manual AT-104
DTC P0720 VEHICLE SPEED SENSOR A/T (REVOLUTION SENSOR)
Driving location: Driving the vehicle uphill (increased engine load) will help maintain the driving
conditions required for this test.
If

Load next 8 pages
