Page 1945 of 3171
LAN-168
[CAN]

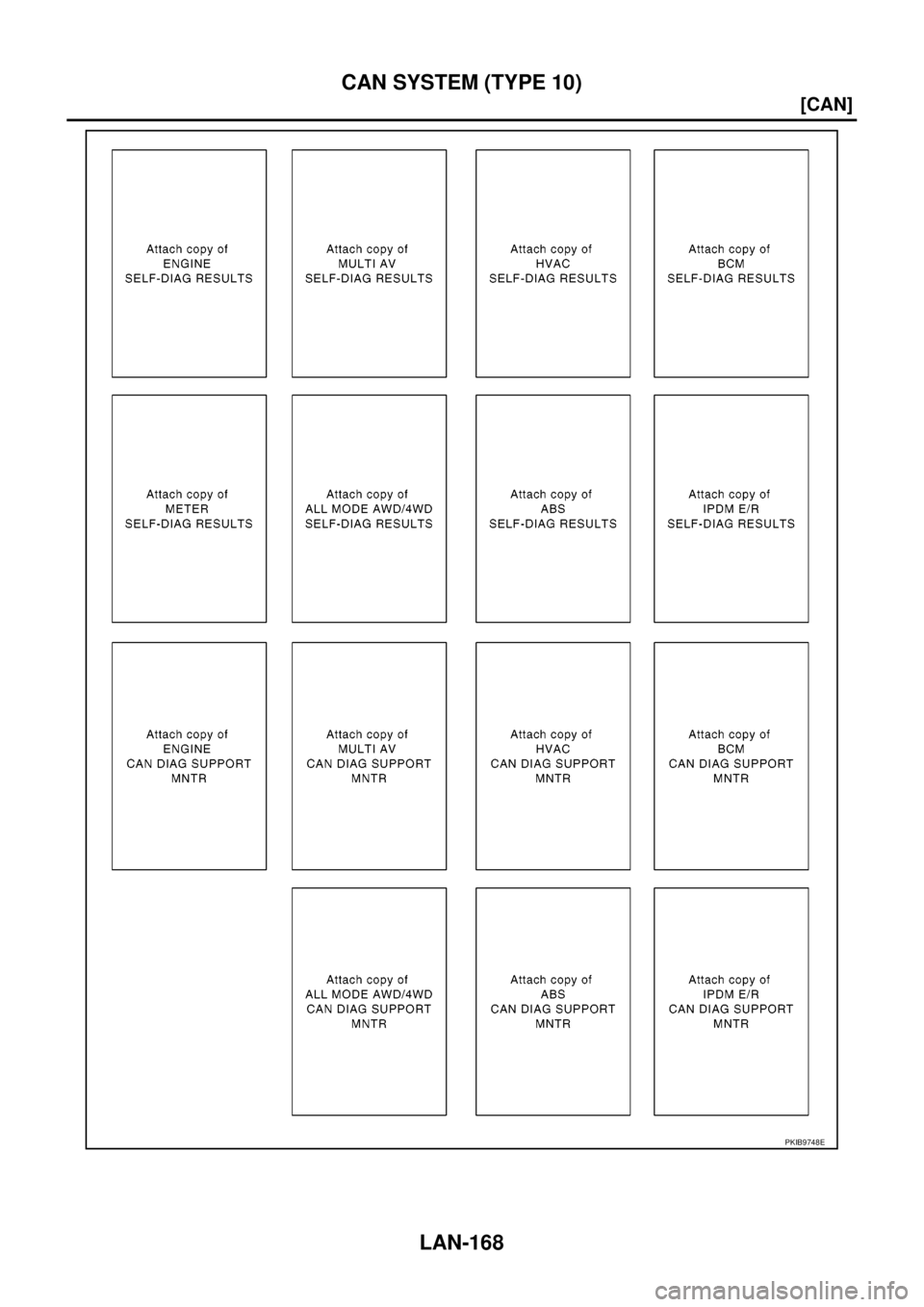

CAN SYSTEM (TYPE 10)
PKIB9748E
Page 1946 of 3171
CAN SYSTEM (TYPE 10)
LAN-169
[CAN]
C
D
E
F
G
H
I
J
L
MA
B
LAN
CHECK SHEET RESULTS (EXAMPLE)
NOTE:
If a check mark is put on “NG” on “INITIAL DIAG (Initial diagnosis)”, replace the control unit.

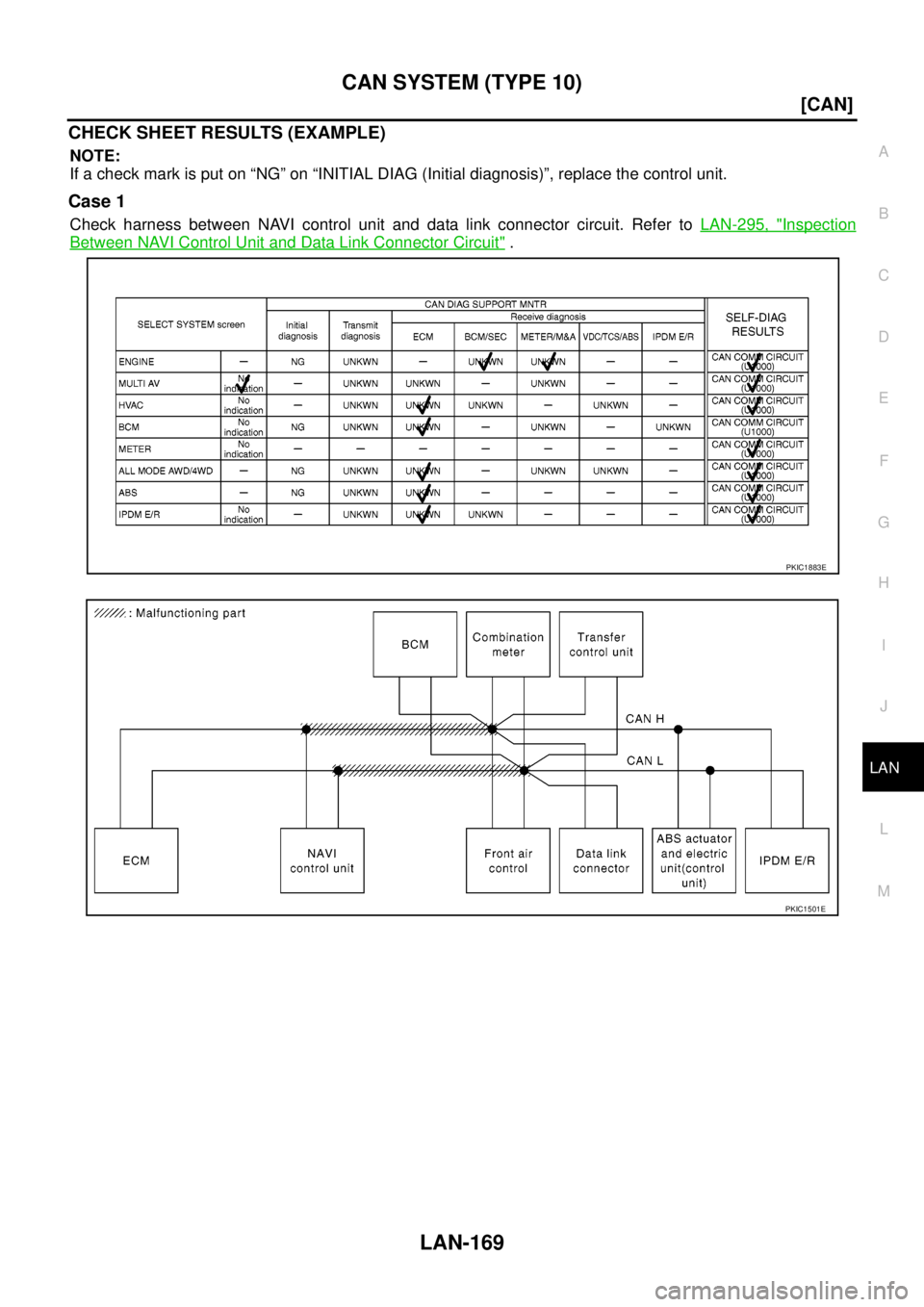

Case 1
Check harness between NAVI control unit and data link connector circuit. Refer toLAN-295, "Inspection
Between NAVI Control Unit and Data Link Connector Circuit".
PKIC1883E
PKIC1501E
Page 1947 of 3171
LAN-170
[CAN]
CAN SYSTEM (TYPE 10)

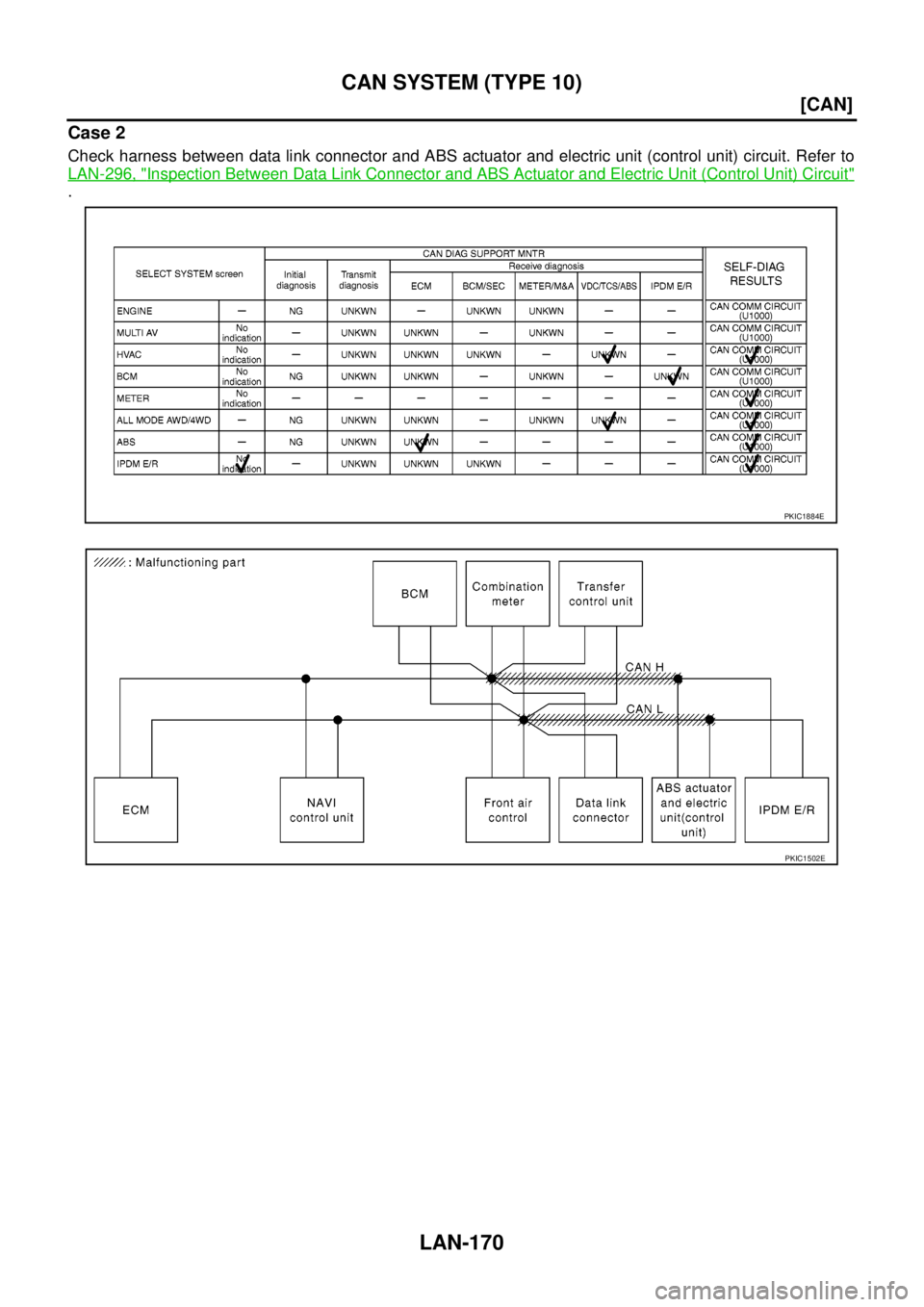

Case 2
Check harness between data link connector and ABS actuator and electric unit (control unit) circuit. Refer to
LAN-296, "
Inspection Between Data Link Connector and ABS Actuator and Electric Unit (Control Unit) Circuit"
.
PKIC1884E
PKIC1502E
Page 1948 of 3171
CAN SYSTEM (TYPE 10)
LAN-171
[CAN]
C
D
E
F
G
H
I
J
L
MA
B
LAN

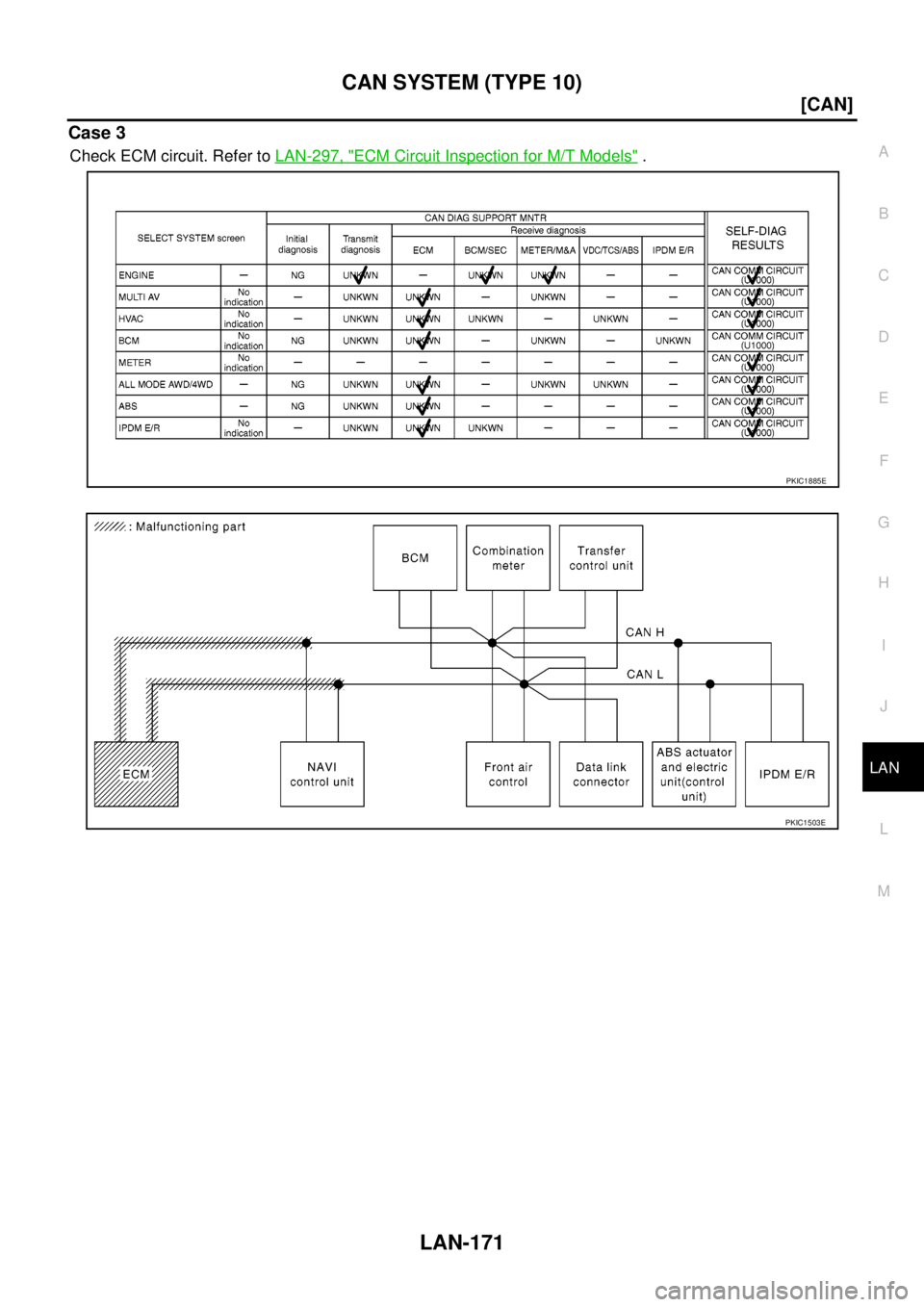

Case 3
Check ECM circuit. Refer toLAN-297, "ECM Circuit Inspection for M/T Models".
PKIC1885E
PKIC1503E
Page 1949 of 3171
LAN-172
[CAN]
CAN SYSTEM (TYPE 10)

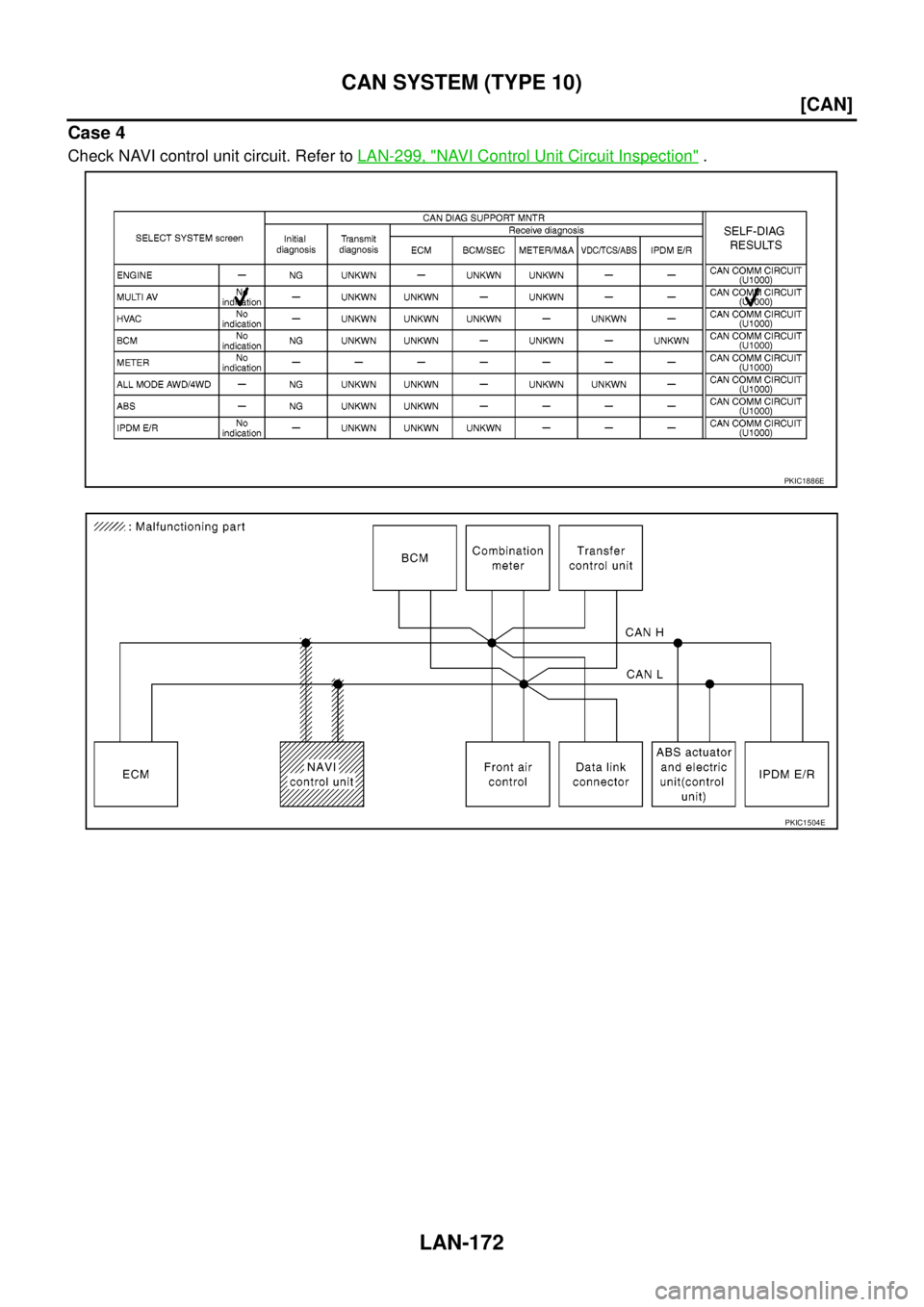

Case 4
Check NAVI control unit circuit. Refer toLAN-299, "NAVI Control Unit Circuit Inspection".
PKIC1886E
PKIC1504E
Page 1950 of 3171
CAN SYSTEM (TYPE 10)
LAN-173
[CAN]
C
D
E
F
G
H
I
J
L
MA
B
LAN

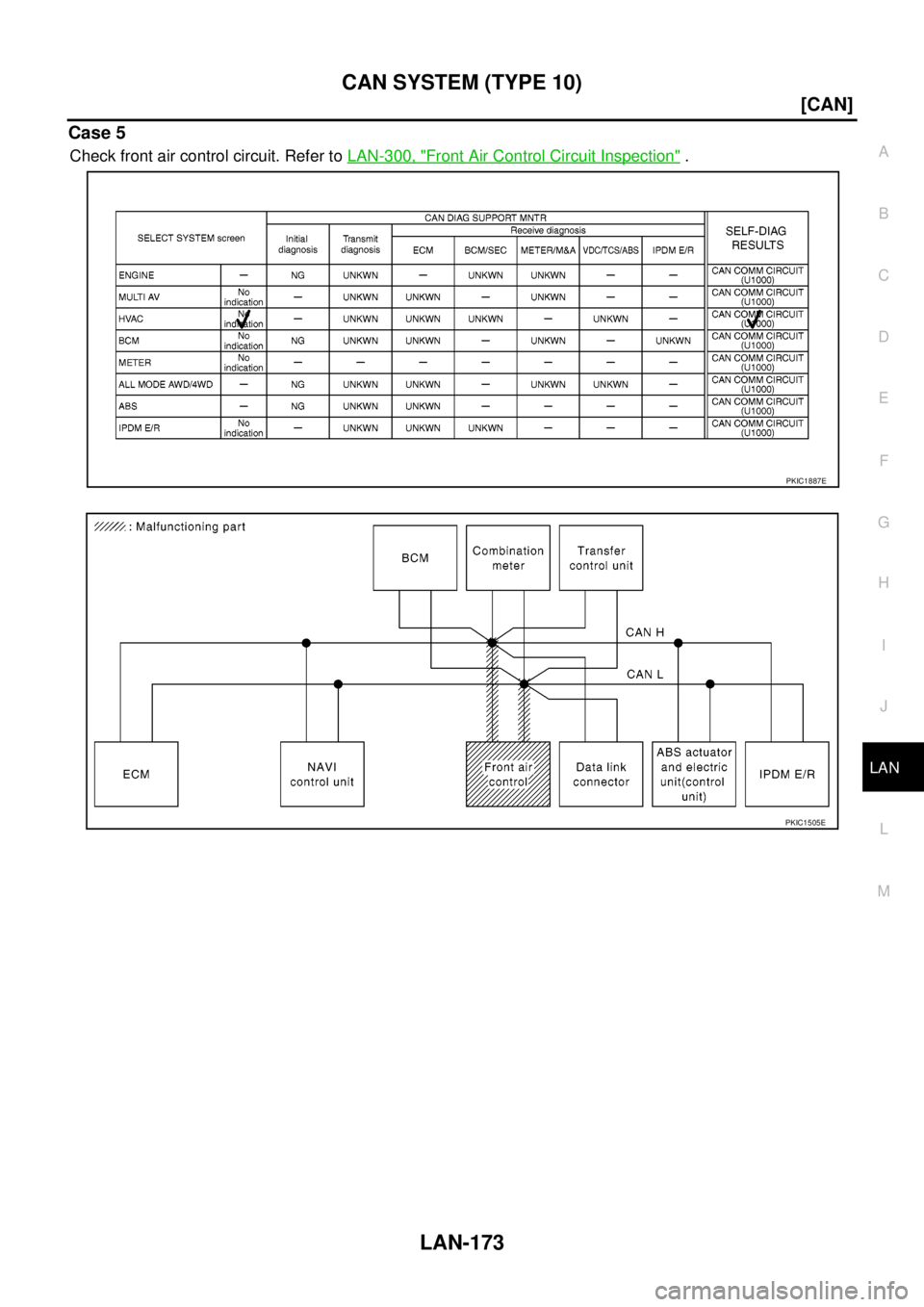

Case 5
Check front air control circuit. Refer toLAN-300, "Front Air Control Circuit Inspection".
PKIC1887E
PKIC1505E
Page 1951 of 3171
LAN-174
[CAN]
CAN SYSTEM (TYPE 10)

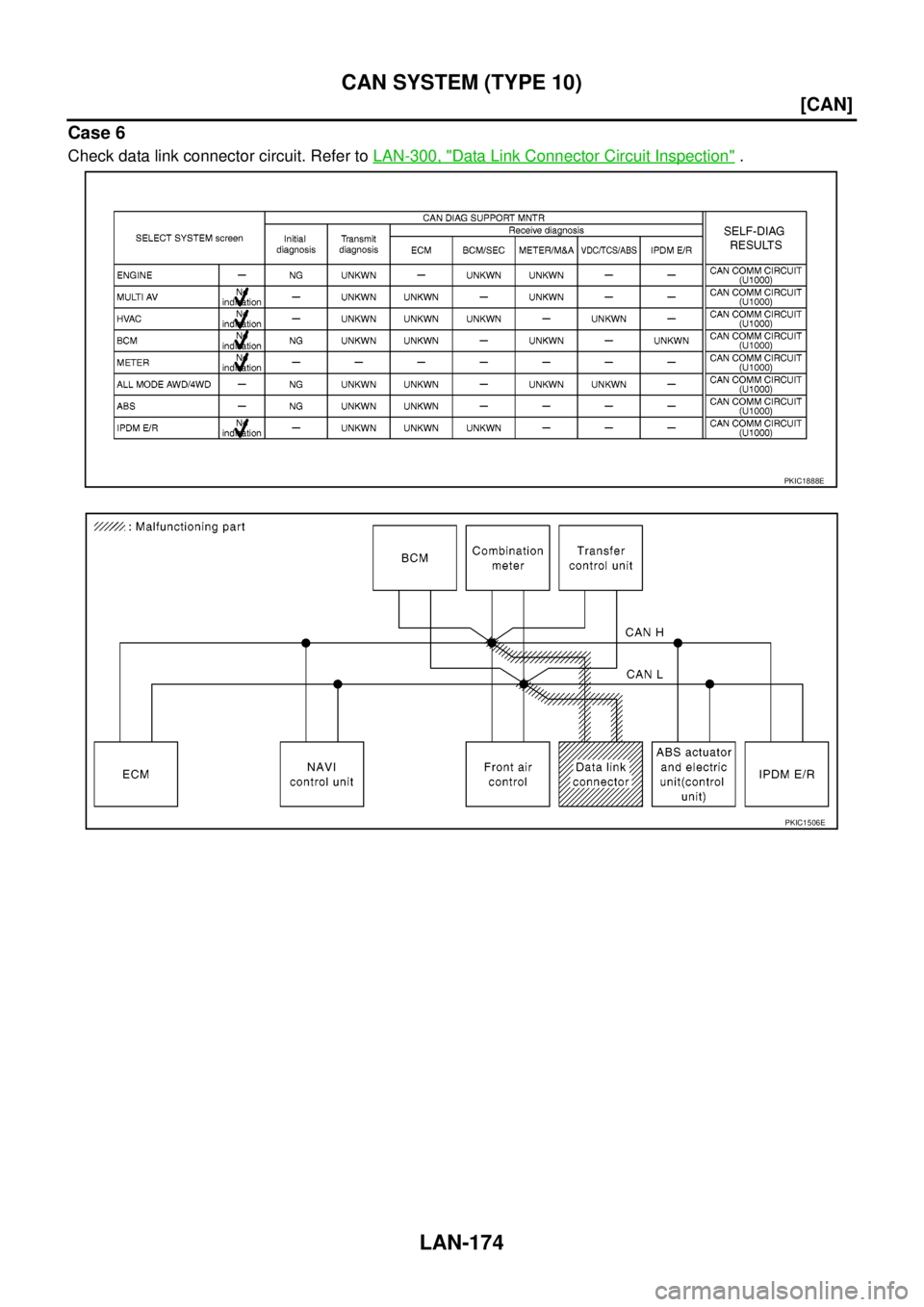

Case 6
Check data link connector circuit. Refer toLAN-300, "Data Link Connector Circuit Inspection".
PKIC1888E
PKIC1506E
Page 1952 of 3171
CAN SYSTEM (TYPE 10)
LAN-175
[CAN]
C
D
E
F
G
H
I
J
L
MA
B
LAN

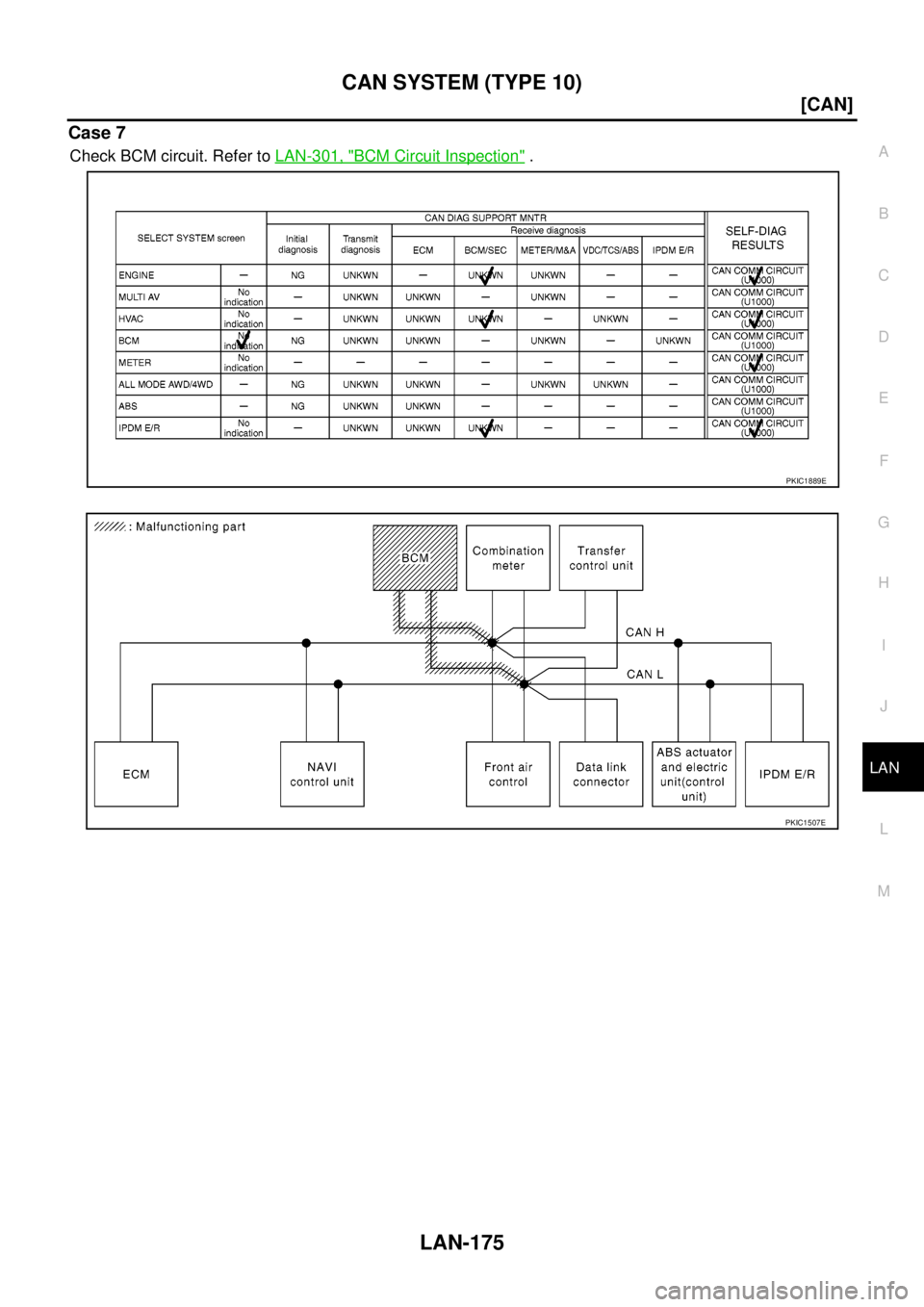

Case 7
Check BCM circuit. Refer toLAN-301, "BCM Circuit Inspection".
PKIC1889E
PKIC1507E
