Page 113 of 3171

NISSAN NAVARA 2005 Repair Workshop Manual DTC P0720 VEHICLE SPEED SENSOR A/T (REVOLUTION SENSOR)
AT-105
D
E
F
G
H
I
J
K
L
MA
B
AT

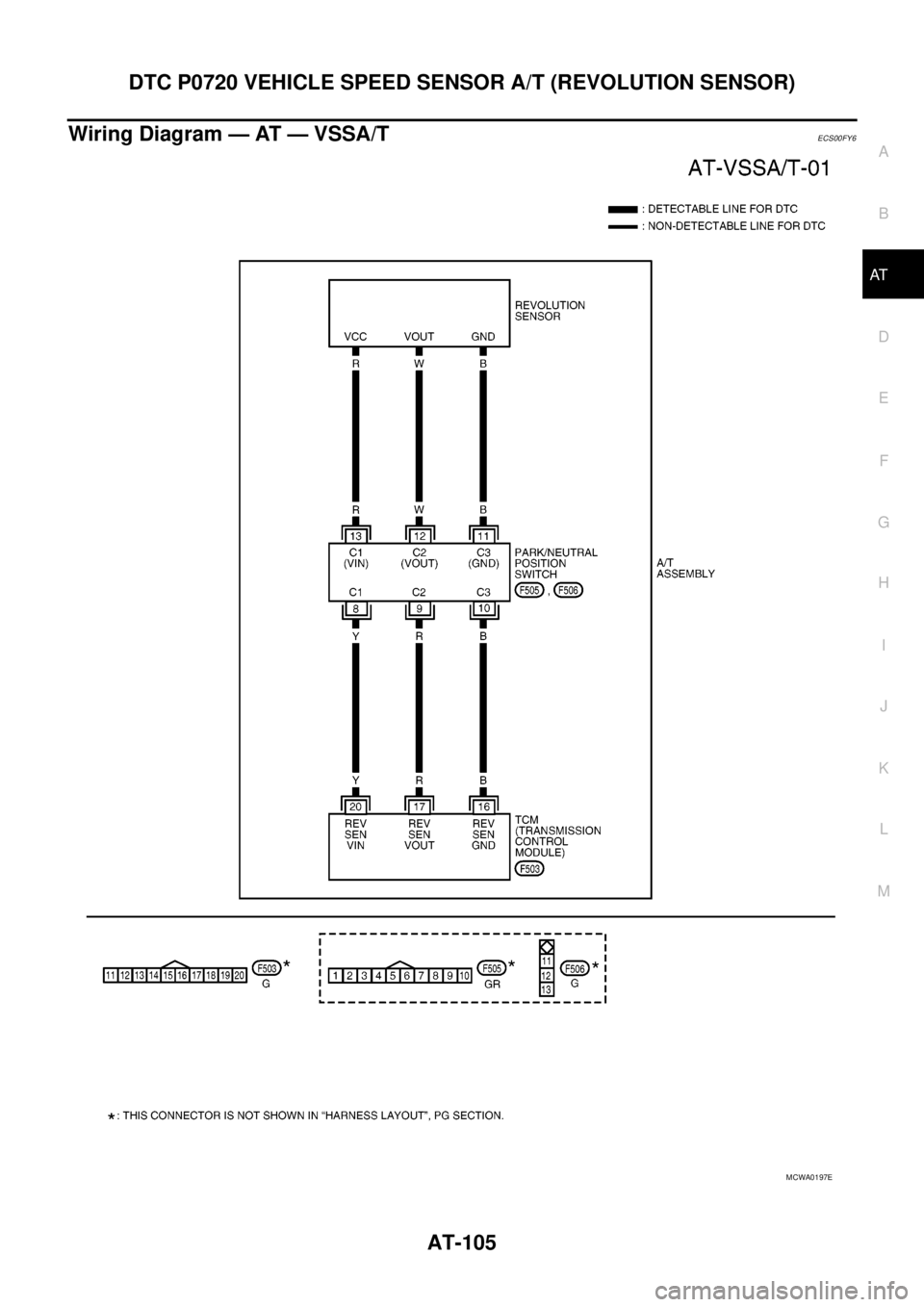

Wiring Diagram — AT — VSSA/TECS00FY6
MCWA0197E

Page 114 of 3171

NISSAN NAVARA 2005 Repair Workshop Manual AT-106
DTC P0720 VEHICLE SPEED SENSOR A/T (REVOLUTION SENSOR)
Diagnostic Procedure
ECS00FY7
1.CHECK INPUT SIGNAL
With CONSULT-II
1. Turn ignition switch ON. (Do not start engine)
2. Select “ECU INPU

Page 115 of 3171

NISSAN NAVARA 2005 Repair Workshop Manual DTC P0720 VEHICLE SPEED SENSOR A/T (REVOLUTION SENSOR)
AT-107
D
E
F
G
H
I
J
K
L
MA
B
AT
4.CHECK SUB-HARNESS
1. Remove control valve with TCM. Refer toAT- 2 1 8 , "
Control Valve With TCM and A/T Fluid

Page 116 of 3171

NISSAN NAVARA 2005 Repair Workshop Manual AT-108
DTC P0725 ENGINE SPEED SIGNAL
DTC P0725 ENGINE SPEED SIGNAL
PFP:24825
DescriptionECS00FY8
The engine speed signal is sent from ECM to TCM.
CONSULT-II Reference ValueECS00FY9
On Board Diagnosis

Page 117 of 3171

NISSAN NAVARA 2005 Repair Workshop Manual DTC P0725 ENGINE SPEED SIGNAL
AT-109
D
E
F
G
H
I
J
K
L
MA
B
AT
Diagnostic ProcedureECS00FYD
1.CHECK CAN COMMUNICATION LINE
Perform self-diagnosis. Refer toAT-80, "
SELF-DIAGNOSTIC RESULT MODE",AT-89,

Page 118 of 3171

NISSAN NAVARA 2005 Repair Workshop Manual AT-110
DTC P0740 TORQUE CONVERTER CLUTCH SOLENOID VALVE
DTC P0740 TORQUE CONVERTER CLUTCH SOLENOID VALVE
PFP:31940
DescriptionECS00FYE
lThe torque converter clutch solenoid valve is activated, with th

AT-110
DTC P0740 TORQUE CONVERTER CLUTCH SOLENOID VALVE
DTC P0740 TORQUE CONVERTER CLUTCH SOLENOID VALVE
PFP:31940
DescriptionECS00FYE
lThe torque converter clutch solenoid valve is activated, with the gear in D5,22and 33by the TCM in
response to signals sent from the vehicle speed sensor and accelerator pedal position sensor. Torque
converter clutch piston operation will then be controlled.
lLock-up operation, however, is prohibited when A/T fluid temperature is too low.
lWhen the accelerator pedal is depressed (less than 1.0/8) in lock-up condition, the engine speed should
not change abruptly. If there is a big jump in engine speed, there is no lock-up.
CONSULT-II Reference ValueECS00FYF
On Board Diagnosis LogicECS00FYG
Diagnostic trouble code “P0740 TCC SOLENOID/CIRC” with CONSULT-II or 3rd judgement flicker without
CONSULT-II is detected under the following conditions.
lWhen TCM detects an improper voltage drop when it tries to operate the solenoid valve.
lWhen TCM detects as irregular by comparing target value with monitor value.
Possible CauseECS00FYH
lTorque converter clutch solenoid valve
lHarness or connectors
(The solenoid circuit is open or shorted.)
DTC Confirmation ProcedureECS00FYI
CAUTION:
Always drive vehicle at a safe speed.
NOTE:
If “DTC Confirmation Procedure” has been previously performed, always turn ignition switch OFF and
wait at least 10 seconds before performing the next test.
After the repair, perform the following procedure to confirm the malfunction is eliminated.
WITH CONSULT-II
1. Turn ignition switch ON. (Do not start engine.)
2. Select “MAIN SIGNALS” in “DATA MONITOR” mode for “A/T”
with CONSULT-II.
3. Touch “START”.
4. Start engine.
5. Drive vehicle and maintain the following conditions for at least 5
consecutive seconds.
VHCL/S SE-A/T: 80 km/h (50 MPH) or more
ACCELE POSI: 0.5/8 - 1.0/8
SLCT LVR POSI: “D” position
Driving location: Driving the vehicle uphill (increased
engine load) will help maintain the driving conditions required for this test.
6. If DTC is detected go toAT- 111 , "
Diagnostic Procedure".
WITHOUT CONSULT-II
1. Start engine.
2. Drive vehicle and maintain the following conditions for at least 5 consecutive seconds.
Vehicle speed: 80 km/h (50 MPH) or more
Accelerator opening: 0.5/8 - 1.0/8
Selector lever position: “D” position
Driving location: Driving the vehicle uphill (increased engine load) will help maintain the driving
conditions required for this test.
3. Perform self-diagnosis. Refer toAT-89, "
Diagnostic Procedure Without CONSULT-II".
Item name Condition Display value (Approx.)
TCC SOLENOID When performing lock-up 0.4 - 0.6 A
BCIA0031E

Page 119 of 3171

NISSAN NAVARA 2005 Repair Workshop Manual DTC P0740 TORQUE CONVERTER CLUTCH SOLENOID VALVE
AT-111
D
E
F
G
H
I
J
K
L
MA
B
AT
4. If DTC is detected, go toAT- 111 , "Diagnostic Procedure".
Diagnostic ProcedureECS00FYJ
1.CHECK INPUT SIGNAL
With C

Page 120 of 3171

NISSAN NAVARA 2005 Repair Workshop Manual AT-112
DTC P0744 A/T TCC S/V FUNCTION (LOCK-UP)
DTC P0744 A/T TCC S/V FUNCTION (LOCK-UP)
PFP:31940
DescriptionECS00FYK
This malfunction is detected when A/T does not shift into 5th gear position or th

AT-112
DTC P0744 A/T TCC S/V FUNCTION (LOCK-UP)
DTC P0744 A/T TCC S/V FUNCTION (LOCK-UP)
PFP:31940
DescriptionECS00FYK
This malfunction is detected when A/T does not shift into 5th gear position or the torque converter clutch does
not lock-up as instructed by TCM. This is not only caused by electrical malfunction (circuits open or shorted)
but also by mechanical malfunction such as control valve sticking, improper solenoid valve operation, etc.
CONSULT-II Reference ValueECS00FYL
On Board Diagnosis LogicECS00FYM
Diagnostic trouble code “P0744 A/T TCC S/V FNCTN” with CONSULT-II or 3rd judgement flicker without
CONSULT-II is detected under the following conditions.
lWhen A/T cannot perform lock-up even if electrical circuit is good.
lWhen TCM detects as irregular by comparing difference value with slip rotation.
Possible CauseECS00FYN
lHarness or connectors
(The solenoid circuit is open or shorted.)
lTorque converter clutch solenoid valve
lHydraulic control circuit
DTC Confirmation ProcedureECS00FYO
CAUTION:
Always drive vehicle at a safe speed.
NOTE:
If “DTC Confirmation Procedure” has been previously performed, always turn ignition switch OFF and
wait at least 10 seconds before performing the next test.
After the repair, perform the following procedure to confirm the malfunction is eliminated.
WITH CONSULT-II
1. Start engine and Select “TCC S/V FNCTN CHECK” of “DTC
WORK SUPPORT” mode for “A/T” with CONSULT-II and touch
“START”.
2. Accelerate vehicle to more than 80 km/h (50 MPH) and maintain
the following condition continuously until “TESTING” has turned
to “COMPLETE”. (It will take approximately 30 seconds after
“TESTING” shows.)
ACCELE POSI: More than 1.0/8 (at all times during step 4)
TCC SOLENOID: 0.4 - 0.6 A
SLCT LVR POSI: “D” position
[Reference speed: Constant speed of more than 80 km/h (50
MPH)]
GEAR: “5” position
–For shift schedule, refer toAT-52, "Vehicle Speed at Which Lock-up Occurs/Releases".
–If “TESTING” does not appear on CONSULT-II for a long time, select “SELF-DIAG RESULTS”. In
case a DTC other than P0744 is shown, refer to applicable “TROUBLE DIAGNOSIS FOR DTC”.
3. Make sure that “OK” is displayed. (If “NG” is displayed, refer toAT- 11 3 , "
Diagnostic Procedure".)
Refer to shift scheduleAT-52, "
Vehicle Speed at Which Lock-up Occurs/Releases".
Item name Condition Display value (Approx.)
TCC SOLENOID When performing lock-up 0.4 - 0.6 A
BCIA0031E
