NISSAN NAVARA 2005 Repair Workshop Manual LT-174
BULB SPECIFICATIONS

Page 2258 of 3171

NISSAN NAVARA 2005 Repair Workshop Manual LU-1
ENGINE LUBRICATION SYSTEM
B ENGINE
CONTENTS
C
D
E
F
G
H
I
J
K
L
M
SECTIONLU
A
LU
ENGINE LUBRICATION SYSTEM
PRECAUTIONS .......................................................... 2
Precautions for

LU-1
ENGINE LUBRICATION SYSTEM
B ENGINE
CONTENTS
C
D
E
F
G
H
I
J
K
L
M
SECTIONLU
A
LU
ENGINE LUBRICATION SYSTEM
PRECAUTIONS .......................................................... 2
Precautions for Liquid Gasket .................................. 2
LIQUID GASKET APPLICATION PROCEDURE..... 2
PREPARATION ........................................................... 3
Special Service Tools ............................................... 3
Commercial Service Tools ........................................ 3
LUBRICATION SYSTEM ............................................ 4
Lubrication Circuit .................................................... 4
ENGINE OIL ............................................................... 5
Inspection ................................................................. 5
ENGINE OIL LEVEL ............................................. 5
ENGINE OIL APPEARANCE ................................ 5
ENGINE OIL LEAKAGE ........................................ 5
ENGINE OIL PRESSURE CHECK ....................... 5
Changing Engine Oil ................................................ 6
OIL FILTER ................................................................. 8
Removal and Installation .......................................... 8
REMOVAL ............................................................. 8
INSTALLATION ..................................................... 8
INSPECTION AFTER INSTALLATION ................. 8
OIL FILTER BRACKET .............................................. 9
Components ............................................................. 9
Removal and Installation .......................................... 9
REMOVAL ............................................................. 9
INSTALLATION ................................................... 10
INSPECTION AFTER INSTALLATION ............... 10OIL COOLER ............................................................ 11
Components ........................................................... 11
Removal and Installation ........................................ 11
REMOVAL ........................................................... 11
INSPECTION AFTER REMOVAL ....................... 12
INSTALLATION ................................................... 12
INSPECTION AFTER INSTALLATION ................ 12
OIL PUMP ................................................................. 14
Removal and Installation ........................................ 14
REMOVAL ........................................................... 14
INSTALLATION ................................................... 14
INSPECTION AFTER INSTALLATION ................ 14
Components ........................................................... 14
Disassembly and Assembly .................................... 14
DISASSEMBLY ................................................... 14
INSPECTION AFTER DISASSEMBLY ................ 15
ASSEMBLY ......................................................... 16
SERVICE DATA AND SPECIFICATIONS (SDS) ...... 17
Standard and Limit .................................................. 17
OIL PRESSURE .................................................. 17
OIL CAPACITY (APPROXIMATE) ....................... 17
OIL PUMP ........................................................... 17
REGULATOR VALVE .......................................... 17

Page 2259 of 3171

NISSAN NAVARA 2005 Repair Workshop Manual LU-2
PRECAUTIONS
PRECAUTIONS
PFP:00001
Precautions for Liquid GasketEBS01E52
LIQUID GASKET APPLICATION PROCEDURE
1. Remove the old liquid gasket adhering to the liquid gasket application surface and t

Page 2260 of 3171

NISSAN NAVARA 2005 Repair Workshop Manual PREPARATION
LU-3
C
D
E
F
G
H
I
J
K
L
MA
LU
PREPARATIONPFP:00002
Special Service ToolsEBS01E53
Commercial Service ToolsEBS01E54
Tool number
Tool nameDescription
ST25051001
Oil pressure gaugeMeasuring o

Page 2261 of 3171

NISSAN NAVARA 2005 Repair Workshop Manual LU-4
LUBRICATION SYSTEM
LUBRICATION SYSTEM
PFP:15010
Lubrication CircuitEBS01E55

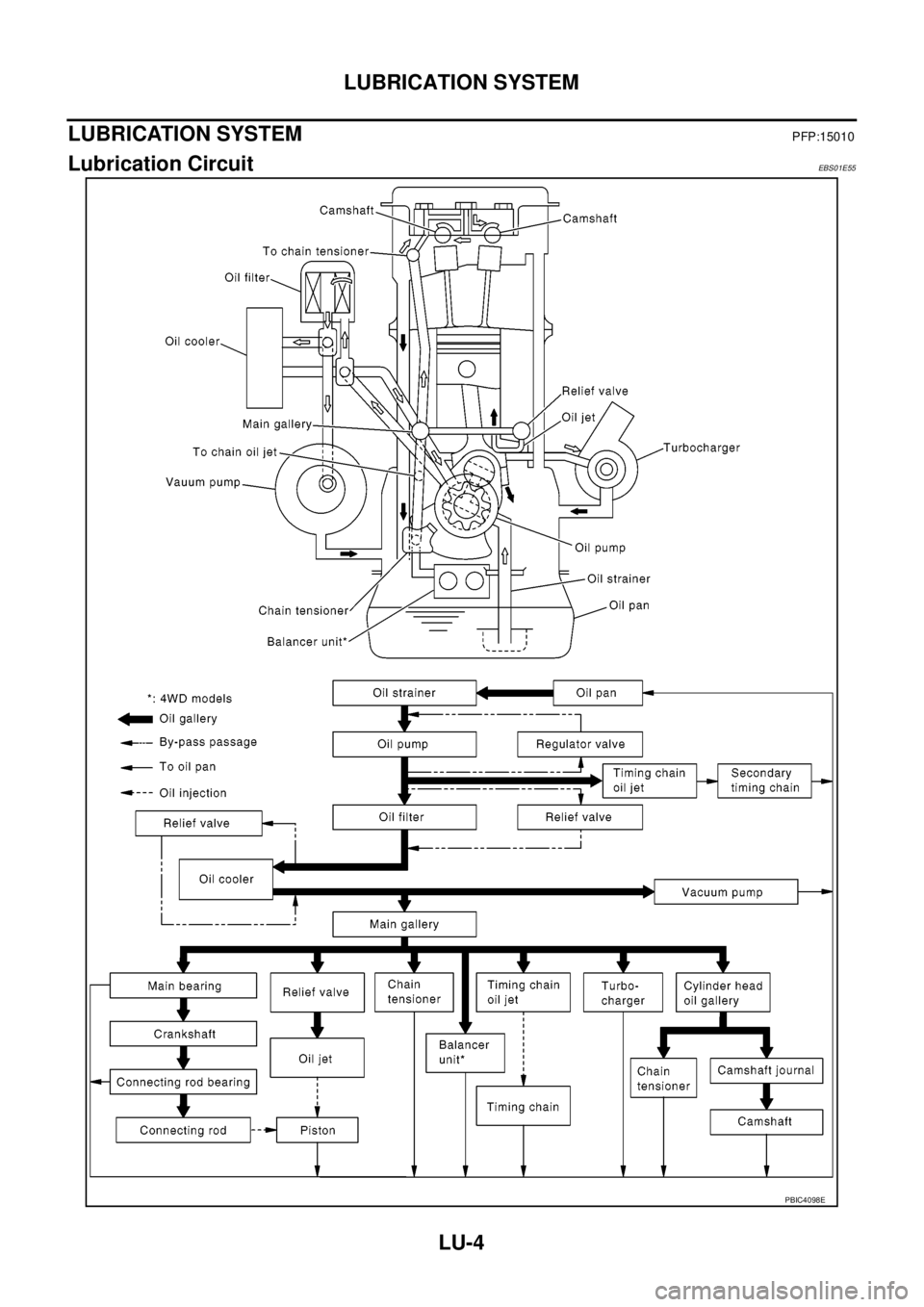

PBIC4098E

Page 2262 of 3171

NISSAN NAVARA 2005 Repair Workshop Manual ENGINE OIL
LU-5
C
D
E
F
G
H
I
J
K
L
MA
LU
ENGINE OILPFP:KLA92
InspectionEBS01E56
ENGINE OIL LEVEL
NOTE:
Before starting engine, put vehicle horizontally and check the engine oil level. If engine is al

Page 2263 of 3171

NISSAN NAVARA 2005 Repair Workshop Manual LU-6
ENGINE OIL
3. Disconnect harness connector at oil pressure switch (1), and
remove oil pressure switch (1) using deep socket (commercial
service tool).
CAUTION:
Do not drop or shock oil pressure s

Page 2264 of 3171

NISSAN NAVARA 2005 Repair Workshop Manual ENGINE OIL
LU-7
C
D
E
F
G
H
I
J
K
L
MA
LU
3. Loosen oil filler cap (1) and then remove drain plug (3).
4. Drain engine oil.
5. Install drain plug with new washer. Refer toEM-36, "
OIL PAN AND OIL STRA
