CAN SYSTEM (TYPE 9)
CAN SYSTEM (TYPE 9)
PFP:23710
Component Parts and Harness Connector LocationEKS00ODU
Refer toLAN-23, "Component Parts and Harness Connector Location".
SchematicEKS00ODV
Refer toLAN-25, "Schematic".
Wiring Diagram — CAN —EKS00ODW
Refer toLAN-26, "Wiring Diagram—CAN—".
Page 1930 of 3171
CAN SYSTEM (TYPE 9)
LAN-153
[CAN]
C
D
E
F
G
H
I
J
L
MA
B
LAN

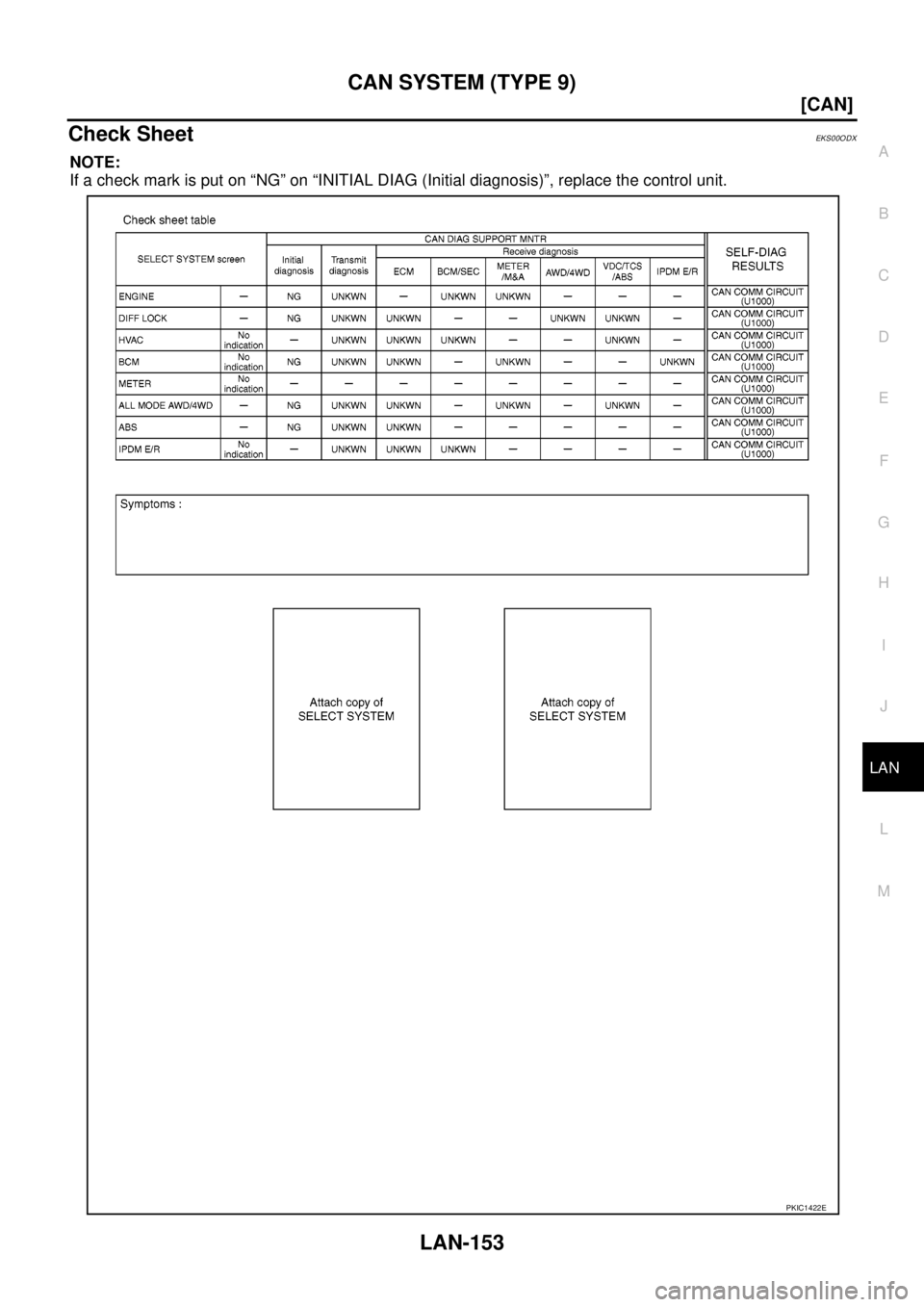

Check SheetEKS00ODX
NOTE:
If a check mark is put on “NG” on “INITIAL DIAG (Initial diagnosis)”, replace the control unit.
PKIC1422E
Page 1931 of 3171
LAN-154
[CAN]
CAN SYSTEM (TYPE 9)

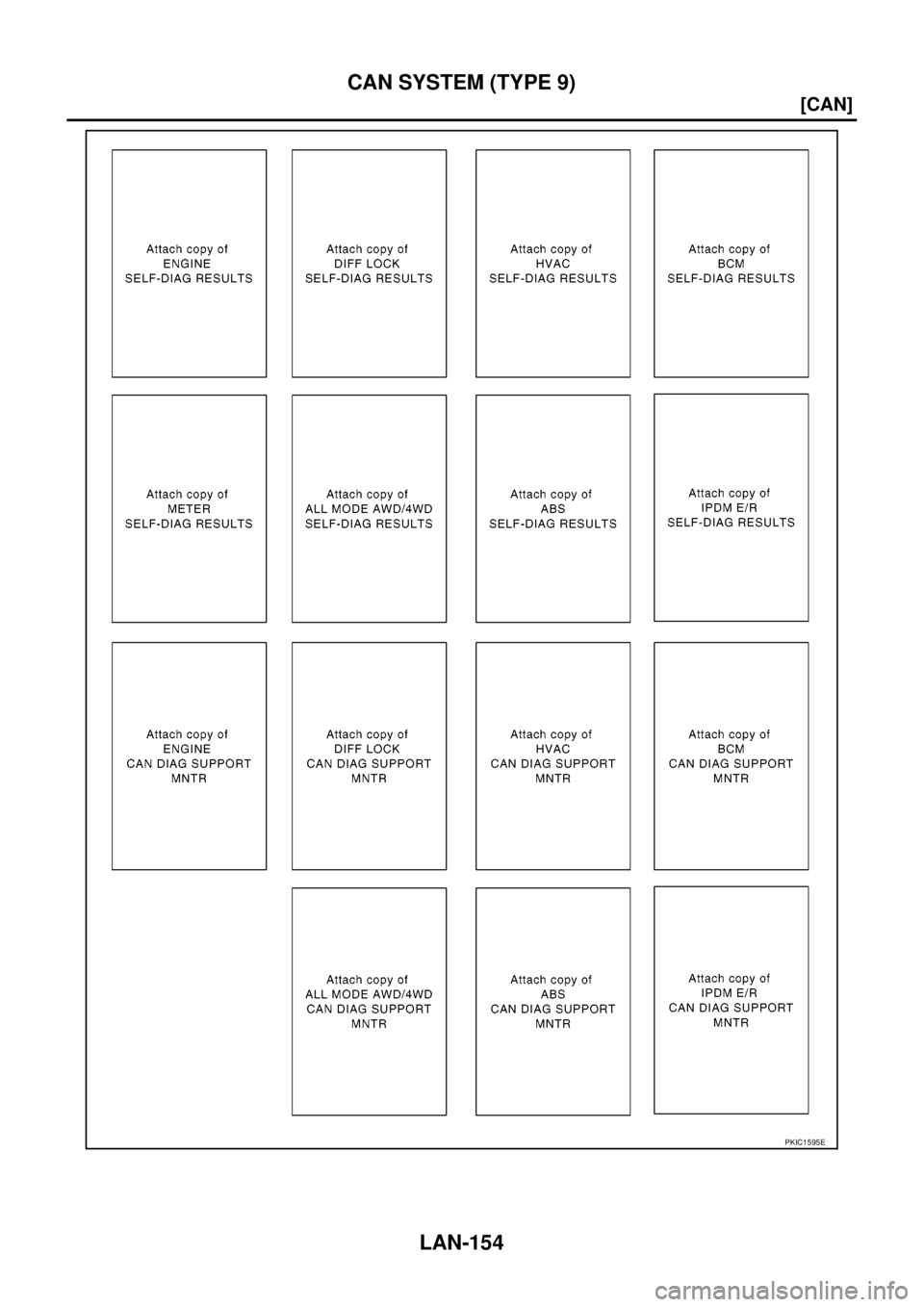

PKIC1595E
Page 1932 of 3171
CAN SYSTEM (TYPE 9)
LAN-155
[CAN]
C
D
E
F
G
H
I
J
L
MA
B
LAN
CHECK SHEET RESULTS (EXAMPLE)
NOTE:
If a check mark is put on “NG” on “INITIAL DIAG (Initial diagnosis)”, replace the control unit.
Case 1

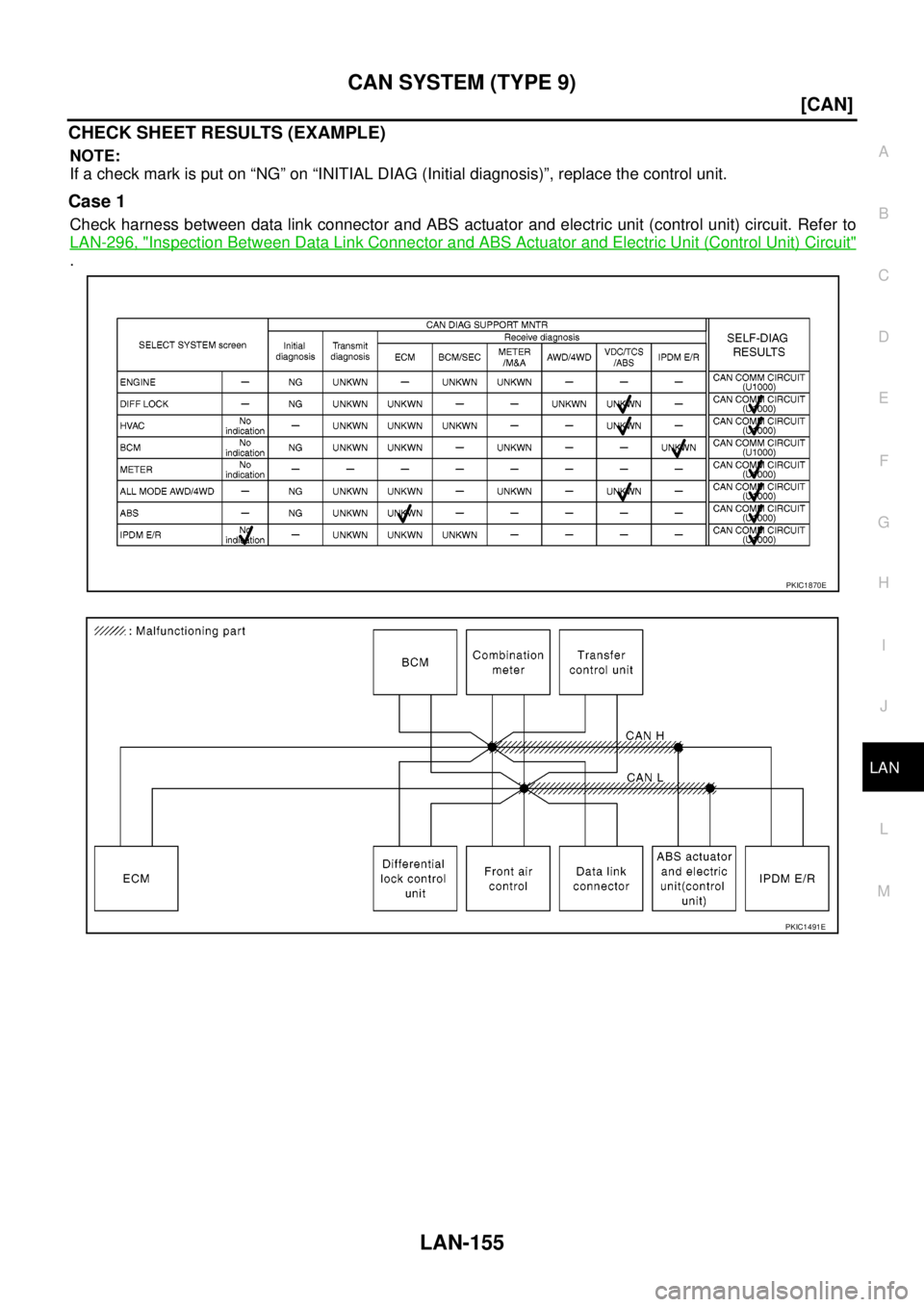

Check harness between data link connector and ABS actuator and electric unit (control unit) circuit. Refer to
LAN-296, "
Inspection Between Data Link Connector and ABS Actuator and Electric Unit (Control Unit) Circuit"
.
PKIC1870E
PKIC1491E
Page 1933 of 3171
LAN-156
[CAN]
CAN SYSTEM (TYPE 9)
Case 2

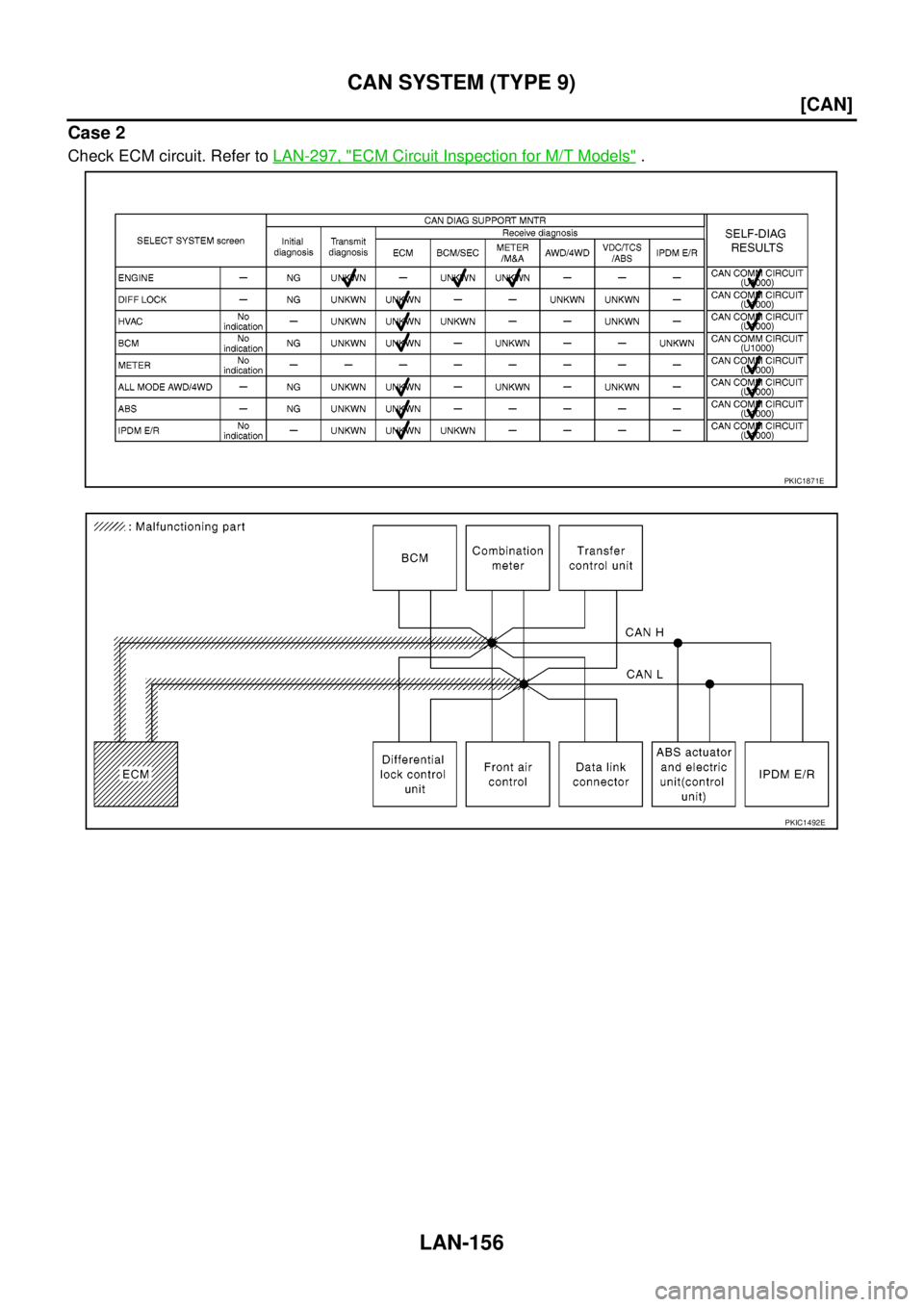

Check ECM circuit. Refer toLAN-297, "ECM Circuit Inspection for M/T Models".
PKIC1871E
PKIC1492E
Page 1934 of 3171
CAN SYSTEM (TYPE 9)
LAN-157
[CAN]
C
D
E
F
G
H
I
J
L
MA
B
LAN
Case 3

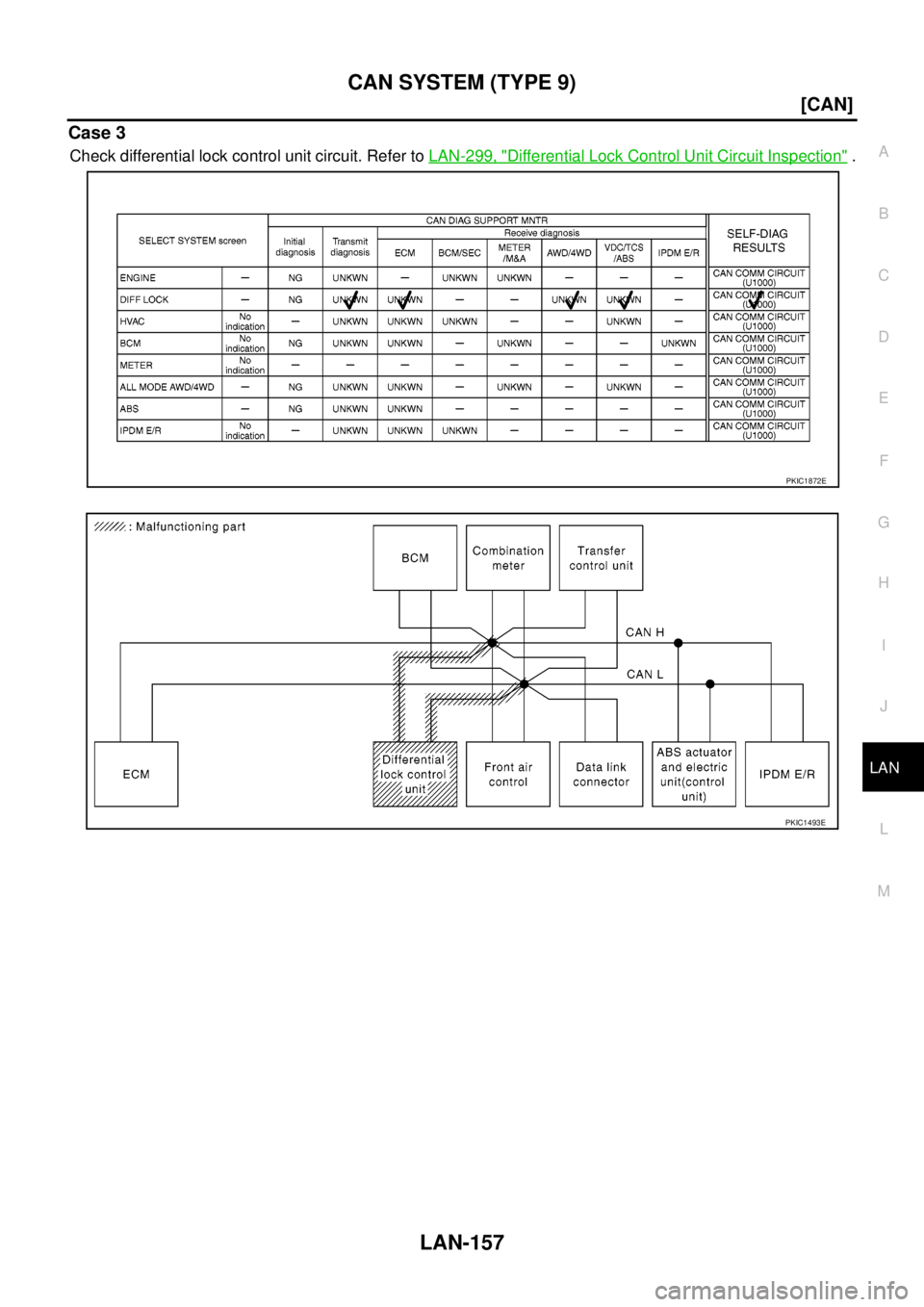

Check differential lock control unit circuit. Refer toLAN-299, "Differential Lock Control Unit Circuit Inspection".
PKIC1872E
PKIC1493E
Page 1935 of 3171
LAN-158
[CAN]
CAN SYSTEM (TYPE 9)
Case 4

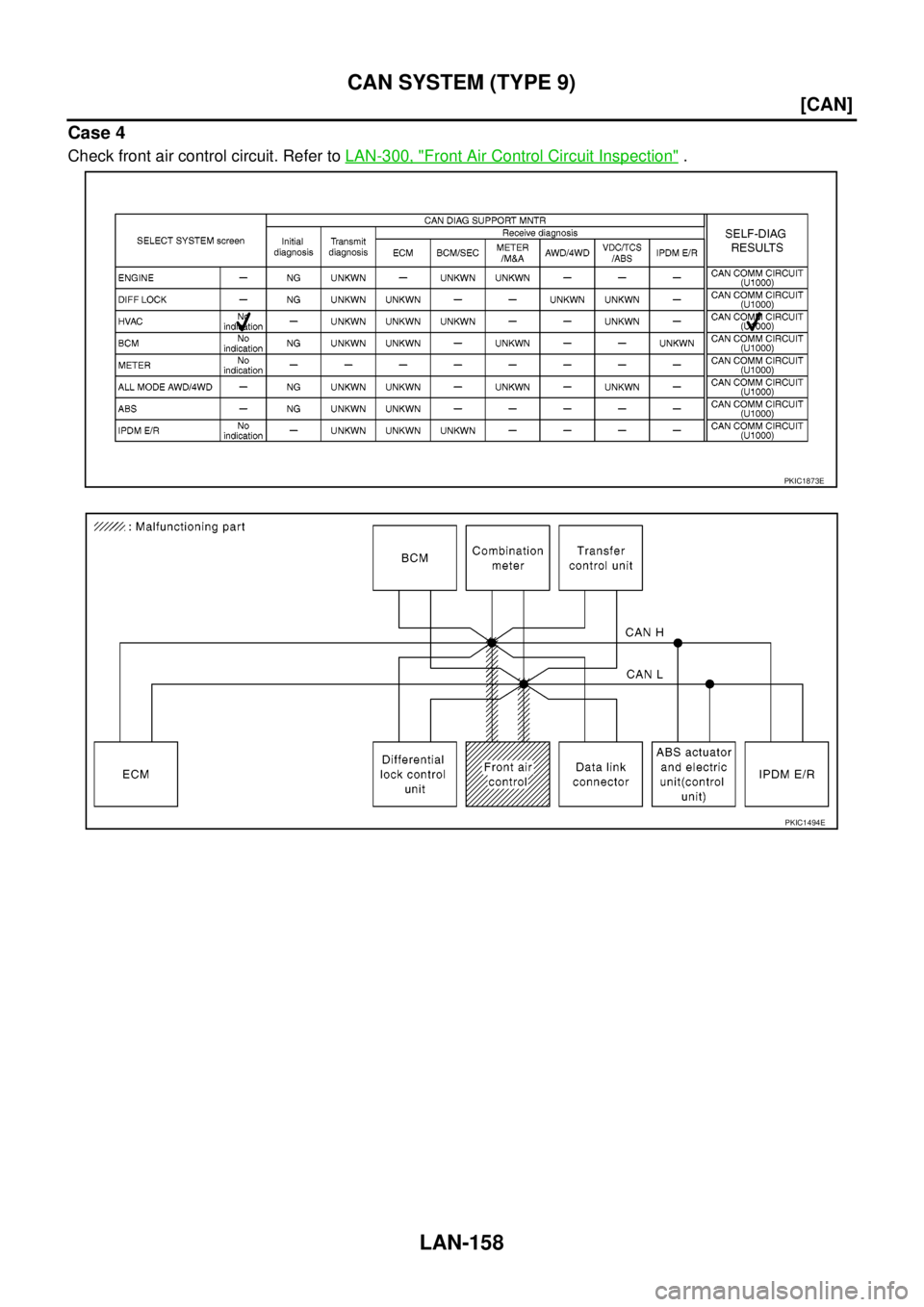

Check front air control circuit. Refer toLAN-300, "Front Air Control Circuit Inspection".
PKIC1873E
PKIC1494E
Page 1936 of 3171
CAN SYSTEM (TYPE 9)
LAN-159
[CAN]
C
D
E
F
G
H
I
J
L
MA
B
LAN
Case 5

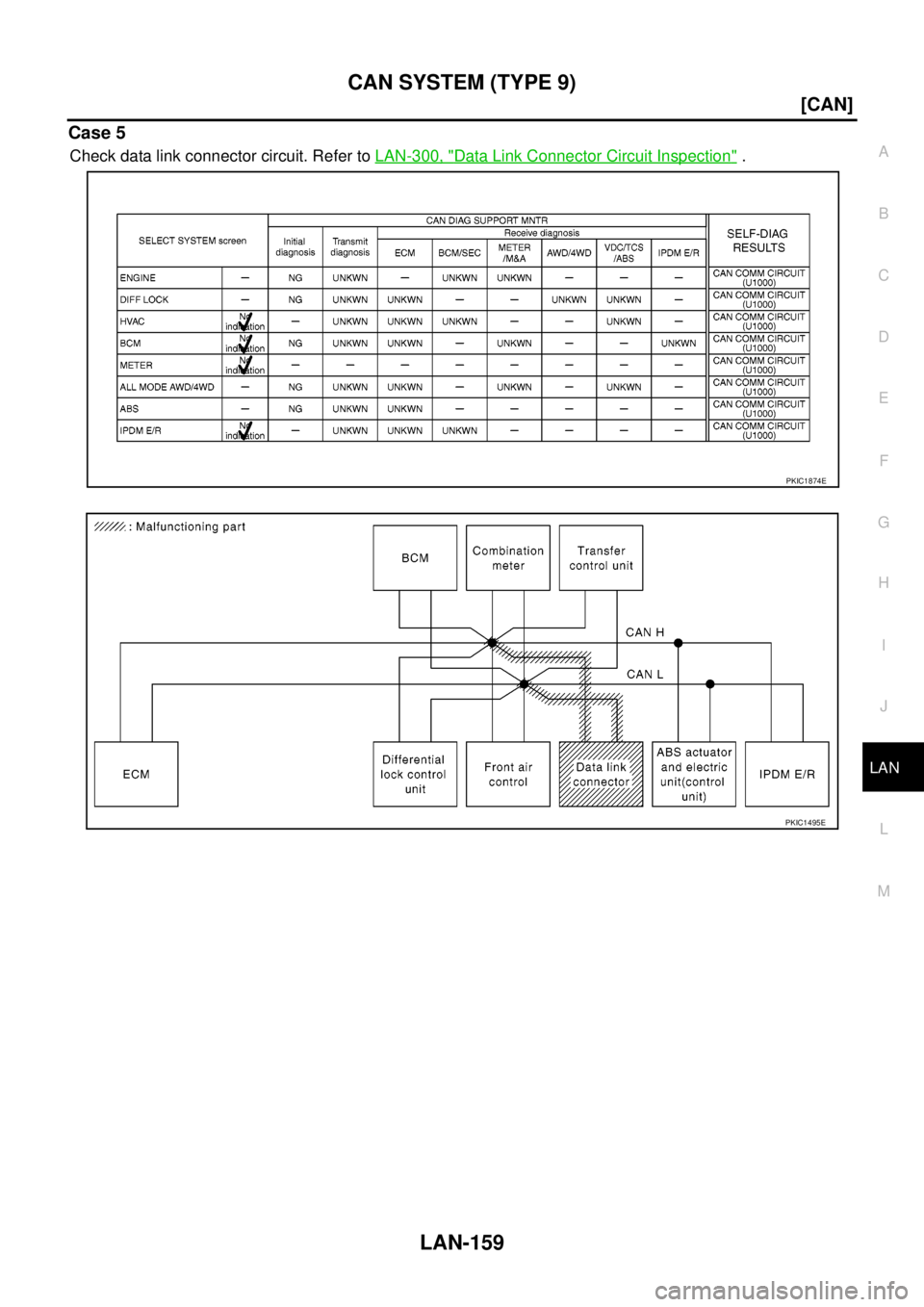

Check data link connector circuit. Refer toLAN-300, "Data Link Connector Circuit Inspection".
PKIC1874E
PKIC1495E
