Page 2618 of 3171

FRONT PROPELLER SHAFT
PR-3
C
E
F
G
H
I
J
K
L
MA
B
PR
FRONT PROPELLER SHAFTPFP:37200
On-Vehicle ServiceEDS002WO
APPEARANCE AND NOISE INSPECTION
lCheck the propeller shaft tube surface for dents or cracks. If damaged, replace the propeller shaft assem-
bly.
lCheck the bearings for noise and damage. Repair or replace the bearings as necessary.
PROPELLER SHAFT VIBRATION
If a vibration is present at high speed, inspect the propeller shaft runout first.
1. Measure the runout of the propeller shaft tube at several points
by rotating the final drive companion flange with your hands.
For measuring point, refer toPR-3, "
Propeller Shaft Runout
Measuring Point".
2. If the runout exceeds specifications, disconnect the propeller
shaft at the final drive companion flange; then rotate the com-
panion flange 90°,180°and 270°and reconnect the propeller
shaft.
3. Check the runout again. If the runout still exceeds specifications,
replace the propeller shaft assembly.
4. After installation, check for vibration by driving the vehicle.
Propeller Shaft Runout Measuring Point
lPropeller shaft runout measuring point.Propeller shaft runout limit : 0.6 mm (0.024 in) or less
LDIA0160E
Propeller shaft runout measuring range
Dimension A : 160mm (6.30 in)
PDIA0955E
Page 2619 of 3171
PR-4
FRONT PROPELLER SHAFT
Removal and Installation
EDS002WP
COMPONENTS
REMOVAL
1. Put matching marks on the front propeller shaft flange yoke and
the front final drive companion flange as shown.
CAUTION:
For matching marks, use paint. Never damage the flange
yoke and companion flange of the front final drive.
2. Put matching marks on the front propeller shaft flange yoke and
the transfer companion flange.
CAUTION:
For matching marks, use paint. Never damage the flange
yoke and companion flange of the transfer.
3. Remove the bolts and nuts, then remove the front propeller shaft
from the front final drive and transfer.
INSPECTION
lInspect the propeller shaft runout. If runout exceeds the limit, replace the propeller shaft assembly.
For measuring point, refer toPR-3, "
Propeller Shaft Runout Measuring Point".

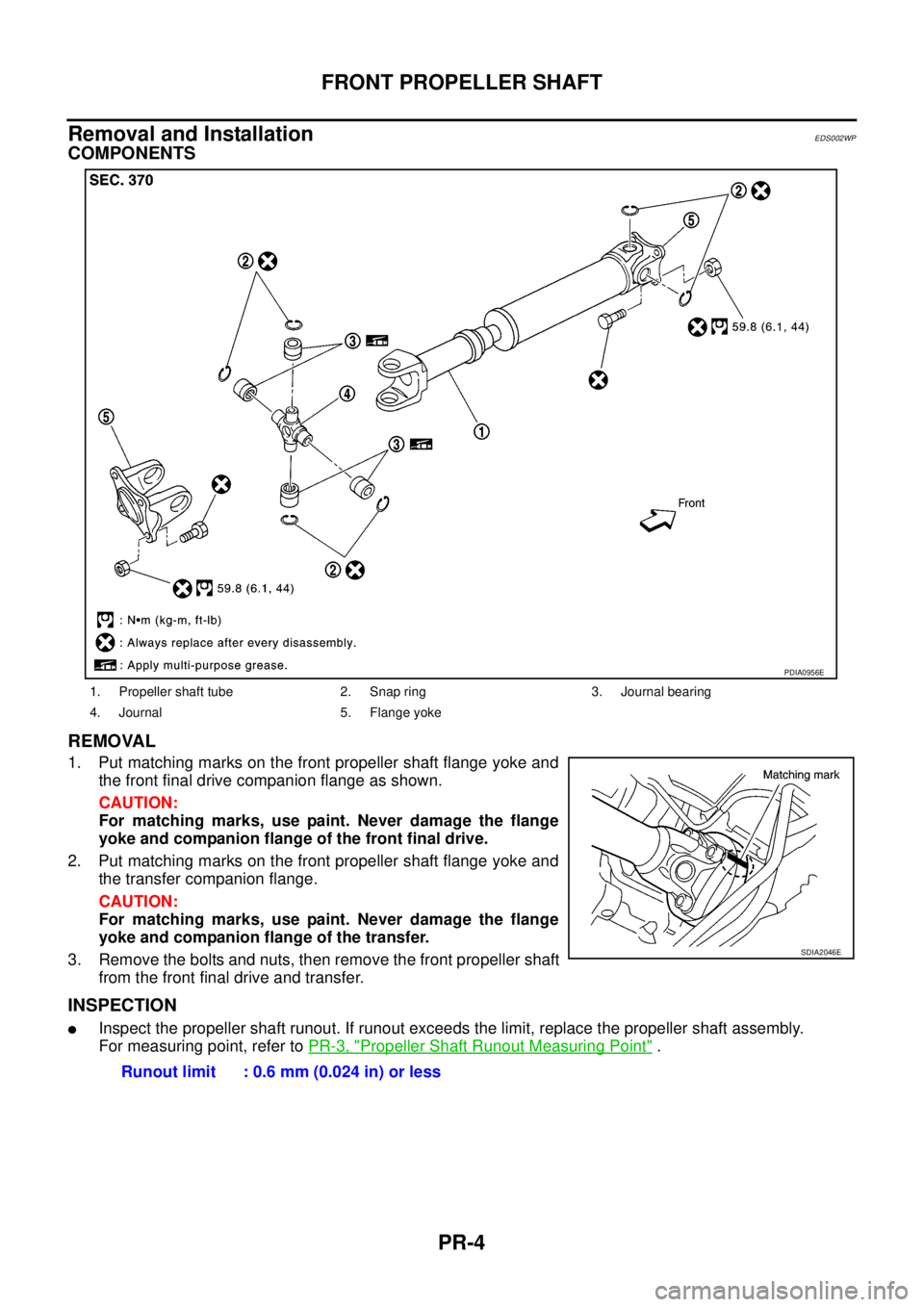

1. Propeller shaft tube 2. Snap ring 3. Journal bearing
4. Journal 5. Flange yoke
PDIA0956E
SDIA2046E
Runout limit : 0.6 mm (0.024 in) or less
Page 2620 of 3171

FRONT PROPELLER SHAFT
PR-5
C
E
F
G
H
I
J
K
L
MA
B
PR

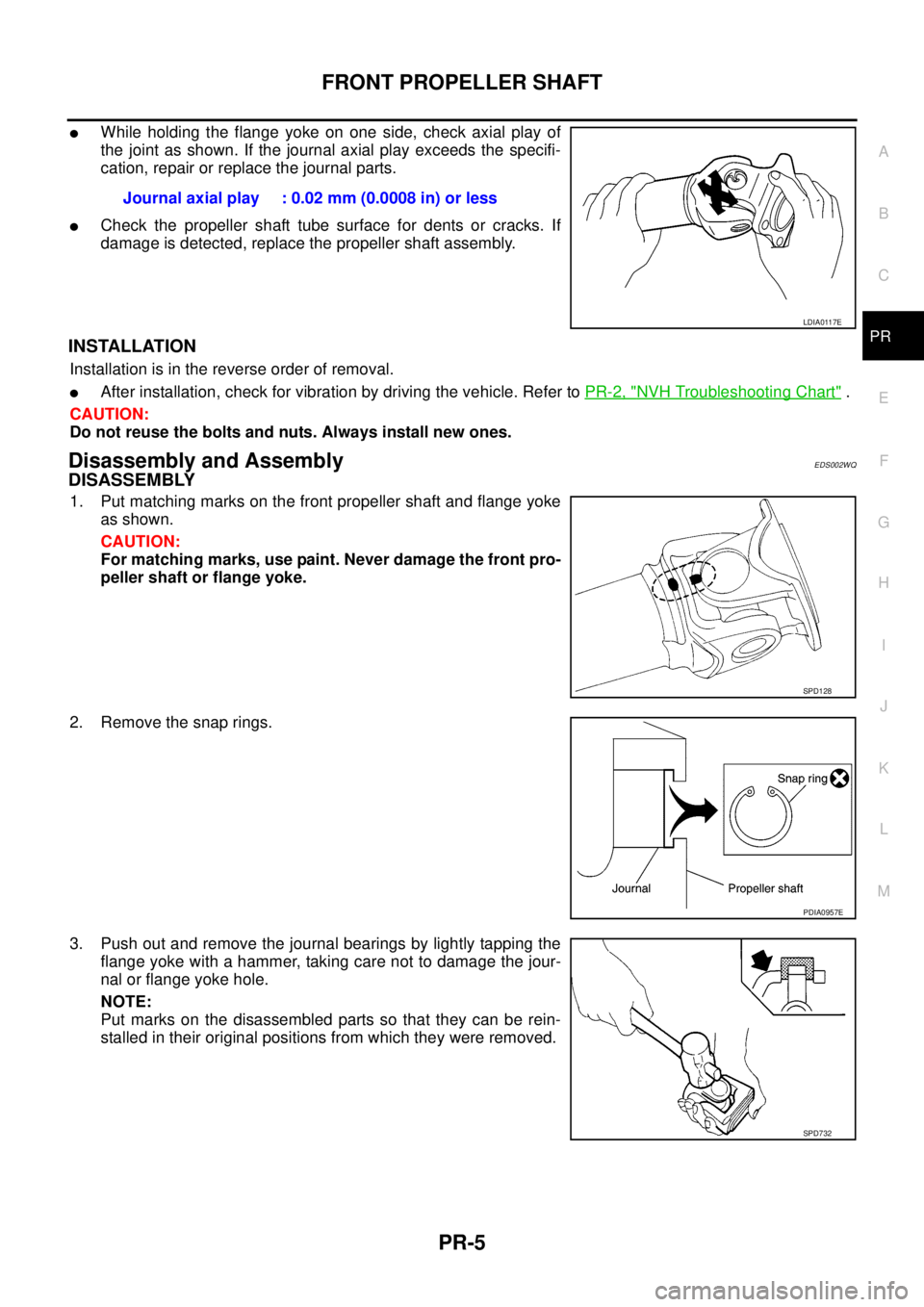

lWhile holding the flange yoke on one side, check axial play of
the joint as shown. If the journal axial play exceeds the specifi-
cation, repair or replace the journal parts.
lCheck the propeller shaft tube surface for dents or cracks. If
damage is detected, replace the propeller shaft assembly.
INSTALLATION
Installation is in the reverse order of removal.
lAfter installation, check for vibration by driving the vehicle. Refer toPR-2, "NVH Troubleshooting Chart".
CAUTION:
Do not reuse the bolts and nuts. Always install new ones.
Disassembly and AssemblyEDS002WQ
DISASSEMBLY
1. Put matching marks on the front propeller shaft and flange yoke
as shown.
CAUTION:
For matching marks, use paint. Never damage the front pro-
peller shaft or flange yoke.
2. Remove the snap rings.
3. Push out and remove the journal bearings by lightly tapping the
flange yoke with a hammer, taking care not to damage the jour-
nal or flange yoke hole.
NOTE:
Put marks on the disassembled parts so that they can be rein-
stalled in their original positions from which they were removed.Journal axial play : 0.02 mm (0.0008 in) or less
LDIA0117E
SPD128
PDIA0957E
SPD732
Page 2621 of 3171

PR-6
FRONT PROPELLER SHAFT

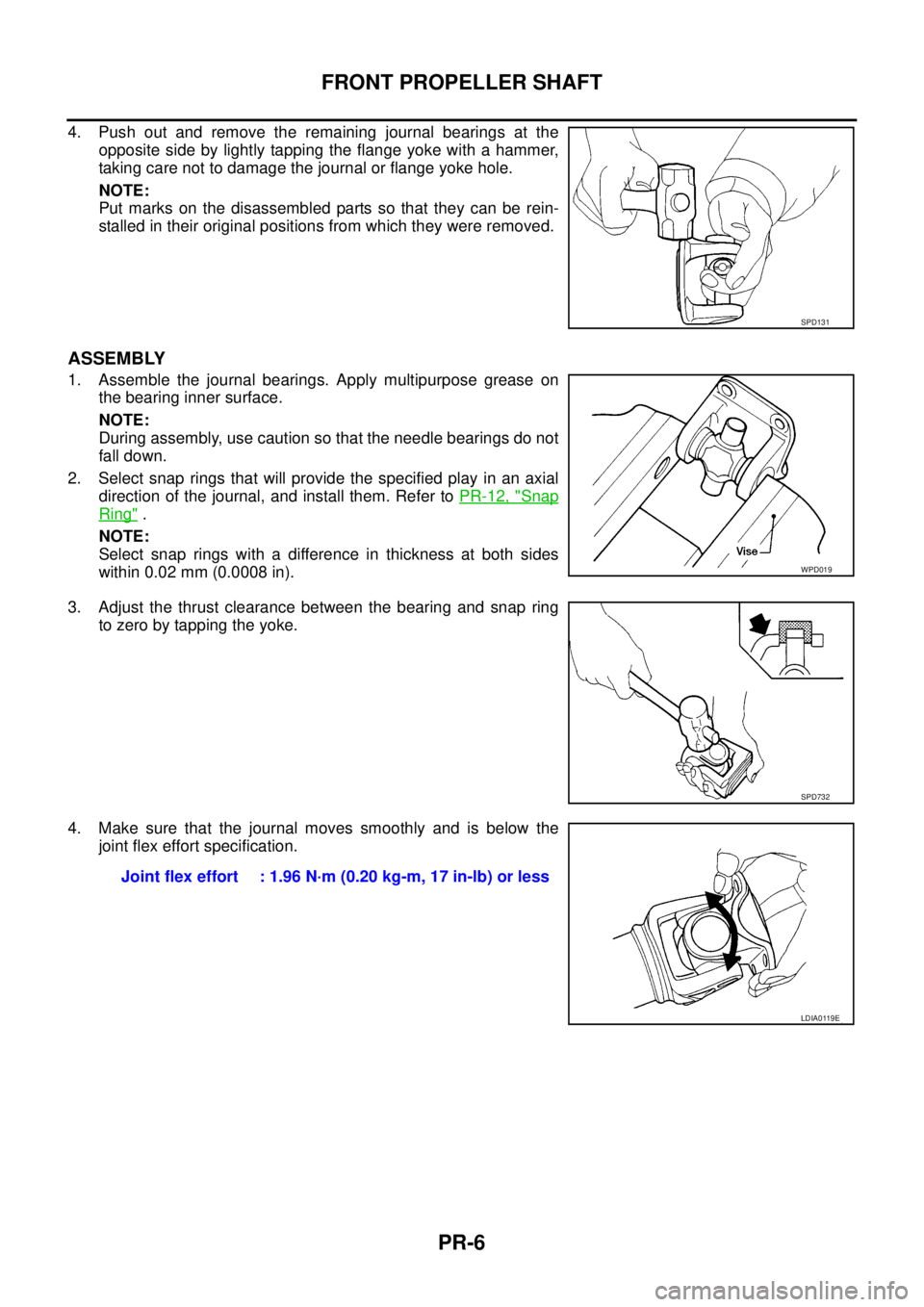

4. Push out and remove the remaining journal bearings at the
opposite side by lightly tapping the flange yoke with a hammer,
taking care not to damage the journal or flange yoke hole.
NOTE:
Put marks on the disassembled parts so that they can be rein-
stalled in their original positions from which they were removed.
ASSEMBLY
1. Assemble the journal bearings. Apply multipurpose grease on
the bearing inner surface.
NOTE:
During assembly, use caution so that the needle bearings do not
fall down.
2. Select snap rings that will provide the specified play in an axial
direction of the journal, and install them. Refer toPR-12, "
Snap
Ring".
NOTE:
Select snap rings with a difference in thickness at both sides
within 0.02 mm (0.0008 in).
3. Adjust the thrust clearance between the bearing and snap ring
to zero by tapping the yoke.
4. Make sure that the journal moves smoothly and is below the
joint flex effort specification.
SPD131
WPD019
SPD732
Joint flex effort : 1.96 N·m (0.20 kg-m, 17 in-lb) or less
LDIA0119E
Page 2622 of 3171

REAR PROPELLER SHAFT
PR-7
C
E
F
G
H
I
J
K
L
MA
B
PR
REAR PROPELLER SHAFTPFP:37000
On-Vehicle ServiceEDS002WR
APPEARANCE AND NOISE INSPECTION
lCheck the propeller shaft tube surface for dents or cracks. If damaged, replace the propeller shaft assem-
bly.
lCheck the bearings for noise and damage. Repair or replace the bearings as necessary.
PROPELLER SHAFT VIBRATION
If a vibration is present at high speed, inspect the propeller shaft runout first.
1. Measure the runout of the propeller shaft tube at several points
by rotating the final drive companion flange with your hands.
For measuring point, refer toPR-7, "
Propeller Shaft Runout
Measuring Point".
2. If the runout exceeds specifications, disconnect the propeller
shaft at the final drive companion flange; then rotate the com-
panion flange 90°,180°and 270°and reconnect the propeller
shaft.
3. Check the runout again. If the runout still exceeds specifications, replace the propeller shaft assembly.
4. After installation, check for vibration by driving vehicle.
Propeller Shaft Runout Measuring Point
l2WD
l4WDPropeller shaft runout limit
2WD : 0.6 mm (0.024 in) or less
4WD : 1.02 mm (0.0402 in) or less
LDIA0161E
Propeller shaft runout measuring range
PDIA1068E
Propeller shaft runout measuring range
PDIA1067E
Page 2623 of 3171
PR-8
REAR PROPELLER SHAFT
Removal and Installation
EDS002WS
COMPONENTS (2WD)
COMPONENTS (4WD)

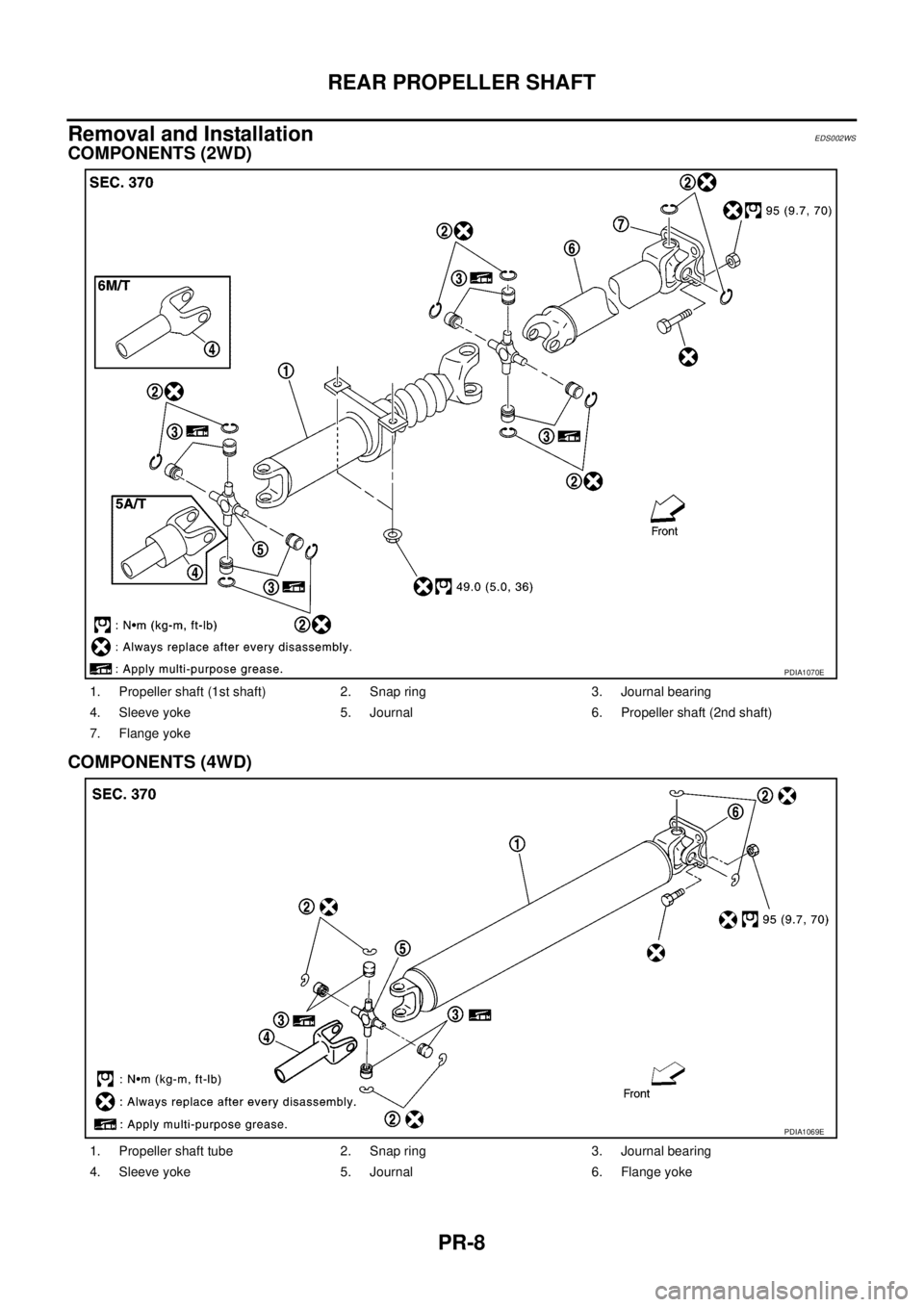

1. Propeller shaft (1st shaft) 2. Snap ring 3. Journal bearing
4. Sleeve yoke 5. Journal 6. Propeller shaft (2nd shaft)
7. Flange yoke
PDIA1070E
1. Propeller shaft tube 2. Snap ring 3. Journal bearing
4. Sleeve yoke 5. Journal 6. Flange yoke
PDIA1069E
Page 2624 of 3171

REAR PROPELLER SHAFT
PR-9
C
E
F
G
H
I
J
K
L
MA
B
PR
REMOVAL
1. Move the A/T select lever to the N position or set M/T shift lever to neutral position.
2. Release the parking brake.
3. Put matching marks on the rear propeller shaft flange yoke and
the rear final drive companion flange as shown.
CAUTION:
For matching marks, use paint. Never damage the rear pro-
peller shaft flange yoke or the companion flange.
4. Remove the bolts and nuts, then remove the propeller shaft from
the rear final drive and A/T, M/T or transfer.
INSPECTION

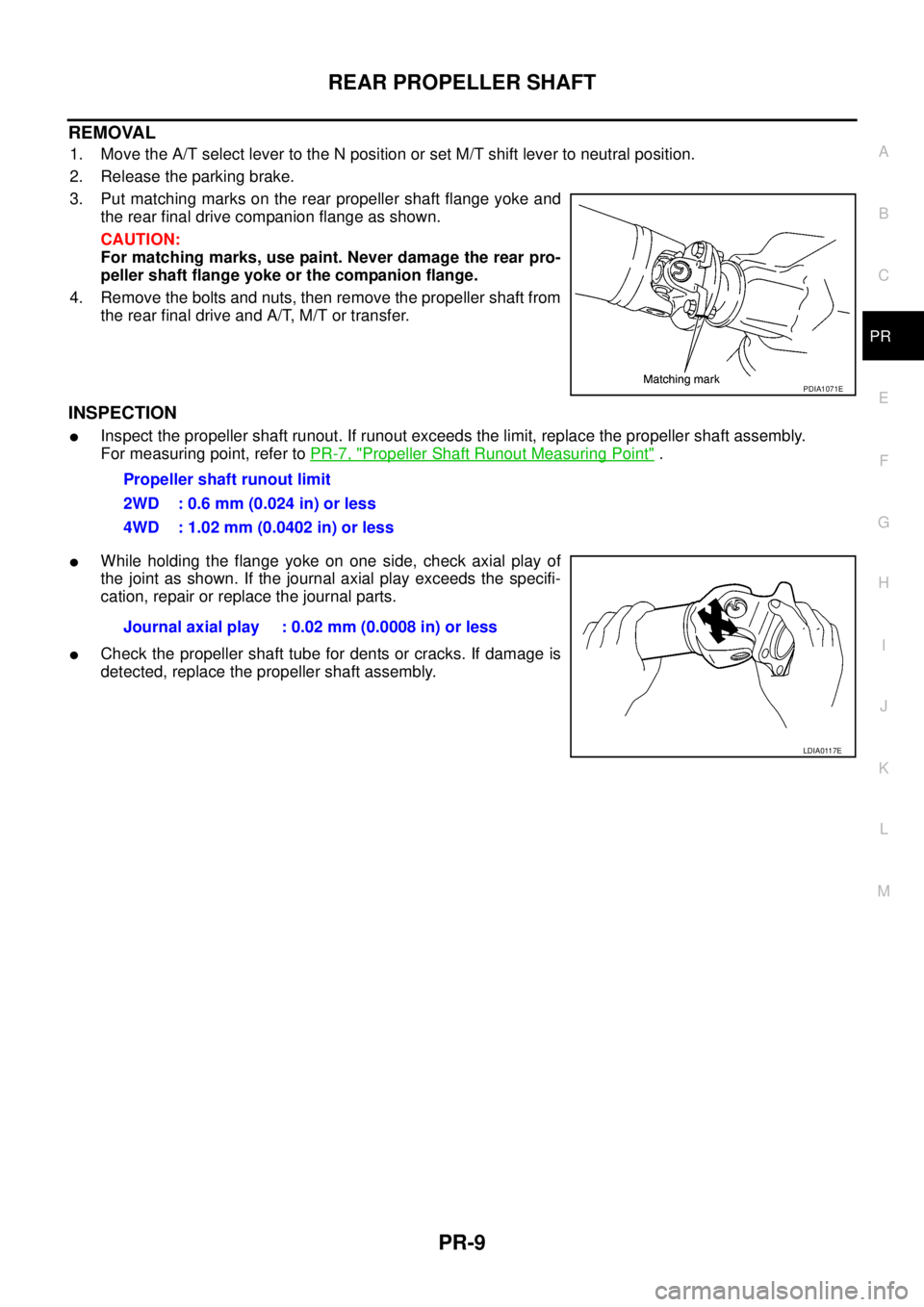

lInspect the propeller shaft runout. If runout exceeds the limit, replace the propeller shaft assembly.
For measuring point, refer toPR-7, "
Propeller Shaft Runout Measuring Point".
lWhile holding the flange yoke on one side, check axial play of
the joint as shown. If the journal axial play exceeds the specifi-
cation, repair or replace the journal parts.
lCheck the propeller shaft tube for dents or cracks. If damage is
detected, replace the propeller shaft assembly.
PDIA1071E
Propeller shaft runout limit
2WD : 0.6 mm (0.024 in) or less
4WD : 1.02 mm (0.0402 in) or less
Journal axial play : 0.02 mm (0.0008 in) or less
LDIA0117E
