Page 1849 of 3171
LAN-72
[CAN]
CAN SYSTEM (TYPE 3)

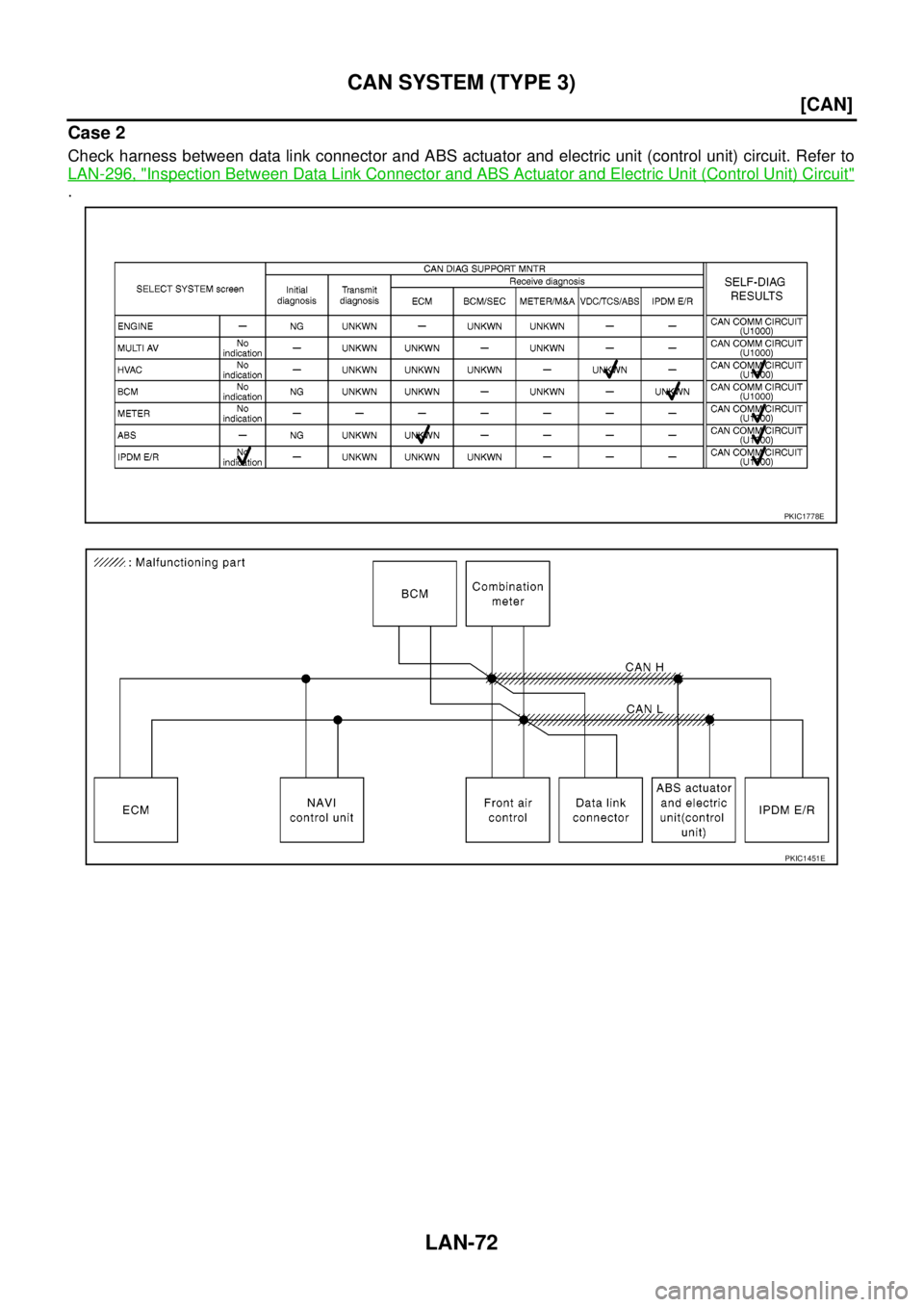

Case 2
Check harness between data link connector and ABS actuator and electric unit (control unit) circuit. Refer to
LAN-296, "
Inspection Between Data Link Connector and ABS Actuator and Electric Unit (Control Unit) Circuit"
.
PKIC1778E
PKIC1451E
Page 1850 of 3171
CAN SYSTEM (TYPE 3)
LAN-73
[CAN]
C
D
E
F
G
H
I
J
L
MA
B
LAN

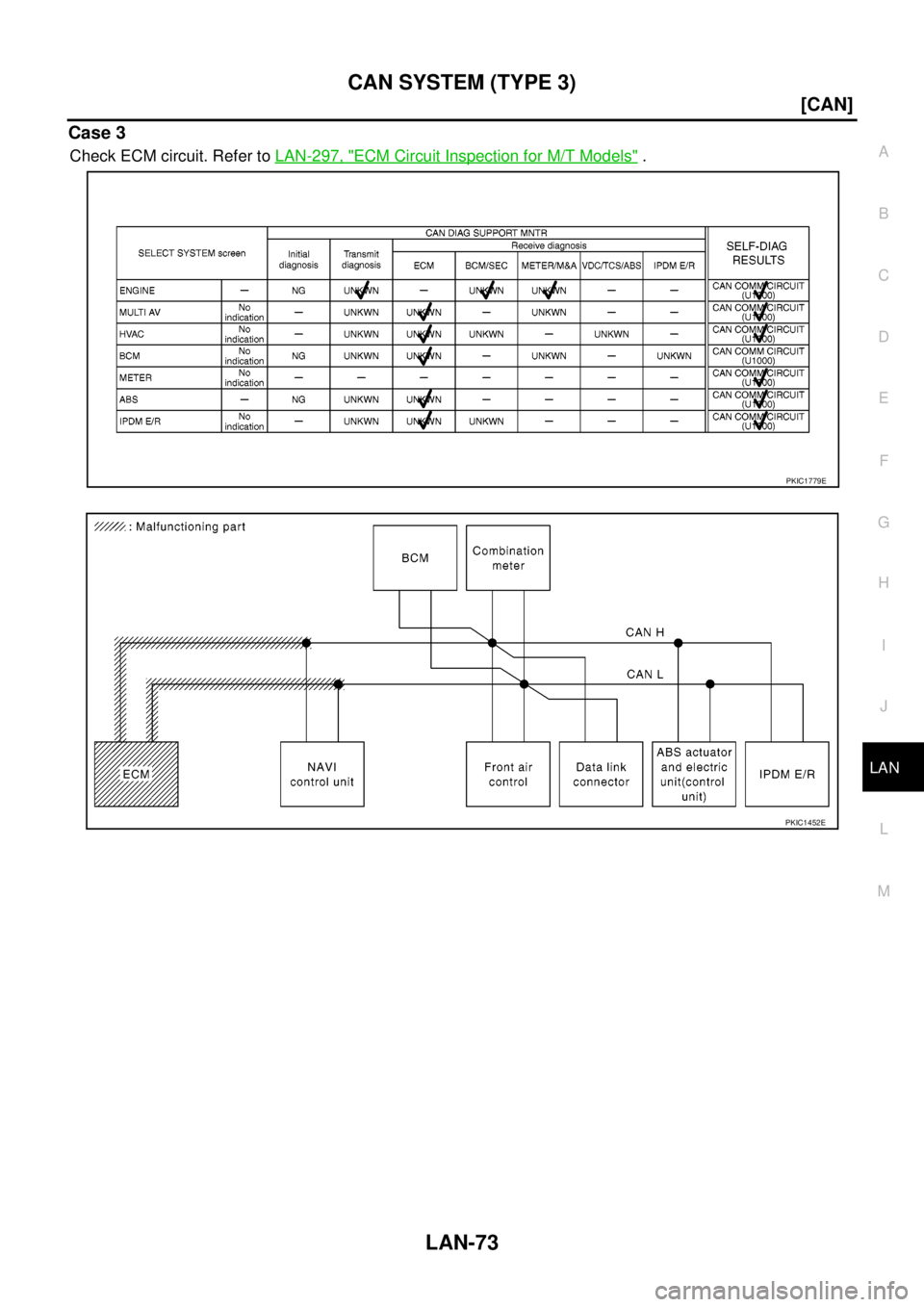

Case 3
Check ECM circuit. Refer toLAN-297, "ECM Circuit Inspection for M/T Models".
PKIC1779E
PKIC1452E
Page 1851 of 3171
LAN-74
[CAN]
CAN SYSTEM (TYPE 3)

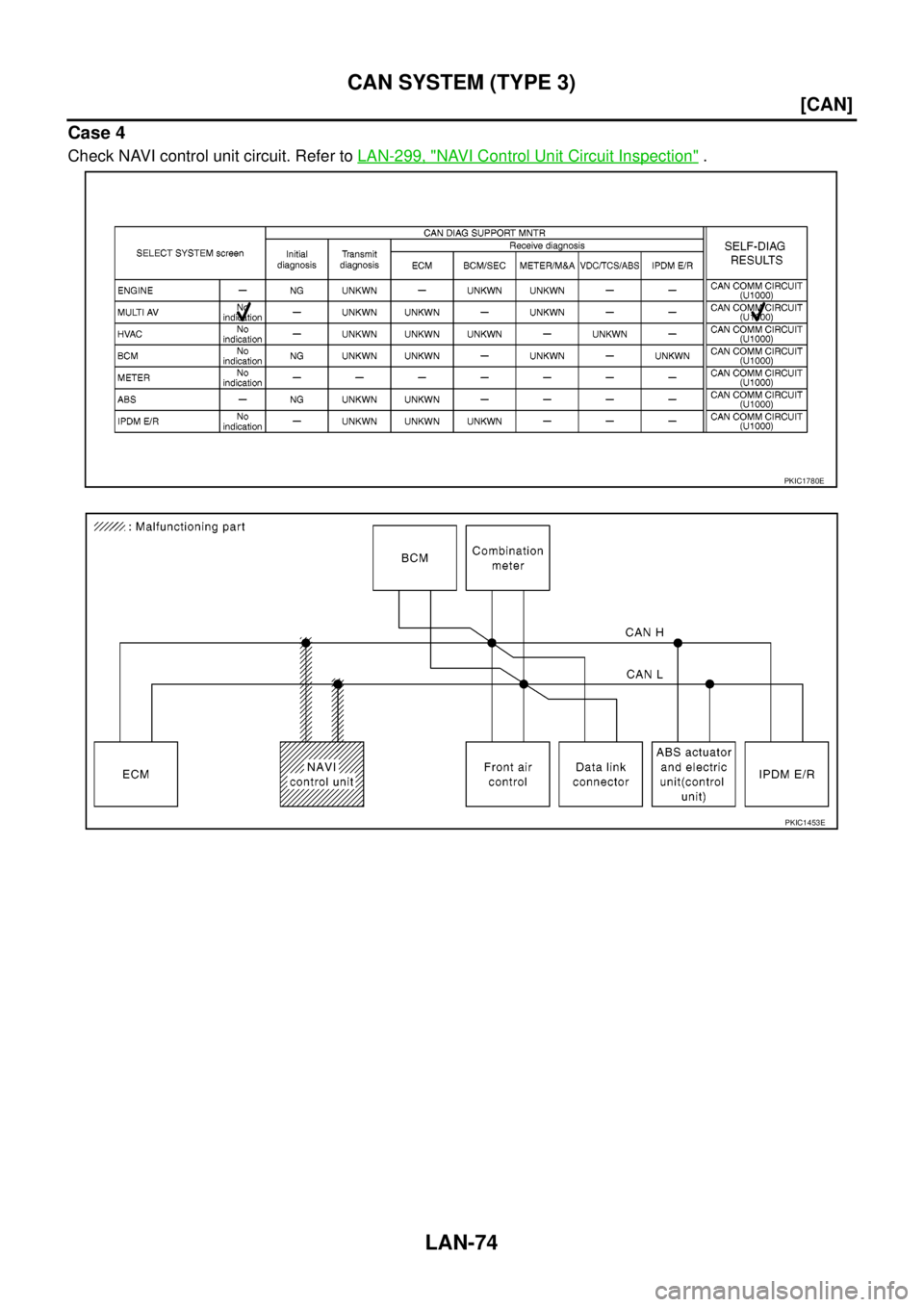

Case 4
Check NAVI control unit circuit. Refer toLAN-299, "NAVI Control Unit Circuit Inspection".
PKIC1780E
PKIC1453E
Page 1852 of 3171
CAN SYSTEM (TYPE 3)
LAN-75
[CAN]
C
D
E
F
G
H
I
J
L
MA
B
LAN

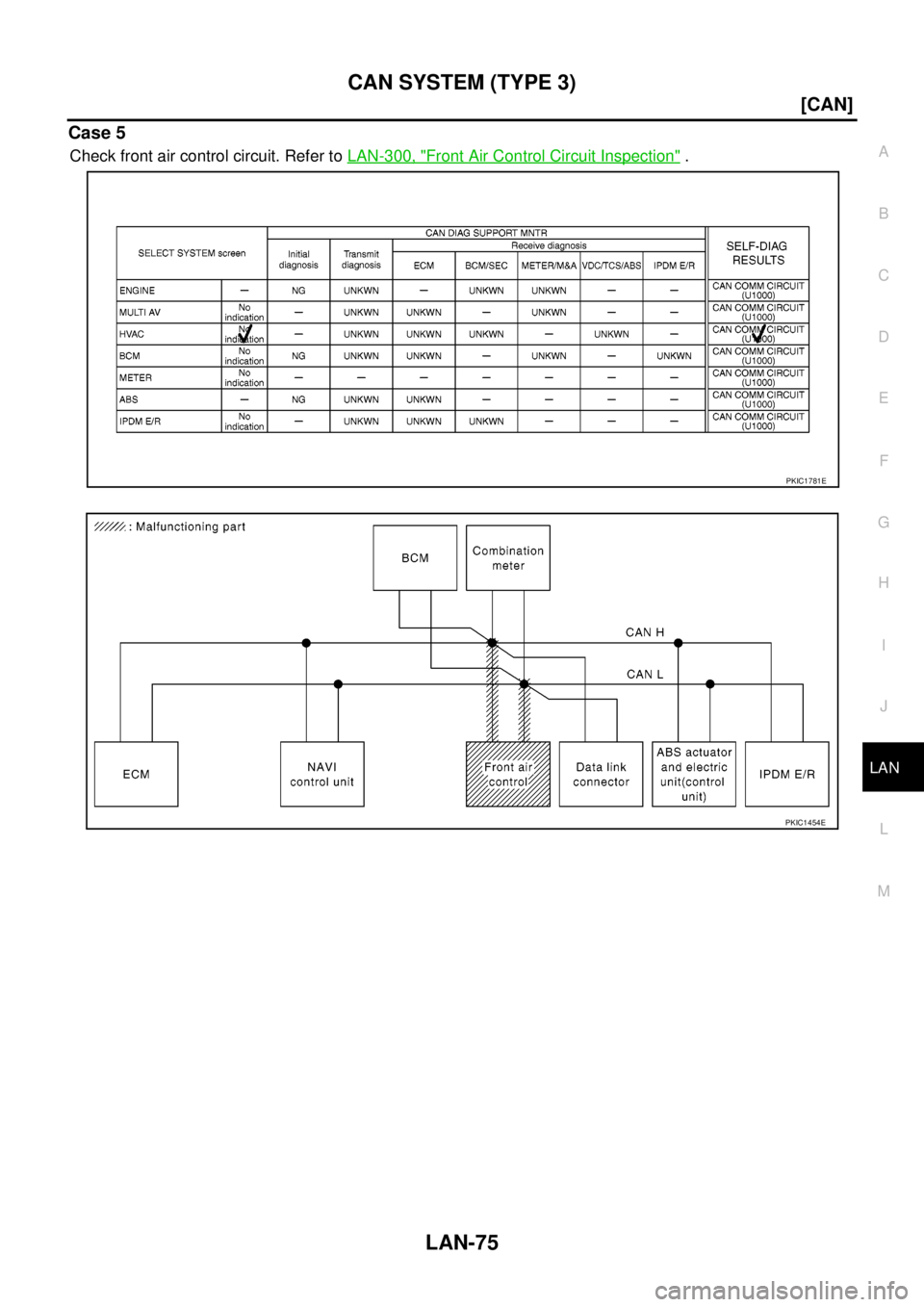

Case 5
Check front air control circuit. Refer toLAN-300, "Front Air Control Circuit Inspection".
PKIC1781E
PKIC1454E
Page 1853 of 3171
LAN-76
[CAN]
CAN SYSTEM (TYPE 3)

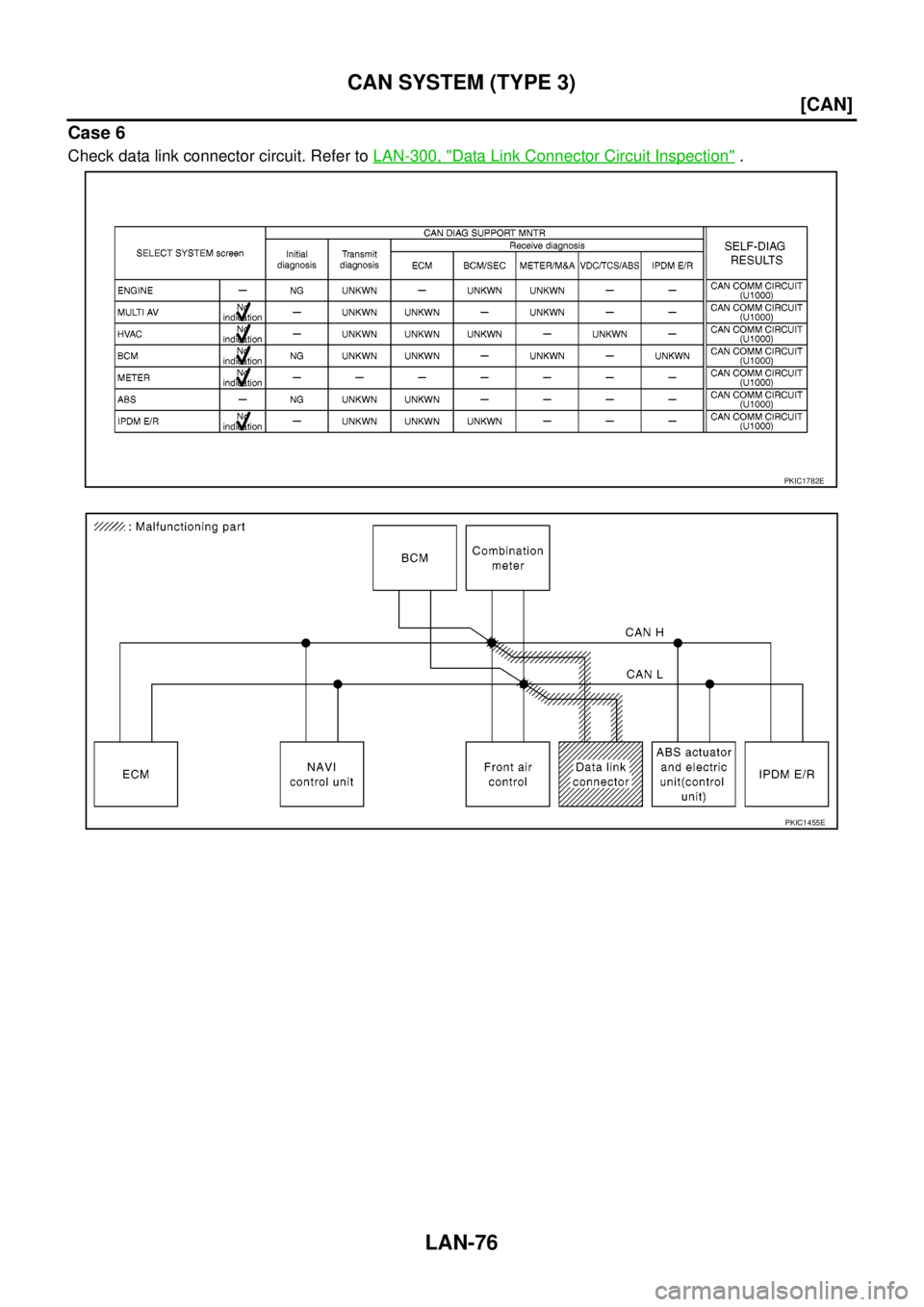

Case 6
Check data link connector circuit. Refer toLAN-300, "Data Link Connector Circuit Inspection".
PKIC1782E
PKIC1455E
Page 1854 of 3171
CAN SYSTEM (TYPE 3)
LAN-77
[CAN]
C
D
E
F
G
H
I
J
L
MA
B
LAN

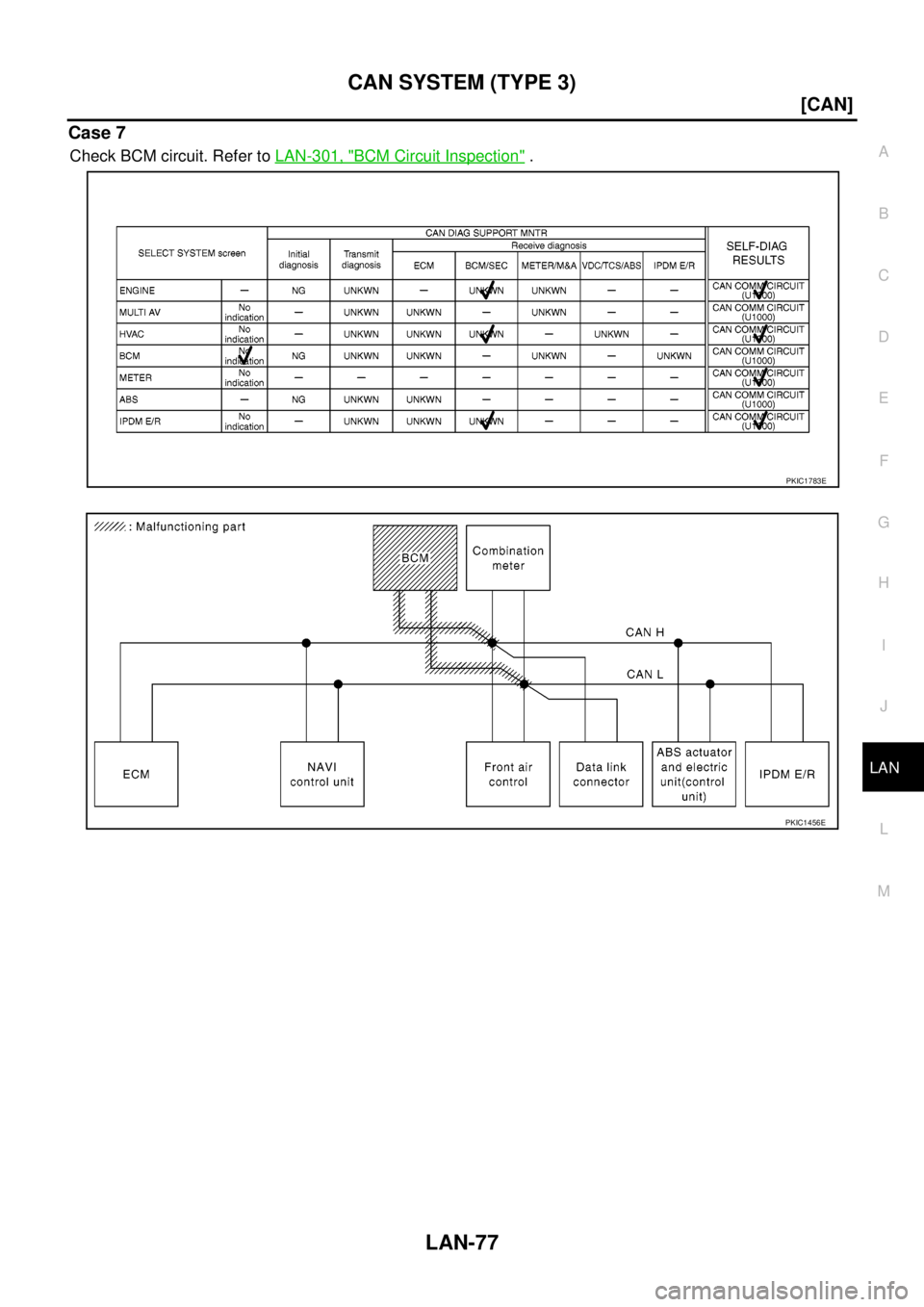

Case 7
Check BCM circuit. Refer toLAN-301, "BCM Circuit Inspection".
PKIC1783E
PKIC1456E
Page 1855 of 3171
LAN-78
[CAN]
CAN SYSTEM (TYPE 3)

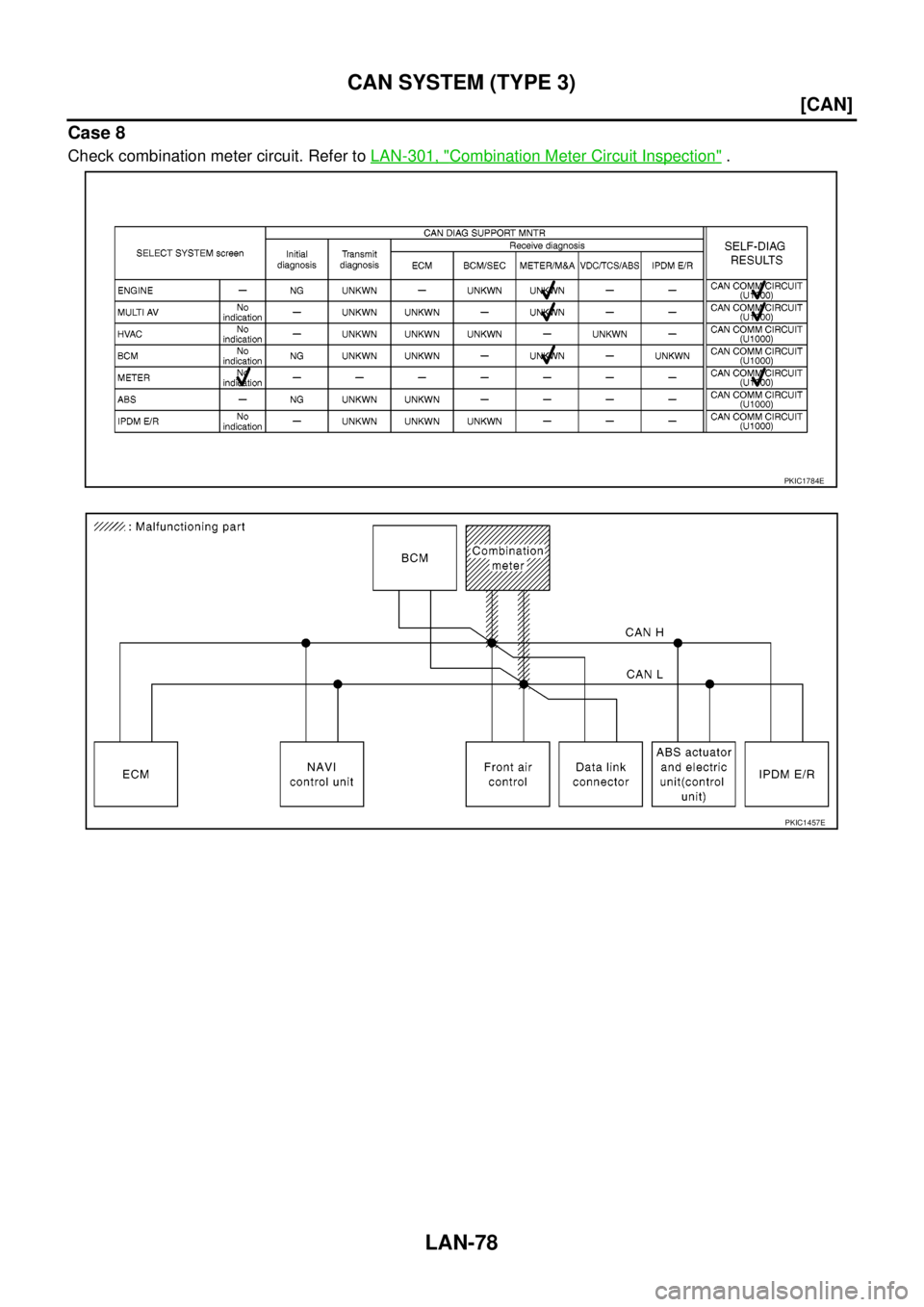

Case 8
Check combination meter circuit. Refer toLAN-301, "Combination Meter Circuit Inspection".
PKIC1784E
PKIC1457E
Page 1856 of 3171
CAN SYSTEM (TYPE 3)
LAN-79
[CAN]
C
D
E
F
G
H
I
J
L
MA
B
LAN

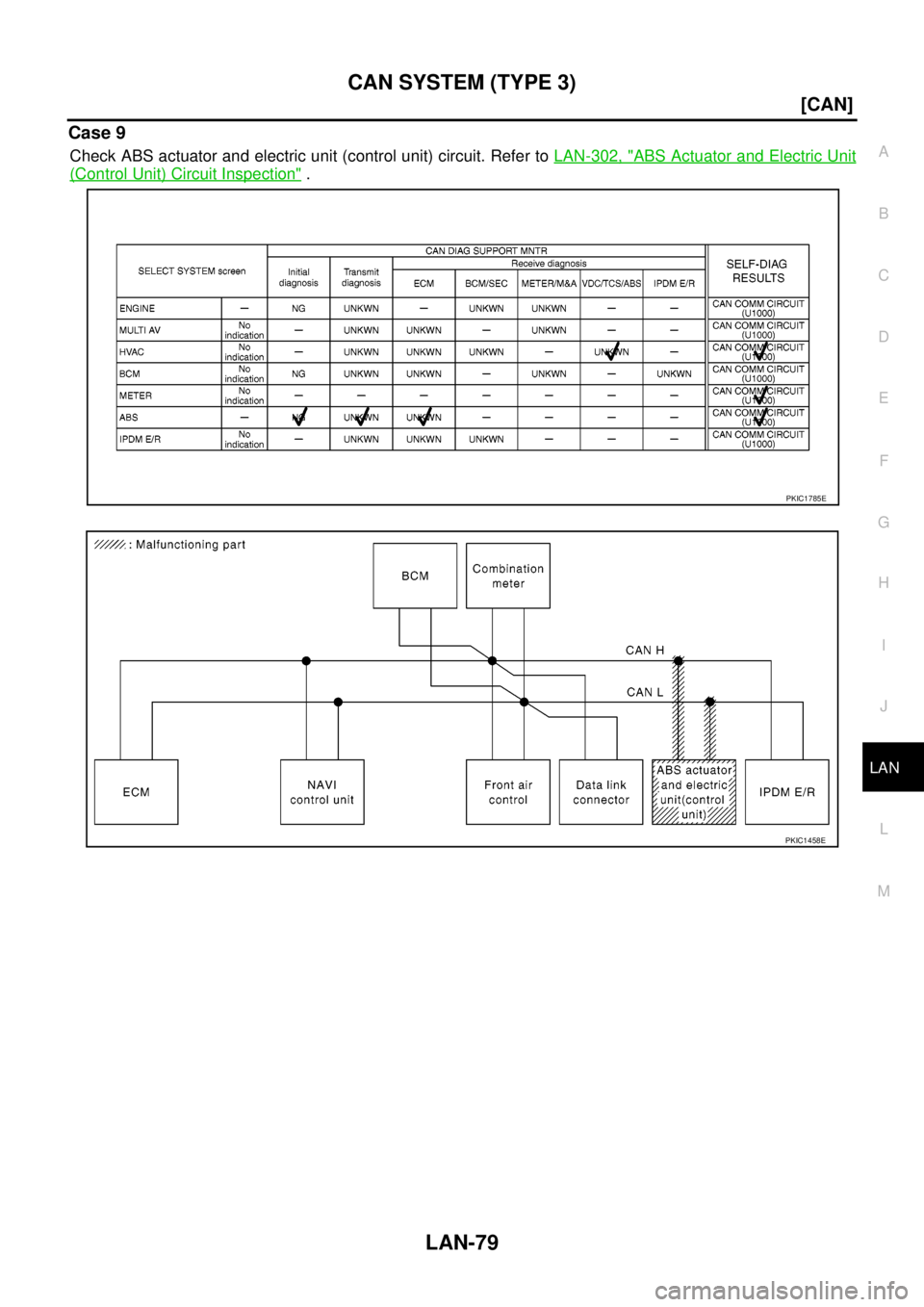

Case 9
Check ABS actuator and electric unit (control unit) circuit. Refer toLAN-302, "ABS Actuator and Electric Unit
(Control Unit) Circuit Inspection".
PKIC1785E
PKIC1458E
