NISSAN NAVARA 2005 Repair Workshop Manual DTC P1757 FRONT BRAKE SOLENOID VALVE
AT-137
D
E
F
G
H
I
J
K
L
MA
B
AT
DTC P1757 FRONT BRAKE SOLENOID VALVEPFP:31940
DescriptionECS00G02
Front brake solenoid valve is controlled by TCM in response to s

DTC P1757 FRONT BRAKE SOLENOID VALVE
AT-137
D
E
F
G
H
I
J
K
L
MA
B
AT
DTC P1757 FRONT BRAKE SOLENOID VALVEPFP:31940
DescriptionECS00G02
Front brake solenoid valve is controlled by TCM in response to signals sent from PNP switch, vehicle speed
sensor and accelerator pedal position sensor. Gears will then be shifted to the optimum position.
CONSULT-II Reference ValueECS00G03
On Board Diagnosis LogicECS00G04
Diagnostic trouble code “P1757 FR/B SOLENOID/CIRC” with CONSULT-II or 6th judgement flicker without
CONSULT-II is detected under the following conditions.
lWhen TCM detects an improper voltage drop when it tries to operate the solenoid valve.
lWhen TCM detects as irregular by comparing target value with monitor value.
Possible CauseECS00G05
lHarness or connectors
(The solenoid circuit is open or shorted.)
lFront brake solenoid valve
DTC Confirmation ProcedureECS00G06
CAUTION:
Always drive vehicle at a safe speed.
NOTE:
If “DTC Confirmation Procedure” has been previously performed, always turn ignition switch OFF and
wait at least 10 seconds before performing the next test.
After the repair, perform the following procedure to confirm the malfunction is eliminated.
WITH CONSULT-II
1. Turn ignition switch ON. (Do not start engine.)
2. Select “MAIN SIGNALS” in “DATA MONITOR” mode for “A/T”
with CONSULT-II.
3. Touch “START”.
4. Start engine.
5. Drive vehicle and maintain the following conditions for at least 5
consecutive seconds.
ACCELE POSI: 1.5/8 - 2.0/8
SLCT LVR POSI: “D” position
GEAR: “3”“4” (FR/B ON/OFF)
Driving location: Driving the vehicle uphill (increased
engine load) will help maintain the driving conditions required for this test.
6. If DTC is detected go toAT- 1 3 8 , "
Diagnostic Procedure".
WITHOUT CONSULT-II
1. Start engine.
2. Drive vehicle and maintain the following conditions for at least 5 consecutive seconds.
Accelerator opening: 1.5/8 - 2.0/8
Selector lever position: “D” position
Gear position: “3”“4” (FR/B ON/OFF)
Driving location: Driving the vehicle uphill (increased engine load) will help maintain the driving
conditions required for this test.
3. Perform self-diagnosis. Refer toAT-89, "
Diagnostic Procedure Without CONSULT-II".
4. If DTC is detected, go toAT- 1 3 8 , "
Diagnostic Procedure".
Item name Condition Display value (Approx.)
FR/B SOLENOIDFront brake engaged. Refer toAT- 1 7
.0.6-0.8A
Front brake disengaged. Refer toAT- 1 7
.0-0.05A
BCIA0031E

Page 146 of 3171

NISSAN NAVARA 2005 Repair Workshop Manual AT-138
DTC P1757 FRONT BRAKE SOLENOID VALVE
Diagnostic Procedure
ECS00G07
1.CHECK INPUT SIGNAL
With CONSULT-II
1. Turn ignition switch ON. (Do not start engine.)
2. Select “MAIN SIGNALS” in “DAT

Page 147 of 3171

NISSAN NAVARA 2005 Repair Workshop Manual DTC P1759 FRONT BRAKE SOLENOID VALVE FUNCTION
AT-139
D
E
F
G
H
I
J
K
L
MA
B
AT
DTC P1759 FRONT BRAKE SOLENOID VALVE FUNCTIONPFP:31940
DescriptionECS00G08
lFront brake solenoid valve is controlled by T

DTC P1759 FRONT BRAKE SOLENOID VALVE FUNCTION
AT-139
D
E
F
G
H
I
J
K
L
MA
B
AT
DTC P1759 FRONT BRAKE SOLENOID VALVE FUNCTIONPFP:31940
DescriptionECS00G08
lFront brake solenoid valve is controlled by TCM in response to signals sent from PNP switch, vehicle
speed sensor and accelerator pedal position sensor. Gears will then be shifted to the optimum position.
lThis is not only caused by electrical malfunction (circuits open or shorted) but also by mechanical mal-
function such as control valve sticking, improper solenoid valve operation.
CONSULT-II Reference ValueECS00G09
On Board Diagnosis LogicECS00G0A
Diagnostic trouble code “P1759 FR/B SOLENOID FNCT” with CONSULT-II or 6th judgement flicker without
CONSULT-II is detected under the following conditions.
lWhen TCM detects that actual gear ratio is irregular, and relation between gear position and condition of
ATF pressure switch 1 is irregular during depressing accelerator pedal. (Other than during shift change)
lWhen TCM detects that relation between gear position and condition of ATF pressure switch 1 is irregular
during releasing accelerator pedal. (Other than during shift change)
Possible CauseECS00G0B
lHarness or connectors
(The solenoid and switch circuits are open or shorted.)
lFront brake solenoid valve
lATFpressureswitch1
DTC Confirmation ProcedureECS00G0C
CAUTION:
Always drive vehicle at a safe speed.
NOTE:
If “DTC Confirmation Procedure” has been previously performed, always turn ignition switch OFF and
wait at least 10 seconds before performing the next test.
After the repair, perform the following procedure to confirm the malfunction is eliminated.
WITH CONSULT-II
1. Start engine.
2. Accelerate vehicle to maintain the following conditions.
ACCELE POSI: 1.5/8 - 2.0/8
SLCT LVR POSI: “D” position
GEAR: “3”“4” (FR/B ON/OFF)
Driving location: Driving the vehicle uphill (increased
engine load) will help maintain the driving conditions
required for this test.
3. Perform step 2 again.
4. Turn ignition switch OFF, then perform step 1 to 3 again.
5. Check “SELF-DIAG RESULTS” mode for “A/T” with CONSULT-
II. If DTC (P1759) is detected, go toAT- 1 4 0 , "
Diagnostic Procedure".
If DTC (P1757) is detected, go toAT- 1 3 8 , "
Diagnostic Procedure".
If DTC (P1841) is detected, go toAT- 1 5 7 , "
Diagnostic Procedure".
Item name Condition Display value (Approx.)
FR/B SOLENOIDFront brake engaged. Refer toAT- 1 7
.0.6-0.8A
Front brake disengaged. Refer toAT- 1 7
.0-0.05A
AT F P R E S S W 1Front brake engaged. Refer toAT- 1 7
.ON
Front brake disengaged. Refer toAT- 1 7
.OFF
BCIA0031E

Page 148 of 3171

NISSAN NAVARA 2005 Repair Workshop Manual AT-140
DTC P1759 FRONT BRAKE SOLENOID VALVE FUNCTION
WITHOUT CONSULT-II
1. Start engine.
2. Accelerate vehicle to maintain the following conditions.
Accelerator opening: 1.5/8 - 2.0/8
Selector lever p

Page 149 of 3171

NISSAN NAVARA 2005 Repair Workshop Manual DTC P1759 FRONT BRAKE SOLENOID VALVE FUNCTION
AT-141
D
E
F
G
H
I
J
K
L
MA
B
AT
4.CHECK DTC
PerformAT- 1 3 9 , "
DTC Confirmation Procedure".
OK or NG
OK >>INSPECTION END
NG >> GO TO 2.

Page 150 of 3171

NISSAN NAVARA 2005 Repair Workshop Manual AT-142
DTCP1762DIRECTCLUTCHSOLENOIDVALVE

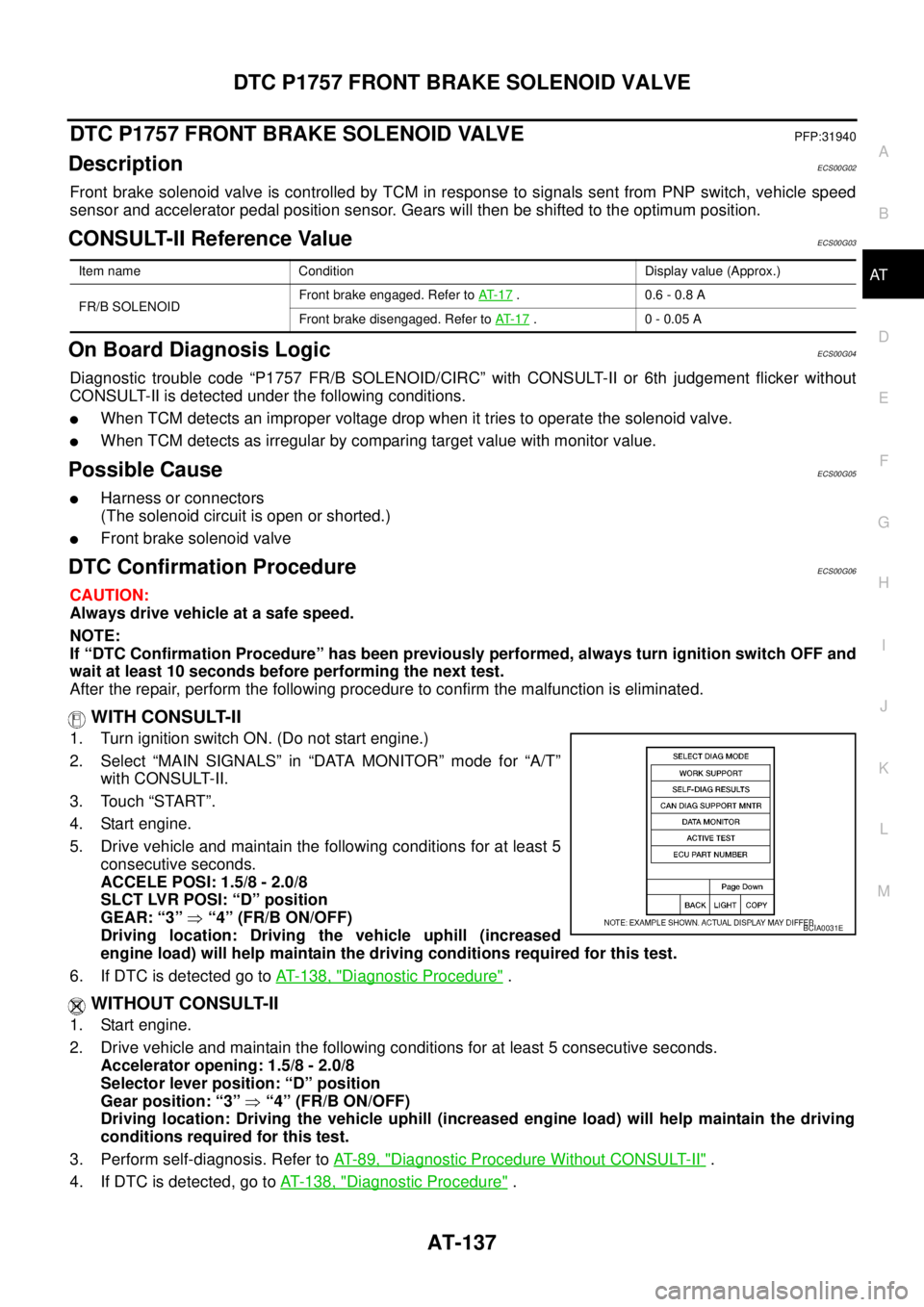

DTC P1762 DIRECT CLUTCH SOLENOID VALVE
PFP:31940
DescriptionECS00G0E
Direct clutch solenoid valve is controlled by TCM in response to signals sent from PNP swi

AT-142
DTCP1762DIRECTCLUTCHSOLENOIDVALVE
DTC P1762 DIRECT CLUTCH SOLENOID VALVE
PFP:31940
DescriptionECS00G0E
Direct clutch solenoid valve is controlled by TCM in response to signals sent from PNP switch, vehicle speed
sensor and accelerator pedal position sensor. Gears will then be shifted to the optimum position.
CONSULT-II Reference ValueECS00G0F
On Board Diagnosis LogicECS00G0G
Diagnostic trouble code “P1762 D/C SOLENOID/CIRC” with CONSULT-II or 2nd judgement flicker without
CONSULT-II is detected under the following conditions.
lWhen TCM detects an improper voltage drop when it tries to operate the solenoid valve.
lWhen TCM detects as irregular by comparing target value with monitor value.
Possible CauseECS00G0H
lHarness or connectors
(The solenoid circuit is open or shorted.)
lDirect clutch solenoid valve
DTC Confirmation ProcedureECS00G0I
CAUTION:
Always drive vehicle at a safe speed.
NOTE:
If “DTC Confirmation Procedure” has been previously performed, always turn ignition switch OFF and
wait at least 10 seconds before performing the next test.
After the repair, perform the following procedure to confirm the malfunction is eliminated.
WITH CONSULT-II
1. Turn ignition switch ON. (Do not start engine.)
2. Select “MAIN SIGNALS” in “DATA MONITOR” mode for “A/T”
with CONSULT-II.
3. Touch “START”.
4. Start engine.
5. Drive vehicle and maintain the following conditions for at least 5
consecutive seconds.
ACCELE POSI: 1.5/8 - 2.0/8
SLCT LVR POSI: “D” position
GEAR: “1”“2” (D/C ON/OFF)
Driving location: Driving the vehicle uphill (increased
engine load) will help maintain the driving conditions required for this test.
6. If DTC is detected, go toAT- 1 4 3 , "
Diagnostic Procedure".
WITHOUT CONSULT-II
1. Start engine.
2. Drive vehicle and maintain the following conditions for at least 5 consecutive seconds.
Accelerator opening: 1.5/8 - 2.0/8
Selector lever position: “D” position
Gear position: “1”“2” (D/C ON/OFF)
Driving location: Driving the vehicle uphill (increased engine load) will help maintain the driving
conditions required for this test.
3. Perform self-diagnosis. Refer toAT-89, "
Diagnostic Procedure Without CONSULT-II".
4. If DTC is detected, go toAT- 1 4 3 , "
Diagnostic Procedure".
Item name Condition Display value (Approx.)
D/C SOLENOIDDirect clutch disengaged. Refer toAT- 1 7
. 0.6 - 0.8 A
Direct clutch engaged. Refer toAT- 1 7
.0-0.05A
BCIA0031E

Page 151 of 3171

NISSAN NAVARA 2005 Repair Workshop Manual DTC P1762 DIRECT CLUTCH SOLENOID VALVE
AT-143
D
E
F
G
H
I
J
K
L
MA
B
AT

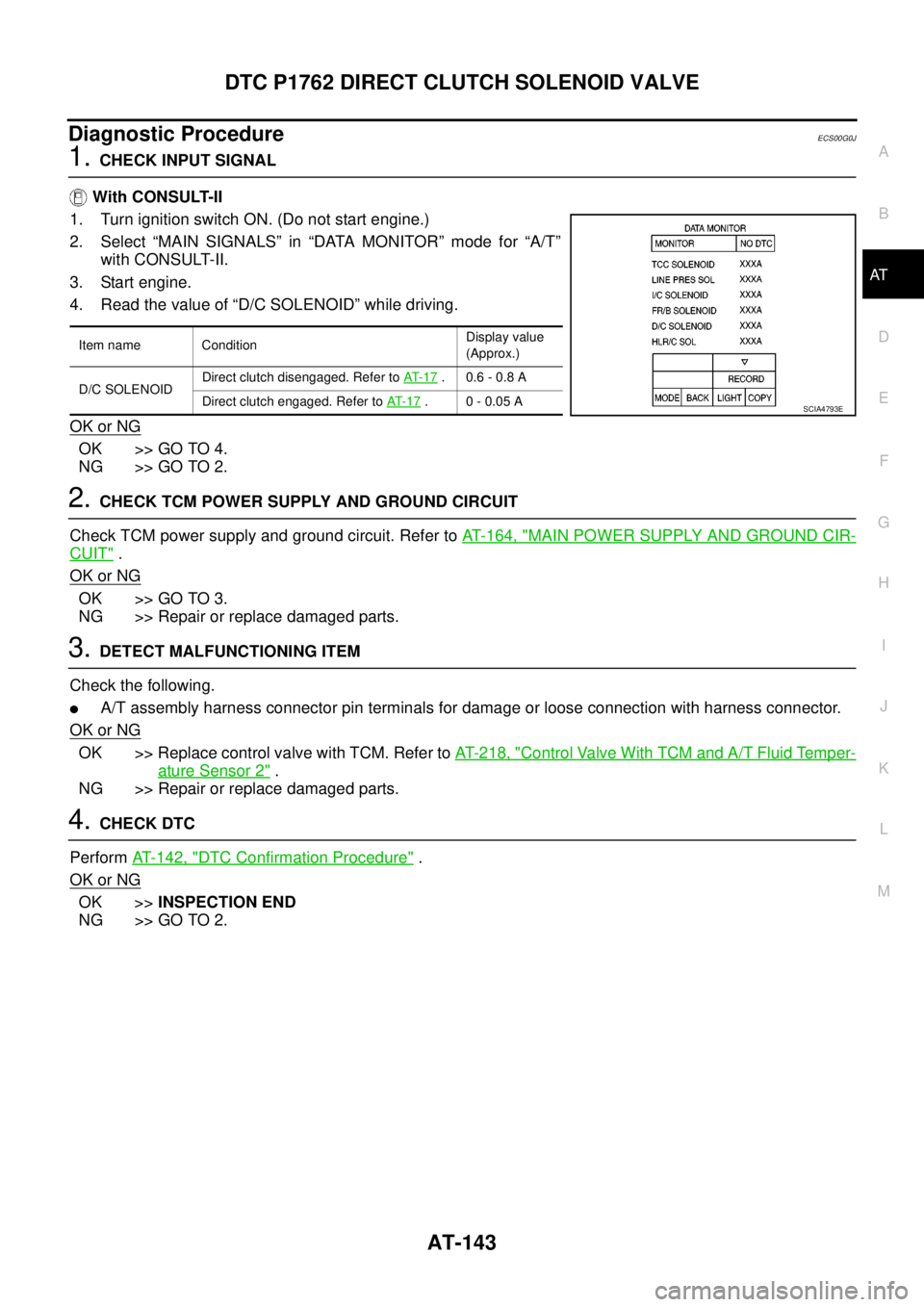

Diagnostic ProcedureECS00G0J
1.CHECK INPUT SIGNAL
With CONSULT-II
1. Turn ignition switch ON. (Do not start engine.)
2. Select �

Page 152 of 3171

NISSAN NAVARA 2005 Repair Workshop Manual AT-144

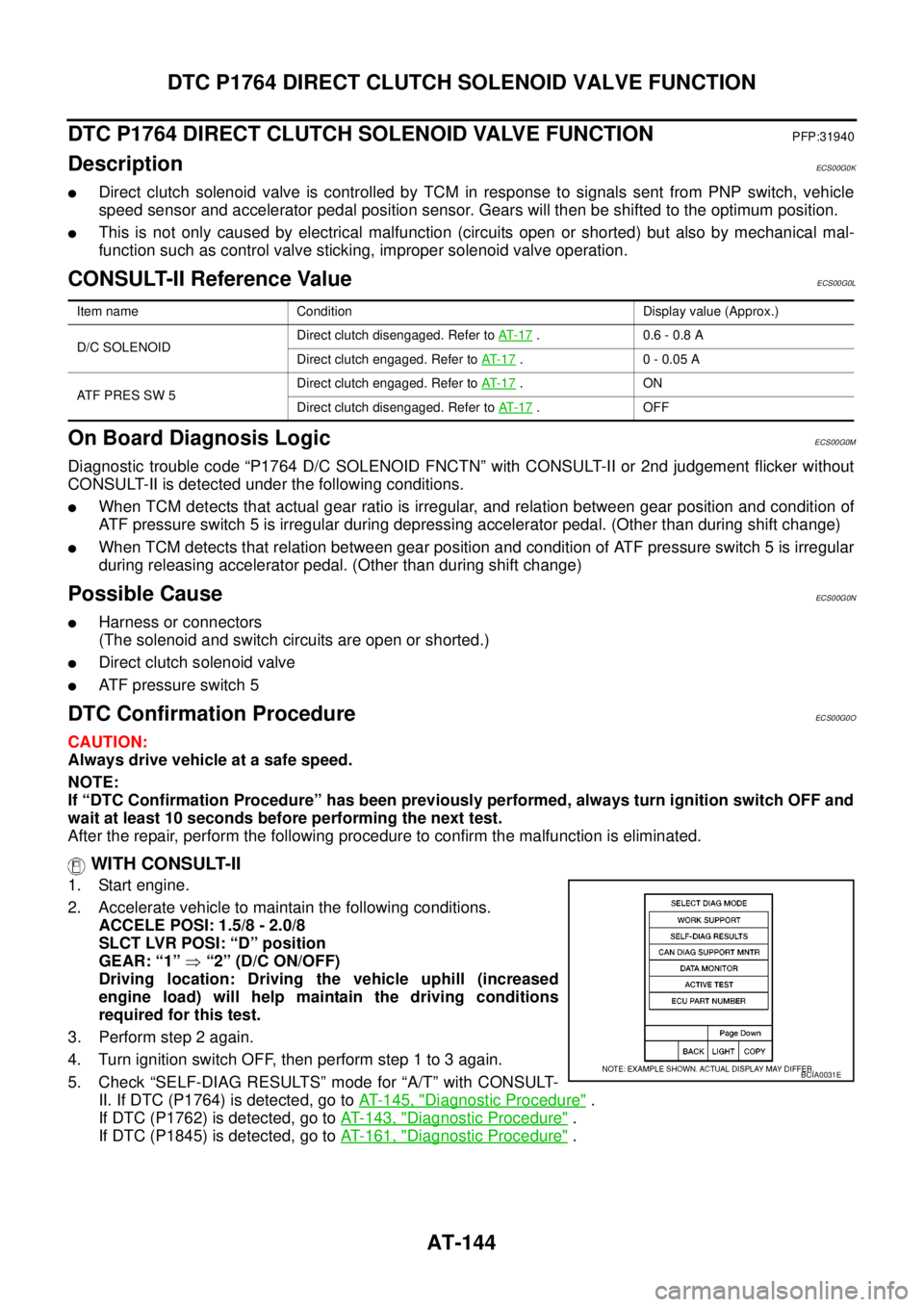

DTC P1764 DIRECT CLUTCH SOLENOID VALVE FUNCTION
DTC P1764 DIRECT CLUTCH SOLENOID VALVE FUNCTION
PFP:31940
DescriptionECS00G0K
lDirect clutch solenoid valve is controlled by TCM in response to s

AT-144
DTC P1764 DIRECT CLUTCH SOLENOID VALVE FUNCTION
DTC P1764 DIRECT CLUTCH SOLENOID VALVE FUNCTION
PFP:31940
DescriptionECS00G0K
lDirect clutch solenoid valve is controlled by TCM in response to signals sent from PNP switch, vehicle
speed sensor and accelerator pedal position sensor. Gears will then be shifted to the optimum position.
lThis is not only caused by electrical malfunction (circuits open or shorted) but also by mechanical mal-
function such as control valve sticking, improper solenoid valve operation.
CONSULT-II Reference ValueECS00G0L
On Board Diagnosis LogicECS00G0M
Diagnostic trouble code “P1764 D/C SOLENOID FNCTN” with CONSULT-II or 2nd judgement flicker without
CONSULT-II is detected under the following conditions.
lWhen TCM detects that actual gear ratio is irregular, and relation between gear position and condition of
ATF pressure switch 5 is irregular during depressing accelerator pedal. (Other than during shift change)
lWhen TCM detects that relation between gear position and condition of ATF pressure switch 5 is irregular
during releasing accelerator pedal. (Other than during shift change)
Possible CauseECS00G0N
lHarness or connectors
(The solenoid and switch circuits are open or shorted.)
lDirect clutch solenoid valve
lATF pressure switch 5
DTC Confirmation ProcedureECS00G0O
CAUTION:
Always drive vehicle at a safe speed.
NOTE:
If “DTC Confirmation Procedure” has been previously performed, always turn ignition switch OFF and
wait at least 10 seconds before performing the next test.
After the repair, perform the following procedure to confirm the malfunction is eliminated.
WITH CONSULT-II
1. Start engine.
2. Accelerate vehicle to maintain the following conditions.
ACCELE POSI: 1.5/8 - 2.0/8
SLCT LVR POSI: “D” position
GEAR: “1”“2” (D/C ON/OFF)
Driving location: Driving the vehicle uphill (increased
engine load) will help maintain the driving conditions
required for this test.
3. Perform step 2 again.
4. Turn ignition switch OFF, then perform step 1 to 3 again.
5. Check “SELF-DIAG RESULTS” mode for “A/T” with CONSULT-
II. If DTC (P1764) is detected, go toAT- 1 4 5 , "
Diagnostic Procedure".
If DTC (P1762) is detected, go toAT- 1 4 3 , "
Diagnostic Procedure".
If DTC (P1845) is detected, go toAT- 1 6 1 , "
Diagnostic Procedure".
Item name Condition Display value (Approx.)
D/C SOLENOIDDirect clutch disengaged. Refer toAT- 1 7
. 0.6 - 0.8 A
Direct clutch engaged. Refer toAT- 1 7
.0-0.05A
AT F P R E S S W 5Direct clutch engaged. Refer toAT- 1 7
.ON
Direct clutch disengaged. Refer toAT- 1 7
.OFF
BCIA0031E

Load next 8 pages

Page: < prev 1-10 ... 113-120 121-128 129-136 137-144 145-152 153-160 161-168 169-176 177-184 ... 3176 next >

check transmission fluid oil temperature cooling refuelling power steering air condition
