Page 1937 of 3171
LAN-160
[CAN]
CAN SYSTEM (TYPE 9)

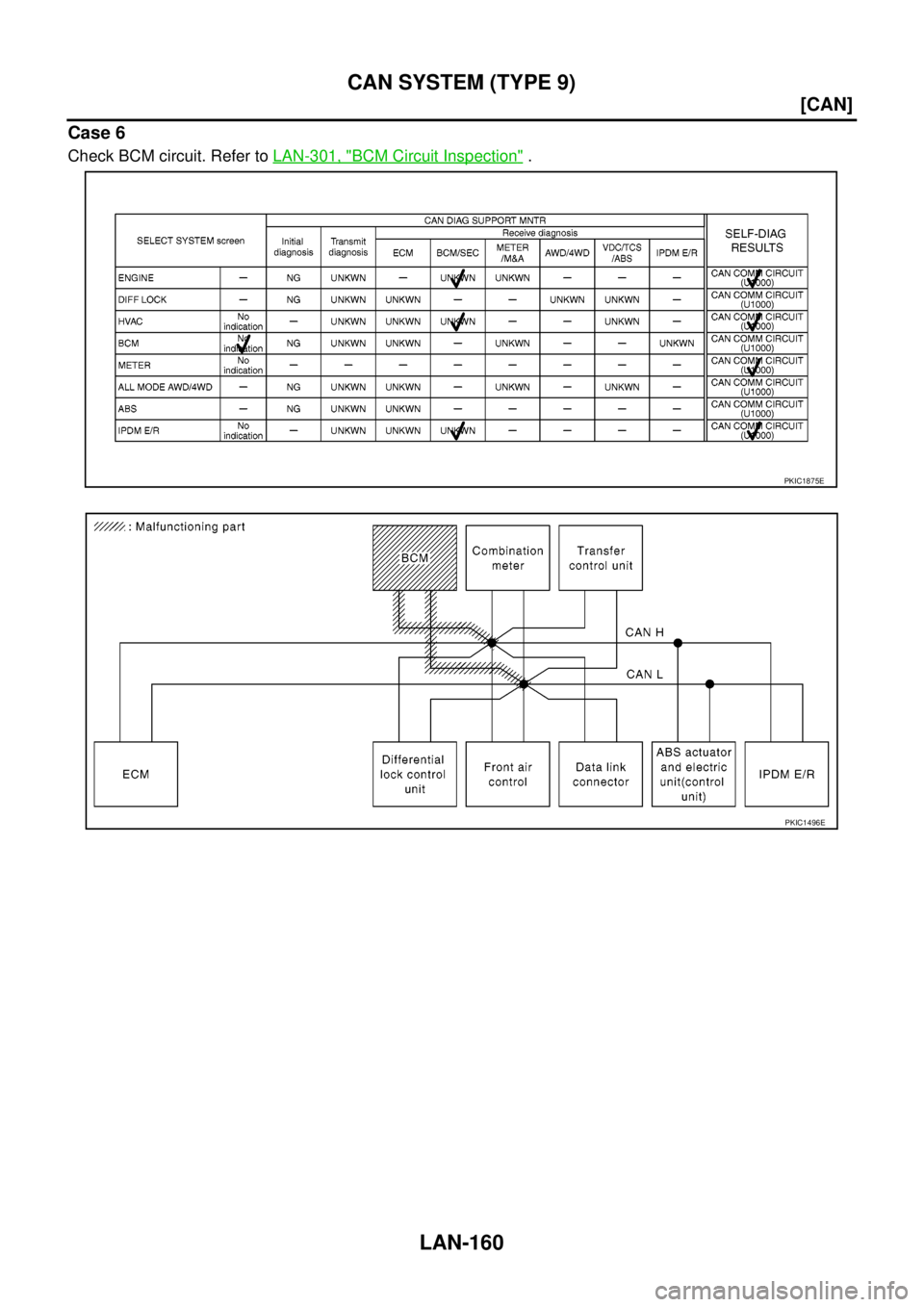

Case 6
Check BCM circuit. Refer toLAN-301, "BCM Circuit Inspection".
PKIC1875E
PKIC1496E
Page 1938 of 3171
CAN SYSTEM (TYPE 9)
LAN-161
[CAN]
C
D
E
F
G
H
I
J
L
MA
B
LAN

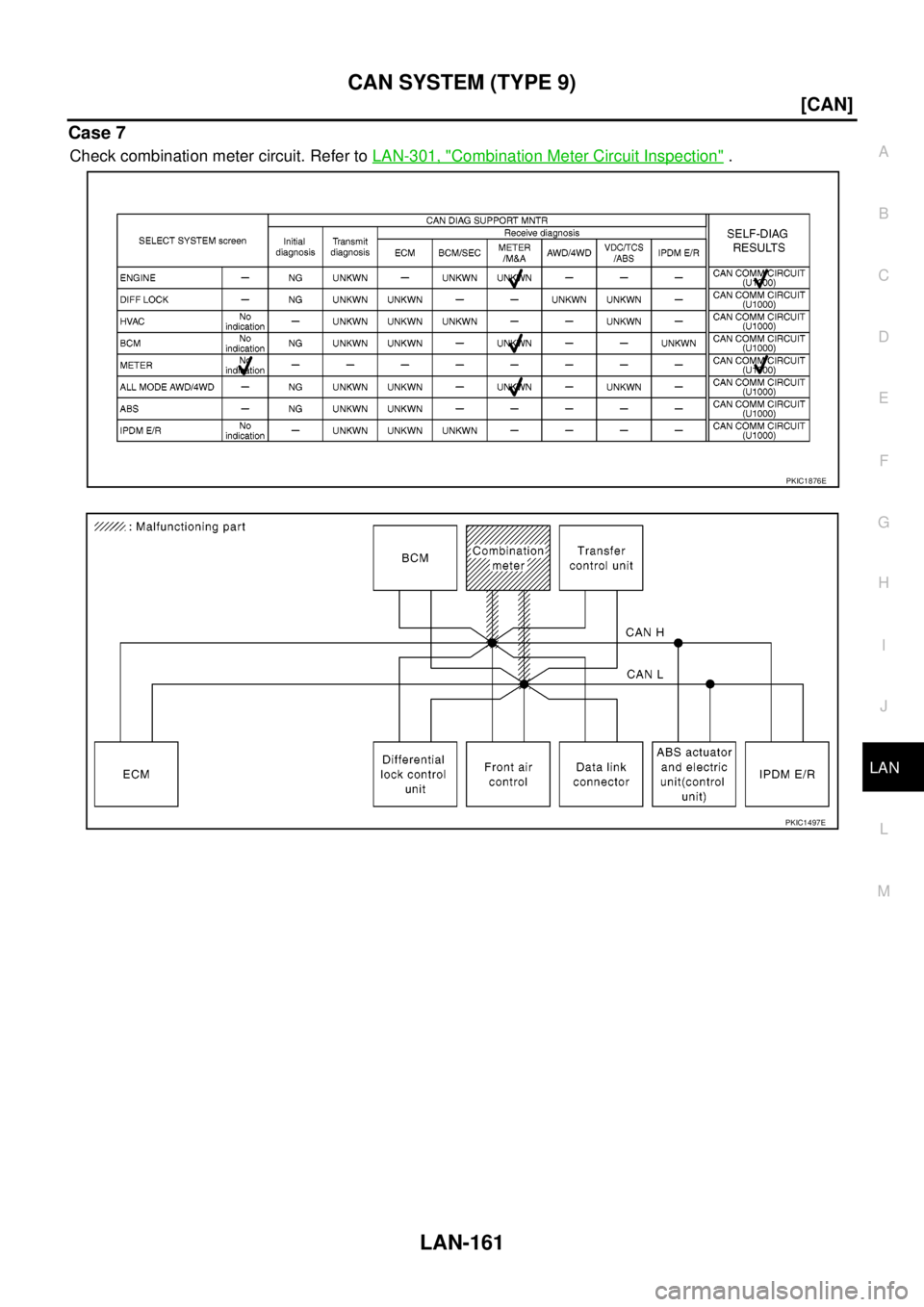

Case 7
Check combination meter circuit. Refer toLAN-301, "Combination Meter Circuit Inspection".
PKIC1876E
PKIC1497E
Page 1939 of 3171
LAN-162
[CAN]
CAN SYSTEM (TYPE 9)

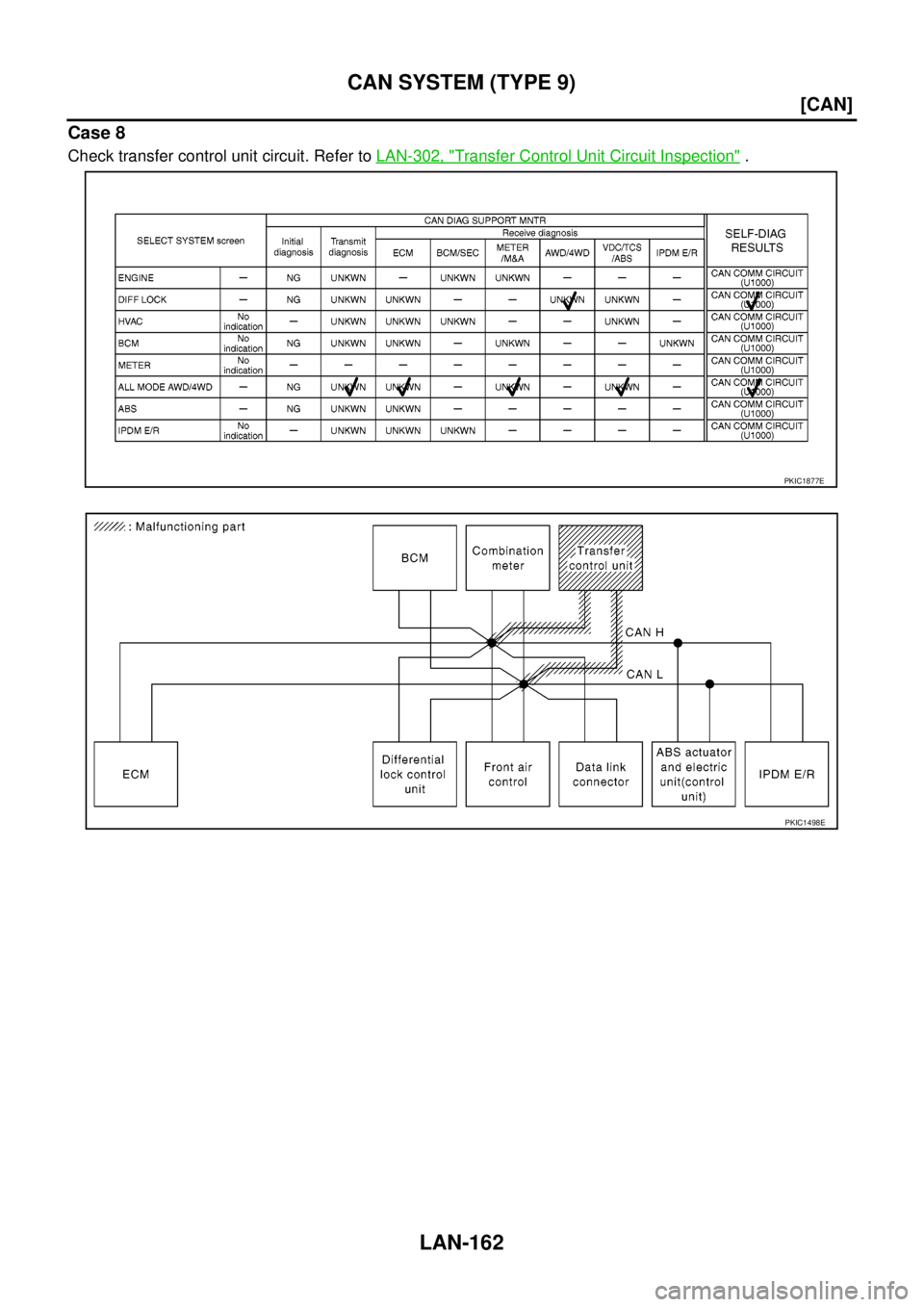

Case 8
Check transfer control unit circuit. Refer toLAN-302, "Transfer Control Unit Circuit Inspection".
PKIC1877E
PKIC1498E
Page 1940 of 3171
CAN SYSTEM (TYPE 9)
LAN-163
[CAN]
C
D
E
F
G
H
I
J
L
MA
B
LAN

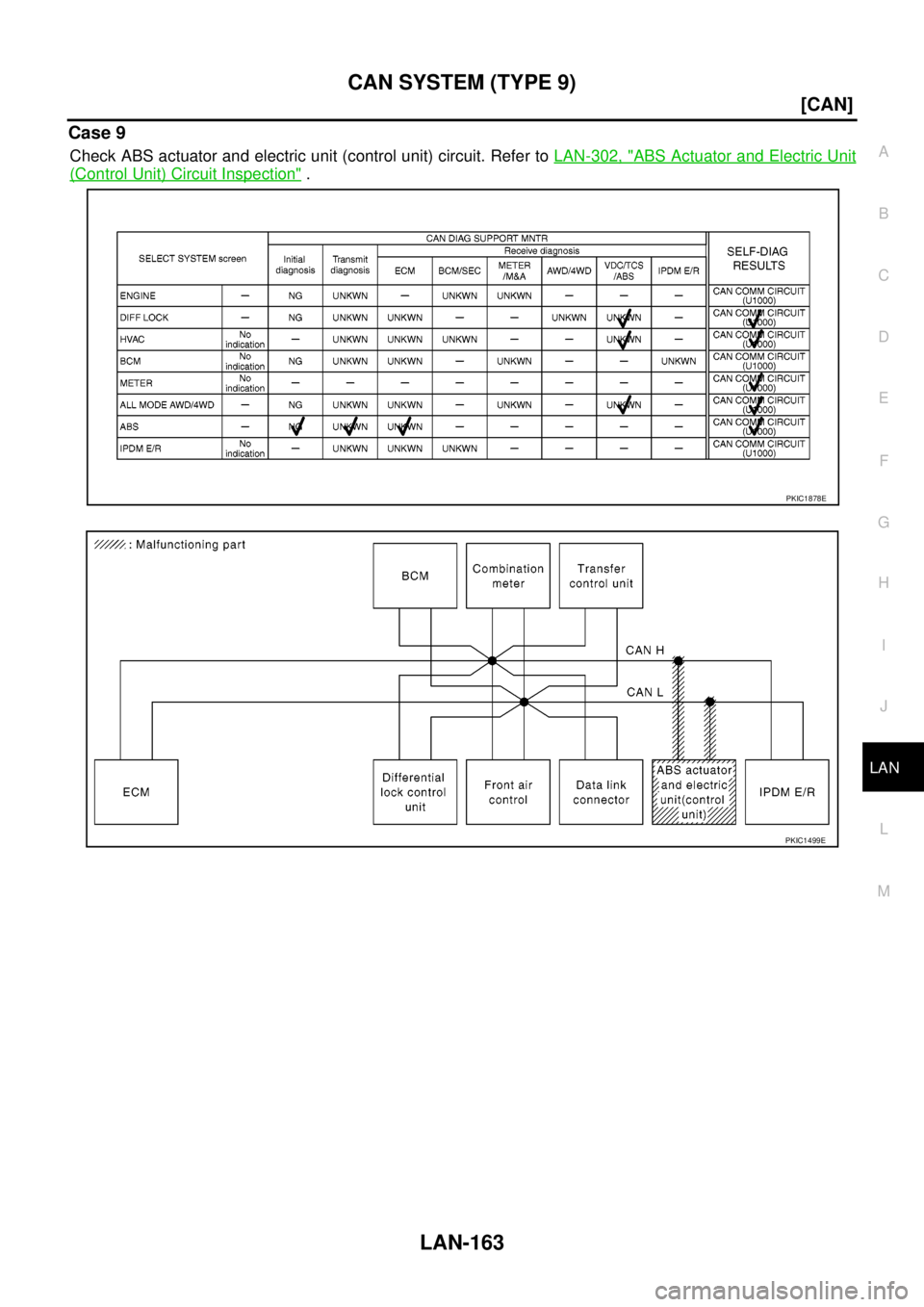

Case 9
Check ABS actuator and electric unit (control unit) circuit. Refer toLAN-302, "ABS Actuator and Electric Unit
(Control Unit) Circuit Inspection".
PKIC1878E
PKIC1499E
Page 1941 of 3171
LAN-164
[CAN]
CAN SYSTEM (TYPE 9)

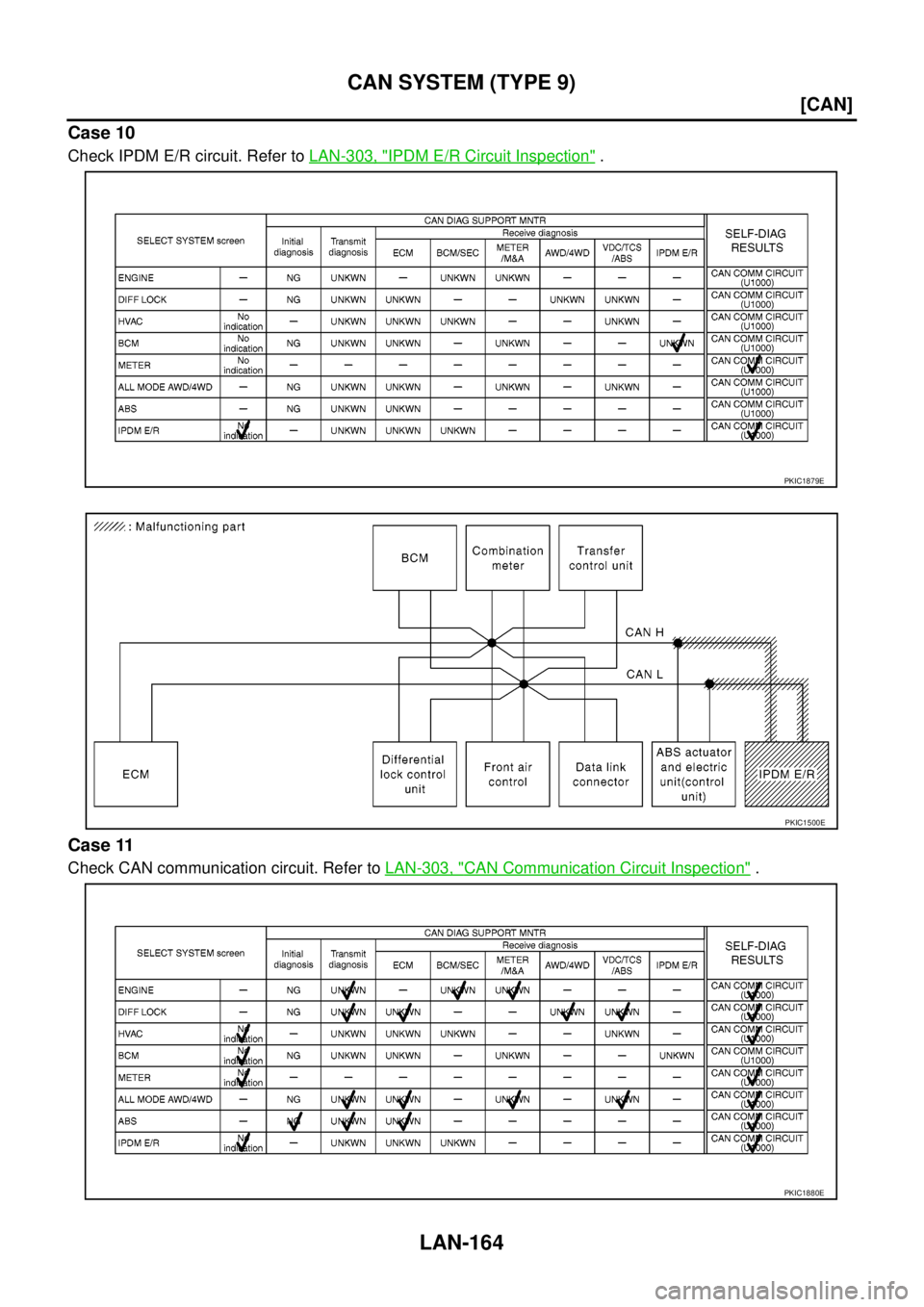

Case 10
Check IPDM E/R circuit. Refer toLAN-303, "IPDM E/R Circuit Inspection".
Case 11
Check CAN communication circuit. Refer toLAN-303, "CAN Communication Circuit Inspection".
PKIC1879E
PKIC1500E
PKIC1880E
Page 1942 of 3171
CAN SYSTEM (TYPE 9)
LAN-165
[CAN]
C
D
E
F
G
H
I
J
L
MA
B
LAN

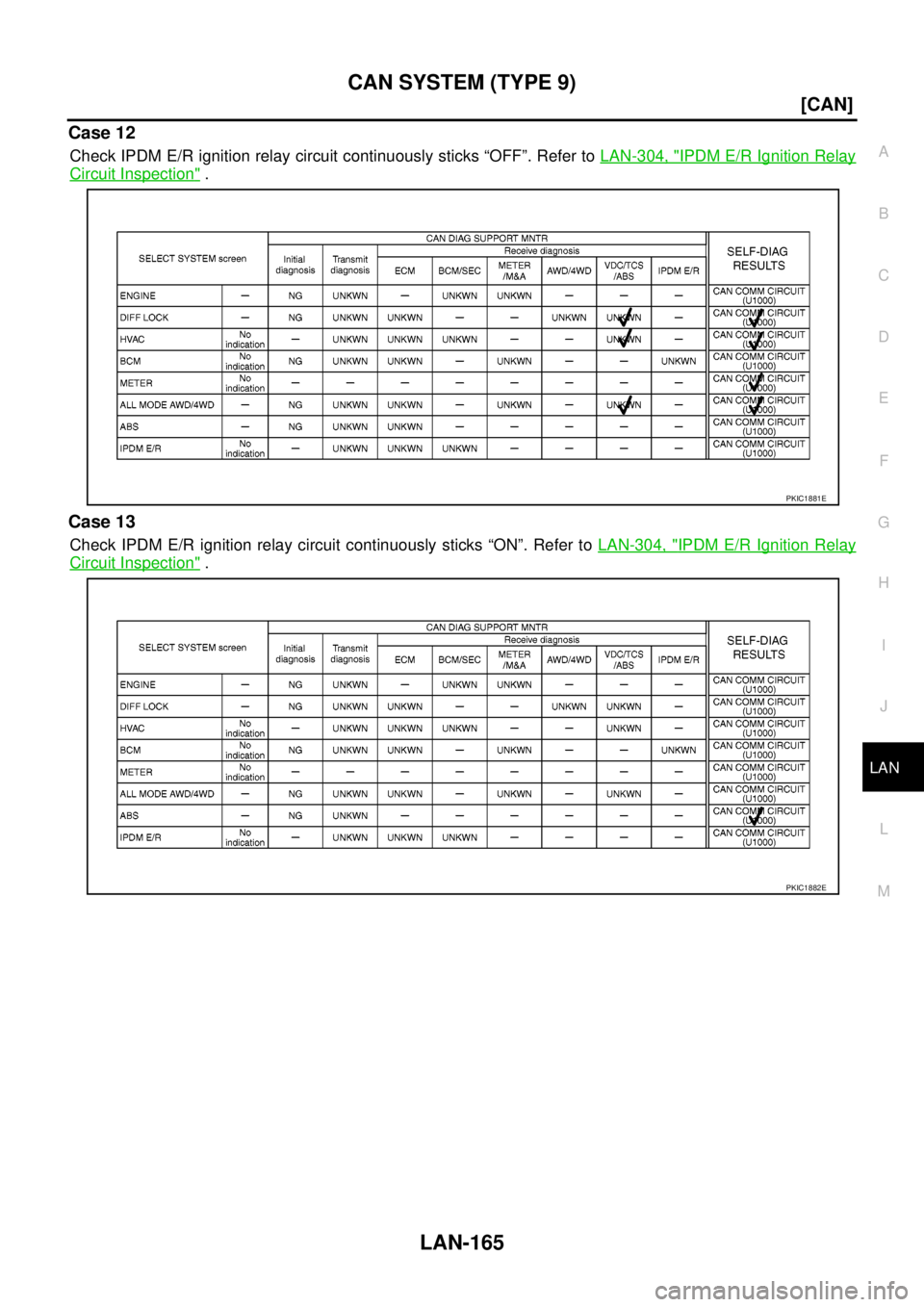

Case 12
Check IPDM E/R ignition relay circuit continuously sticks “OFF”. Refer toLAN-304, "IPDM E/R Ignition Relay
Circuit Inspection".
Case 13
Check IPDM E/R ignition relay circuit continuously sticks “ON”. Refer toLAN-304, "IPDM E/R Ignition Relay
Circuit Inspection".
PKIC1881E
PKIC1882E
Page 1943 of 3171
LAN-166
[CAN]
CAN SYSTEM (TYPE 10)
CAN SYSTEM (TYPE 10)
PFP:23710
Component Parts and Harness Connector LocationEKS00OB1
Refer toLAN-23, "Component Parts and Harness Connector Location".
SchematicEKS00OB2
Refer toLAN-25, "Schematic".
Wiring Diagram — CAN —EKS00OB3
Refer toLAN-26, "Wiring Diagram—CAN—".
Page 1944 of 3171
CAN SYSTEM (TYPE 10)
LAN-167
[CAN]
C
D
E
F
G
H
I
J
L
MA
B
LAN

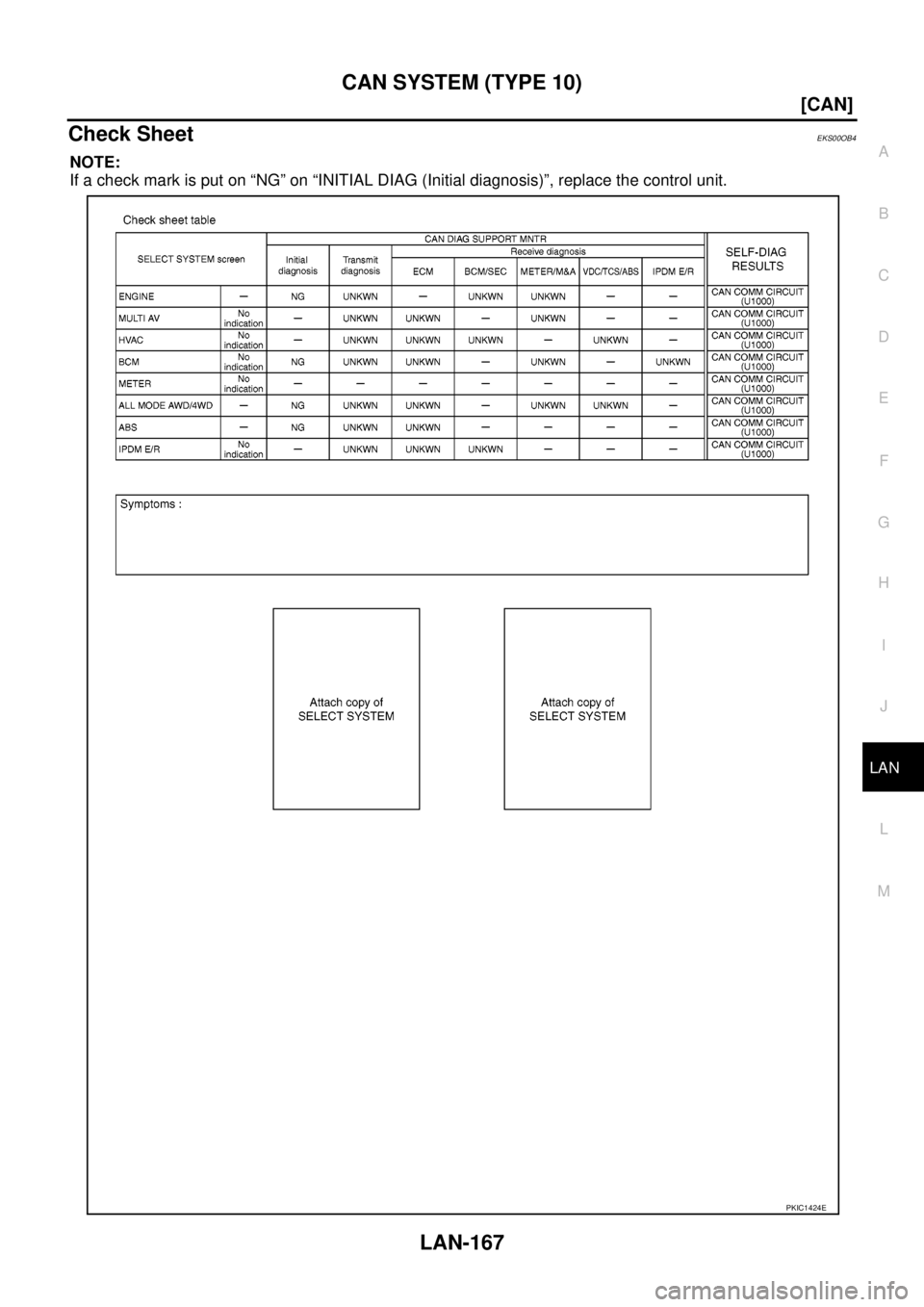

Check SheetEKS00OB4
NOTE:
If a check mark is put on “NG” on “INITIAL DIAG (Initial diagnosis)”, replace the control unit.
PKIC1424E
