NISSAN NAVARA 2005 Repair Workshop Manual TROUBLE DIAGNOSIS
AT-73
D
E
F
G
H
I
J
K
L
MA
B
AT
56
OthersMaximum speed low.ON vehicle1. A/T fluid level and stateAT- 4 3
2. Line pressure testAT- 4 4
3. Accelerator pedal position sensorAT- 11 6
4.

Page 82 of 3171

NISSAN NAVARA 2005 Repair Workshop Manual AT-74
TROUBLE DIAGNOSIS
60
OthersVehicle runs with A/T
in “N” position.
Refer toAT-179, "In
“N”Position, Vehicle
Moves".ON vehicle1. PNP switchAT- 9 9
2. A/T fluid level and stateAT- 4 3
3. Co

Page 83 of 3171

NISSAN NAVARA 2005 Repair Workshop Manual TROUBLE DIAGNOSIS
AT-75
D
E
F
G
H
I
J
K
L
MA
B
AT
65 OthersEngine speed does not
return to idle.
Refer toAT-199,
"Engine Speed Does
Not Return to Idle".ON vehicle1. A/T fluid level and stateAT- 4 3
2.

Page 84 of 3171

NISSAN NAVARA 2005 Repair Workshop Manual AT-76
TROUBLE DIAGNOSIS
TCM Input/Output Signal Reference Values
ECS00FX9
A/T ASSEMBLY HARNESS CONNECTOR TERMINAL LAYOUT
TCM INSPECTION TABLE
Data are reference value and are measured between each ter

Page 85 of 3171

NISSAN NAVARA 2005 Repair Workshop Manual TROUBLE DIAGNOSIS
AT-77
D
E
F
G
H
I
J
K
L
MA
B
AT
CONSULT-II Function (A/T)ECS00FXA
CONSULT-II can display each diagnostic item using the diagnostic test modes shown following.
FUNCTION
CONSULT-II REF

TROUBLE DIAGNOSIS
AT-77
D
E
F
G
H
I
J
K
L
MA
B
AT
CONSULT-II Function (A/T)ECS00FXA
CONSULT-II can display each diagnostic item using the diagnostic test modes shown following.
FUNCTION
CONSULT-II REFERENCE VALUE
NOTICE:
1. The CONSULT-II electrically displays shift timing and lock-up timing (that is, operation timing of each sole-
noid).
Check for time difference between actual shift timing and the CONSULT-II display. If the difference is
noticeable, mechanical parts (except solenoids, sensors, etc.) may be malfunctioning. Check mechanical
parts using applicable diagnostic procedures.
2. Shift schedule (which implies gear position) displayed on CONSULT-II and that indicated in Service Man-
ual may differ slightly. This occurs because of the following reasons:
–Actual shift schedule has more or less tolerance or allowance,
–Shift schedule indicated in Service Manual refers to the point where shifts start, and
–Gear position displayed on CONSULT-II indicates the point where shifts are completed.
3. Display of solenoid valves on CONSULT-II changes at the start of shifting, while gear position is displayed
upon completion of shifting (which is computed by TCM).
Diagnostic test mode Function Reference page
Self-diagnostic results Self-diagnostic results can be read and erased quickly.AT- 8 0
Data monitor Input/Output data in the ECU can be read.AT- 8 3
CAN diagnostic support
monitorThe results of transmit/receive diagnosis of CAN communication can be read.AT- 8 6
Function testConducted by CONSULT-II instead of a technician to determine whether each system
is “OK” or “NG”.—
DTC work support Select the operating condition to confirm Diagnostic Trouble Codes.AT- 8 6
ECU part number ECU part number can be read. —
Item name Condition Display value (Approx.)
VHCL/S SE-A/T
During drivingApproximately matches the speed-
ometer reading.
VHCL/S SE-MTR
ACCELE POSIReleased accelerator pedal. 0.0/8
Fully depressed accelerator pedal. 8.0/8
CLSD THL POSReleased accelerator pedal. ON
Fully depressed accelerator pedal. OFF
W/O THL POSFully depressed accelerator pedal. ON
Released accelerator pedal. OFF
BRAKE SWDepressed brake pedal. ON
Released brake pedal. OFF
ENGINE SPEED Engine runningClosely matches the tachometer
reading.
TURBINE REV During driving (lock-up ON)Approximately matches the engine
speed.
ATFTEMPSE1
0°C(32°F)-20°C(68°F)-80°C (176°F)3.3 - 2.7 - 0.9 V
ATFTEMPSE23.3 - 2.5 - 0.7 V
TCC SOLENOID When perform lock-up 0.4 - 0.6 A
LINE PRES SOL During driving 0.2 - 0.6 A
FR/B SOLENOIDFront brake engaged. Refer toAT- 1 7
. 0.6 - 0.8 A
Front brake disengaged. Refer toAT- 1 7
.0-0.05A

Page 86 of 3171

NISSAN NAVARA 2005 Repair Workshop Manual AT-78
TROUBLE DIAGNOSIS
I/C SOLENOIDInput clutch disengaged. Refer toAT- 1 7.0.6-0.8A
Input clutch engaged. Refer toAT- 1 7
.0-0.05A
D/C SOLENOIDDirect clutch disengaged. Refer toAT- 1 7
.0.6-0.8A
Dir

Page 87 of 3171

NISSAN NAVARA 2005 Repair Workshop Manual TROUBLE DIAGNOSIS
AT-79
D
E
F
G
H
I
J
K
L
MA
B
AT

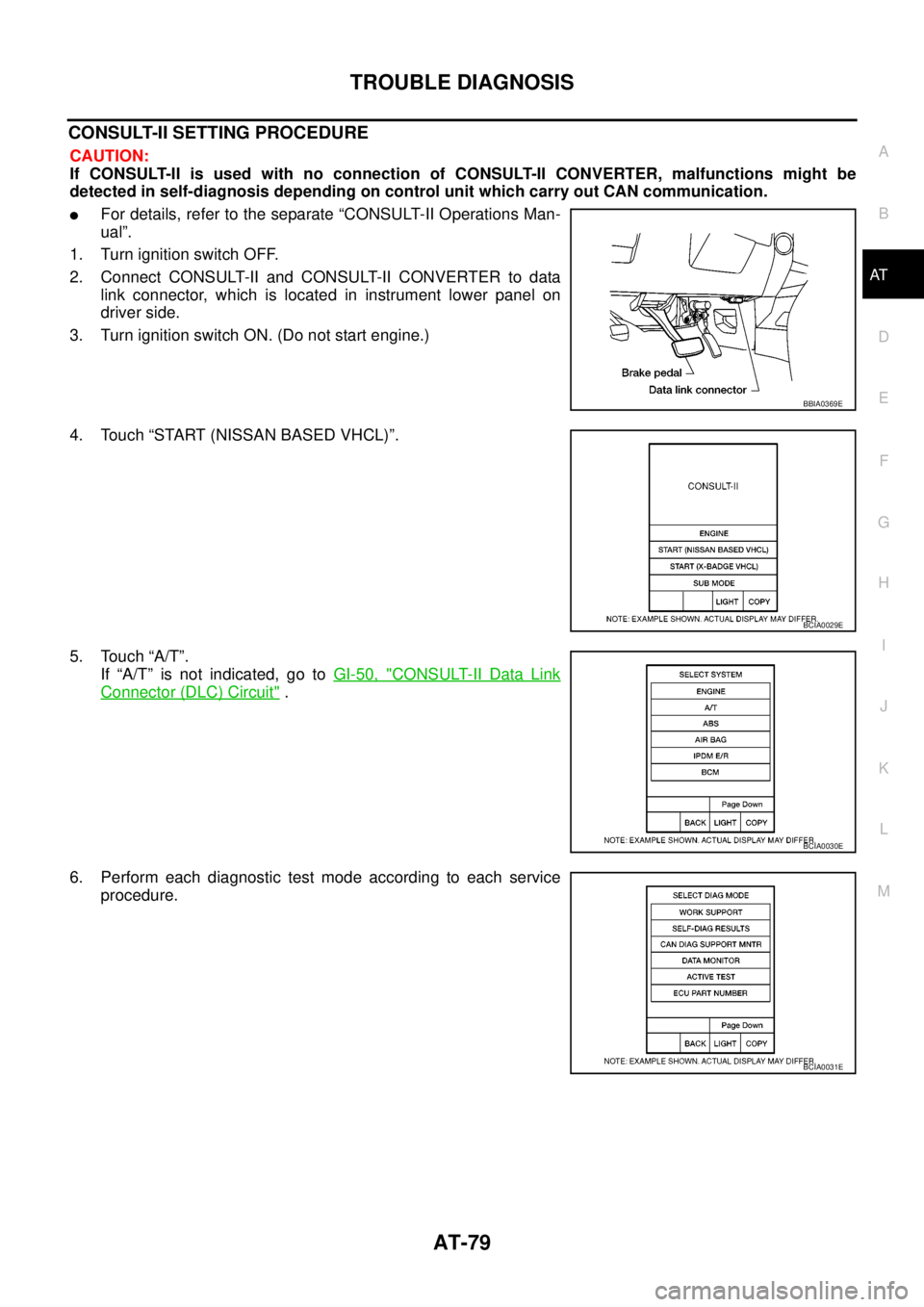

CONSULT-II SETTING PROCEDURE
CAUTION:
If CONSULT-II is used with no connection of CONSULT-II CONVERTER, malfunctions might be
detected in self-diagnos

Page 88 of 3171

NISSAN NAVARA 2005 Repair Workshop Manual AT-80
TROUBLE DIAGNOSIS
SELF-DIAGNOSTIC RESULT MODE
Operation Procedure
After performing self-diagnosis, place check marks for results on theAT-38, "DIAGNOSTIC WORKSHEET".
Reference pages are provided

AT-80
TROUBLE DIAGNOSIS
SELF-DIAGNOSTIC RESULT MODE
Operation Procedure
After performing self-diagnosis, place check marks for results on theAT-38, "DIAGNOSTIC WORKSHEET".
Reference pages are provided following the items.
1. PerformAT- 7 9 , "
CONSULT-II SETTING PROCEDURE".
2. Touch “SELF-DIAG RESULTS”.
Display shows malfunction experienced since the last erasing
operation.
Display Items List
X: Applicable, —: Not applicable
BCIA0031E
Items (CONSULT-II
screen terms)Malfunction is detected when...TCM self-diagnosis
Reference page
DTC
CAN COMM CIRCUIT
lWhen a malfunction is detected in CAN communications U1000AT- 9 1
STARTER RELAY/
CIRC
lIf this signal is ON other than in “P” or “N” position, this is
judged to be a malfunction.
(And if it is OFF in “P” or “N” position, this too is judged to
be a malfunction.)P0615AT- 9 4
TCMlTCM is malfunctioning. P0700AT- 9 8
PNP SW/CIRC
lPNP switch 1-4 signals input with impossible pattern
l“P” position is detected from “N” position without any other
position being detected in between.P0705AT- 9 9
VEH SPD SEN/CIR AT
lSignal from vehicle speed sensor A/T (Revolution sensor)
not input due to cut line or the like
lUnexpected signal input during running
lAfter ignition switch is turned ON, unexpected signal input
from vehicle speed sensor MTR before the vehicle starts
movingP0720AT- 1 0 3
ENGINE SPEED SIGlTCM does not receive the CAN communication signal from
the ECM.P0725AT- 1 0 8
TCC SOLENOID/CIRClNormal voltage not applied to solenoid due to cut line,
short, or the likeP0740AT- 11 0
A/T TCC S/V FNCTN
lA/T cannot perform lock-up even if electrical circuit is good.
lTCM detects as irregular by comparing difference value
with slip rotation.P0744AT- 11 2
L/PRESS SOL/CIRC
lNormal voltage not applied to solenoid due to cut line,
short, or the like
lTCM detects as irregular by comparing target value with
monitor value.P0745AT- 11 4
TP SEN/CIRC A/TlTCM does not receive the proper accelerator pedal posi-
tion signals (input by CAN communication) from ECM.P1705AT- 11 6
ATF TEMP SEN/CIRClDuring running, the ATF temperature sensor signal voltage
is excessively high or lowP1710AT- 11 8
TURBINE REV S/CIRC
lTCM does not receive the proper voltage signal from the
sensor.
lTCM detects an irregularity only at position of 4th gear for
turbine revolution sensor 2.P1716AT- 1 2 3
