Page 1921 of 3171

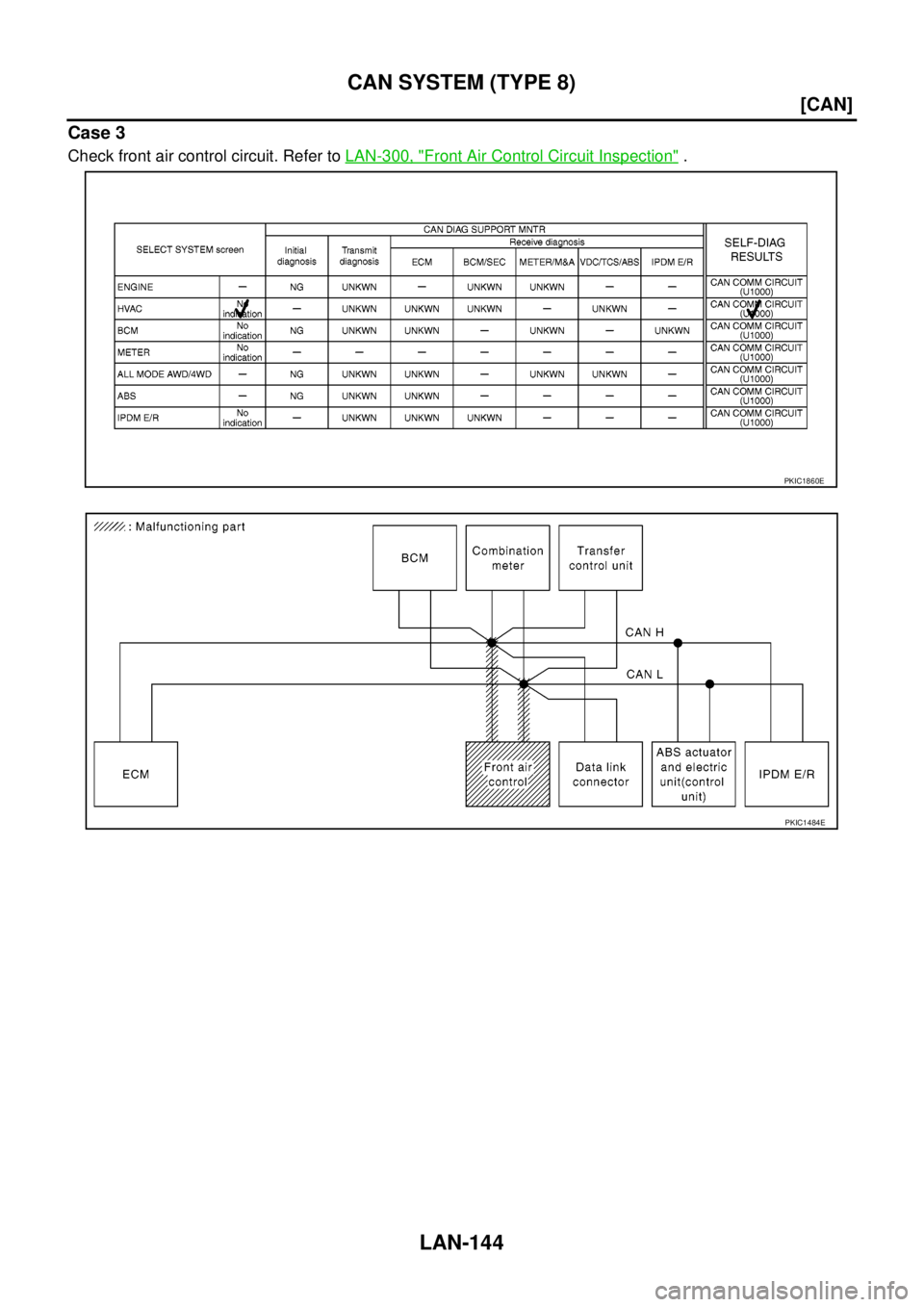

NISSAN NAVARA 2005 Repair Workshop Manual LAN-144 [CAN] CAN SYSTEM (TYPE 8) Case 3 Check front air control circuit. Refer toLAN-300, "Front Air Control Circuit Inspection". PKIC1860E PKIC1484E

Page 1922 of 3171

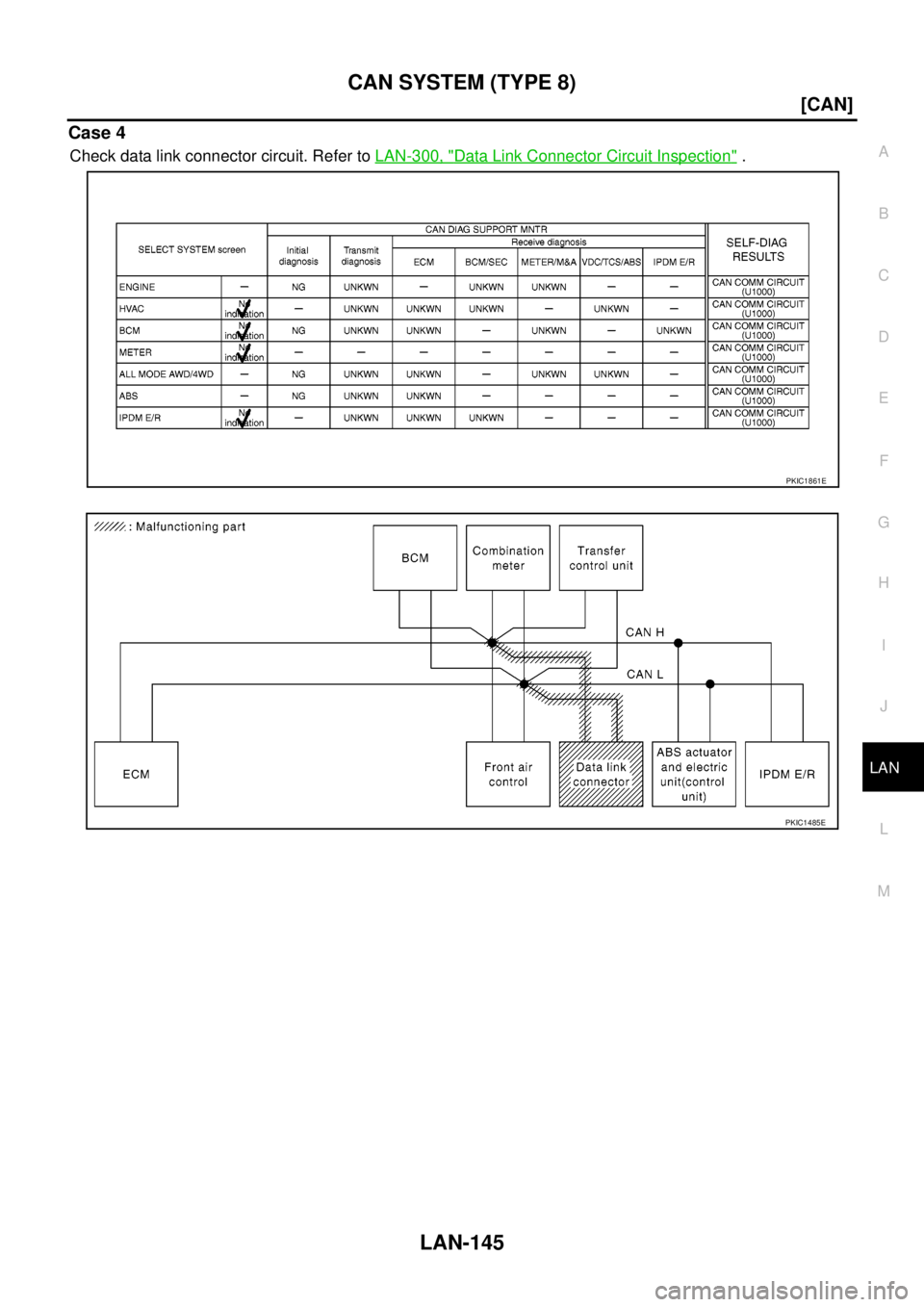

NISSAN NAVARA 2005 Repair Workshop Manual CAN SYSTEM (TYPE 8) LAN-145 [CAN] C D E F G H I J L MA B LAN Case 4 Check data link connector circuit. Refer toLAN-300, "Data Link Connector Circuit Inspection". PKIC1861E PKIC1485E

Page 1923 of 3171

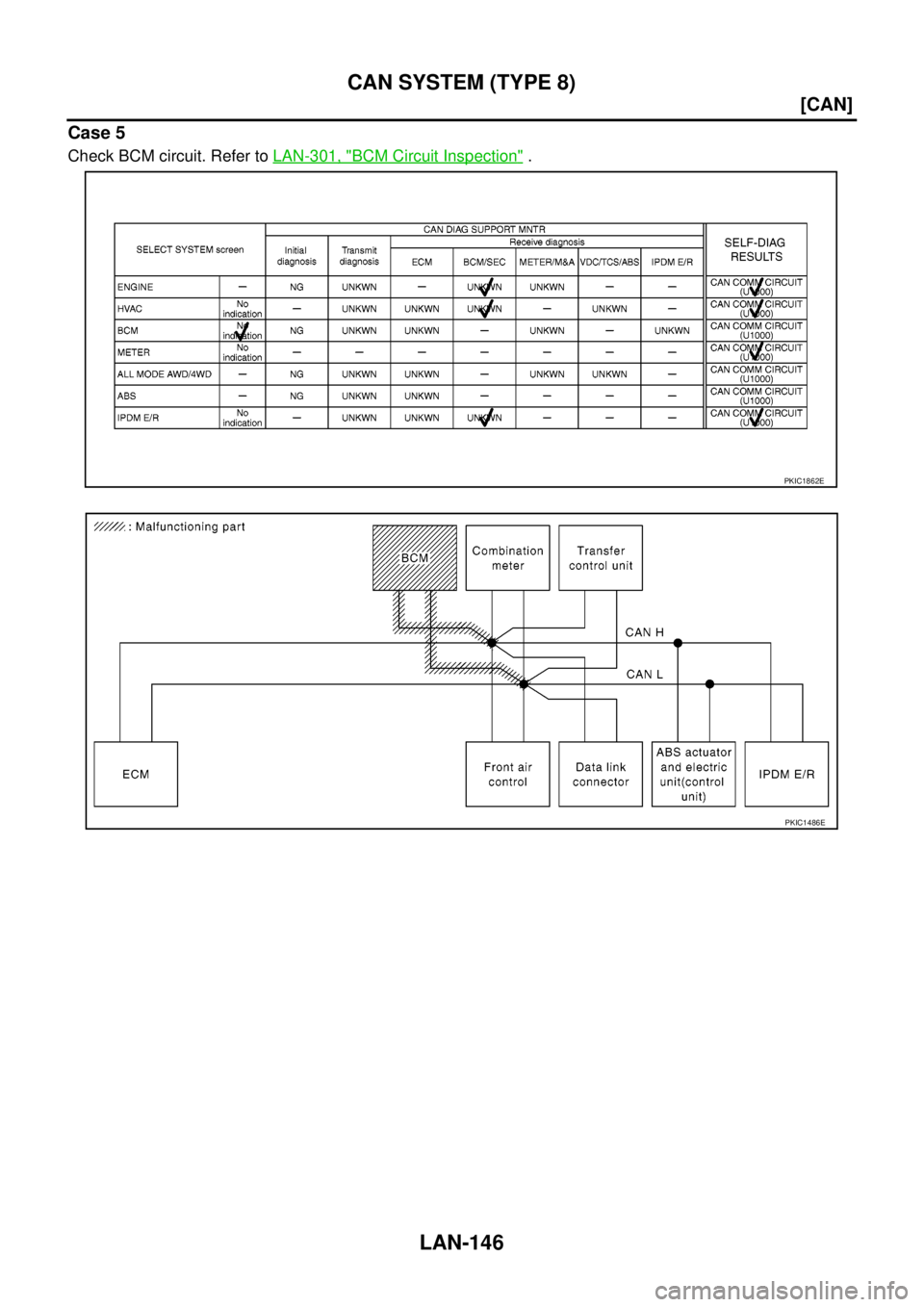

NISSAN NAVARA 2005 Repair Workshop Manual LAN-146 [CAN] CAN SYSTEM (TYPE 8) Case 5 Check BCM circuit. Refer toLAN-301, "BCM Circuit Inspection". PKIC1862E PKIC1486E

Page 1924 of 3171

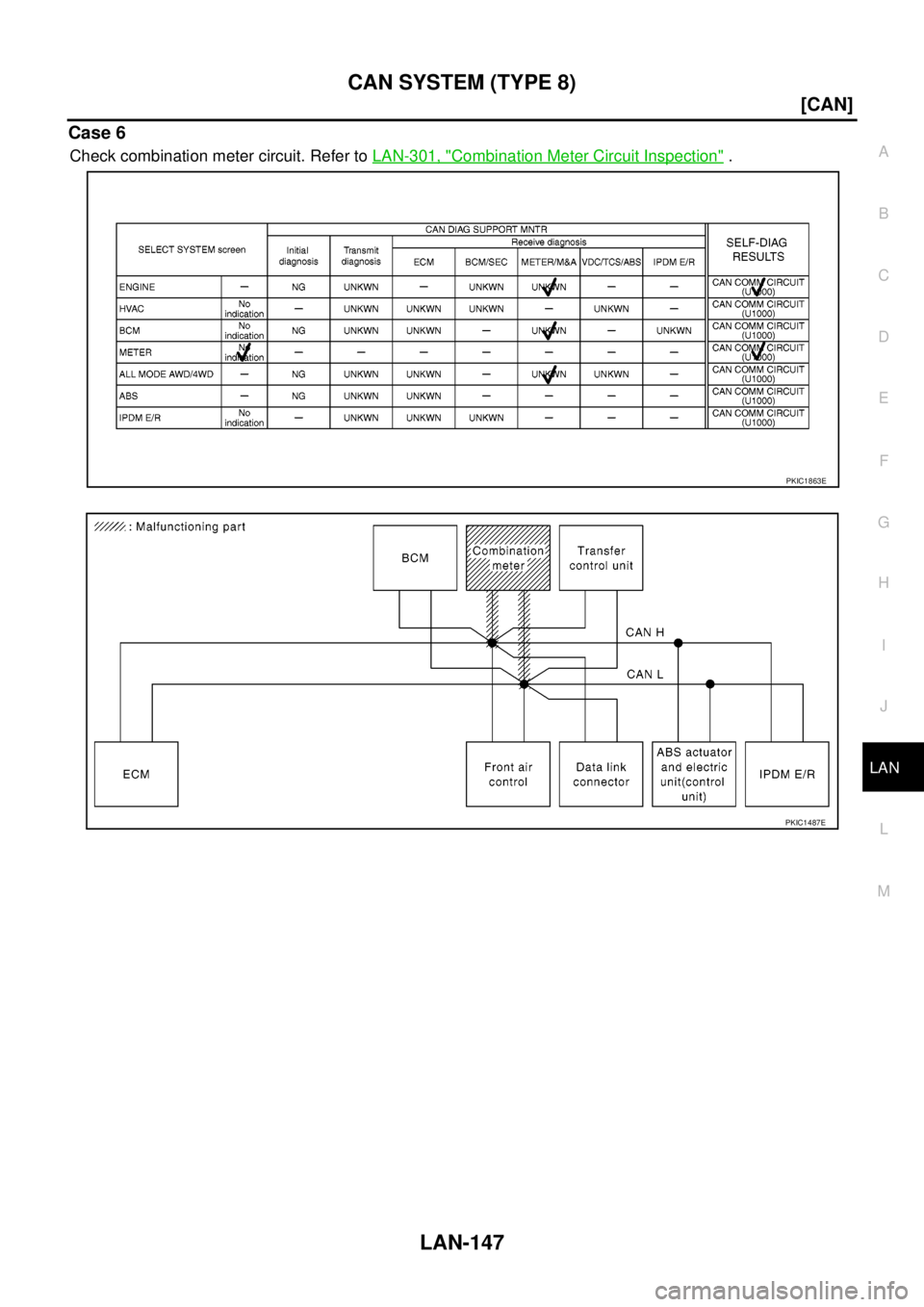

NISSAN NAVARA 2005 Repair Workshop Manual CAN SYSTEM (TYPE 8) LAN-147 [CAN] C D E F G H I J L MA B LAN Case 6 Check combination meter circuit. Refer toLAN-301, "Combination Meter Circuit Inspection". PKIC1863E PKIC1487E

Page 1925 of 3171

NISSAN NAVARA 2005 Repair Workshop Manual LAN-148 [CAN] CAN SYSTEM (TYPE 8) Case 7 Check transfer control unit circuit. Refer toLAN-302, "Transfer Control Unit Circuit Inspection". PKIC1864E PKIC1488E

Page 1926 of 3171

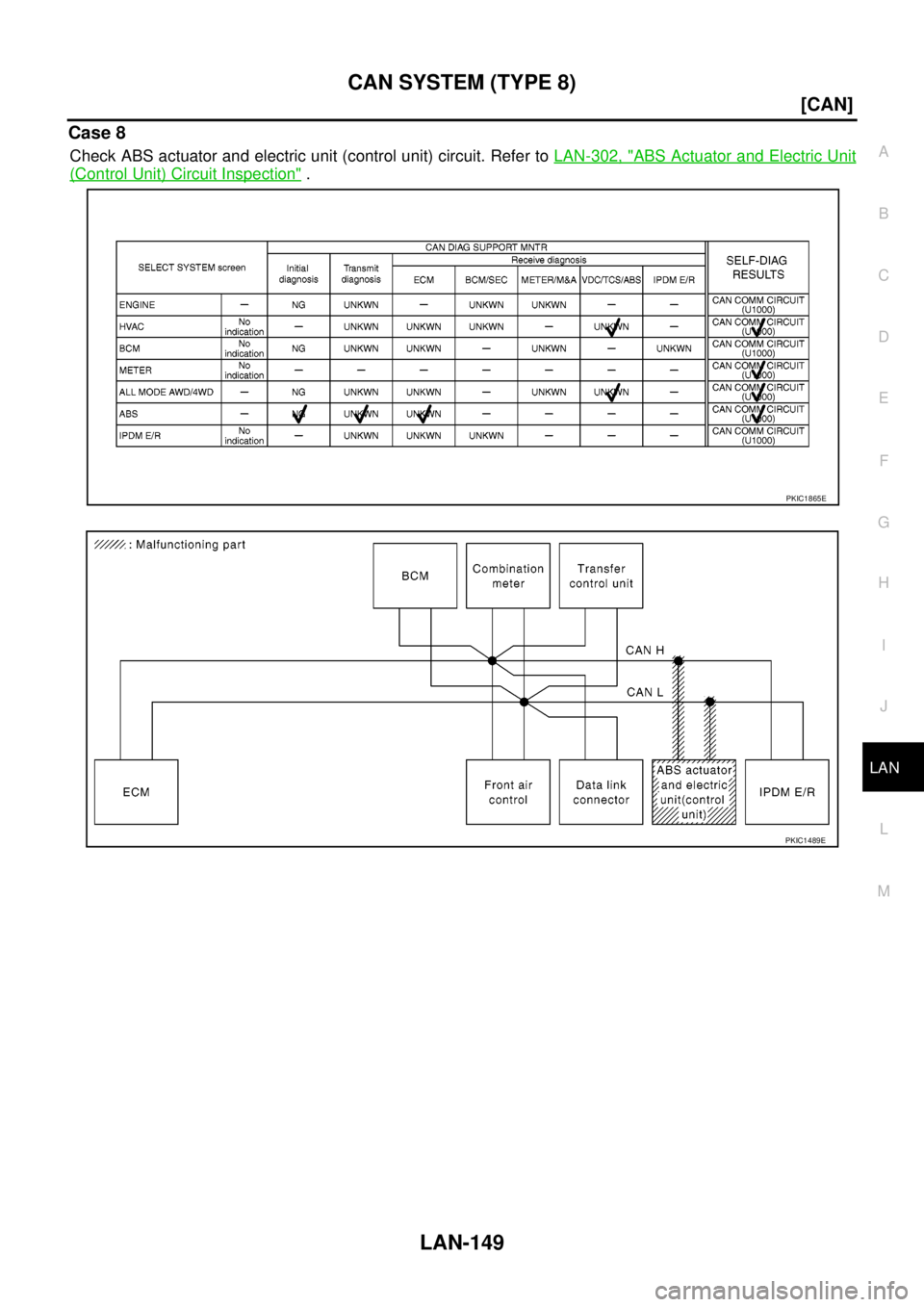

NISSAN NAVARA 2005 Repair Workshop Manual CAN SYSTEM (TYPE 8) LAN-149 [CAN] C D E F G H I J L MA B LAN Case 8 Check ABS actuator and electric unit (control unit) circuit. Refer toLAN-302, "ABS Actuator and Electric Unit (Control Unit) Circuit

Page 1927 of 3171

NISSAN NAVARA 2005 Repair Workshop Manual LAN-150 [CAN] CAN SYSTEM (TYPE 8) Case 9 Check IPDM E/R circuit. Refer toLAN-303, "IPDM E/R Circuit Inspection". Case 10 Check CAN communication circuit. Refer toLAN-303, "CAN Communication Circuit In

Page 1928 of 3171

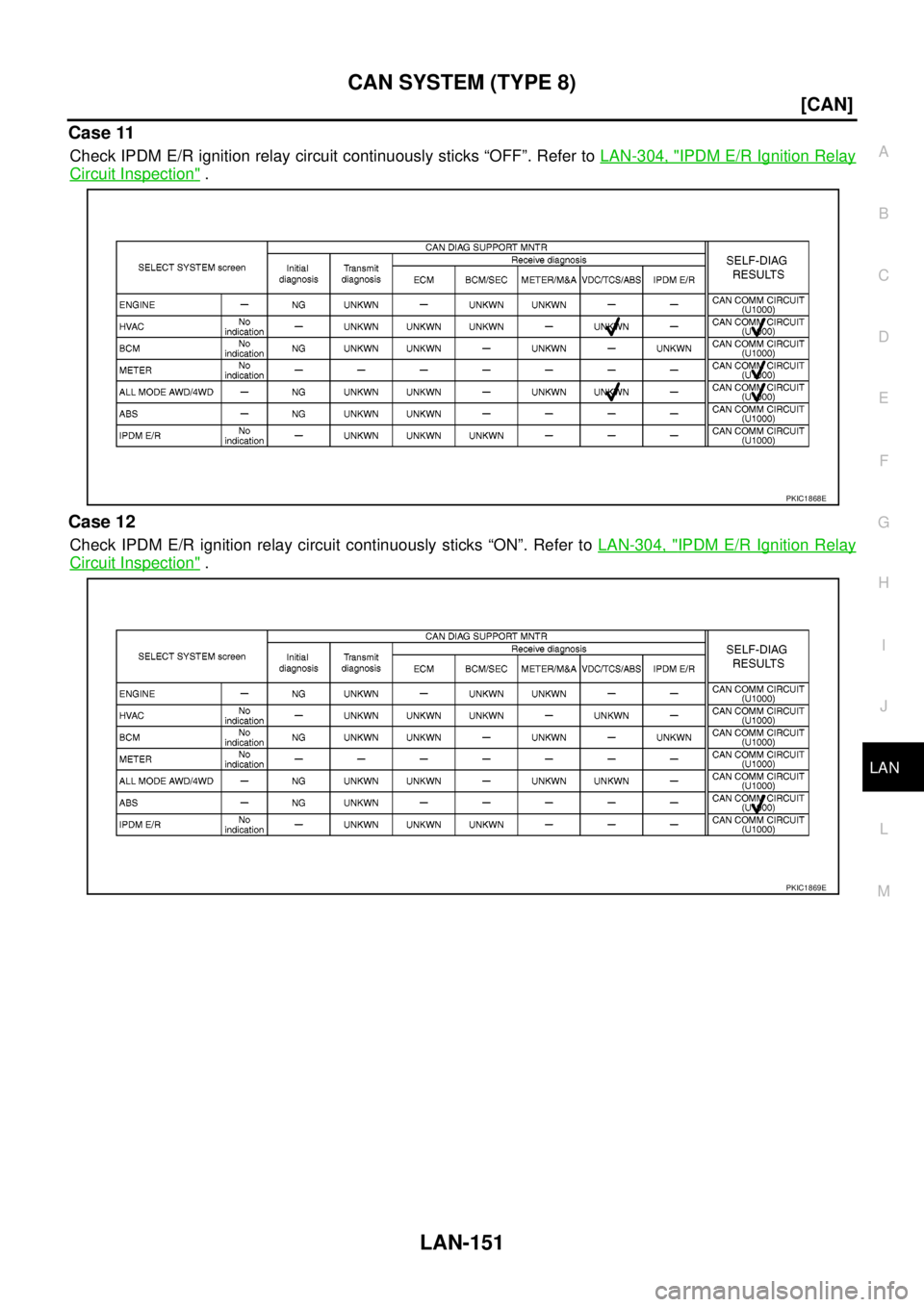

NISSAN NAVARA 2005 Repair Workshop Manual CAN SYSTEM (TYPE 8) LAN-151 [CAN] C D E F G H I J L MA B LAN Case 11 Check IPDM E/R ignition relay circuit continuously sticks “OFF”. Refer toLAN-304, "IPDM E/R Ignition Relay Circuit Inspection".
