Page 321 of 3171

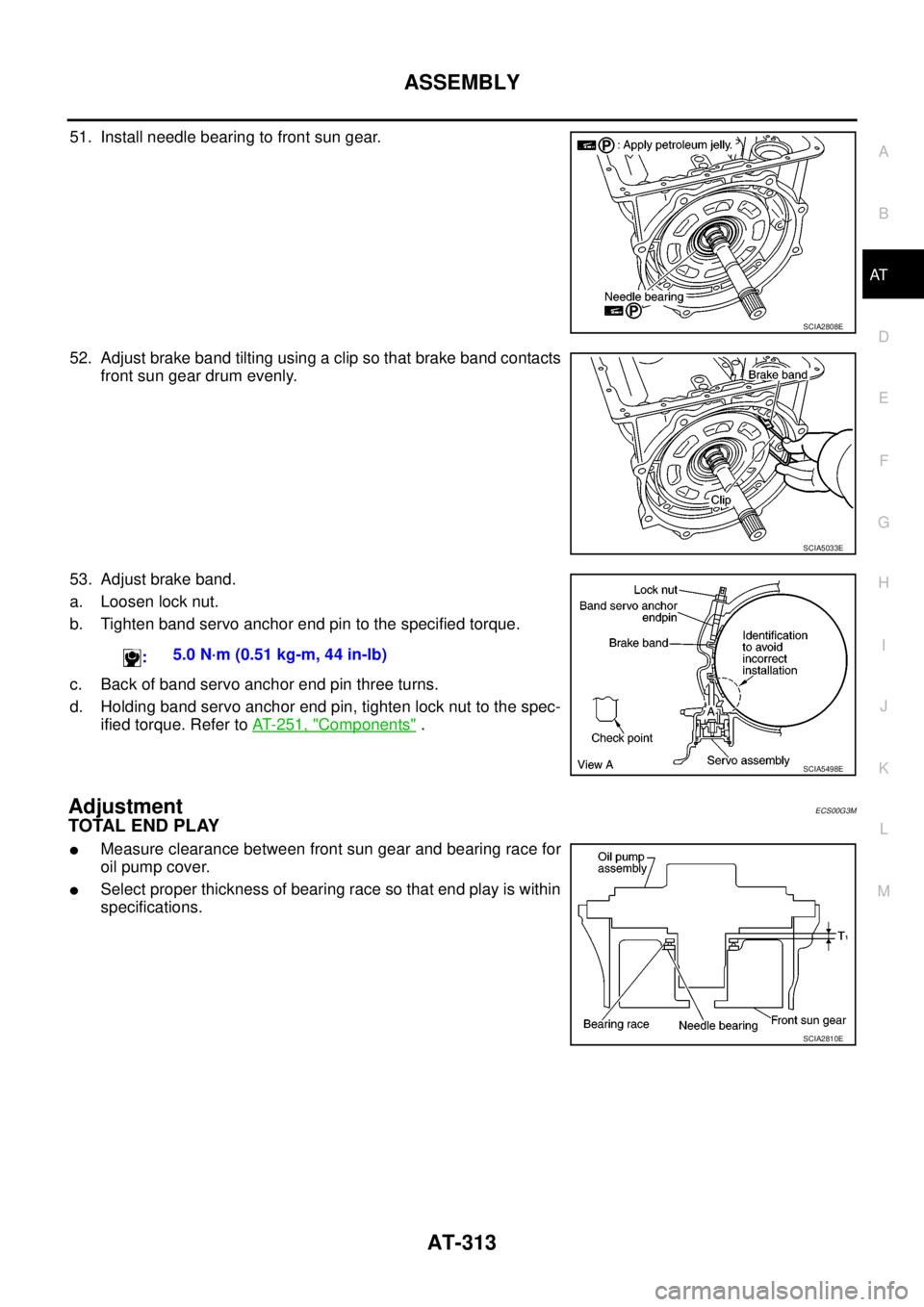

NISSAN NAVARA 2005 Repair Workshop Manual ASSEMBLY AT-313 D E F G H I J K L MA B AT 51. Install needle bearing to front sun gear. 52. Adjust brake band tilting using a clip so that brake band contacts front sun gear drum evenly. 53. Adjust br

Page 322 of 3171

NISSAN NAVARA 2005 Repair Workshop Manual AT-314 ASSEMBLY 1. Measure dimensions “K” and “L” and then calculate dimension “J”. a. Measure dimension “K”. b. Measure dimension “L”. c. Calculate dimension “J”. 2. Measure d

Page 323 of 3171

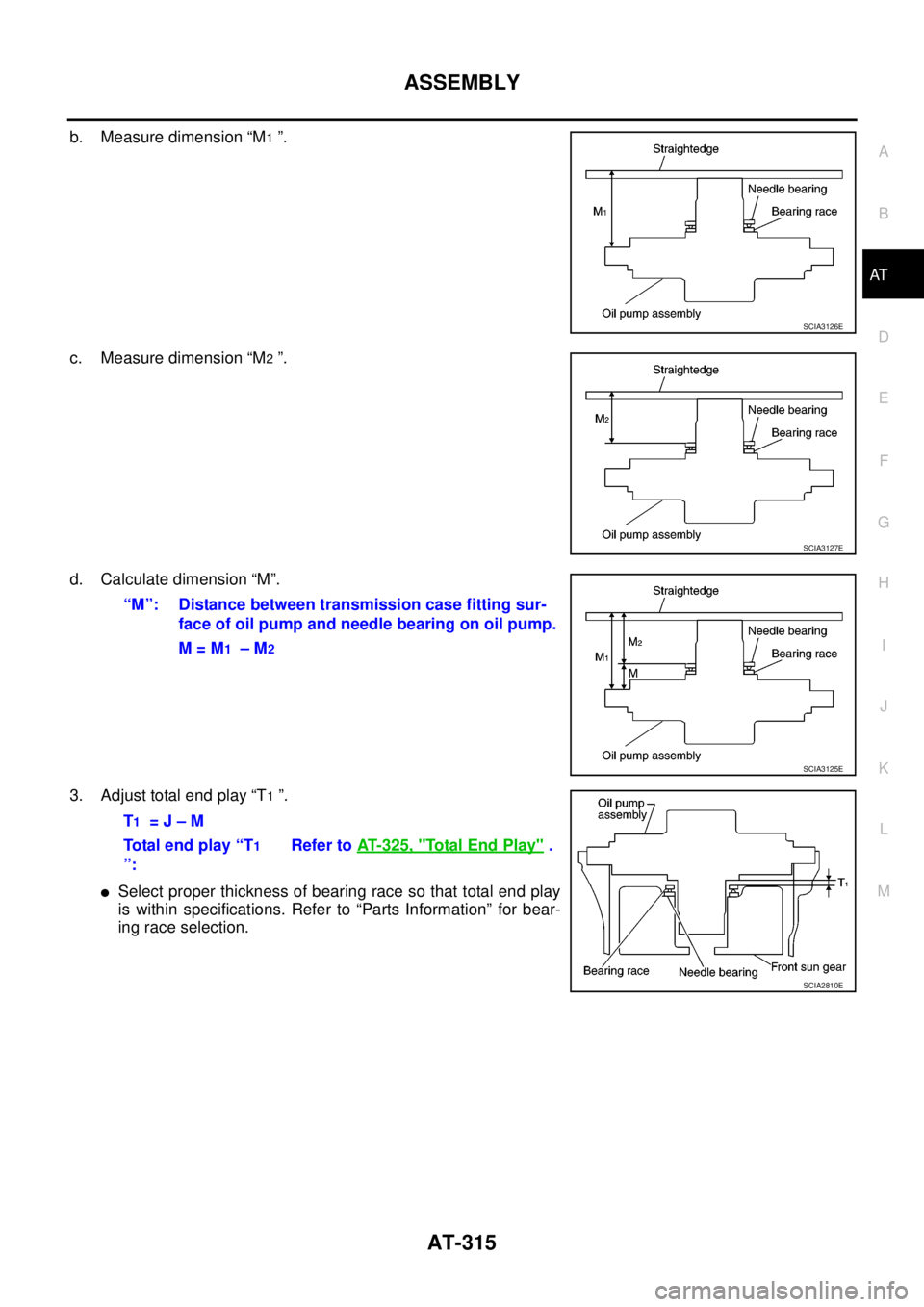

NISSAN NAVARA 2005 Repair Workshop Manual ASSEMBLY AT-315 D E F G H I J K L MA B AT b. Measure dimension “M1”. c. Measure dimension “M 2”. d. Calculate dimension “M”. 3. Adjust total end play “T 1”. lSelect proper thickness of

Page 324 of 3171

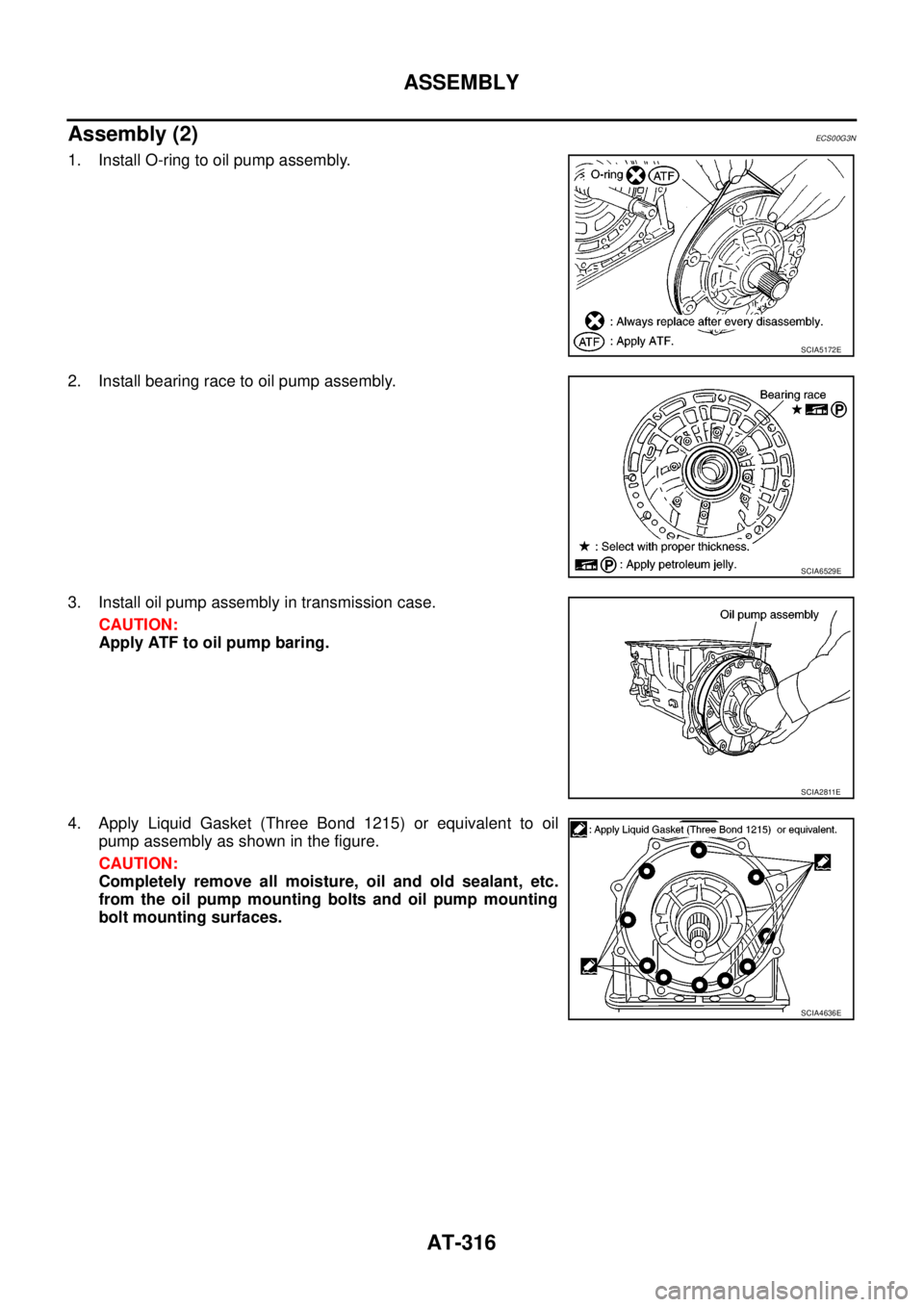

NISSAN NAVARA 2005 Repair Workshop Manual AT-316 ASSEMBLY Assembly (2) ECS00G3N 1. Install O-ring to oil pump assembly. 2. Install bearing race to oil pump assembly. 3. Install oil pump assembly in transmission case. CAUTION: Apply ATF to oil

Page 325 of 3171

NISSAN NAVARA 2005 Repair Workshop Manual ASSEMBLY AT-317 D E F G H I J K L MA B AT 5. Tighten oil pump mounting bolts to the specified torque. Refer to AT- 2 5 1 , " Components". CAUTION: Apply ATF to oil pump bushing. 6. Install O-ring to i

Page 326 of 3171

NISSAN NAVARA 2005 Repair Workshop Manual AT-318 ASSEMBLY b. Install A/T assembly harness connector to control valve with TCM. c. Connect TCM connectors. d. Install O-ring to A/T assembly harness connector. e. Install A/T fluid temperature se

Page 327 of 3171

NISSAN NAVARA 2005 Repair Workshop Manual ASSEMBLY AT-319 D E F G H I J K L MA B AT g. Install control valve with TCM in transmission case. CAUTION: lMake sure that turbine revolution sensor securely installs turbine revolution sensor hole. l

Page 328 of 3171

NISSAN NAVARA 2005 Repair Workshop Manual AT-320 ASSEMBLY 11. Securely fasten terminal cord assembly and A/T fluid tempera- ture sensor 2 harness with terminal clips. 12. Connect revolution sensor connector. 13. Securely fasten revolution sen
