Page 2225 of 3171

NISSAN NAVARA 2005 Repair Workshop Manual LT-142
PARKING, LICENSE PLATE AND TAIL LAMPS
Front Clearance Lamp
EKS00P9T
BULB REPLACEMENT
Refer toLT- 2 9 , "Bulb Replacement".
Ta i l L a m pEKS00P9U
BULB REPLACEMENT
Refer toLT- 1 4 3 , "Bulb Repl

Page 2226 of 3171

NISSAN NAVARA 2005 Repair Workshop Manual REAR COMBINATION LAMP
LT-143
C
D
E
F
G
H
I
J
L
MA
B
LT
REAR COMBINATION LAMPPFP:26554
Bulb ReplacementEKS00P90
REMOVAL
1. Remove rear combination lamp. Refer toLT- 1 4 4 , "Removal and Installation".

Page 2227 of 3171

NISSAN NAVARA 2005 Repair Workshop Manual LT-144
REAR COMBINATION LAMP
Removal and Installation
EKS00P91
REMOVAL
1. Remove rear combination lamp mounting bolts.
2. Pull rear combination lamp to remove from the vehicle.
3. Disconnect rear comb

Page 2228 of 3171

NISSAN NAVARA 2005 Repair Workshop Manual INTERIOR ROOM LAMP
LT-145
C
D
E
F
G
H
I
J
L
MA
B
LT
INTERIOR ROOM LAMPPFP:26410
Component Parts and Harness Connector LocationEKS00P92
*1: LHD models, *2: RHD models
System DescriptionEKS00P93
When fr

Page 2229 of 3171

NISSAN NAVARA 2005 Repair Workshop Manual LT-146
INTERIOR ROOM LAMP
lto key switch terminal 2,
lthrough 10A fuse [No. 21, located in fuse block (J/B)]
lto BCM terminal 41.
When key is inserted in key switch, power is supplied
lthrough the key

LT-146
INTERIOR ROOM LAMP
lto key switch terminal 2,
lthrough 10A fuse [No. 21, located in fuse block (J/B)]
lto BCM terminal 41.
When key is inserted in key switch, power is supplied
lthrough the key switch terminal 1
lto BCM terminal 5.
With ignition switch in the ON or START position, power is supplied
lthrough 10A fuse [No. 1, located in fuse and block (J/B)]
lto BCM terminal 3.
Ground is supplied
lto BCM terminal 55
lthrough grounds M21, M80 and M83.
When front driver side door is opened, ground is supplied (double cab)
lto BCM terminal 15
lthrough front door switch driver side terminal 2
lthrough case ground of front door switch driver side.
When front passenger side door is opened, ground is supplied (double cab)
lto BCM terminal 14
lthrough front door switch passenger side terminal 2
lthrough case ground of front door switch passenger side.
When rear door LH is opened, ground is supplied (double cab)
lto BCM terminal 16
lthrough rear door switch LH terminal 2
lthrough case ground of rear door switch LH.
When rear door RH is opened, ground is supplied (double cab)
lto BCM terminal 12
lthrough rear door switch RH terminal 2
lthrough case ground of rear door switch RH.
When front driver side door is opened, ground is supplied (king cab)
lto BCM terminal 15
lthrough front door switch (driver side) terminal 2
lthrough front door switch (driver side) terminal 3
lthrough grounds B9 and B25 (LHD models)
lthrough grounds B106 and B121 (RHD models).
When front passenger side door is opened, ground is supplied (king cab)
lto BCM terminal 14
lthrough front door switch (passenger side) terminal 2
lthrough front door switch (passenger side) terminal 3
lthrough grounds B9 and B25 (LHD models)
lthrough grounds B106 and B121 (RHD models).
When rear door (driver side) is opened, ground is supplied (king cab)
lto BCM terminal 15
lthrough rear door switch (driver side) No.1 and No.2 terminals 1
lthrough rear door switch (driver side) No.1 and No.2 terminals 2
lthrough grounds B9 and B25 (LHD models)
lthrough grounds B106 and B121 (RHD models).
When rear door (passenger side) is opened, ground is supplied (king cab)
lto BCM terminal 14
lthrough rear door switch (passenger side) No.1 and No.2 terminals 1

Page 2230 of 3171

NISSAN NAVARA 2005 Repair Workshop Manual INTERIOR ROOM LAMP
LT-147
C
D
E
F
G
H
I
J
L
MA
B
LT
lthrough rear door switch (passenger side) No.1 and No.2 terminals 2
lthrough grounds B9 and B25 (LHD models)
lthrough grounds B106 and B121 (RHD mo

INTERIOR ROOM LAMP
LT-147
C
D
E
F
G
H
I
J
L
MA
B
LT
lthrough rear door switch (passenger side) No.1 and No.2 terminals 2
lthrough grounds B9 and B25 (LHD models)
lthrough grounds B106 and B121 (RHD models).
When a signal is received by BCM, power is supplied
lthrough BCM terminal 42
lto key ring lamp terminal 1
lto front map lamp terminal 1 and
lto room lamp terminal 2.
SWITCH OPERATION
When front map lamp switch is ON, ground is supplied
lto front map lamp terminal 2
lthrough grounds M21, M80 and M83.
When room lamp switch is ON, ground is supplied through room lamp case ground.
ROOM LAMP TIMER OPERATION
When lamp switch is in DOOR position, and when all conditions below are met, BCM performs timer control
(maximum 30 seconds) for interior room lamp and map lamp ON/OFF.
Power is supplied
lthrough 10A fuse [No. 22, located in fuse block (J/B)]
lto key switch terminal 2.
Key is removed from ignition key cylinder (key switch OFF), power will not be supplied to BCM terminal 5.
At the time that driver's door is opened, BCM detects that driver's door is unlocked. It determines that room
lamp timer operation conditions are met, and turns the interior room lamps ON for 30 seconds.
Key is in ignition key cylinder (key switch ON), power is supplied
lthrough key switch terminal 1
lto BCM terminal 5.
When key is removed from key switch (key switch OFF), power supply to BCM terminal 5 is terminated. BCM
detects that key has been removed, determines that room lamp timer conditions are met, and turns the interior
room lamps ON for 30 seconds.
When driver's door opens®closes, and the key is not inserted in the key switch (key switch OFF), BCM ter-
minal 15 changes between 0V (door open)®12V (door closed). The BCM determines that conditions for
room lamp operation are met and turns the room lamp ON for 30 seconds.
Timer control is canceled under the following conditions.
lDriver's door is opened [front door switch (driver side)].
lIgnition switch ON.
lKeyfob
INTERIOR LAMP BATTERY SAVER CONTROL
If interior lamp is left ON, it will not be turned off even when door is closed.
BCM turns off interior lamp automatically to save battery 30 minutes after ignition switch is turned off.
BCM controls interior lamps listed below:
lFront map lamp
lRoom lamp
lKey ring lamp
After lamps turn OFF by the battery saver system, the lamps illuminate again when
lsignal received from keyfob or key cylinder is locked or unlocked,
ldoor is opened or closed,
lkey is removed from ignition key cylinder or inserted in ignition key cylinder.
Interior lamp battery saver control period can be changed by the function setting of CONSULT-II. Refer toLT-
158, "WORK SUPPORT".

Page 2231 of 3171

NISSAN NAVARA 2005 Repair Workshop Manual LT-148
INTERIOR ROOM LAMP

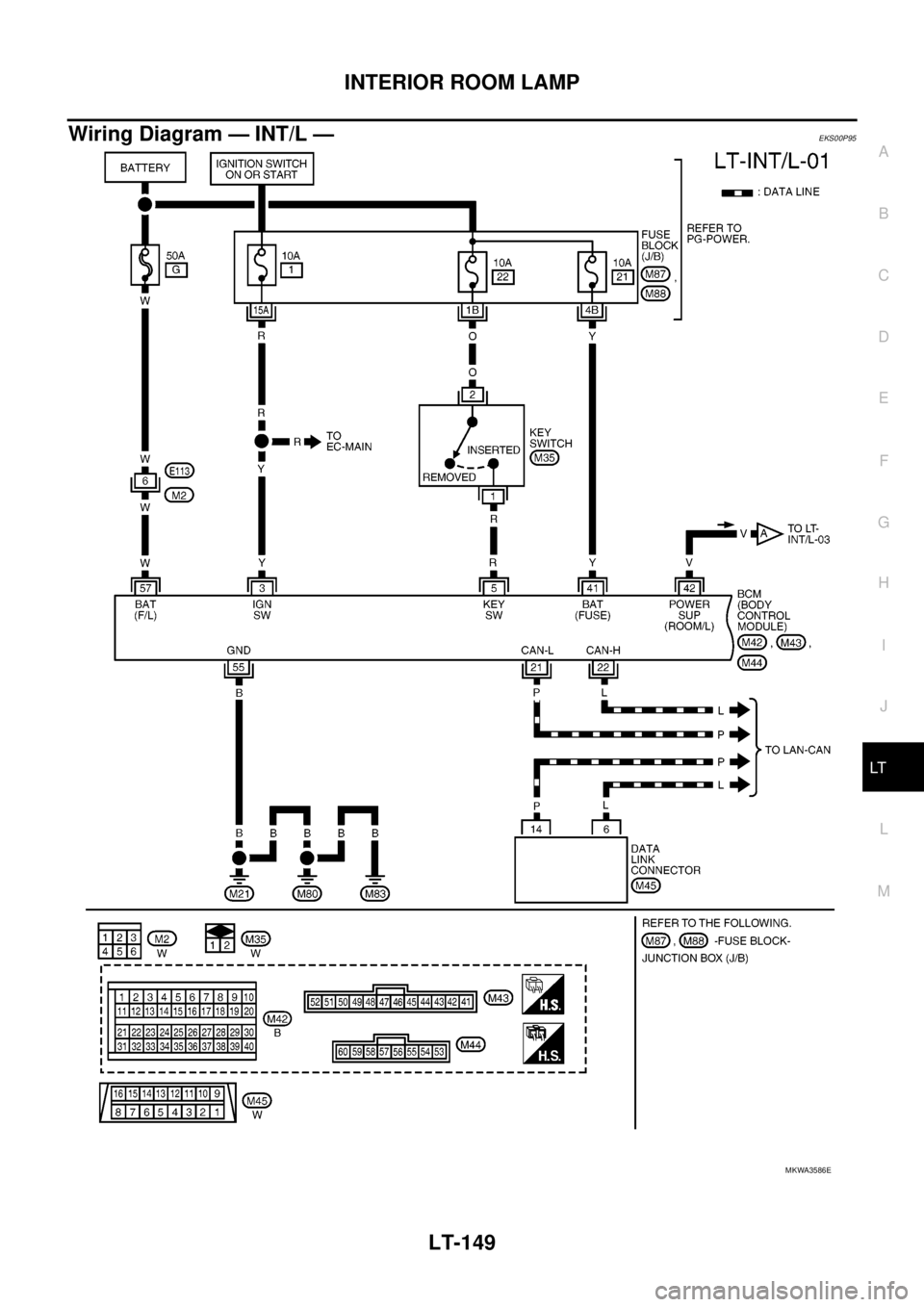

Schematic
EKS00P94
MKWA3585E

Page 2232 of 3171

NISSAN NAVARA 2005 Repair Workshop Manual INTERIOR ROOM LAMP
LT-149
C
D
E
F
G
H
I
J
L
MA
B
LT

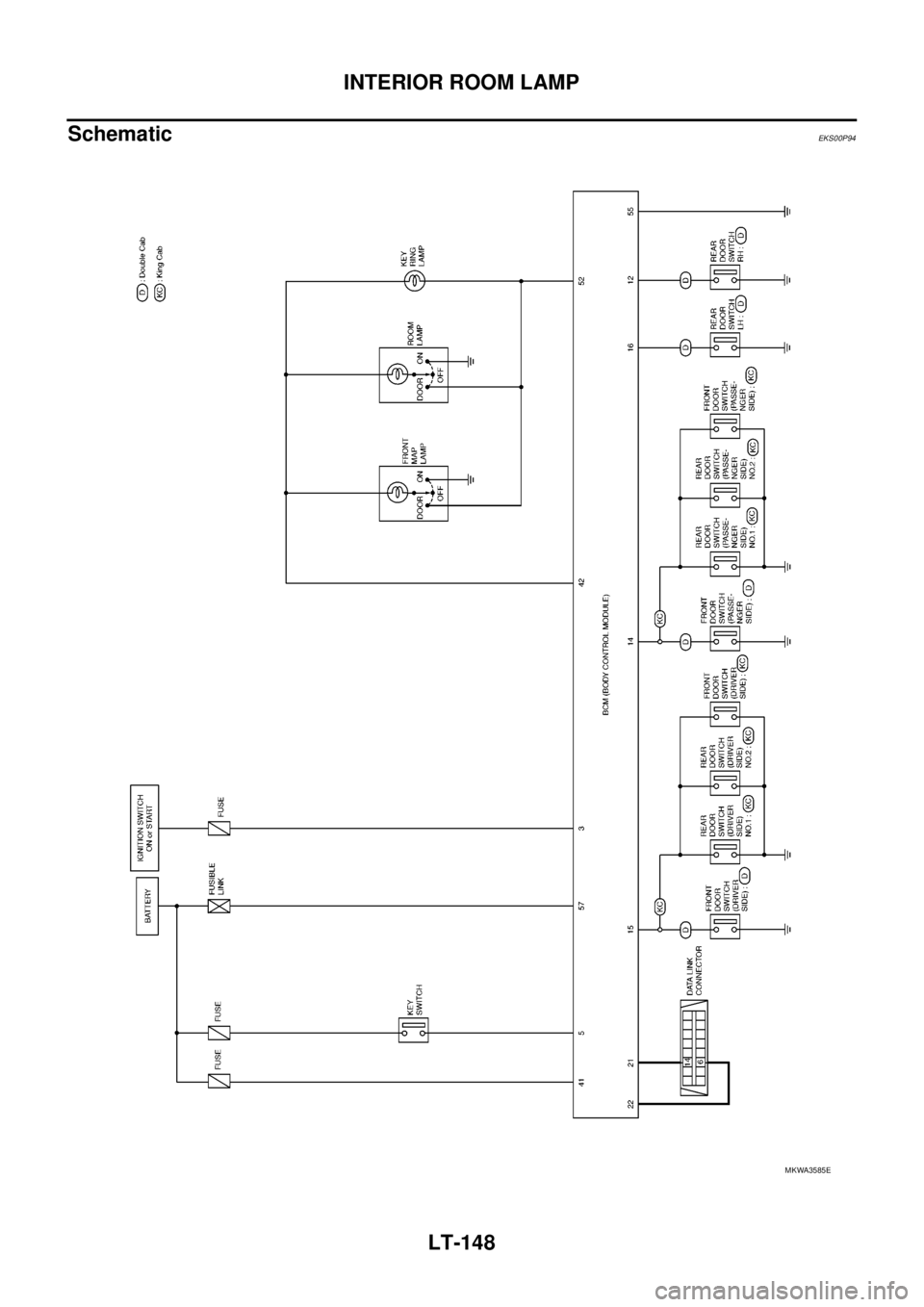

Wiring Diagram — INT/L —EKS00P95
MKWA3586E
