2005 NISSAN NAVARA Repair Workshop Manual

Page 2321 of 3171

NISSAN NAVARA 2005  Repair Workshop Manual MT-4
PREPARATION
KV381054S0
PullerRemoving rear oil seal
ST33200000
Drift
a: 60 mm (2.36 in) dia.
b: 44.5 mm (1.752 in) dia.
lInstalling counter rear bearing
lInstalling rear oil seal
KV38100500
Drift

Page 2322 of 3171

NISSAN NAVARA 2005  Repair Workshop Manual PREPARATION
MT-5
D
E
F
G
H
I
J
K
L
MA
B
MT

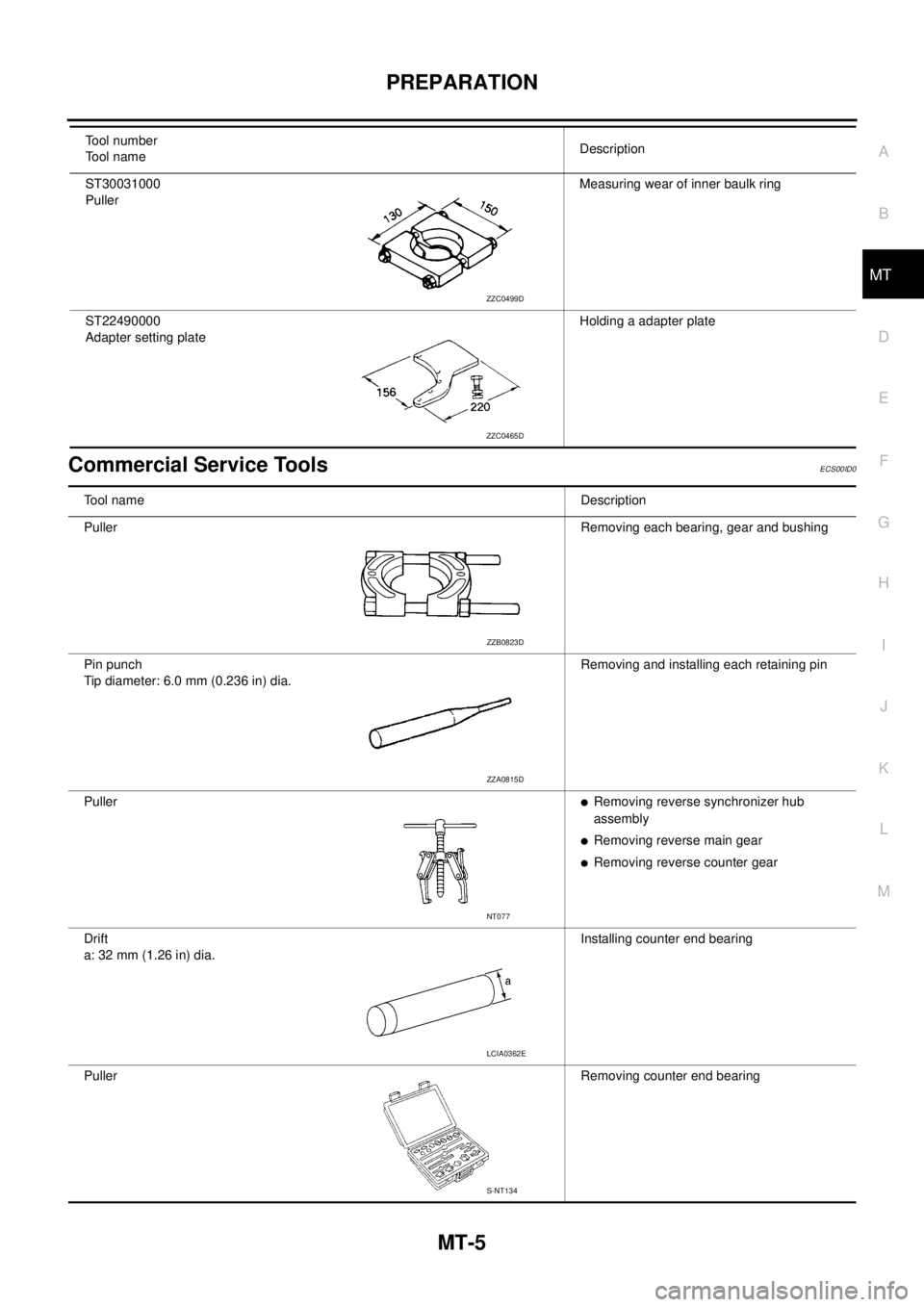

Commercial Service ToolsECS00ID0
ST30031000
PullerMeasuring wear of inner baulk ring
ST22490000
Adapter setting plateHolding a adapter plate Tool number
Tool

Page 2323 of 3171

NISSAN NAVARA 2005  Repair Workshop Manual MT-6
NOISE, VIBRATION AND HARSHNESS (NVH) TROUBLESHOOTING
NOISE, VIBRATION AND HARSHNESS (NVH) TROUBLESHOOTING
PFP:00003
NVH Troubleshooting ChartECS00ID1
Use the chart below to help you find the caus

Page 2324 of 3171

NISSAN NAVARA 2005  Repair Workshop Manual DESCRIPTION
MT-7
D
E
F
G
H
I
J
K
L
MA
B
MT
DESCRIPTIONPFP:00000

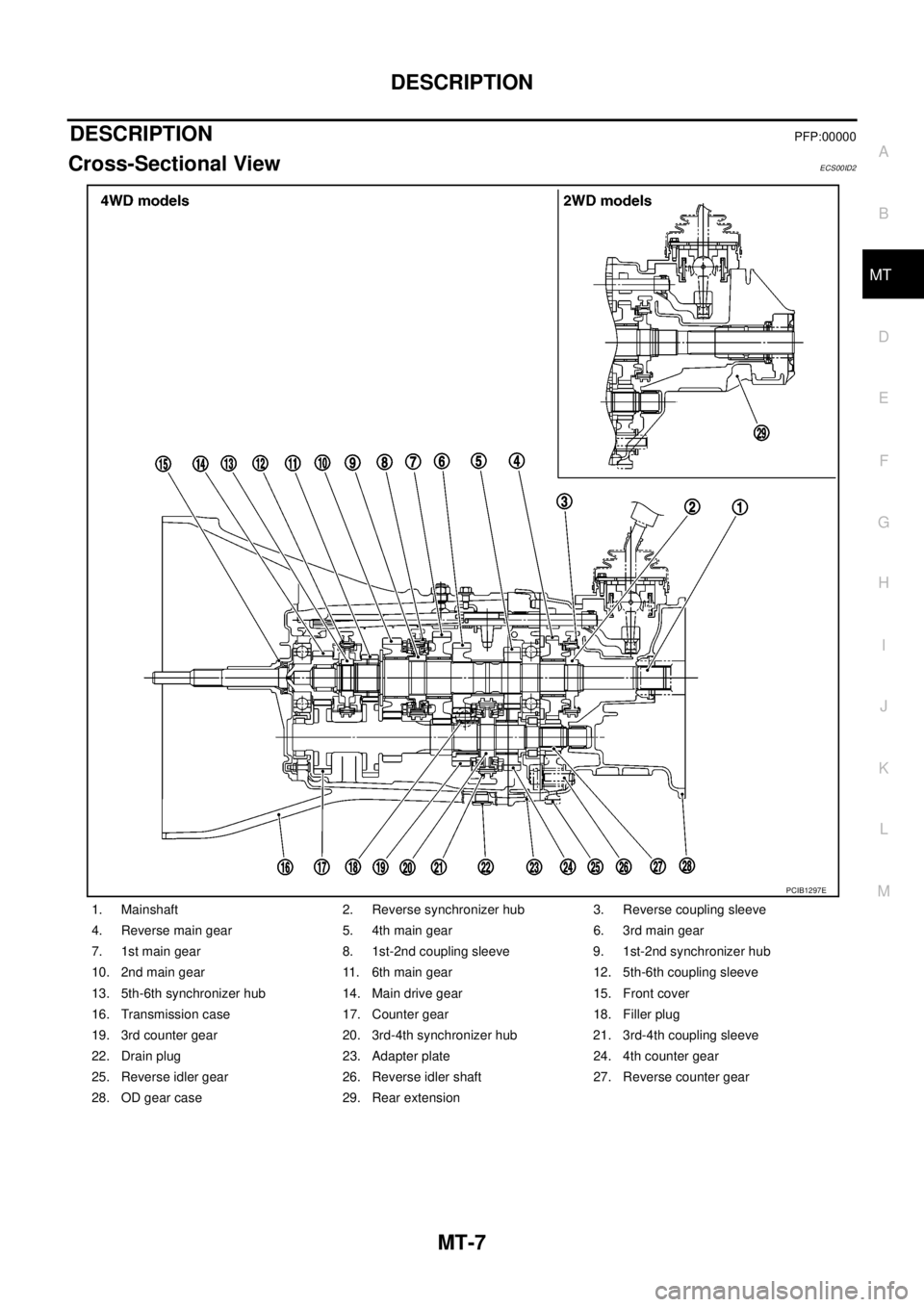

Cross-Sectional ViewECS00ID2
1. Mainshaft 2. Reverse synchronizer hub 3. Reverse coupling sleeve
4. Reverse main gear 5. 4th main gear 6

Page 2325 of 3171

NISSAN NAVARA 2005  Repair Workshop Manual MT-8
DESCRIPTION
DOUBLE-CONE SYNCHRONIZER
The 1st, 3rd and 4th gears is equipped with a double-cone synchronizer to reduce the operating force of the
shift lever.
TRIPLE-CONE SYNCHRONIZER
The 2nd gear

Page 2326 of 3171

NISSAN NAVARA 2005  Repair Workshop Manual M/T OIL
MT-9
D
E
F
G
H
I
J
K
L
MA
B
MT
M/T OILPFP:KLD20
Changing M/T OilECS00ID3
DRAINING
1. Start engine and let it run to warm up transmission.
2. Stop engine. Remove drain plug and gasket and then

Page 2327 of 3171

NISSAN NAVARA 2005  Repair Workshop Manual MT-10
REAR OIL SEAL
REAR OIL SEAL
PFP:33140
Removal and InstallationECS00ID5
REMOVAL
For 2WD Models
1. Remove rear propeller shaft. Refer toPR-8, "Removal and Installation".
2. Remove dust seal and re

Page 2328 of 3171

NISSAN NAVARA 2005  Repair Workshop Manual REAR OIL SEAL
MT-11
D
E
F
G
H
I
J
K
L
MA
B
MT

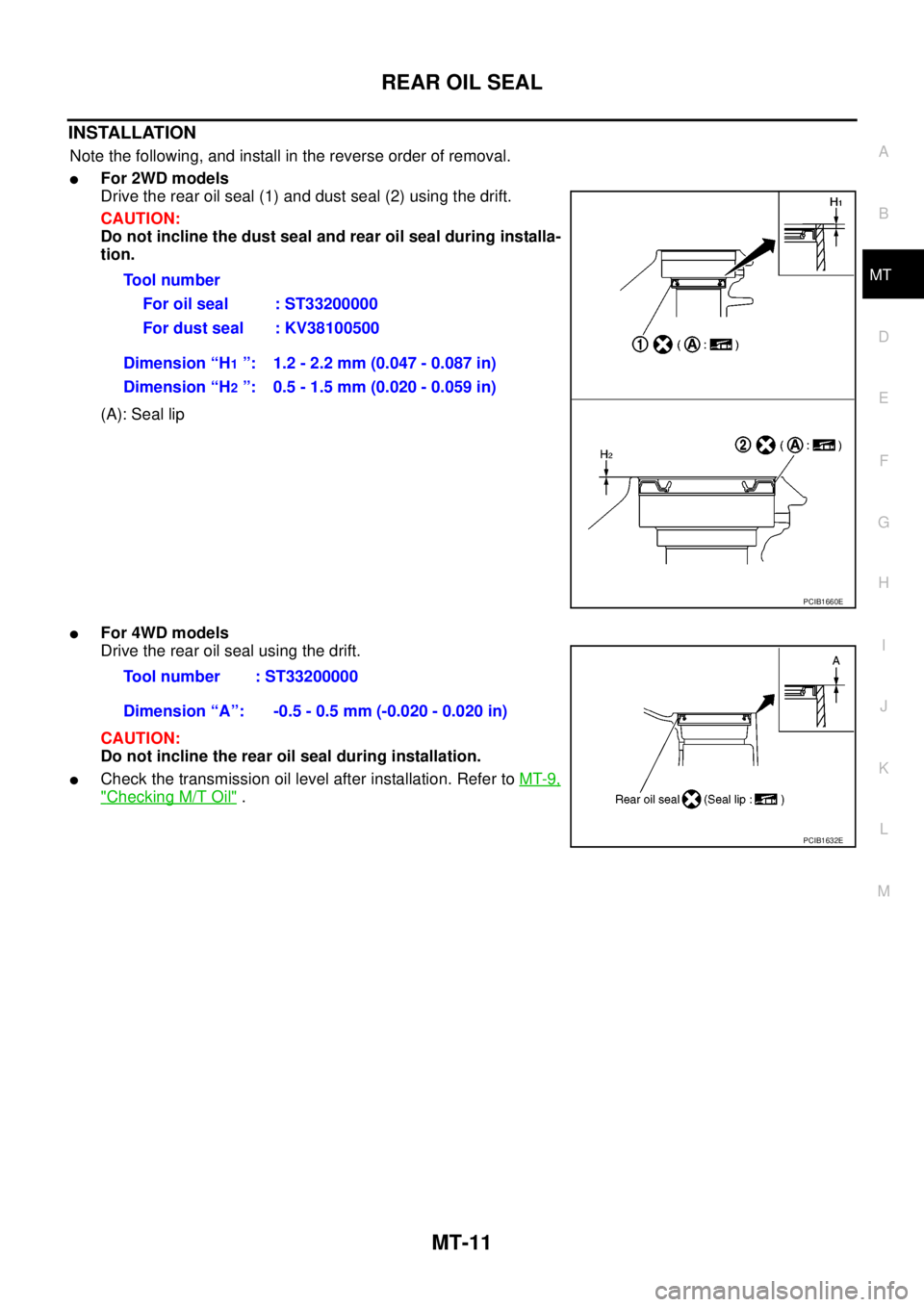

INSTALLATION
Note the following, and install in the reverse order of removal.
lFor 2WD models
Drive the rear oil seal (1) and dust seal (2) using the drif
