Page 2065 of 3171

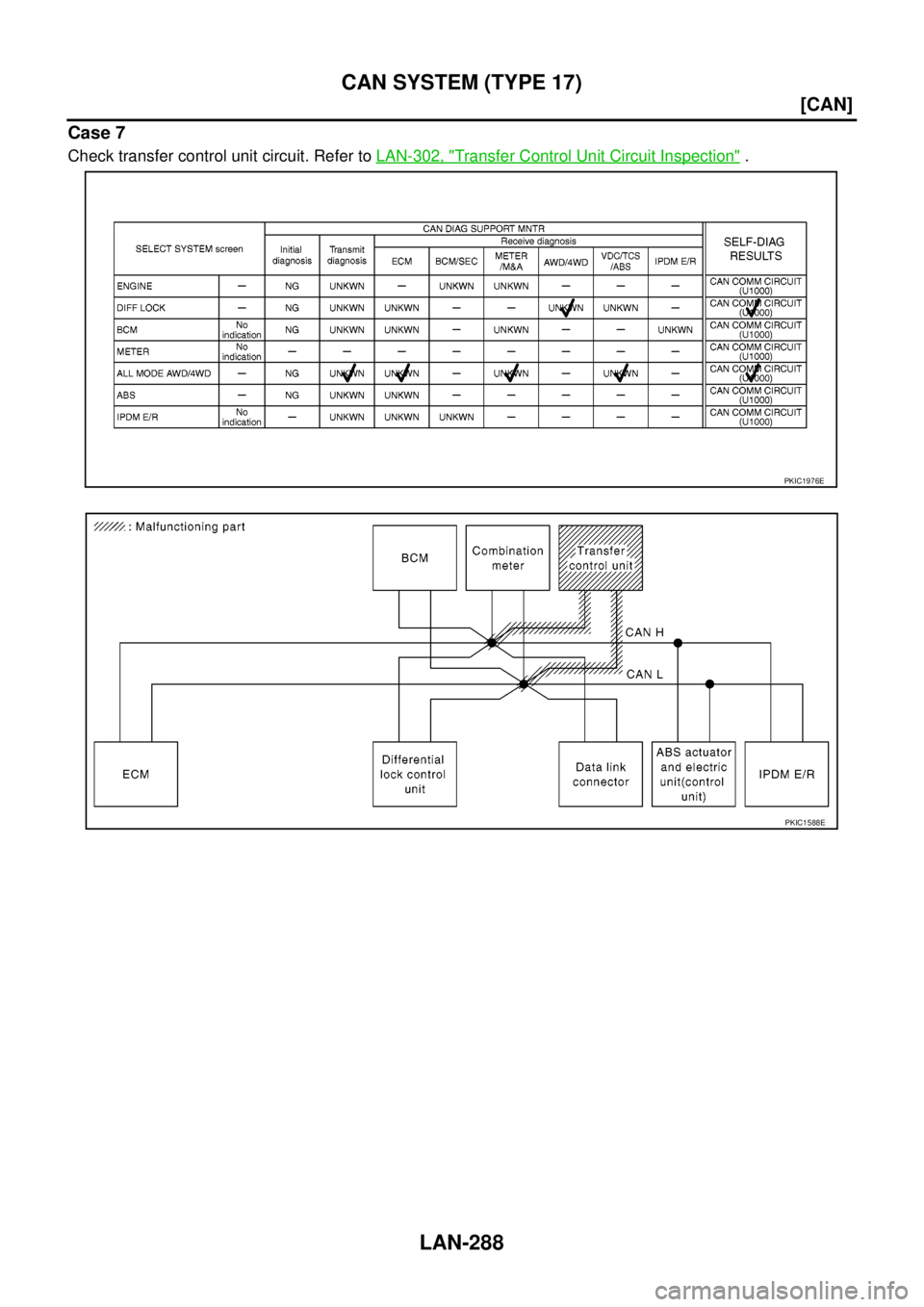

NISSAN NAVARA 2005 Repair Workshop Manual LAN-288 [CAN] CAN SYSTEM (TYPE 17) Case 7 Check transfer control unit circuit. Refer toLAN-302, "Transfer Control Unit Circuit Inspection". PKIC1976E PKIC1588E

Page 2066 of 3171

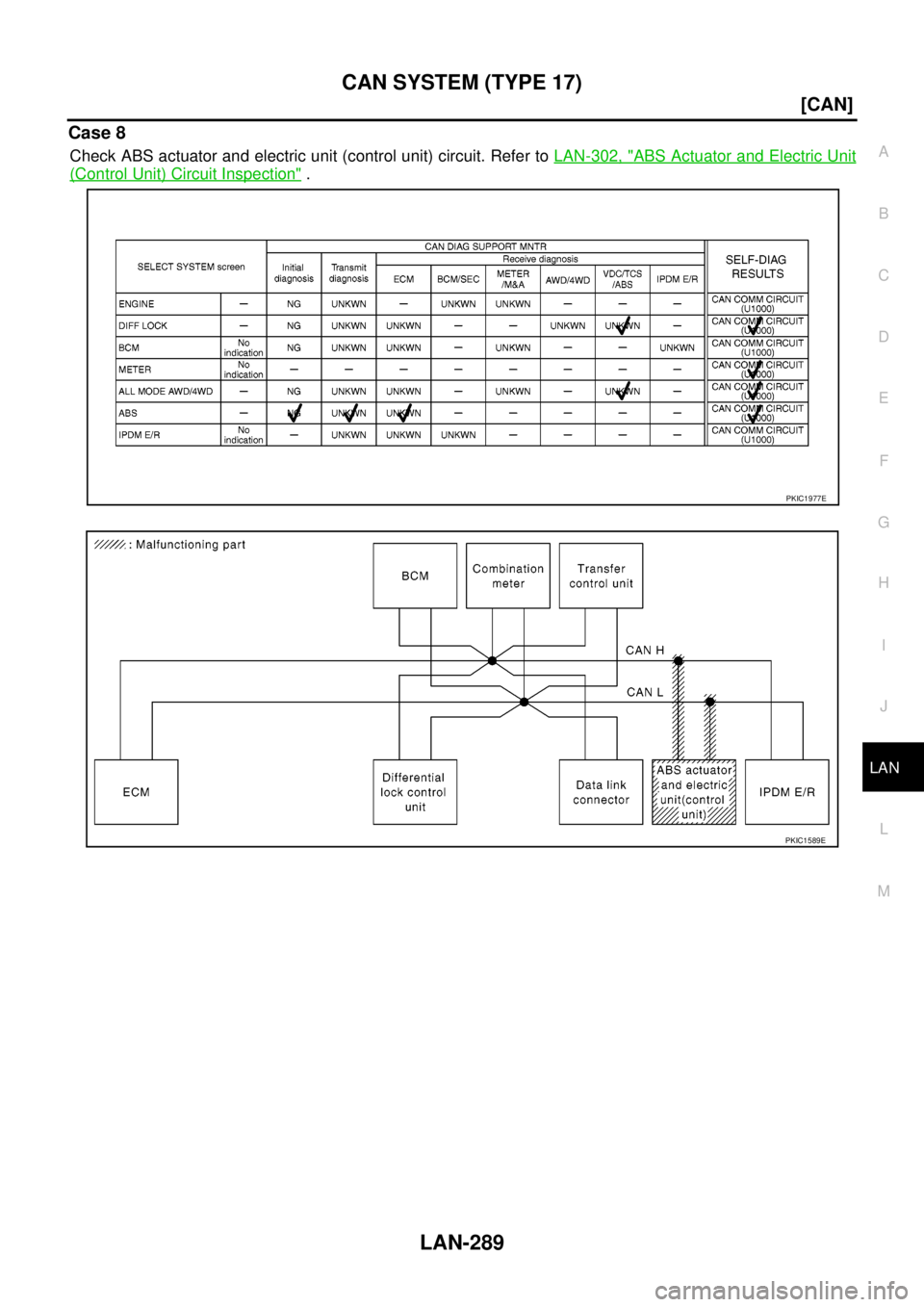

NISSAN NAVARA 2005 Repair Workshop Manual CAN SYSTEM (TYPE 17) LAN-289 [CAN] C D E F G H I J L MA B LAN Case 8 Check ABS actuator and electric unit (control unit) circuit. Refer toLAN-302, "ABS Actuator and Electric Unit (Control Unit) Circui

Page 2067 of 3171

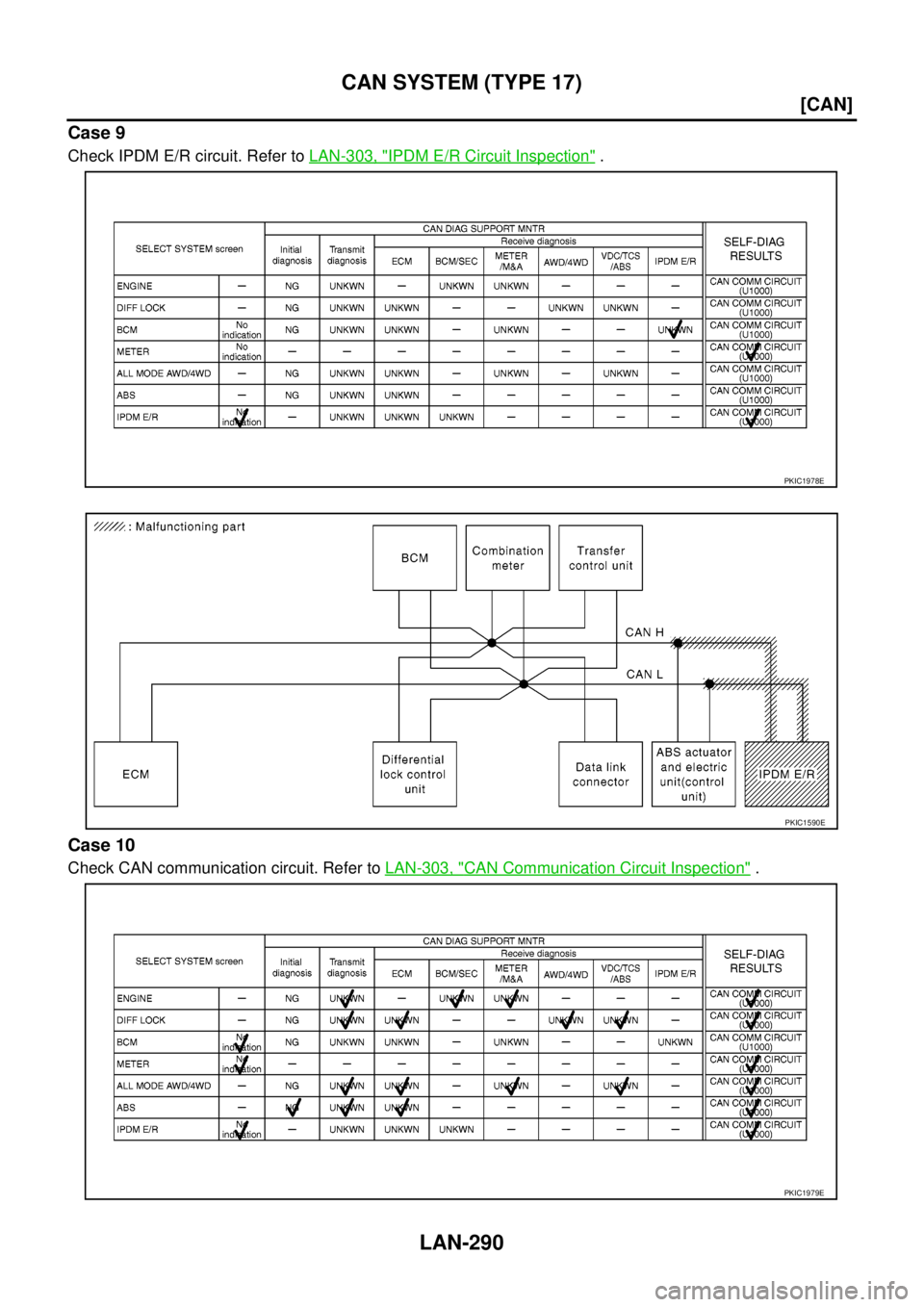

NISSAN NAVARA 2005 Repair Workshop Manual LAN-290 [CAN] CAN SYSTEM (TYPE 17) Case 9 Check IPDM E/R circuit. Refer toLAN-303, "IPDM E/R Circuit Inspection". Case 10 Check CAN communication circuit. Refer toLAN-303, "CAN Communication Circuit I

Page 2068 of 3171

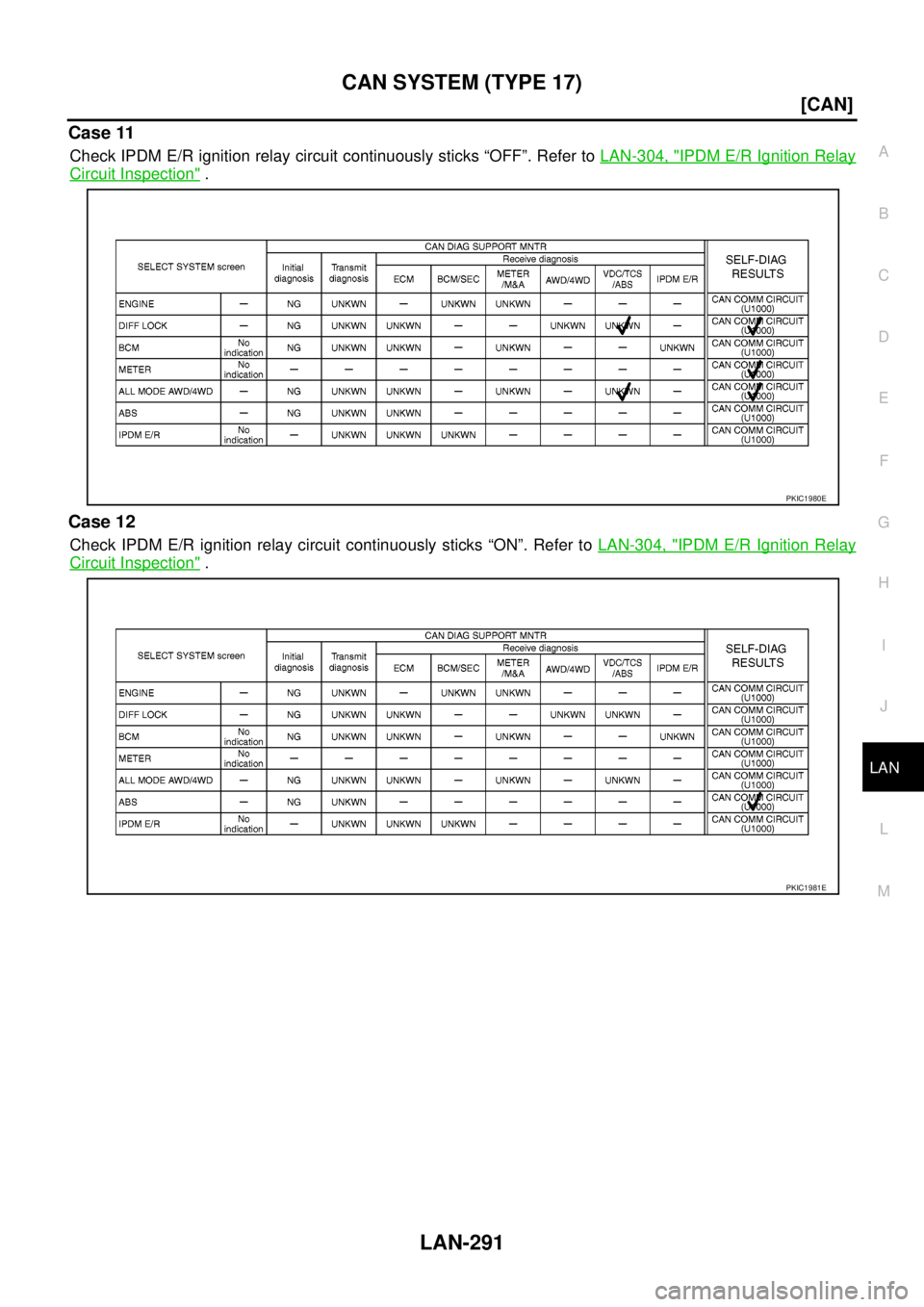

NISSAN NAVARA 2005 Repair Workshop Manual CAN SYSTEM (TYPE 17) LAN-291 [CAN] C D E F G H I J L MA B LAN Case 11 Check IPDM E/R ignition relay circuit continuously sticks “OFF”. Refer toLAN-304, "IPDM E/R Ignition Relay Circuit Inspection"

Page 2069 of 3171

NISSAN NAVARA 2005 Repair Workshop Manual LAN-292 [CAN] TROUBLE DIAGNOSIS FOR SYSTEM TROUBLE DIAGNOSIS FOR SYSTEM PFP:00000 Inspection Between TCM and Data Link Connector CircuitEKS00O4W 1.CHECK CONNECTOR 1. Turn ignition switch OFF. 2. Disco

Page 2070 of 3171

NISSAN NAVARA 2005 Repair Workshop Manual TROUBLE DIAGNOSIS FOR SYSTEM LAN-293 [CAN] C D E F G H I J L MA B LAN 4.CHECK HARNESS FOR OPEN CIRCUIT Check continuity between harness connector M91 terminals 52G, 51G and data link connector M45 ter

Page 2071 of 3171

NISSAN NAVARA 2005 Repair Workshop Manual LAN-294 [CAN] TROUBLE DIAGNOSIS FOR SYSTEM 3.CHECK HARNESS FOR OPEN CIRCUIT 1. Disconnect harness connector E101. 2. Check continuity between harness connector E8 terminals 2, 3 and harness connector

Page 2072 of 3171

NISSAN NAVARA 2005 Repair Workshop Manual TROUBLE DIAGNOSIS FOR SYSTEM LAN-295 [CAN] C D E F G H I J L MA B LAN Inspection Between NAVI Control Unit and Data Link Connector CircuitEKS00O5H 1.CHECK CONNECTOR 1. Turn ignition switch OFF. 2. Dis
