Page 289 of 3171

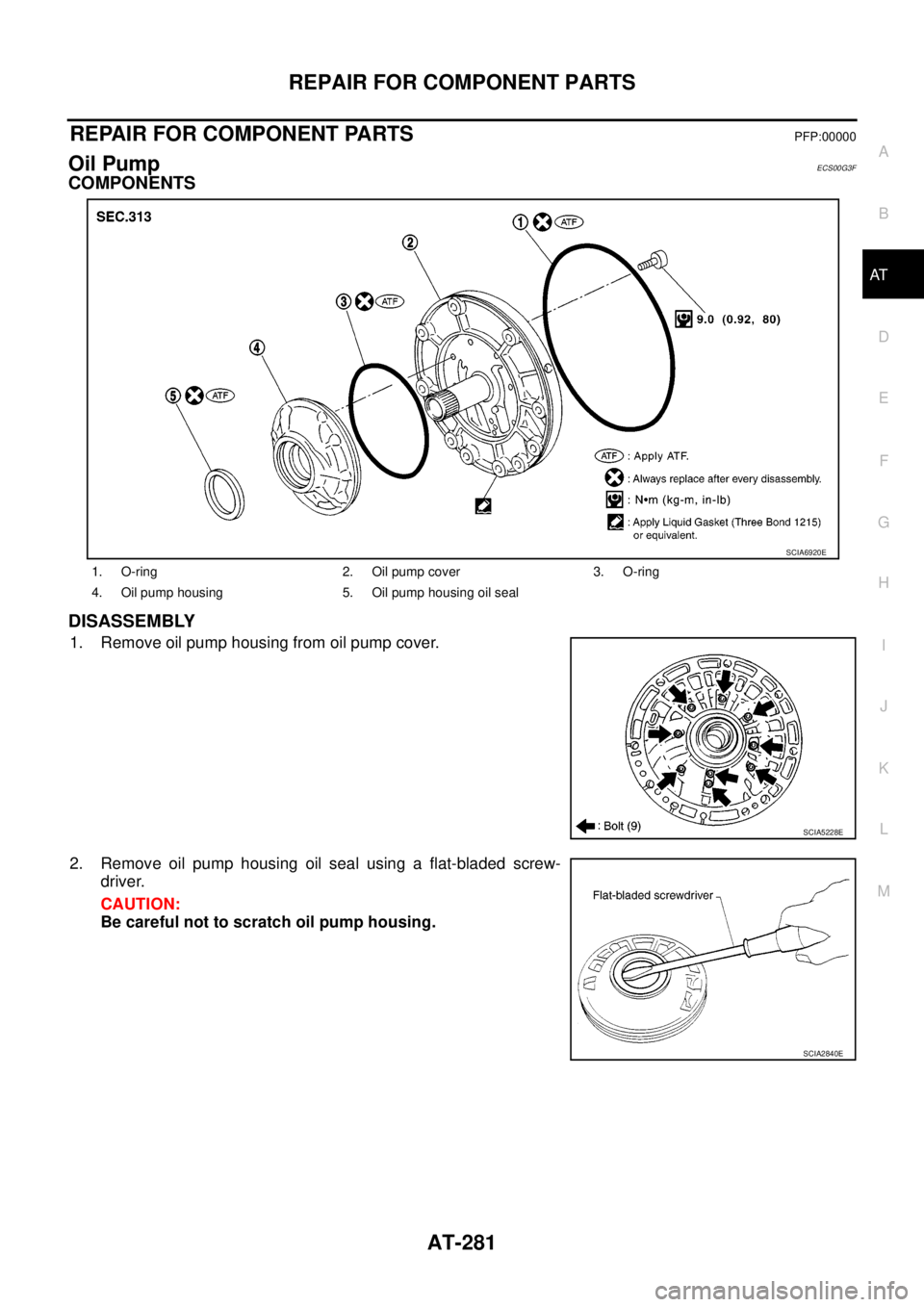

NISSAN NAVARA 2005 Repair Workshop Manual REPAIR FOR COMPONENT PARTS AT-281 D E F G H I J K L MA B AT REPAIR FOR COMPONENT PARTSPFP:00000 Oil PumpECS00G3F COMPONENTS DISASSEMBLY 1. Remove oil pump housing from oil pump cover. 2. Remove oil pu

Page 290 of 3171

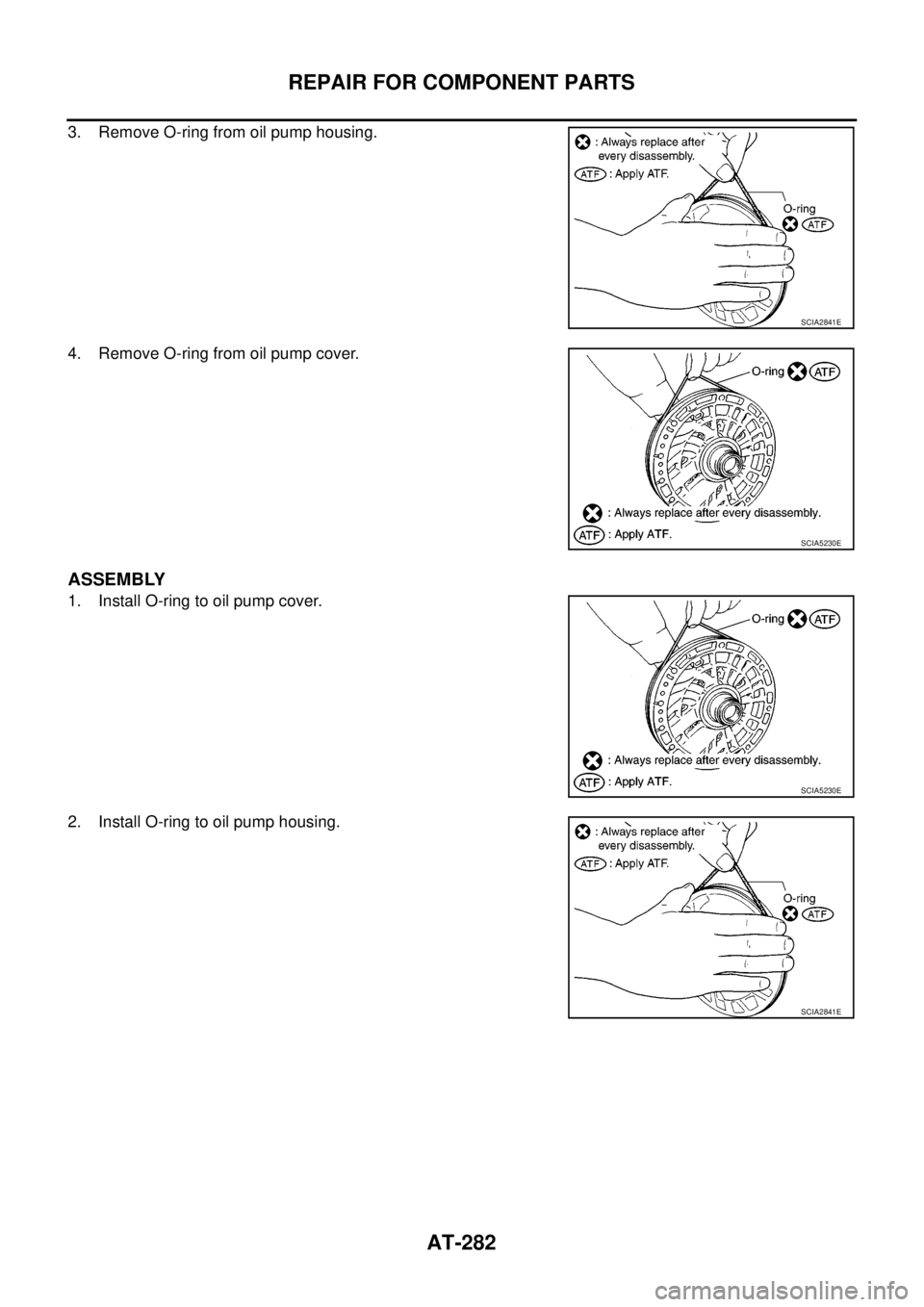

NISSAN NAVARA 2005 Repair Workshop Manual AT-282 REPAIR FOR COMPONENT PARTS 3. Remove O-ring from oil pump housing. 4. Remove O-ring from oil pump cover. ASSEMBLY 1. Install O-ring to oil pump cover. 2. Install O-ring to oil pump housing. SCI

Page 291 of 3171

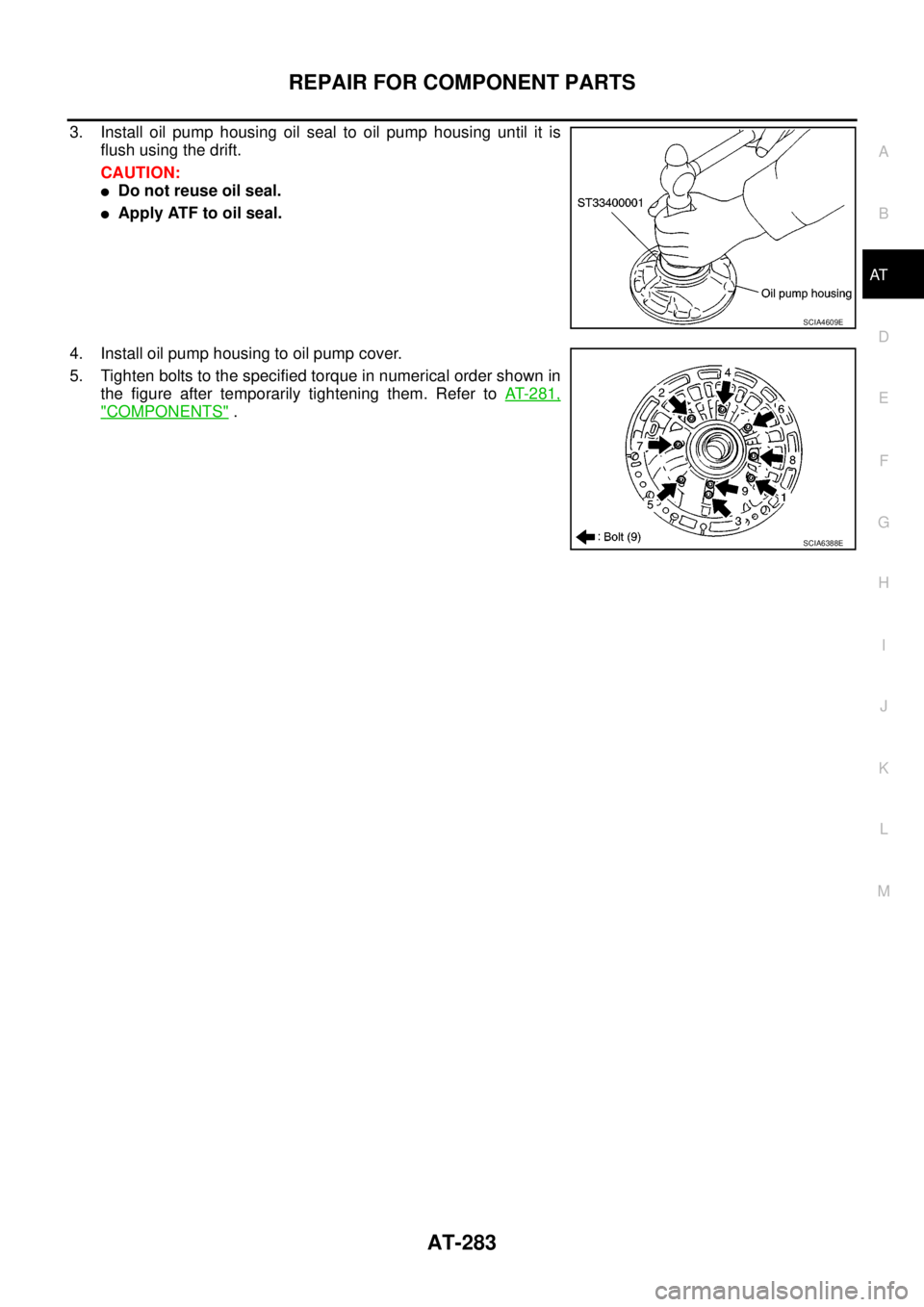

NISSAN NAVARA 2005 Repair Workshop Manual REPAIR FOR COMPONENT PARTS AT-283 D E F G H I J K L MA B AT 3. Install oil pump housing oil seal to oil pump housing until it is flush using the drift. CAUTION: lDo not reuse oil seal. lApply ATF to o

Page 292 of 3171

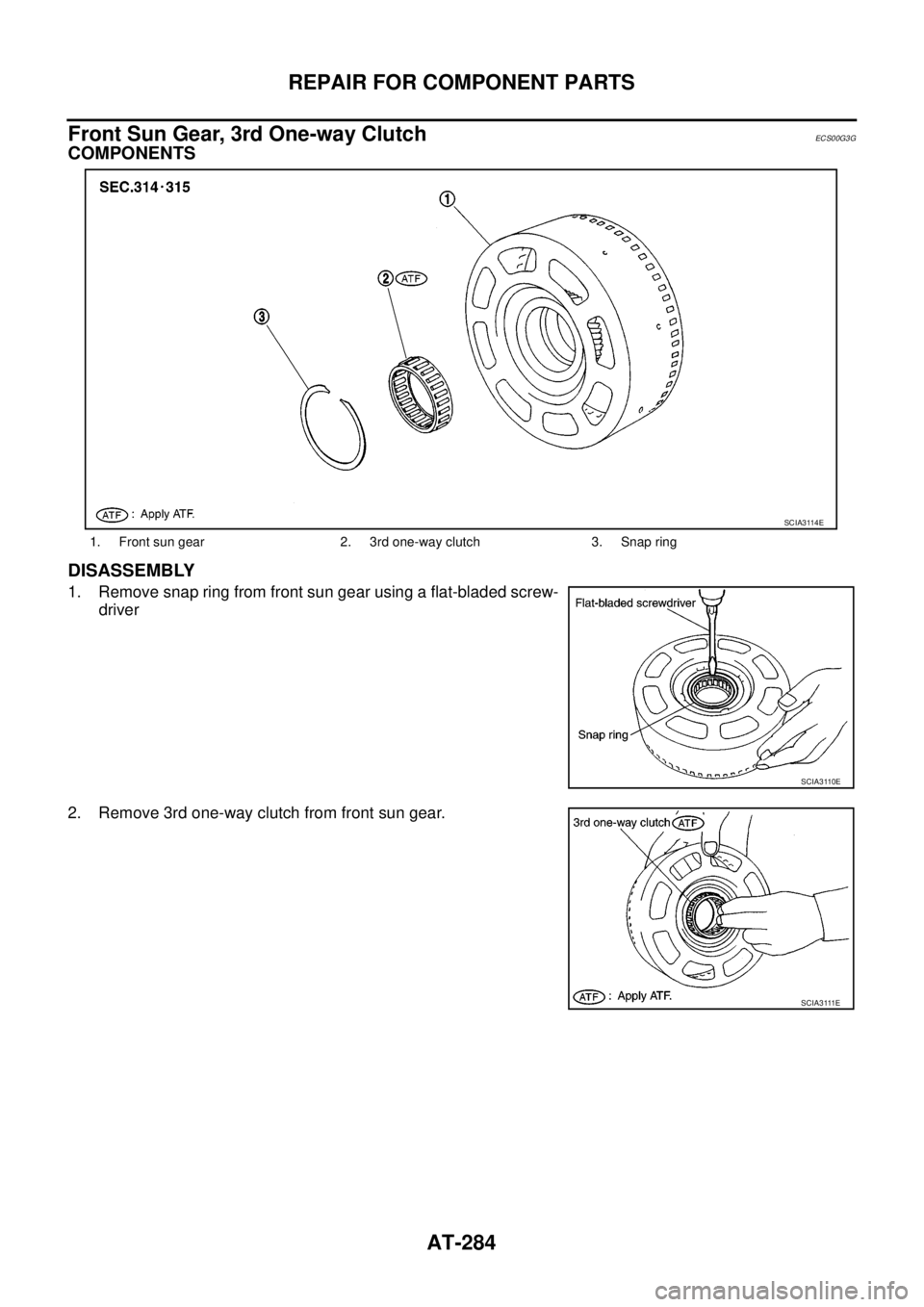

NISSAN NAVARA 2005 Repair Workshop Manual AT-284 REPAIR FOR COMPONENT PARTS Front Sun Gear, 3rd One-way Clutch ECS00G3G COMPONENTS DISASSEMBLY 1. Remove snap ring from front sun gear using a flat-bladed screw- driver 2. Remove 3rd one-way clu

Page 293 of 3171

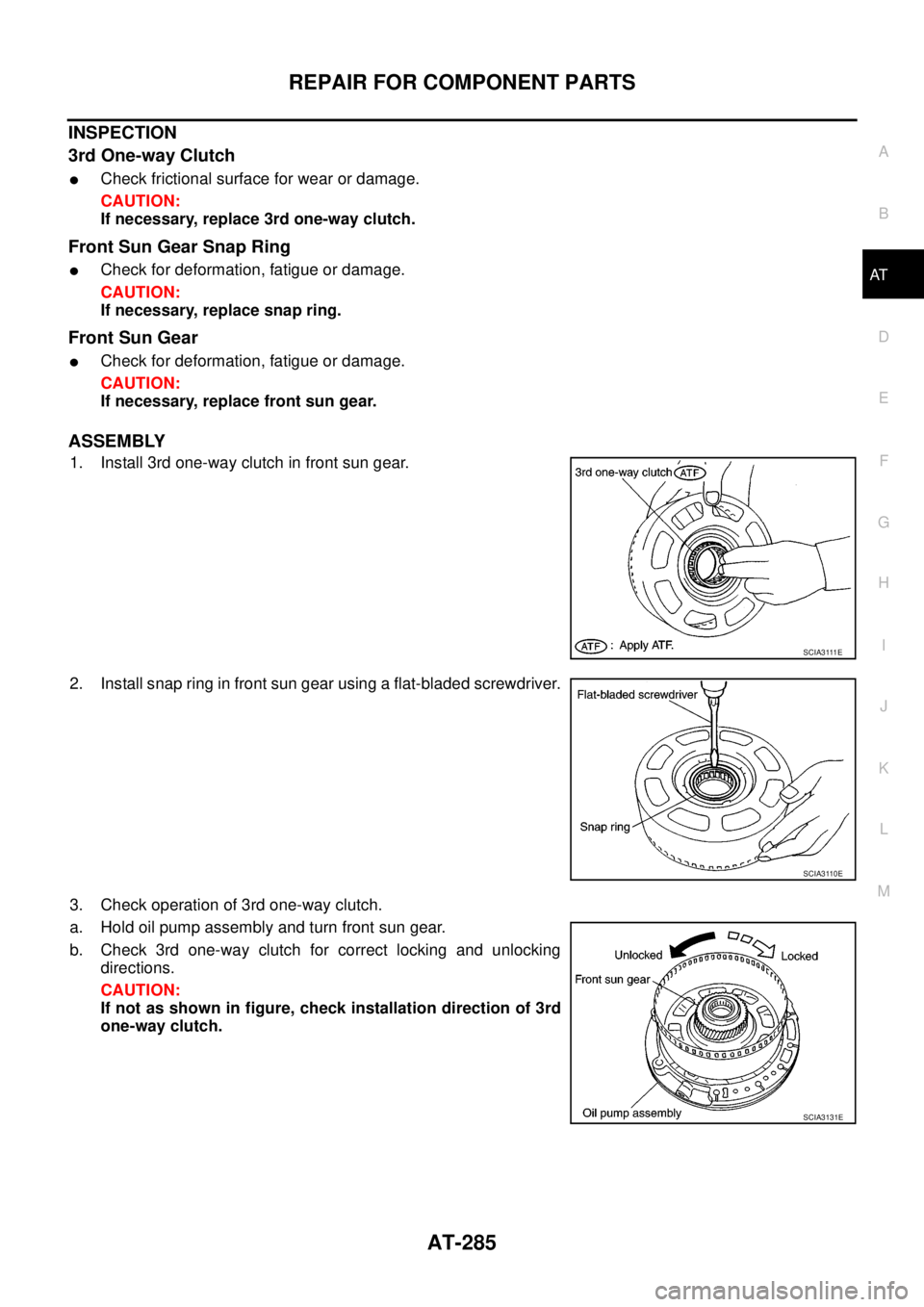

NISSAN NAVARA 2005 Repair Workshop Manual REPAIR FOR COMPONENT PARTS AT-285 D E F G H I J K L MA B AT INSPECTION 3rd One-way Clutch lCheck frictional surface for wear or damage. CAUTION: If necessary, replace 3rd one-way clutch. Front Sun Gea

Page 294 of 3171

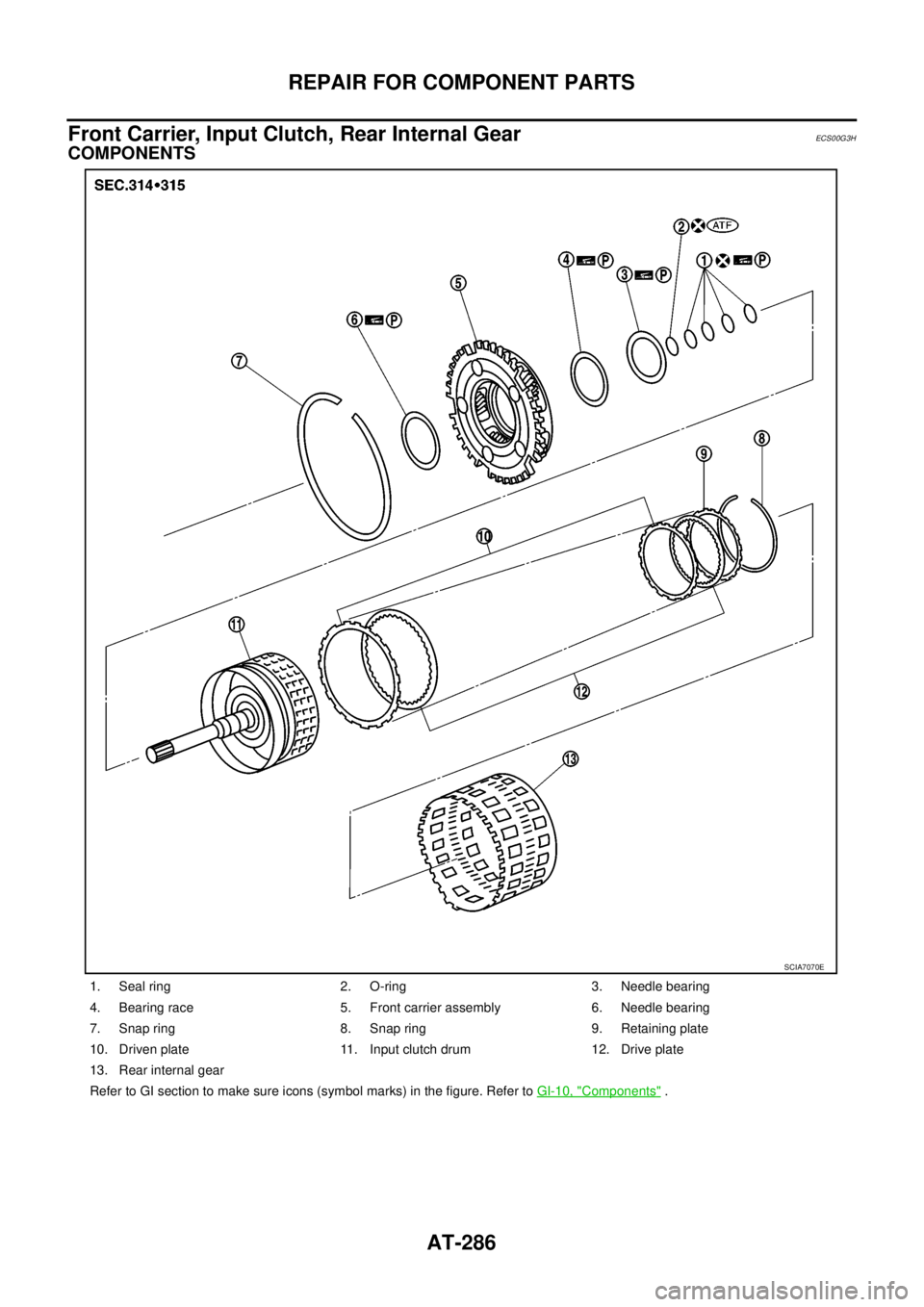

NISSAN NAVARA 2005 Repair Workshop Manual AT-286 REPAIR FOR COMPONENT PARTS Front Carrier, Input Clutch, Rear Internal Gear ECS00G3H COMPONENTS 1. Seal ring 2. O-ring 3. Needle bearing 4. Bearing race 5. Front carrier assembly 6. Needle beari

Page 295 of 3171

NISSAN NAVARA 2005 Repair Workshop Manual REPAIR FOR COMPONENT PARTS AT-287 D E F G H I J K L MA B AT DISASSEMBLY 1. Compress snap ring using 2 flat-bladed screwdrivers. 2. Remove front carrier assembly and input clutch assembly from rear int

Page 296 of 3171

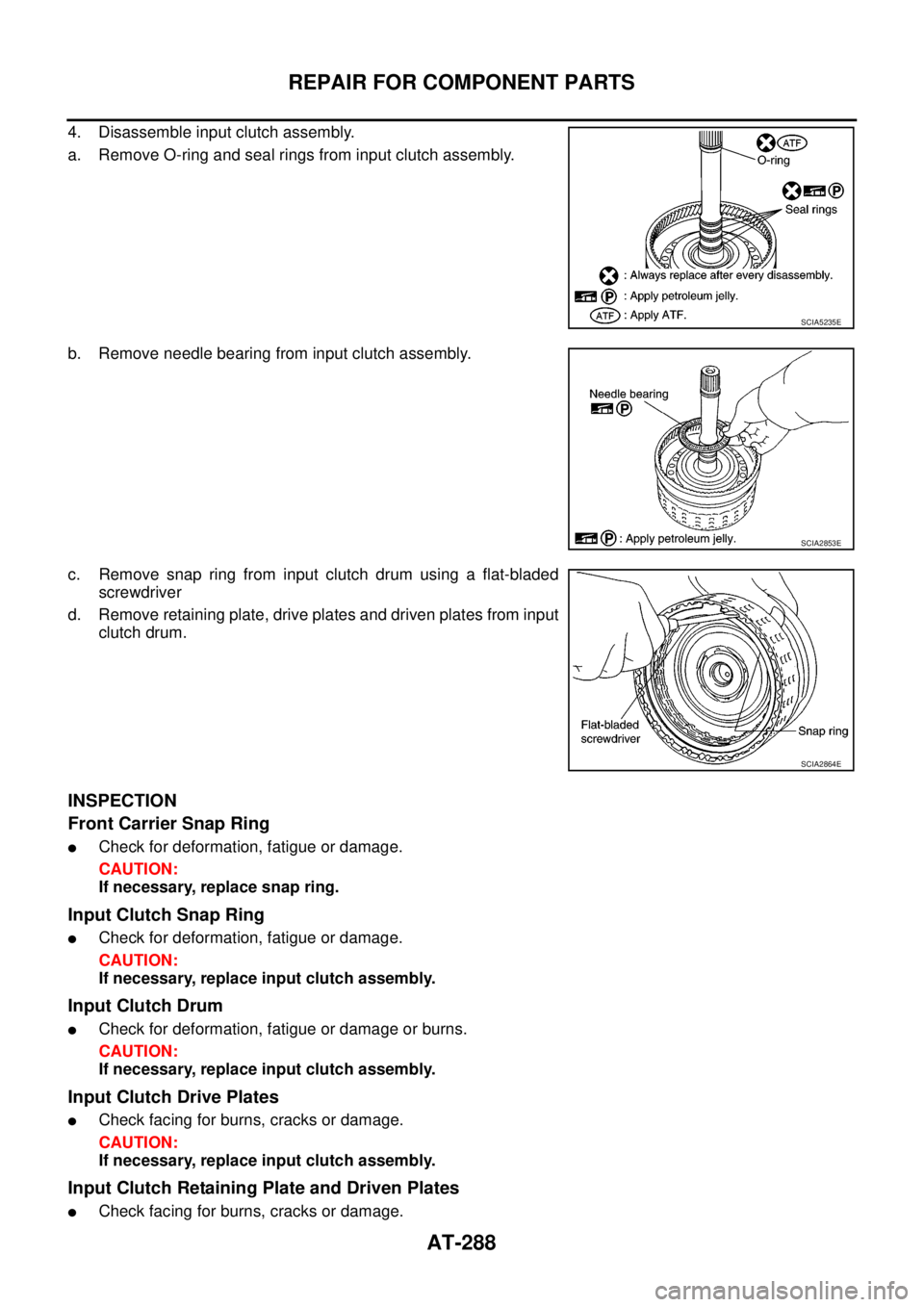

NISSAN NAVARA 2005 Repair Workshop Manual AT-288 REPAIR FOR COMPONENT PARTS 4. Disassemble input clutch assembly. a. Remove O-ring and seal rings from input clutch assembly. b. Remove needle bearing from input clutch assembly. c. Remove snap
