Page 1881 of 3171

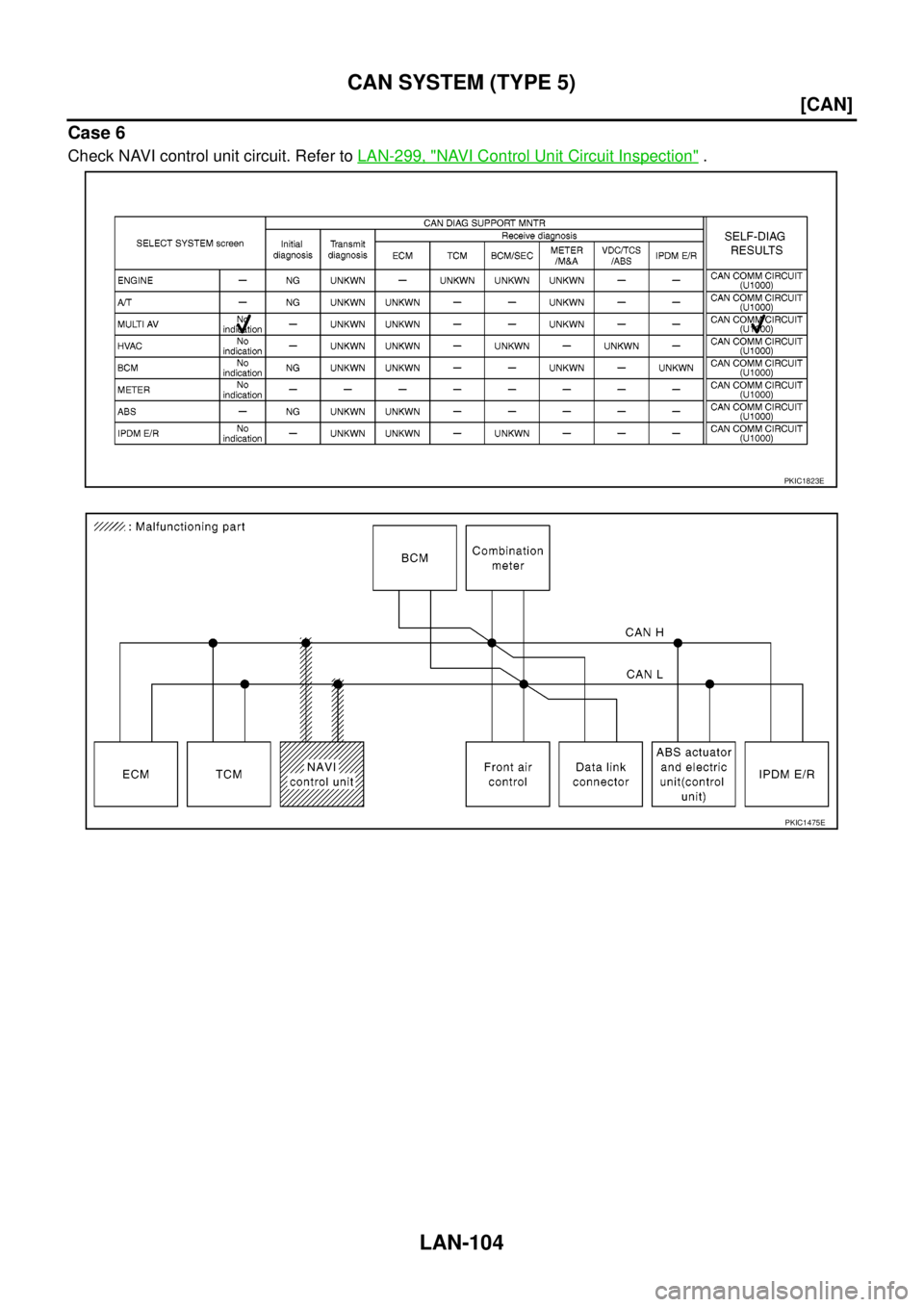

NISSAN NAVARA 2005 Repair Workshop Manual LAN-104 [CAN] CAN SYSTEM (TYPE 5) Case 6 Check NAVI control unit circuit. Refer toLAN-299, "NAVI Control Unit Circuit Inspection". PKIC1823E PKIC1475E

Page 1882 of 3171

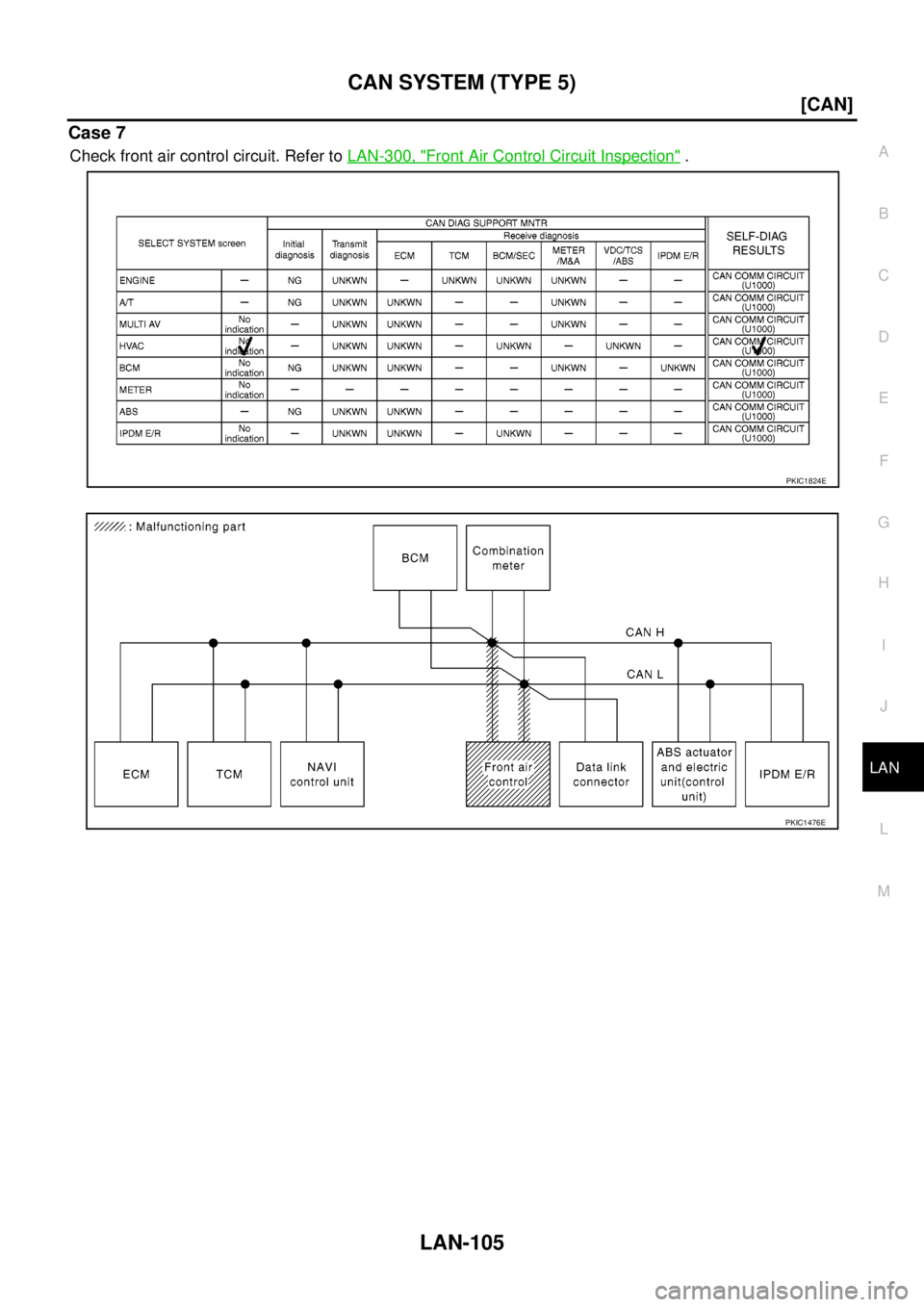

NISSAN NAVARA 2005 Repair Workshop Manual CAN SYSTEM (TYPE 5) LAN-105 [CAN] C D E F G H I J L MA B LAN Case 7 Check front air control circuit. Refer toLAN-300, "Front Air Control Circuit Inspection". PKIC1824E PKIC1476E

Page 1883 of 3171

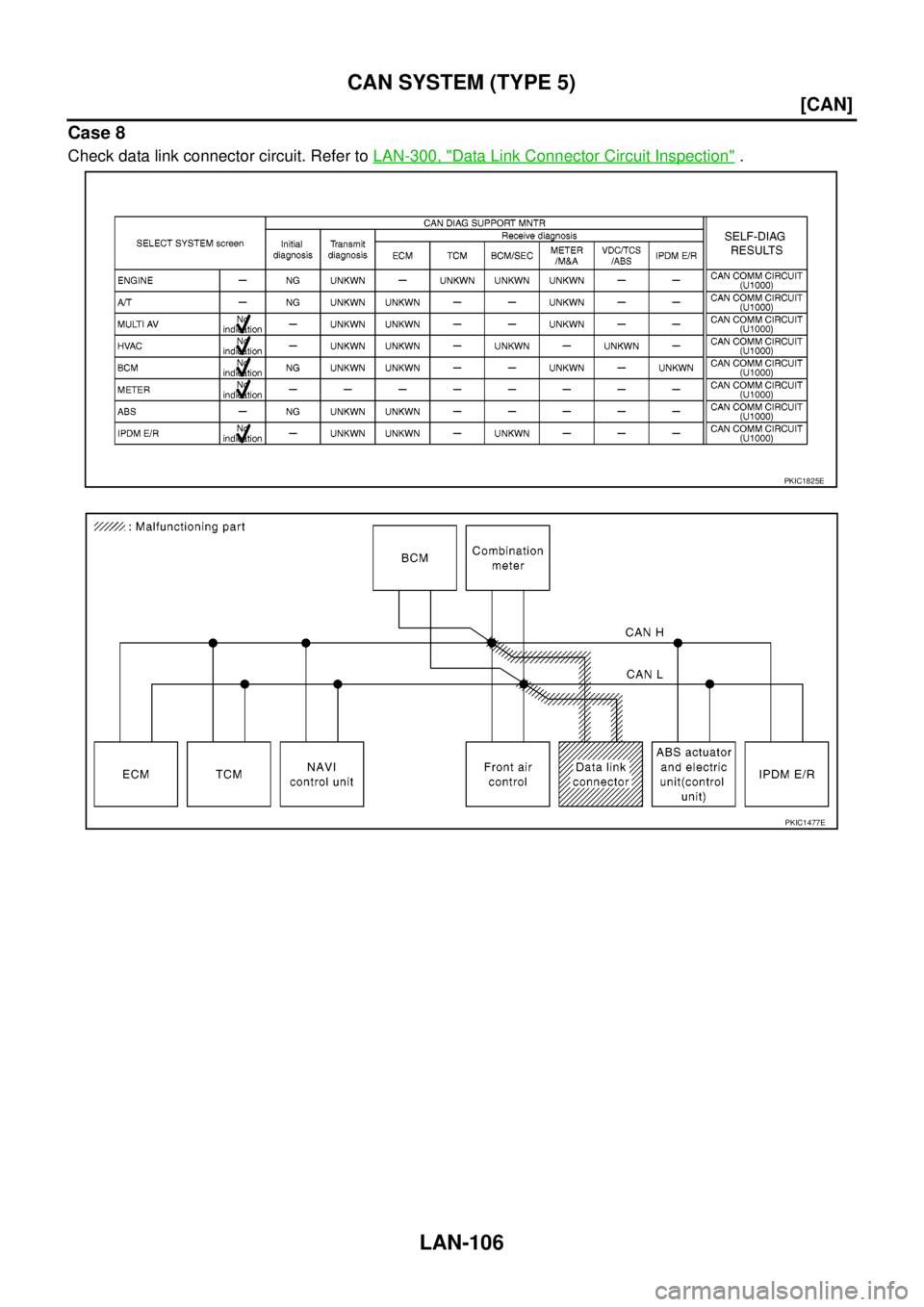

NISSAN NAVARA 2005 Repair Workshop Manual LAN-106 [CAN] CAN SYSTEM (TYPE 5) Case 8 Check data link connector circuit. Refer toLAN-300, "Data Link Connector Circuit Inspection". PKIC1825E PKIC1477E

Page 1884 of 3171

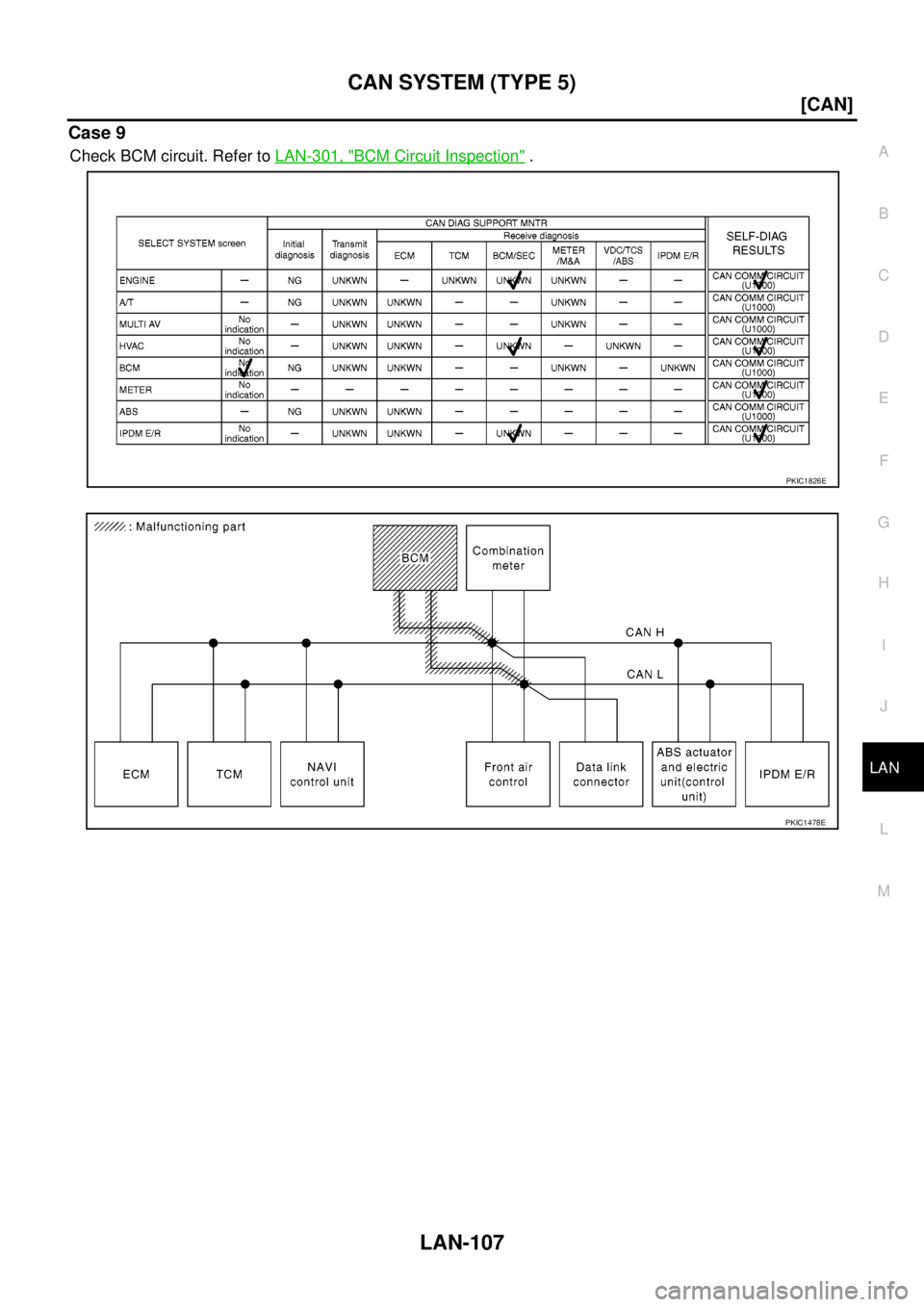

NISSAN NAVARA 2005 Repair Workshop Manual CAN SYSTEM (TYPE 5) LAN-107 [CAN] C D E F G H I J L MA B LAN Case 9 Check BCM circuit. Refer toLAN-301, "BCM Circuit Inspection". PKIC1826E PKIC1478E

Page 1885 of 3171

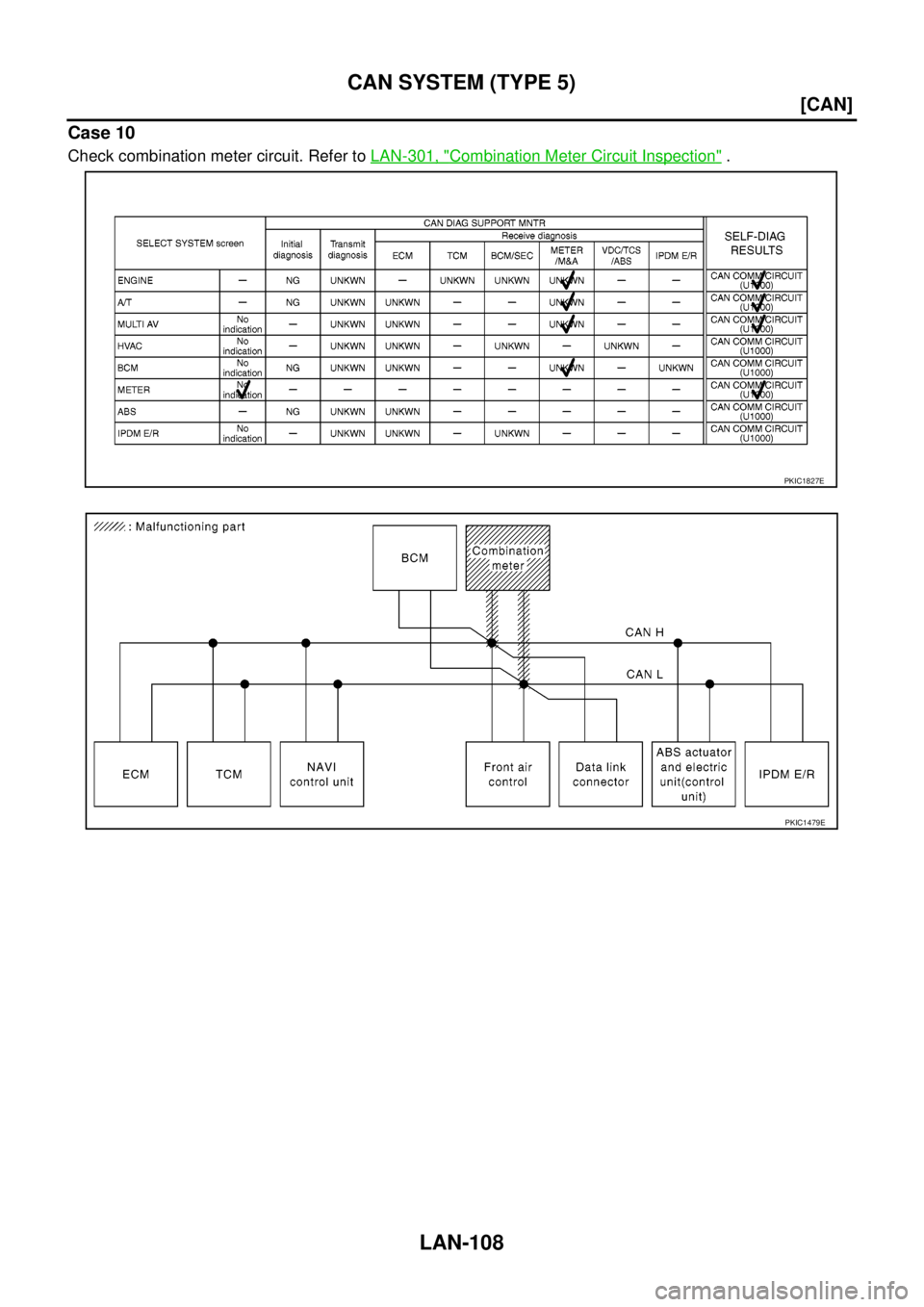

NISSAN NAVARA 2005 Repair Workshop Manual LAN-108 [CAN] CAN SYSTEM (TYPE 5) Case 10 Check combination meter circuit. Refer toLAN-301, "Combination Meter Circuit Inspection". PKIC1827E PKIC1479E

Page 1886 of 3171

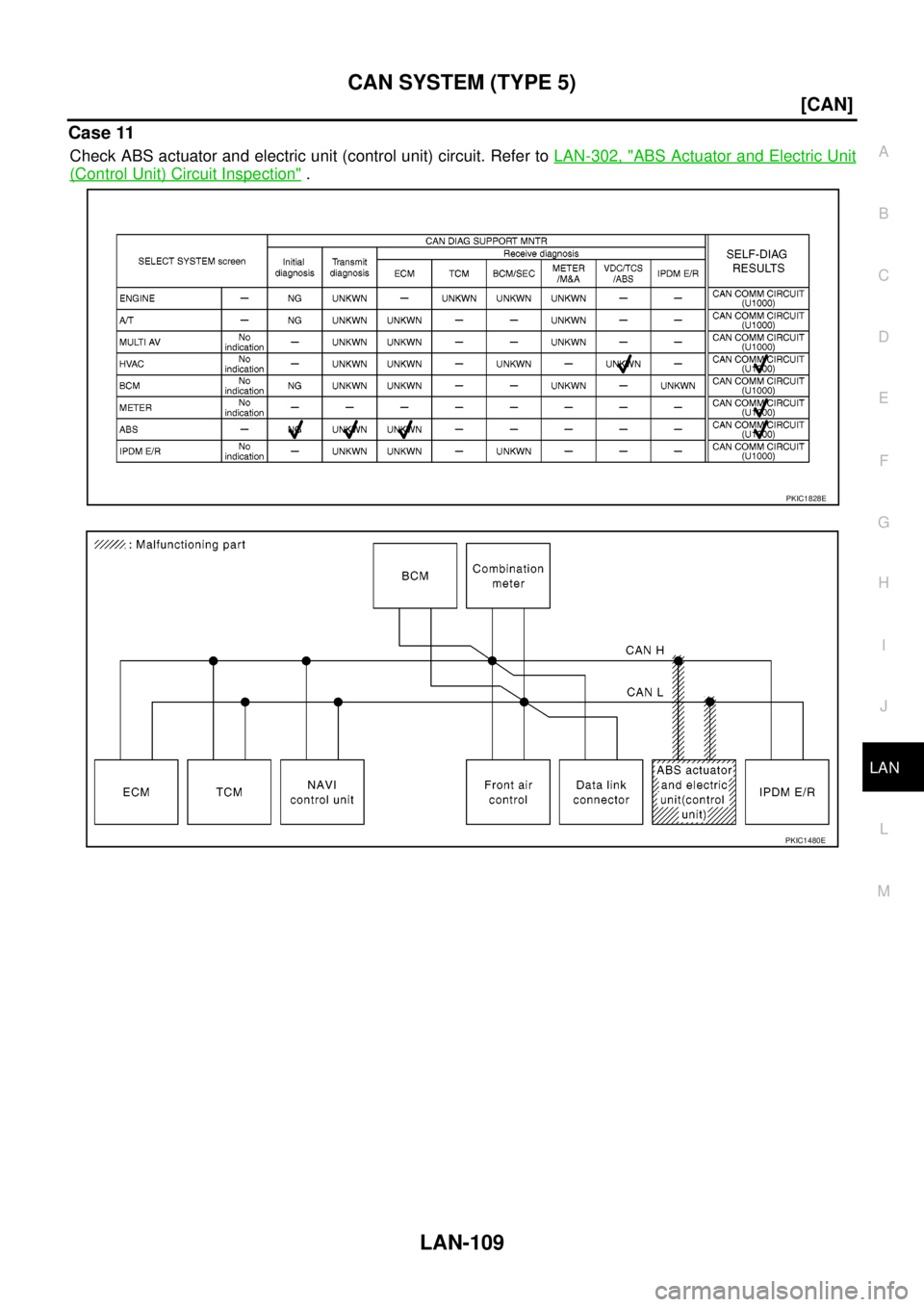

NISSAN NAVARA 2005 Repair Workshop Manual CAN SYSTEM (TYPE 5) LAN-109 [CAN] C D E F G H I J L MA B LAN Case 11 Check ABS actuator and electric unit (control unit) circuit. Refer toLAN-302, "ABS Actuator and Electric Unit (Control Unit) Circui

Page 1887 of 3171

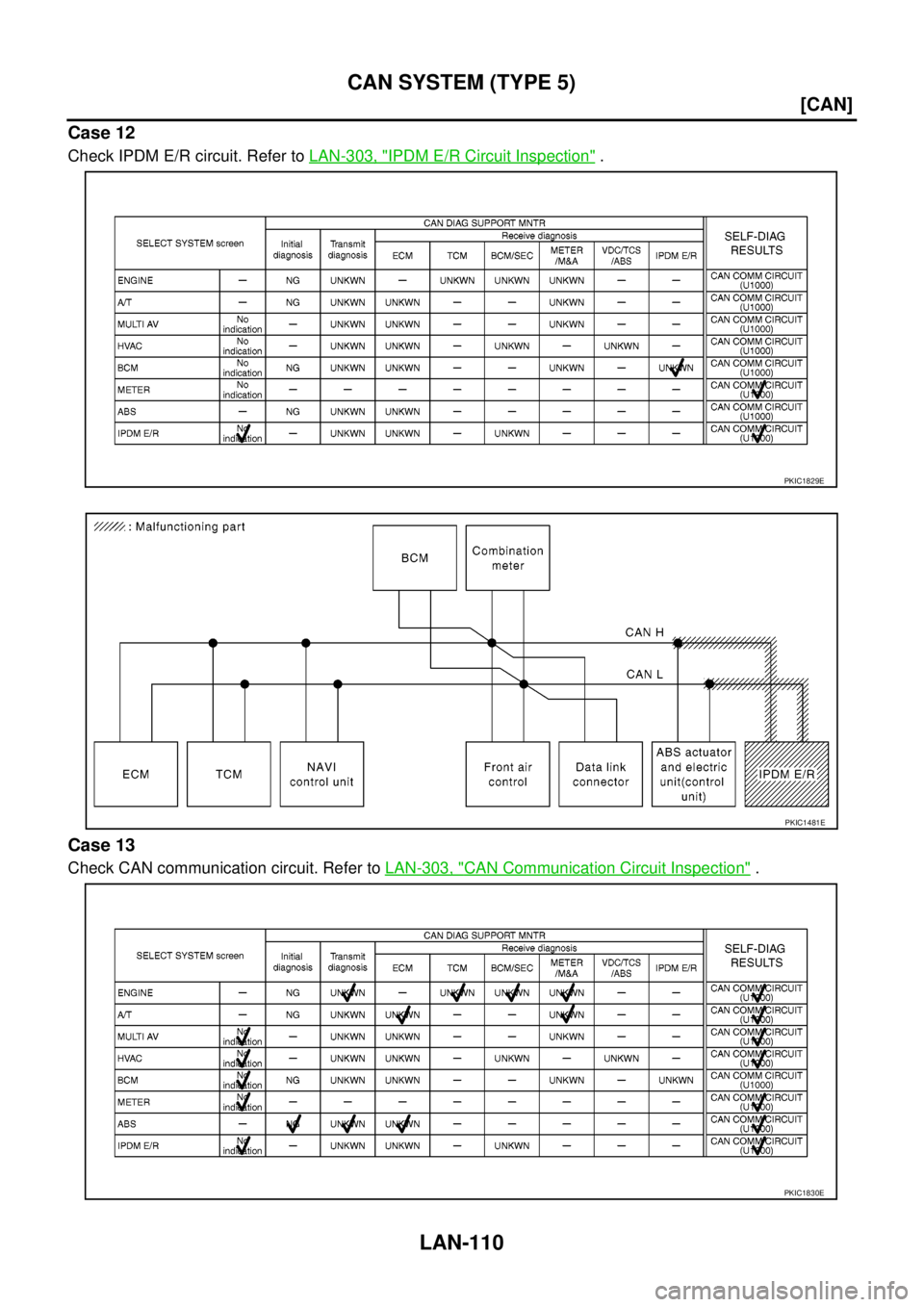

NISSAN NAVARA 2005 Repair Workshop Manual LAN-110 [CAN] CAN SYSTEM (TYPE 5) Case 12 Check IPDM E/R circuit. Refer toLAN-303, "IPDM E/R Circuit Inspection". Case 13 Check CAN communication circuit. Refer toLAN-303, "CAN Communication Circuit I

Page 1888 of 3171

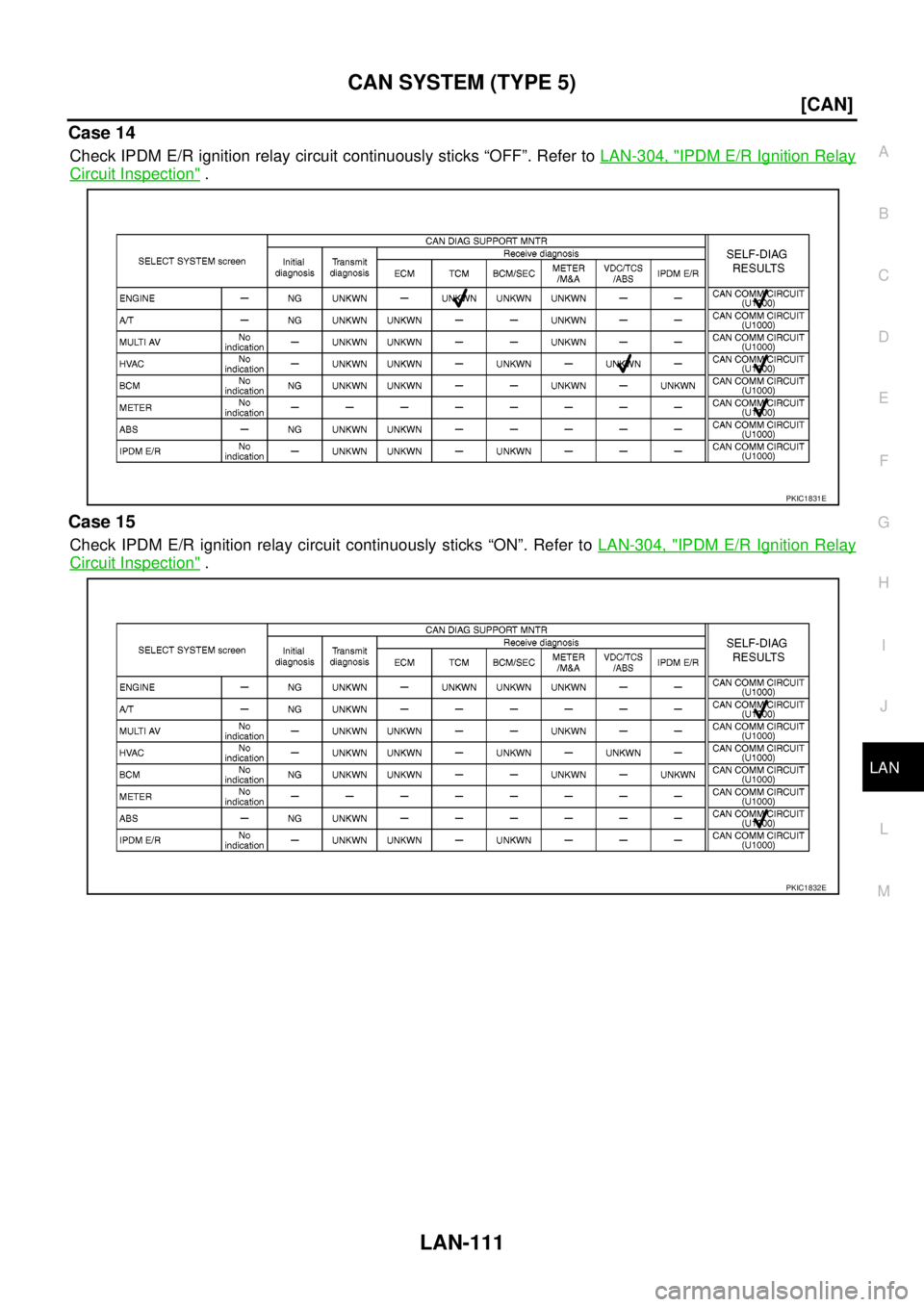

NISSAN NAVARA 2005 Repair Workshop Manual CAN SYSTEM (TYPE 5) LAN-111 [CAN] C D E F G H I J L MA B LAN Case 14 Check IPDM E/R ignition relay circuit continuously sticks “OFF”. Refer toLAN-304, "IPDM E/R Ignition Relay Circuit Inspection".
