Page 1993 of 3171

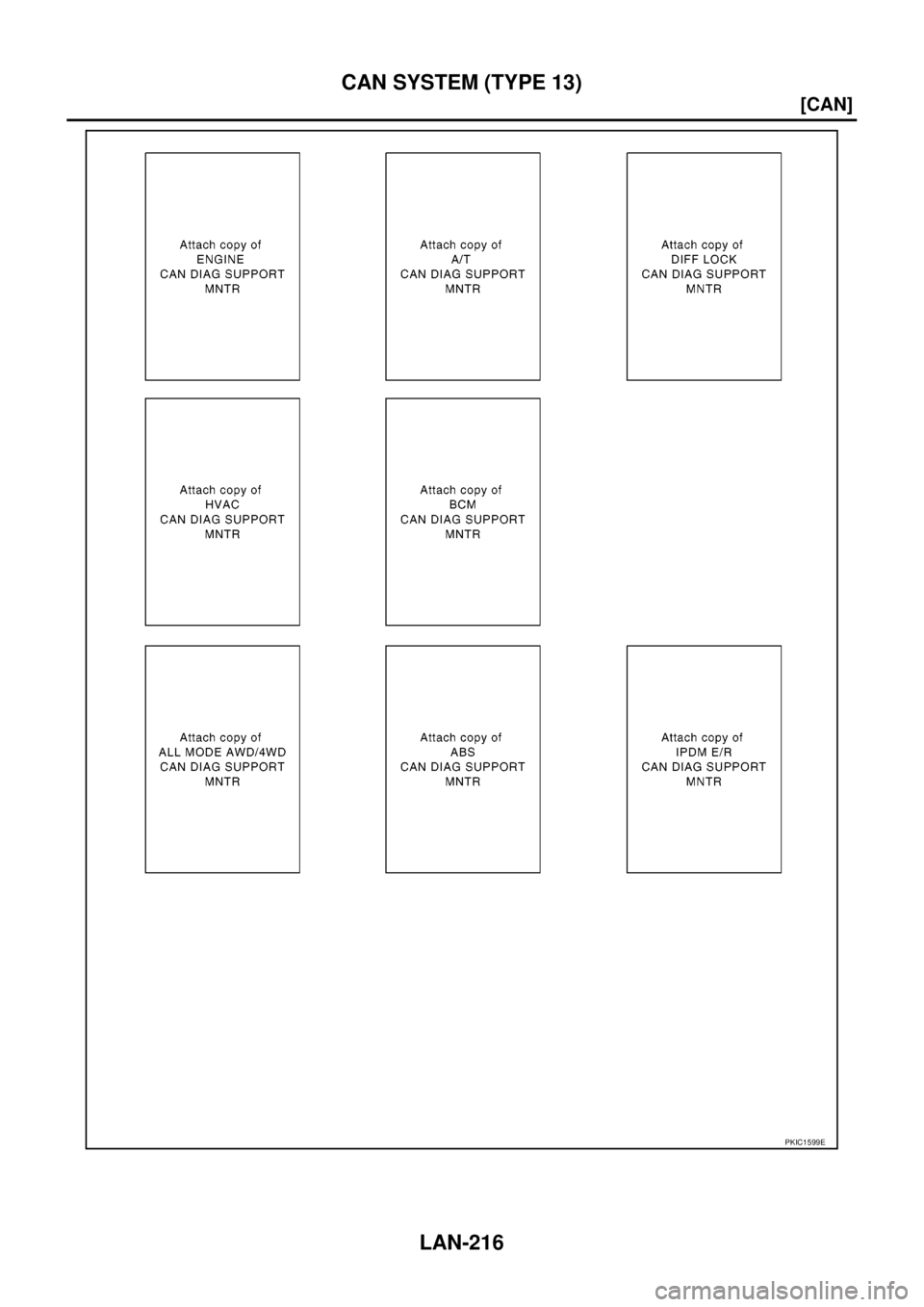

NISSAN NAVARA 2005 Repair Workshop Manual LAN-216 [CAN] CAN SYSTEM (TYPE 13) PKIC1599E

Page 1994 of 3171

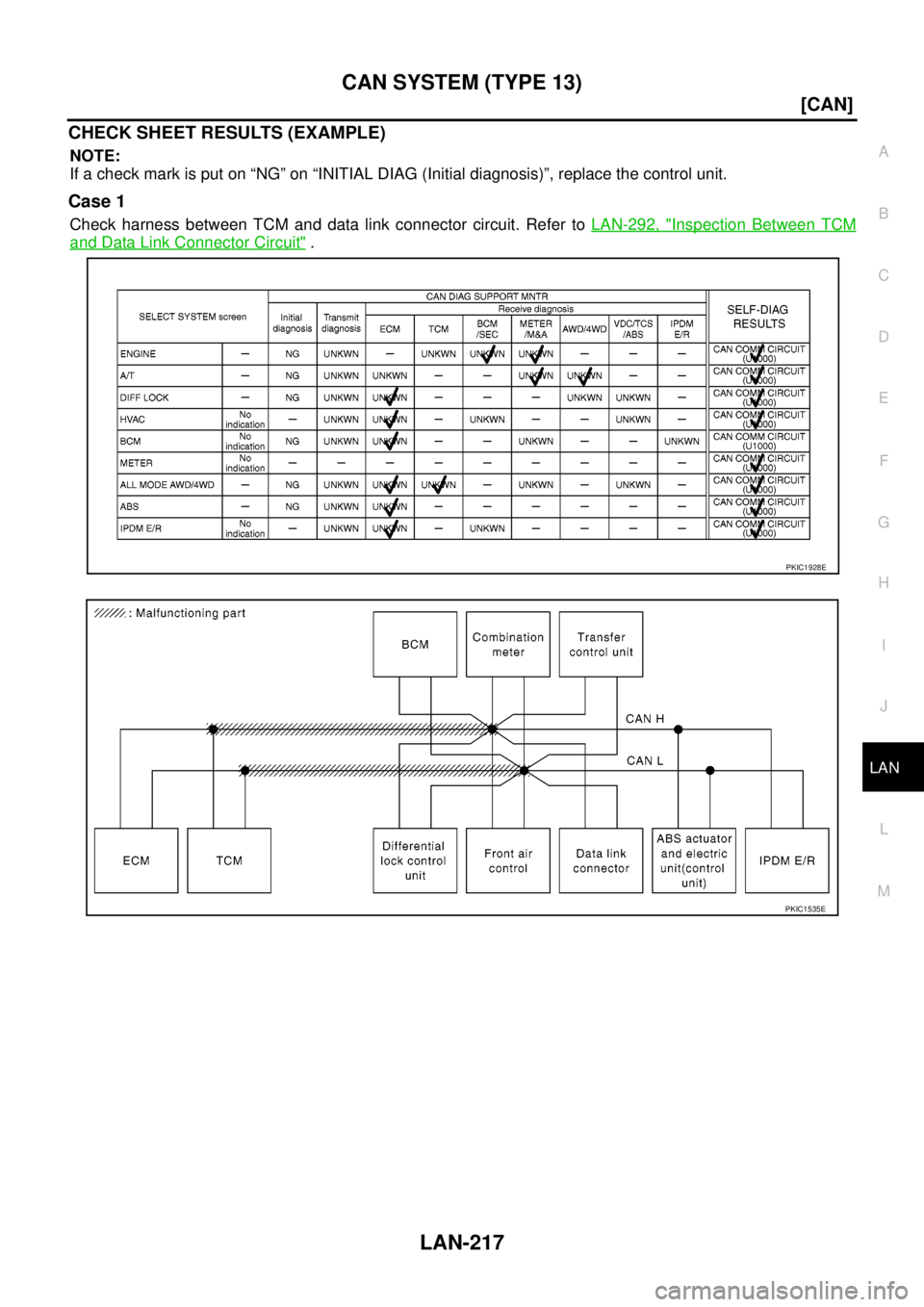

NISSAN NAVARA 2005 Repair Workshop Manual CAN SYSTEM (TYPE 13) LAN-217 [CAN] C D E F G H I J L MA B LAN CHECK SHEET RESULTS (EXAMPLE) NOTE: If a check mark is put on “NG” on “INITIAL DIAG (Initial diagnosis)”, replace the control unit

Page 1995 of 3171

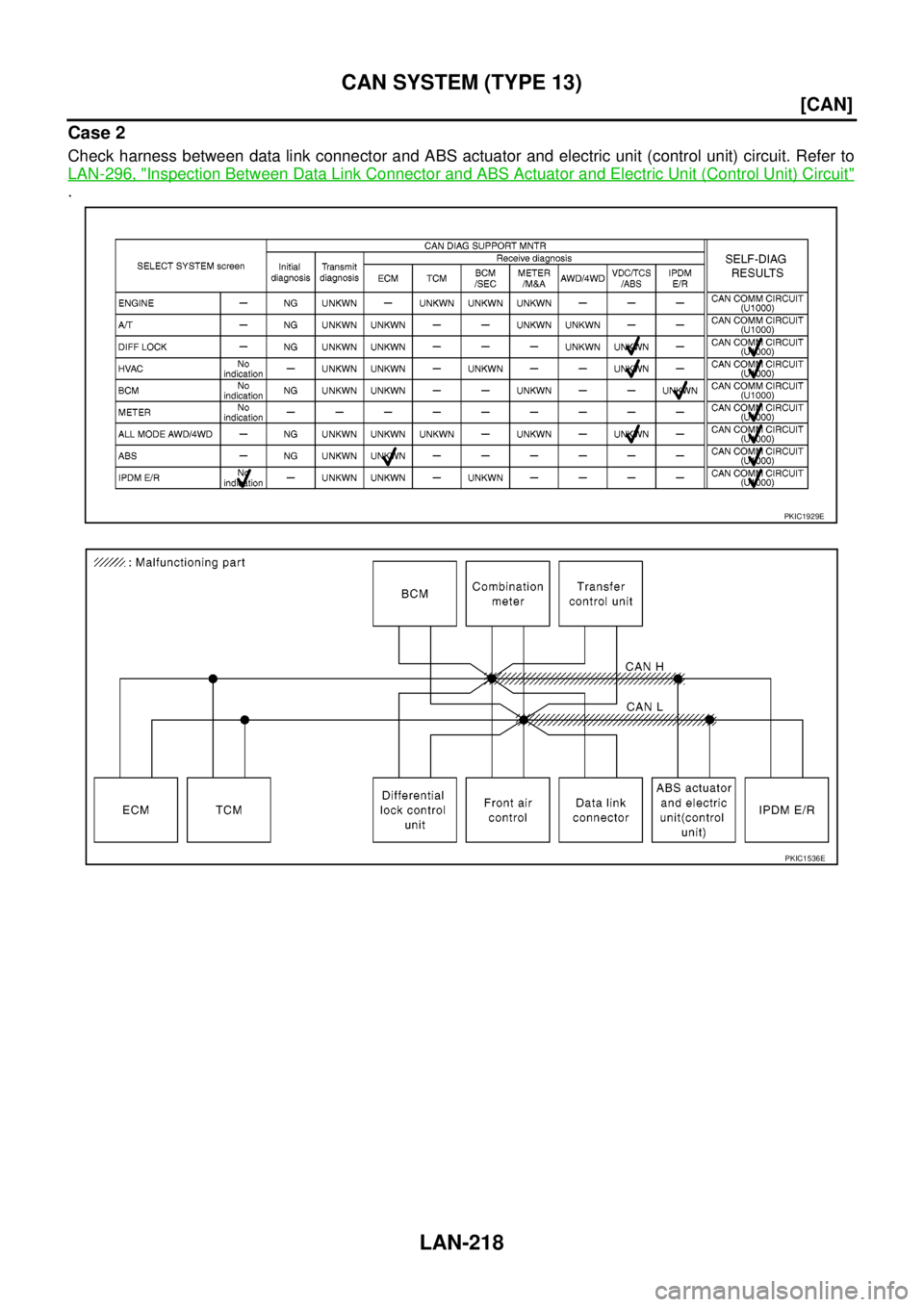

NISSAN NAVARA 2005 Repair Workshop Manual LAN-218 [CAN] CAN SYSTEM (TYPE 13) Case 2 Check harness between data link connector and ABS actuator and electric unit (control unit) circuit. Refer to LAN-296, " Inspection Between Data Link Connecto

Page 1996 of 3171

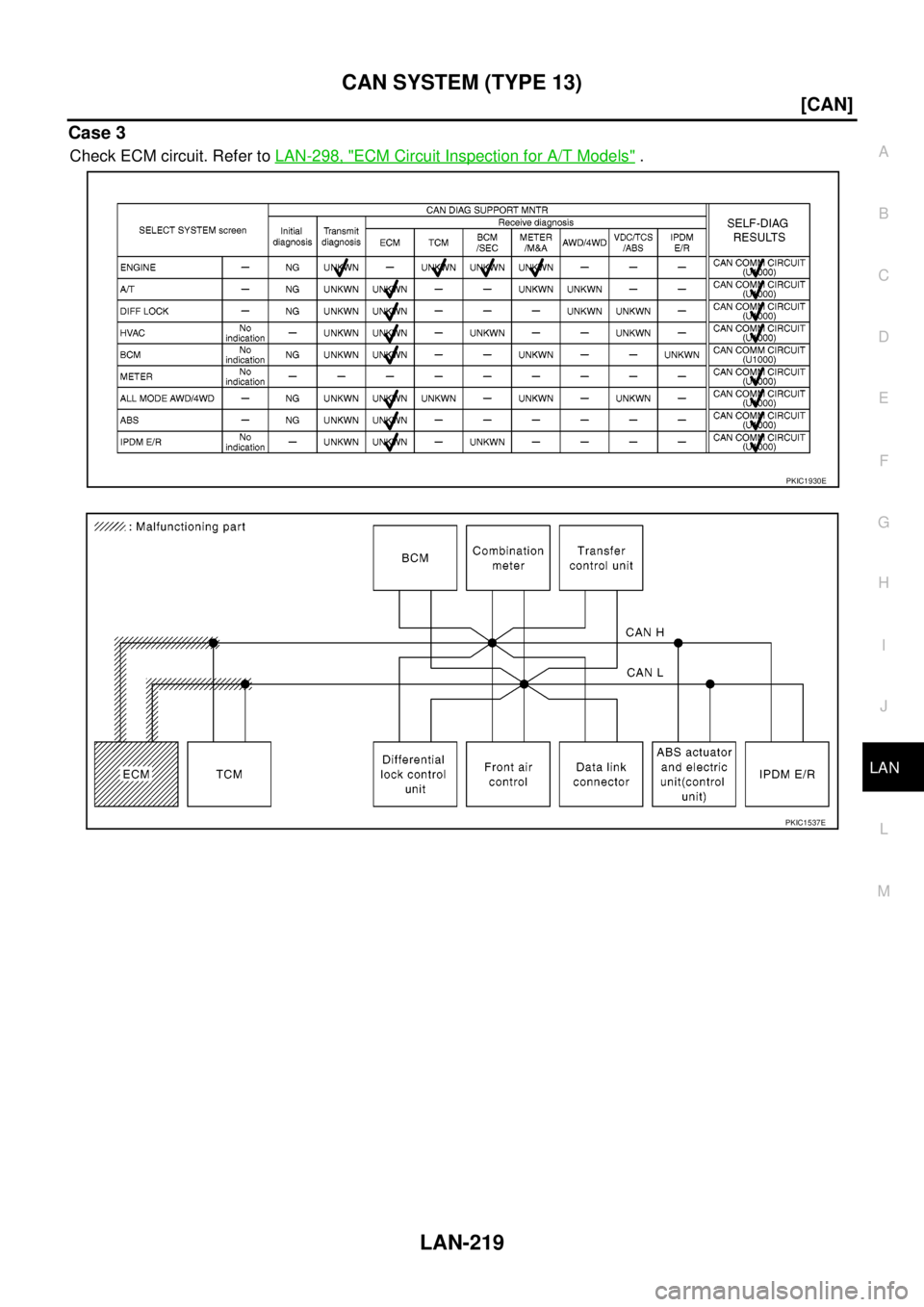

NISSAN NAVARA 2005 Repair Workshop Manual CAN SYSTEM (TYPE 13) LAN-219 [CAN] C D E F G H I J L MA B LAN Case 3 Check ECM circuit. Refer toLAN-298, "ECM Circuit Inspection for A/T Models". PKIC1930E PKIC1537E

Page 1997 of 3171

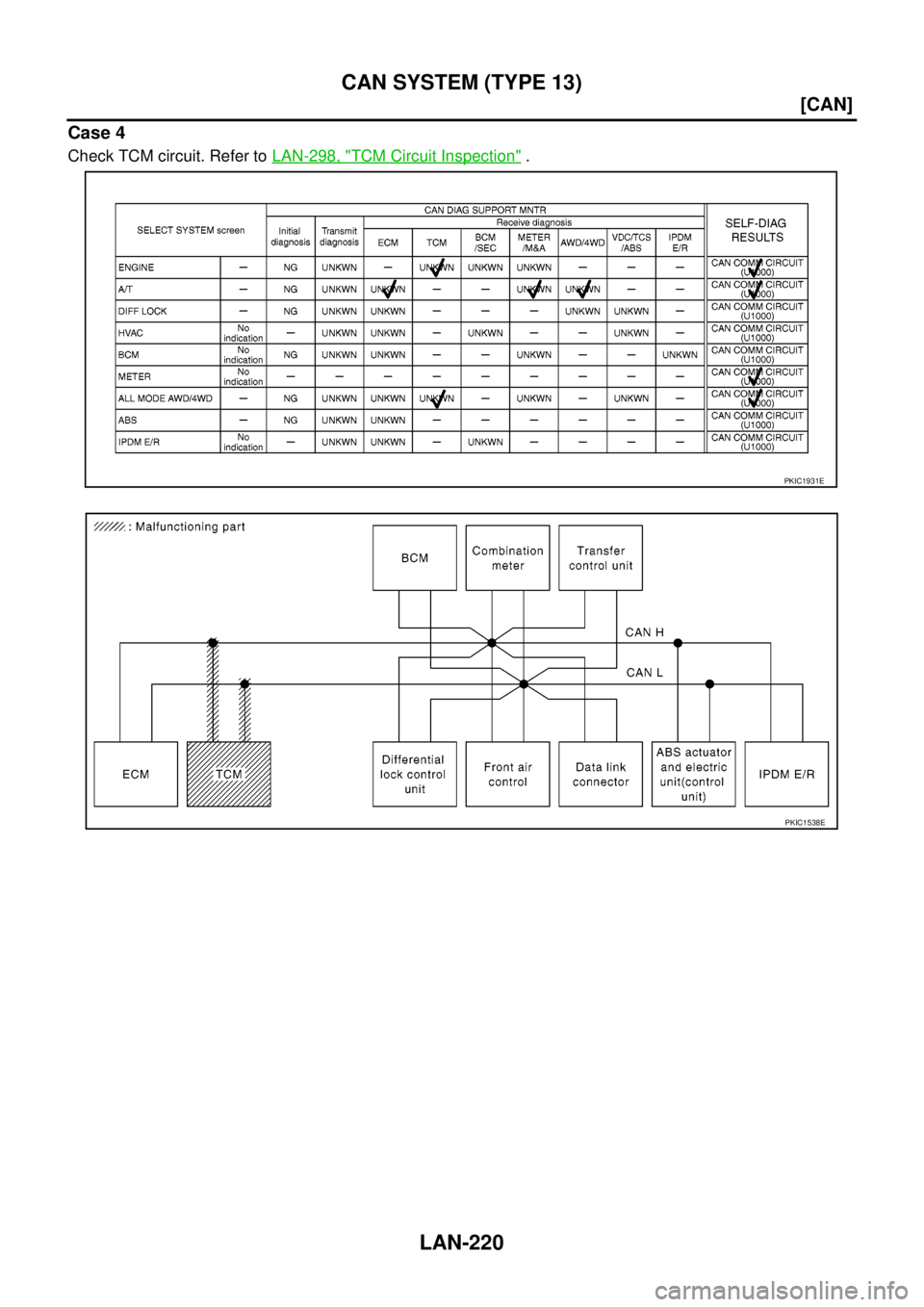

NISSAN NAVARA 2005 Repair Workshop Manual LAN-220 [CAN] CAN SYSTEM (TYPE 13) Case 4 Check TCM circuit. Refer toLAN-298, "TCM Circuit Inspection". PKIC1931E PKIC1538E

Page 1998 of 3171

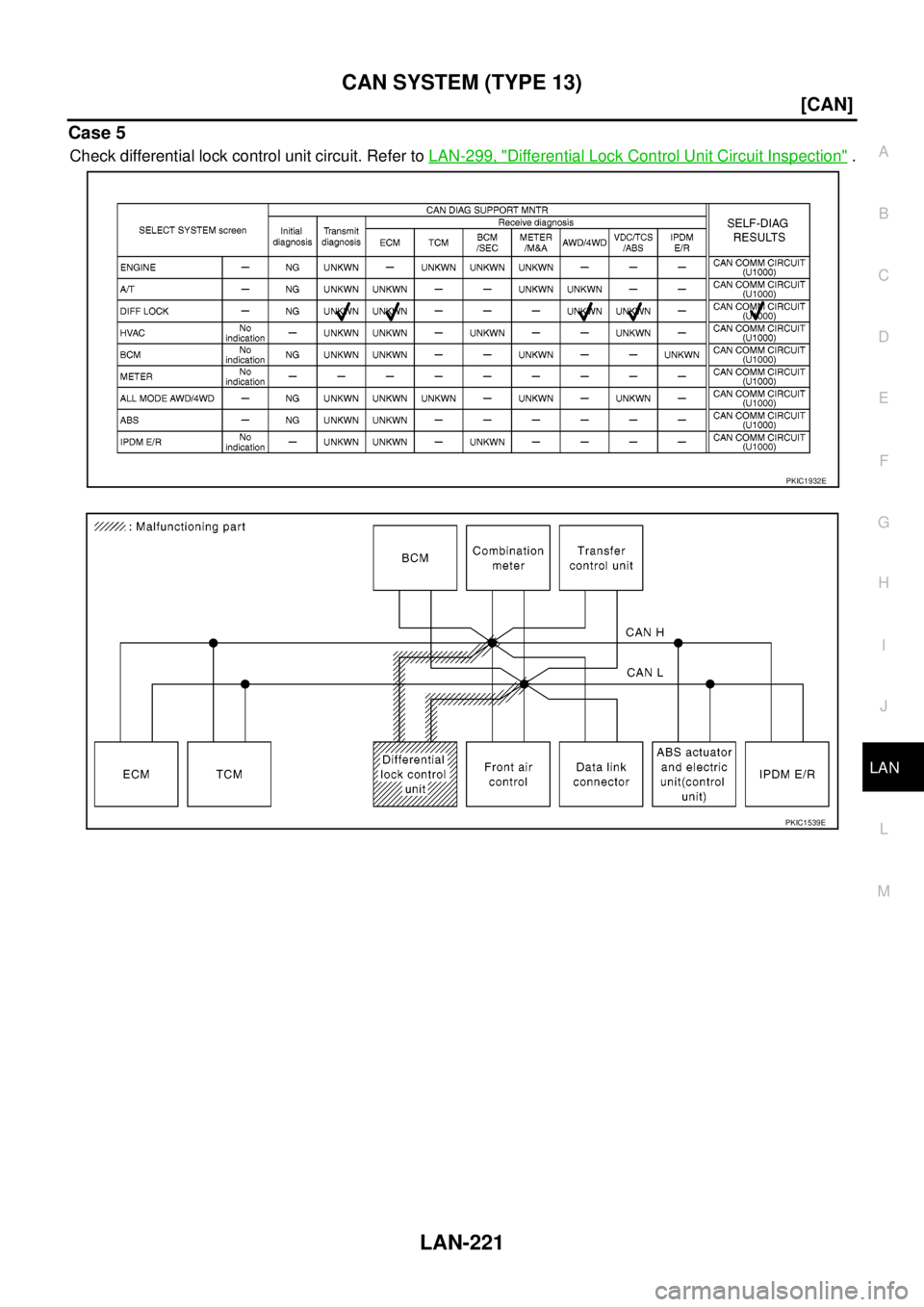

NISSAN NAVARA 2005 Repair Workshop Manual CAN SYSTEM (TYPE 13) LAN-221 [CAN] C D E F G H I J L MA B LAN Case 5 Check differential lock control unit circuit. Refer toLAN-299, "Differential Lock Control Unit Circuit Inspection". PKIC1932E PKIC1

Page 1999 of 3171

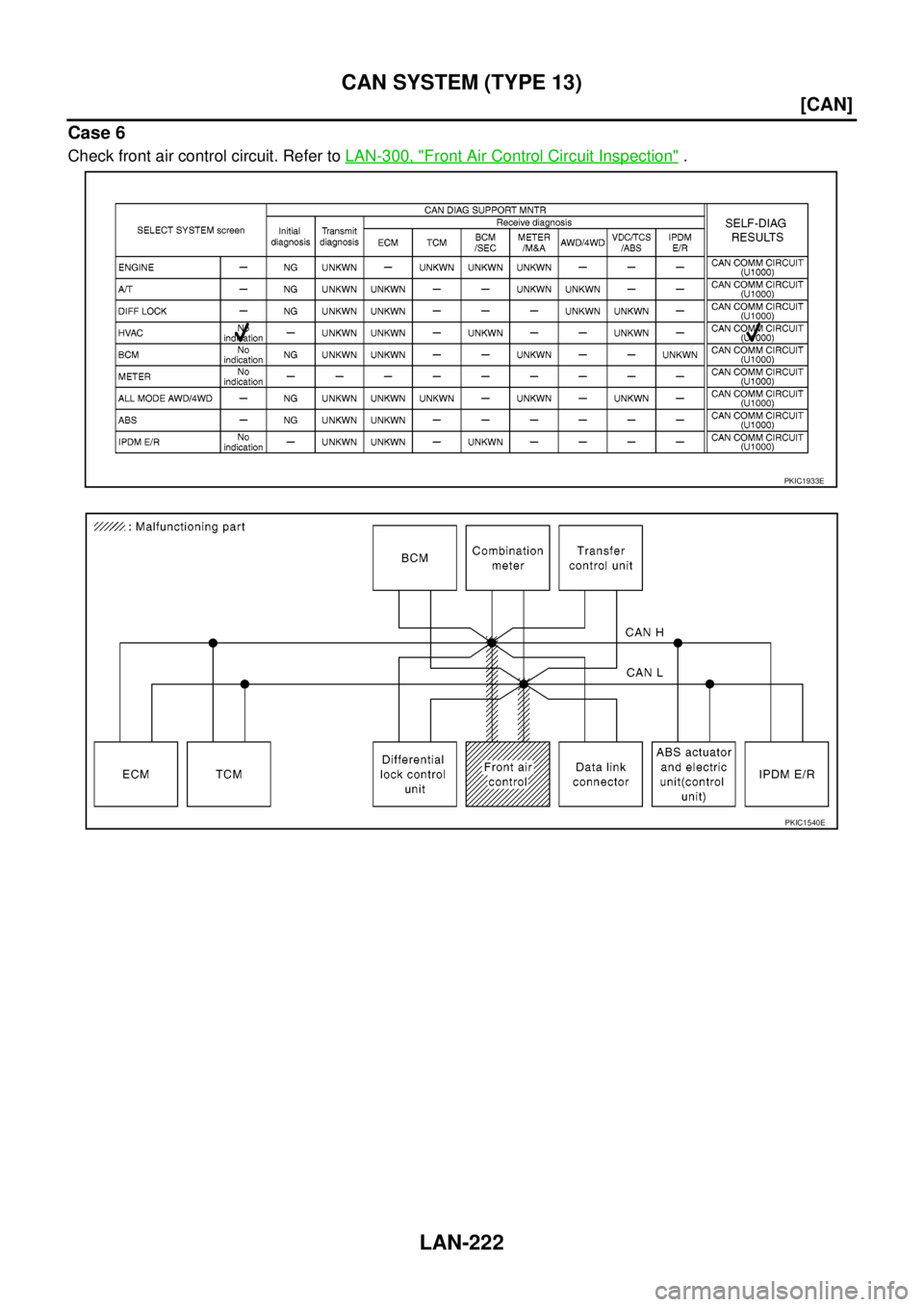

NISSAN NAVARA 2005 Repair Workshop Manual LAN-222 [CAN] CAN SYSTEM (TYPE 13) Case 6 Check front air control circuit. Refer toLAN-300, "Front Air Control Circuit Inspection". PKIC1933E PKIC1540E

Page 2000 of 3171

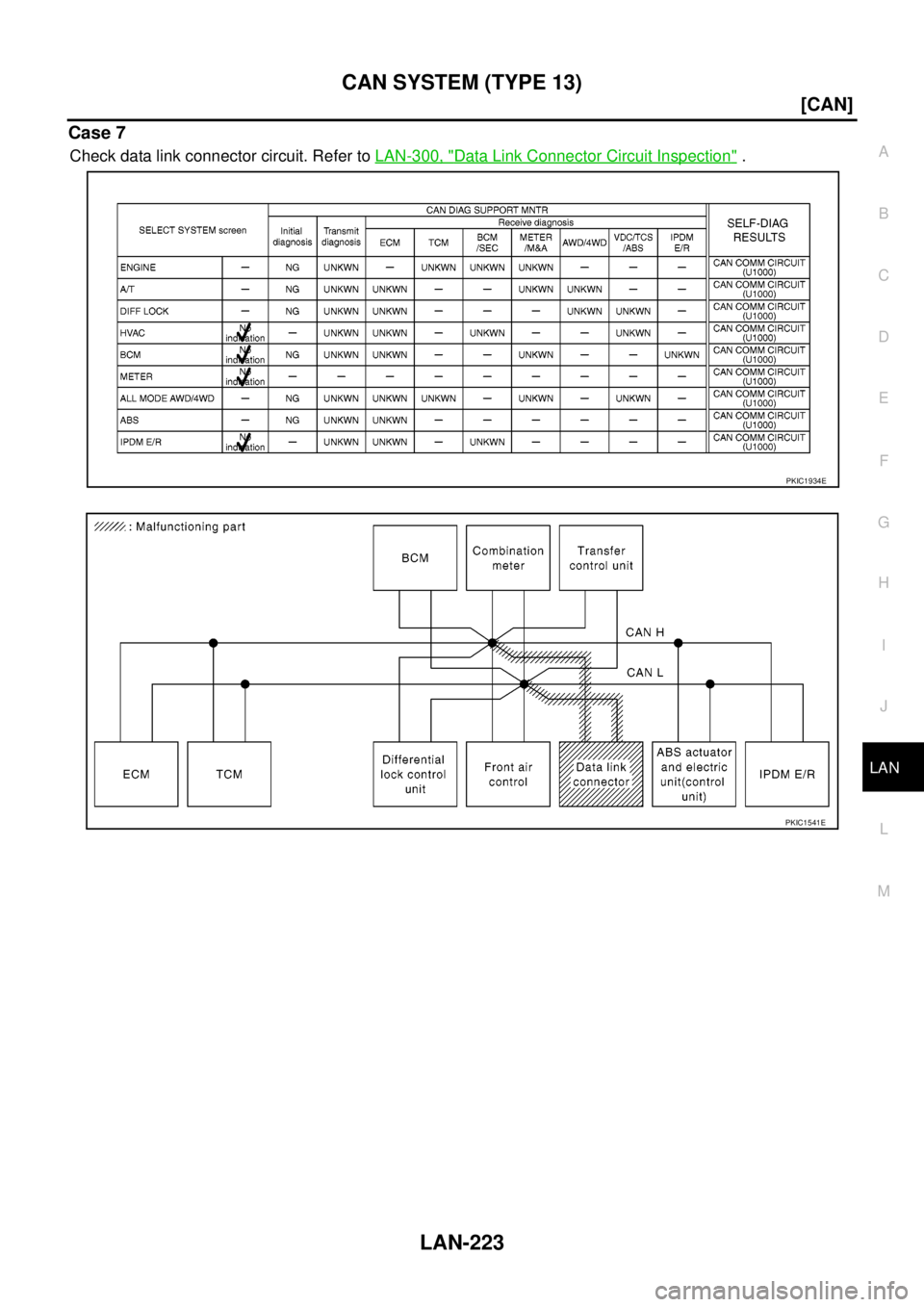

NISSAN NAVARA 2005 Repair Workshop Manual CAN SYSTEM (TYPE 13) LAN-223 [CAN] C D E F G H I J L MA B LAN Case 7 Check data link connector circuit. Refer toLAN-300, "Data Link Connector Circuit Inspection". PKIC1934E PKIC1541E
