NISSAN NAVARA 2005 Repair Workshop Manual LAN-56 [CAN] CAN SYSTEM (TYPE 2) CAN SYSTEM (TYPE 2) PFP:23710 Component Parts and Harness Connector LocationEKS00OKJ Refer toLAN-23, "Component Parts and Harness Connector Location". SchematicEKS00OK

Page 1834 of 3171

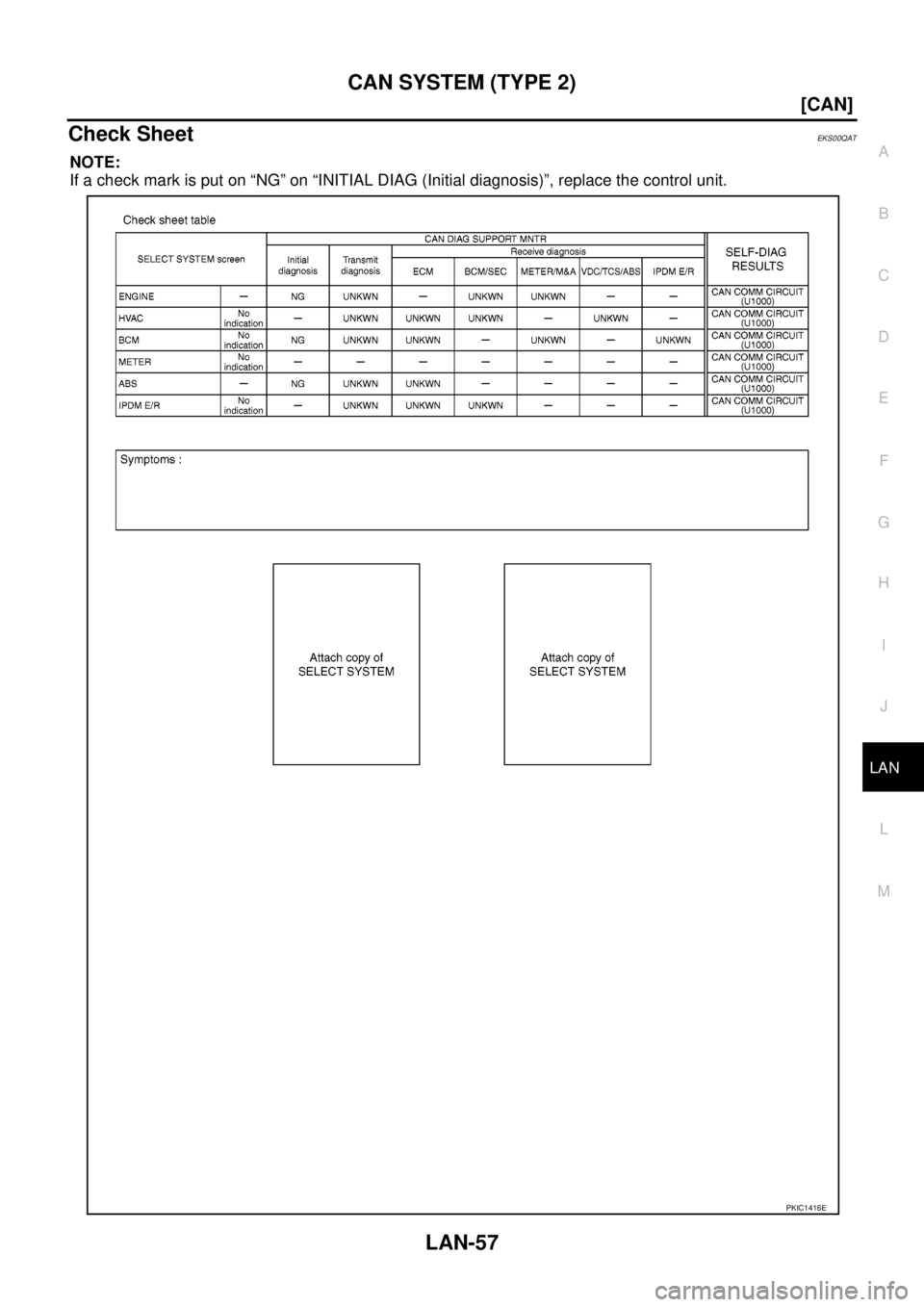

NISSAN NAVARA 2005 Repair Workshop Manual CAN SYSTEM (TYPE 2) LAN-57 [CAN] C D E F G H I J L MA B LAN Check SheetEKS00QAT NOTE: If a check mark is put on “NG” on “INITIAL DIAG (Initial diagnosis)”, replace the control unit. PKIC1416E

Page 1835 of 3171

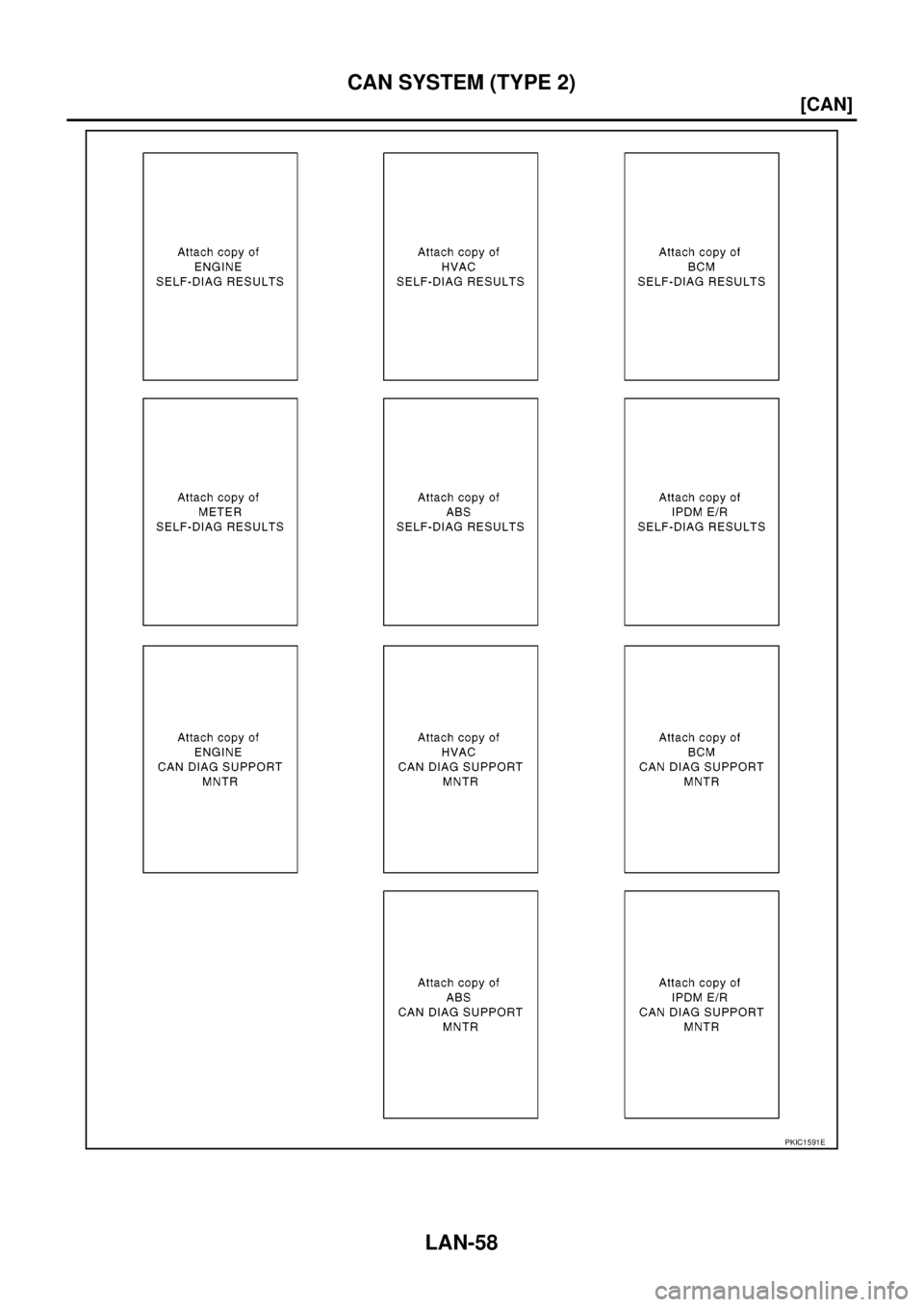

NISSAN NAVARA 2005 Repair Workshop Manual LAN-58 [CAN] CAN SYSTEM (TYPE 2) PKIC1591E

Page 1836 of 3171

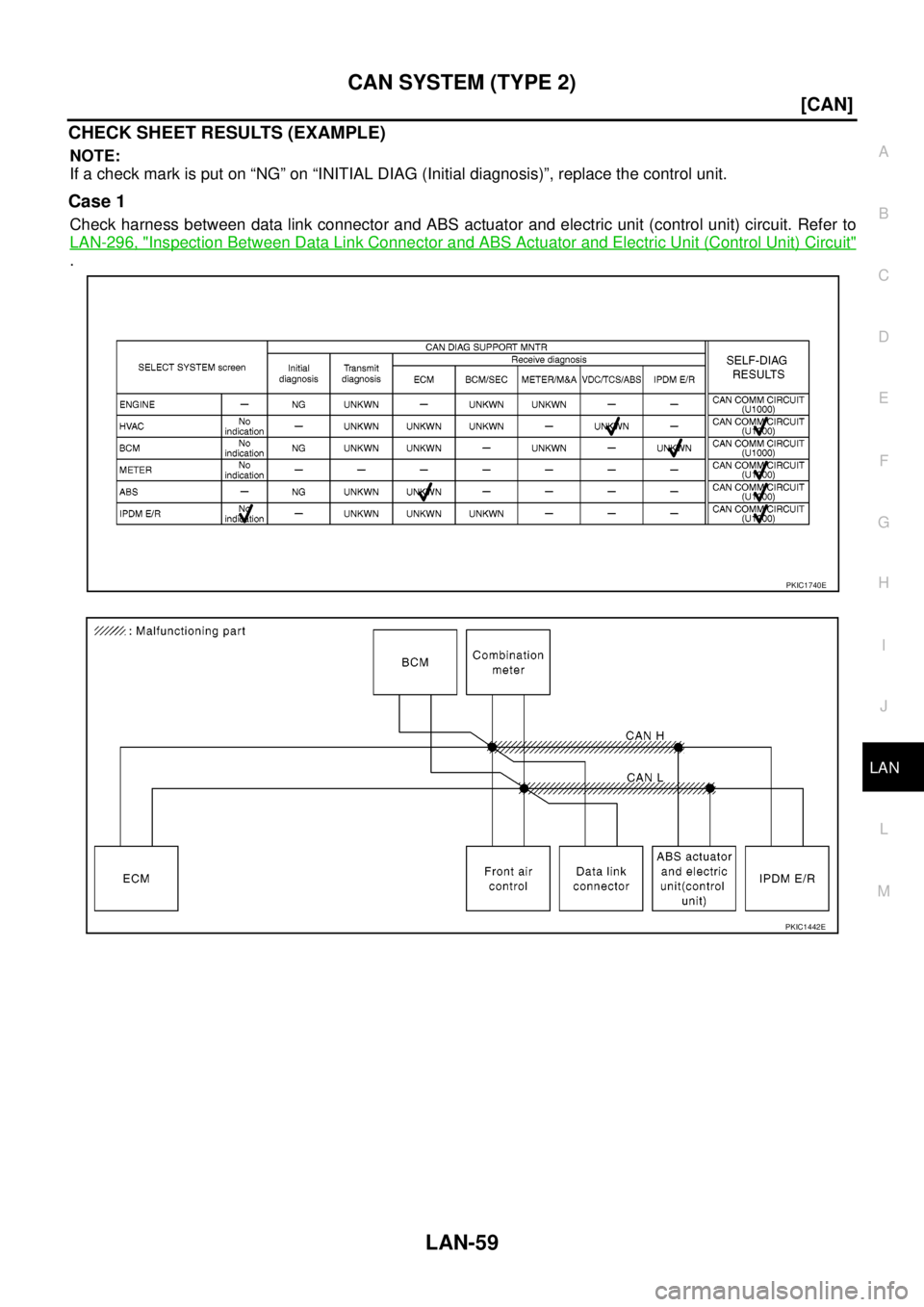

NISSAN NAVARA 2005 Repair Workshop Manual CAN SYSTEM (TYPE 2) LAN-59 [CAN] C D E F G H I J L MA B LAN CHECK SHEET RESULTS (EXAMPLE) NOTE: If a check mark is put on “NG” on “INITIAL DIAG (Initial diagnosis)”, replace the control unit.

Page 1837 of 3171

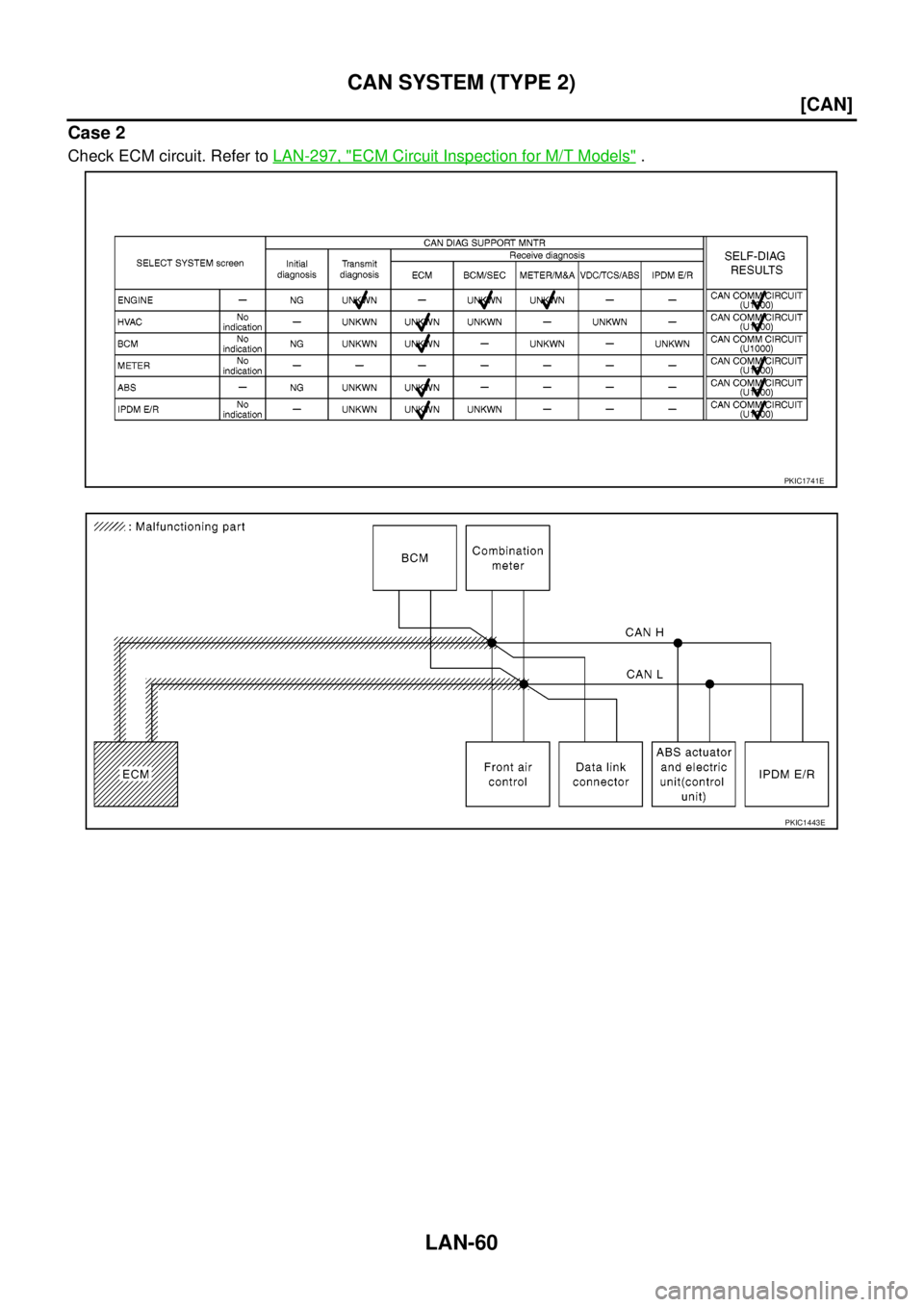

NISSAN NAVARA 2005 Repair Workshop Manual LAN-60 [CAN] CAN SYSTEM (TYPE 2) Case 2 Check ECM circuit. Refer toLAN-297, "ECM Circuit Inspection for M/T Models". PKIC1741E PKIC1443E

Page 1838 of 3171

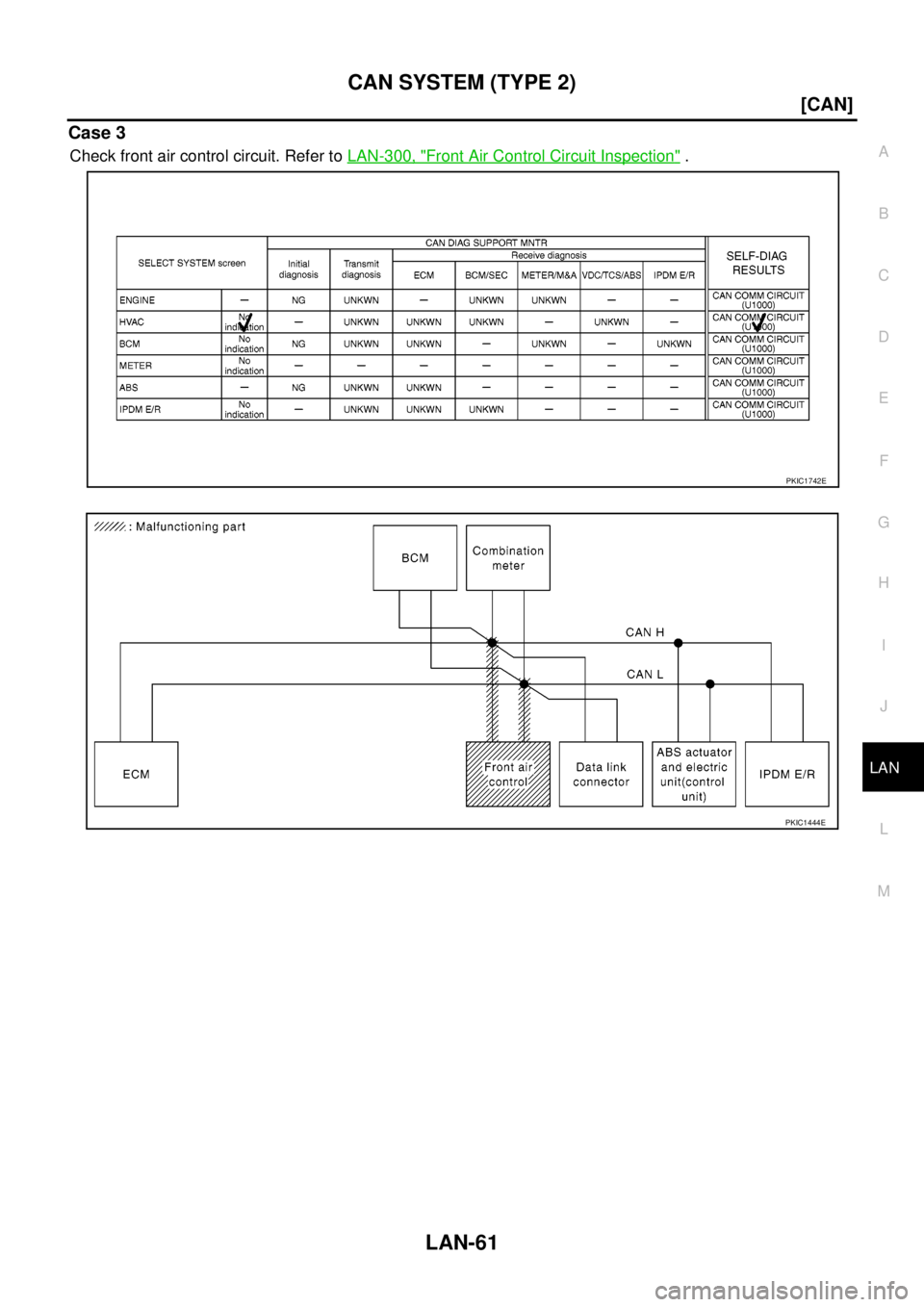

NISSAN NAVARA 2005 Repair Workshop Manual CAN SYSTEM (TYPE 2) LAN-61 [CAN] C D E F G H I J L MA B LAN Case 3 Check front air control circuit. Refer toLAN-300, "Front Air Control Circuit Inspection". PKIC1742E PKIC1444E

Page 1839 of 3171

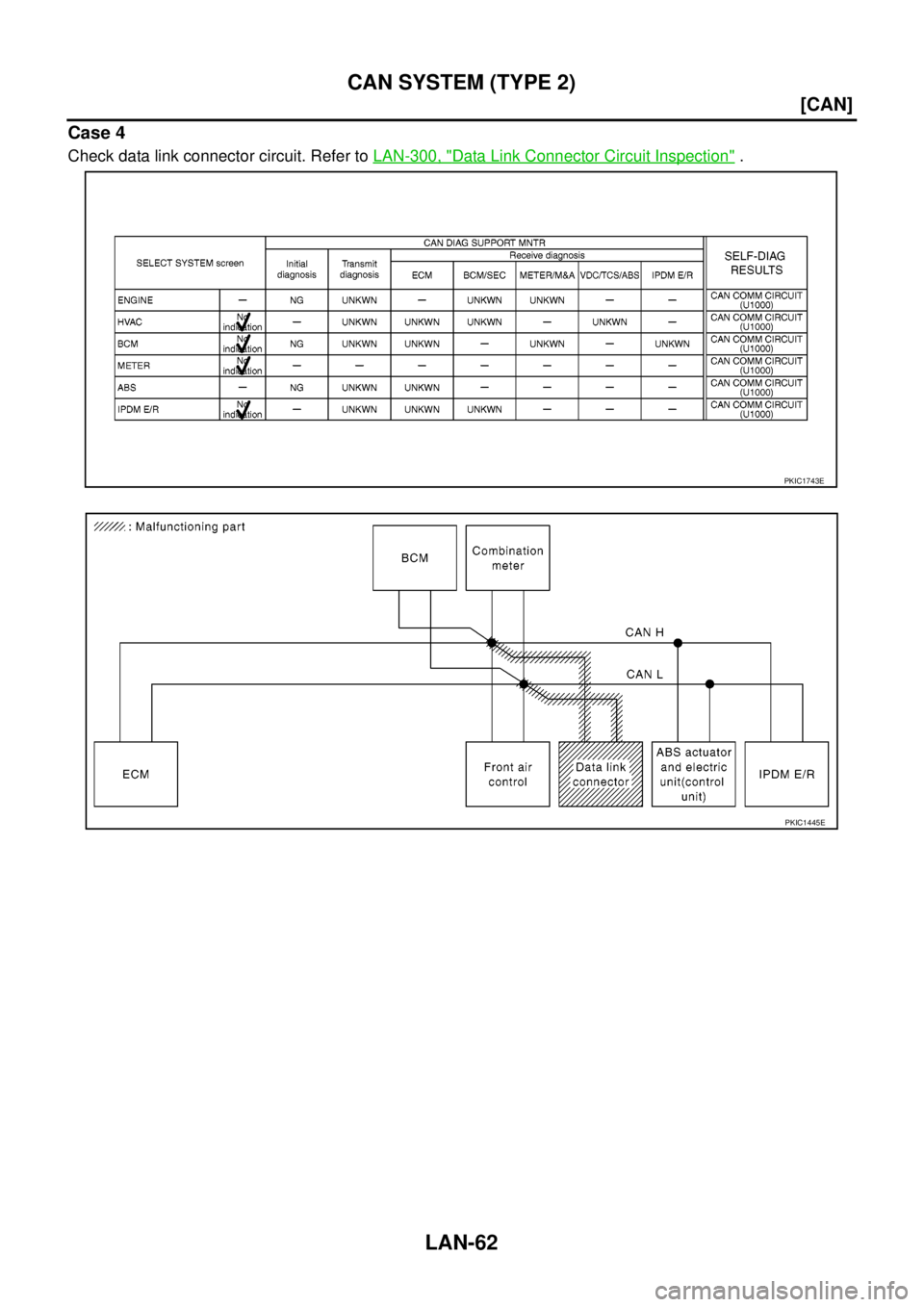

NISSAN NAVARA 2005 Repair Workshop Manual LAN-62 [CAN] CAN SYSTEM (TYPE 2) Case 4 Check data link connector circuit. Refer toLAN-300, "Data Link Connector Circuit Inspection". PKIC1743E PKIC1445E

Page 1840 of 3171

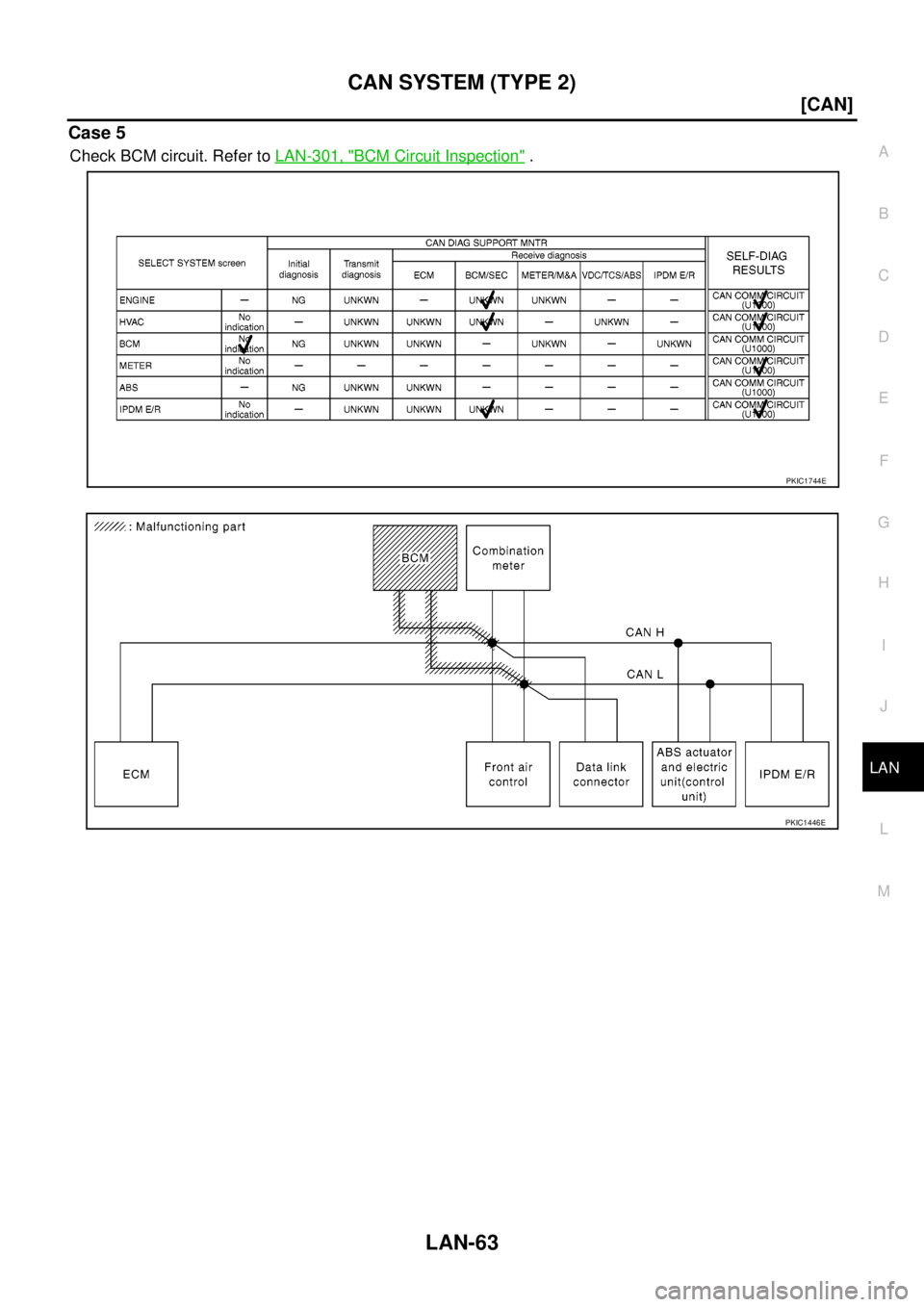

NISSAN NAVARA 2005 Repair Workshop Manual CAN SYSTEM (TYPE 2) LAN-63 [CAN] C D E F G H I J L MA B LAN Case 5 Check BCM circuit. Refer toLAN-301, "BCM Circuit Inspection". PKIC1744E PKIC1446E
