NISSAN NAVARA 2005 Repair Workshop Manual CONTROL UNIT CONFIGURATION PROCEDURE
GI-43
C
D
E
F
G
H
I
J
K
L
MB
GI

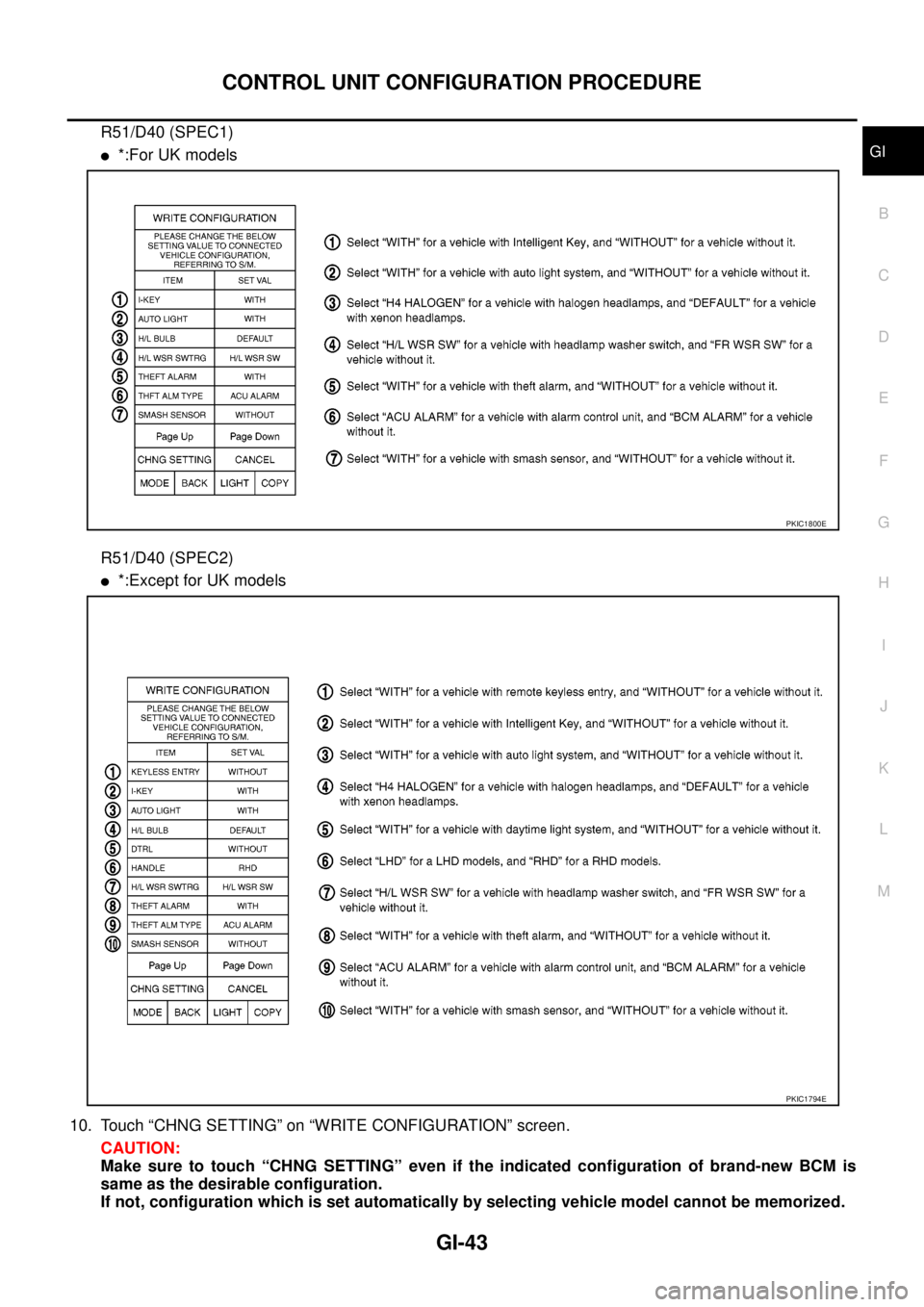

R51/D40 (SPEC1)
l*:For UK models
R51/D40 (SPEC2)
l*:Except for UK models
10. Touch “CHNG SETTING” on “WRITE CONFIGURATION”

Page 1666 of 3171

NISSAN NAVARA 2005 Repair Workshop Manual GI-44
CONTROL UNIT CONFIGURATION PROCEDURE

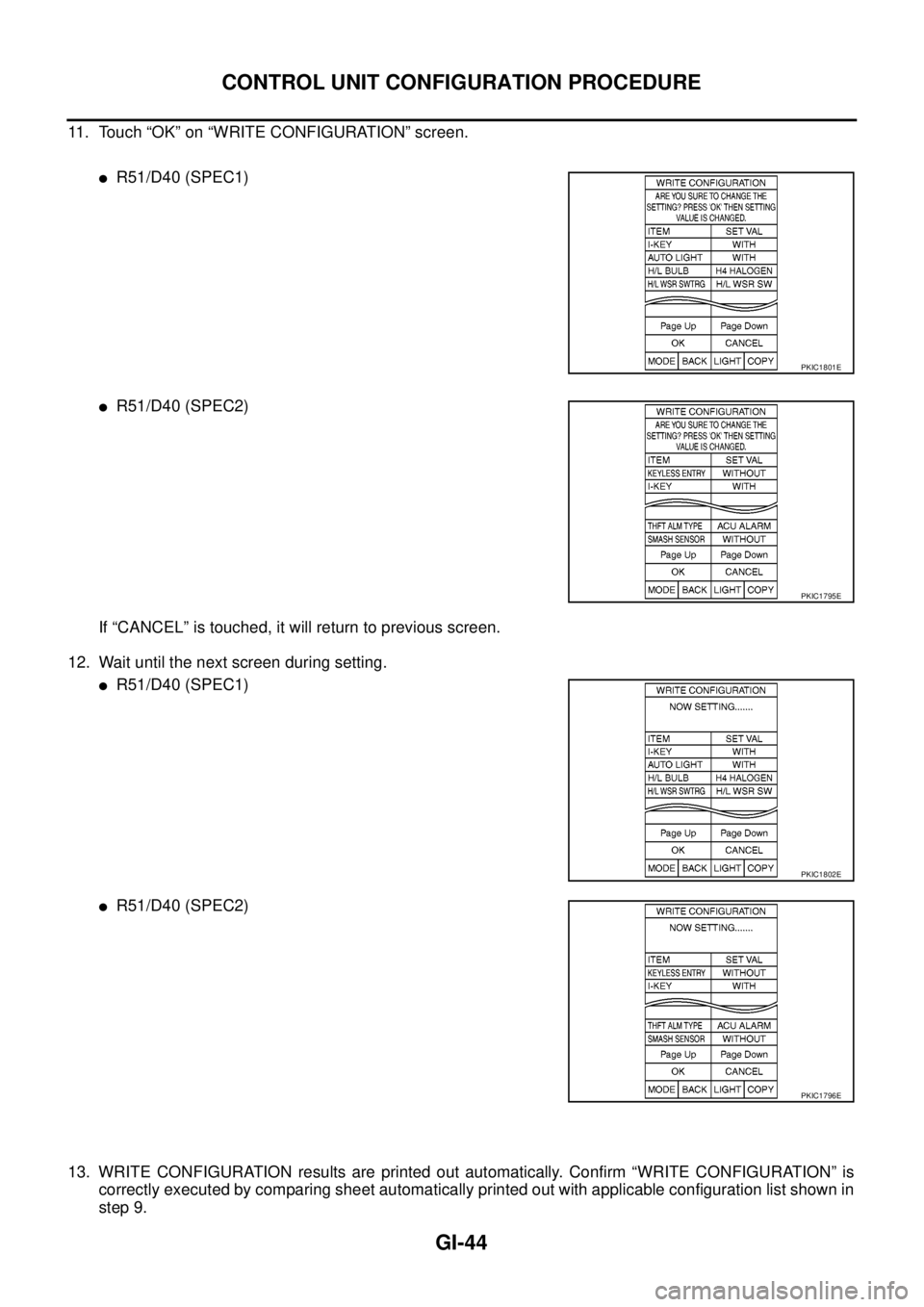

11. Touch “OK” on “WRITE CONFIGURATION” screen.
lR51/D40 (SPEC1)
lR51/D40 (SPEC2)
If “CANCEL” is touched, it will return to previous screen.
12.

Page 1667 of 3171

NISSAN NAVARA 2005 Repair Workshop Manual CONTROL UNIT CONFIGURATION PROCEDURE
GI-45
C
D
E
F
G
H
I
J
K
L
MB
GI
lR51/D40 (SPEC1)
lR51/D40 (SPEC2)
14. Touch “OK” on “WRITE CONFIGURATION” screen.
lR51/D40 (SPEC1)
PKIC1798E
PKIC1792E
PKIC

Page 1668 of 3171

NISSAN NAVARA 2005 Repair Workshop Manual GI-46
CONTROL UNIT CONFIGURATION PROCEDURE
lR51/D40 (SPEC2)
WRITE CONFIGURATION is completed.
PKIC1797E

Page 1669 of 3171

NISSAN NAVARA 2005 Repair Workshop Manual CONSULT-II CHECKING SYSTEM
GI-47
C
D
E
F
G
H
I
J
K
L
MB
GI
CONSULT-II CHECKING SYSTEMPFP:00000
DescriptionEAS001H2
lCONSULT-II is a hand-held type tester. When it is connected with a diagnostic connec

CONSULT-II CHECKING SYSTEM
GI-47
C
D
E
F
G
H
I
J
K
L
MB
GI
CONSULT-II CHECKING SYSTEMPFP:00000
DescriptionEAS001H2
lCONSULT-II is a hand-held type tester. When it is connected with a diagnostic connector equipped on the
vehicle side, it will communicate with the control unit equipped in the vehicle and then enable various
kinds of diagnostic tests.
lRefer to “CONSULT-II Software Operation Manual” for more information.
Function and System ApplicationEAS001H3
x: Applicable
*: Nissan Anti-Theft SystemDiagnostic test
modeFunction
ENGINE
A/T
AIR BAG
ABS
ALL MODE AWD/4WD
BCM
IPDM E/R
MULTI AV
METER
NATS *
Work supportThis mode enables a technician to adjust some devices
faster and more accurately by following the indications
on CONSULT-II.x---´´--- -
Self-diagnostic
resultsSelf-diagnostic results can be read and erased quickly. x x x x x´´´´x
Trouble diagnostic
recordCurrent self-diagnostic results and all trouble diagnostic
records previously stored can be read.--x------ -
Data monitor Input/Output data in the ECU can be read. x x - x x´´´´-
CAN diagnosis
support monitorThe communication condition of CAN communication
line can be indicated.xx - xx´´´´-
Active testDiagnostic Test Mode in which CONSULT-II drives some
actuators apart from the ECU and also shifts some
parameters in a specified range.x- -x-´´-- -
DTC confirmationThe results of SRT (System Readiness Test) and the
self-diagnosis status/result can be confirmed.x----- - -- -
DTC work supportThe operating condition to confirm Diagnosis Trouble
Codes can be selected.-x------- -
ECM (ECU/TCM)
part numberECM (ECU/TCM) part number can be read. x x - x x´-´--
ECU discrimi-
nated No.Classification number of a replacement ECU can be read
to prevent an incorrect ECU from being installed.--x------ -
Function testThis mode can show results of self-diagnosis of ECU
with either “OK” or “NG”. For engines, more practical
tests regarding sensor/switches and/or actuators are
available.xxxx-- - - - -
Control unit initial-
izationAll registered ignition key IDs in NATS components can
be initialized and new IDs can be registered.------ - -- x
AV C O M M m o n i t o rIndicates the communication condition of AV communi-
cation.- ----- -´--
ConfigurationThe vehicle configuration can be read and written on
brand-new ECU- ----´--- -

Page 1670 of 3171

NISSAN NAVARA 2005 Repair Workshop Manual GI-48
CONSULT-II CHECKING SYSTEM
Nickel Metal Hydride Battery Replacement
EAS001H4
CONSULT-II contains a nickel metal hydride battery. When replacing the battery obey the following:
WARNING:
Replace t

Page 1671 of 3171

NISSAN NAVARA 2005 Repair Workshop Manual CONSULT-II CHECKING SYSTEM
GI-49
C
D
E
F
G
H
I
J
K
L
MB
GI
Checking EquipmentEAS001H5
When ordering the following equipment, contact your NISSAN/INFINITI distributor.
CAUTION:
lPrevious CONSULT-II “

Page 1672 of 3171

NISSAN NAVARA 2005 Repair Workshop Manual GI-50
CONSULT-II CHECKING SYSTEM

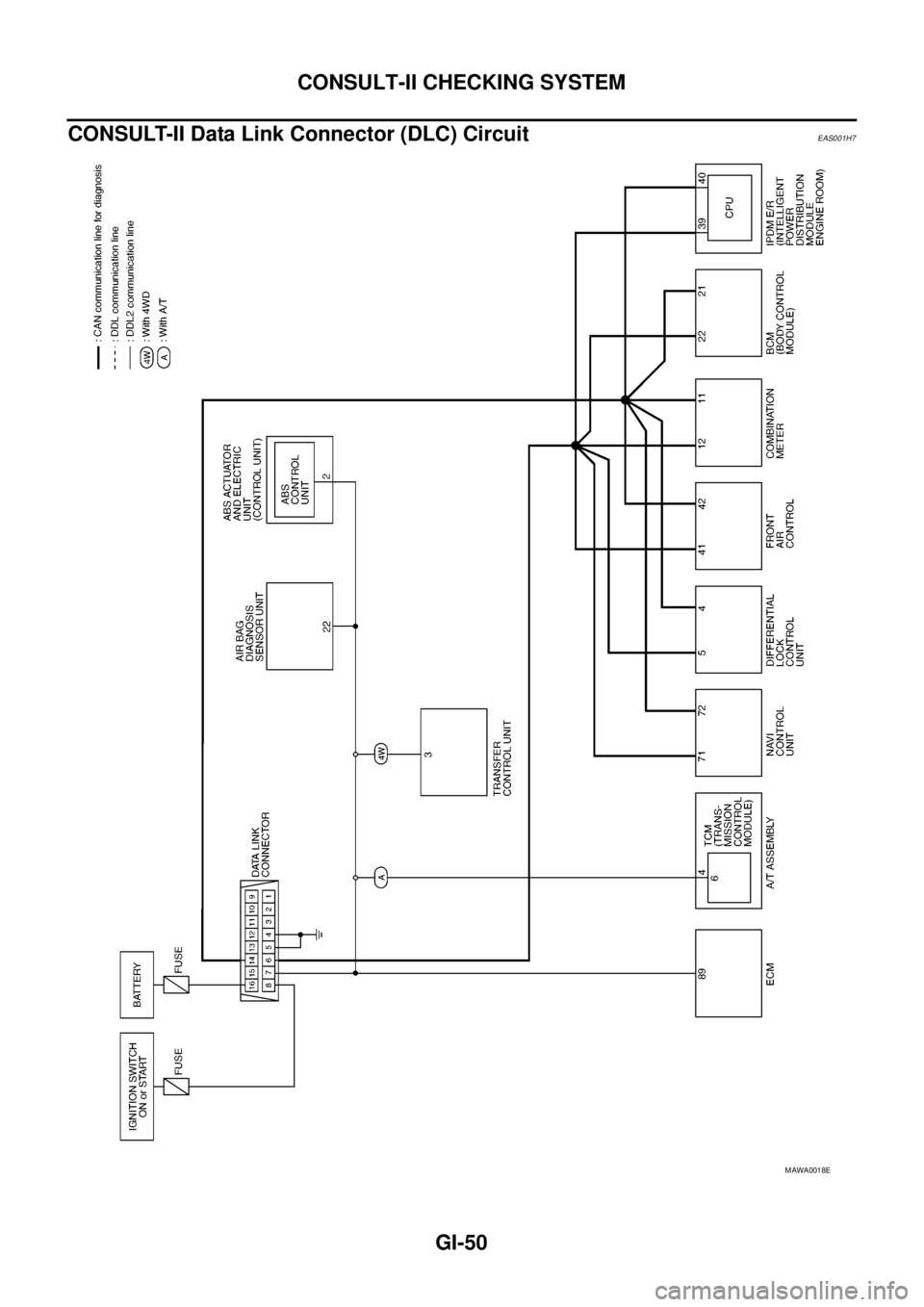

CONSULT-II Data Link Connector (DLC) Circuit
EAS001H7
MAWA0018E
