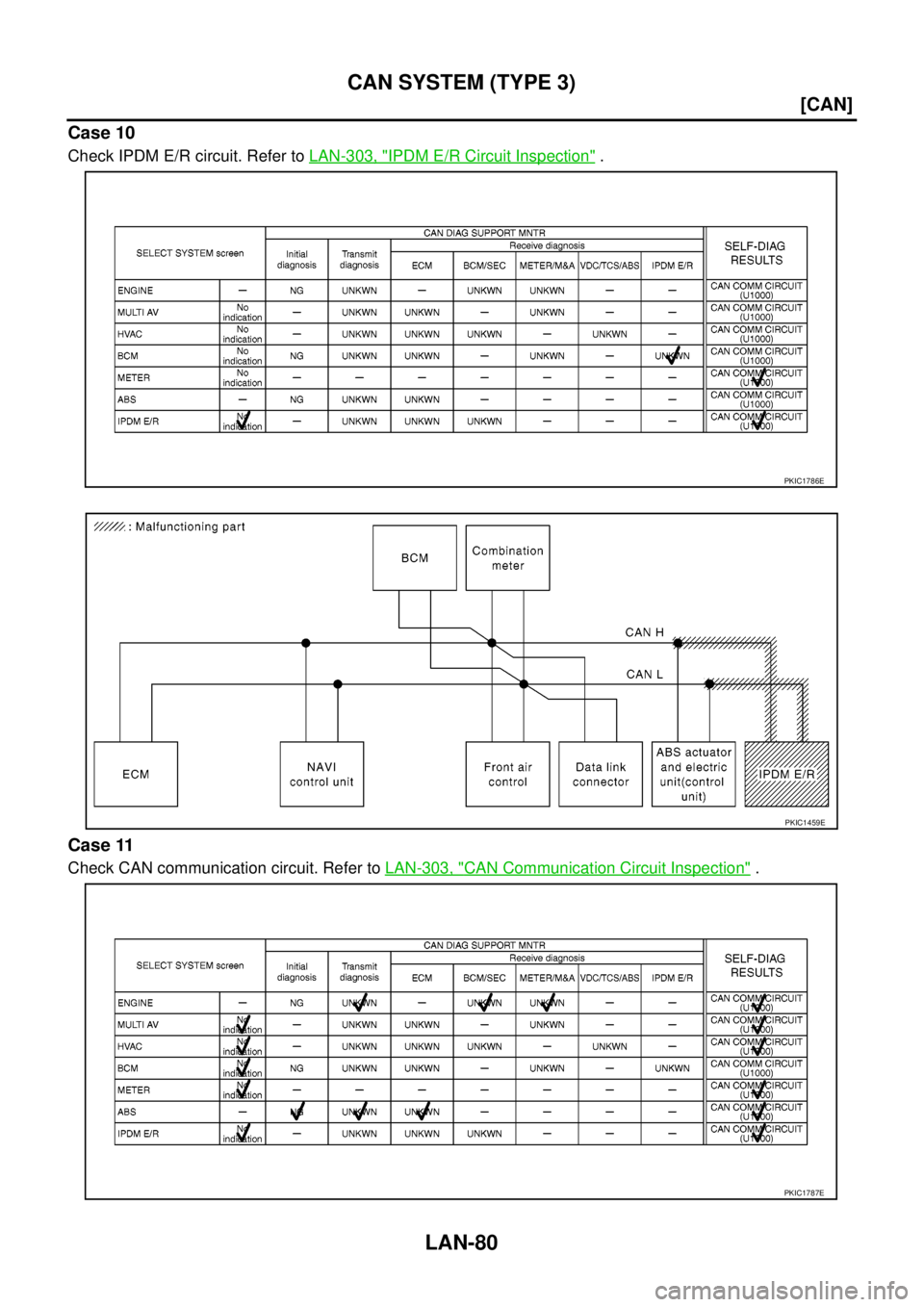

NISSAN NAVARA 2005 Repair Workshop Manual LAN-80 [CAN] CAN SYSTEM (TYPE 3) Case 10 Check IPDM E/R circuit. Refer toLAN-303, "IPDM E/R Circuit Inspection". Case 11 Check CAN communication circuit. Refer toLAN-303, "CAN Communication Circuit In

Page 1858 of 3171

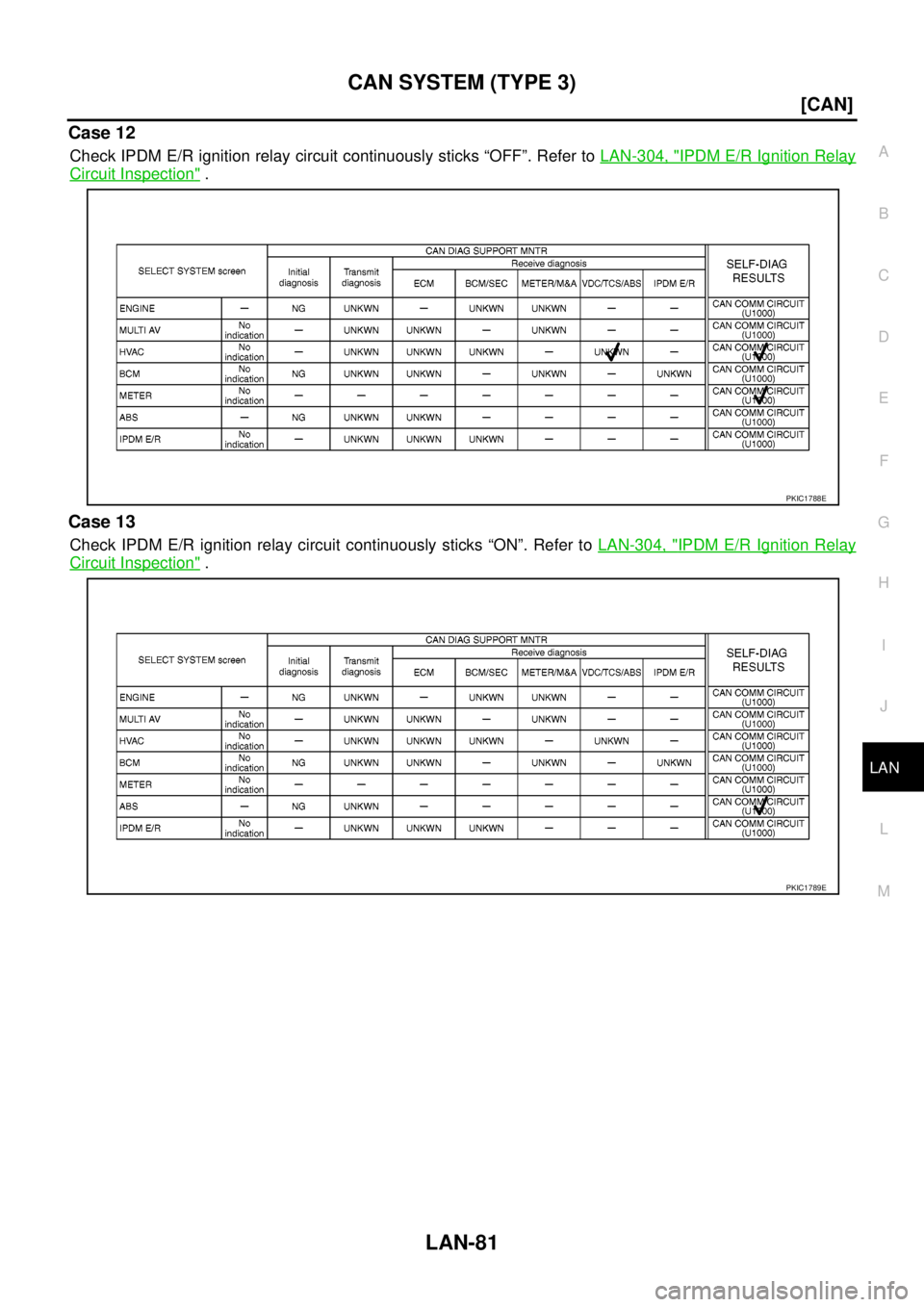

NISSAN NAVARA 2005 Repair Workshop Manual CAN SYSTEM (TYPE 3) LAN-81 [CAN] C D E F G H I J L MA B LAN Case 12 Check IPDM E/R ignition relay circuit continuously sticks “OFF”. Refer toLAN-304, "IPDM E/R Ignition Relay Circuit Inspection".

Page 1859 of 3171

NISSAN NAVARA 2005 Repair Workshop Manual LAN-82 [CAN] CAN SYSTEM (TYPE 4) CAN SYSTEM (TYPE 4) PFP:23710 Component Parts and Harness Connector LocationEKS00OJZ Refer toLAN-23, "Component Parts and Harness Connector Location". SchematicEKS00OK

Page 1860 of 3171

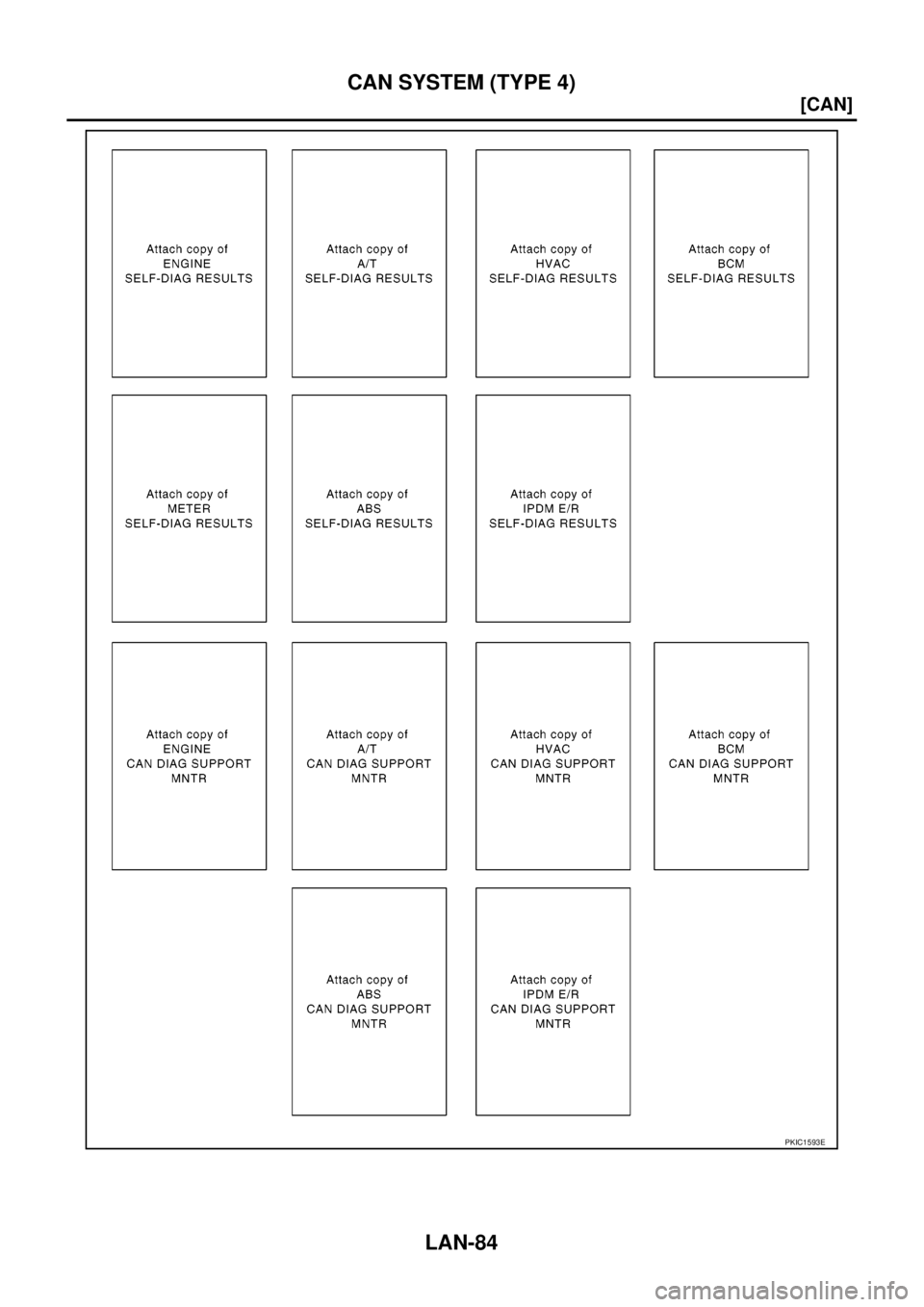

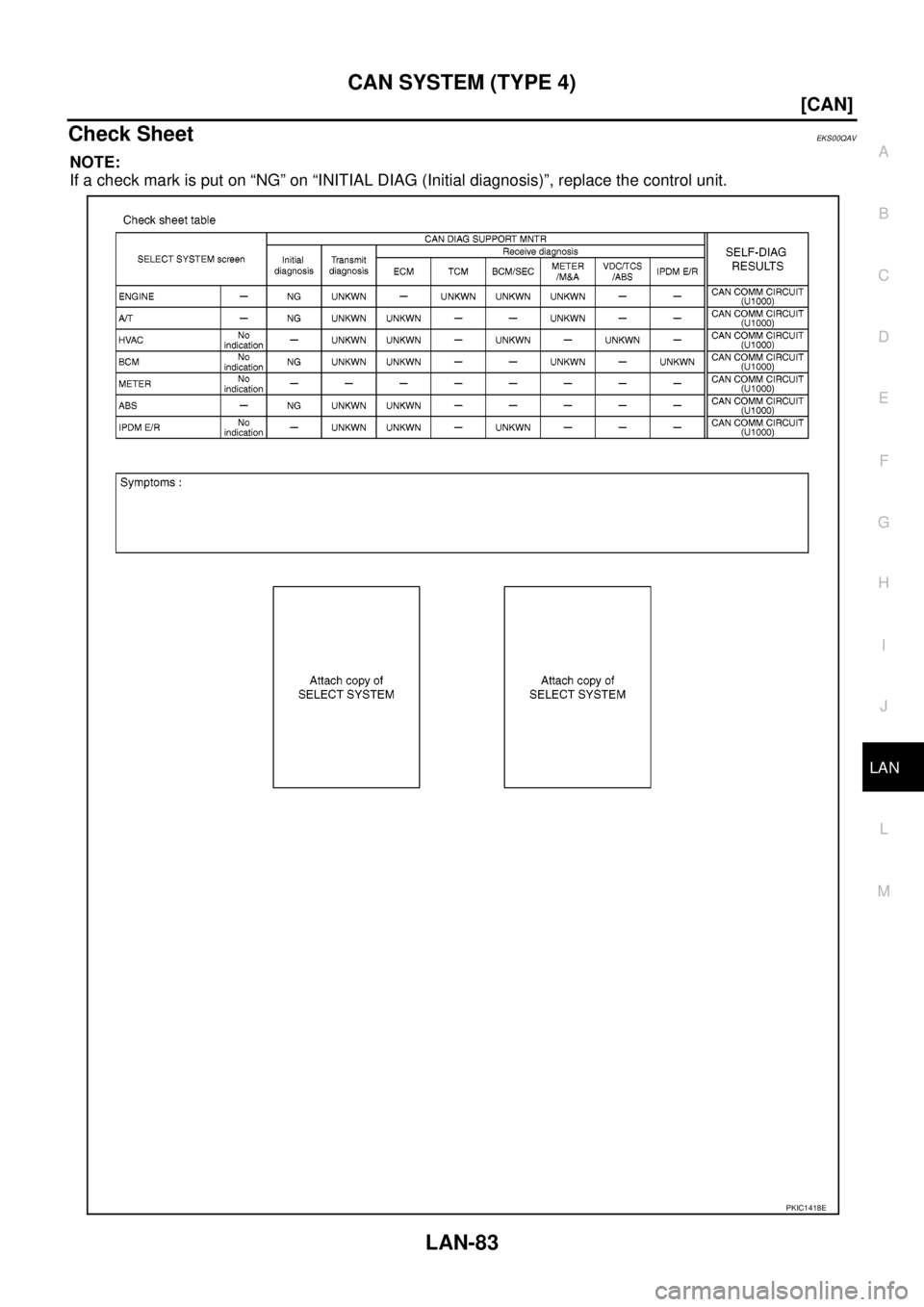

NISSAN NAVARA 2005 Repair Workshop Manual CAN SYSTEM (TYPE 4) LAN-83 [CAN] C D E F G H I J L MA B LAN Check SheetEKS00QAV NOTE: If a check mark is put on “NG” on “INITIAL DIAG (Initial diagnosis)”, replace the control unit. PKIC1418E

Page 1861 of 3171

NISSAN NAVARA 2005 Repair Workshop Manual LAN-84 [CAN] CAN SYSTEM (TYPE 4) PKIC1593E

Page 1862 of 3171

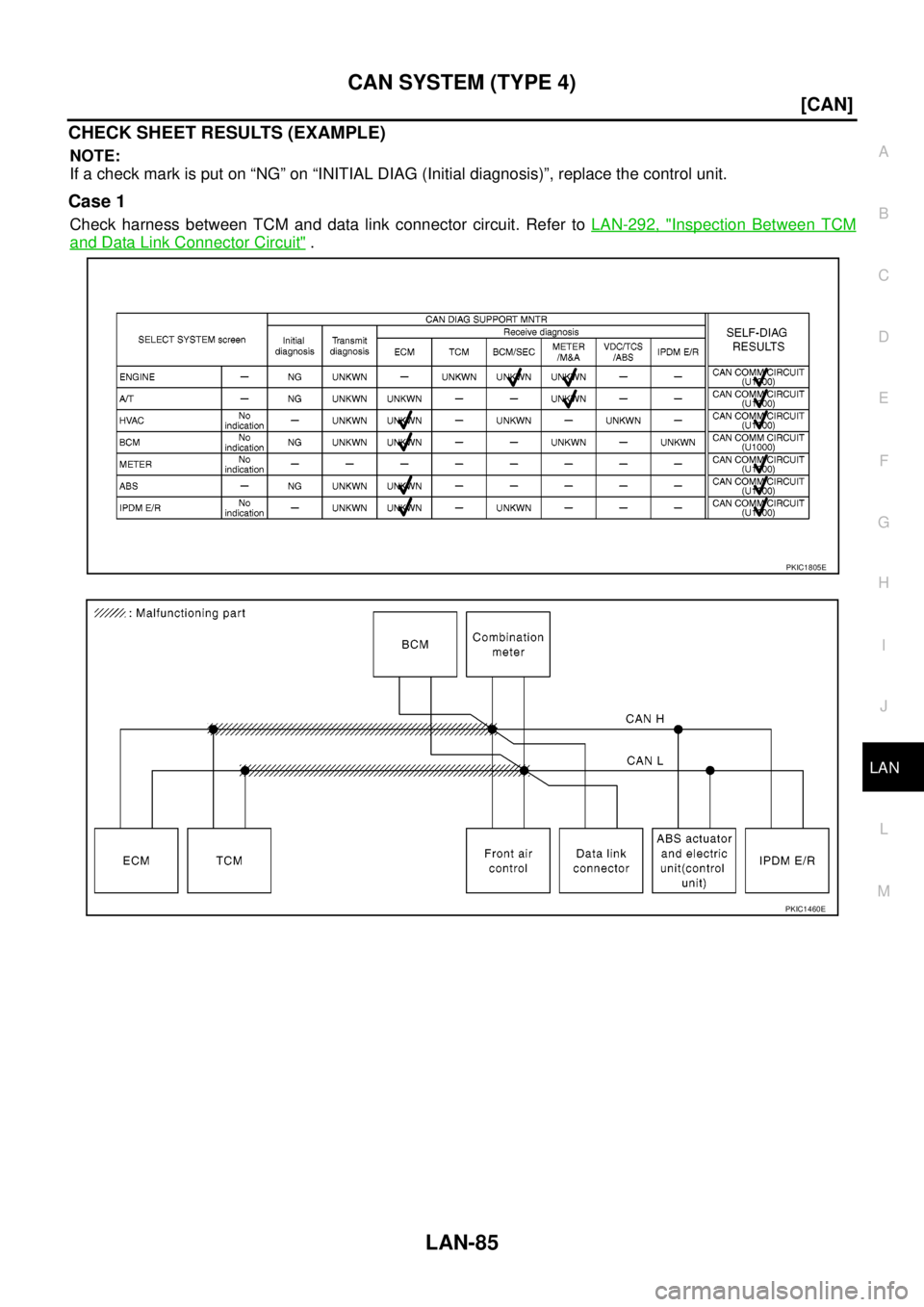

NISSAN NAVARA 2005 Repair Workshop Manual CAN SYSTEM (TYPE 4) LAN-85 [CAN] C D E F G H I J L MA B LAN CHECK SHEET RESULTS (EXAMPLE) NOTE: If a check mark is put on “NG” on “INITIAL DIAG (Initial diagnosis)”, replace the control unit.

Page 1863 of 3171

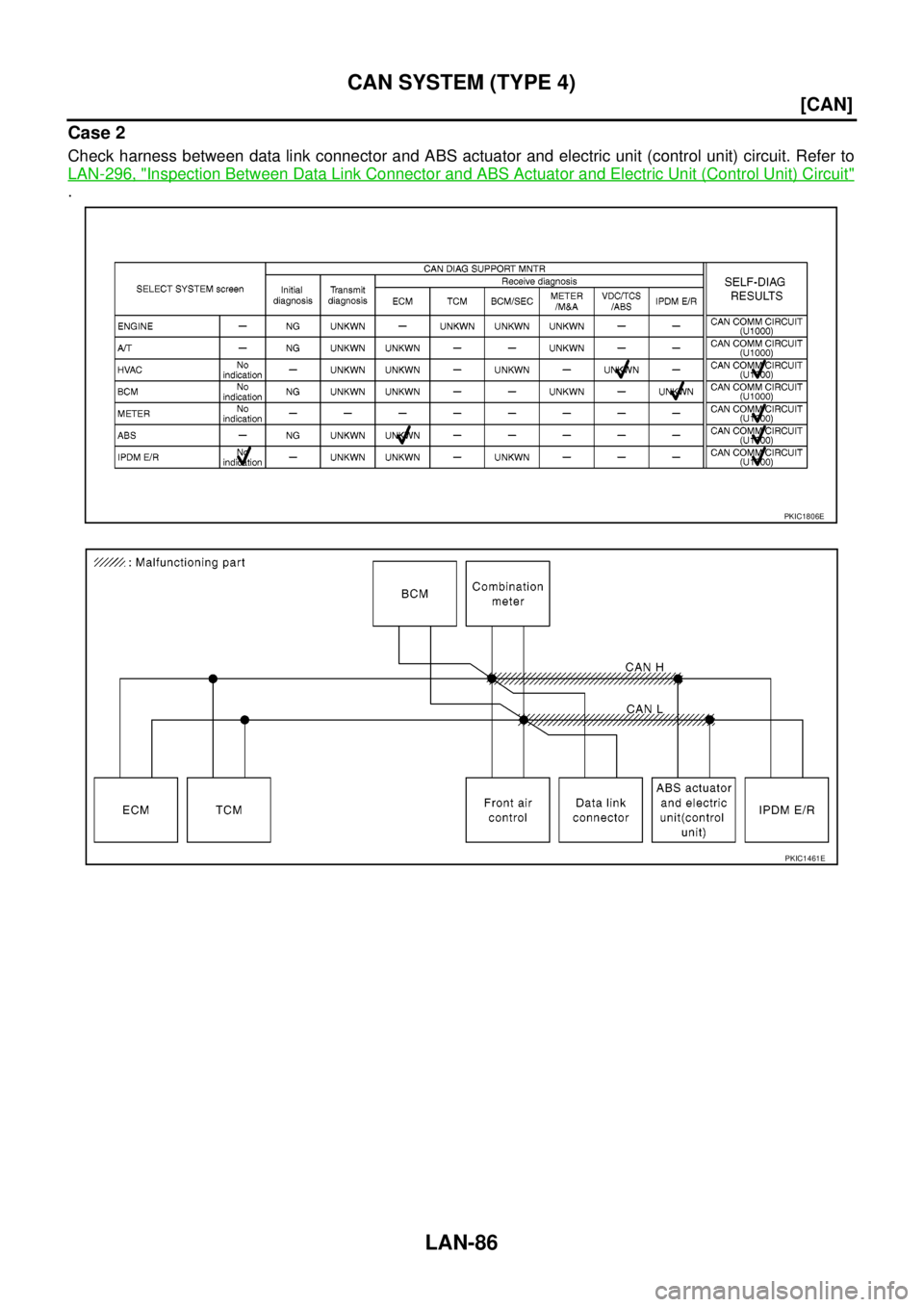

NISSAN NAVARA 2005 Repair Workshop Manual LAN-86 [CAN] CAN SYSTEM (TYPE 4) Case 2 Check harness between data link connector and ABS actuator and electric unit (control unit) circuit. Refer to LAN-296, " Inspection Between Data Link Connector

Page 1864 of 3171

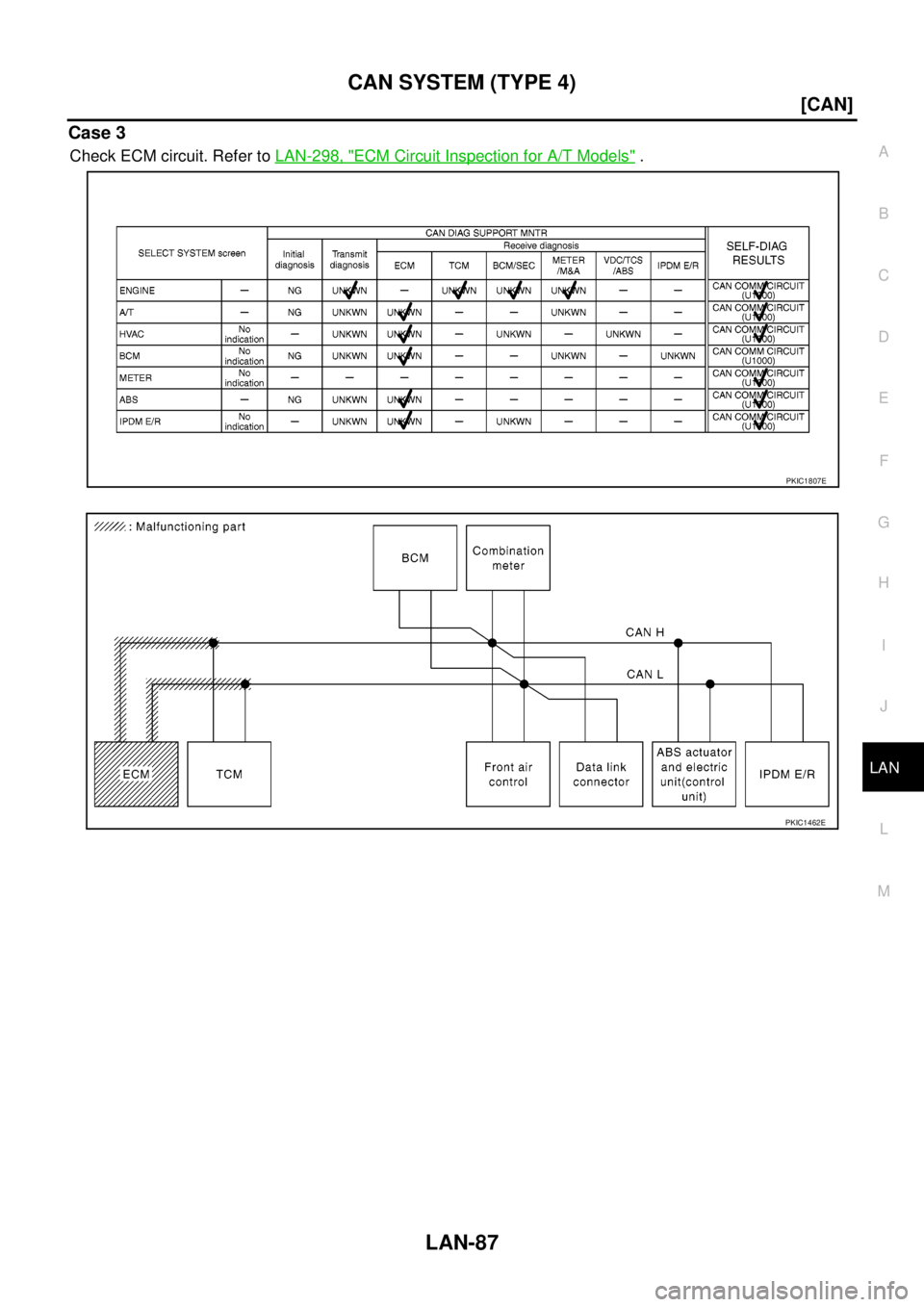

NISSAN NAVARA 2005 Repair Workshop Manual CAN SYSTEM (TYPE 4) LAN-87 [CAN] C D E F G H I J L MA B LAN Case 3 Check ECM circuit. Refer toLAN-298, "ECM Circuit Inspection for A/T Models". PKIC1807E PKIC1462E
