2005 NISSAN NAVARA Repair Workshop Manual

fuel type winter tyres snow chains washer fluid seats reset infotainment system

Page 2817 of 3171

NISSAN NAVARA 2005 Repair Workshop Manual RSU-12
SERVICE DATA AND SPECIFICATIONS (SDS)

Page 2818 of 3171

NISSAN NAVARA 2005 Repair Workshop Manual SB-1
SEAT BELTS
H RESTRAINTS
CONTENTS
C
D
E
F
G
I
J
K
L
M
SECTIONSB
A
B
SB
SEAT BELTS
PRECAUTIONS .......................................................... 2
Precautions for Supplemental Restraint Sy

SB-1
SEAT BELTS
H RESTRAINTS
CONTENTS
C
D
E
F
G
I
J
K
L
M
SECTIONSB
A
B
SB
SEAT BELTS
PRECAUTIONS .......................................................... 2
Precautions for Supplemental Restraint System
(SRS)“AIRBAG”and“SEATBELTPRE-TEN-
SIONER” .................................................................. 2
Precautions for Seat Belt Service ............................ 2
AFTER A COLLISION ........................................... 2
SEAT BELTS .............................................................. 3
Removal and Installation of Front Seat Belt - King
Cab ........................................................................... 3
REMOVAL OF SEAT BELT RETRACTOR ............ 4
INSTALLATION OF SEAT BELT RETRACTOR..... 4
REMOVAL OF SEAT BELT BUCKLE .................... 4
INSTALLATION OF SEAT BELT BUCKLE ............ 4
Removal and Installation of Front Seat Belt - Double
Cab ........................................................................... 5
REMOVAL OF SEAT BELT RETRACTOR ............ 6
INSTALLATION OF SEAT BELT RETRACTOR..... 6
REMOVAL OF SEAT BELT BUCKLE .................... 6
INSTALLATION OF SEAT BELT BUCKLE ............ 6
Removal and Installation of Rear Seat Belt - King
Cab ........................................................................... 7
REMOVAL ............................................................. 8
INSTALLATION ..................................................... 8
REMOVAL OF SEAT BELT BUCKLE .................... 8
INSTALLATION OF SEAT BELT BUCKLE ............ 8
Removal and Installation of Rear Seat Belt - DoubleCab ........................................................................... 9
REMOVAL OF SEAT BELT RETRACTOR - OUT-
BOARD ................................................................ 10
INSTALLATION OF SEAT BELT RETRACTOR -
OUTBOARD ........................................................ 10
REMOVALOFSEATBELTRETRACTOR-CEN-
TER ..................................................................... 10
INSTALLATION OF SEAT BELT RETRACTOR -
CENTER .............................................................. 10
REMOVAL OF SEAT BELT BUCKLE .................. 10
INSTALLATION OF SEAT BELT BUCKLE .......... 10
Seat Belt Inspection ................................................ 11
AFTER A COLLISION ......................................... 11
PRELIMINARY CHECKS .................................... 11
SEAT BELT RETRACTOR ON-VEHICLE
CHECK ................................................................ 12
SEAT BELT RETRACTOR OFF-VEHICLE
CHECK ................................................................ 12
SEAT BELT WARNING SYSTEM ............................. 14
Description .............................................................. 14
LATCH (LOWER ANCHORS AND TETHER FOR
CHILDREN) SYSTEM ............................................... 15
Removal and Installation - Double Cab .................. 15
TOP TETHER STRAP CHILD RESTRAINT ............. 16
Removal and Installation - Double Cab .................. 16

Page 2819 of 3171

NISSAN NAVARA 2005 Repair Workshop Manual SB-2
PRECAUTIONS
PRECAUTIONS
PFP:00001
Precautions for Supplemental Restraint System (SRS) “AIR BAG” and “SEAT
BELT PRE-TENSIONER”
EHS0026D
The Supplemental Restraint System such as “AIR BAG

SB-2
PRECAUTIONS
PRECAUTIONS
PFP:00001
Precautions for Supplemental Restraint System (SRS) “AIR BAG” and “SEAT
BELT PRE-TENSIONER”
EHS0026D
The Supplemental Restraint System such as “AIR BAG” and “SEAT BELT PRE-TENSIONER”, used along
with a front seat belt, helps to reduce the risk or severity of injury to the driver and front passenger for certain
types of collision. Information necessary to service the system safely is included in the SRS and SB section of
this Service Manual.
WARNING:
lTo avoid rendering the SRS inoperative, which could increase the risk of personal injury or death
in the event of a collision which would result in air bag inflation, all maintenance must be per-
formed by an authorized NISSAN/INFINITI dealer.
lImproper maintenance, including incorrect removal and installation of the SRS, can lead to per-
sonal injury caused by unintentional activation of the system. For removal of Spiral Cable and Air
Bag Module, see the SRS section.
lDo not use electrical test equipment on any circuit related to the SRS unless instructed to in this
Service Manual. SRS wiring harnesses can be identified by yellow and/or orange harnesses or
harness connectors.
Precautions for Seat Belt ServiceEHS00265
CAUTION:
lBefore removing the seat belt pre-tensioner assembly, turn the ignition switch OFF, disconnect
both battery cables and wait at least 3 minutes.
lDo not use electrical test equipment for seat belt pre-tensioner connector.
lAfter replacing or reinstalling seat belt pre-tensioner assembly, or reconnecting seat belt pre-
tensioner assembly connector, ensure entire SRS operates properly. Refer toSRS-18, "
SRS Oper-
ation Check".
lDeploy seat belt pre-tensioner assembly before disposing. Refer toSRS-49, "DISPOSAL OF AIR
BAG MODULE AND SEAT BELT PRE-TENSIONER".
lDo not disassemble buckle or seat belt assembly.
lReplace anchor bolts if they are deformed or worn out.
lNever oil tongue and buckle.
lIf any component of seat belt assembly is questionable, do not repair. Replace the whole seat belt
assembly.
lIf webbing is cut, frayed, or damaged, replace seat belt assembly.
lWhen replacing seat belt assembly, use a genuine NISSAN seat belt assembly.
AFTER A COLLISION
WARNING:
lInspect all seat belt assemblies including retractors and attaching hardware after any collision.
lNISSAN recommends that all seat belt assemblies in use during a collision be replaced unless the
collision was minor and the belts show no damage and continue to operate properly. Failure to do
so could result in serious personal injury in an accident. Seat belt assemblies not in use during a
collision should also be replaced if either damage or improper operation is noted. Seat belt pre-
tensioner should be replaced even if the seat belts are not in use during a frontal collision in which
the air bags are deployed.
Replace any seat belt assembly (including anchor bolts) if:
lThe seat belt was in use at the time of a collision (except for minor collisions and the belts, retractors and
buckles show no damage and continue to operate properly).
lThe seat belt was damaged in an accident. (i.e., torn webbing, bent retractor or guide, etc.)
lThe seat belt attaching point was damaged in an accident. Inspect the seat belt attaching area for damage
or distortion and repair as necessary before installing a new seat belt assembly.
lAnchor bolts are deformed or worn out.
lThe seat belt pre-tensioner should be replaced even if the seat belts are not in use during the collision in
which the air bags are deployed.

Page 2820 of 3171

NISSAN NAVARA 2005 Repair Workshop Manual SEAT BELTS
SB-3
C
D
E
F
G
I
J
K
L
MA
B
SB
SEAT BELTSPFP:86884

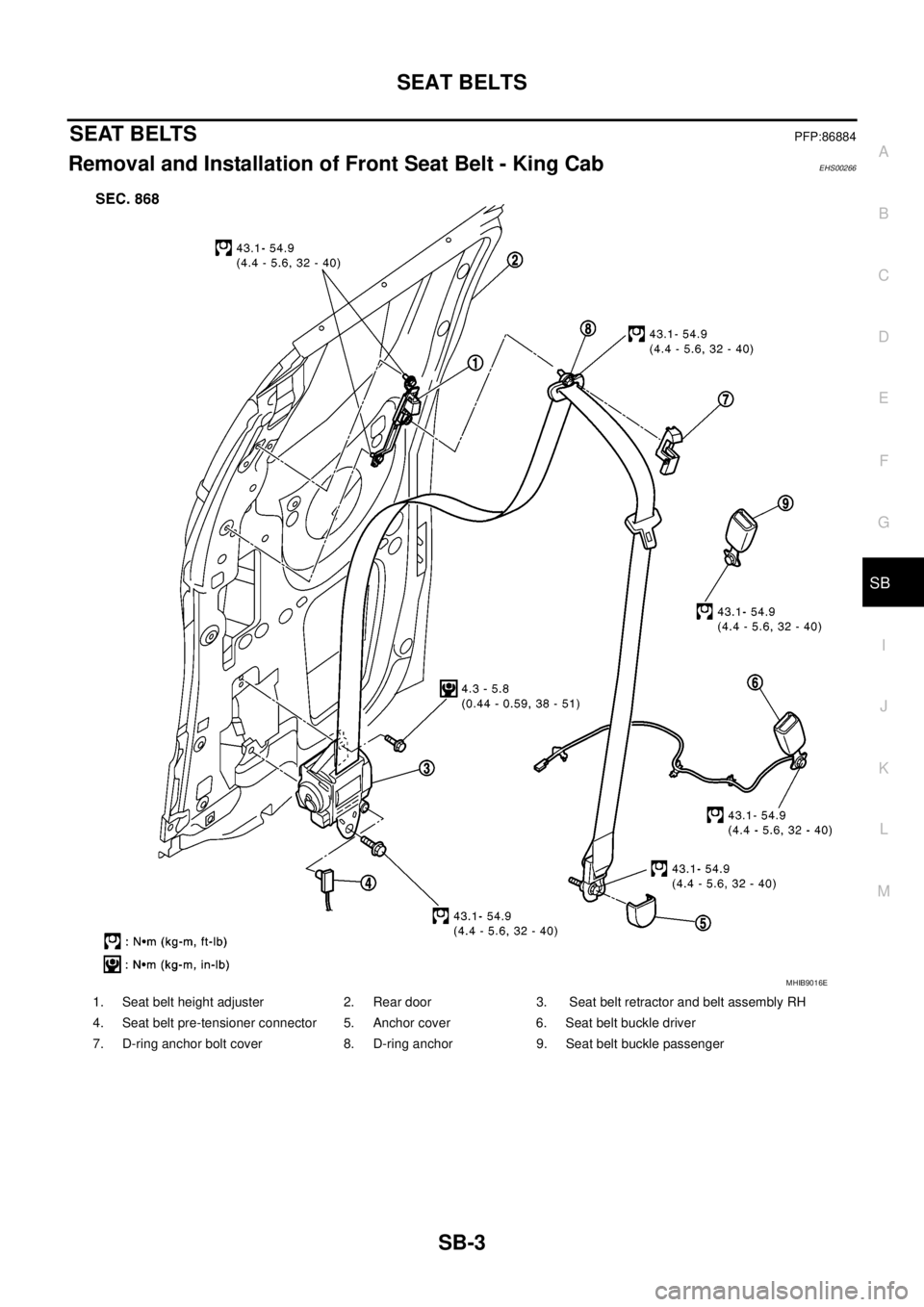

Removal and Installation of Front Seat Belt - King CabEHS00266
1. Seat belt height adjuster 2. Rear door 3. Seat belt retractor and belt a

Page 2821 of 3171

NISSAN NAVARA 2005 Repair Workshop Manual SB-4
SEAT BELTS

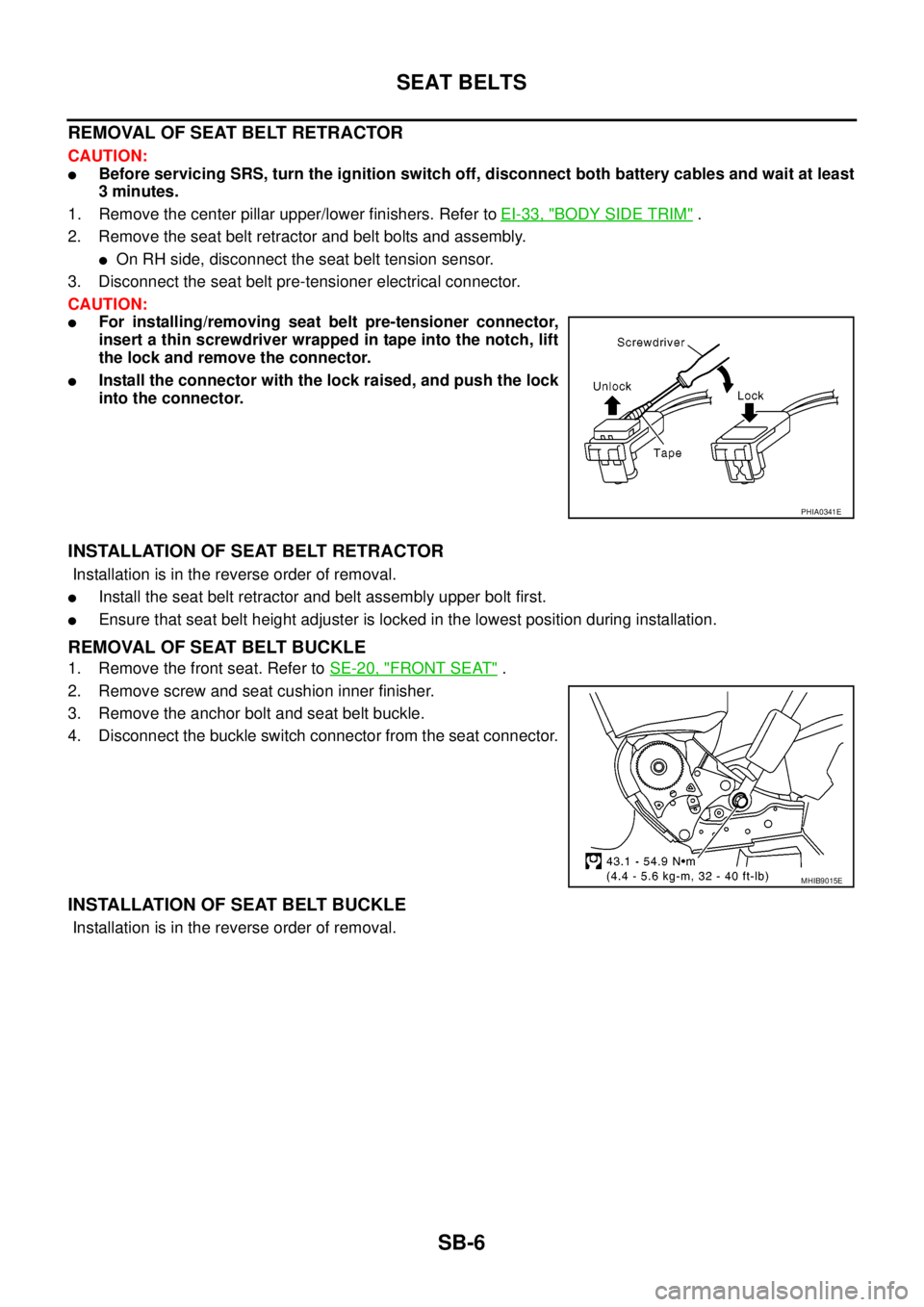

REMOVALOFSEATBELTRETRACTOR
CAUTION:
lBefore servicing SRS, turn the ignition switch off, disconnect both battery cables and wait at least
3 minutes.
1. Remove the rear door finishers.

Page 2822 of 3171

NISSAN NAVARA 2005 Repair Workshop Manual SEAT BELTS
SB-5
C
D
E
F
G
I
J
K
L
MA
B
SB

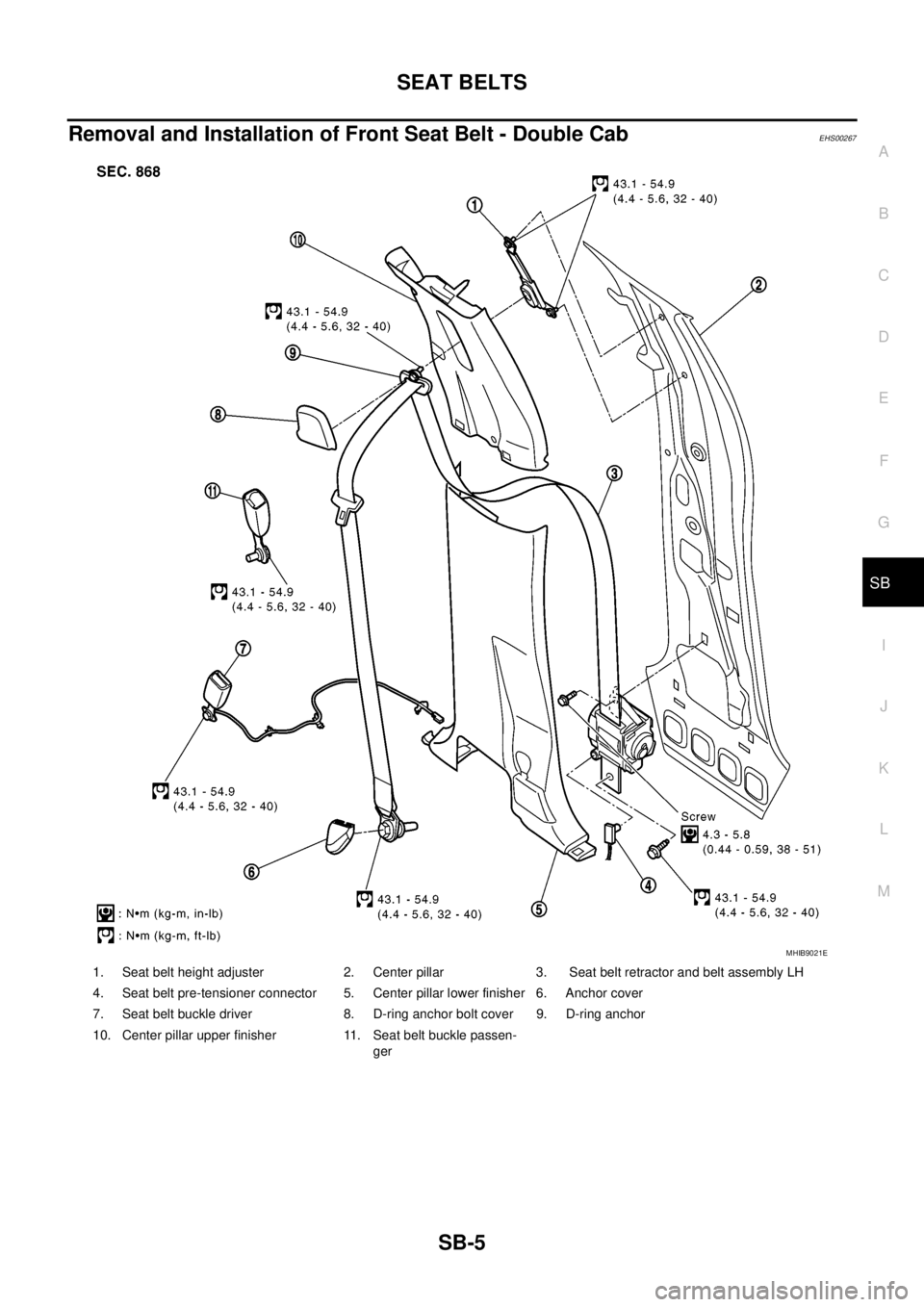

Removal and Installation of Front Seat Belt - Double CabEHS00267
1. Seat belt height adjuster 2. Center pillar 3. Seat belt retractor and belt assembly LH
4.

Page 2823 of 3171

NISSAN NAVARA 2005 Repair Workshop Manual SB-6
SEAT BELTS
REMOVALOFSEATBELTRETRACTOR
CAUTION:
lBefore servicing SRS, turn the ignition switch off, disconnect both battery cables and wait at least
3 minutes.
1. Remove the center pillar upper/l

Page 2824 of 3171

NISSAN NAVARA 2005 Repair Workshop Manual SEAT BELTS
SB-7
C
D
E
F
G
I
J
K
L
MA
B
SB

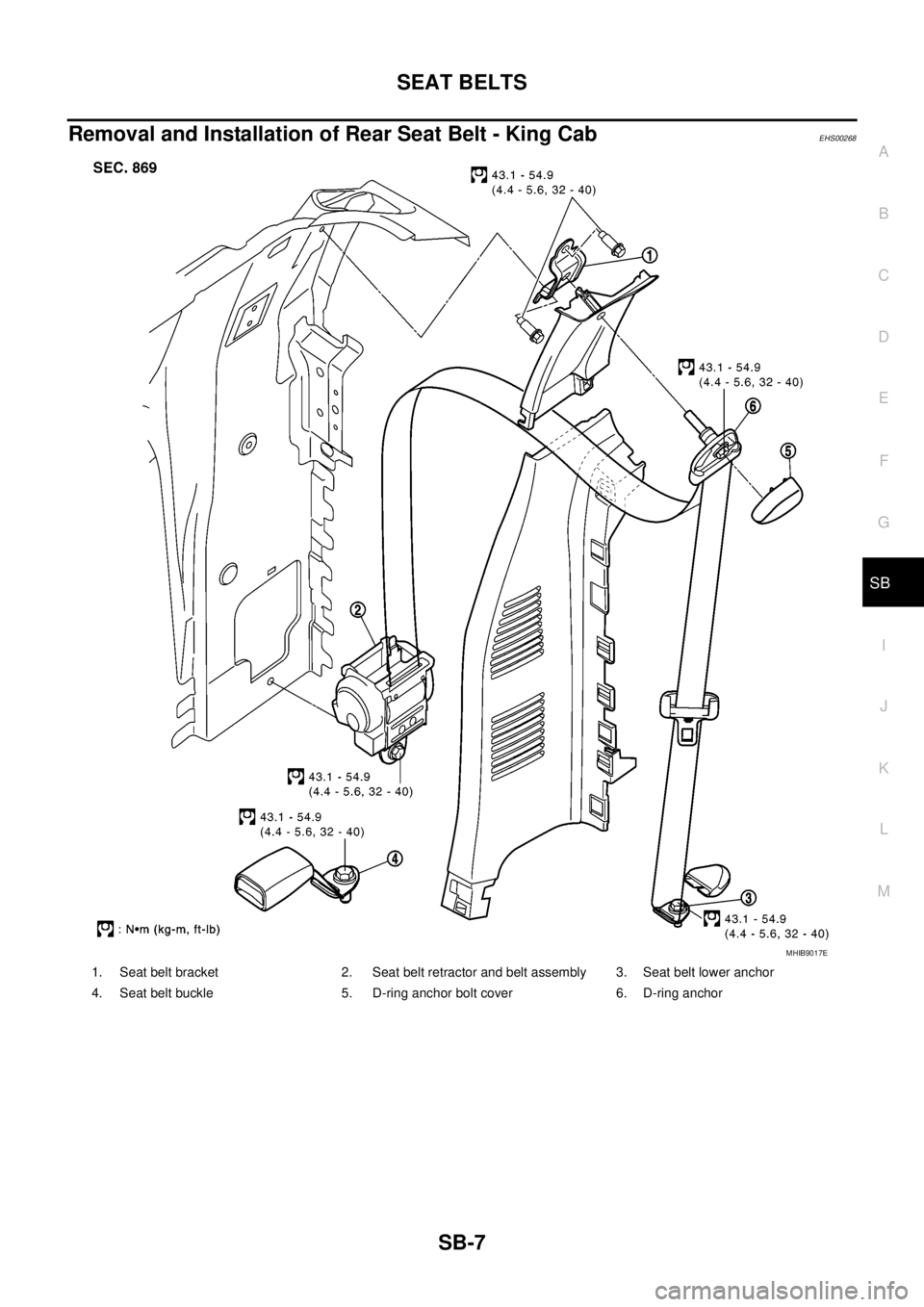

Removal and Installation of Rear Seat Belt - King CabEHS00268
1. Seat belt bracket 2. Seat belt retractor and belt assembly 3. Seat belt lower anchor
4. Seat

Load next 8 pages
