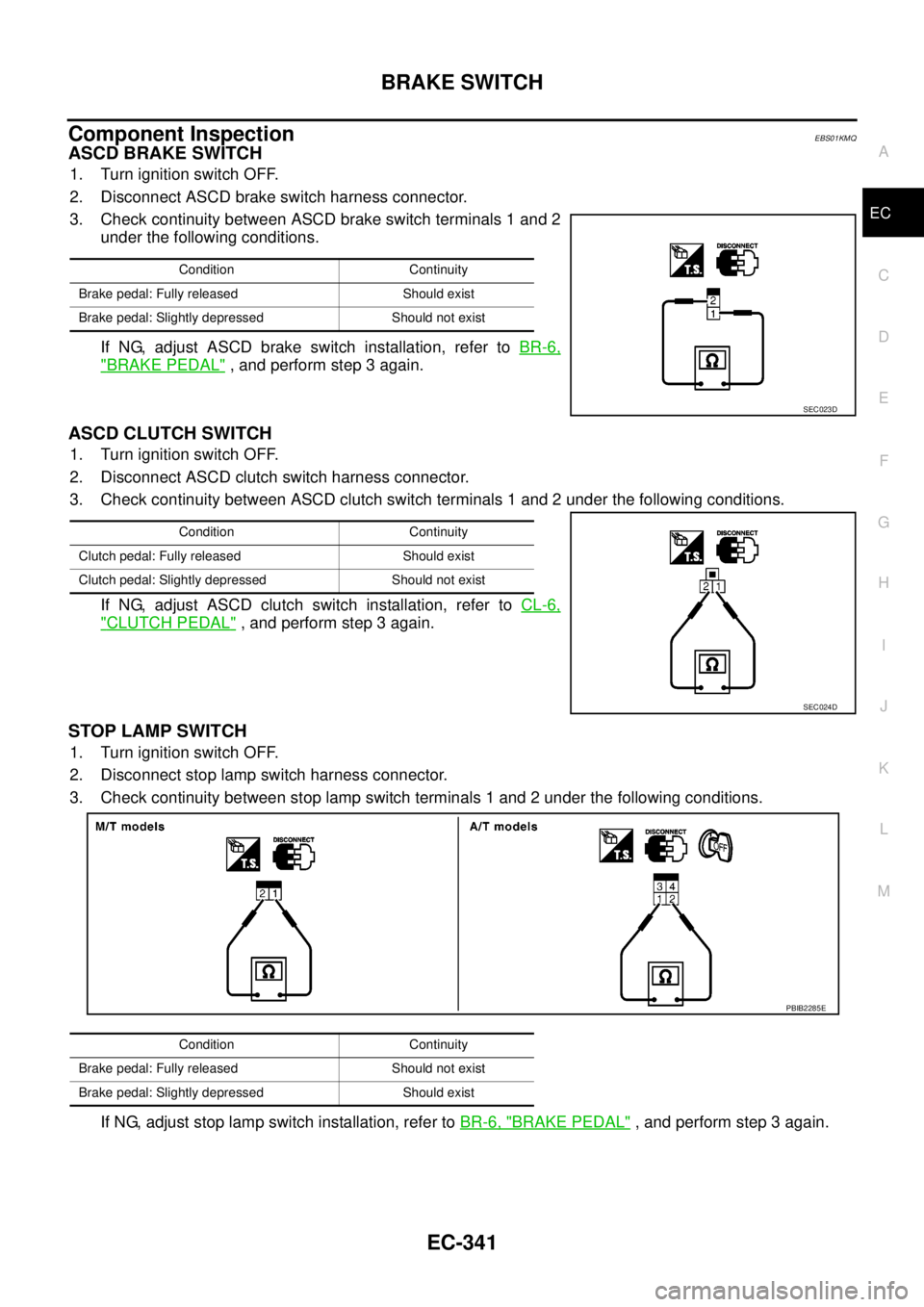

NISSAN NAVARA 2005 Repair Workshop Manual BRAKE SWITCH EC-341 C D E F G H I J K L MA EC Component InspectionEBS01KMQ ASCD BRAKE SWITCH 1. Turn ignition switch OFF. 2. Disconnect ASCD brake switch harness connector. 3. Check continuity between

Page 1322 of 3171

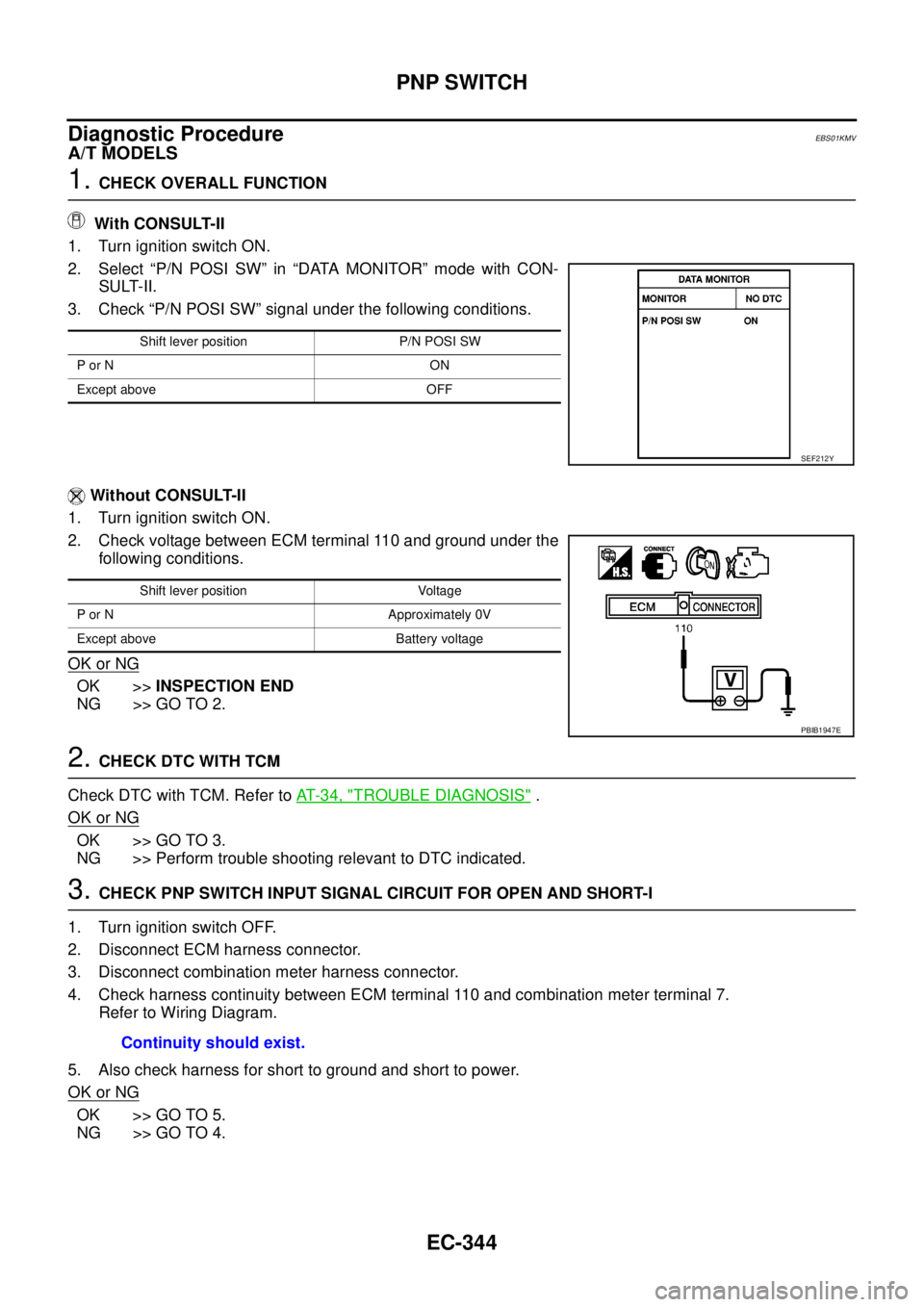

NISSAN NAVARA 2005 Repair Workshop Manual EC-342 PNP SWITCH PNP SWITCH PFP:32006 DescriptionEBS01KMR When the gear position is in P or N (A/T), Neutral (M/T), park/neutral position is ON. ECM detects the position because the continuity of the

Page 1323 of 3171

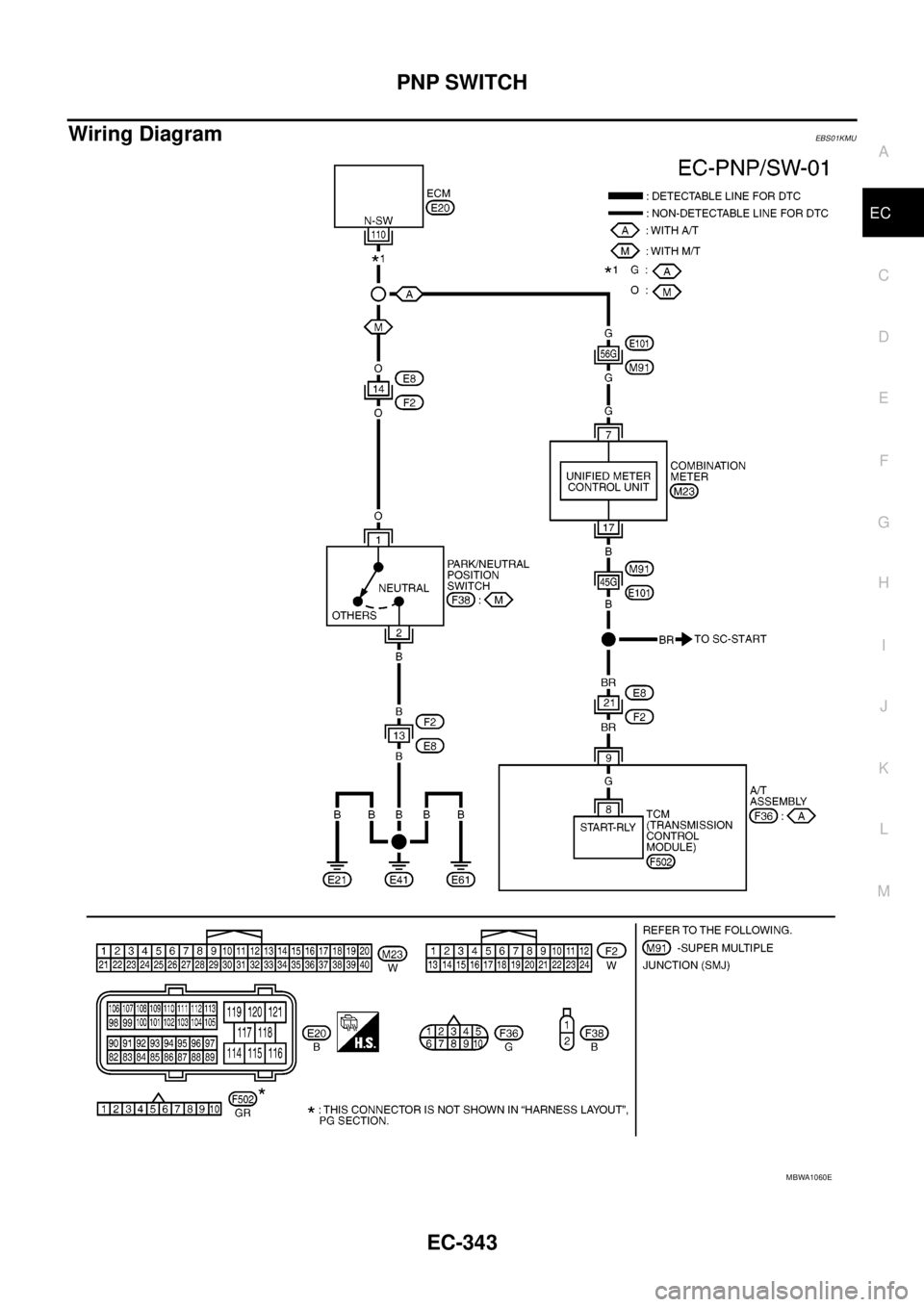

NISSAN NAVARA 2005 Repair Workshop Manual PNP SWITCH EC-343 C D E F G H I J K L MA EC Wiring DiagramEBS01KMU MBWA1060E

Page 1324 of 3171

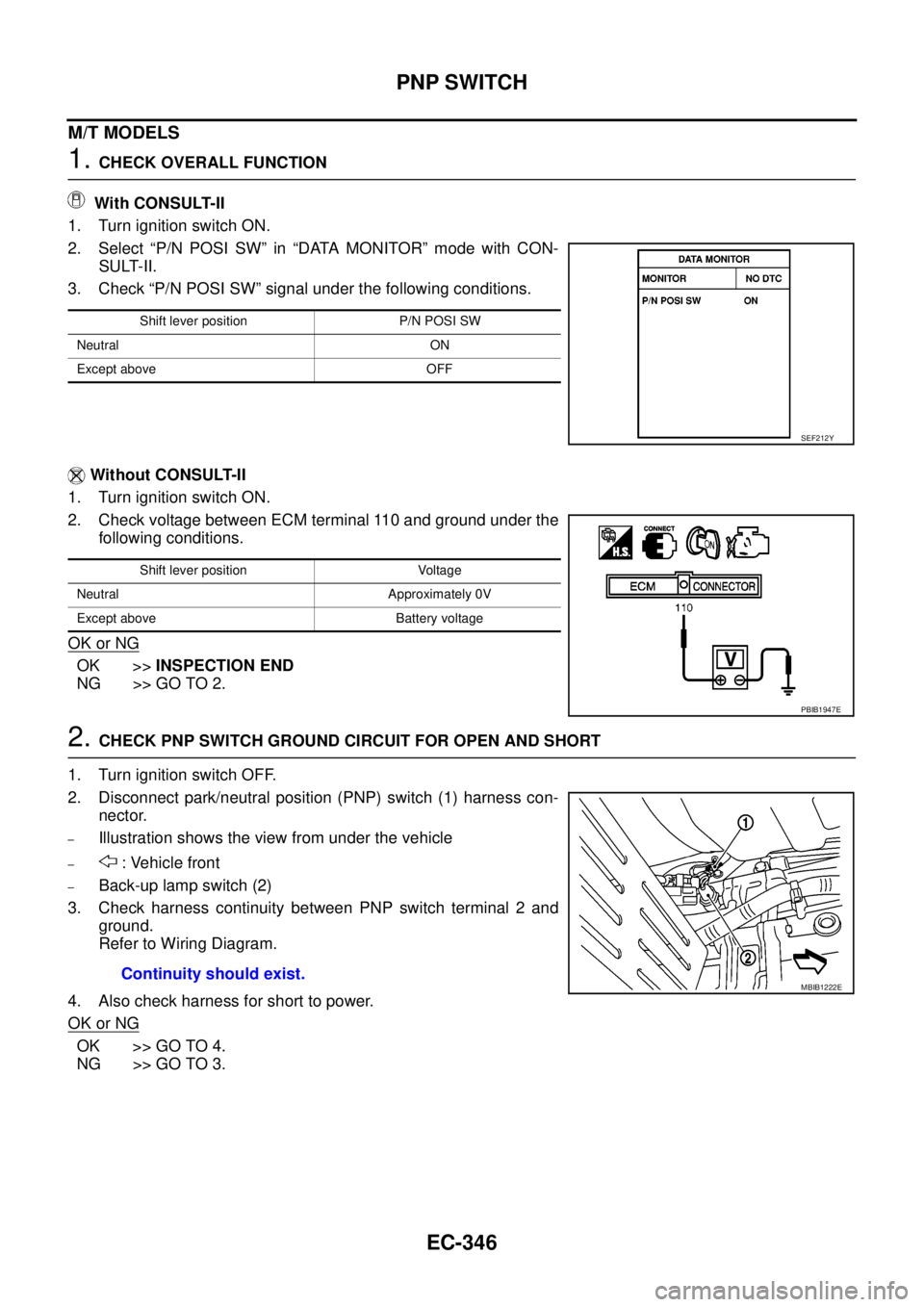

NISSAN NAVARA 2005 Repair Workshop Manual EC-344 PNP SWITCH Diagnostic Procedure EBS01KMV A/T MODELS 1.CHECK OVERALL FUNCTION With CONSULT-II 1. Turn ignition switch ON. 2. Select “P/N POSI SW” in “DATA MONITOR” mode with CON- SULT-II

Page 1325 of 3171

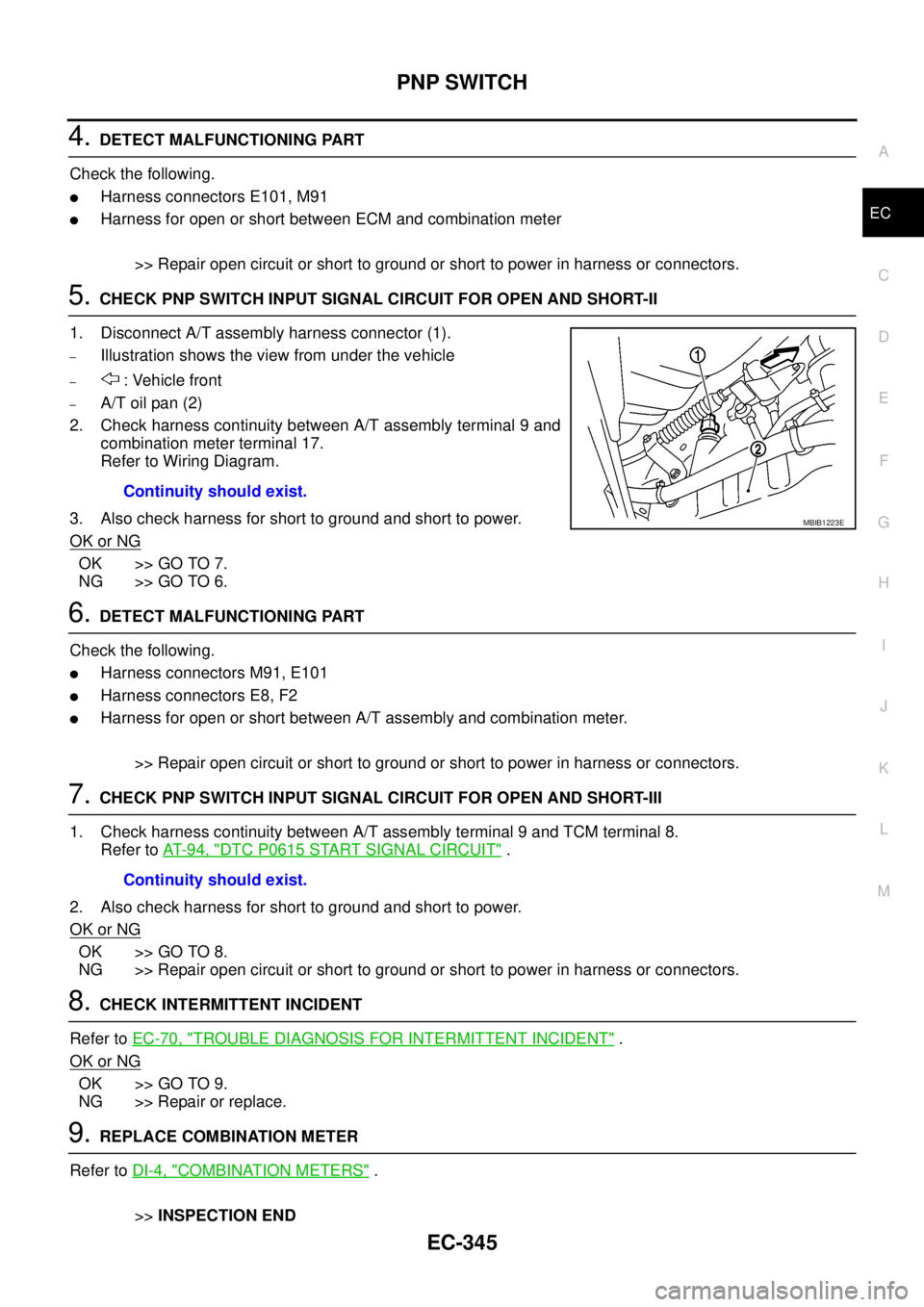

NISSAN NAVARA 2005 Repair Workshop Manual PNP SWITCH EC-345 C D E F G H I J K L MA EC 4.DETECT MALFUNCTIONING PART Check the following. lHarness connectors E101, M91 lHarness for open or short between ECM and combination meter >> Repair open

Page 1326 of 3171

NISSAN NAVARA 2005 Repair Workshop Manual EC-346 PNP SWITCH M/T MODELS 1.CHECK OVERALL FUNCTION With CONSULT-II 1. Turn ignition switch ON. 2. Select “P/N POSI SW” in “DATA MONITOR” mode with CON- SULT-II. 3. Check “P/N POSI SW” s

Page 1327 of 3171

NISSAN NAVARA 2005 Repair Workshop Manual PNP SWITCH EC-347 C D E F G H I J K L MA EC 3.DETECT MALFUNCTIONING PART Check the following. lHarness connectors E8, F2 lHarness for open or short between ECM and PNP switch >> Repair open circuit or

Page 1328 of 3171

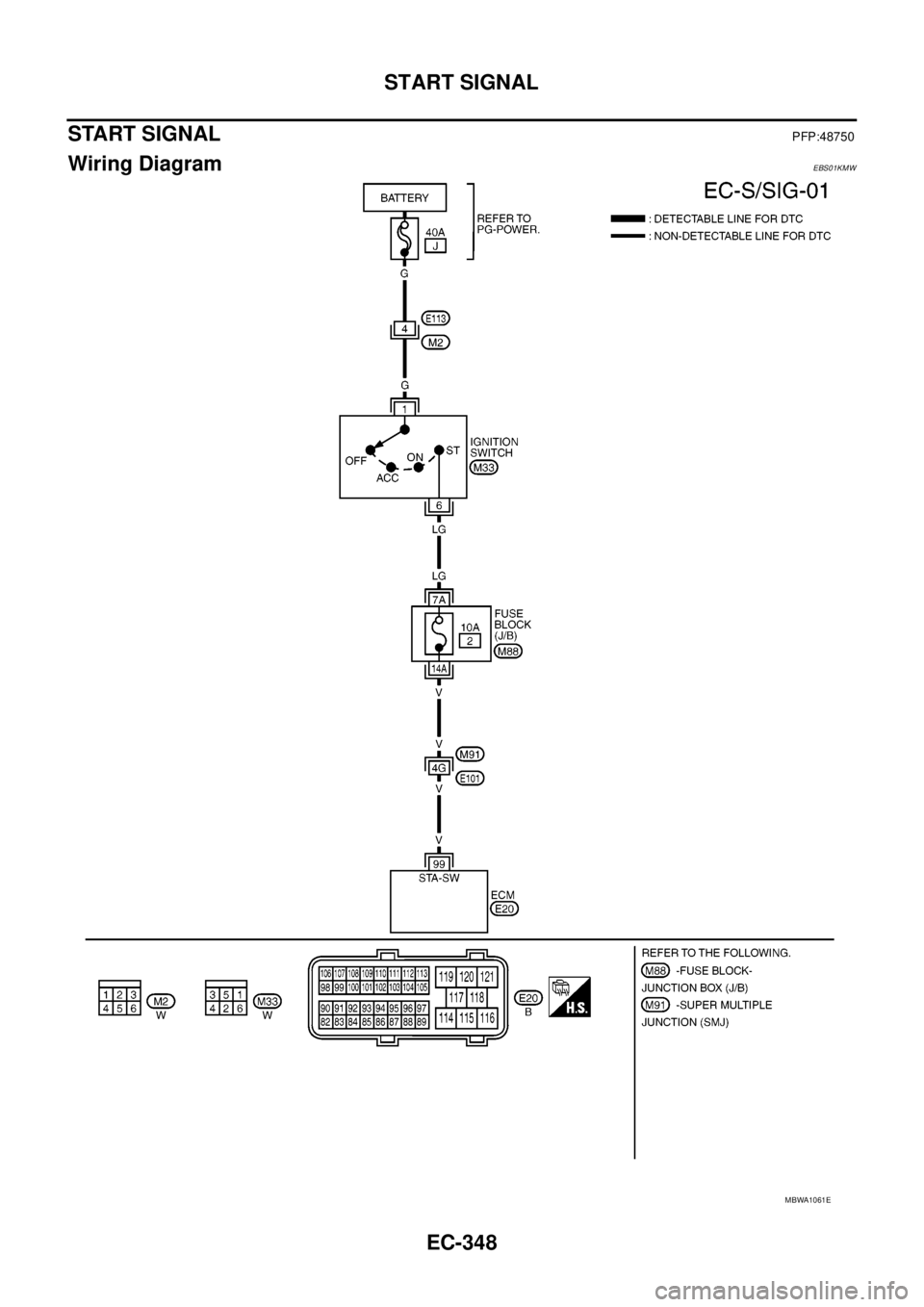

NISSAN NAVARA 2005 Repair Workshop Manual EC-348 START SIGNAL START SIGNAL PFP:48750 Wiring DiagramEBS01KMW MBWA1061E
