Page 1841 of 3171

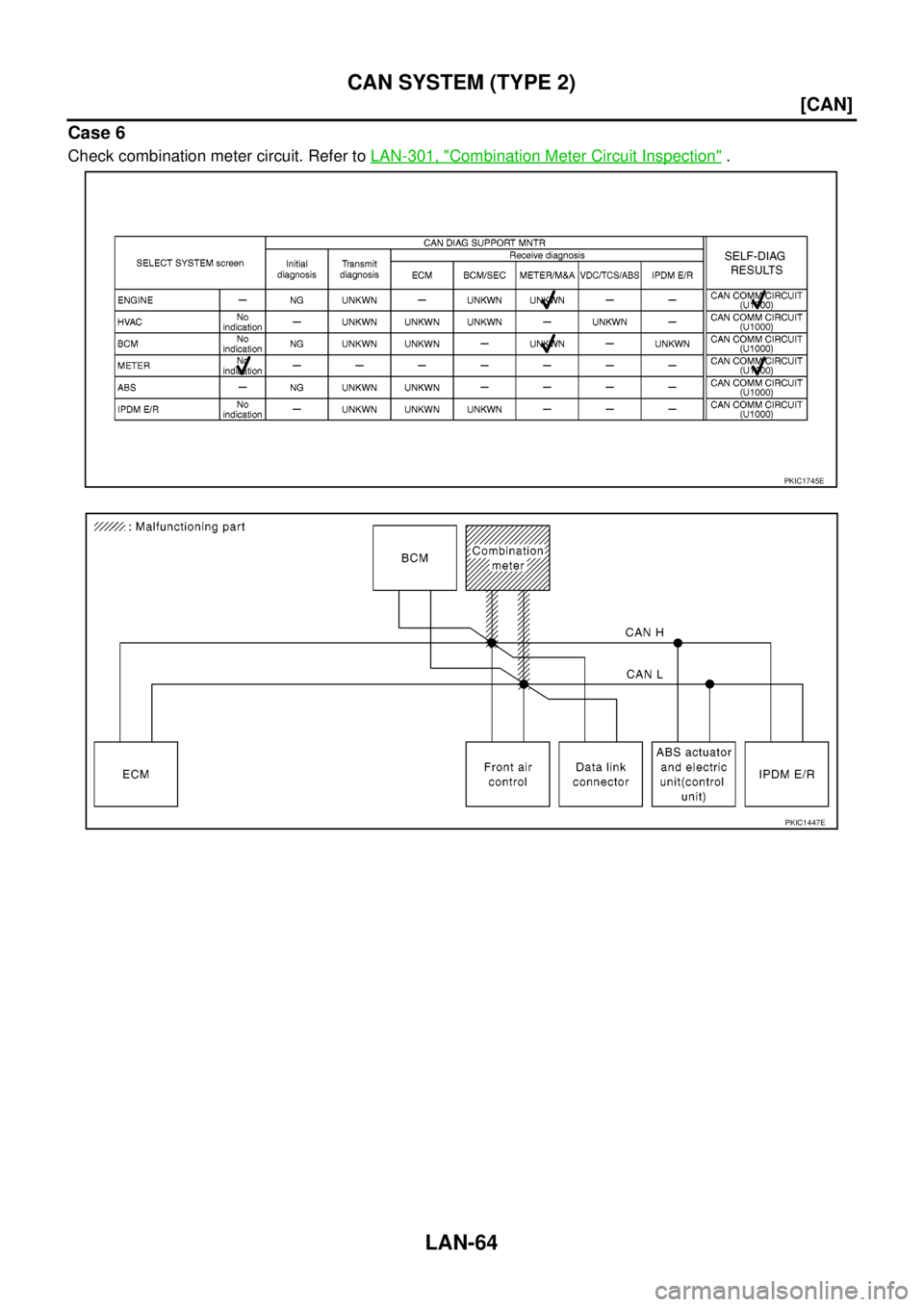

NISSAN NAVARA 2005 Repair Workshop Manual LAN-64 [CAN] CAN SYSTEM (TYPE 2) Case 6 Check combination meter circuit. Refer toLAN-301, "Combination Meter Circuit Inspection". PKIC1745E PKIC1447E

Page 1842 of 3171

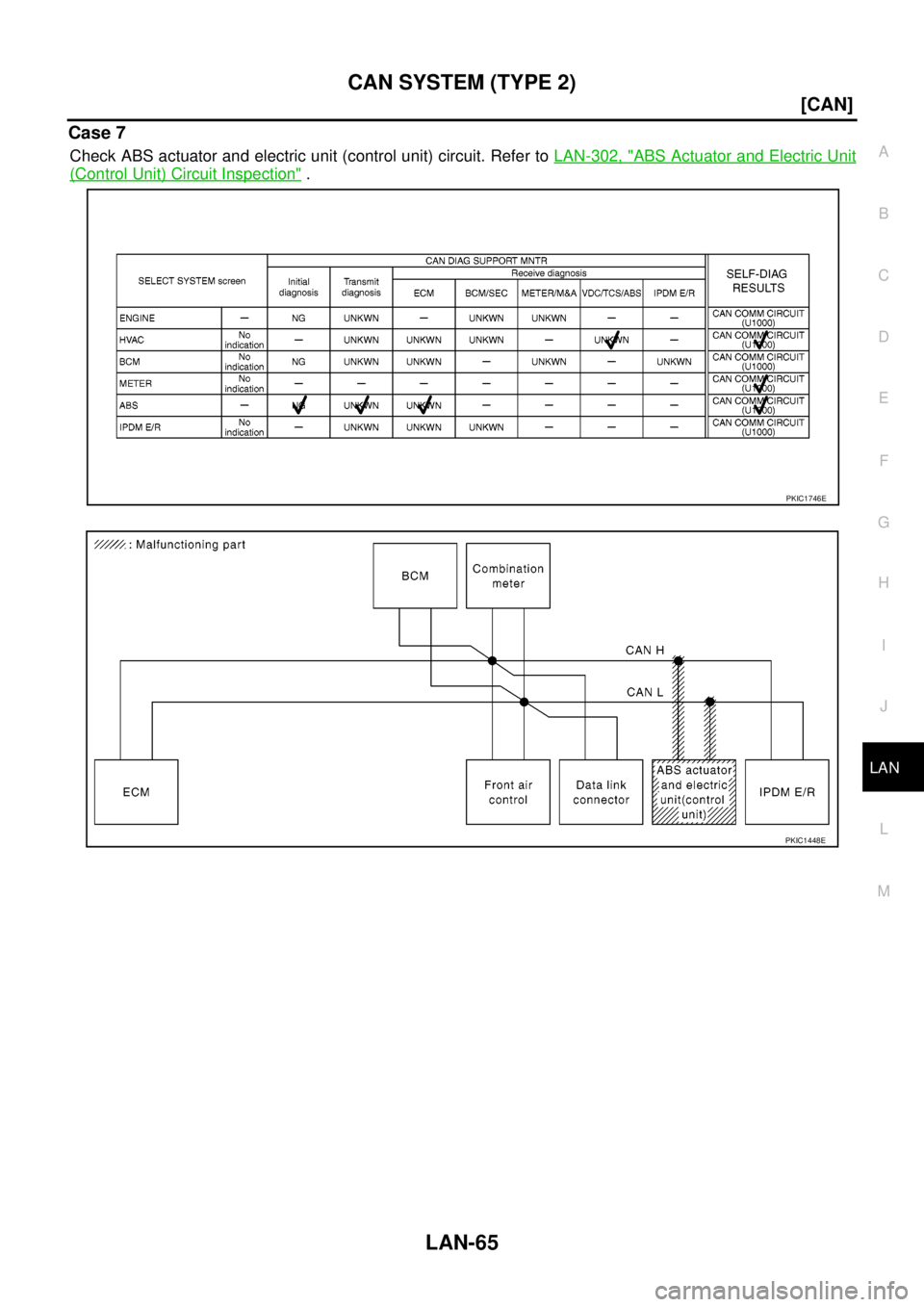

NISSAN NAVARA 2005 Repair Workshop Manual CAN SYSTEM (TYPE 2) LAN-65 [CAN] C D E F G H I J L MA B LAN Case 7 Check ABS actuator and electric unit (control unit) circuit. Refer toLAN-302, "ABS Actuator and Electric Unit (Control Unit) Circuit

Page 1843 of 3171

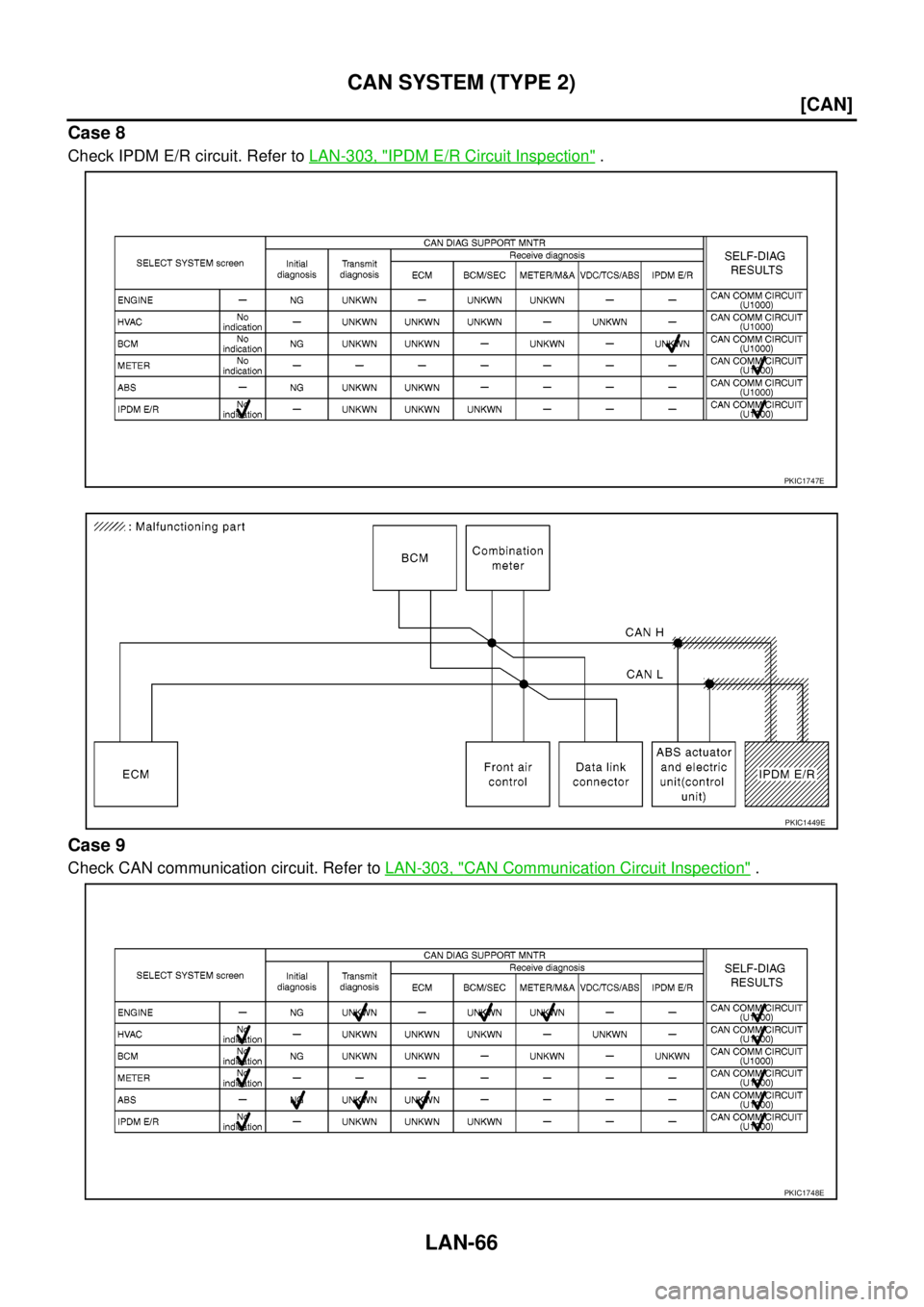

NISSAN NAVARA 2005 Repair Workshop Manual LAN-66 [CAN] CAN SYSTEM (TYPE 2) Case 8 Check IPDM E/R circuit. Refer toLAN-303, "IPDM E/R Circuit Inspection". Case 9 Check CAN communication circuit. Refer toLAN-303, "CAN Communication Circuit Insp

Page 1844 of 3171

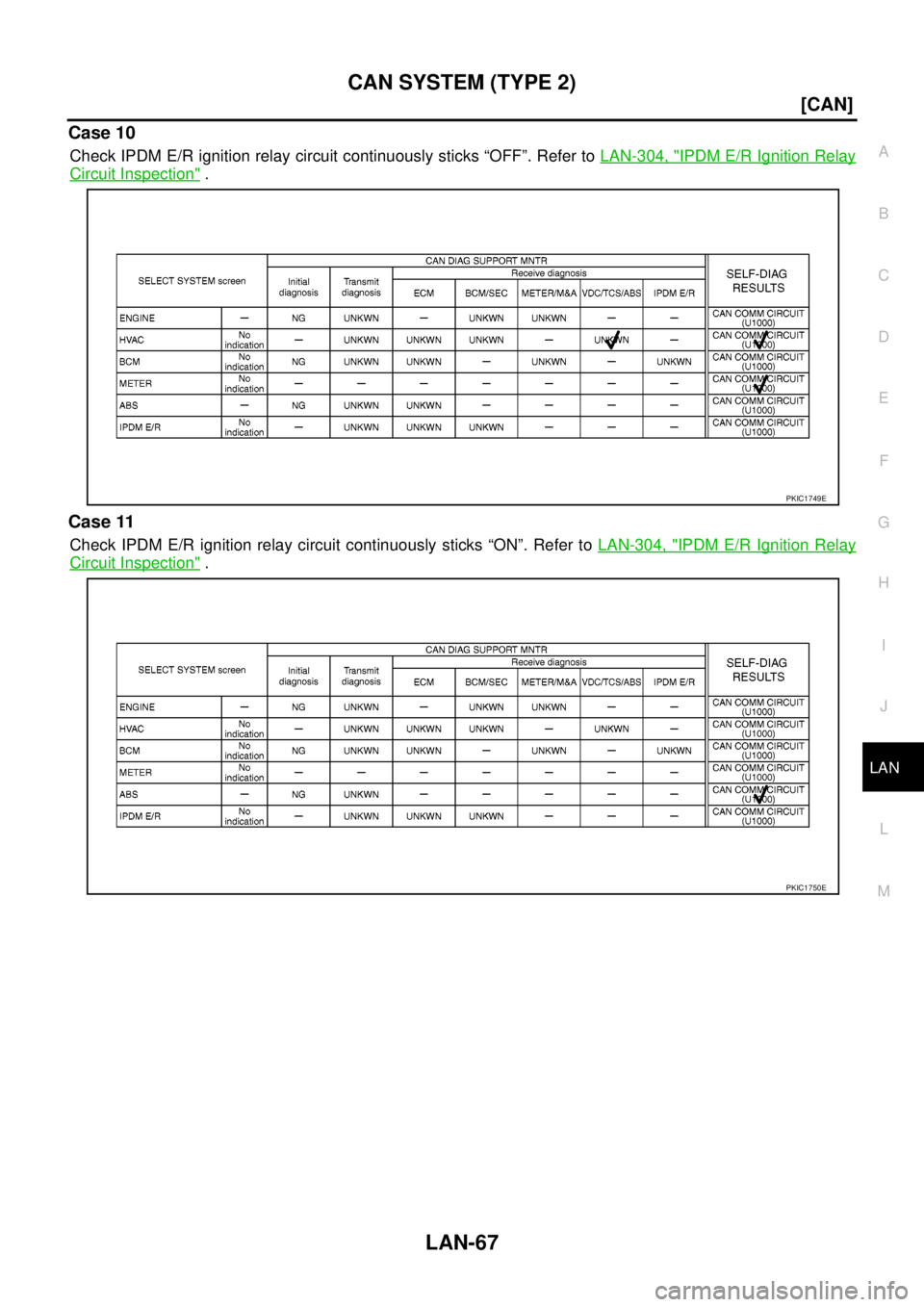

NISSAN NAVARA 2005 Repair Workshop Manual CAN SYSTEM (TYPE 2) LAN-67 [CAN] C D E F G H I J L MA B LAN Case 10 Check IPDM E/R ignition relay circuit continuously sticks “OFF”. Refer toLAN-304, "IPDM E/R Ignition Relay Circuit Inspection".

Page 1845 of 3171

NISSAN NAVARA 2005 Repair Workshop Manual LAN-68 [CAN] CAN SYSTEM (TYPE 3) CAN SYSTEM (TYPE 3) PFP:23710 Component Parts and Harness Connector LocationEKS00OKF Refer toLAN-23, "Component Parts and Harness Connector Location". SchematicEKS00OK

Page 1846 of 3171

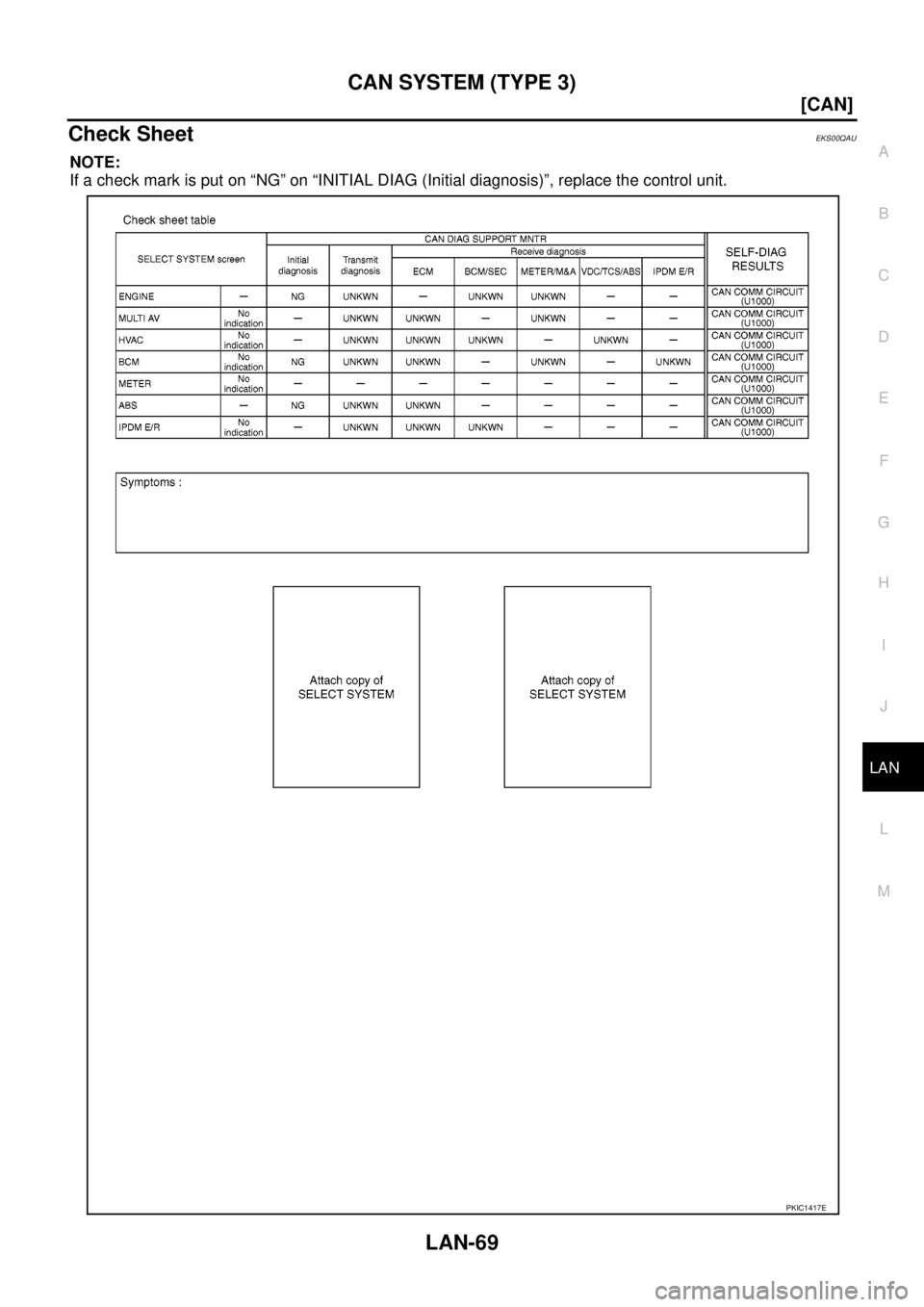

NISSAN NAVARA 2005 Repair Workshop Manual CAN SYSTEM (TYPE 3) LAN-69 [CAN] C D E F G H I J L MA B LAN Check SheetEKS00QAU NOTE: If a check mark is put on “NG” on “INITIAL DIAG (Initial diagnosis)”, replace the control unit. PKIC1417E

Page 1847 of 3171

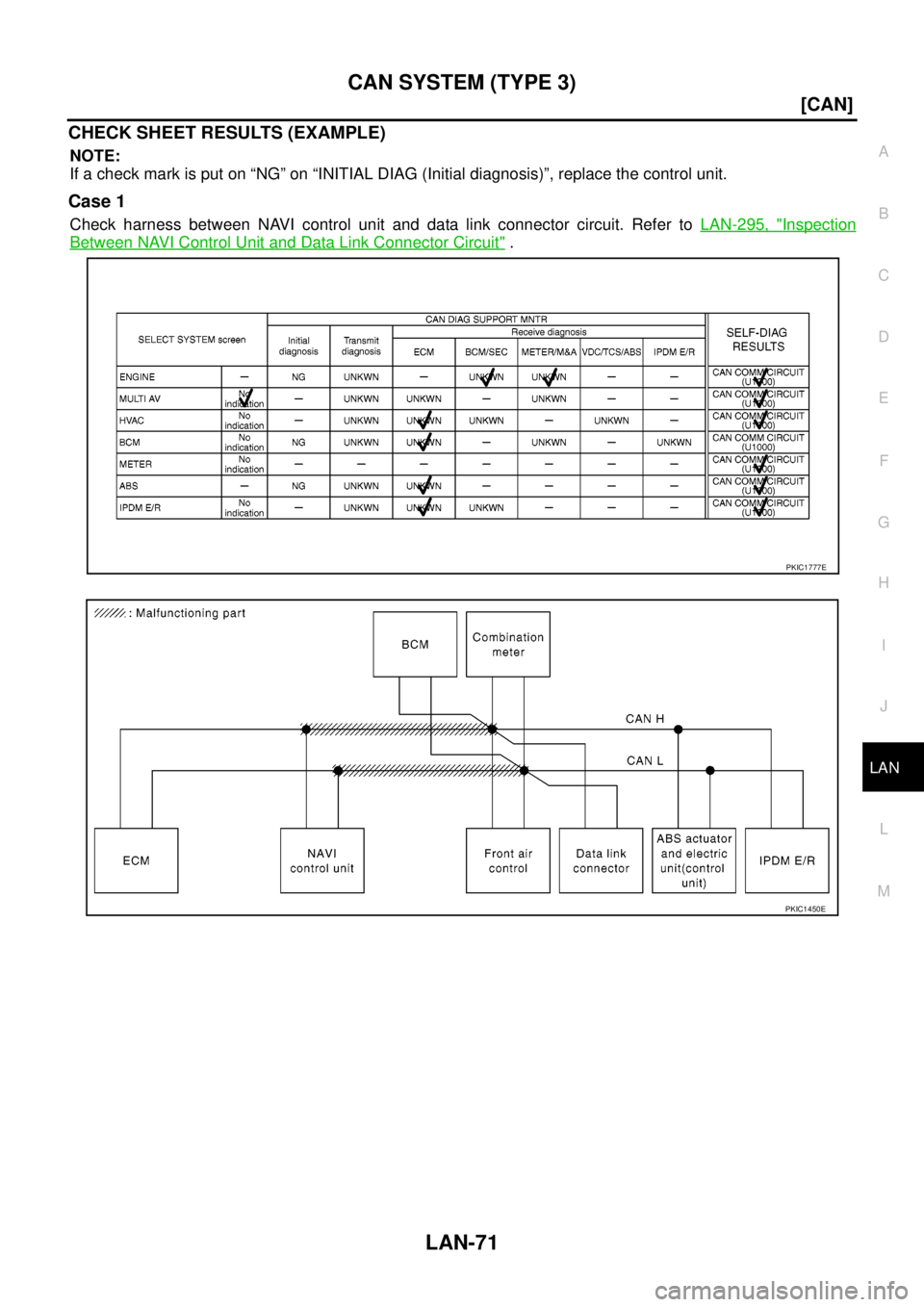

NISSAN NAVARA 2005 Repair Workshop Manual LAN-70 [CAN] CAN SYSTEM (TYPE 3) PKIC1592E

Page 1848 of 3171

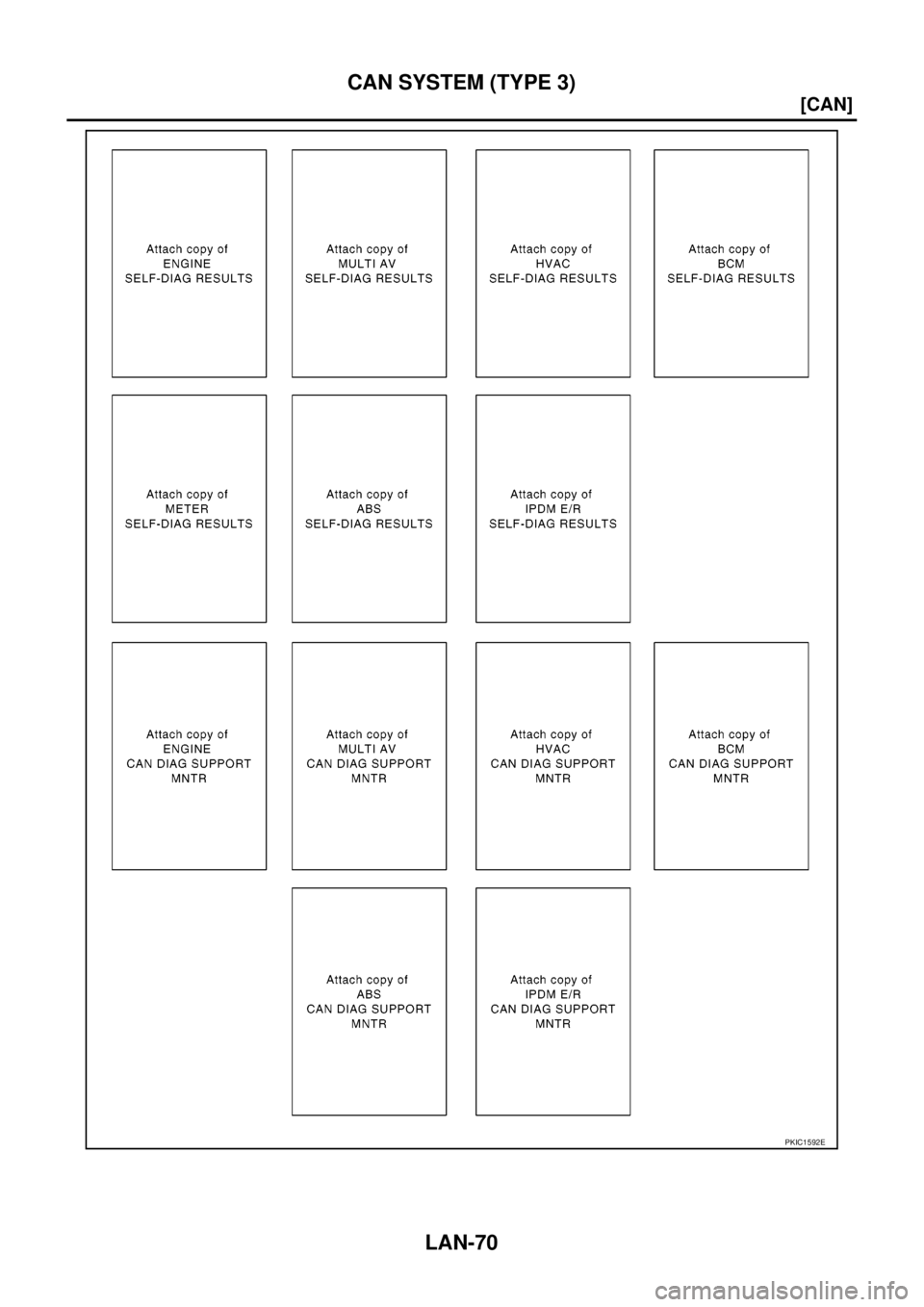

NISSAN NAVARA 2005 Repair Workshop Manual CAN SYSTEM (TYPE 3) LAN-71 [CAN] C D E F G H I J L MA B LAN CHECK SHEET RESULTS (EXAMPLE) NOTE: If a check mark is put on “NG” on “INITIAL DIAG (Initial diagnosis)”, replace the control unit.
