Page 1561 of 3171

NISSAN NAVARA 2005 Repair Workshop Manual FRONT FINAL DRIVE ASSEMBLY FFD-15 C E F G H I J K L MA B FFD FRONT FINAL DRIVE ASSEMBLYPFP:38500 Removal and InstallationEDS00356 REMOVAL 1. Remove the front wheels and tires using power tool. 2. With

Page 1562 of 3171

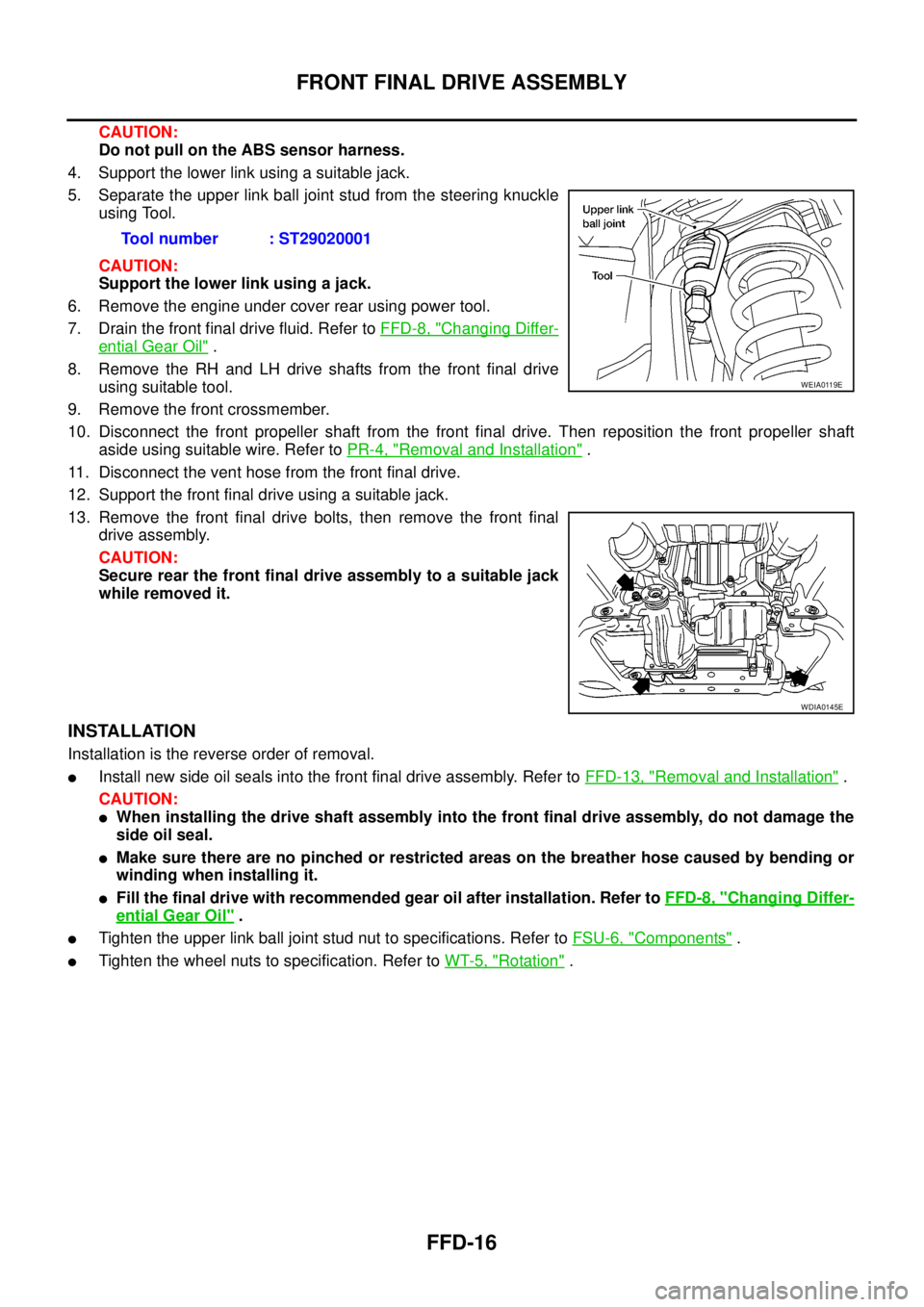

NISSAN NAVARA 2005 Repair Workshop Manual FFD-16 FRONT FINAL DRIVE ASSEMBLY CAUTION: Do not pull on the ABS sensor harness. 4. Support the lower link using a suitable jack. 5. Separate the upper link ball joint stud from the steering knuckle

Page 1563 of 3171

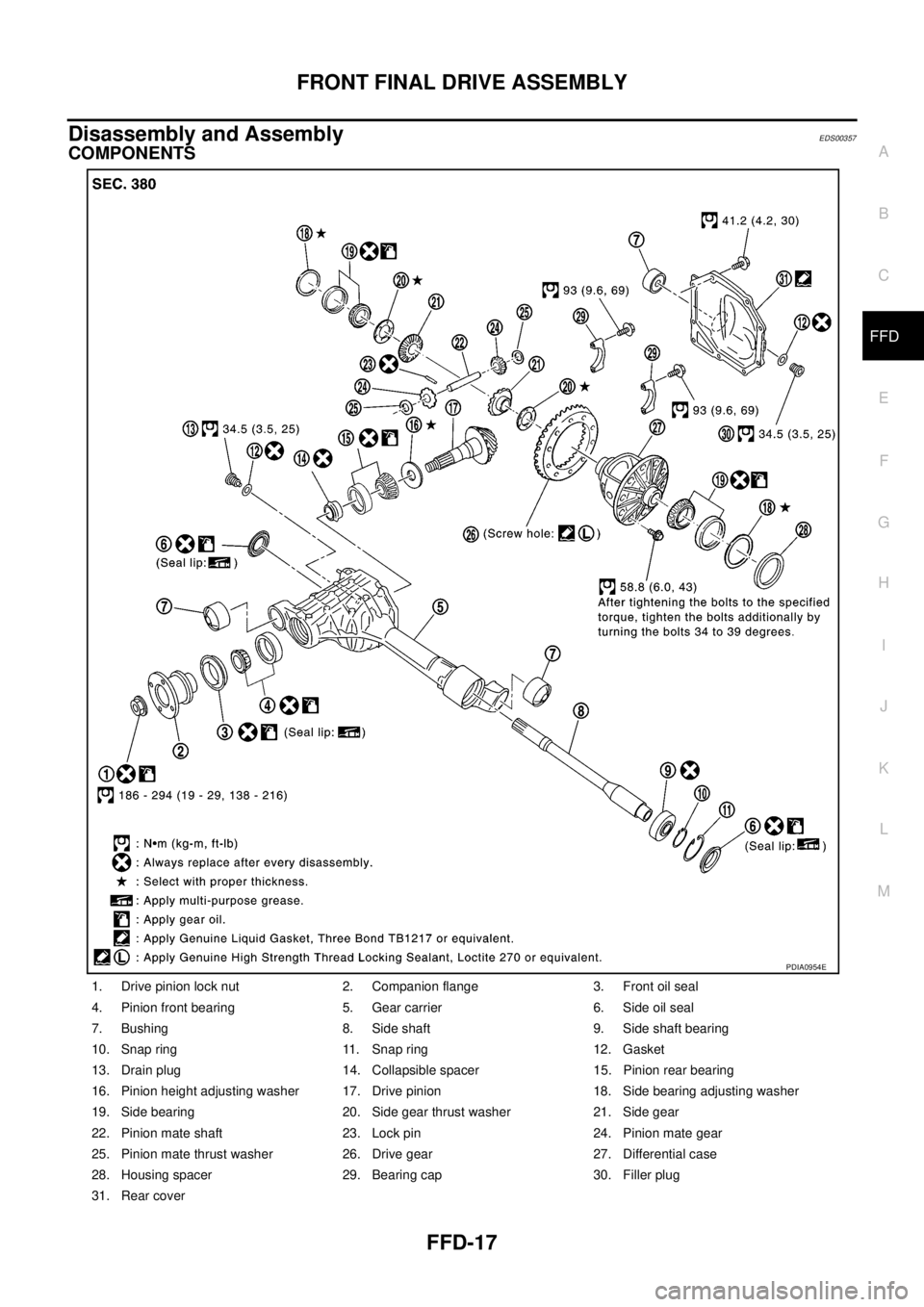

NISSAN NAVARA 2005 Repair Workshop Manual FRONT FINAL DRIVE ASSEMBLY FFD-17 C E F G H I J K L MA B FFD Disassembly and AssemblyEDS00357 COMPONENTS 1. Drive pinion lock nut 2. Companion flange 3. Front oil seal 4. Pinion front bearing 5. Gear

Page 1564 of 3171

NISSAN NAVARA 2005 Repair Workshop Manual FFD-18 FRONT FINAL DRIVE ASSEMBLY ASSEMBLY INSPECTION AND ADJUSTMENT lBefore inspection and adjustment, drain gear oil. Total Preload Torque 1. Rotate drive pinion back and forth 2 to 3 times to check

Page 1565 of 3171

NISSAN NAVARA 2005 Repair Workshop Manual FRONT FINAL DRIVE ASSEMBLY FFD-19 C E F G H I J K L MA B FFD Tooth Contact 1. Remove rear cover. Refer toFFD-22, "Differential Assembly". 2. Apply red lead to drive gear. CAUTION: Applyredleadtobothth

Page 1566 of 3171

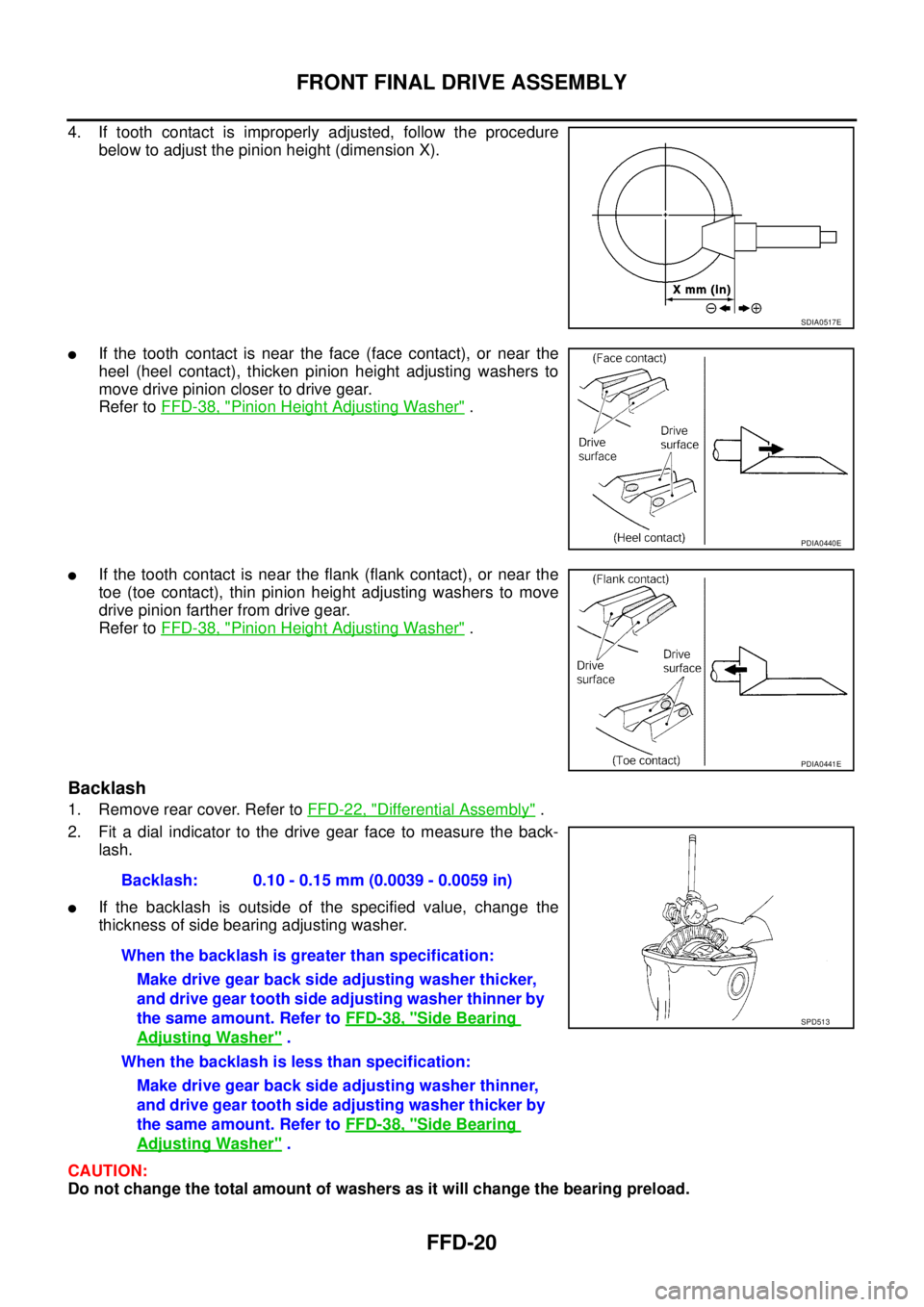

NISSAN NAVARA 2005 Repair Workshop Manual FFD-20 FRONT FINAL DRIVE ASSEMBLY 4. If tooth contact is improperly adjusted, follow the procedure below to adjust the pinion height (dimension X). lIf the tooth contact is near the face (face contact

Page 1567 of 3171

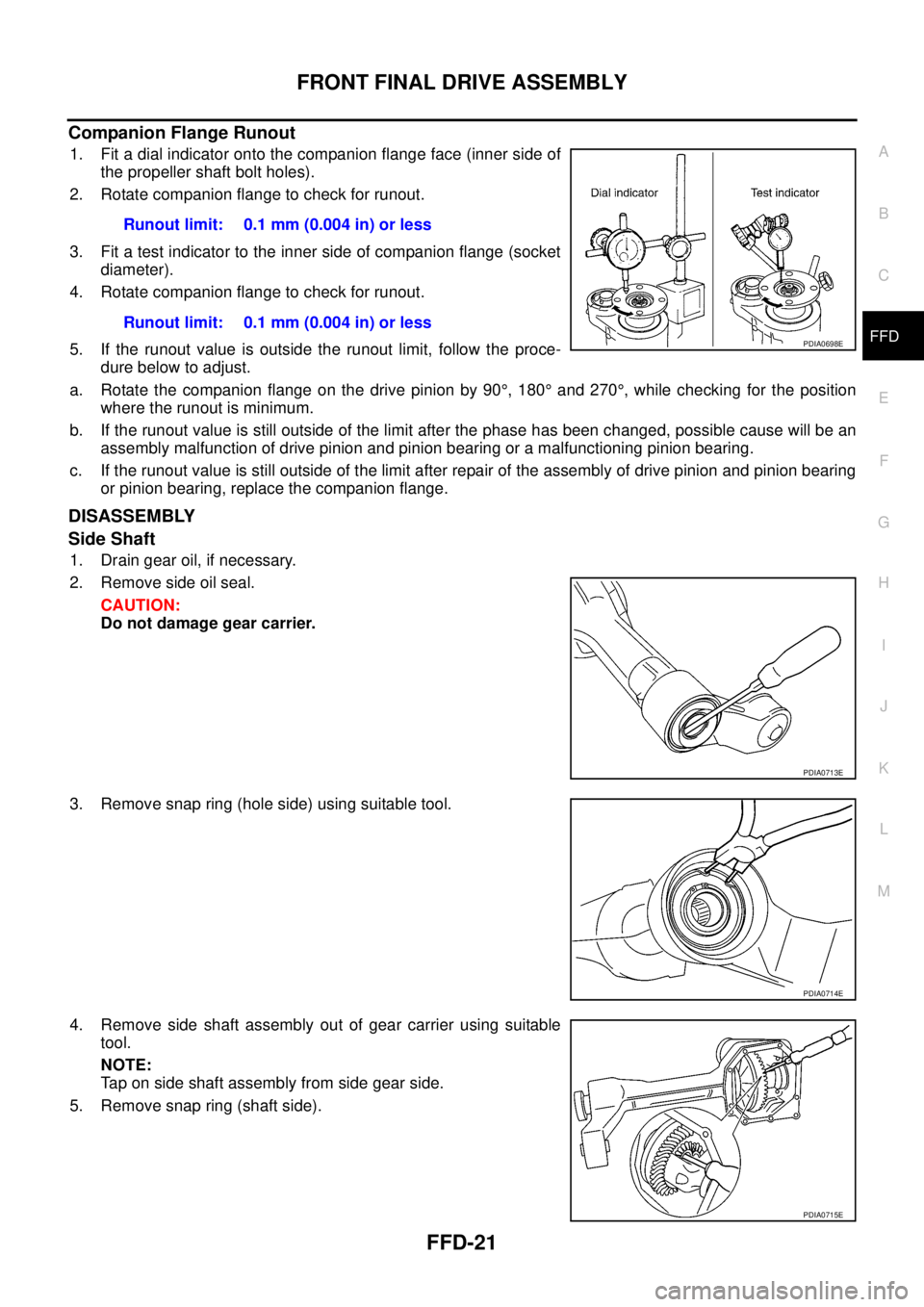

NISSAN NAVARA 2005 Repair Workshop Manual FRONT FINAL DRIVE ASSEMBLY FFD-21 C E F G H I J K L MA B FFD Companion Flange Runout 1. Fit a dial indicator onto the companion flange face (inner side of the propeller shaft bolt holes). 2. Rotate co

Page 1568 of 3171

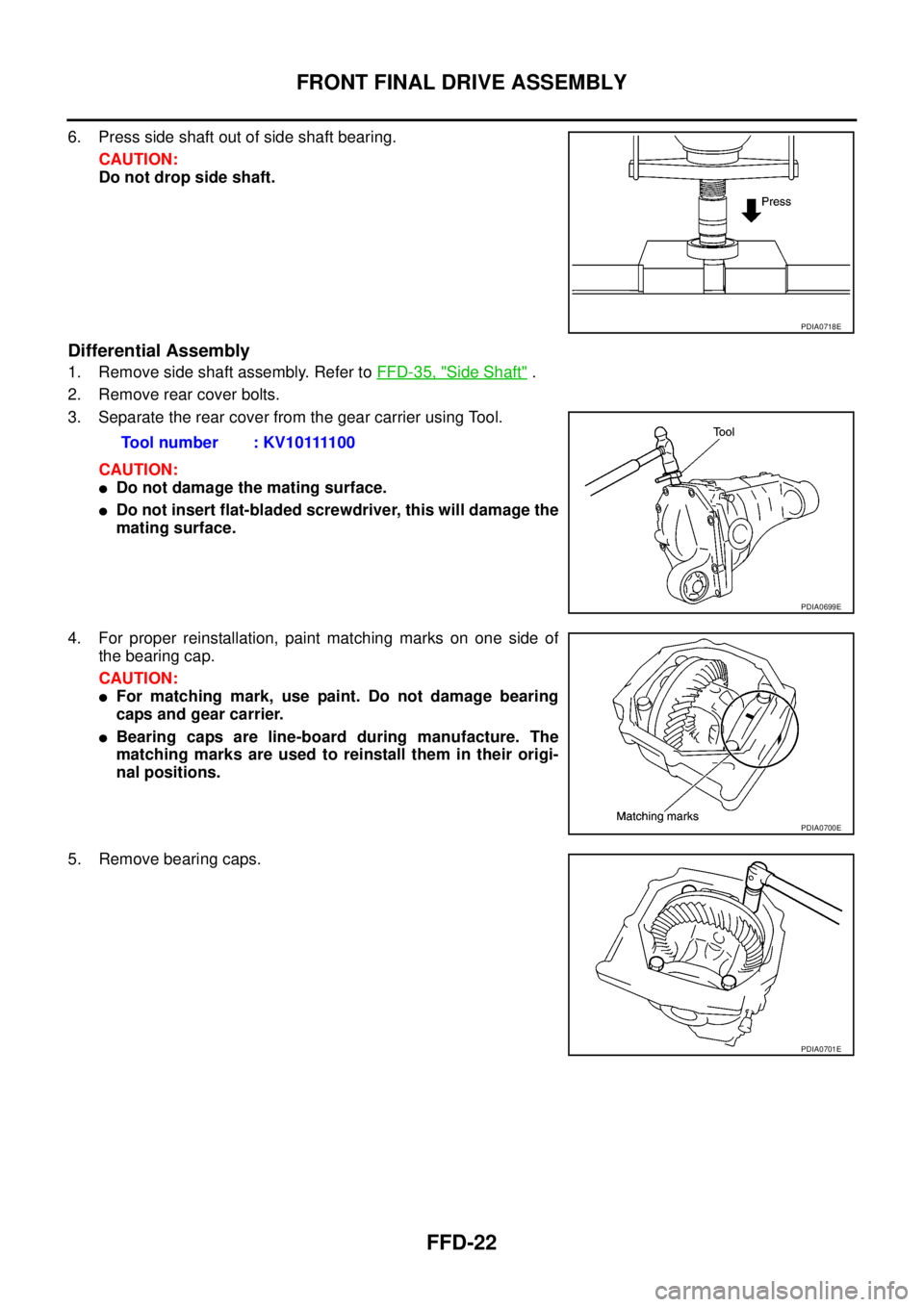

NISSAN NAVARA 2005 Repair Workshop Manual FFD-22 FRONT FINAL DRIVE ASSEMBLY 6. Press side shaft out of side shaft bearing. CAUTION: Do not drop side shaft. Differential Assembly 1. Remove side shaft assembly. Refer toFFD-35, "Side Shaft". 2.
