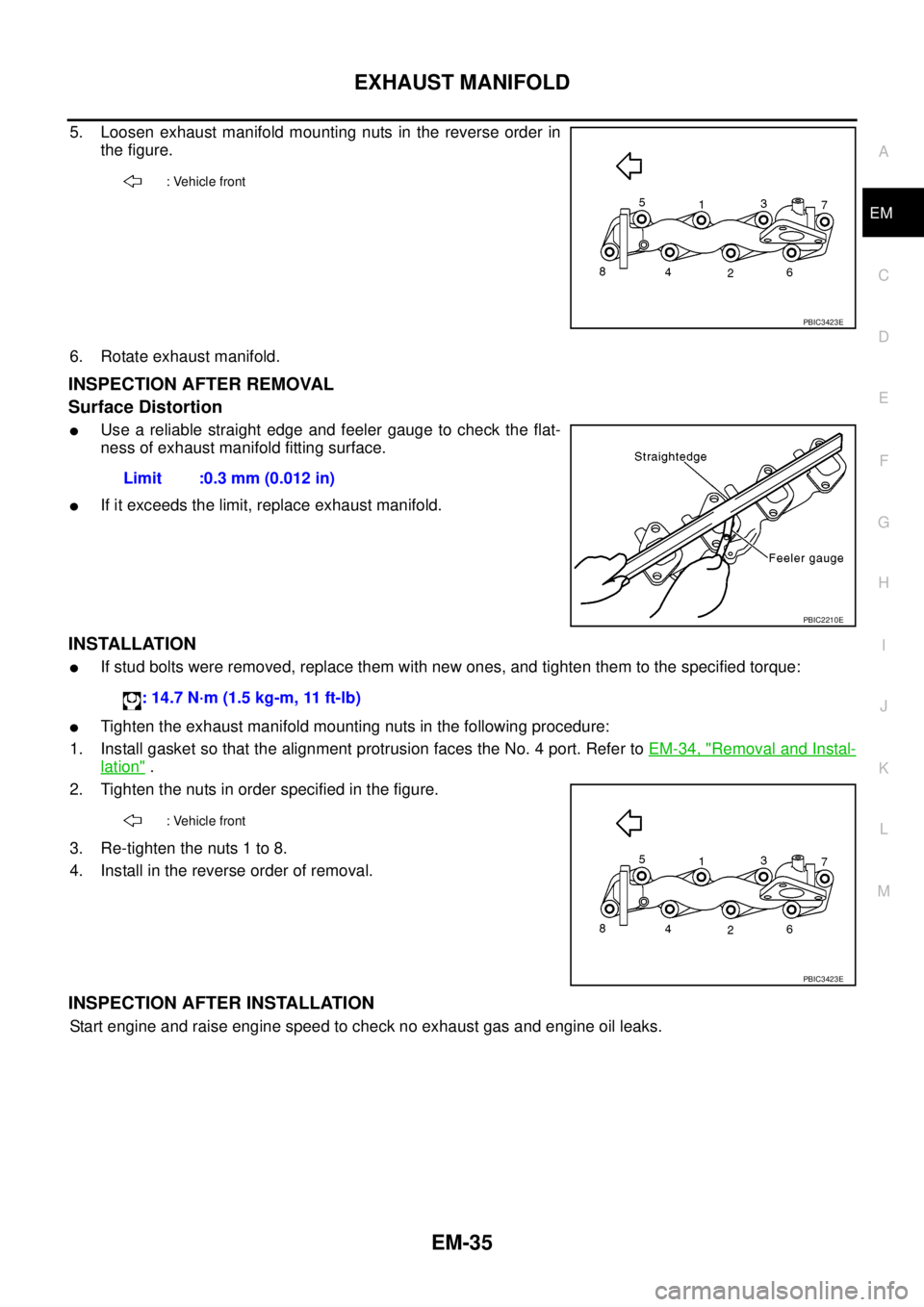

Page 1417 of 3171

EXHAUST MANIFOLD
EM-35
C
D
E
F
G
H
I
J
K
L
MA
EM
5. Loosen exhaust manifold mounting nuts in the reverse order in
the figure.
6. Rotate exhaust manifold.
INSPECTION AFTER REMOVAL
Surface Distortion
lUse a reliable straight edge and feeler gauge to check the flat-
ness of exhaust manifold fitting surface.
lIf it exceeds the limit, replace exhaust manifold.
INSTALLATION
lIf stud bolts were removed, replace them with new ones, and tighten them to the specified torque:
lTighten the exhaust manifold mounting nuts in the following procedure:
1. Install gasket so that the alignment protrusion faces the No. 4 port. Refer toEM-34, "
Removal and Instal-
lation".
2. Tighten the nuts in order specified in the figure.
3. Re-tighten the nuts 1 to 8.
4. Install in the reverse order of removal.
INSPECTION AFTER INSTALLATION
Start engine and raise engine speed to check no exhaust gas and engine oil leaks.
: Vehicle front
PBIC3423E
Limit :0.3 mm (0.012 in)
PBIC2210E
: 14.7 N·m (1.5 kg-m, 11 ft-lb)
: Vehicle front
PBIC3423E
Page 1418 of 3171
EM-36
OIL PAN AND OIL STRAINER
OIL PAN AND OIL STRAINER
P F P : 1111 0
ComponentsEBS01EJK
lRefer toGI-10, "Components"for symbol marks in the figure.
Removal and InstallationEBS01E5Z
REMOVAL
WARNING:
To avoid the danger of being scalded, do not drain engine oil when engine is hot.
1. Remove engine undercover front and engine undercover middle. Refer toEI-17, "
REAR BUMPER".
2. Drain engine oil. Refer toLU-6, "
Changing Engine Oil".
1. Oil level gauge 2. Oil level gauge guide 3. Oil level sensor
4. O-ring 5. O-ring 6. O-ring
7. Oil pan upper 8. Crankshaft position sensor 9. O-ring
10. Rear plate 11. Rear plate cover 12. Oil strainer
13. Oil pan drain plug 14. Drain plug washer 15. Oil pan lower
PBIC3424E
Page 1419 of 3171

OIL PAN AND OIL STRAINER
EM-37
C
D
E
F
G
H
I
J
K
L
MA
EM
3. Remove oil pan lower bolts, loosen bolts in the reverse order of
that shown in the figure.
4. Remove oil pan lower.
a. Insert the seal cutter [SST] between oil pan upper and oil pan
lower.
CAUTION:
lBe careful not to damage aluminum mating surface.
lDo not insert screwdriver, or oil pan flange will be
deformed.
b. Slide the seal cutter by tapping on the side of the seal cutter with
a hammer.
c. Remove oil pan lower.
5. Remove oil strainer.
6. Remove power steering oil pump belt. Refer toEM-12, "
DRIVE BELTS".
7. Remove power steering oil pump bracket and move power steering oil pump aside with its piping con-
nected. Temporarily secure it on the vehicle side with a rope to avoid putting load on it. Refer toPS-25,
"POWER STEERING OIL PUMP".
8. Disconnect oil return hose (vacuum pump) from oil pan upper. Refer toEM-42, "
VACUUM PUMP".
9. Remove A/C compressor bracket mounting bolts (A).
10. Remove crankshaft position sensor and oil level sensor.
CAUTION:
lAvoid impacts such as a dropping.
lDo not disassemble.
lKeep it away from metal particles.
lDo not place sensor close to magnetic materials.
11. Remove front propeller shaft (4WD models). Refer toPR-3, "
FRONT PROPELLER SHAFT".
12. Remove RH and LH front drive shaft (4WD models). Refer toFAX-7, "
DRIVE SHAFT".
13. Remove front final drive assembly (4WD models). Refer toFFD-15, "
FRONT FINAL DRIVE ASSEMBLY".
14. Remove rear plate cover and transmission joint bolts.
: Vehicle front
PBIC3425E
SEM365EA
1 : Oil pan upper
2 : A/C compressor bracket
: Vehicle front
PBIC3426E
Page 1420 of 3171
![NISSAN NAVARA 2005 Repair Workshop Manual EM-38
OIL PAN AND OIL STRAINER
15. Loosen bolts in the reverse order of illustration to remove oil pan
upper.
16. Remove oil pan upper.
lInsert the seal cutter [SST] between oil pan upper and cylin-
d NISSAN NAVARA 2005 Repair Workshop Manual EM-38
OIL PAN AND OIL STRAINER
15. Loosen bolts in the reverse order of illustration to remove oil pan
upper.
16. Remove oil pan upper.
lInsert the seal cutter [SST] between oil pan upper and cylin-
d](/manual-img/5/57362/w960_57362-1419.png)
EM-38
OIL PAN AND OIL STRAINER
15. Loosen bolts in the reverse order of illustration to remove oil pan
upper.
16. Remove oil pan upper.
lInsert the seal cutter [SST] between oil pan upper and cylin-
der block. Slide the seal cutter by tapping on the side of the
seal cutter with a hammer. Remove oil pan upper.
lBe careful not to damage aluminum mating surface.
lDo not insert screwdriver, or oil pan flange will be
deformed.
INSPECTION AFTER REMOVAL
Clean oil strainer if any object attached.
INSTALLATION
Note the following, and install in the reverse order of removal.
lInstall oil pan upper with the following procedure.
–Use the scraper (A) to remove old liquid gasket from mating sur-
face of oil pan upper (1).
•Also remove old liquid gasket from mating surface of cylin-
der block and rear chain case.
•Remove old liquid gasket from the bolt hole and thread.
–Apply a continuous bead of liquid gasket with the tube presser
[SST: WS39930000] to areas shown in the figure.
Use Genuine Liquid Gasket or equivalent.
CAUTION:
lAt the 2 bolt holes marked , liquid gasket should be
applied outside holes.
lBe sure liquid gasket is 3.5 to 4.5 mm (0.138 to 0.177 in)
or 4.5 to 5.5 mm (0.177 to 0.217 in) wide. (Be careful that
the diameter of the liquid gasket bead is different around
the front.)
lAttaching should be done within 5 minutes after coating.
–Install oil pan upper.
: Vehicle front
PBIC3431E
SEM365EA
PBIC3432E
: Vehicle front
PBIC3433E
Page 1421 of 3171

OIL PAN AND OIL STRAINER
EM-39
C
D
E
F
G
H
I
J
K
L
MA
EM
CAUTION:
Install avoiding misalignment of O-ring.
• Tighten bolts in numerical order to the specified torque.
• Bolt dimensions vary depending on the installation location.
Refer to the following and use appropriate bolts.
• The shank length under the bolt neck above is the length of the
threaded part (pilot portion not included).
lInstall oil pan lower with the following procedure.
–Use a scraper (A) to remove old liquid gasket from mating sur-
face of oil pan lower (1).
CAUTION:
lAlso remove old liquid gasket from mating surface of oil
pan upper.
lRemove old liquid gasket from bolt hole and thread.
–Apply a continuous bead of liquid gasket with the tube presser
[SST: WS39930000] as shown in the figure.
Use Genuine Liquid Gasket or equivalent.
•Be sure liquid gasket is 3.5 to 4.5 mm (0.138 to 0.177 in)
wide.
•Attaching should be done within 5 minutes after coating.
–Install oil pan lower.
: Vehicle front
M6x30mm(1.18in) :BoltNo.15,16
M8 x 25 mm (0.98 in) : Bolt No. 2, 4, 5, 8, 9, 10, 14
M8 x 60 mm (2.36 in) : Bolt No. 1, 3, 6, 7, 11, 12, 13, 17
PBIC3431E
PBIC3430E
:Vehicle front
PBIC3434E
SEM159F
Page 1422 of 3171
EM-40
OIL PAN AND OIL STRAINER
• Tighten bolts in numerical order to the specified torque.
NOTE:
Pour engine oil or start engine at least 30 minutes after oil pan is
installed.
INSPECTION AFTER INSTALLATION
1. Check engine oil level and add engine oil. Refer toLU-5, "ENGINE OIL".
2. Check for leakage of engine oil when engine is warmed.
3. Stop engine and wait for 10 minutes.
4. Check engine oil level again. Refer toLU-5, "
ENGINE OIL".
: Vehicle front
PBIC3425E
Page 1423 of 3171
GLOW PLUG
EM-41
C
D
E
F
G
H
I
J
K
L
MA
EM
GLOW PLUGPFP:22401
ComponentsEBS01EJL
Removal and InstallationEBS01E60
REMOVAL
CAUTION:
Remove glow plug only if necessary. If carbon adheres, it may be stuck and broken.
1. Disconnect glow harness from glow plate.
2. Remove glow nut to remove glow plate.
3. Remove glow plug.
CAUTION:
lWhen removing or installing, do not use such tools as an air impact wrench.
lHandle it carefully without giving any impact, even after removal. [As a guide, if it drops from
height of 10 cm (3.94 in) or higher, always replace it.]
INSTALLATION
1. Remove adhered carbon from glow plug installation hole with a reamer.
2. Install glow plug.
3. Install remaining parts in the reverse order of removal.
1. Glow plate 2. Glow harness 3. Glow nut
4. Cap 5. Glow plug
PBIC2436E
Page 1424 of 3171

EM-42
VACUUM PUMP
VACUUM PUMP
PFP:41920
ComponentsEBS01EJM
lRefer toGI-10, "Components"for symbol marks except in the above.
Removal and InstallationEBS01E61
INSPECTION BEFORE REMOVAL
1. Disconnect vacuum hose, and connect a vacuum gauge via 3-way connector.
lDisconnect point where vacuum from vacuum pump can be measured directly and install 3-way con-
nector.
2. Start engine and measure generated vacuum at idle speed.
lIf out of standard, check for air suction in vacuum route, and measure again.
lIf still outside of standard, replace vacuum pump.
REMOVAL
1. Drain engine oil. Refer toLU-6, "Changing Engine Oil".
2. Remove primary timing chain. Refer toEM-79, "
PRIMARY TIMING CHAIN".
3. Disconnect vacuum hose from vacuum pump side.
4. Remove oil feed tube and oil return hose.
5. Remove bracket.
6. Remove vacuum pump and O-ring.
1. O-ring 2. Vacuum pump 3. Bracket
4. Oil feed tube 5. Cooper washer 6. Eye-bolt
7. Oil return hose
Vehicle front
PBIC3435E
Standard:
–94.0 to – 96.1 kPa (– 940 to – 961 mbar, – 705 to – 721 mmHg, – 27.76 to – 28.38 inHg)
