SYSTEM DESCRIPTION
AV-9
C
D
E
F
G
H
I
J
L
MA
B
AV
GPS ANTENNA
lGPS antenna (1)
lDisplay (2)
The GPS antenna receives and amplifies the radio waves from the
GPS satellites, and then transmits the GPS signal to NAVI control
unit.
DISPLAY UNIT
lImages on the display include RGB image such as map screen
and rear-view image displayed when set the select lever to R
range.
lNAVI control unit controls images on the display.
AV S W I T C H
For operation panel, centralized switch integrated with the audio and
NAVI operation has been adopted. The operation signal is sent to
NAVI control unit via communication.
SKIB4501E
SKIB3893E
SKIB4069E
Page 498 of 3171
AV-10
SYSTEM DESCRIPTION

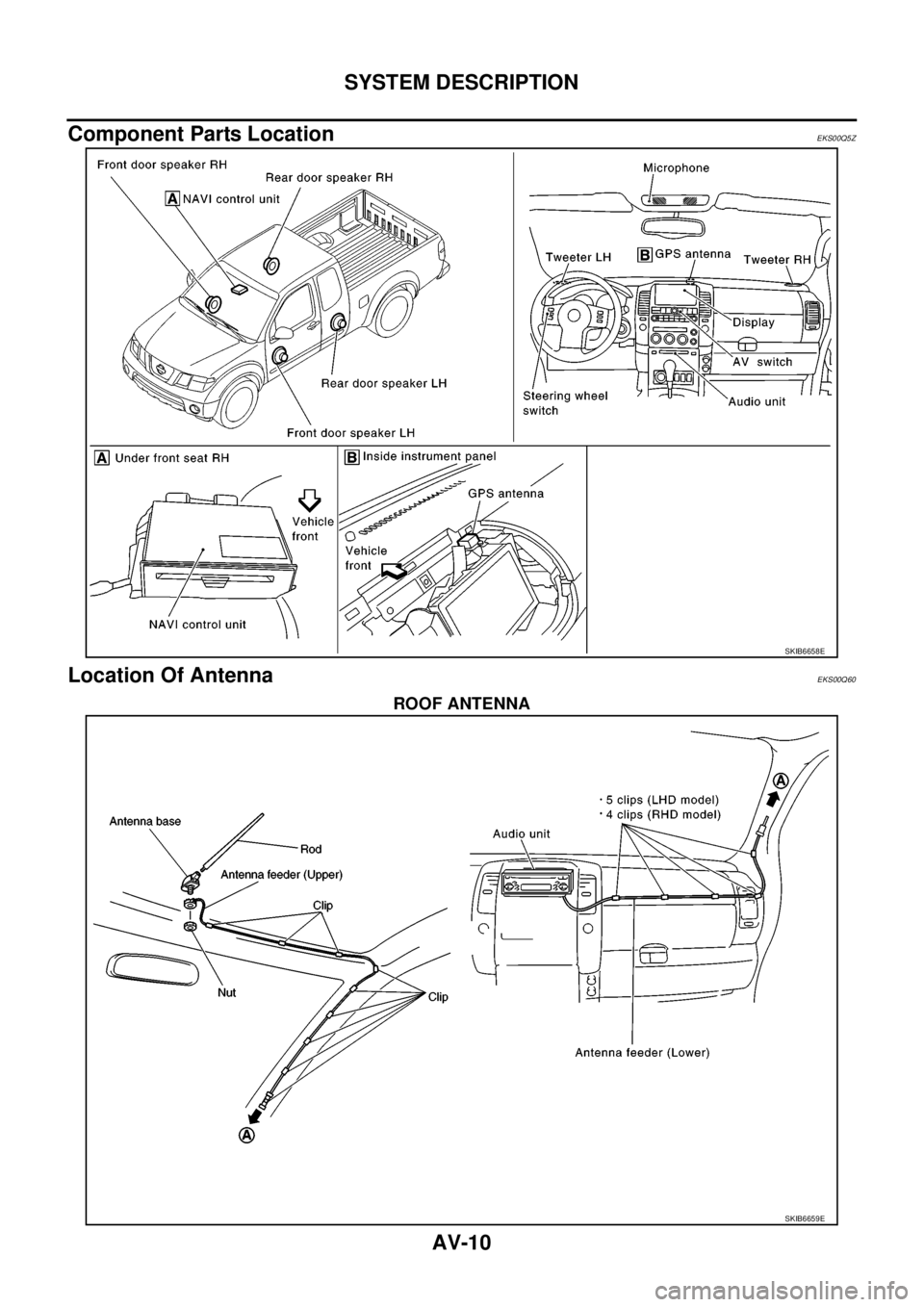

Component Parts Location
EKS00Q5Z
Location Of AntennaEKS00Q60
ROOF ANTENNA
SKIB6658E
SKIB6659E
Page 499 of 3171
SYSTEM DESCRIPTION
AV-11
C
D
E
F
G
H
I
J
L
MA
B
AV

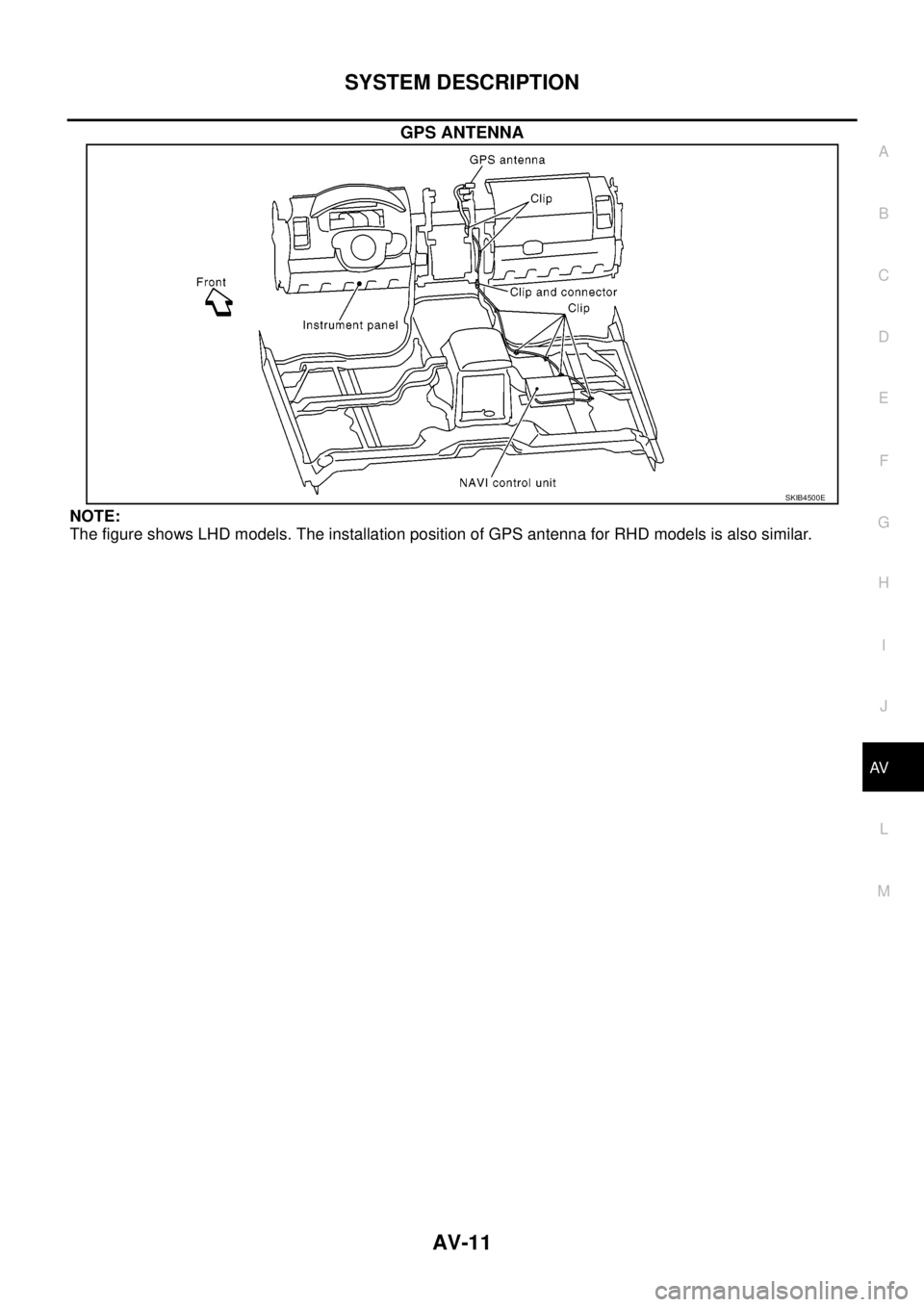

GPS ANTENNA
NOTE:
The figure shows LHD models. The installation position of GPS antenna for RHD models is also similar.
SKIB4500E
Page 500 of 3171
AV-12
SYSTEM DESCRIPTION

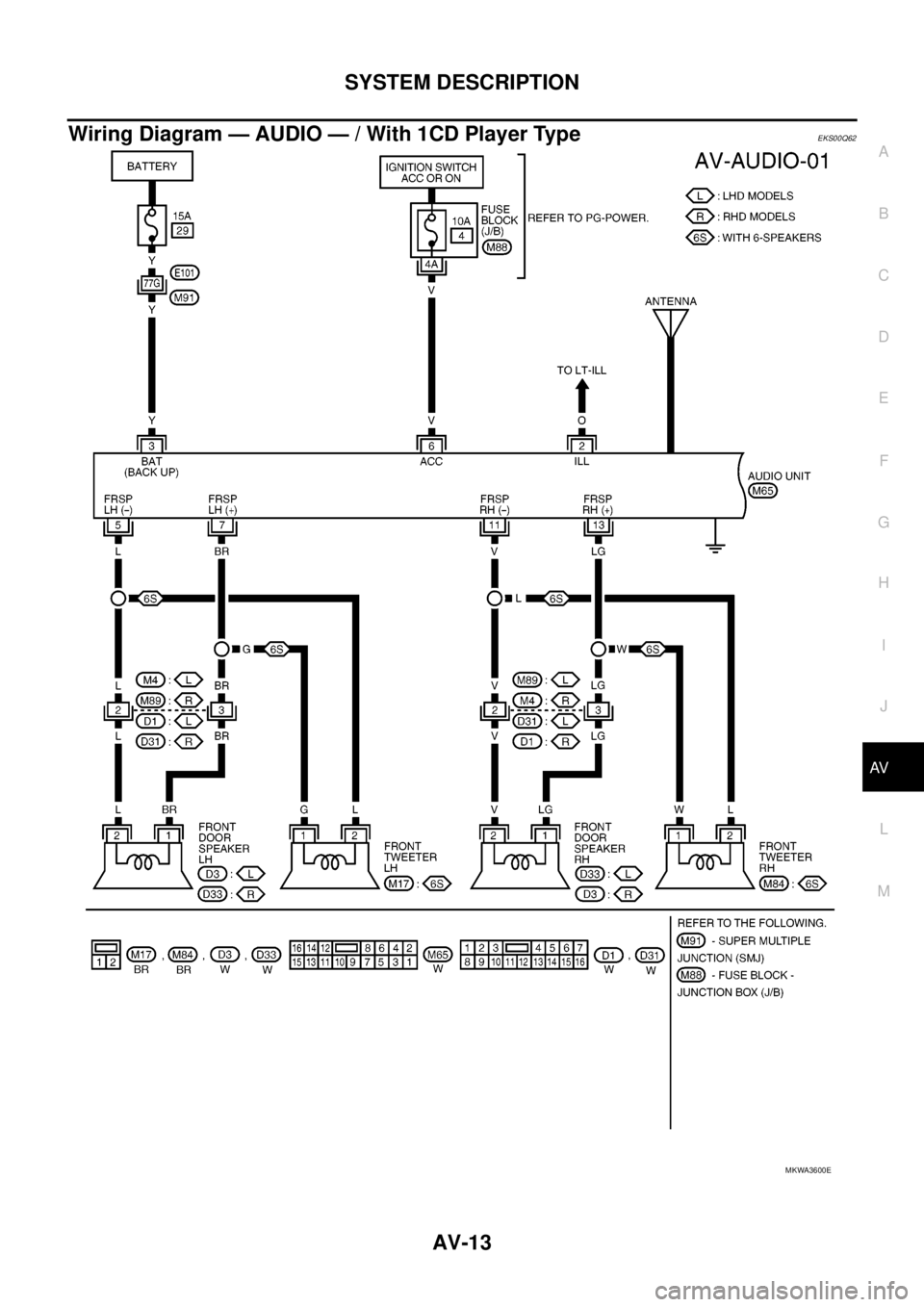

Schematic — AUDIO — / With 1CD Player Type
EKS00Q61
MKWA3599E
Page 501 of 3171
SYSTEM DESCRIPTION
AV-13
C
D
E
F
G
H
I
J
L
MA
B
AV

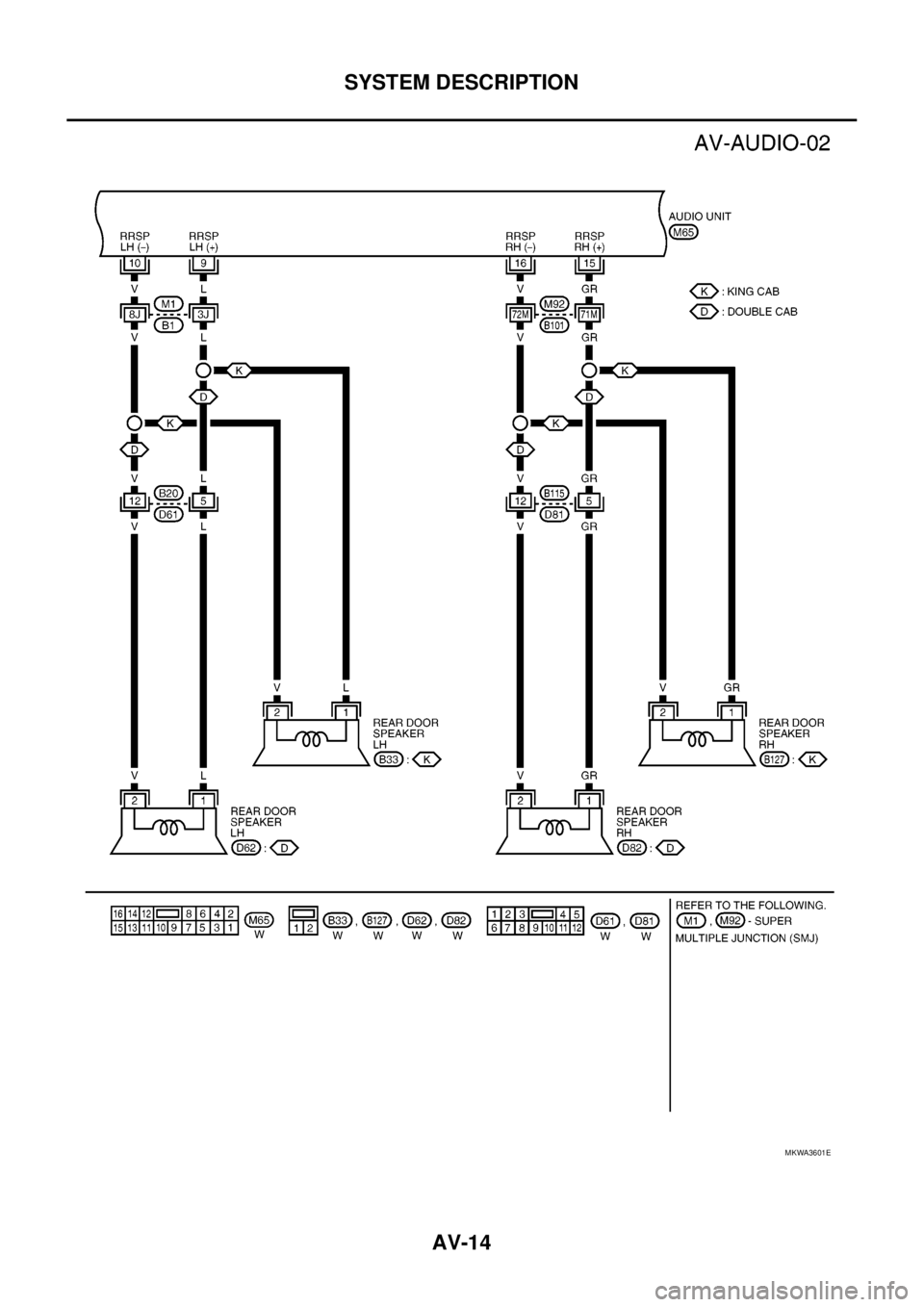

Wiring Diagram — AUDIO — / With 1CD Player TypeEKS00Q62
MKWA3600E

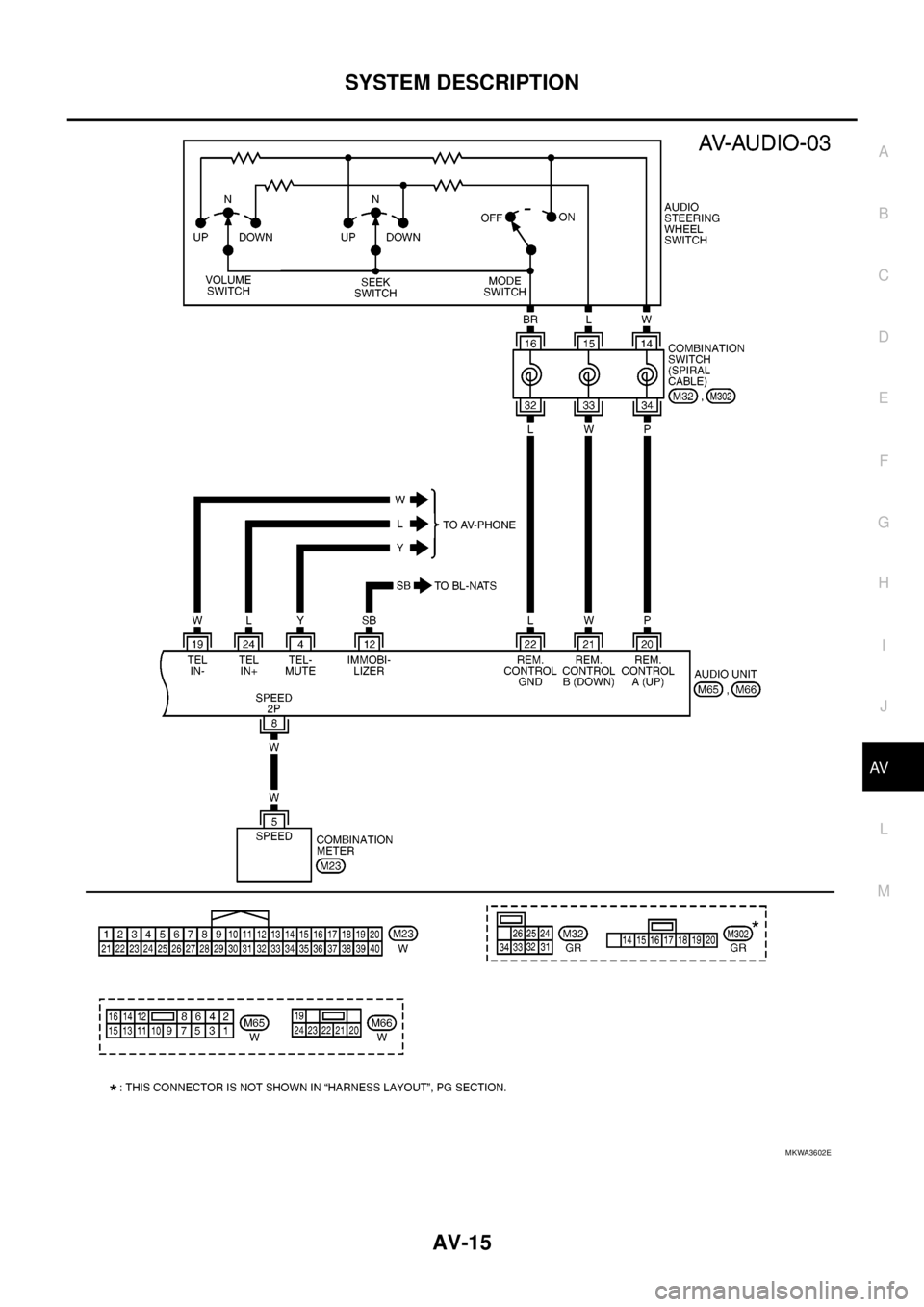

Page 502 of 3171
AV-14
SYSTEM DESCRIPTION
MKWA3601E
Page 503 of 3171
SYSTEM DESCRIPTION
AV-15
C
D
E
F
G
H
I
J
L
MA
B
AV
MKWA3602E
Page 504 of 3171
AV-16
SYSTEM DESCRIPTION

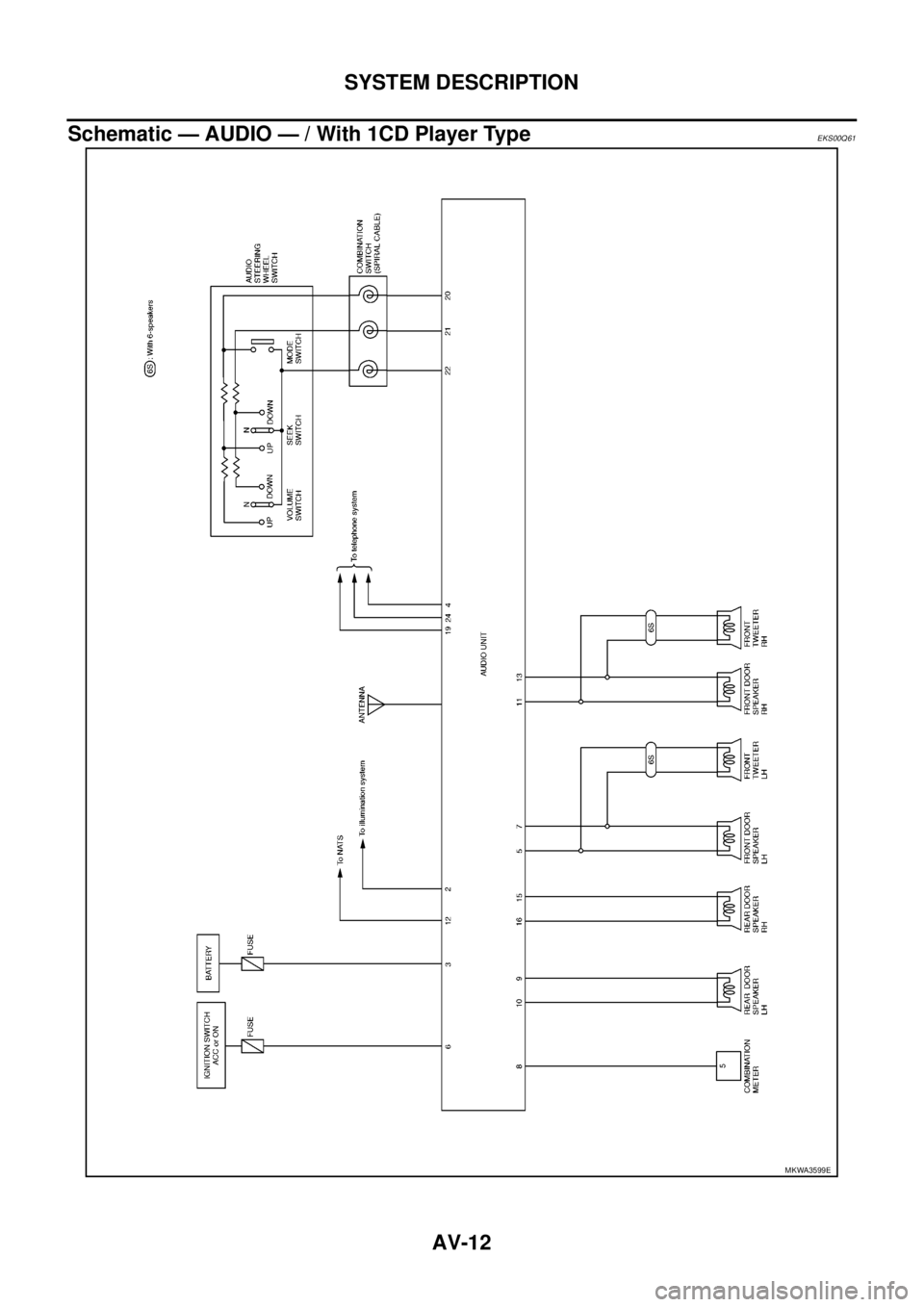

Schematic — AUDIO — / With 6CD Player Type
EKS00Q63
MKWA3603E
