Page 1393 of 3171

NISSAN NAVARA 2005 Repair Workshop Manual NOISE, VIBRATION AND HARSHNESS (NVH) TROUBLESHOOTING EM-11 C D E F G H I J K L MA EM Use the Chart Below to Help You Find the Cause of the Symptom.EBS01E5R 1. Locate the area where noise occurs. 2. Co

Page 1394 of 3171

NISSAN NAVARA 2005 Repair Workshop Manual EM-12 DRIVE BELTS DRIVE BELTS PFP:02117 Checking Drive BeltsEBS01EJ4 lBefore inspecting engine, make sure engine has cooled down; wait approximately 30 minutes after engine has been stopped. lVisually

Page 1395 of 3171

NISSAN NAVARA 2005 Repair Workshop Manual DRIVE BELTS EM-13 C D E F G H I J K L MA EM Deflection AdjustmentEBS01EJ5 lAdjust belts with the parts shown below. CAUTION: lWhen a new belt is installed as a replacement, adjust it to the specified

Page 1396 of 3171

NISSAN NAVARA 2005 Repair Workshop Manual EM-14 DRIVE BELTS A/C COMPRESSOR, ALTERNATOR AND WATER PUMP BELT 1. Loosen idler pulley lock nut (D). 2. Turn adjusting nut (C) to adjust. Refer toEM-13, " Deflection Adjustment". 3. Tighten lock nut

Page 1397 of 3171

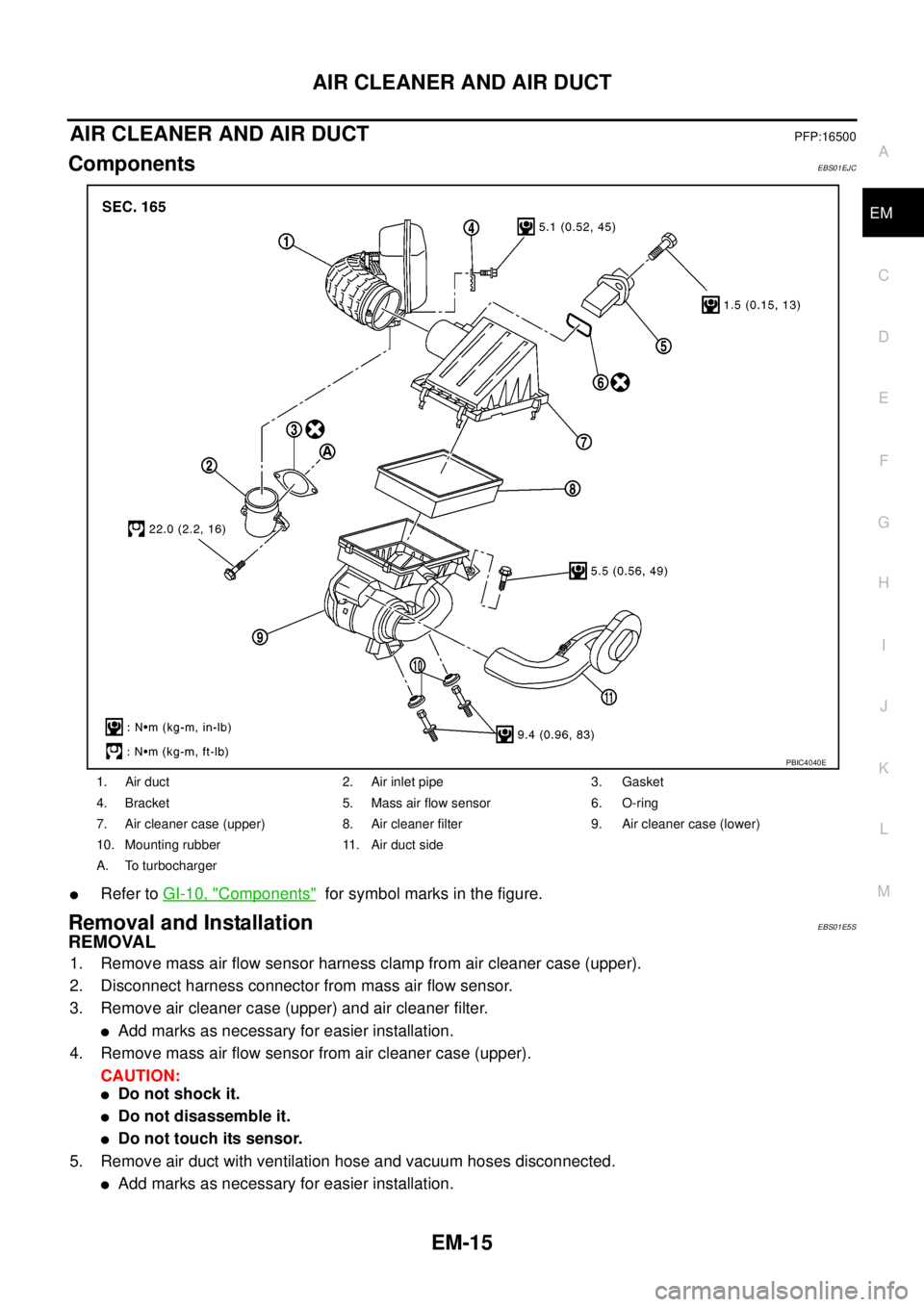

NISSAN NAVARA 2005 Repair Workshop Manual AIR CLEANER AND AIR DUCT EM-15 C D E F G H I J K L MA EM AIR CLEANER AND AIR DUCTPFP:16500 ComponentsEBS01EJC lRefer toGI-10, "Components"for symbol marks in the figure. Removal and InstallationEBS01E

Page 1398 of 3171

NISSAN NAVARA 2005 Repair Workshop Manual EM-16 AIR CLEANER AND AIR DUCT 6. Remove air cleaner case (lower) and air duct side. INSTALLATION Note the following, and install in the reverse order of removal. lAlign marks. Attach each joint. Scre

Page 1399 of 3171

NISSAN NAVARA 2005 Repair Workshop Manual AIR CLEANER AND AIR DUCT EM-17 C D E F G H I J K L MA EM CHANGING AIR CLEANER FILTER Removal 1. Remove mass air flow sensor harness clamp from air cleaner case (upper). 2. Disconnect harness connector

Page 1400 of 3171

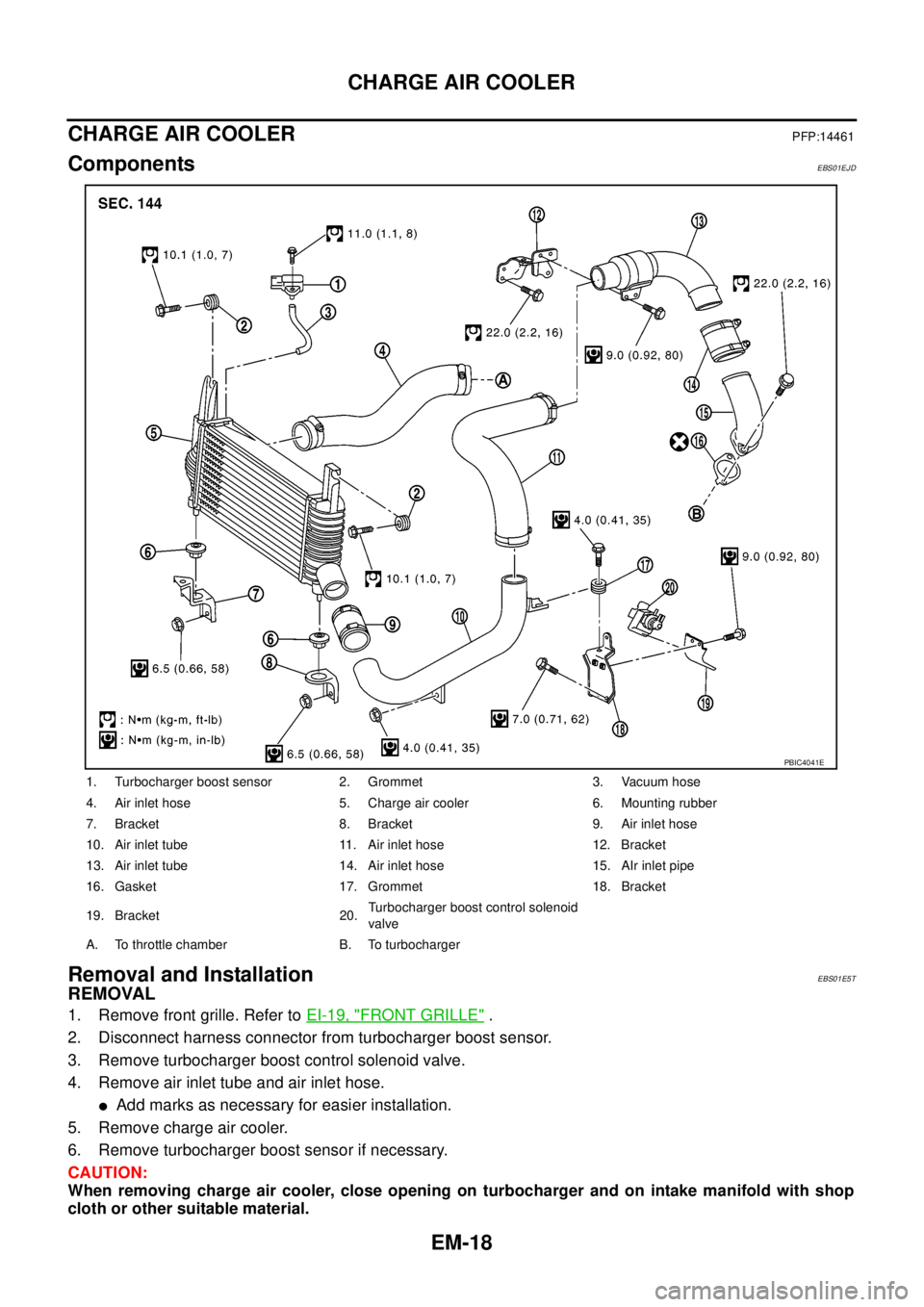

NISSAN NAVARA 2005 Repair Workshop Manual EM-18 CHARGE AIR COOLER CHARGE AIR COOLER PFP:14461 ComponentsEBS01EJD Removal and InstallationEBS01E5T REMOVAL 1. Remove front grille. Refer toEI-19, "FRONT GRILLE". 2. Disconnect harness connector f
