NISSAN NAVARA 2005 Repair Workshop Manual TF-50
TROUBLE DIAGNOSIS
Judgement Self-diagnosis
When a malfunction is detected, the malfunction route is indicated by flickering of the 4WD warning lamp.
PDIA0227E
Flickering pattern Items Diagnostic

TF-50
TROUBLE DIAGNOSIS
Judgement Self-diagnosis
When a malfunction is detected, the malfunction route is indicated by flickering of the 4WD warning lamp.
PDIA0227E
Flickering pattern Items Diagnostic item is detected when... Check item
2Output shaft revolution
signal (from TCM)
lMalfunction is detected in output shaft revolution signal
that is output from TCM through CAN communication.
lImproper signal is input while driving.TF-55, "
Output Shaft
Revolution Signal
(TCM)"
3Vehicle speed signal
[from ABS actuator and
electric unit (control
unit)]
lMalfunction is detected in vehicle speed signal that is
output from ABS actuator and electric unit (control unit)
through CAN communication.
lImproper signal is input while driving.TF-55, "
Vehicle Speed
Sensor (ABS)"
4 CAN communication Malfunction has been detected from CAN communication.TF-82, "CAN Commu-
nication Line"
5 AD converterAD converter system of transfer control unit is malfunction-
ing.TF-54, "Transfer Con-
trol Unit"
6 4LO switchImproper signal from 4LO switch is input due to open or
short circuit.TF-56, "4LO Switch"
7Engine speed signal
(from ECM)
lMalfunction is detected in engine speed signal that is out-
put from ECM through CAN communication.
lImproper signal is input while driving.TF-81, "
Engine Speed
Signal (ECM)"
8 Power supplyPower supply voltage for transfer control unit is abnormally
low while driving.TF-52, "
Power Supply
Circuit For Transfer
Control Unit"
9 4WD shift switchMore than two switch inputs are simultaneously detected
due to short circuit of 4WD shift switch.TF-59, "4WD Shift
Switch"
10 Wait detection switchImproper signal from wait detection switch is input due to
open or short circuit.TF-63, "Wait Detection
Switch"
11 Actuator motor
lMotor does not operate properly due to open or short cir-
cuit in actuator motor.
lMalfunction is detected in the actuator motor. (When
4WD shift switch is operated and actuator motor is not
operated.)
lMalfunction is detected in transfer shift high relay and
transfer shift low relay.TF-67, "
Actuator Motor"
12Actuator position
switch
lImproper signal from actuator position switch is input due
to open or short circuit.
lMalfunction is detected in the actuator position switch.TF-75, "
Actuator Posi-
tion Switch"
13 Transfer control device
lMalfunction is detected in transfer shut off relay 1 and
transfer shut off relay 2.
lMalfunction occurs in transfer control device drive circuit.TF-52, "
Power Supply
Circuit For Transfer
Control Unit",TF-78,
"Transfer Control
Device"
14 PNP switch signalWhen A/T PNP switch signal is malfunction or communica-
tion error between the vehicles.TF-66, "PNP Switch
Signal (TCM)"

Page 3018 of 3171

NISSAN NAVARA 2005 Repair Workshop Manual TROUBLE DIAGNOSIS
TF-51
C
E
F
G
H
I
J
K
L
MA
B
TFNOTE:
If flickering pattern 12 or 13 is displayed, first erase self-diagnostic results. Flickering pattern 12 or 13 may be displayed after installing
t

Page 3019 of 3171

NISSAN NAVARA 2005 Repair Workshop Manual TF-52
TROUBLE DIAGNOSIS FOR SYSTEM
TROUBLE DIAGNOSIS FOR SYSTEM
PFP:00000
Power Supply Circuit For Transfer Control UnitEDS0031Y
CONSULT-II REFERENCE VALUE IN DATA MONITOR MODE
Data are reference valu

Page 3020 of 3171

NISSAN NAVARA 2005 Repair Workshop Manual TROUBLE DIAGNOSIS FOR SYSTEM
TF-53
C
E
F
G
H
I
J
K
L
MA
B
TF

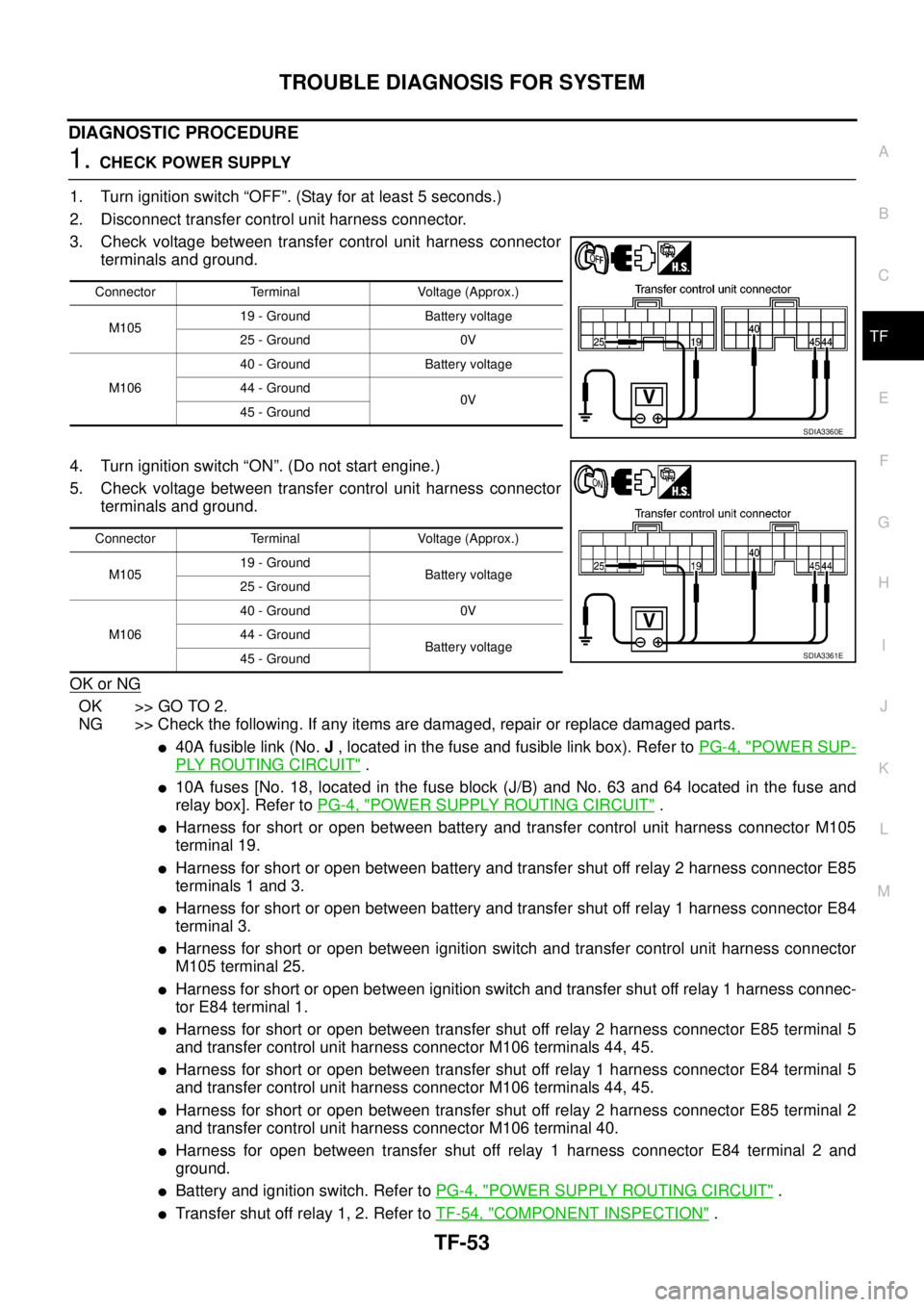

DIAGNOSTIC PROCEDURE
1.CHECK POWER SUPPLY
1. Turn ignition switch “OFF”. (Stay for at least 5 seconds.)
2. Disconnect transfer control

TROUBLE DIAGNOSIS FOR SYSTEM
TF-53
C
E
F
G
H
I
J
K
L
MA
B
TF
DIAGNOSTIC PROCEDURE
1.CHECK POWER SUPPLY
1. Turn ignition switch “OFF”. (Stay for at least 5 seconds.)
2. Disconnect transfer control unit harness connector.
3. Check voltage between transfer control unit harness connector
terminals and ground.
4. Turn ignition switch “ON”. (Do not start engine.)
5. Check voltage between transfer control unit harness connector
terminals and ground.
OK or NG
OK >> GO TO 2.
NG >> Check the following. If any items are damaged, repair or replace damaged parts.
l40A fusible link (No.J, located in the fuse and fusible link box). Refer toPG-4, "POWER SUP-
PLY ROUTING CIRCUIT".
l10A fuses [No. 18, located in the fuse block (J/B) and No. 63 and 64 located in the fuse and
relay box]. Refer toPG-4, "
POWER SUPPLY ROUTING CIRCUIT".
lHarness for short or open between battery and transfer control unit harness connector M105
terminal 19.
lHarness for short or open between battery and transfer shut off relay 2 harness connector E85
terminals 1 and 3.
lHarness for short or open between battery and transfer shut off relay 1 harness connector E84
terminal 3.
lHarness for short or open between ignition switch and transfer control unit harness connector
M105 terminal 25.
lHarness for short or open between ignition switch and transfer shut off relay 1 harness connec-
tor E84 terminal 1.
lHarness for short or open between transfer shut off relay 2 harness connector E85 terminal 5
and transfer control unit harness connector M106 terminals 44, 45.
lHarness for short or open between transfer shut off relay 1 harness connector E84 terminal 5
and transfer control unit harness connector M106 terminals 44, 45.
lHarness for short or open between transfer shut off relay 2 harness connector E85 terminal 2
and transfer control unit harness connector M106 terminal 40.
lHarness for open between transfer shut off relay 1 harness connector E84 terminal 2 and
ground.
lBattery and ignition switch. Refer toPG-4, "POWER SUPPLY ROUTING CIRCUIT".
lTransfer shut off relay 1, 2. Refer toTF-54, "COMPONENT INSPECTION".
Connector Terminal Voltage (Approx.)
M10519 - Ground Battery voltage
25 - Ground 0V
M10640 - Ground Battery voltage
44 - Ground
0V
45 - Ground
SDIA3360E
Connector Terminal Voltage (Approx.)
M10519 - Ground
Battery voltage
25 - Ground
M10640 - Ground 0V
44 - Ground
Battery voltage
45 - Ground
SDIA3361E

Page 3021 of 3171

NISSAN NAVARA 2005 Repair Workshop Manual TF-54
TROUBLE DIAGNOSIS FOR SYSTEM

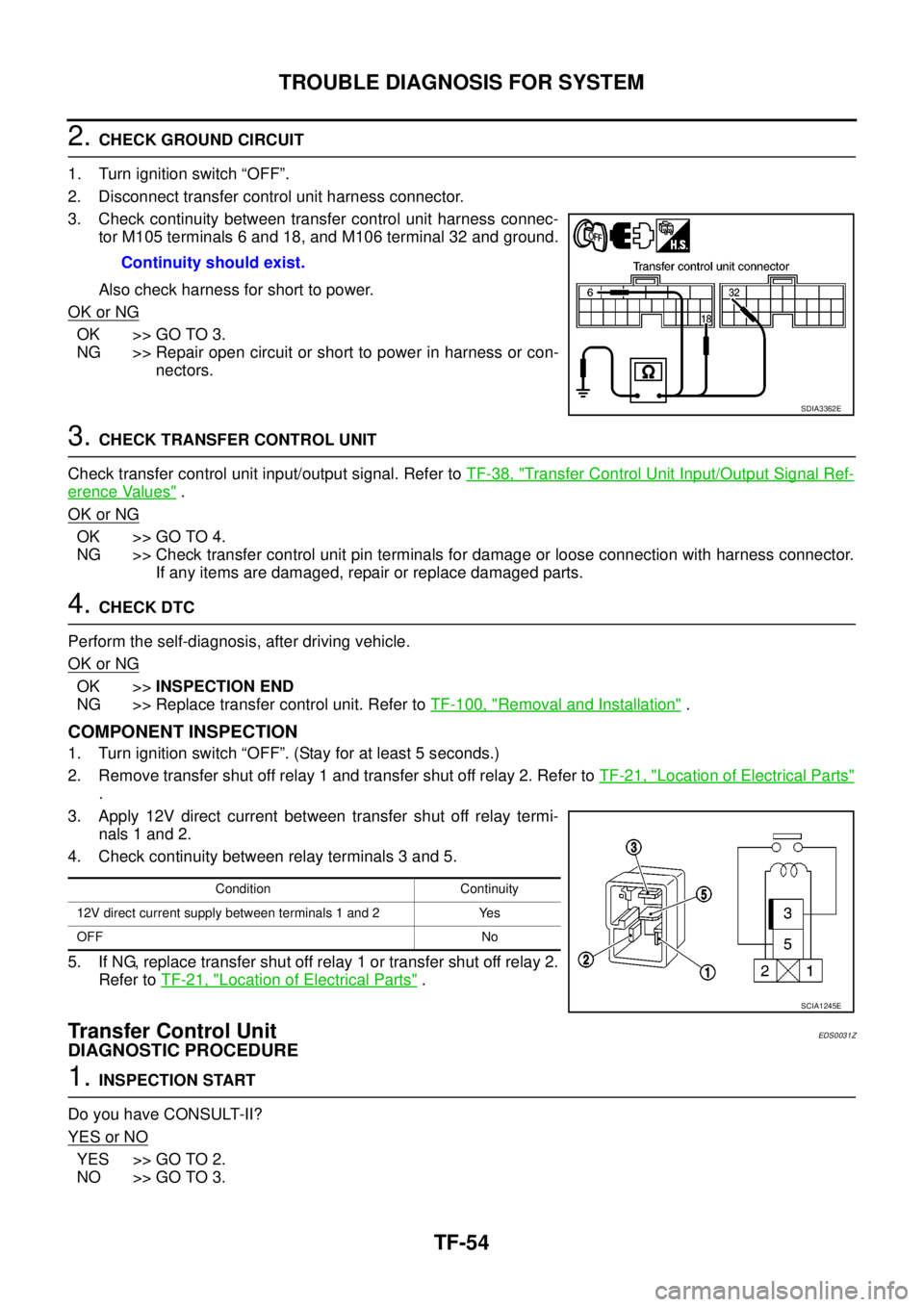

2.CHECK GROUND CIRCUIT
1. Turn ignition switch “OFF”.
2. Disconnect transfer control unit harness connector.
3. Check continuity between transfer control unit ha

Page 3022 of 3171

NISSAN NAVARA 2005 Repair Workshop Manual TROUBLE DIAGNOSIS FOR SYSTEM
TF-55
C
E
F
G
H
I
J
K
L
MA
B
TF
2.PERFORM SELF-DIAGNOSIS (WITH CONSULT-II)
With CONSULT-II
1. Turn ignition switch “ON”. (Do not start engine.)
2. Select “SELF-DIAG

TROUBLE DIAGNOSIS FOR SYSTEM
TF-55
C
E
F
G
H
I
J
K
L
MA
B
TF
2.PERFORM SELF-DIAGNOSIS (WITH CONSULT-II)
With CONSULT-II
1. Turn ignition switch “ON”. (Do not start engine.)
2. Select “SELF-DIAG RESULTS” mode for “ALL MODE AWD/4WD” with CONSULT-II.
3. Touch “ERASE”.
4. Turn ignition switch “OFF” and wait at least 10 seconds.
5. Perform the self-diagnosis again.
Is the
“CONTROL UNIT 1 [P1802]”,“CONTROL UNIT 2 [P1803]”,“CONTROL UNIT 3 [P1804]”or“CONTROL
UNIT 4 [P1809]”displayed?
YES >> Replace transfer control unit. Refer toTF-100, "Removal and Installation".
NO >>INSPECTION END
3.PERFORM SELF-DIAGNOSIS (WITHOUT CONSULT-II)
Without CONSULT-II
1. Perform the self-diagnosis and then erase self-diagnostic results. Refer toTF-49, "
SELF-DIAGNOSTIC
PROCEDURE (WITHOUT CONSULT-II)"andTF-51, "ERASE SELF-DIAGNOSIS".
2. Perform the self-diagnosis again.
Do the self-diagnostic results indicate AD converter?
YES >> Replace transfer control unit. Refer toTF-100, "Removal and Installation".
NO >>INSPECTION END
Output Shaft Revolution Signal (TCM)EDS00320
DIAGNOSTIC PROCEDURE
1.CHECK DTC WITH TCM
Perform self-diagnosis with TCM. Refer toAT-80, "
SELF-DIAGNOSTIC RESULT MODE".
Is any malfunction detected by self-diagnosis?
YES >> Check the malfunctioning system.
NO >> GO TO 2.
2.CHECK TRANSFER CONTROL UNIT
Check transfer control unit input/output signal. Refer toTF-38, "
Transfer Control Unit Input/Output Signal Ref-
erence Values".
OK or NG
OK >> GO TO 3.
NG >> Check transfer control unit pin terminals for damage or loose connection with harness connector.
If any items are damaged, repair or replace damaged parts.
3.CHECK DTC
Perform the self-diagnosis, after driving a vehicle for a while.
OK or NG
OK >>INSPECTION END
NG >> Perform self-diagnosis with TCM again. Refer toAT-80, "
SELF-DIAGNOSTIC RESULT MODE".
Vehicle Speed Sensor (ABS)EDS00321
DIAGNOSTIC PROCEDURE
1.CHECK DTC WITH ABS ACTUATOR AND ELECTRIC UNIT (CONTROL UNIT)
Perform self-diagnosis with ABS actuator and electric unit (control unit). Refer toBRC-18, "
Self-Diagnosis".
