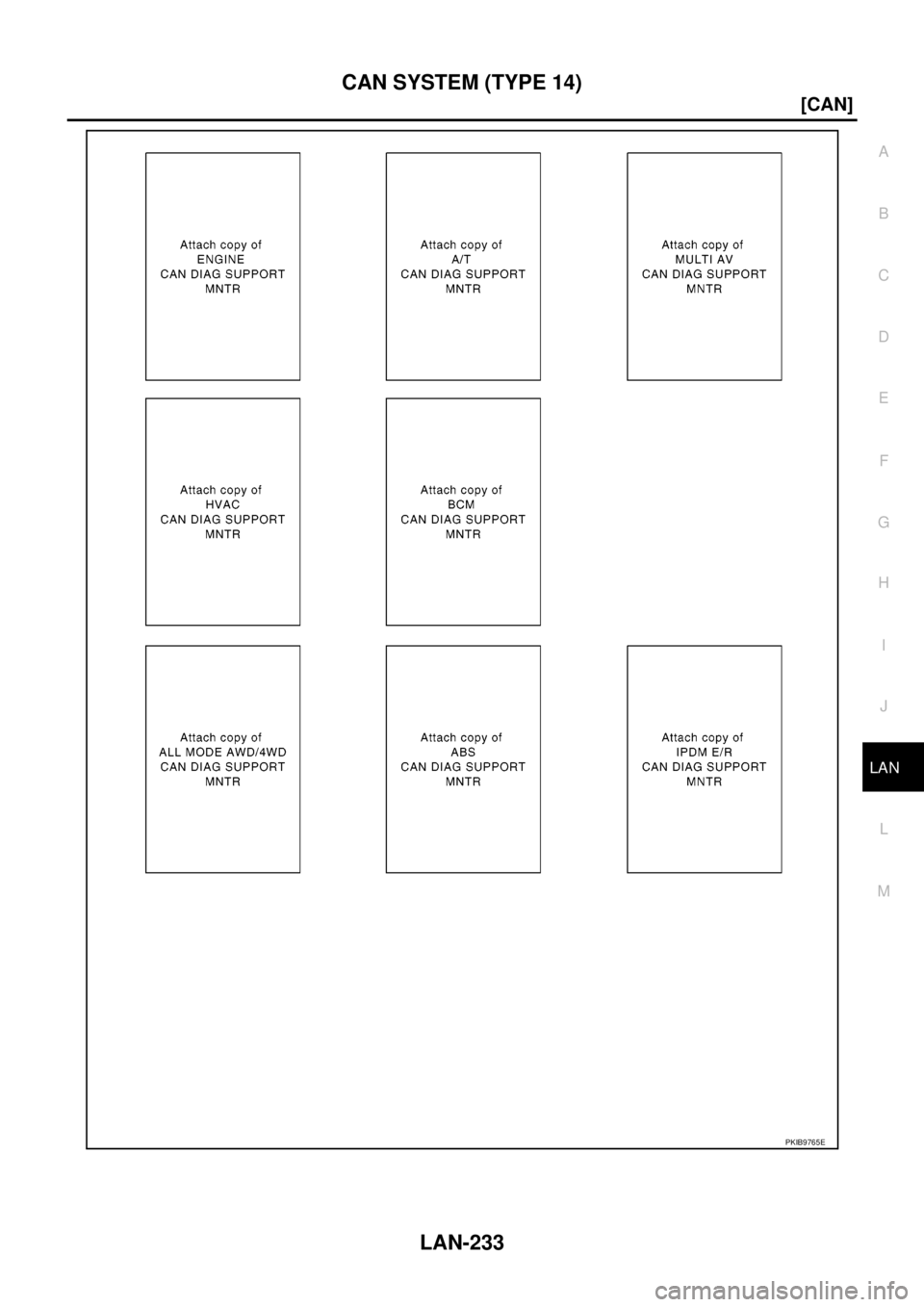

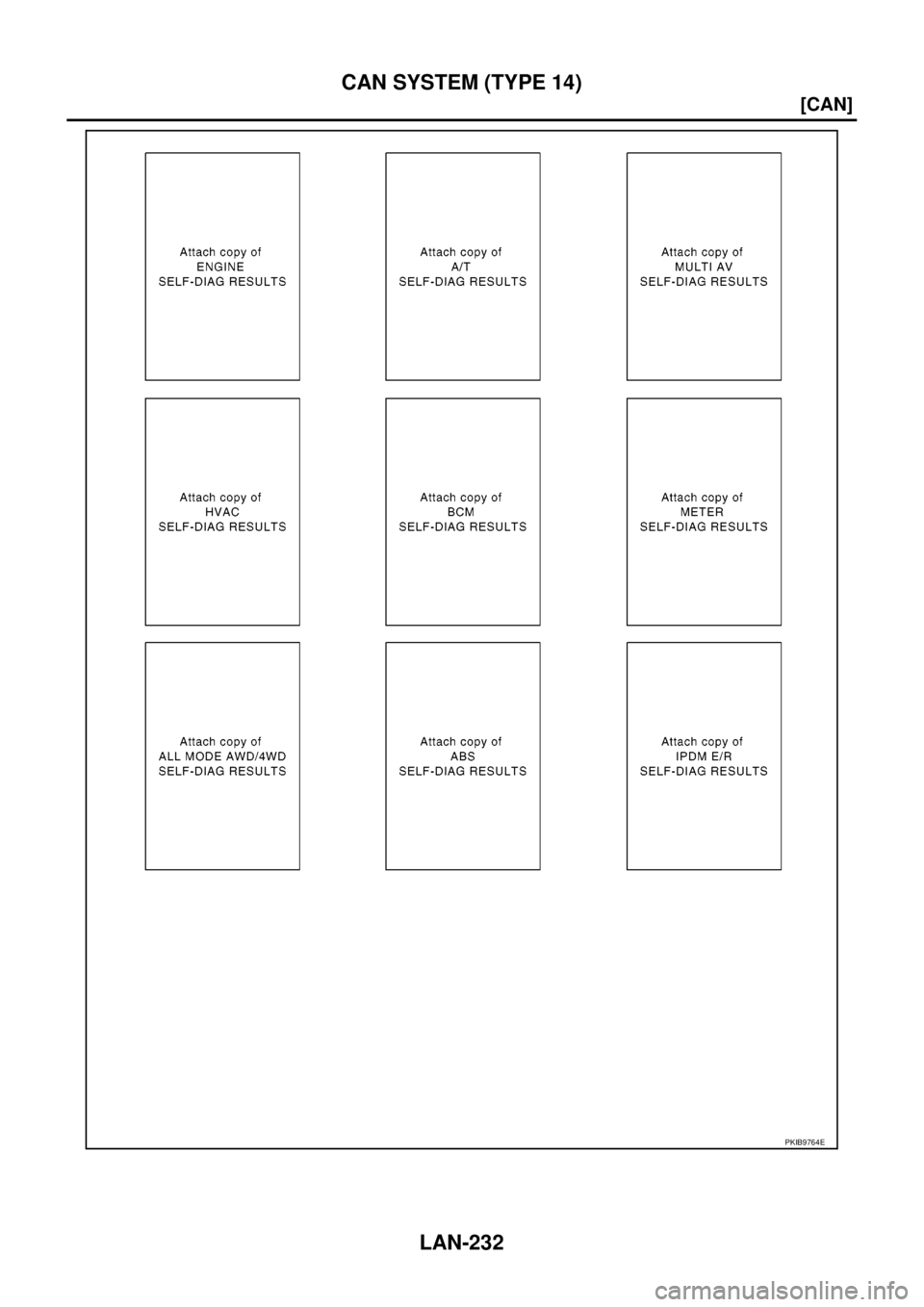

NISSAN NAVARA 2005 Repair Workshop Manual LAN-232 [CAN] CAN SYSTEM (TYPE 14) PKIB9764E

Page 2010 of 3171

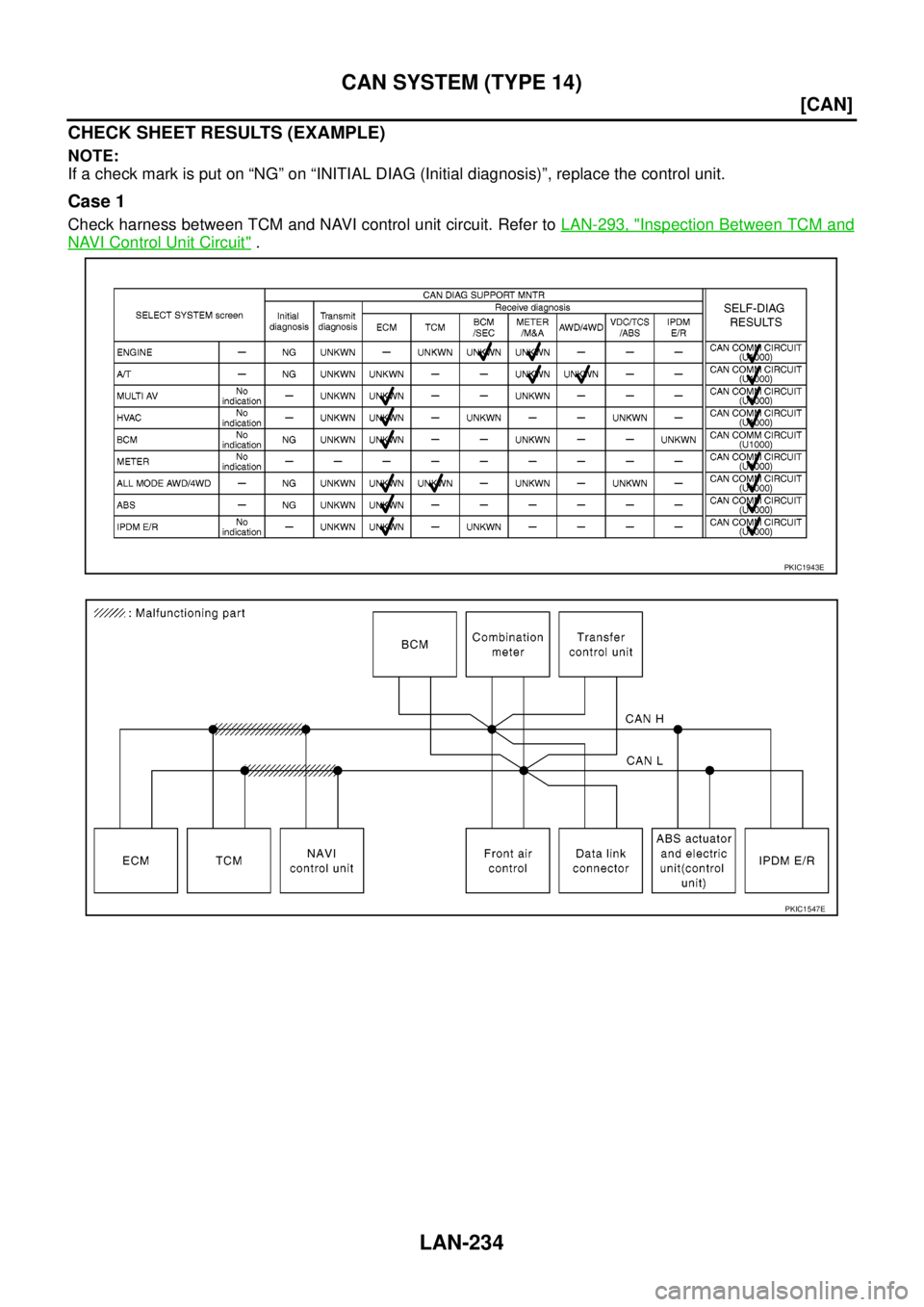

NISSAN NAVARA 2005 Repair Workshop Manual CAN SYSTEM (TYPE 14) LAN-233 [CAN] C D E F G H I J L MA B LAN PKIB9765E

Page 2011 of 3171

NISSAN NAVARA 2005 Repair Workshop Manual LAN-234 [CAN] CAN SYSTEM (TYPE 14) CHECK SHEET RESULTS (EXAMPLE) NOTE: If a check mark is put on “NG” on “INITIAL DIAG (Initial diagnosis)”, replace the control unit. Case 1 Check harness betw

Page 2012 of 3171

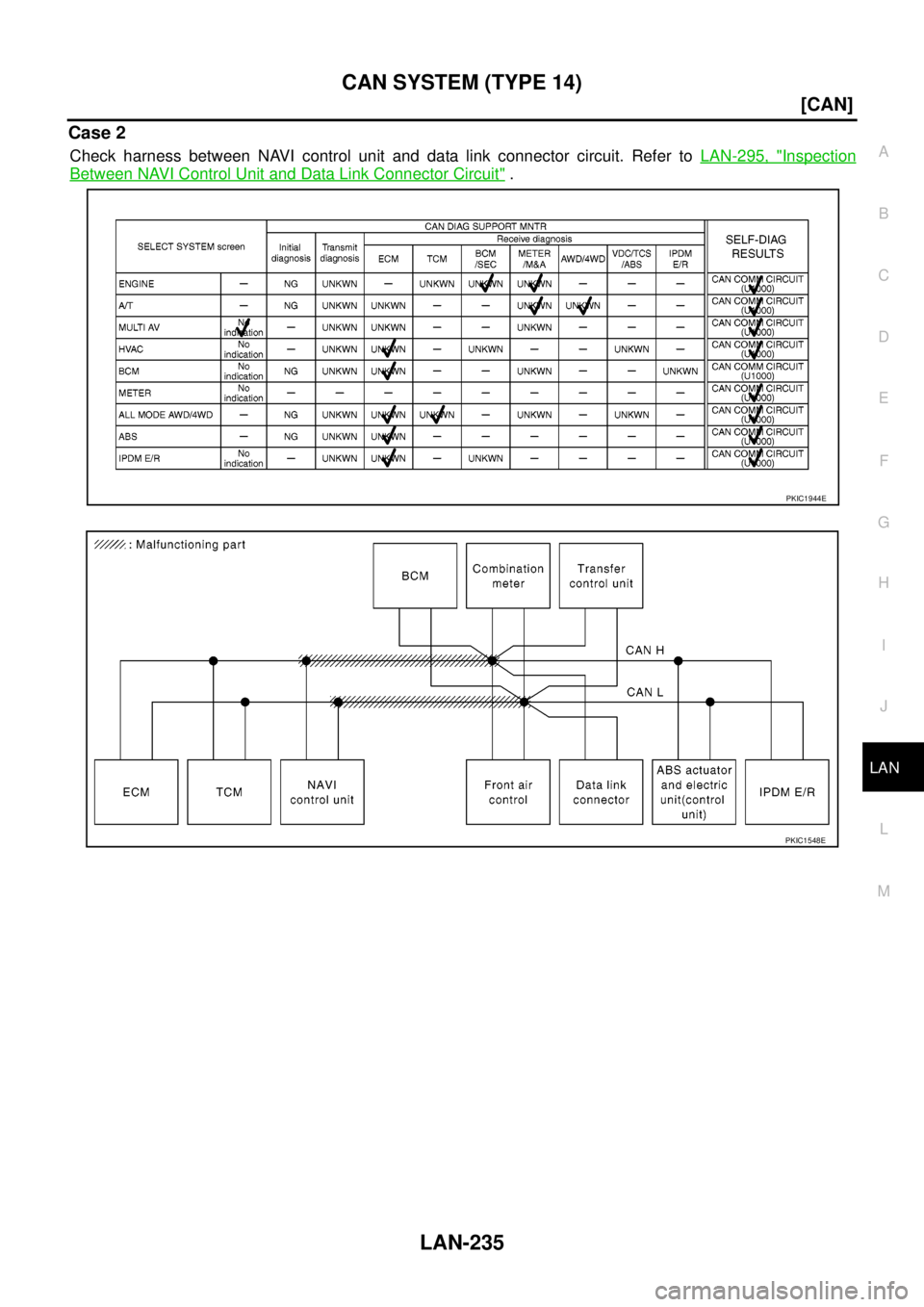

NISSAN NAVARA 2005 Repair Workshop Manual CAN SYSTEM (TYPE 14) LAN-235 [CAN] C D E F G H I J L MA B LAN Case 2 Check harness between NAVI control unit and data link connector circuit. Refer toLAN-295, "Inspection Between NAVI Control Unit and

Page 2013 of 3171

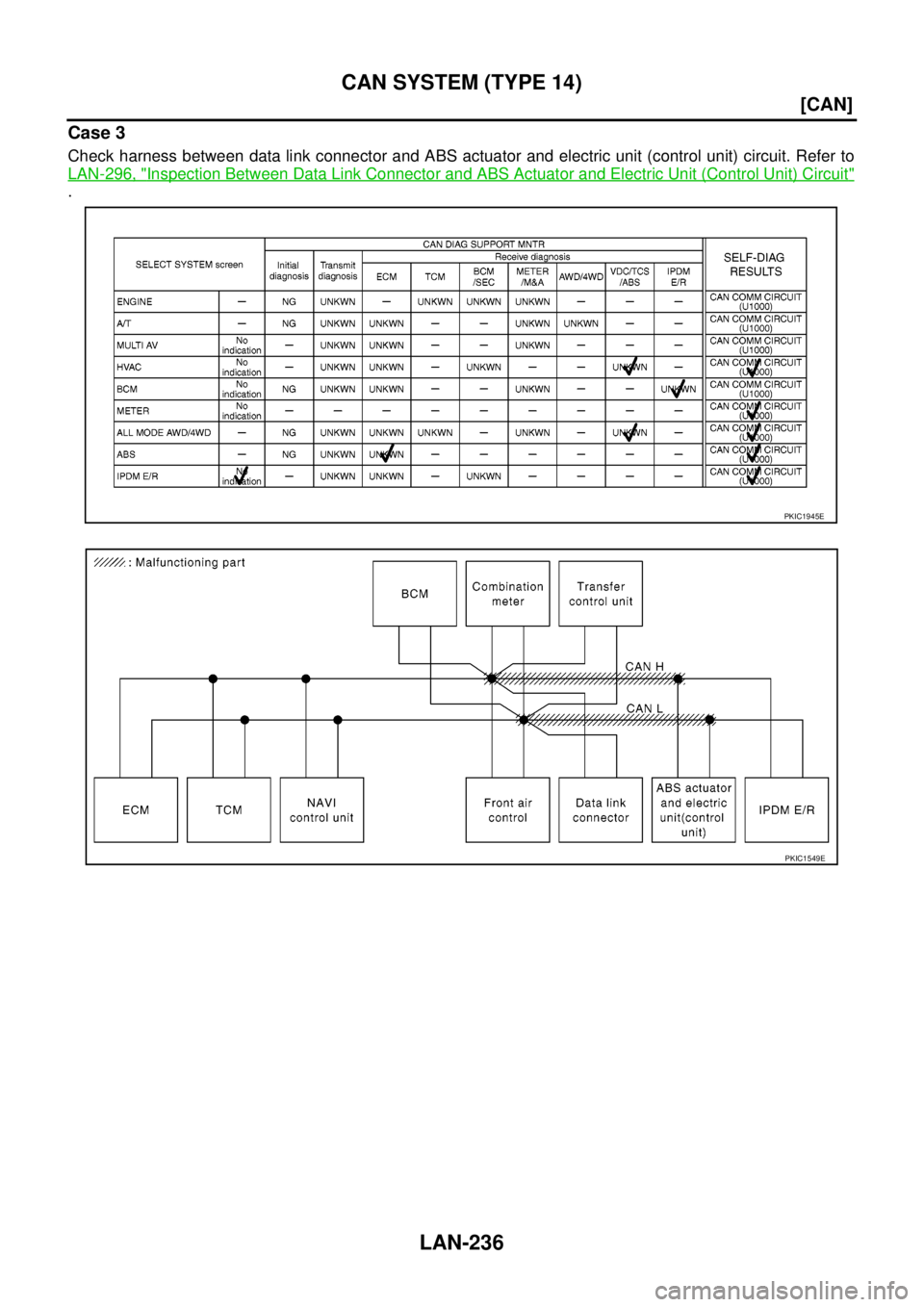

NISSAN NAVARA 2005 Repair Workshop Manual LAN-236 [CAN] CAN SYSTEM (TYPE 14) Case 3 Check harness between data link connector and ABS actuator and electric unit (control unit) circuit. Refer to LAN-296, " Inspection Between Data Link Connecto

Page 2014 of 3171

NISSAN NAVARA 2005 Repair Workshop Manual CAN SYSTEM (TYPE 14) LAN-237 [CAN] C D E F G H I J L MA B LAN Case 4 Check ECM circuit. Refer toLAN-298, "ECM Circuit Inspection for A/T Models". PKIC1946E PKIC1550E

Page 2015 of 3171

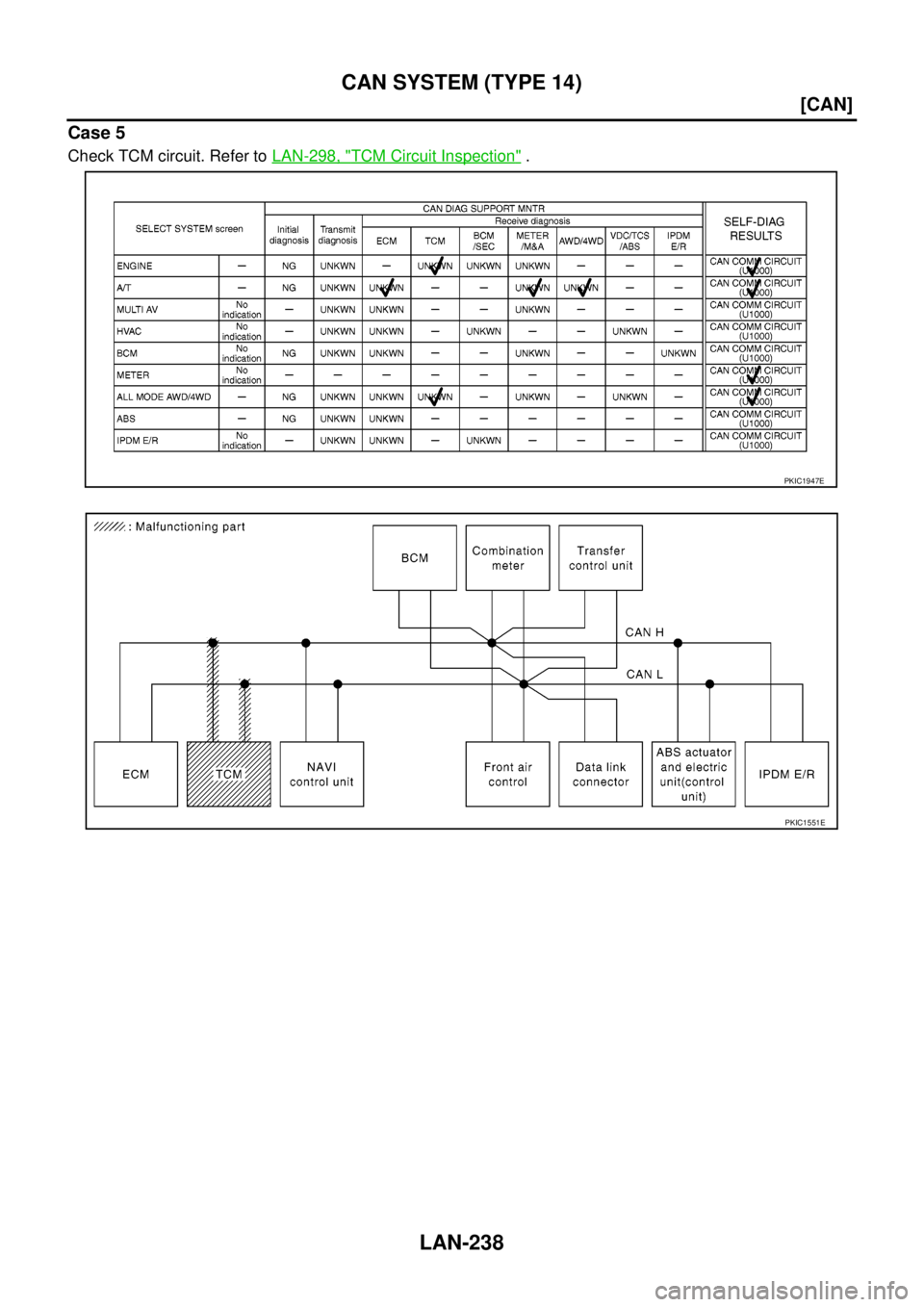

NISSAN NAVARA 2005 Repair Workshop Manual LAN-238 [CAN] CAN SYSTEM (TYPE 14) Case 5 Check TCM circuit. Refer toLAN-298, "TCM Circuit Inspection". PKIC1947E PKIC1551E

Page 2016 of 3171

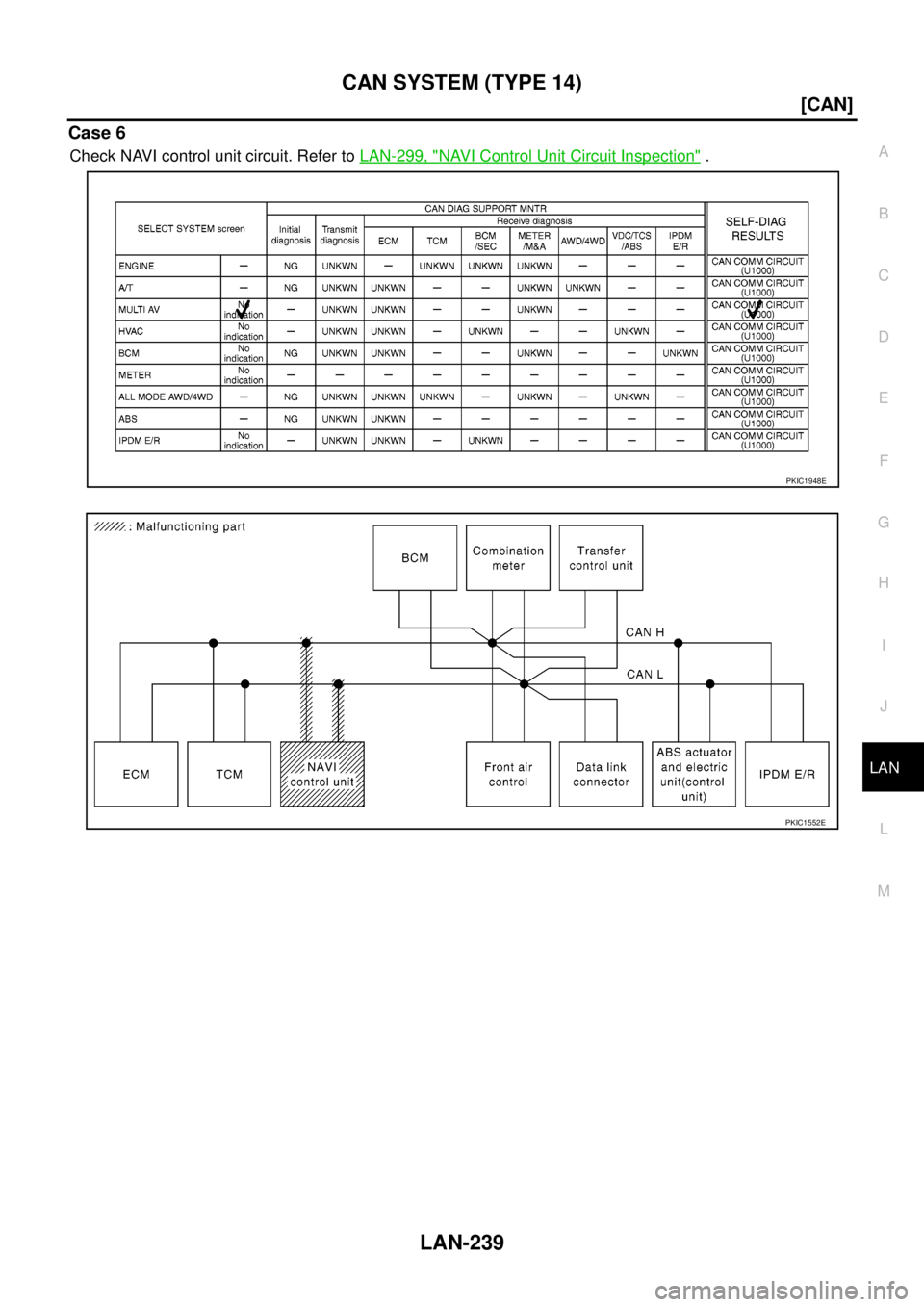

NISSAN NAVARA 2005 Repair Workshop Manual CAN SYSTEM (TYPE 14) LAN-239 [CAN] C D E F G H I J L MA B LAN Case 6 Check NAVI control unit circuit. Refer toLAN-299, "NAVI Control Unit Circuit Inspection". PKIC1948E PKIC1552E
