Page 2889 of 3171

NISSAN NAVARA 2005 Repair Workshop Manual SE-18

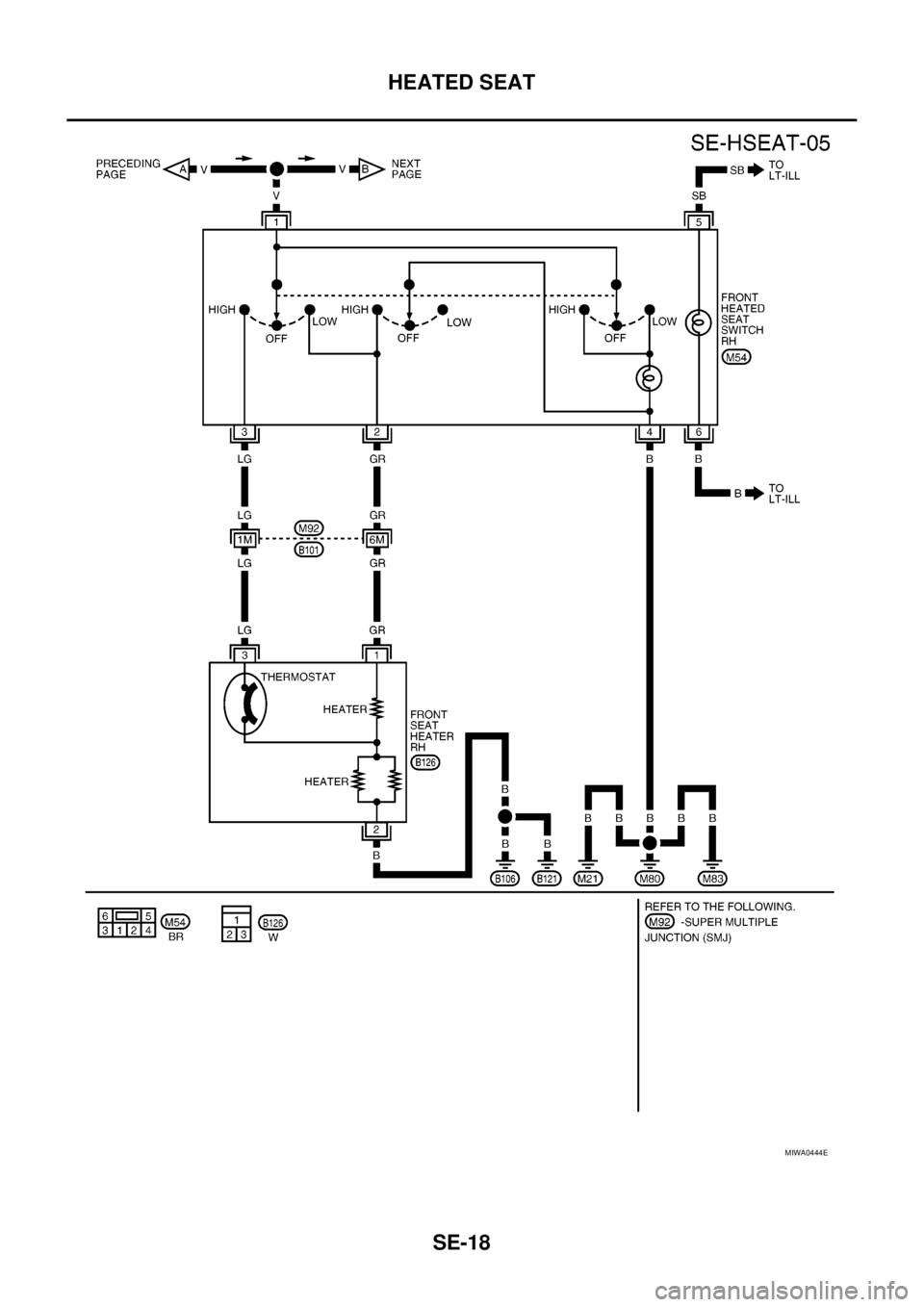

HEATED SEAT
MIWA0444E

Page 2890 of 3171

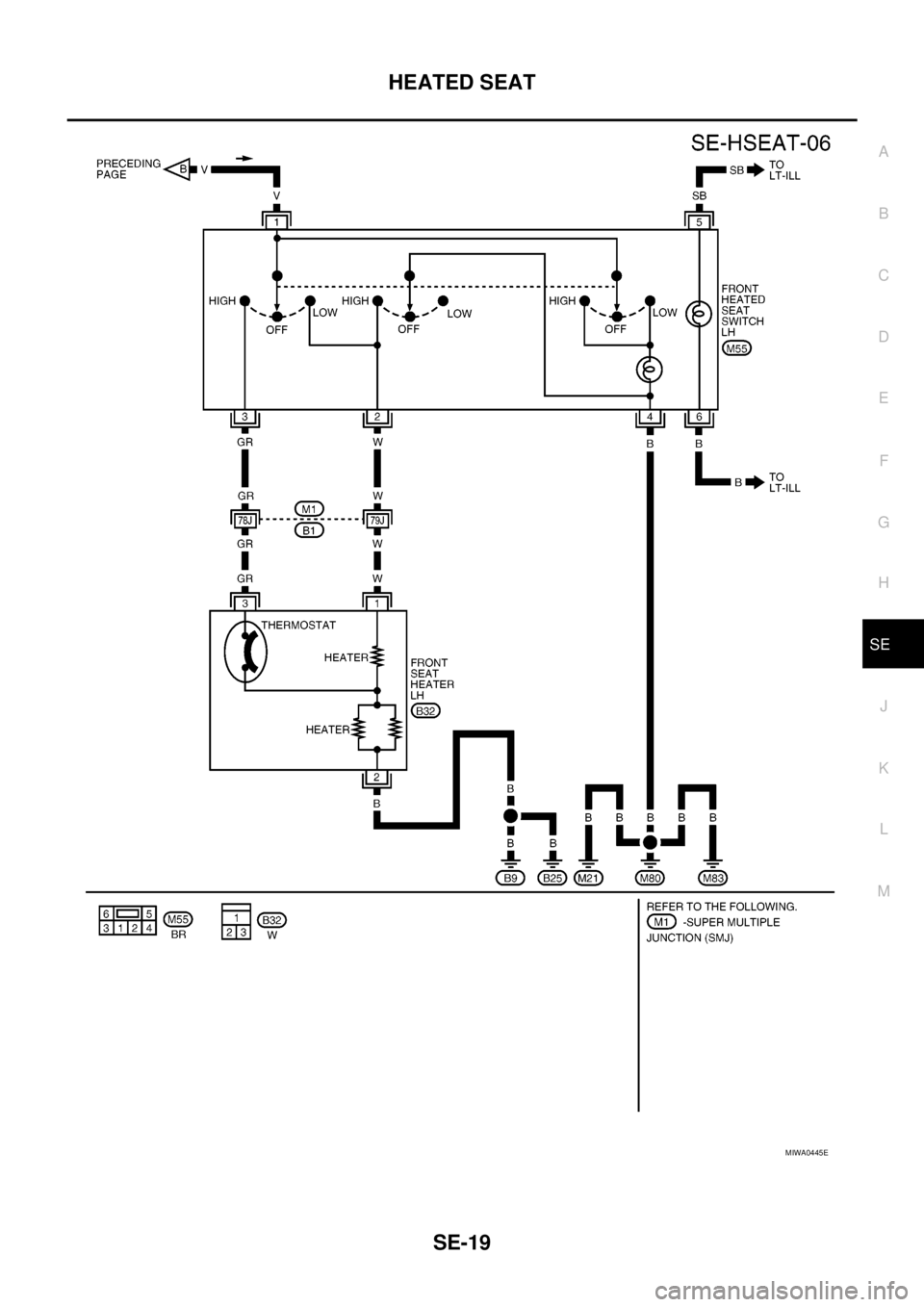

NISSAN NAVARA 2005 Repair Workshop Manual HEATED SEAT
SE-19
C
D
E
F
G
H
J
K
L
MA
B
SE
MIWA0445E

Page 2891 of 3171

NISSAN NAVARA 2005 Repair Workshop Manual SE-20
FRONT SEAT
FRONT SEAT
PFP:87000
Components Parts DrawingEIS00BCB

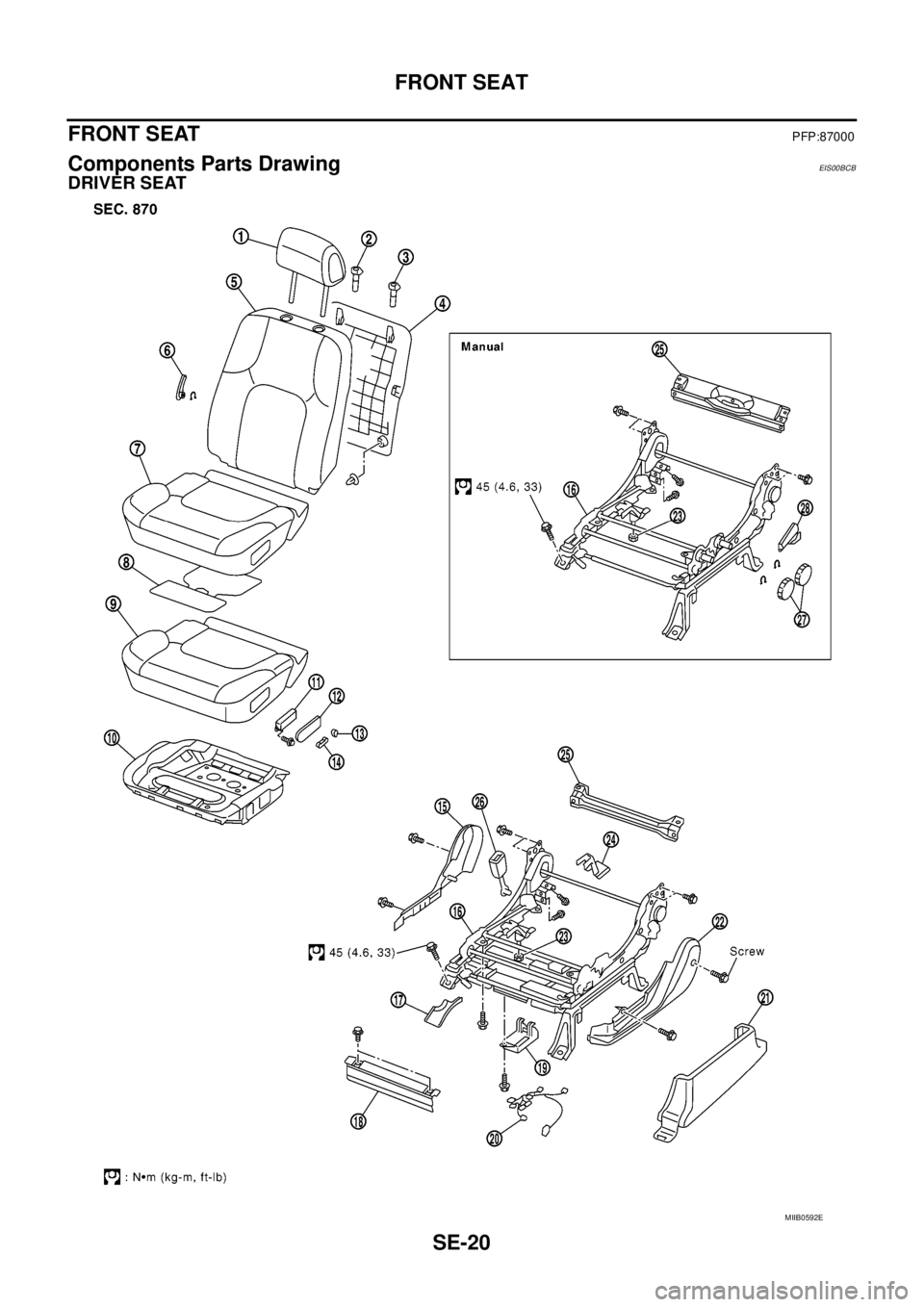

DRIVER SEAT
MIIB0592E

Page 2892 of 3171

NISSAN NAVARA 2005 Repair Workshop Manual FRONT SEAT
SE-21
C
D
E
F
G
H
J
K
L
MA
B
SE
1. Headrest 2. Headrest holder (free) 3. Headrest holder (locked)
4. Seatback board 5. Seatback assembly 6. Lumbar support lever knob
7. Seat cushion trim 8.

Page 2893 of 3171

NISSAN NAVARA 2005 Repair Workshop Manual SE-22
FRONT SEAT

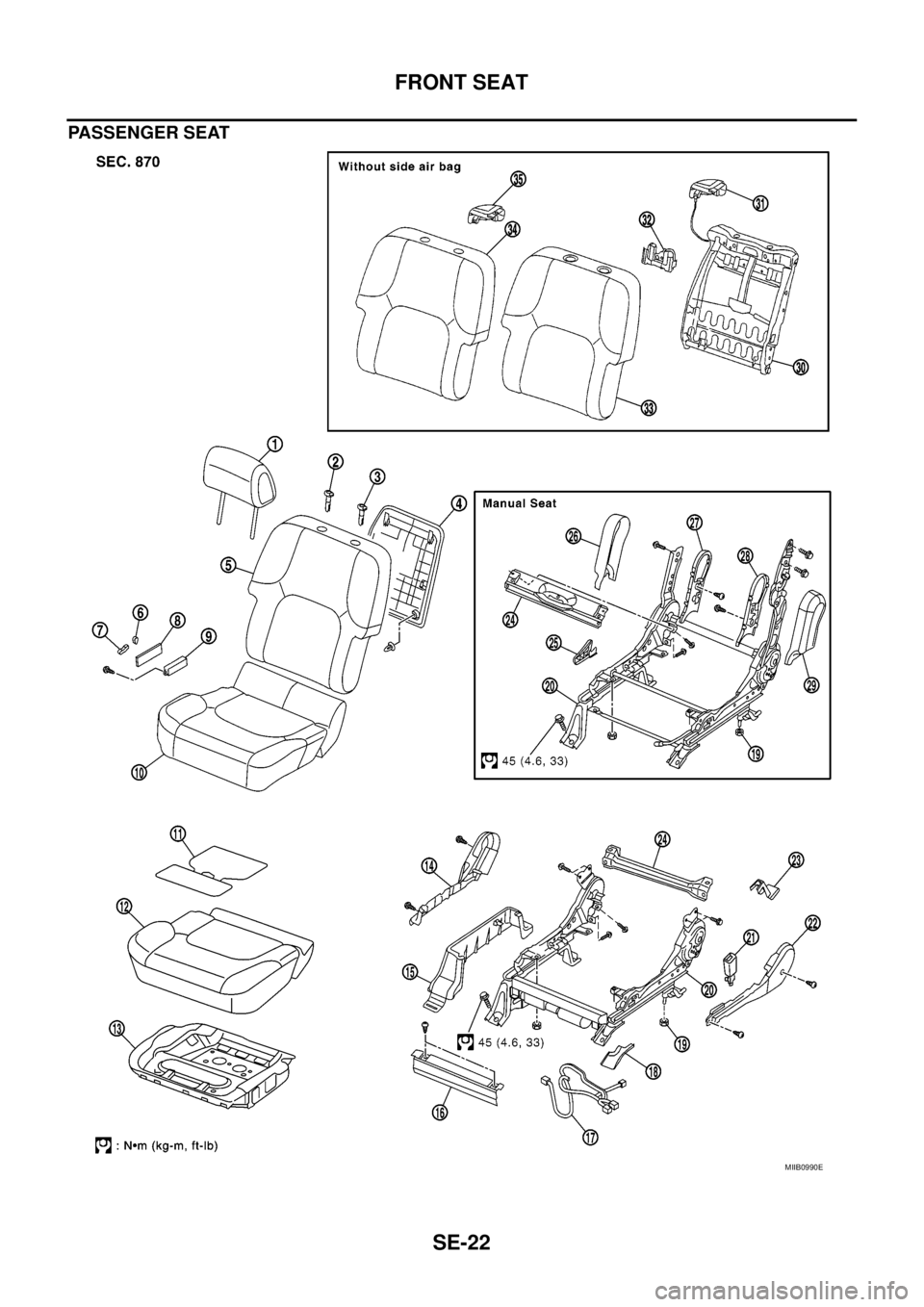

PASSENGER SEAT
MIIB0990E

Page 2894 of 3171

NISSAN NAVARA 2005 Repair Workshop Manual FRONT SEAT
SE-23
C
D
E
F
G
H
J
K
L
MA
B
SE
Removal and InstallationEIS00C62
REMOVAL
When removing or installing the seat trim, handle it carefully to keep dirt out and avoid damage.
CAUTION:
lBefore r

FRONT SEAT
SE-23
C
D
E
F
G
H
J
K
L
MA
B
SE
Removal and InstallationEIS00C62
REMOVAL
When removing or installing the seat trim, handle it carefully to keep dirt out and avoid damage.
CAUTION:
lBefore removing the front seat, turn the ignition switch off, disconnect both battery cables and
wait at least 3 minutes.
lWhen checking the power seat circuit for continuity using a circuit tester, do not confuse its con-
nector with the side air bag module connector. Such an error may cause the air bag to deploy.
lDo not drop, tilt, or bump the side air bag module while installing the seat. Always handle it with
care.
lAfter front side air bag module inflates, front seatback assembly must be replaced.

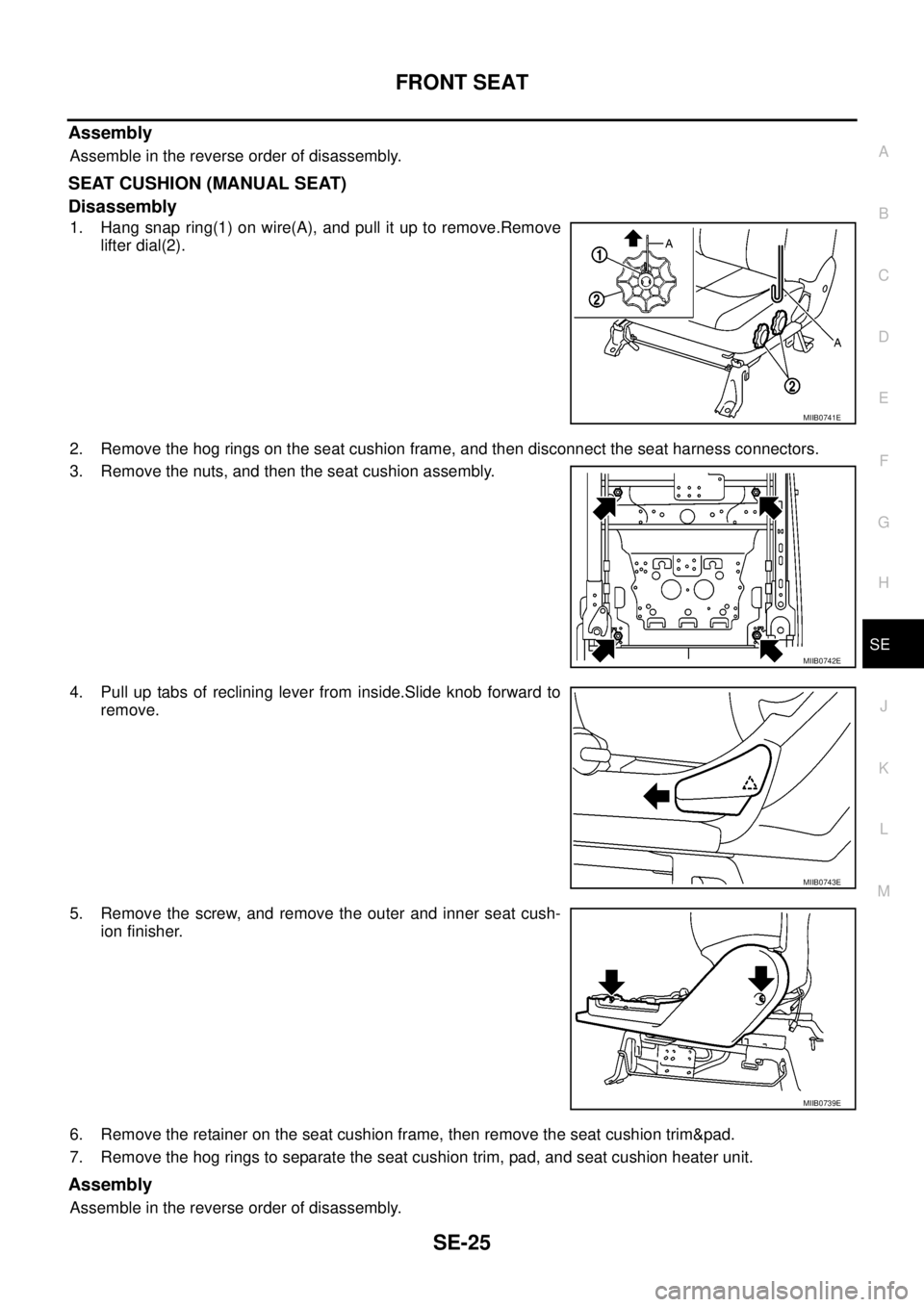

1. Slide the seat backward, and then remove the seat slide cover
cap(1) and rear leg cover(2), and then remove the seat mount-
ing bolts.
2. Slide the seat forward, and then open the seat slide cover
cap(1) and remove the front leg cover(2), and then remove the
seat mounting bolts.
NOTE:
If disassembling the seat after removal, set the front/rear cush-
ion lifters to the top position.
3. Disconnect both battery cables and wait at least 3 minutes.
4. Disconnect the side air bag module harness connector.
5. Disconnect the power seat harness connectors and remove the seat from the vehicle.
NOTE:
When removing and installing the seat, use shop cloths to protect the vehicle from damage.
1. Headrest 2. Headrest holder (free) 3. Headrest holder (locked)
4. Seatback board 5. Seatback assembly 6. Reclining switch knob
7. Slide & switch knob 8. Power seat switch escutcheon 9. Power seat switch
10. Seat cushion trim 11. Seat cushion heater unit 12. Seat cushion pad
13. Seat cushion frame 14. Seat cushion outer finisher 15. Seat slide cover
16. Seat cushion front finisher 17. Power seat harness 18. Front leg cover
19. Gasket 20. Seat adjuster assembly 21. Seat belt buckle
22. Seat cushion inner finisher 23. Rear leg cover 24. Panel
25. Reclining lever knob 26. Outboard reclining arm outer cover 27. Outboard reclining arm inner cover
28. Inboard reclining arm inner cover 29. Outboard reclining arm inner cover 30. Seatback frame
31. Seatback knob 32. Dynamic damper 33. Seatback trim
34. Seatback pad 35. Seatback knob cover
MIIB0734E
MIIB0735E

Page 2895 of 3171

NISSAN NAVARA 2005 Repair Workshop Manual SE-24
FRONT SEAT
INSTALLATION
Install is in the reverse order of removal.
Disassembly and AssemblyEIS00BCC
SEAT CUSHION (POWER SEAT)
Disassembly
1. Remove the hog rings on the seat cushion frame, and

Page 2896 of 3171

NISSAN NAVARA 2005 Repair Workshop Manual FRONT SEAT
SE-25
C
D
E
F
G
H
J
K
L
MA
B
SE
Assembly
Assemble in the reverse order of disassembly.
SEAT CUSHION (MANUAL SEAT)
Disassembly
1. Hang snap ring(1) on wire(A), and pull it up to remove.Remov
