WW-58
POWER SOCKET
Removal and Installation of Front Power Socket
EKS00P6O
REMOVAL
1. Remove lower glove box assembly. Refer toIP-10, "INSTRUMENT PANEL ASSEMBLY".
2. Disconnect power socket connector.
3. Remove inner socket (1) and ring (2) from cluster lid D, while
pressing pawls (A).
4. Remove inner socket (1) from ring (2), while pressing the hook
(B) on ring (2) out from square hole (C).
INSTALLATION
Note the following, and installation is the reverse order of removal.
CAUTION:
Align notches of ring and cluster lid D when installing.
Removal and Installation of Console Power SocketEKS00P6P
REMOVAL
1. Remove inner socket from ring, while pressing the hook on ring
out from square hole.
2. Disconnect power socket connector.
3. Remove ring from power socket finisher, while pressing pawls.
INSTALLATION
Note the following, and installation is the reverse order of removal.
CAUTION:
Align notches of ring and cluster lid D when installing.
SKIB6448E
WKIA1035E
WW-60

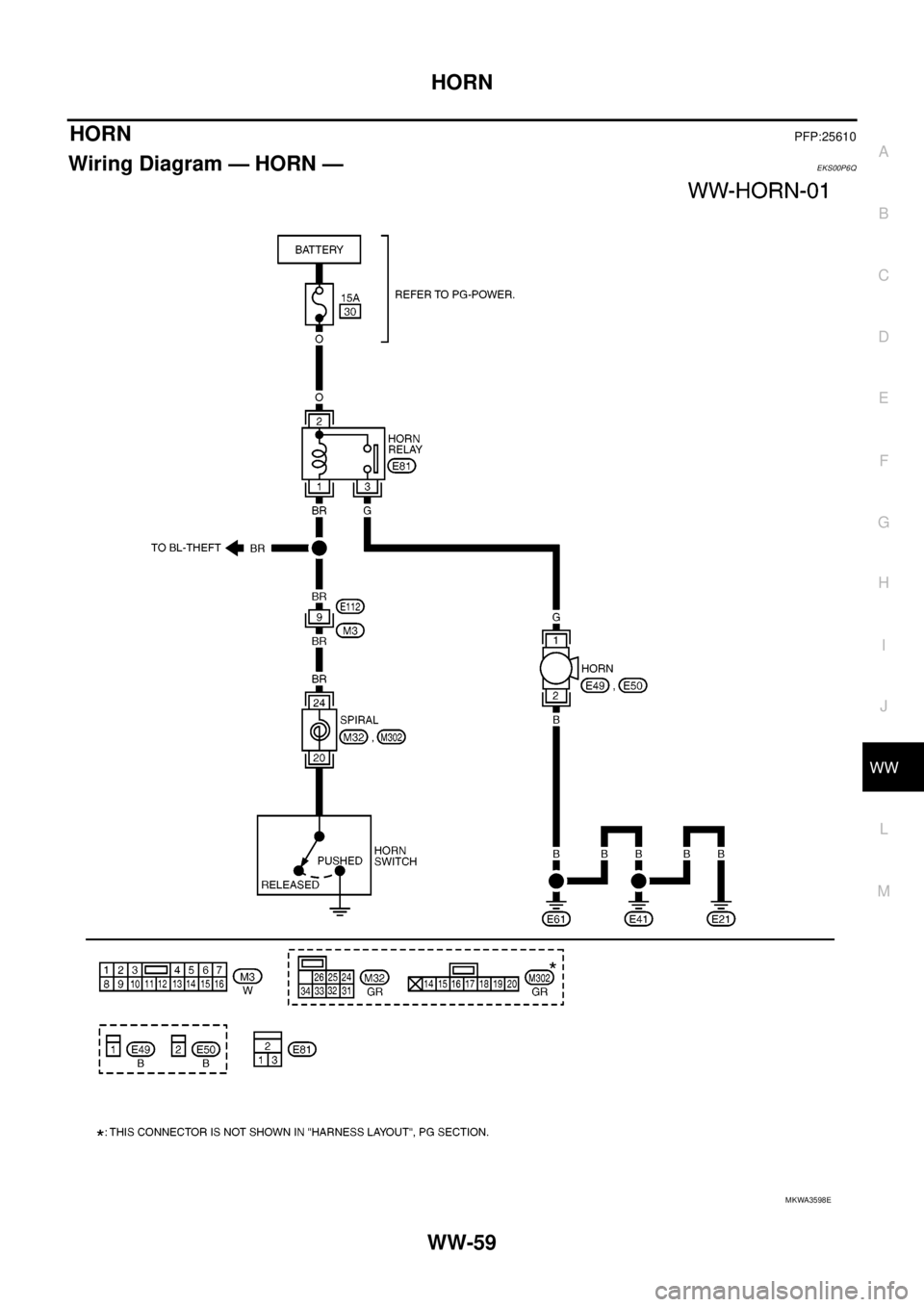

HORN
Removal and Installation of Horn
EKS00P6R
REMOVAL
1. Remove front grille. Refer toEI-19, "FRONT GRILLE".
2. Disconnect horn connectors (2).
3. Remove horn mounting bolt (1) and remove horn (A) from vehi-
cle.
INSTALLATION
Installation is the reverse order of removal.
PKIC0466E
Horn mounting bolt : 17 N·m (1.7 kg-m, 13 ft-lb)
