LT-30
HEADLAMP -CONVENTIONAL TYPE-
Removal and Installation
EKS00Q9W
REMOVAL
1. Remove front grille. Refer toEI-19, "FRONT GRILLE".
2. Remove front bumper. Refer toEI-15, "
FRONT BUMPER".
3. Disconnect headlamp connector.
4. Remove headlamp mounting bolts.
INSTALLATION
Installation is the reverse order of removal.
Disassembly and AssemblyEKS00P81
DISASSEMBLY
PKIC1208E
Headlamp mounting bolt : 6.0 N·m (0.61 kg-m, 53 in-lb)
1. Headlamp assembly 2. Headlamp bulb 3. Headlamp retaining ring
4. Wiring harness assembly 5. Clearance lamp bulb 6. Front turn signal lamp bulb
LKIA0570E
Page 2114 of 3171
HEADLAMP - DAYTIME LIGHT SYSTEM -
LT-31
C
D
E
F
G
H
I
J
L
MA
B
LT
HEADLAMP - DAYTIME LIGHT SYSTEM -PFP:26010

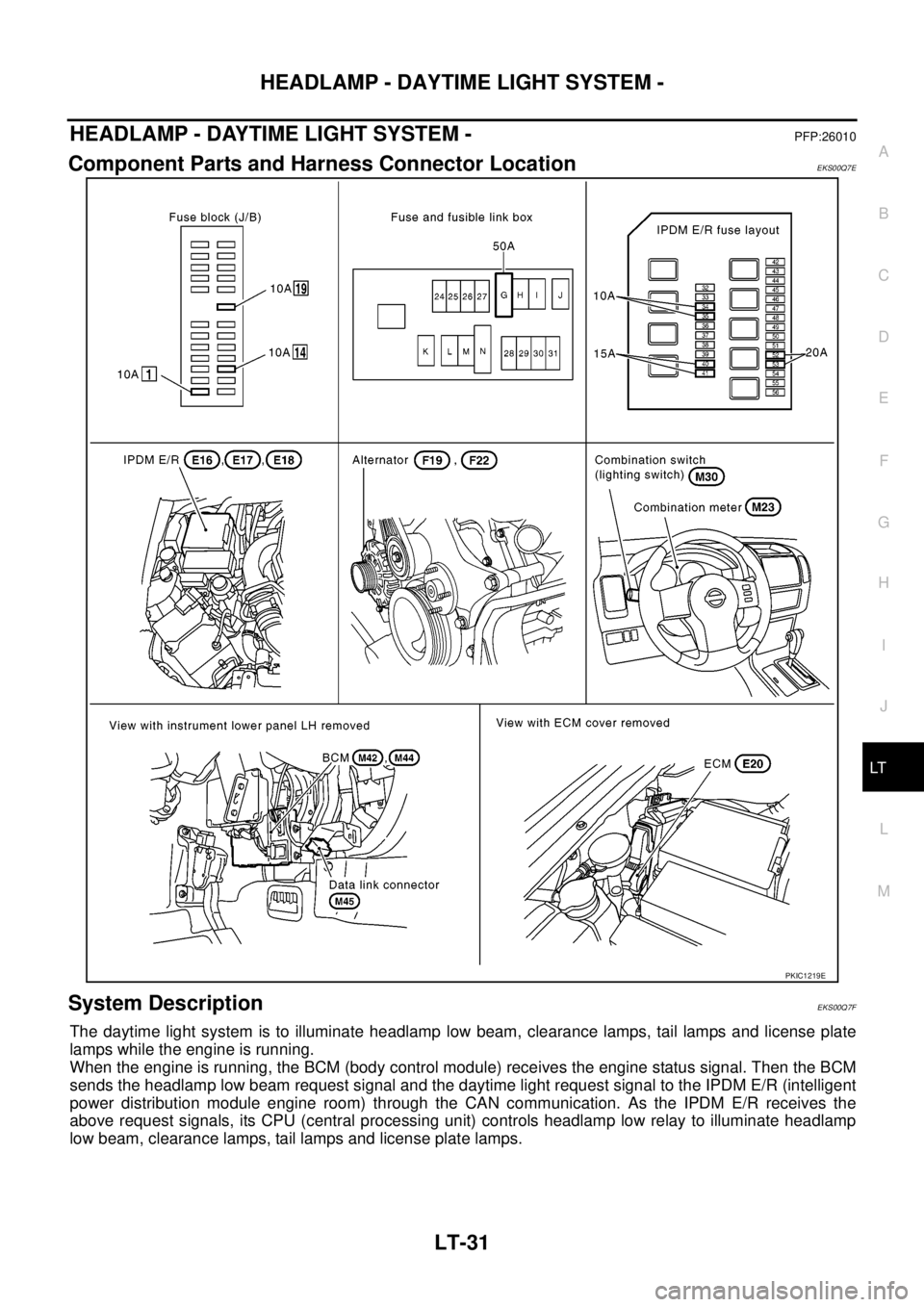

Component Parts and Harness Connector LocationEKS00Q7E
System DescriptionEKS00Q7F
The daytime light system is to illuminate headlamp low beam, clearance lamps, tail lamps and license plate
lamps while the engine is running.
When the engine is running, the BCM (body control module) receives the engine status signal. Then the BCM
sends the headlamp low beam request signal and the daytime light request signal to the IPDM E/R (intelligent
power distribution module engine room) through the CAN communication. As the IPDM E/R receives the
above request signals, its CPU (central processing unit) controls headlamp low relay to illuminate headlamp
low beam, clearance lamps, tail lamps and license plate lamps.
PKIC1219E
Page 2115 of 3171

LT-32
HEADLAMP - DAYTIME LIGHT SYSTEM -
OUTLINE
Power is supplied at all times
lto ignition relay (located in IPDM E/R)
lto headlamp high relay (located in IPDM E/R) and
lto headlamp low relay (located in IPDM E/R), from battery directly,
lthrough 50A fusible link (letter G, located in fuse and fusible link box)
lto BCM terminal 57,
lthrough 20A fuse (No. 52, located in IPDM E/R) and
lthrough 20A fuse (No. 53, located in IPDM E/R)
lto CPU (located in IPDM E/R),
lthrough 10A fuse [No. 19, located in fuse block (J/B)]
lto combination meter terminal 3.
With the ignition switch in the ON or START position, power is supplied
lto ignition relay (located in IPDM E/R),
lthrough 10A fuse [No. 1, located in fuse block (J/B)]
lto BCM terminal 3,
lthrough 10A fuse [No. 14, located in fuse block (J/B)]
lto combination meter terminal 16.
Ground is supplied at all times
lto BCM terminal 55 and
lto combination meter terminal 23
lthrough grounds M21, M80 and M83,
lto IPDM E/R terminals 38 and 59
lthrough grounds E21, E41 and E61.
DAYTIME LIGHT OPERATION
With the lighting switch in the OFF position and engine running, the BCM receives input signal requesting
headlamp low beam, clearance lamp, license plate lamp, and tail lamp to illuminate. This input signal is com-
municated to the IPDM E/R through the CAN communication. The CPU located in the IPDM E/R controls
headlamp low relay.
lthrough 15A fuse (No. 41, located in IPDM E/R)
lthrough IPDM E/R terminal 54
lto front combination lamp RH terminal 1,
lthrough 15A fuse (No. 40, located in IPDM E/R)
lthrough IPDM E/R terminal 52
lto front combination lamp LH terminal 1.
Ground is supplied at all times
lto front combination lamp RH and LH terminals 3
lthrough grounds E21, E41 and E61.
With power and ground supplied, the headlamp low beam, clearance, license plate and tail lamps illuminate.
Page 2116 of 3171
HEADLAMP - DAYTIME LIGHT SYSTEM -
LT-33
C
D
E
F
G
H
I
J
L
MA
B
LT
COMBINATION SWITCH READING FUNCTION
Refer toBCS-3, "COMBINATION SWITCH READING FUNCTION".
AUTO LIGHT OPERATION
Refer toLT-49, "System Description".
CAN Communication System DescriptionEKS00Q7G
Refer toLAN-23, "CAN COMMUNICATION".
CAN Communication UnitEKS00Q7H
Refer toLAN-30, "CAN Communication Unit".
Page 2117 of 3171
LT-34
HEADLAMP - DAYTIME LIGHT SYSTEM -

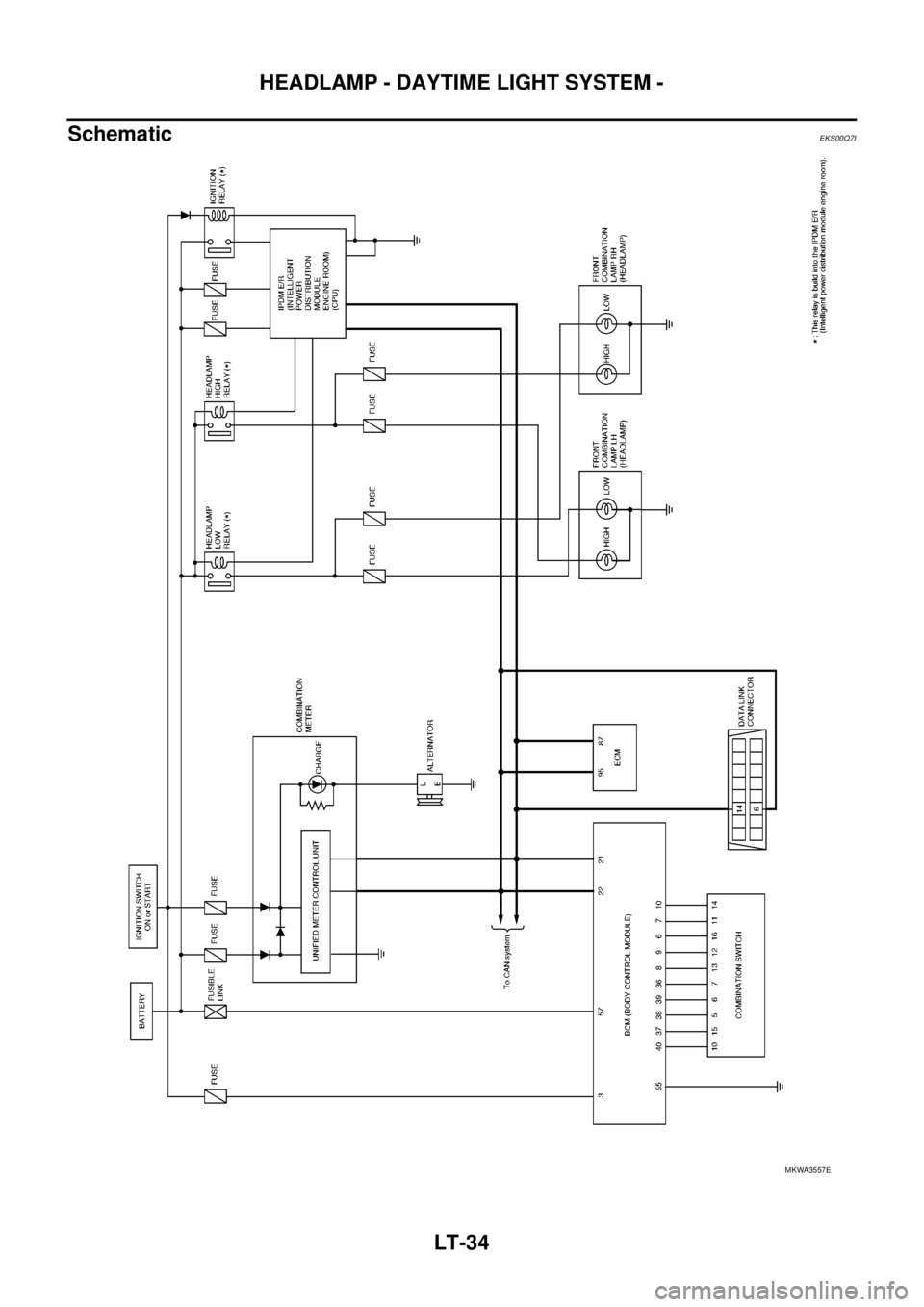

Schematic
EKS00Q7I
MKWA3557E
Page 2118 of 3171
HEADLAMP - DAYTIME LIGHT SYSTEM -
LT-35
C
D
E
F
G
H
I
J
L
MA
B
LT

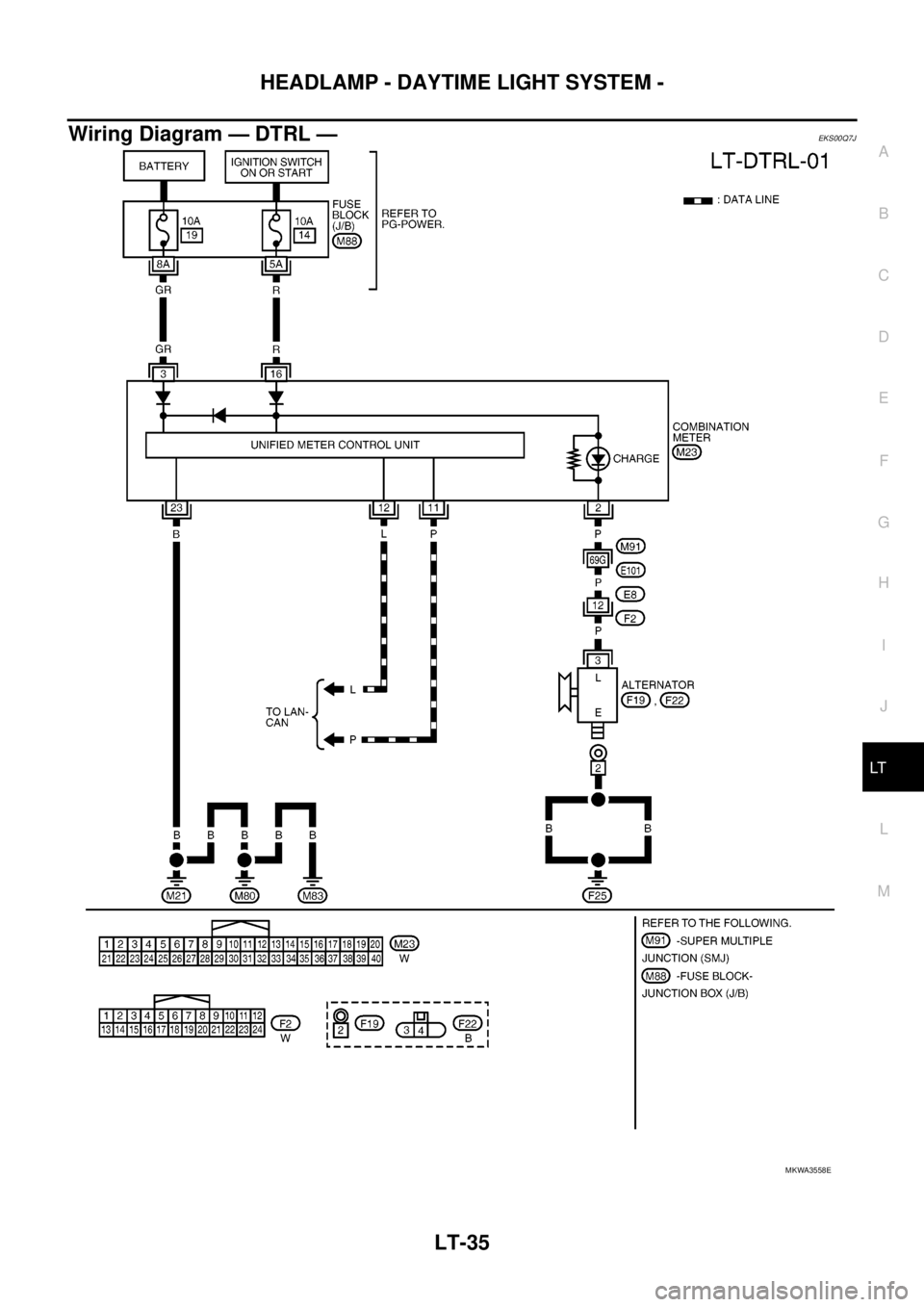

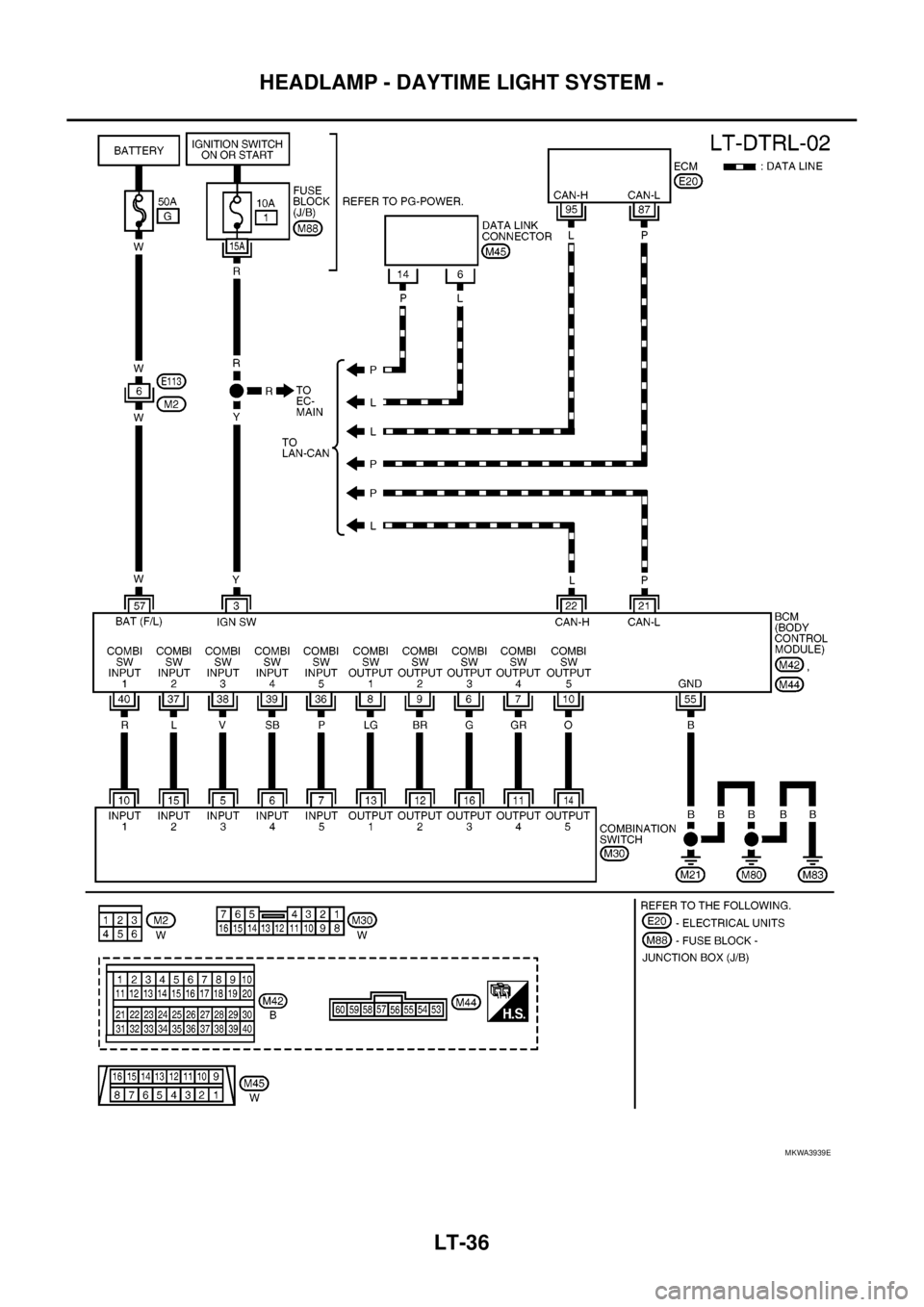

Wiring Diagram — DTRL —EKS00Q7J
MKWA3558E
Page 2119 of 3171
LT-36
HEADLAMP - DAYTIME LIGHT SYSTEM -

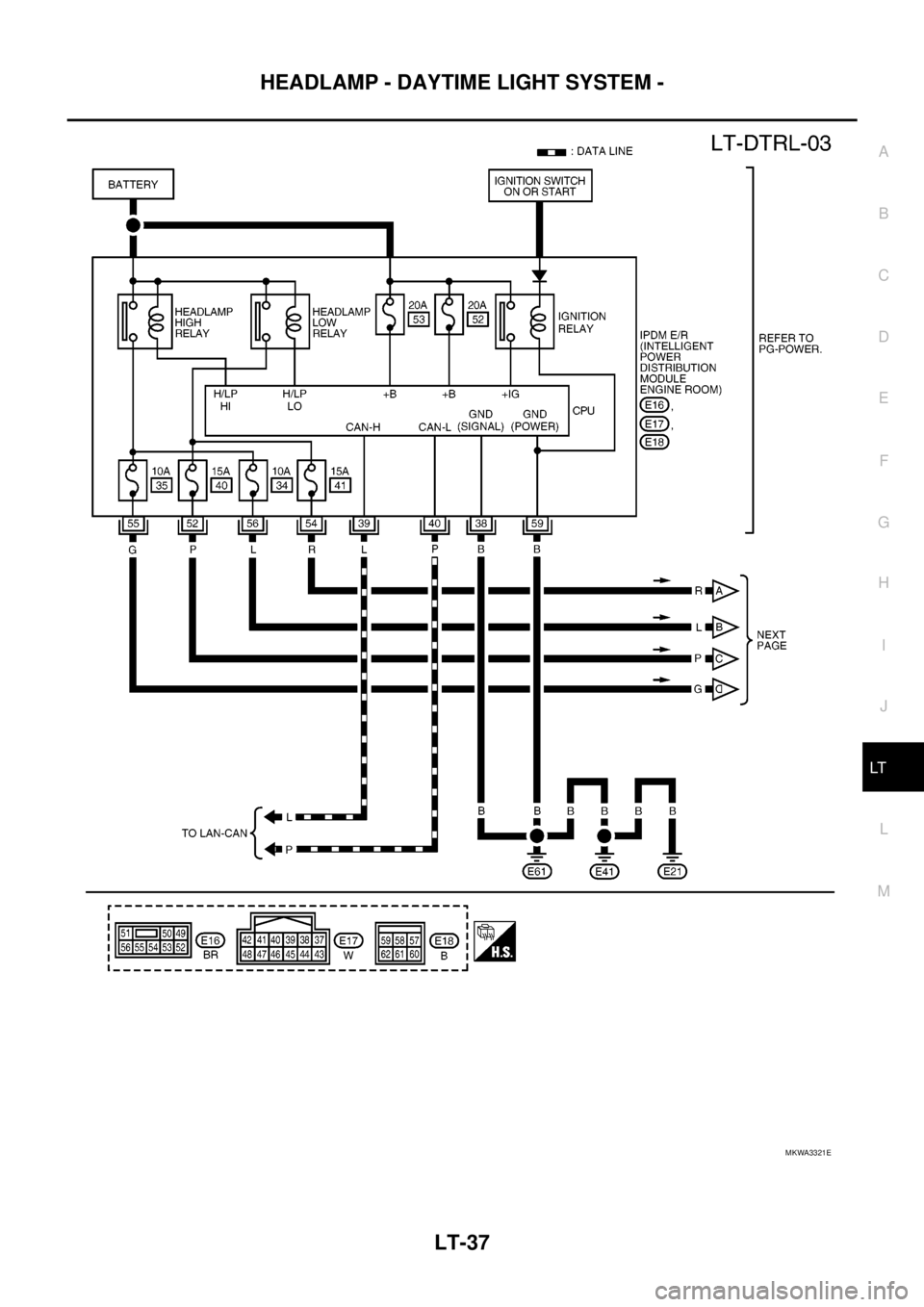

MKWA3939E
Page 2120 of 3171
HEADLAMP - DAYTIME LIGHT SYSTEM -
LT-37
C
D
E
F
G
H
I
J
L
MA
B
LT
MKWA3321E
